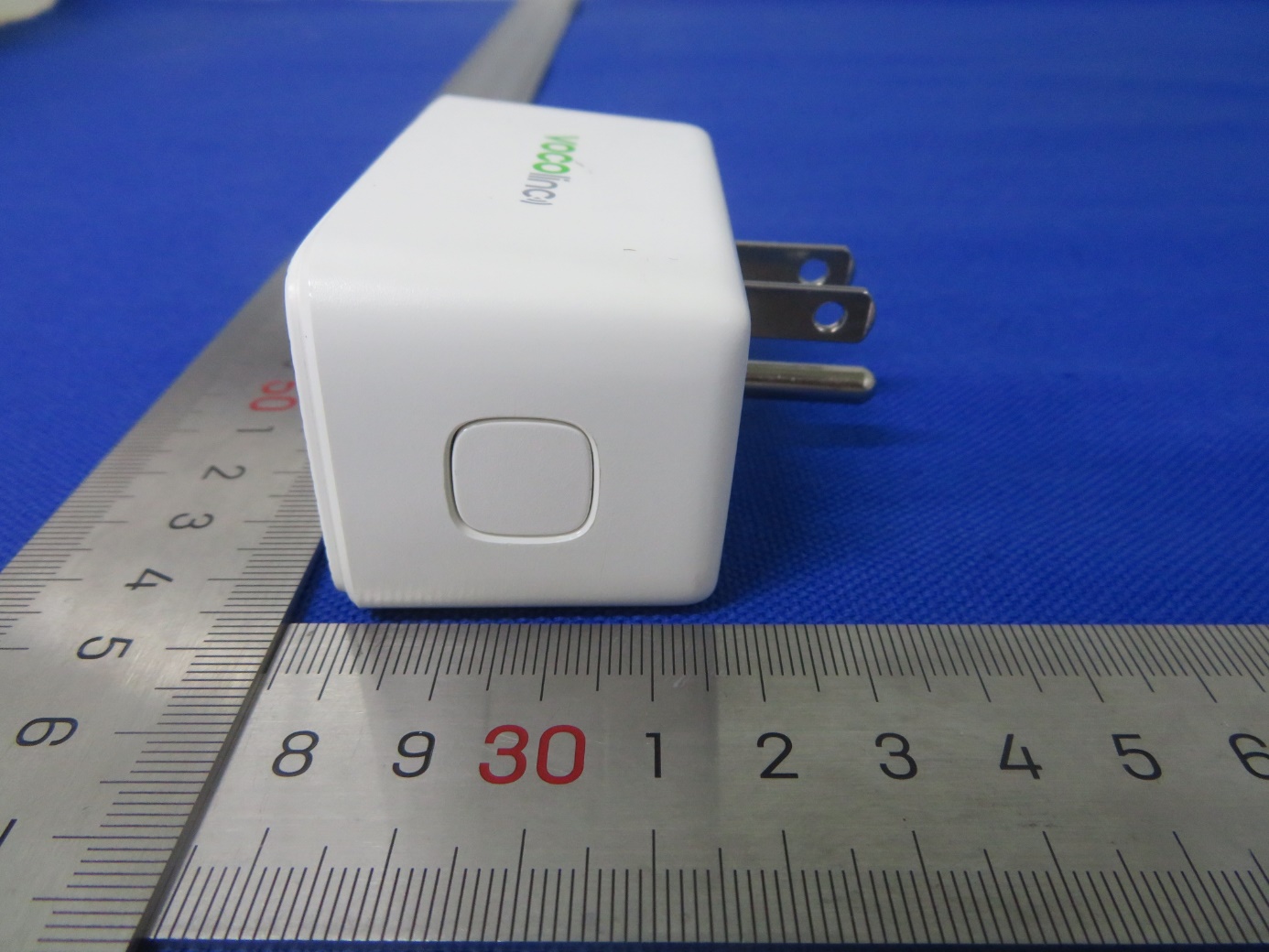

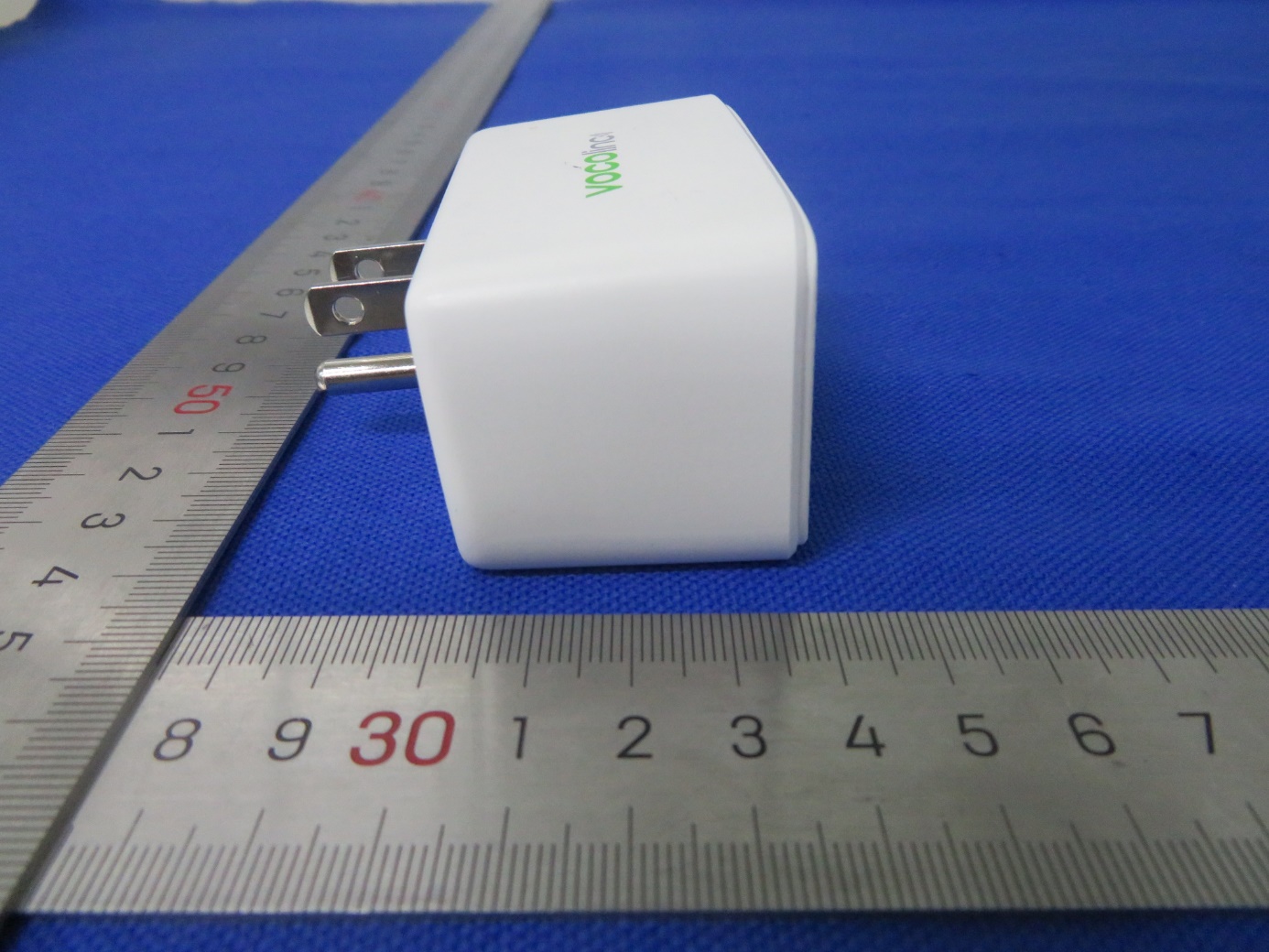

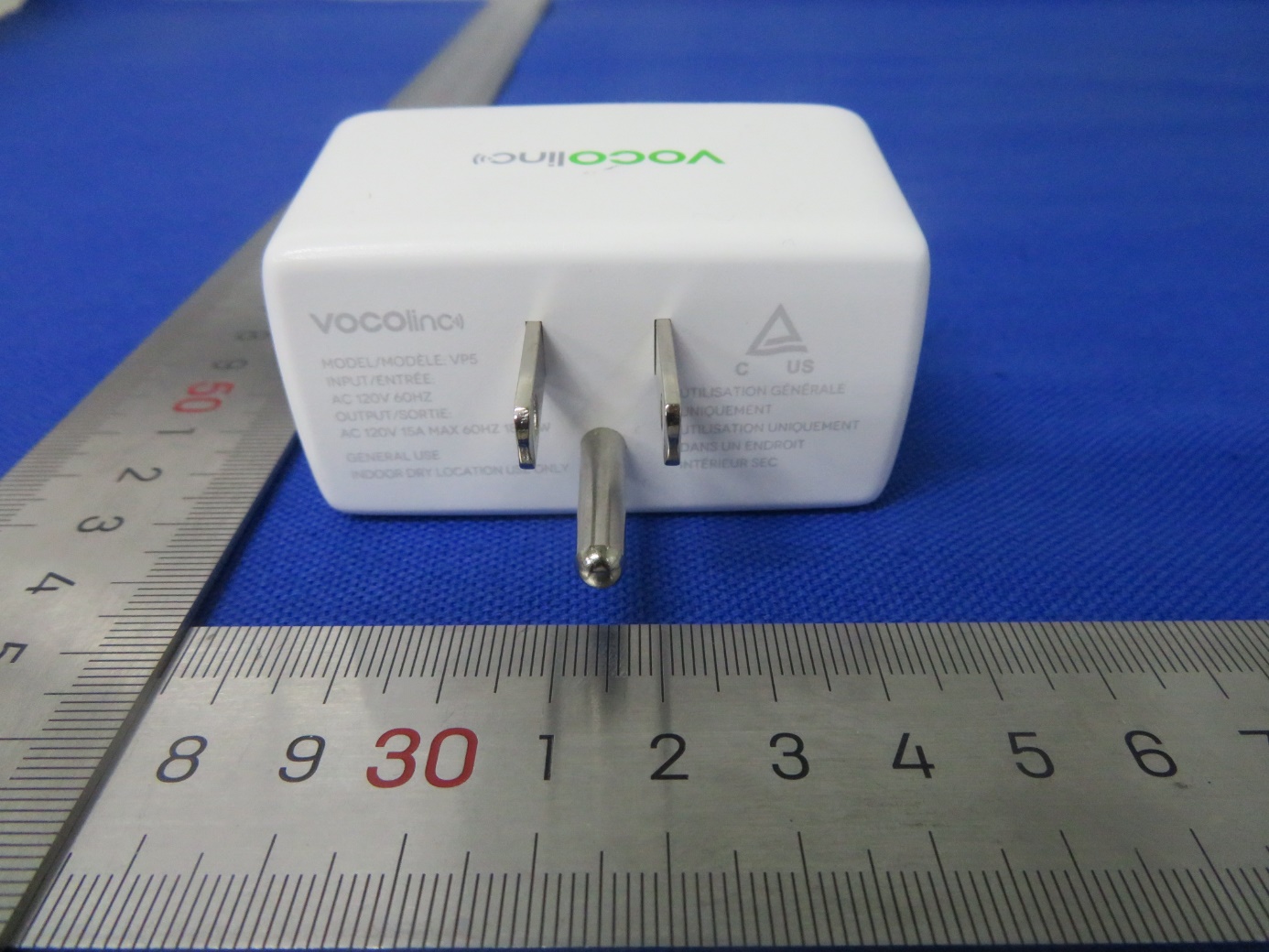

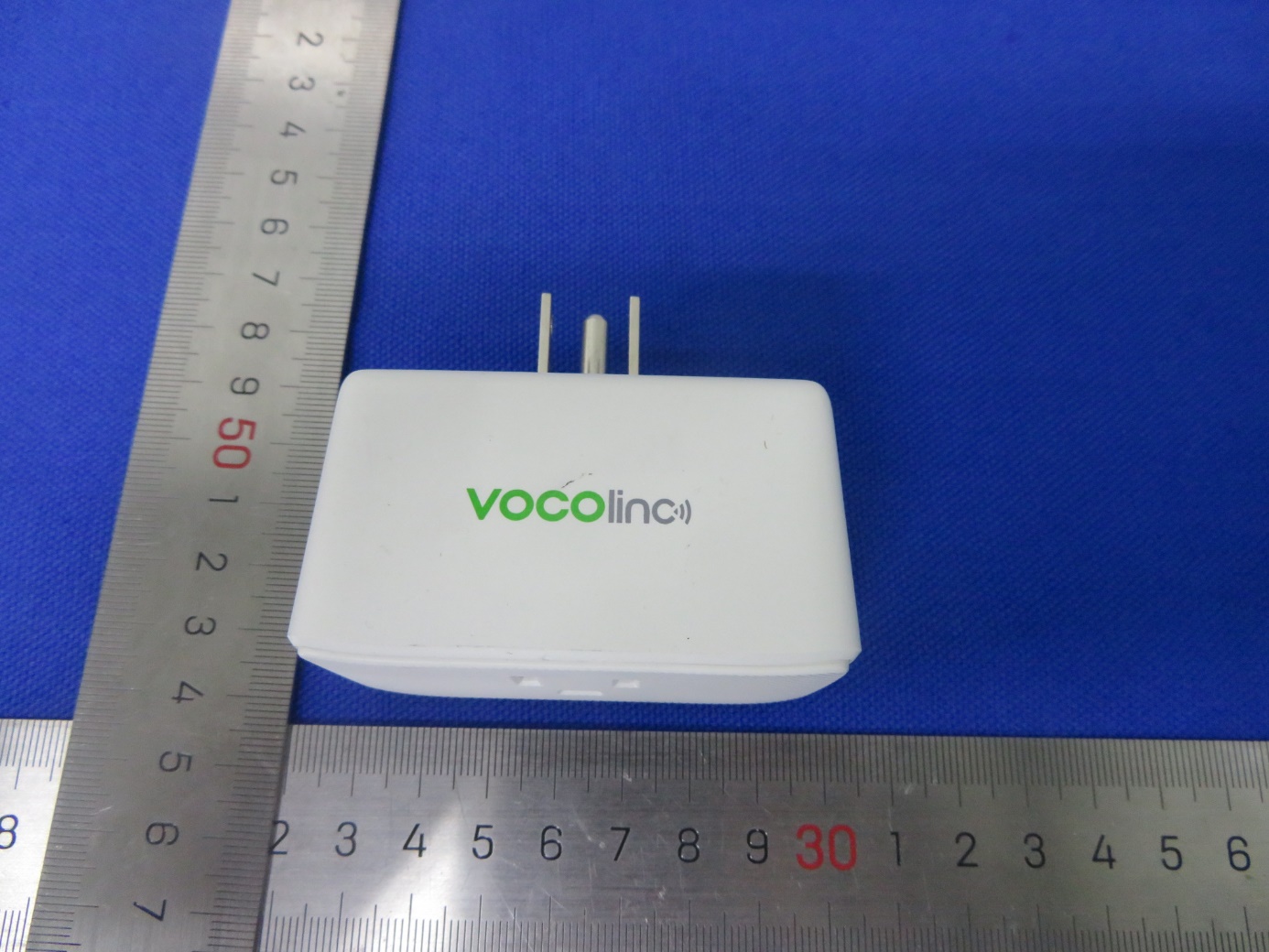

2AXT8-VP5XSmartBar Plug

: 70x63mm 128g KEEP YOUR QR CODE SAFE

丝印颜色跟回PM1 丝印内容上下居中 丝印内容上下左右居中 LOGO丝印： 20%黑 丝印颜色： 50%黑

Wifi antenna 2412 – 2462MHz

Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test report no. CN21RYZ6 001 Seite 21 von 23 Page 21 of 23 6Safety Human Exposure 6.1Radio Frequency Exposure Compliance 6.1.1Electromagnetic Fields RESULT:Pass Test Specification Test standard: CFR47 FCC Part 2.1091 RSS-102 Issue 5 March 2015 FCC KDB Publication 447498 v06 Limit :CFR47 FCC Part 1.1310 FCC requirement: Systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess limit for maximum permissible exposure. In accordance with 47 CFR FCC Part 2 Subpart J, section 2.1091 this device has been defined as a mobile device whereby a distance of 20cm normally can be maintained between the user and the device. MPE Calculation Method according to OET Bulletin 65 Power Density: S (mW/cm 2 ) = PG/4πR 2 or EIRP/4πR 2 Where: S = power density (mW/cm 2 ) P = power input to the antenna (mW) G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna (cm) The nominal maximum conducted output power specified: 802.11b/g/n: 21.20 dBm From the peak RF output power, the minimum mobile separation distance, d=20 cm, as well as the antenna gain (3.00 dBi), the RF power density can be calculated as below: Fo 802.11b/g/n: S (mW/cm 2 ) = PG/4πR 2 = 0.052 mW/cm 2 Limits for Maximum Permissible Exposure (MPE) according to FCC Part 1.1310: 1.0 mW/cm2 Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test report no. CN21RYZ6 001 Seite 22 von 23 Page 22 of 23 IC requirements: The EUT shall comply with the requirement of RSS-102 section 2.5.2. Exemption from Routine Evaluation Limits – RF Exposure Evaluation RF exposure evaluation is required if the separation distance between the user and/or bystander and the device’s radiating element is greater than 20 cm, except when the device operates as follows: at or above 300 MHz and below 6 GHz and the source-based, time-averaged maximum e.i.r.p. of the device is equal to or less than 1.31 x 10 -2 ƒ 0.6834 W (adjusted for tune-up tolerance), where ƒ is in MHz; RF exposure evaluation exempted power for 2.4G DTS: 2.676 W The nominal maximum conducted output power specified: 802.11b/g/n: 21.20 dBm Antenna Gain: 3.00 dBi The Max. e.i.r.p. for 802.11b/g/n: 24.20dBm = 0.263 W The e.i.r.p. of EUT is less than the RF exposure evaluation exempted power. So RF exposure evaluation is not required. “RF Radiation Exposure Statement Caution: This Transmitter must be installed to provide a separation distance of at least 20 cm from all persons.”

Prüfbericht - Produkte Test Report - Products Prüfbericht-Nr.: Test report no.: CN21RYZ6 001 Auftrags-Nr.: Order no.: 168306674 Seite 1 von 23 Page 1 of 23 Kunden-Referenz-Nr.: Client reference no.: N/A Auftragsdatum: Order date: 2021-02-01 Auftraggeber: Client: Felion Technologies Company Limited 304, 3/F, Fuxing Office Building, No.6 Binglang Road, Fubao Community, Futian District, Shenzhen 518017, Peoples Republic Of China Prüfgegenstand: Test item: SmartBar Plug Bezeichnung / Typ-Nr.: Identification / Type no.: VP5X (Trademark: VOCOlinc) Auftrags-Inhalt: Order content: FCC and IC approval Prüfgrundlage: Test specification: CFR47 FCC Part 15: Subpart C Section 15.247 CFR47 FCC Part 15: Subpart C Section 15.207 CFR47 FCC Part 15: Subpart C Section 15.209 CFR47 FCC Part 2.1091 RSS-247 Issue 2 February 2017 RSS-Gen Issue 5 March 2019 RSS-102 Issue 5 March 2015 Wareneingangsdatum: Date of sample receipt: 2021-02-05 Please refer to photo documents Prüfmuster-Nr.: Test sample no.: A002999100-001, 002 Prüfzeitraum: Testing period: 2021-02-19 – 2021-03-09 Ort der Prüfung: Place of testing: TÜV Rheinland (Shenzhen) Co., Ltd. Prüflaboratorium: Testing laboratory: TÜV Rheinland (Shenzhen) Co., Ltd. Prüfergebnis*: Test result*: Pass geprüft von: tested by: X Signed by: Alex Lan genehmigt von: authorized by: X Signed by: Winnie Hou Datum: Date: 2021-03-26 Ausstellungsdatum: Issue date: 2021-03-26 Stellung / Position Senior Project Engineer Stellung / Position Department Manager Sonstiges / Other: FCC ID: 2AXT8-VP5X IC: 26783-VP5X HVIN: VP5X Zustand des Prüfgegenstandes bei Anlieferung: Condition of the test item at delivery: Prüfmuster vollständig und unbeschädigt Test item complete and undamaged: * Legende: 1 = sehr gut 2 = gut 3 = befriedigend 4 = ausreichend 5 = mangelhalt P(ass) = entspricht o.g. Prüfgrundlage(n) F(ail) = entspricht nicht o.g. Prüfgrundlage(n) N/A = nicht anwendbar N/T = nicht getestet Legend: 1 = very good 2 = good 3 = satisfactory 4 = sufficient 5 = poor P(ass) = passed a.m. test specifications(s) F(ail) = failed a.m. test specifications(s) N/A = not applicable N/T = not tested Dieser Prüfbericht bezieht sich nur auf das o.g. Prüfmuster und darf ohne Genehmigung der Prüfstelle nicht auszugsweise vervielfältigt werden. Dieser Bericht berechtigt nicht zur Verwendung eines Prüfzeichens. This test report only relates to the a. m. test sample. Without permission of the test center this test report is not permitted to be V05 duplicated in extracts. This test report does not entitle to carry any test mark. TÜV Rheinland (Shenzhen) Co., Ltd. 1601 R&D Room, 1602-1604, 17-18F, Building 7 Site C, Vanke Cloud City Phase I, Xingke First Street, Xili Street, Xili Community, Nanshan District, Shenzhen 518052, P.R. China Mail: [email protected] · Web: www.tuv.com Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test report no. CN21RYZ6 001 Seite 2 von 23 Page 2 of 23 Test Summary 5.1.1 ANTENNA REQUIREMENT RESULT: Pass 5.1.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER RESULT: Pass 5.1.3 CONDUCTED POWER SPECTRAL DENSITY RESULT: Pass 5.1.4 99%DB BANDWIDTH RESULT: Pass 5.1.5 6DB BANDWIDTH RESULT: Pass 5.1.6 CONDUCTED SPURIOUS EMISSIONS MEASURED IN 100 KHZ BANDWIDTH RESULT: Pass 5.1.7 RADIATED SPURIOUS EMISSION RESULT: Pass 5.1.8 CONDUCTED EMISSION ON AC MAINS RESULT: Pass 6.1.1 ELECTROMAGNETIC FIELDS RESULT: Pass Prüfbericht - Produkte Test Report - Products Prüfbericht - Nr.: Test report no. CN21RYZ6 001 Seite 3 von 23 Page 3 of 23 Contents 1 GENERAL REMARKS ........................................................................................................................... 4 1.1 COMPLEMENTARY MATERIALS ............................................................................................................ 4 2 TEST SITES ........................................................................................................................................ 4 2.1 TEST FACILITIES ................................................................................................................................. 4 2.2 LIST OF TEST AND MEASUREMENT INSTRUMENTS................................................................................. 5 2.3 TRACEABILITY .................................................................................................................................... 7 2.4 CALIBRATION ..................................................................................................................................... 7 2.5 MEASUREMENT UNCERTAINTY............................................................................................................. 7 2.6 LOCATION OF ORIGINAL DATA ............................................................................................................. 7 2.7 STATUS OF FACILITY USED FOR TESTING ............................................................................................. 7 3 GENERAL PRODUCT INFORMATION ...................................................................................................... 8 3.1 PRODUCT FUNCTION AND INTENDED USE ............................................................................................. 8 3.2 RATINGS AND SYSTEM DETAILS .......................................................................................................... 8 3.3 INDEPENDENT OPERATION MODES ...................................................................................................... 9 3.4 NOISE GENERATING AND NOISE SUPPRESSING PARTS ......................................................................... 9 3.5 SUBMITTED DOCUMENTS..................................................................................................................... 9 4 TEST SET-UP AND OPERATION MODES ..............................................................................................10 4.1 PRINCIPLE OF CONFIGURATION SELECTION ......................................................................…

Text truncated - open the document above for the full version.

Prüfbericht - Produkte Test Report - Products Appendix A CN21RYZ6 001 Page 1 of 3 Appendix A: Photographs of the Test Set-Up APPENDIX A: PHOTOGRAPHS OF THE TEST SET-UP.......................................................................................................1 PHOTOGRAPH 1: SET-UP FOR RADIATED SPURIOUS EMISSION, BELOW 1GHZ....................................................................................2 PHOTOGRAPH 2: SET-UP FOR RADIATED SPURIOUS EMISSION, ABOVE 1GHZ....................................................................................2 PHOTOGRAPH 3: SET-UP FOR CONDUCTED EMISSIONS ON AC MIANS.............................................................................................3 Prüfbericht - Produkte Test Report - Products Appendix A CN21RYZ6 001 Page 2 of 3 Photograph 1: Set-up for Radiated Spurious Emission, Below 1GHz Photograph 2: Set-up for Radiated Spurious Emission, Above 1GHz Prüfbericht - Produkte Test Report - Products Appendix A CN21RYZ6 001 Page 3 of 3 Photograph 3: Set-up for Conducted Emissions ON AC mians
