2AXT8-T2301ATUVOS TAG

- 1 English - Introduction The ATUVOS Tag works with Apple Find My to help you quickly locate your things even further away. The thin profile makes it easily slide into tight spaces such as wallets, purses, or pockets, saving space and simplifying your life. This tag is waterproof, NFC-capable, and has a non-replaceable battery that lasts up to 3 years. A simple setup can pair this item tracker with the Find My app on your Apple devices to track down your nearby items by playing a sound. The anonymous and encrypted Find My network also ensures your privacy and safety. Note: To use the Apple Find My app or the Find Items app on Apple Watch to locate this item, the latest version of iOS, iPadOS, macOS, or watchOS is recommended. Item ATUVOS Tag User Manual Included in the Box - 2 English - Power Button Quick Press Long Press for 3 Seconds Long Press for 10 Seconds Status Power On Power Off Reset* Buzzer Two Short Beeps Long Beep Two Long Beeps with a 7-second Interval Controls and Status *This will restore the tag to factory settings and clear all the connection data. You must remove the item from the Find My app and add it back before using it again. - 3 English - Long-distance Tracking If your item is lost outside the 60-metre Bluetooth range, the Find My network connecting hundreds of millions of Apple devices worldwide will help track your item. All the while, your privacy is protected at every step of the way. Functions Left-behind Alerts If your item is left behind and disconnects from the Bluetooth of your Apple device, the Apple Find My app will instantly send you notifications without additional fees. Discourage Unwanted Tracking If someone’s tag lands on your items, your Apple device will automatically detect that tag and send you an alert to prevent unwanted tracking. If you still can't find it, the tag will make a sound to let you know. NFC Sensing This tag is NFC-enabled. If someone finds your lost item tracker, he can get your contact information by tapping the tag with an NFC-capable device, which will help you find your belongings back. - 4 English - 1. Turn on your iOS device’s Bluetooth. Make sure your iOS device is in the latest version. Pair with Find My App 2. Quick press the tag’s power button to turn it on and place it near to your iOS device. - 5 English - 3. Open Find My app, tap “Items” and then “Add Item”. Select “ Other Supported Item” and follow the in-app instruction to complete pairing. 4. For subsequent paring with other items, tap “+” and then “Add Other Item” to pair. Note: To ensure the best user experience, please update the firmware whenever the update is available in Find My app. - 6 English - Dimensions Weight Range Battery Frequency Working Temperature Transmit Power Connectivity Compatibility Firmware Update Voice Control 85.5*54*1.6 mm 12 g Up to 200 ft (60 m) Li-MnO2 Thin Cell, DC 3V 2402~2480 MHz 0~40°C(0~104°F) -1.45 dBm Bluetooth iOS Devices Find My app Siri Specifications 1. Fail to add ATUVOS Tag to the Find My app. a. Make sure the tag is powered on and near to the device. Troubleshooting - 7 English - b. Make sure your iOS device is in the latest version and the Bluetooth is on. c. Make sure the tag has not been paired with the Find My app on other iOS device. d. If you follow the previous steps and still fail to add, long press the tag’s power button for 10 seconds to reset and then try again. 2. ATUVOS Tag cannot function well. a. Check if the battery level is low. If the battery reaches its limit, you need to replace this tag with a new one. If you have any further questions, please contact us: [email protected] This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference. (2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause FCC Statement - 8 English - harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. The licensed transmitter/receiver contained in this device is compliant with Innovation, Science and Economic Development Canada's RNC for licensed radio devices. The operation is permitted under two conditions: 1.The device must not cause interference; 2.The device must accept any radio interference, even if the interference is likely to compromise its operation. IC - 9 English - RF Exhibition Statement: The equipment complies with the IC radiation exposure limit established for an uncontrolled environment.This equipment must be installed and used with a minimum distance of 5 mm between the radiato…

Text truncated - open the document above for the full version.

(APPLICANT’SCOMPANYLETTERHEAD) (date)2023.3.30 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:AttestationStatementsPart2.911(d)(5)(i)requestfor(FCCID:2AXT8-T2301) [FelionTechnologiesCompanyLimited](“theapplicant”)certifiesthattheequipment forwhichauthorizationissoughtisnot“covered”equipmentprohibitedfromreceiving anequipmentauthorizationpursuanttosection2.903oftheFCCrules. Sincerely, (Applicantsignature) (Applicantprintedname)TinaHe (APPLICANT’S COMPANY LETTERHEAD) (date)2023.3.30 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID:2AXT8-T2301) [Felion Technologies Company Limited] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name)Tina He

Felion Technologies Company Limited Model Confirmation Letter We, Felion Technologies Company Limited (Company name) product Name：ATUVOS TAG Model: AT2301 VT2201 Their electrical circuit design, layout, components used and internal wiring are identical, It's just that the sales platforms are different and the models are different. Date: 2023/05/10 Job Title (representative): Manager Signature: Name: Tina He

FelionTechnologiesCompanyLimited (date)2023.3.30 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:CONFIDENTIALITYREQUESTFOR(ATUVOSTAG/AT2301AND FCCID:2AXT8-T2301 ) ToWhomItMayConcern: Thisletterservesasanofficialrequestforconfidentialityundersections0.457and0.459 ofCFR47.Wehaverequestedthatthe Schematics Blockdiagram Operationdescription requiredtobesubmittedwiththisapplicationbepermanentlywithheldfrompublic review. Thesematerialscontaintradesecretsandproprietaryinformationandarenot customarilyreleasedtothepublic.Thepublicdisclosureofthisinformationmightbe harmfultothecompanyandprovideunjustifiedbenefitstoour Pleasecontactmeifthereisanyinformationyoumayneed. Sincerely, Mustbesignedbytheapplicantcontactcitedastechnicalornon-technicalcontactonthe 731formprovidedtoEurofinsMETLabs,orbytheauthorizedagentifanappropriate authorizedagentletterhasbeenprovided.Letterssignedbytheapplicantshouldbe placedonapplicantletterhead <Signature> Name： TinaHe Title：PM Company：FelionTechnologiesCompanyLimited

FelionTechnologiesCompanyLimited (Date)2023.4.23 EurofinsElectricalandElectronicTestingNA,Inc. 914WestPatapscoAvenue Baltimore,MD21230 RE:LETTEROFAGENTAUTHORIZATION ToWhomItMayConcern: We,theundersigned,herebyauthorize(BlueAsiaofTechnicalServices(Shenzhen) Co.,Ltd. ） toactonourbehalfinallmattersrelatingtoapplicationforequipmentauthorization, includingthesigningofalldocumentsrelatingtothesematters. Wealsoherebycertifythatnopartytotheapplicationauthorizedhereunderissubjecttothe denialofbenefits,includingFCCbenefits,pursuanttoSection5301oftheAnti-DrugAbuseAct of1988,21U.S.C.853(a). Thisagreementexpiresoneyearfromthecurrentdate. Sincerely, Mustbesignedbytheapplicantcontactcitedastechnicalornon-technicalcontactonthe 731formprovidedtoEurofinsMETLabs,orbytheauthorizedagentifanappropriate authorizedagentletterhasbeenprovided.Letterssignedbytheapplicantshouldbe placedonapplicantletterhead. <Signature> Name： TinaHe Title：PM Company：FelionTechnologiesCompanyLimited

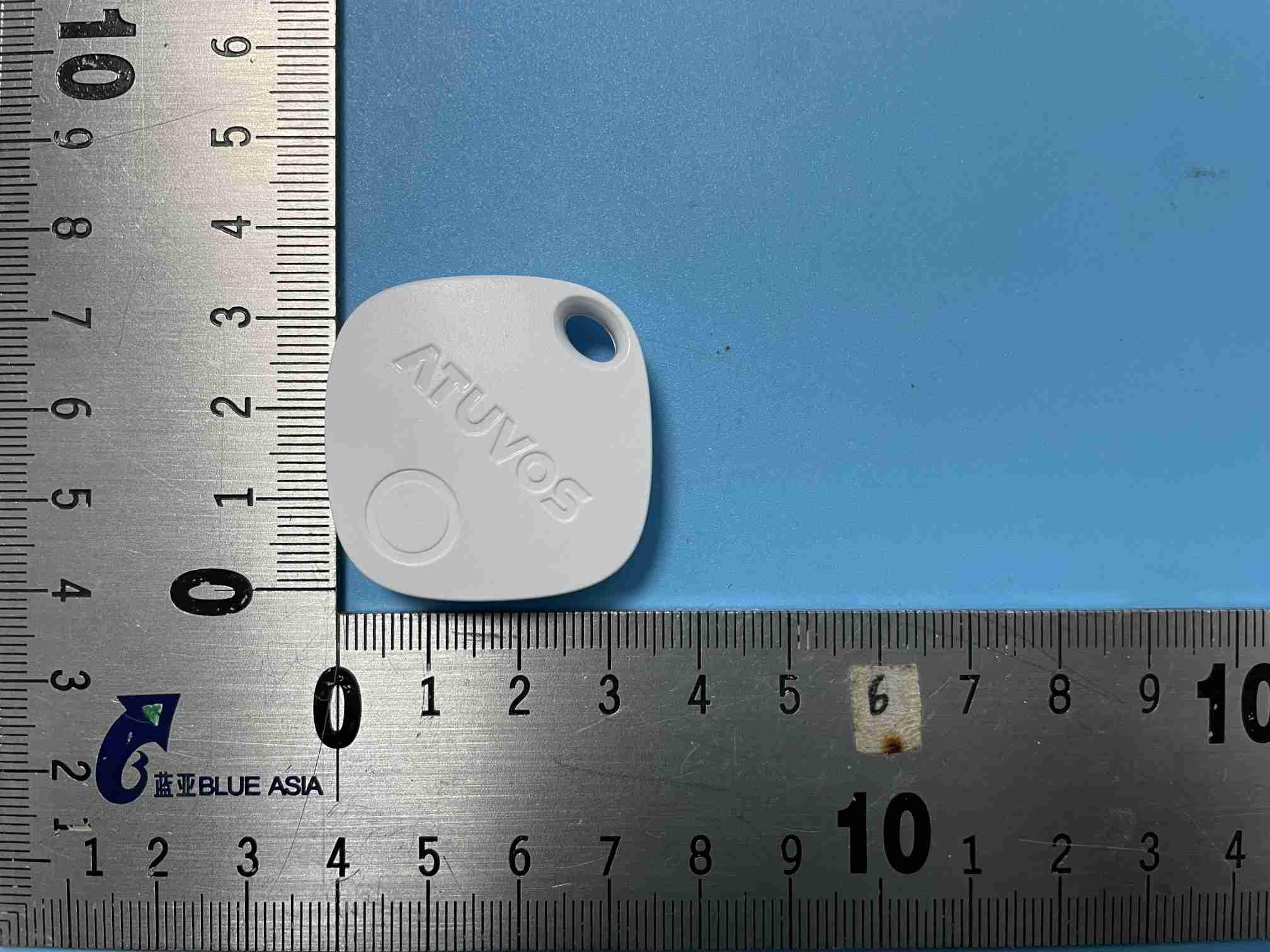

ProductName: ATUVOSTAG

l霆 --~ -1 勹 ＇ HVIN: V01

ProductName: ATUVOSTAG

RFExposureevaluation ProductName: ATUVOSTAG FCCID: 2AXT8-T2301 TestStandard: KDB447498D04GeneralRFExposureGuidance v01 Accordingto447498D04InterimGeneralRFExposureGuidancev01 Antgain=1.13dBi MAXoutputpower：-0.799dBm@2402MHz ERP=-0.799+1.13-2.15=-1.819dBm WORSECASE: 10^-0.0799=0.832mW<2.715mW ThenSARevaluationisnotrequired

Yusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTD Yusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTD Yusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTD Yusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTD Yusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTD Yusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTD Yusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTD Yusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTD Yusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTD Yusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTD Yusheng Communications-equipment Co.,LTD Yusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTDYusheng Communications-equipment Co.,LTD RF Antenna Dimensional Drawing

Page 1 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. Add:BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict,Shenzhen,GuangdongProvince,China Tel:+86-755-23059481Email:[email protected] TESTREPORT ProductName: ATUVOSTAG BrandMark: N/A ModelNo.: AT2301 Extensionmodel: VT2201 ReportNumber: BLA-EMC-202303-A11302 FCCID: 2AXT8-T2301 DateofSampleReceipt: 2023/3/27 DateofTest: 2023/3/27to2023/4/6 DateofIssue: 2023/4/6 TestStandard: 47CFRPart15,SubpartC15.247 TestResult:Pass Preparedfor: FelionTechnologiesCompanyLimited 304,3/F,FuxingOfficeBuilding,No.6BinglangRoad,FubaoCommunity, FutianDistrict,Shenzhen Preparedby: BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd. BuildingC,No.107,ShihuanRoad,ShiyanSub-District,BaoanDistrict, Shenzhen,GuangdongProvince,China TEL:+86-755-23059481 Compiledby:Reviewby: Approvedby:Date:2023/4/6 ReportNo.:BLA-EMC-202303-A11302 Page 2 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] REPORTREVISERECORD VersionNo.DateDescription 002023/4/6Original ReportNo.:BLA-EMC-202303-A11302 Page 3 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] TABLEOFCONTENTS 1TESTSUMMARY........................................................................................................................................5 2GENERALINFORMATION.........................................................................................................................6 3GENERALDESCRIPTIONOFE.U.T..........................................................................................................6 4TESTENVIRONMENT................................................................................................................................8 5TESTMODE................................................................................................................................................8 6MEASUREMENTUNCERTAINTY..............................................................................................................8 7DESCRIPTIONOFSUPPORTUNIT..........................................................................................................9 8LABORATORYLOCATION.........................................................................................................................9 9TESTINSTRUMENTSLIST......................................................................................................................10 10CONDUCTEDBANDEDGESMEASUREMENT.....................................................................................12 10.1LIMITS................................................................................................................................................................12 10.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................12 10.3TESTDATA...........................................................................................................................................................13 11RADIATEDSPURIOUSEMISSIONS........................................................................................................14 11.1LIMITS................................................................................................................................................................14 11.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................15 11.3PROCEDURE.......................................................................................................................................................15 11.4TESTDATA...........................................................................................................................................................17 12RADIATEDEMISSIONSWHICHFALLINTHERESTRICTEDBANDS.................................................25 12.1LIMITS................................................................................................................................................................25 12.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................26 12.3PROCEDURE.......................................................................................................................................................26 12.4TESTDATA...........................................................................................................................................................28 13CONDUCTEDSPURIOUSEMISSIONS...................................................................................................32 13.1LIMITS................................................................................................................................................................32 13.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................32 13.3TESTDATA...........................................................................................................................................................33 14POWERSPECTRUMDENSITY...............................................................................................................34 14.1LIMITS................................................................................................................................................................34 14.2BLOCKDIAGRAMOFTESTSETUP......................................................................................................................34 ReportNo.:BLA-EMC-202303-A11302 Page 4 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 14.3TESTDATA.........................................................…

Text truncated - open the document above for the full version.

ReportNo.:BLA-EMC-202303-A11302 Page 31 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] [TestMode:TXhighchannel];[Polarity:Vertical] TestResult:Pass ReportNo.:BLA-EMC-202303-A11302 Page 32 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 13CONDUCTEDSPURIOUSEMISSIONS TestStandard47CFRPart15,SubpartC15.247 TestMethodANSIC63.10(2013)Section7.8.6&Section11.11 TestMode(Pre-Scan)TX TestMode(FinalTest)TX TesterJozu Temperature25°C Humidity60% 13.1LIMITS Limit: Inany100kHzbandwidthoutsidethefrequencybandinwhichthespread spectrumordigitallymodulatedintentionalradiatorisoperating,theradio frequencypowerthatisproducedbytheintentionalradiatorshallbeatleast20dB belowthatinthe100kHzbandwidthwithinthebandthatcontainsthehighest levelofthedesiredpower,basedoneitheranRFconductedoraradiated measurement,providedthetransmitterdemonstratescompliancewiththepeak conductedpowerlimits.Ifthetransmittercomplieswiththeconductedpower limitsbasedontheuseofRMSaveragingoveratimeinterval,aspermittedunder paragraph(b)(3)ofthissection,theattenuationrequiredunderthisparagraphshall be30dBinsteadof20dB.Attenuationbelowthegenerallimitsspecifiedin §15.209(a)isnotrequired.Inaddition,radiatedemissionswhichfallinthe restrictedbands,asdefinedin§15.205(a),mustalsocomplywiththeradiated emissionlimitsspecifiedin§15.209(a)(see§15.205(c)). 13.2BLOCKDIAGRAMOFTESTSETUP ReportNo.:BLA-EMC-202303-A11302 Page 33 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 13.3TESTDATA Pass:PleaseReferToAppendix:Appendix1ForDetails ReportNo.:BLA-EMC-202303-A11302 Page 34 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 14POWERSPECTRUMDENSITY TestStandard47CFRPart15,SubpartC15.247 TestMethodANSIC63.10(2013)Section11.10.2 TestMode(Pre-Scan)TX TestMode(FinalTest)TX TesterJozu Temperature25°C Humidity60% 14.1LIMITS Limit:≤8dBminany3kHzbandduringanytimeintervalofcontinuoustransmission 14.2BLOCKDIAGRAMOFTESTSETUP 14.3TESTDATA Pass:PleaseReferToAppendix:Appendix1ForDetails ReportNo.:BLA-EMC-202303-A11302 Page 35 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 15CONDUCTEDPEAKOUTPUTPOWER TestStandard47CFRPart15,SubpartC15.247 TestMethodANSIC63.10(2013)Section7.8.5 TestMode(Pre-Scan)TX TestMode(FinalTest)TX TesterJozu Temperature25°C Humidity60% 15.1LIMITS Frequencyrange(MHz)Outputpoweroftheintentionalradiator(watt) 902-928 1for≥50hoppingchannels 0.25for25≤hoppingchannels<50 1fordigitalmodulation 2400-2483.5 1for≥75non-overlappinghoppingchannels 0.125forallotherfrequencyhoppingsystems 1fordigitalmodulation 5725-5850 1forfrequencyhoppingsystemsanddigital modulation 15.2BLOCKDIAGRAMOFTESTSETUP ReportNo.:BLA-EMC-202303-A11302 Page 36 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 15.3TESTDATA Pass:PleaseReferToAppendix:Appendix1ForDetails ReportNo.:BLA-EMC-202303-A11302 Page 37 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 16MINIMUM6DBBANDWIDTH TestStandard47CFRPart15,SubpartC15.247 TestMethodANSIC63.10(2013)Section11.8.1 TestMode(Pre-Scan)TX TestMode(FinalTest)TX TesterJozu Temperature25°C Humidity60% 16.1LIMITS Limit:≥500kHz 16.2BLOCKDIAGRAMOFTESTSETUP 16.3TESTDATA Pass:PleaseReferToAppendix:Appendix1ForDetails ReportNo.:BLA-EMC-202303-A11302 Page 38 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 17ANTENNAREQUIREMENT TestStandard47CFRPart15,SubpartC15.247 TestMethodN/A 17.1CONCLUSION StandardRequirement: Anintentionalradiatorshallbedesignedtoensurethatnoantennaotherthanthatfurnished bytheresponsiblepartyshallbeusedwiththedevice.Theuseofaantennathatusesa uniquecouplingtotheintentionalradiator,themanufacturermaydesigntheunit permanentlyattachedantennaorofansothatabrokenantennacanbereplacedbythe user,buttheuseofastandardantennajackorelectricalconnectorisprohibited. EUTAntenna: TheantennaisintegratedonthemainPCBandnoconsiderationofreplacement.Thebest casegainoftheantennais1.13dBi. ReportNo.:BLA-EMC-202303-A11302 Page 39 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] 18APPENDIX Appendix1 MaximumConductedOutputPower ConditionModeFrequency(MHz)AntennaConductedPower(dBm)Limit(dBm)Verdict NVNTBLE2402Ant1-0.79930Pass NVNTBLE2442Ant1-1.4530Pass NVNTBLE2480Ant1-1.28830Pass PowerNVNTBLE2402MHzAnt1 PowerNVNTBLE2442MHzAnt1 ReportNo.:BLA-EMC-202303-A11302 Page 40 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] PowerNVNTBLE2480MHzAnt1 ReportNo.:BLA-EMC-202303-A11302 Page 41 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] -6dBBandwidth ConditionModeFrequency (MHz) Antenna-6dBBandwidth (MHz) Limit-6dB Bandwidth(MHz) Verdict NVNTBLE2402Ant10.6760.5Pass NVNTBLE2442Ant10.6780.5Pass NVNTBLE2480Ant10.6840.5Pass -6dBBandwidthNVNTBLE2402MHzAnt1 -6dBBandwidthNVNTBLE2442MHzAnt1 ReportNo.:BLA-EMC-202303-A11302 Page 42 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] -6dBBandwidthNVNTBLE2480MHzAnt1 ReportNo.:BLA-EMC-202303-A11302 Page 43 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected] OccupiedChannelBandwidth ConditionModeFrequency(MHz)Antenna99%OBW(MHz) NVNTBLE2402Ant11.0521 NVNTBLE2442Ant11.0452 NVNTBLE2480Ant11.0500 OBWNVNTBLE2402MHzAnt1 OBWNVNTBLE2442MHzAnt1 ReportNo.:BLA-EMC-202303-A11302 Page 44 of 55 BlueAsiaofTechnicalServices(Shenzhen)Co.,Ltd.Tel:+86-755-23059481Email:[email protected]…

Text truncated - open the document above for the full version.

ProductName: ATUVOSTAG RadiatedSpuriousEmissions
