2AXUUMPD611SPEAKER

WARNINGS: User Manual Output Power: 20W SNR:80dB THD:10% Battery:Built-in 1200 mAh rechargeable battery Power supplied:Power adapter 5.0V/1A Loudspeaker:6.5 inch x 2,magnetic resistant 3 ohms. 1.Product dimensions:9.25"H x 18.31"W x 8.86"D 2.BT,wireless stream music from any BT-enabled devices such as mobile phone and notebook. 3.Built-in MP3 digital decoder for decoding and playing MP3 files.It brings you perfect sound quality 4.External TF card and USB socket to enjoy music. 5.Micro DC 5V charging,supply with charging cable. 6.4000 mAh rechargeable battery. 7.Two individual knobs to control mic and main volumes. 8.FM digital radio(87MHZ-108MHZ),listen to the latest news and music. 9.Able to connect to any audio output equipment,such as mobile phones/MP3/MP4/laptops,etc. 10.Microphone input to enjoy outdoor KTV. SPECIFICATIONS DEVICE FEATURES INSTRUCTIONS 1. Do not allow water to spill onto the surface or into the product 2. Unless the relevant regulatory instructed or has been directed by a person whom responsible for thesafety of the products they use,otherwise the product is not available for the person with body weakforce,or there is a lack of sensory capabilities persons(including children) 3. This product is not intended for using by childrenplease take care of children,do not let them play withthe product . 4. If the product surface is damaged or the case of mechanical or electronic equipment malfunction,do not use this product,please contact with our service center. 5. Do not shake or up-down dumped about this product. 6. Do not place the product immersed in water. 7. Do not place the product in light exposure to the location,to be placed in a dry and ventilate place. 8. Do not place heavy objects on the product. Thank you for choosing our products! 1 X MPD611 1 X AUX Cable 1 X User Manual 1 X Shoulder strap 1 X Remote control 1 X Wired microphone 1 X Type C charging cable MPD611 1.How to connect to BT: When you turn on the speaker, it should already be on the BT mode. Please go on your smart device or cell phone and search for the BT connections. You should seem, MPD611. Please select it and you will be connected and ready to enjoy the tunes. Short pressing the |◄◄ button to play last music. Short pressing the ►►| button to play next music. Short pressing the ►||/scan button to play/pause music. Twist the volume knob to control volume up(Turn right) and down (Turn left). 2.How to pair two speakers with the TWS function: Turn on speakers,Longly pressing the “►|| /SCAN” button on one of the speakers. And then an indication voice would sound.Speakers would enter TWS mode in 1-3 seconds.Two speakers could be connected with a same BT device and then play music together.When Longly pressing the “►|| /SCAN” button again to cancel the TWS function. 3.Radio function: Shortly pressing the MODE/TWS button and switch to Radio mode. Long pressing the ►||/scan button for station automatic searching.(Automatic searching will be finished in 2-5 minutes.) Short pressing the |◄◄ button to play last station. Short pressing the ►►| button to play next station. Twist the volume knob to control volume up(Turn right) and down (Turn left). 1.Volume knob:Turning the knob to control volume up(Turn right) and down (Turn left).Turning the knob to the “OFF” side to turn off and “ON” side to turn on the speaker. 2.Mic Volume knob:Turning the knob to control microphone’s volume up(Turn right) and down (Turn left). 3.BASS+:Shortly pressing to enhance BASS effect.Longly pressing to keep enhancing BASS effect. 4.BASS-:Shortly pressing to decrease BASS effect.Longly pressing to keep decreasing BASS effect. 5.EQ :Shortly pressing to switch different music effects. 6. :Shortly pressing to switch different light effects or turn off. 7.MODE/TWS:Shortly pressing for switching among BT ,FM,Aux in ,TF Card,USB modes. Longly pressing to turn on/off TWS function. 8. |◄◄Shortly pressing to play the previous music under BT,TF Card,and USB modes. Shortly pressing to play previous radio station under FM mode.Long pressing to fast back under TF Card,and USB modes. 9.►||/scanShortly pressing for music play/pause.Long pressing for radio station automatic searching under FM mode. 10.►►|Shortly pressing to play the next music under BT,TF Card,and USB modes.Shortly pressing to play next radio station under FM mode.Long pressing to fast forward under TF Card,and USB modes.. 11.DC 5V:Charge Jack for built-in battery.When the plugs in typeC charging cable,the indicating LED lights up 12.Aux:AUX IN can connect to PC,mp3,Phone,or other aux facilities. 13.USB Port:Support USB and can play MP3 format music in U disk. 14.TF card Port:Support TF CARD and can play MP3 format music in CARD. 15.Mic:Plug in a microphone into the port to enjoy music. FUNCTION 6.1200 mAh rechargeable battery. FCC Caution: Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. IMPORTANT NOTE: Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to t…

Text truncated - open the document above for the full version.

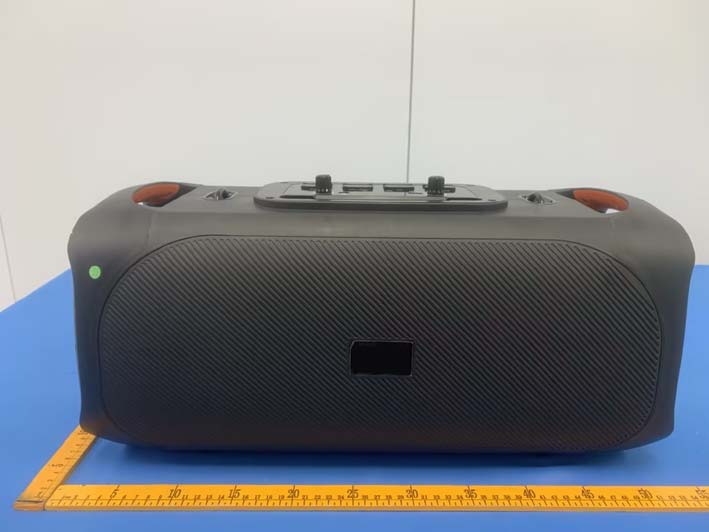

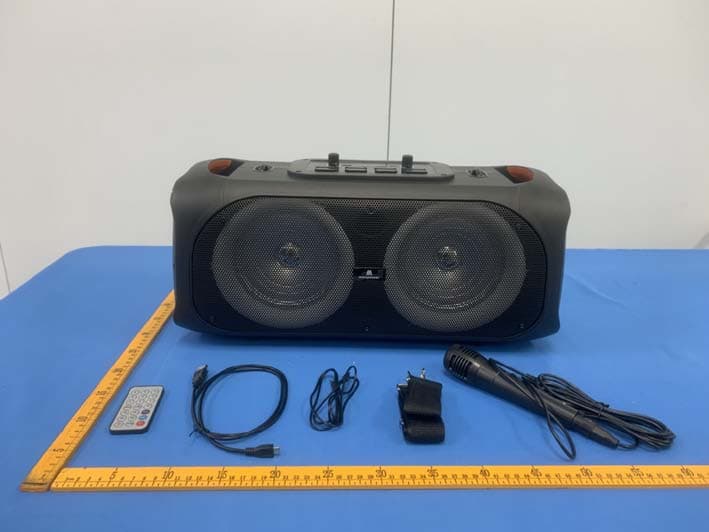

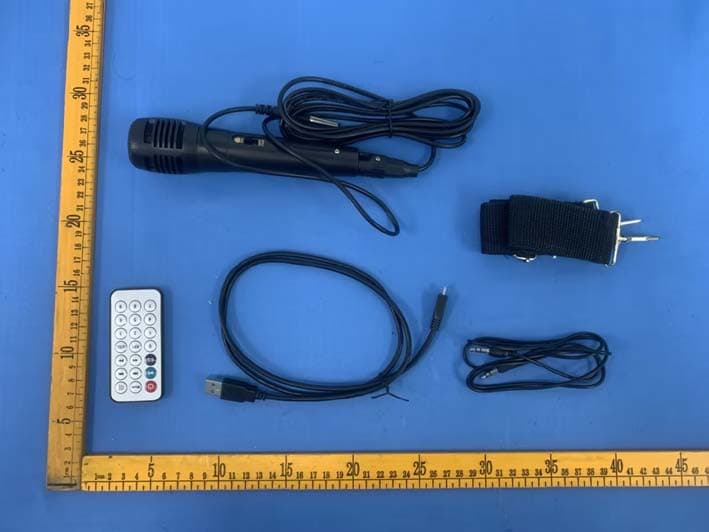

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230602-31248E-RF External Photos Page 1 of 4 External Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA230602-31248E-RF External Photos Page 2 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230602-31248E-RF External Photos Page 3 of 4 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230602-31248E-RF External Photos Page 4 of 4

Shenzhen Accurate Technology Co., Ltd. Report No.: RA230602-31248E-RF EXHIBITA-FCC ID LABEL AND LOCATION FCC ID Label FCC ID Label Location Information The label shown shall be permanently affixed at a conspicuous location on the device and be readily visible to the time purchase (Labeling requirements per 2.295)

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230602-31248E-RF Internal Photos Page 1 of 9 Internal Photos Shenzhen Accurate Technology Co., Ltd. Project No.: RA230602-31248E-RF Internal Photos Page 2 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230602-31248E-RF Internal Photos Page 3 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230602-31248E-RF Internal Photos Page 4 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230602-31248E-RF Internal Photos Page 5 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230602-31248E-RF Internal Photos Page 6 of 9 ANT Shenzhen Accurate Technology Co., Ltd. Project No.: RA230602-31248E-RF Internal Photos Page 7 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230602-31248E-RF Internal Photos Page 8 of 9 Shenzhen Accurate Technology Co., Ltd. Project No.: RA230602-31248E-RF Internal Photos Page 9 of 9

Shenzhen Accurate Technology Co., Ltd. Report No.: RA230602-31248E-RF Version 7: 2023-01-30 Page 12 of 64 FCC-RF FCC §1.1307 (b) – RF EXPOSURE Applicable Standard According to KDB 447498 D04 Interim General RF Exposure Guidance v01, clause 2.1.4 –MPE-Based Exemption: An alternative to the SAR-based exemption is provided in § 1.1307(b)(3)(i)(C), for a much wider frequency range, from 300 kHz to 100 GHz, applicable for separation distances greater or equal to λ/2π, where λ is the free-space operating wavelength in meters. The MPE-based test exemption condition is in terms of ERP, defined as the product of the maximum antenna gain and the delivered maximum time-averaged power. For this case, a RF source is an RF exempt device if its ERP (watts) is no more than a frequency-dependent value, as detailed tabular form in Appendix B. These limits have been derived based on the basic specifications on Maximum Permissible Exposure (MPE) considered for the FCC rules in § 1.1310(e)(1). Table to § 1.1307(b)(3)(i)(C) - Single RF Sources Subject to Routine Environmental Evaluation f = frequency in MHz; R = minimum separation distance from the body of a nearby person (appropriate units, e.g., m); Test Result For worst case: Mode Frequency Range (MHz) Tune-up Output Power Antenna Gain ERP Evaluation Distance (cm) MPE-Based Exemption Threshold (mW) (dBm) (mW) (dBi) (dBd) (dBm) (mW) BDR/EDR 2402-2480 6.5 4.47 -0.68 -2.83 3.67 2.33 20 768 Note 1: The tune-up power was declared by the applicant. Note 2: 0dBd=2.15dBi. To maintain compliance with the FCC’s RF exposure guidelines, place the equipment at least 20cm from nearby persons. Result: Compliant.

Antenna Specification Summary ITEM ANT SPEC Model Name 2.4G ANT Center Horizontal Vertical 2400MHz 2450MHz 2500MHz 2400MHz 2450MHz 2500MHz Frequency -1.40 dBi -1.06 dBi -0.93 dBi -1.30 dBi -1.0 dBi -0.68 dBi MAX. Gain -0.68dBi Polarization Horizontal and Vertical Azimuth Beam Omni-directional Pattern Impedance 50 Ohm Antenna Length 14.5mm Antenna Type PCB Antenna Manufacture Shenzhen Yuhao Senda Technology Co., LTD 3rd Floor, Building 4, Xiyuantong Industrial Park, Zikeng Village,Shiyan Street, Bao'an District, Shenzhen City, Guangdong Province, China Antenna Photo & Length (mm) Horizontal: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: ‐0.93 Min: ‐16.0 Scale: 5/div Vertical: 2400 MHz 2450 MHz 2500 MHz Power (dBm) Max: Min: ‐30 Scale: 5/div -0.6790

Note: This report may contain data that are not covered by the A2LA accreditation and are marked with an asterisk “★”. Shenzhen Accurate Technology Co., Ltd. is not responsible for the authenticity of any test data provided by the applicant. Data included from the applicant that may affect test results are marked with an asterisk ’*’. Customer model name, addresses, names, trademarks etc. are not considered data. This report cannot be reproduced except in full, without prior written approval of the Company. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested. This report is valid only with a valid digital signature. The digital signature may be available only under the Adobe software above version 7.0. Shenzhen Accurate Technology Co., Ltd. 1/F., Building A, Changyuan New Material Port, Science & Industry Park, Nanshan District, Shenzhen, Guangdong, P.R. China Tel: +86 755-26503290 Fax: +86 755-26503290 Web: www.atc-lab.com Version 7: 2023-01-30 Page 1 of 64 FCC-RF TEST REPORT Applicant Name : SHENZHEN MOCLOUD TECHNOLOGY CO., LTD Address : Rm 1401-02, Huatong Bldg., Ganli 2nd Road, Jihua Town, Longgang Dist. Shenzhen, China Report Number : RA230602-31248E-RF FCC ID: 2AXUUMPD611 Test Standard (s) FCC PART 15.247 Sample Description Product Type: SPEAKER Model No.: MPD611 Trade Mark: Date Received: 2023-06-02 Date of Test: 2023-06-05 to 2023-06-08 Report Date: 2023-06-14 Test Result: Pass* * In the configuration tested, the EUT complied with the standards above. Prepared and Checked By: Approved By: Dave Liang Candy Li EMC Engineer EMC Engineer Shenzhen Accurate Technology Co., Ltd. Report No.: RA230602-31248E-RF Version 7: 2023-01-30 Page 2 of 64 FCC-RF TABLE OF CONTENTS DOCUMENT REVISION HISTORY ......................................................................................................................... 4 GENERAL INFORMATION ....................................................................................................................................... 5 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 5 OBJECTIVE ................................................................................................................................................................... 5 TEST METHODOLOGY .................................................................................................................................................. 5 MEASUREMENT UNCERTAINTY .................................................................................................................................... 6 TEST FACILITY ............................................................................................................................................................. 6 SYSTEM TEST CONFIGURATION .......................................................................................................................... 7 DESCRIPTION OF TEST CONFIGURATION ...................................................................................................................... 7 EUT EXERCISE SOFTWARE .......................................................................................................................................... 7 SPECIAL ACCESSORIES ................................................................................................................................................. 7 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 7 SUPPORT EQUIPMENT LIST AND DETAILS .................................................................................................................... 7 EXTERNAL I/O CABLE.................................................................................................................................................. 7 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 8 SUMMARY OF TEST RESULTS ............................................................................................................................. 10 TEST EQUIPMENT LIST ......................................................................................................................................... 11 FCC §1.1307 (b) – RF EXPOSURE ........................................................................................................................... 12 FCC §15.203 – ANTENNA REQUIREMENT .......................................................................................................... 13 APPLICABLE STANDARD ............................................................................................................................................ 13 ANTENNA CONNECTOR CONSTRUCTION .................................................................................................................... 13 FCC §15.207 (a) – AC LINE CONDUCTED EMISSIONS ..................................................................................... 14 APPLICABLE STANDARD ............................................................................................................................................ 14 EUT SETUP ................................................................................................................................................................ 14 EMI TEST RECEIVER SETUP ....................................................................................................................................... 14 TEST PROCEDURE ...................................................................................................................................................... 15 FACTOR & OVER LIMIT CALCULATION .........................................................................................…

Text truncated - open the document above for the full version.

Shenzhen Accurate Technology Co., Ltd. Report No.: RA230602-31248E-RF Version 7: 2023-01-30 Page 51 of 64 FCC-RF 3DH5_Ant1_Hop Shenzhen Accurate Technology Co., Ltd. Report No.: RA230602-31248E-RF Version 7: 2023-01-30 Page 52 of 64 FCC-RF FCC §15.247(b) (1) - PEAK OUTPUT POWER MEASUREMENT Applicable Standard According to §15.247(b) (1), for frequency hopping systems operating in the 2400–2483.5 MHz band employing at least 75 non-overlapping hopping channels, and all frequency hopping systems in the 5725-5850 MHz band: 1 watt. And for all other frequency hopping systems in the 2400–2483.5 MHz band: 0.125 watts. Test Procedure According to ANSI C63.10-2013, section 7.8.5 1. Place the EUT on a bench and set in TX mode. 2. Remove the antenna from the EUT and then connect a low loss RF cable from the antenna port to one test equipment. 3. Add a correction factor to the display. Test Data Environmental Conditions Temperature: 25°C Relative Humidity: 48% ATM Pressure: 101.0kPa The testing was performed by Matt Liang on 2023-06-08. EUT operation mode: Transmitting Test Result: Compliant. Please refer to the below table and plots: Test Mode Antenna Channel Conducted Peak Output Power [dBm] Limit[dBm] Verdict DH5 Ant1 2402 0.98 ≤20.97 PASS 2441 2.33 ≤20.97 PASS 2480 2.54 ≤20.97 PASS 2DH5 Ant1 2402 3.69 ≤20.97 PASS 2441 5.15 ≤20.97 PASS 2480 5.25 ≤20.97 PASS 3DH5 Ant1 2402 4.47 ≤20.97 PASS 2441 5.94 ≤20.97 PASS 2480 6.02 ≤20.97 PASS Spectrum Analyzer EUT Open Switch and Control Unit Attenuator Shenzhen Accurate Technology Co., Ltd. Report No.: RA230602-31248E-RF Version 7: 2023-01-30 Page 53 of 64 FCC-RF DH5_Ant1_2402 DH5_Ant1_2441 Shenzhen Accurate Technology Co., Ltd. Report No.: RA230602-31248E-RF Version 7: 2023-01-30 Page 54 of 64 FCC-RF DH5_Ant1_2480 2DH5_Ant1_2402 Shenzhen Accurate Technology Co., Ltd. Report No.: RA230602-31248E-RF Version 7: 2023-01-30 Page 55 of 64 FCC-RF 2DH5_Ant1_2441 2DH5_Ant1_2480 Shenzhen Accurate Technology Co., Ltd. Report No.: RA230602-31248E-RF Version 7: 2023-01-30 Page 56 of 64 FCC-RF 3DH5_Ant1_2402 3DH5_Ant1_2441 Shenzhen Accurate Technology Co., Ltd. Report No.: RA230602-31248E-RF Version 7: 2023-01-30 Page 57 of 64 FCC-RF 3DH5_Ant1_2480 Shenzhen Accurate Technology Co., Ltd. Report No.: RA230602-31248E-RF Version 7: 2023-01-30 Page 58 of 64 FCC-RF FCC §15.247(d) - BAND EDGES TESTING Applicable Standard In any 100 kHz bandwidth outside the frequency band in which the spread spectrum or digitally modulated intentional radiator is operating, the radio frequency power that is produced by the intentional radiator shall be at least 20 dB below that in the 100 kHz bandwidth within the band that contains the highest level of the desired power, based on either an RF conducted or a radiated measurement, provided the transmitter demonstrates compliance with the peak conducted power limits. If the transmitter complies with the conducted power limits based on the use of RMS averaging over a time interval, as permitted under paragraph (b)(3) of this section, the attenuation required under this paragraph shall be 30 dB instead of 20 dB. Attenuation below the general limits specified in §15.209(a) is not required. In addition, radiated emissions which fall in the restricted bands, as defined in §15.205(a), must also comply with the radiated emission limits specified in §15.209(a) (see §15.205(c)). Test Procedure According to ANSI C63.10-2013, section 7.8.6 and section 6.10 1. Check the calibration of the measuring instrument using either an internal calibrator or a known signal from an external generator. 2. Remove the antenna from the EUT and then connect to a low loss RF cable from the antenna port to a EMI test receiver, then turn on the EUT and make it operate in TX mode. Then set it to Low Channel and High Channel within its operating range, and make sure the instrument is operated in its linear range. 3. Set RBW of spectrum analyzer to 100 kHz with a convenient frequency span including 100 kHz bandwidth from band edge. 4. Measure the highest amplitude appearing on spectral display and set it as a reference level. Plot the graph with marking the highest point and edge frequency. 5. Repeat above procedures until all measured frequencies were complete. Test Data Environmental Conditions Temperature: 25°C Relative Humidity: 48% ATM Pressure: 101.0kPa The testing was performed by Matt Liang on 2023-06-08. EUT operation mode: Transmitting Test Result: Compliant. Please refer to the below plots: Spectrum Analyzer EUT Open Switch and Control Unit Attenuator Shenzhen Accurate Technology Co., Ltd. Report No.: RA230602-31248E-RF Version 7: 2023-01-30 Page 59 of 64 FCC-RF DH5: Band Edge-Left Side Hopping Single Shenzhen Accurate Technology Co., Ltd. Report No.: RA230602-31248E-RF Version 7: 2023-01-30 Page 60 of 64 FCC-RF DH5: Band Edge- Right Side Hopping Single Shenzhen Accurate Technology Co., Ltd. Report No.: RA230602-31248E-RF Version 7: 2023-01-30 Page 61 of 64 FCC-RF 2DH5: Band Edge-Left Side Hopping Single Shenzhen Accurate Technology Co., Ltd. Report No.: RA230602-31248E-RF Version 7: 2023-01-30 Page 62 of 64 FCC-RF 2DH5: Band Edge- Right Side Hopping Single Shenzhen Accurate Technology Co., Ltd. Report No.: RA230602-31248E-RF Version 7: 2023-01-30 Page 63 of 64 FCC-RF 3DH5: Band Edge-Left Side Hopping Single Shenzhen Accurate Technology Co., Ltd. Report No.: RA230602-31248E-RF Version 7: 2023-01-30 Page 64 of 64 FCC-RF 3DH5: Band Edge- Right Side Hopping Single ***** END OF REPORT *****

Shenzhen Accurate Technology Co., Ltd. Project No.: RA230602-31248E-RF Test Photos Page 1 of 2 Photo of Power Line Conducted Emission Measurement Shenzhen Accurate Technology Co., Ltd. Project No.: RA230602-31248E-RF Test Photos Page 2 of 2 Radiated Spurious Emissions Test View (Below 1GHz) Radiated Spurious Emissions Test View (Above 1GHz)
