2AXVZ-TRIMIX-RF06Remote Controller

152Y--USER’S MANUAL Remote controller: 152Y Control box (works with remote controller) :152Y 1 I.ELECTRONICS OVERVIEW Remote controller: 152Y Control box (works with remote controller) :152Y Power supply Controll box motor 4 II. PAIRING THE WIRELESS REMOTE STEP 1 ： Push in on bottom of remote to release battery cartridge and install three AAA batteries into the remote battery compartment.Push in firmly to close. STEP 2 ：  Plug the base into a power source and press the PairingButton/Program Button on the control box approximately in1s,ensure the Pairing Lamp - White (Third) flashing. STEP 3：  Press “SW” until the backlight LED flashing ,release it and thenpress “HEAD UP” ,never release until the backlight LED is lightingall long,the remote is pairing and release it.  When the Pairing Button/Program Button on the control box andt he backlight LED on the remote stop flashing, and the buzzer on the control box has a “DI” sound,pairing is completed.  If the function on the remote can not be operated,repeat thepairing again. Second,Press “BACK UP”, never release until the backlight LED is lighting all long and then release. First, Press “SW”button until the backlight LED flashing and then release. Pairing Button/Program Button Pairing Lamp - White (Third) I II . FUNCTIONAL OPERATING FOR WIRELESS REMOTE MARK STEP1 STEP2 FUNCTIONAL DESCRIPTIONS Press “SW” in 3s until the backlight LED flashing and then press the “BUTTON” in STEP 2 TV MEMORY POSITON The backlight LEDs all OFF before operating.  Press （ TV ,ZG,M ） until the backlight LED is lightin g and the memor y position is completed.  When the backlight LED is lighting and press again, clear the correspondin g memory position.  TV & ZG have the memory position ,M no memoryposition. ZG M BACK UP PAIRING Pairing the remote and control box . Press LEG UP 3 seconds CONTROL SWITCHING Control Switching is the backlight LED of “SW” is OFF. Press SW 3 seconds Control Switching is the backlight LED of “SW” is ON. Press BOTTOM LED 3 seconds Control Switching is the backlight LED of “SW” is FLASHING. IV. FUNCTIONAL OPERATING FOR WIRELESS REMOTE Motor: By pairing the remote control with the control box, the motor can be controlled up and down Power supply : Input: 100-240V ~ , 50/60Hz Output:29 .0 V 3.0A Product interface description The interfaces in the red box below are only used for engineering testing and are not open to consumers. FCC/ISEDC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/TV technician for help. FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment . This transmitter must not be colocated or operating in conjunction with any other antenna or transmitter

Zhejiang Tri mix Technology Co.,Ltd Add: Floor N o. 1, East of Fengnan Road, Fengqiao Town, Nanhu District, Jiaxing City, Zhejiang Province，China Tel: +86 18957350126 Fax: +86 0573 83193106 Email: lidong@tri‐mix.net DECLARATION OF SIMILARITY Date: 2020-11-09 FEDERAL COMMUNICATIONS C OMMISSION Authorization and Evaluation Division 7 435 Oakland Mills Road Columbia, MD 21046 Dear Sir or Madam: We, Zhejiang Tri mix Technology Co.,Ltd, hereby declare that the product: Remote controller, FCC ID: 2AXVZ-TRIMIX-RF06. Model: 192Y, 442Y, M02Y, 542Y, H13Y, H23Y, 132Y, N03Y, 923Y, 443Y is electrically identical with the model: 152Y which was tested by BACL with the same electromagnetic emissions and electromagnetic compatibility characteristics. A description of the differences between those models and that are declared similar are as follows: Due to marketing, they are the same product, and just have the different model name and screen printing, the rest are the same. Please contact me should there be need for any additional clarification or information. Best Regards, Signature: Dong Li Engineer

QA-FR-170-B Zhejiang Tri mix Technology Co.,Ltd Add: Floor No. 1, East of Fengnan Road, Fengqiao Town, Nanhu District, Jiaxing City, Zhejiang Province，China Tel: +86 18957350126 Fax: +86 0573 83193106 Email: lidong@tri‐mix.net FCC Authorization Date: 2020-11-09 FEDERAL COMMUNICATIONS COMMISSION Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 Subject: Agent Authorization To whom it may concern: We , Zhejiang Tri mix Technology Co.,Ltd, hereby authorizes Bay Area Compliance Laboratories Corporation to act on its behalf in all matters relating to application for Equipment authorization, including the signing of all documents relating to these matters. All acts carried out by Bay Area Compliance Laboratory Corporation on our behalf shall have the same effect as our own action. We, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from the applicant. Sincerely Yours, Client’s signature Signature: Dong Li Engineer

FCC ID: 2AXVZ-TRIMIX-RF06 Technology Co.,Ltd QA-FR-171-A Zhejiang Tri mix Tech nology Co.,Ltd Add: Floor No. 1, East of Fengnan Road, Fengqiao Town, Nanhu District, Jiaxing City, Zhejiang Province，China Tel: +86 18957350126 Fax: +86 0573 83193106 Email: [email protected] FCC Confid ential Authorization Date: 2020-11-09 FEDERAL COMMUNICATIONS COMMISSIONS Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 2 1046 Subject: Confidentiality Request regarding application for certification of In accordance with Sections 0.4 57 and 0.459 of the Commission’s Rules, Zhejiang Tri mix ，hereby requests long-term confidential treatment of information accompanying this application as outlined below: Block Diagram Schematics Operation Description The above materials contain proprietary and confidential information not customarily released to the public. The public disclosure of these materials provides unjustified benefits to its competitors in the market. Sincerely, Signature: Dong Li Engineer

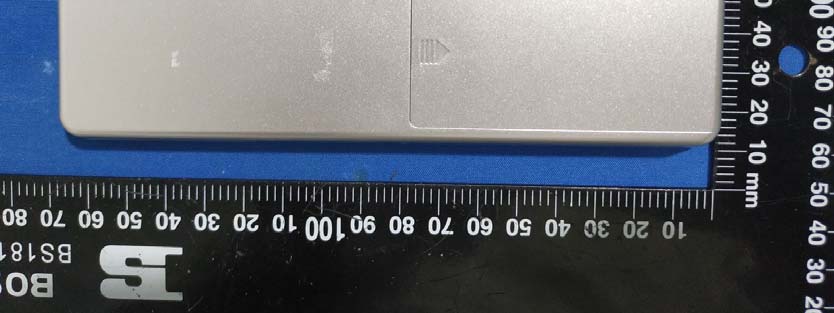

EXHIBIT B - EUT EXTERNAL PHOTOGRAPHS Model: 152Y Model: 443Y Model: H13Y Model: N03Y

Remotecontroller Model:ϭρϮY FCCID:ϮysͲdZ/D/yͲZ&Ϭς Input:4.5V MadeinChinaZhejiangTrimixTechnologyCo.,Ltd

EXHIBIT C - EUT INTERNAL PHOTOGRAPHS Model: 152Y Chip Antenna Model: 443Y Chip Antenna Model: H13Y Chip Antenna Model: N03Y Chip Antenna

FCC PART 15.249 TEST REPORT For Zhejiang Tri mix Technology Co.,Ltd Floor No. 1, East of Fengnan Road, Fengqiao Town, Nanhu District, Jiaxing City, Zhejiang Province, China FCC ID: 2AXVZ-TRIMIX-RF06 Report Type: Original Report Product Type: Remote controller Re port Number: RDG201016007-00 Re port Date: 2020-11-04 Reviewed By: Ivan Cao Assistant Manager Test Laboratory: Bay Area Compliance Laboratories Corp. (Dongguan) No.69 Pulongcun, Puxinhu Industry Area, Tangxia, Dongguan, Guangdong, China Tel: +86-769-86858888 Fax: +86-769-86858891 www.baclcorp.com.cn Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG201016007-00 Page 2 of 18 TABLE OF CONTENTS GENERAL INFORMATION ....................................................................................................................................... 3 PRODUCT DESCRIPTION FOR EQUIPMENT UNDER TEST (EUT) ..................................................................................... 3 OBJECTIVE ................................................................................................................................................................... 3 RELATED SUBMITTAL(S)/GRANT(S) ............................................................................................................................. 3 TEST METHODOLOGY .................................................................................................................................................. 3 MEASUREMENT UNCERTAINTY .................................................................................................................................... 4 TEST FACILITY ............................................................................................................................................................. 4 DECLARATIONS ............................................................................................................................................................ 4 SYSTEM TEST CONFIGURATION .......................................................................................................................... 5 JUSTIFICATION ............................................................................................................................................................. 5 EUT EXERCISE SOFTWARE .......................................................................................................................................... 5 EQUIPMENT MODIFICATIONS ....................................................................................................................................... 5 BLOCK DIAGRAM OF TEST SETUP ................................................................................................................................ 5 SUMMARY OF TEST RESULTS ............................................................................................................................... 6 FCC§15.203 - ANTENNA REQUIREMENT .............................................................................................................. 7 APPLICABLE STANDARD .............................................................................................................................................. 7 ANTENNA CONNECTOR CONSTRUCTION ...................................................................................................................... 7 FCC§15.205, §15.209&§15.249- RADIATED EMISSIONS ...................................................................................... 8 APPLICABLE STANDARD .............................................................................................................................................. 8 EUT SETUP .................................................................................................................................................................. 8 TEST EQUIPMENT SETUP .............................................................................................................................................. 9 TEST PROCEDURE ........................................................................................................................................................ 9 CORRECTED AMPLITUDE & MARGIN CALCULATION ................................................................................................. 10 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 11 TEST DATA ................................................................................................................................................................ 11 FCC §15.215(C) – 20 DB BANDWIDTH TESTING ................................................................................................ 17 APPLICABLE STANDARD ............................................................................................................................................ 17 TEST PROCEDURE ...................................................................................................................................................... 17 TEST EQUIPMENT LIST AND DETAILS ......................................................................................................................... 17 TEST DATA ................................................................................................................................................................ 17 Bay Area Compliance Laboratories Corp. (Dongguan) Report No.: RDG201016007-00 Page 3 of 18 GENERAL INFORMATION Product Description for Equipment under Test (EUT) EUT Name: Remote controller EUT Model: 152Y Multiple Models: 192Y, 442Y, M02Y, 542Y, H13Y, H23Y, 132Y, N03Y, 923Y, 443Y Operation Frequency: 2440 MHz Modulation: GFSK Antenna Gain△: 0 dBi Rated Input Voltage: DC 4.5V from Battery Serial Number: RDG201016007-RF-S2 EUT Received Date: 2020.10.21 EUT Received Status: Good Note: The series product, …

Text truncated - open the document above for the full version.

EXHIBIT D - TEST SETUP PHOTOGRAPHS Radiated Emission Below 1GHz View Radiated Emission Above 1GHz View Radiated Emission Above 1GHz View
