2AXWG-AI-8-BOXProactive AI Safety System

UserManual 2 Ifyoufindsomeinconsistencyinthismanualduringuse,pleaseconsultthetechnicalsupportdepartment. Thecontentwillbeupdatedovertimetotimewithoutnotice. Inordertoensurethenormaloperationofthedevice,toextenditsservicelife,pleaseensurethatitmeets thespecificationsduringinstallation. Thedeviceshouldbeinstalledhorizontally,asfaraspossiblefromlocationswithhighvibrations.Make surethatthereisnointerferencefromotherelectronicdevice,andtheventilationisgood.Alsothereis noshielding,covering,andthedeviceanditsaccessoriesandperipheralsshouldbeinstalledina positionthatisnoteasilyaccessibletopassengersanddrivers; Pleasepayattentiontowaterproof,moistureandlightningprotectionwheninstallingthedevice;  Remembernottotouchthepowersupplyandthedevicewithwethands;donotspillliquidonthe devicetoavoidshortcircuitorfireinsidethedevice;  Thisdeviceiscompatiblewith12Vand24Vpowersupply,pleasepayattentiontothepositiveand negativepoleswhenwiring;  Whenconnectingotherexternaldevices,pleaseturnoffthepowerthedevice.Donotplugandunplug whilepoweredon;  Itisstrictlyforbiddentomovethedeviceorreplacecomponentswithelectricity,otherwiseitwill damagethedevice; Donotplaceotherdevicedirectlyonthisproduct； Non-professionalsarenotallowedtodisassemblethecasebythemselvestoavoiddamageand electricshock; 3 Menu .................................................................................................................2 .........................................................................................................2 1.ProductIntroduction..........................................................................................................5 1.1.Productdescription.............................................................................................................................5 2.ProductFeatures................................................................................................................5 2.1.Full-featuredactivesafetyintegrateddevice.....................................................................................5 2.2.Simpleandstablehardwaredesign...................................................................................................5 2.3.Professionalandreliablesystemscheme..........................................................................................5 2.4.Professionalandreliableactivesafety...............................................................................................6 2.5.Strongoperationandmaintenancecapability....................................................................................6 3.AppearanceDescription....................................................................................................7 3.1.Frontview............................................................................................................................................7 3.1.RearView............................................................................................................................................7 3.2.SystemConnectionDiagram..............................................................................................................8 4.ProductConfigurationList................................................................................................8 4.1.ProductPartChecklist........................................................................................................................8 4.2.ProductAccessories...........................................................................................................................9 4.3.DeviceHarness................................................................................................................................10 5.ProductFunctionOverview.............................................................................................11 6.InstallationPreparation...................................................................................................13 6.1.SiteTerrainRequirements................................................................................................................13 6.2.Requirementsforinstallationpersonnel...........................................................................................13 6.3.Vehicleinformationconfirmation......................................................................................................13 6.4.deviceinformationconfirmation.......................................................................................................14 7.Listofinstallationtools...................................................................................................15 8.InstallationGuidanceandPrecautions..........................................................................16 8.1.InstallTheController.........................................................................................................................16 8.2.InstallDMScamera..........................................................................................................................19 8.3.InstallADASCamera........................................................................................................................21 8.4.InstallBSDCamera（Taketruckasanexample）.........................................................................22 4 8.5.Install4G&WiFi&GPSAntenna........................................................................................................24 9.UseofWebAppConfigurationTools.............................................................................25 9.1.Login.................................................................................................................................................25 9.2.Statusinquiry....................................................................................................................................26 9.3.Setting...............................................................................................................…

Text truncated - open the document above for the full version.

Roadefend Intelligence Technology (Shanghai) Co., Ltd. September 7, 2022 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Alpha Product Testing Co., Ltd. Address: Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Person: Mark Zhu (Name and address，person). to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Roadefend Intelligence Technology (Shanghai) Co., Ltd. Address: Room 01, level3, block B3, lane221, Huangxing Road Yangpu District, Shanghai, China ( applicant name and address). Signature: September 7, 2022 Name Xiaojun Hu Position Manager Company Name Roadefend Intelligence Technology (Shanghai) Co., Ltd. Address Room 01, level3, block B3, lane221, Huangxing Road Yangpu District, Shanghai, China Tel +86-021-55896781 Fax / Email [email protected]

Roadefend Intelligence Technology (Shanghai) Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: September 7, 2022 Subject; Request for Long Term Confidentiality FCC ID: 2AXWG-AI-8-BOX To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Tune up It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: September 7, 2022 Name Xiaojun Hu Position Manager Company Name Roadefend Intelligence Technology (Shanghai) Co., Ltd. Address Room 01, level3, block B3, lane221, Huangxing Road Yangpu District, Shanghai, China Tel +86-021-55896781 Fax / Email [email protected]

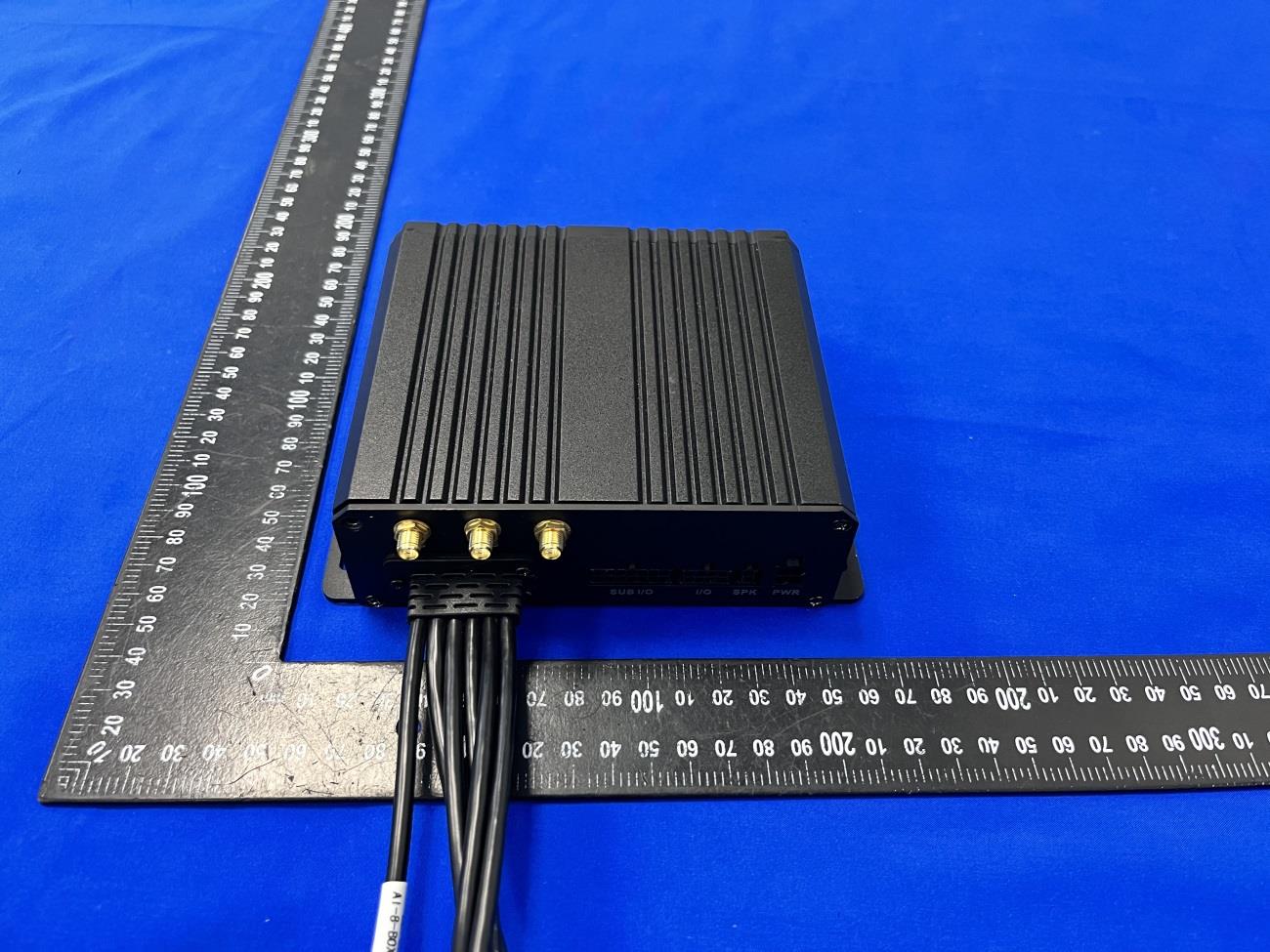

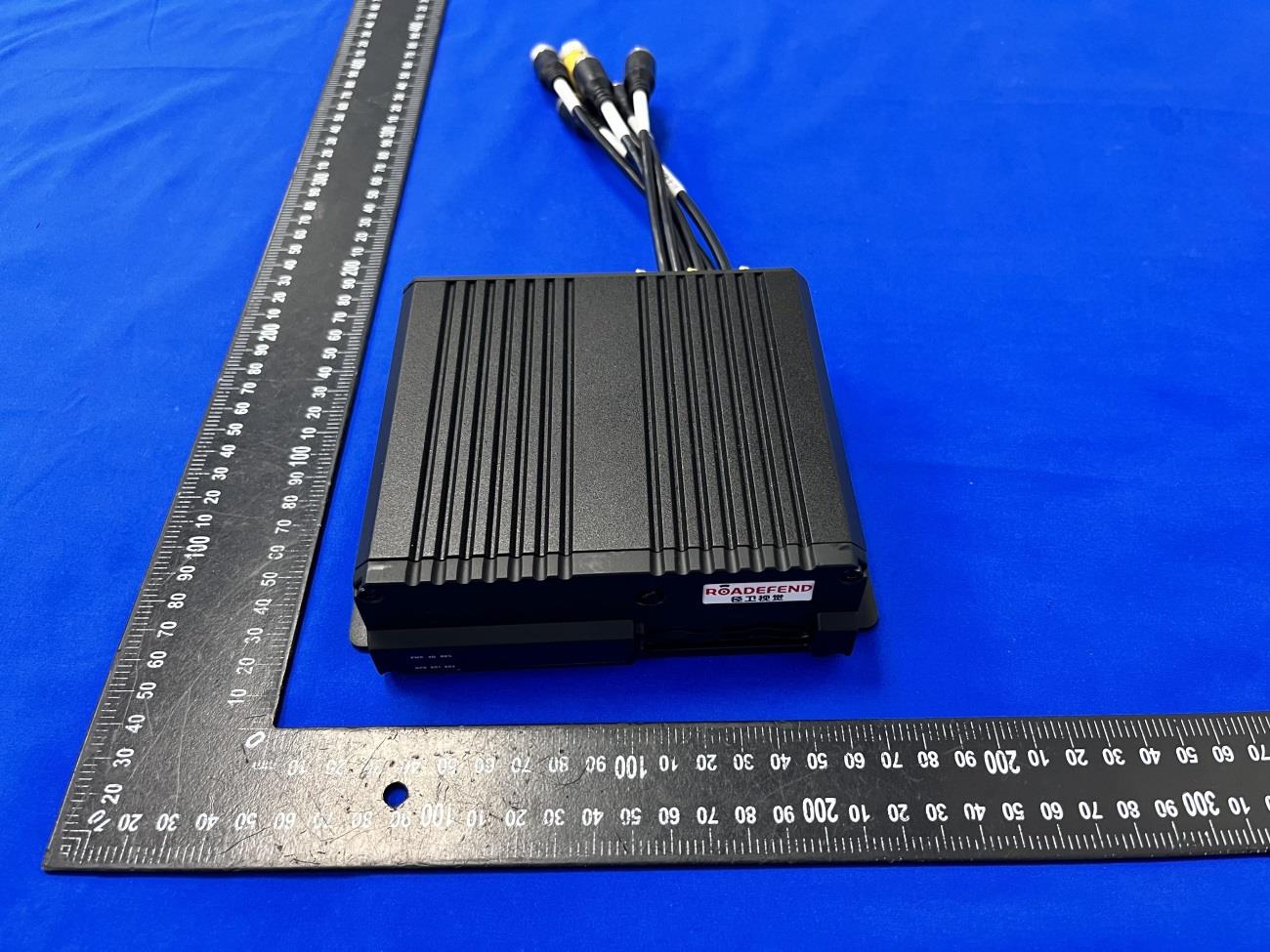

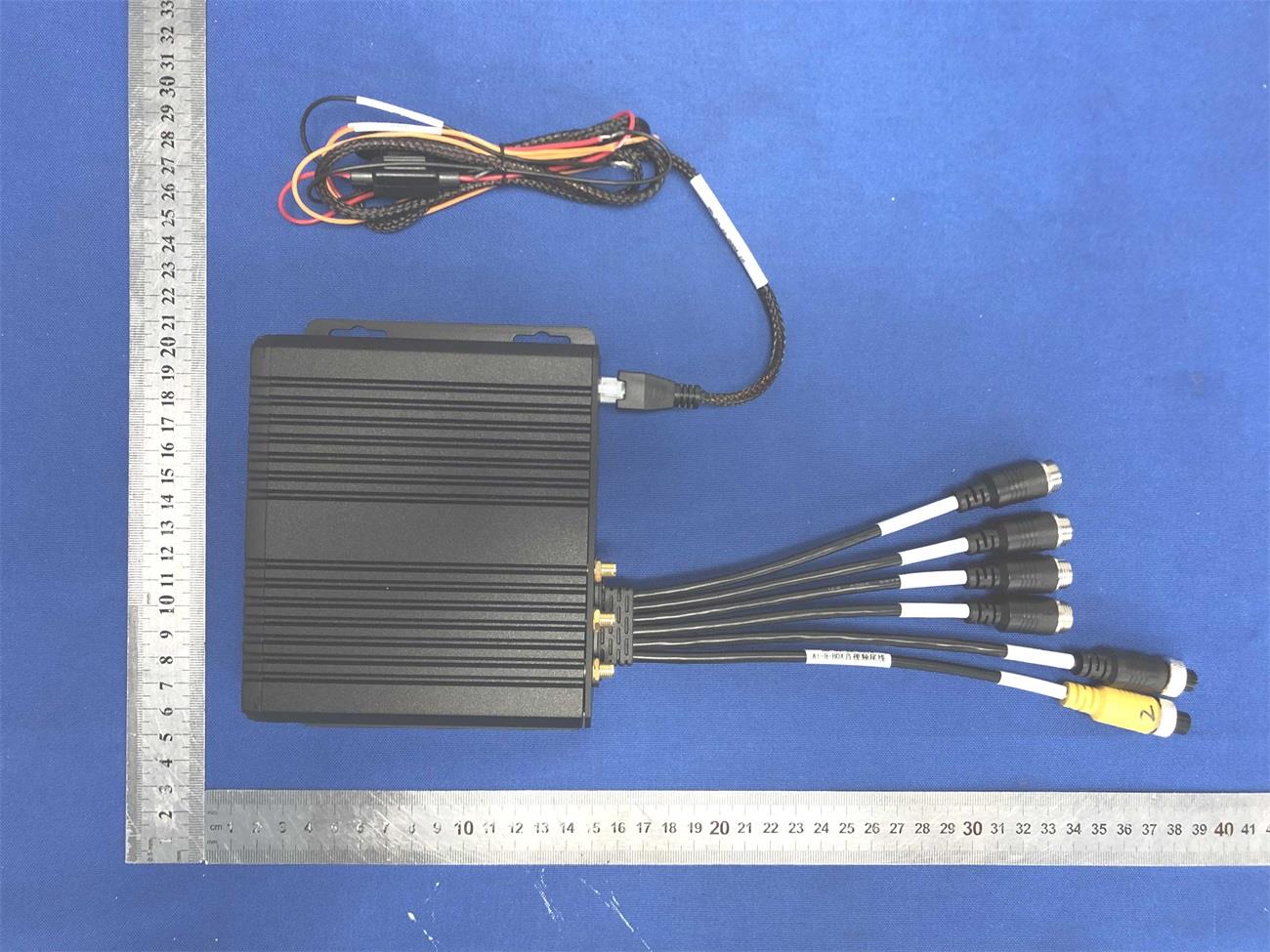

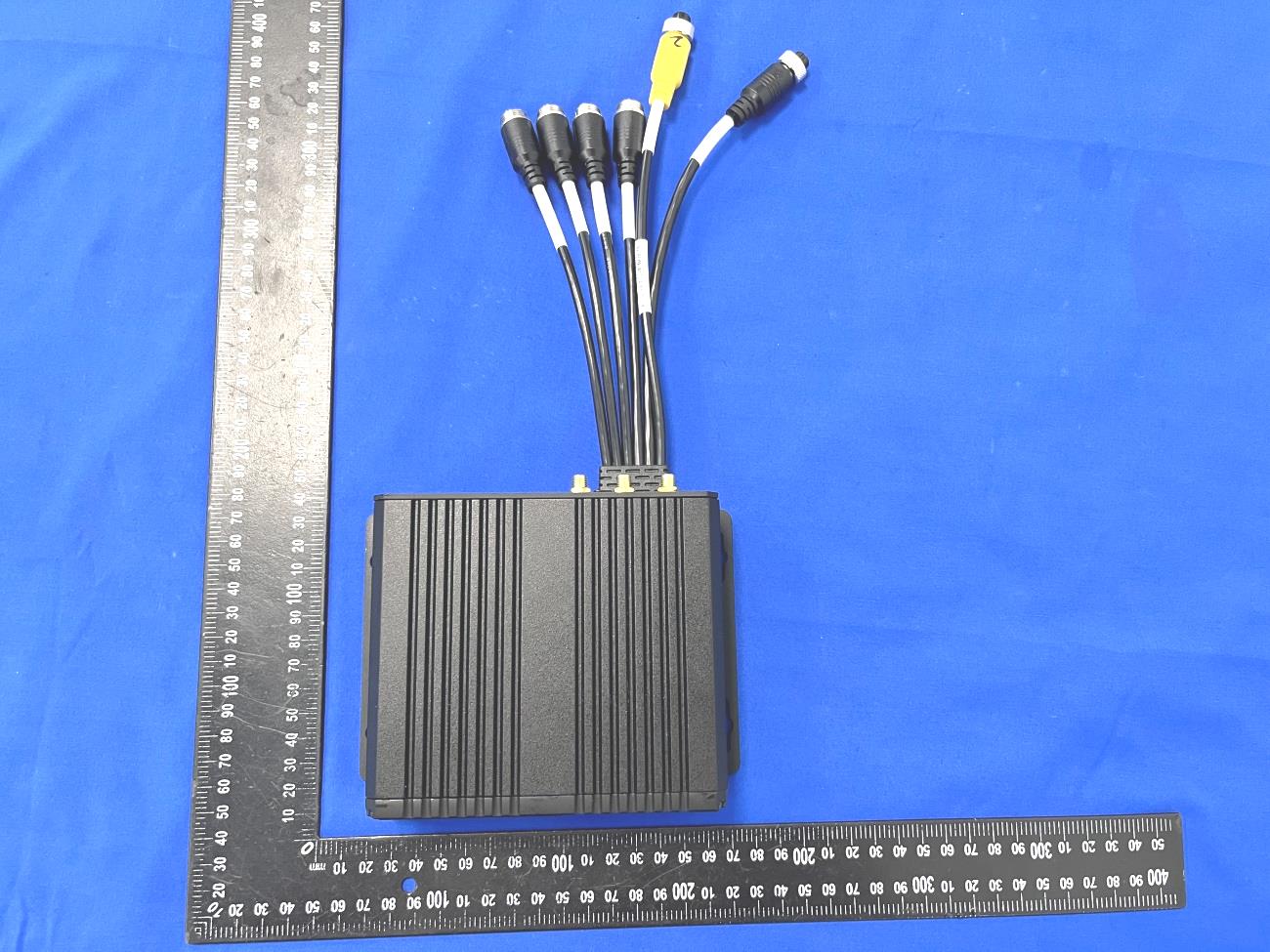

FCC ID: 2AXWG-AI-8-BOX ANT 2/3/4G ANT BT/WIFI ANT GPS ANT

Size: 4.0cm *1.5cm Label Location FCC ID: 2AXWG-AI-8-BOX Proactive AI Safety System Model No.: AI-8-BOX

FCC ID: 2AXWG-AI-8-BOX

FCC ID: 2AXWG-AI-8-BOX Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the centre of radiation of the antenna FCC ID: 2AXWG-AI-8-BOX 3. Result Mode Frequency (MHz) Prediction distance (cm) Rated Peak RF power output MPE (mW/cm 2 ) Limit (mW/cm 2 ) SAR Test Exclusion dBm mW BT EDR 2402-2480 40 6.5 4.467 0.0003 1 Yes BT LE 2402-2480 40 6 3.981 0.0002 1 Yes WIFI 2412-2472 40 19 79.433 0.0049 1 Yes GSM 850 824.20-848.80 40 33 1995.262 0.2671 0.549 Yes PCS 1900 1850.20-1909.80 40 30 1000.000 0.1339 1 Yes WCDMA B5 826.40-846.60 40 24 251.189 0.0336 0.551 Yes WCDMA B2 1852.40-1907.60 40 24 251.189 0.0336 1 Yes LTE B2 1850-1910 40 24 251.189 0.0336 1 Yes LTE B4 1710-1755 40 23 199.526 0.0267 1 Yes LTE B5 824-849 40 24 251.189 0.0336 0.549 Yes LTE B7 2500-2570 40 23 199.526 0.0267 1 Yes Maximum Simultaneous transmission MPE Ratios for BT+WIFI +GSM: Max MPE Ratio BT /Limit Max MPE ratio WIFI /Limit Max MPE ratio GSM /Limit ∑MPE ratios Limit Result 0.0003 0.0049 0.2671 0.2723 1 PASS BT&WIFI Antenna Gain: 0.93dBi, 1.24(numeric) GSM, WCDMA & LTE Antenna Gain: 4.3dBi, 2.69(numeric) Then SAR evaluation is not required.

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. FCC TEST REPORT FCC ID: 2AXWG-AI-8-BOX On Behalf of Roadefend Intelligence Technology (Shanghai) Co., Ltd. Proactive AI Safety System Model No.: AI-8-BOX, AI-8-BOXB, AI-8-BOXP, AI-8-BOXPH Prepared for : Roadefend Intelligence Technology (Shanghai) Co., Ltd. Address : Room 01, level3, block B3, lane221, Huangxing Road Yangpu District, Shanghai, China Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2207239-C01-R18 Date of Receipt : August 10, 2022 Date of Test : August 11, 2022-September 1, 2022 Date of Report : September 1, 2022 Version Number : V0 Page 2 of 52 Report No.: A2207239-C01-R18 TABLE OF CONTENTS Description Page 1 TEST SUMMARY ......................................................................................................................................5 2 GENERAL INFORMATION .......................................................................................................................6 2.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................6 2.2 RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................................8 2.3 TEST METHODOLOGY ..........................................................................................................................8 2.4 TEST FACILITY.....................................................................................................................................8 3 TEST INSTRUMENTS LIST ......................................................................................................................9 4 SYSTEM TEST CONFIGURATION ........................................................................................................10 4.1 TEST MODE .......................................................................................................................................10 4.2 CONFIGURATION OF TESTED SYSTEM .................................................................................................11 4.3 CONDUCTED AV OUTPUT POWER ......................................................................................................12 4.4 PEAK-TO-AVERAGE RATIO .................................................................................................................14 4.5 OCCUPY BANDWIDTH .........................................................................................................................17 4.6 MODULATION CHARACTERISTIC ................................................................................................22 4.7 OUT OF BAND EMISSION AT ANTENNA TERMINALS ................................................................................22 4.8 E RP, EIRP MEASUREMENT ...............................................................................................................32 4.9 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT ..................................................................40 4.10 FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT ................................................................46 4.11 FREQUENCY STABILITY V.S. VOLTAGE MEASUREMENT ........................................................................50 5 TEST SETUP PHOTO .............................................................................................................................52 Page 3 of 52 Report No.: A2207239-C01-R18 TEST REPORT DECLARATION Applicant : Roadefend Intelligence Technology (Shanghai) Co., Ltd. Address : Room 01, level3, block B3, lane221, Huangxing Road Yangpu District, Shanghai, China Manufacturer : Roadefend Intelligence Technology (Shanghai) Co., Ltd. Address : Room 01, level3, block B3, lane221, Huangxing Road Yangpu District, Shanghai, China EUT Description : Proactive AI Safety System (A) Model No. : AI-8-BOX, AI-8-BOXB, AI-8-BOXP, AI-8-BOXPH (B) Trademark : Measurement Standard Used: FCC CFR Title 47 Part 2 FCC CFR Title 47 Part 22 Subpart H FCC CFR Title 47 Part 24 Subpart E FCC CFR Title 47 Part 27 The device described above is tested by Shenzhen Alpha Product Testing Co., Ltd. to determine the maximum emission levels emanating from the device. The maximum emission levels are compared to the FCC Part 15 Subpart C limits both conducted and radiated emissions. The test results are contained in this test report and Shenzhen Alpha Product Testing Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these tests. After the test, our opinion is that EUT compliance with the requirement of the above standards. This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Shenzhen Alpha Product Testing Co., Ltd. Tested by (name + signature).........: Lucas Pang Project Engineer Approved by (name + signature).......: Jack Xu Project Manager Date of issue...... .......................: September 1, 2022 Page 4 of 52 Report No.: A2207239-C01-R18 Revision History Revision Issue Date Revisions Revised By V0 September 1, 2022 Initial released Issue Lucas Pang Page 5 of 52 Report No.: A2207239-C01-R18 1 Test Summary Test Item Section in CFR 47 Result RF Exposure (SAR) Part 1.1307 Part 2.1093 Pass* (Please refer to MPE Report) RF Output Power Part 2.1046 Part 22.913 (a)(2) Part 24.232 (c) Pass Peak-to-Average Ratio Part 2.1046 Part 24.232 (d) Pass Modulation Characteristics Part 2.1047 Pass 99% & -26 dB Occupied Bandwidth Part 2.1049 Part 22.917 Part 24.238 Pass Spurious Emissions at Antenna Terminal Part 2.1051 Part 22.917 (a) Part 24.238 (a) Pass Field Strength of Spurious Radiation Part 2.1…

Text truncated - open the document above for the full version.

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. FCC TEST REPORT FCC ID: 2AXWG-AI-8-BOX On Behalf of Roadefend Intelligence Technology (Shanghai) Co., Ltd. Proactive AI Safety System Model No.: AI-8-BOX, AI-8-BOXB, AI-8-BOXP, AI-8-BOXPH Prepared for : Roadefend Intelligence Technology (Shanghai) Co., Ltd. Address : Room 01, level3, block B3, lane221, Huangxing Road Yangpu District, Shanghai, China Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao'an District, 518103, Shenzhen, Guangdong, China Report Number : A2207239-C01-R19 Date of Receipt : August 10, 2022 Date of Test : August 11, 2022-September 1, 2022 Date of Report : September 1, 2022 Version Number : V0 Page 2 of 141 Report No.: A2207239-C01-R19 TABLE OF CONTENTS Description Page 1 TEST SUMMARY ......................................................................................................................................5 2 GENERAL INFORMATION .......................................................................................................................6 2.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................6 2.2 RELATED SUBMITTAL(S) / GRANT (S) ....................................................................................................7 2.3 TEST FACILITY.....................................................................................................................................7 2.4 ACCESSORIES OF DEVICE (EUT) .........................................................................................................7 2.5 TESTED SUPPORTING SYSTEM DETAI LS ...............................................................................................7 2.6 TEST CONDITIONS ...............................................................................................................................7 2.7 MEASUREMENT UNCERTAINTY .............................................................................................................8 3 TEST INSTRUMENTS LIST ......................................................................................................................9 4 SYSTEM TEST CONFIGURATION ........................................................................................................10 4.1 TEST MODE .......................................................................................................................................10 4.2 CONFIGURATION OF TESTED SYSTEM .................................................................................................10 4.3 CONDUCTED OUTPUT POWER ............................................................................................................11 4.4 PEAK-TO-AVERAGE RATIO .................................................................................................................22 4.5 OCCUPY BANDWIDTH .........................................................................................................................26 4.6 MODULATION CHARACTERISTIC ................................................................................................39 4.7 OUT OF BAND EMISSION AT ANTENNA TERMINALS ................................................................................39 4.8 ERP, EIRP MEASUREMENT ...............................................................................................................88 4.9 FIELD STRENGTH OF SPURIOUS RADIATION MEASUREMENT ................................................................130 4.10 FREQUENCY STABILITY V.S. TEMPERATURE MEASUREMENT ..............................................................136 4.11 FREQUENCY STABILITY V.S. VOLTAGE MEASUREMENT ......................................................................139 4.12 TEST SETUP PHOTO ........................................................................................................................141 Page 3 of 141 Report No.: A2207239-C01-R19 TEST REPORT DECLARATION Applicant : Roadefend Intelligence Technology (Shanghai) Co., Ltd. Address : Room 01, level3, block B3, lane221, Huangxing Road Yangpu District, Shanghai, China Manufacturer : Roadefend Intelligence Technology (Shanghai) Co., Ltd. Address : Room 01, level3, block B3, lane221, Huangxing Road Yangpu District, Shanghai, China EUT Description : Proactive AI Safety System (A) Model No. : AI-8-BOX, AI-8-BOXB, AI-8-BOXP, AI-8-BOXPH (B) Trademark : Measurement Standard Used: FCC CFR Title 47 Part 2 FCC CFR Title 47 Part 22 Subpart H FCC CFR Title 47 Part 24 Subpart E FCC CFR Title 47 Part 27 ANSI C63.26:2015 The device described above is tested by Shenzhen Alpha Product Testing Co., Ltd. to determine the maximum emission levels emanating from the device. The test results are contained in this test report and Shenzhen Alpha Product Testing Co., Ltd. is assumed of full responsibility for the accuracy and completeness of these tests. After the test, our opinion is that EUT compliance with the requirement of the above standards. This report applies to above tested sample only. This report shall not be reproduced in parts without written approval of Shenzhen Alpha Product Testing Co., Ltd. Tested by (name + signature).........: Lucas Pang Project Engineer Approved by (name + signature).......: Jack Xu Project Manager Date of issue.............................: September 1, 2022 Page 4 of 141 Report No.: A2207239-C01-R19 Revision History Revision Issue Date Revisions Revised By V0 September 1, 2022 Initial released Issue Lucas Pang Page 5 of 141 Report No.: A2207239-C01-R19 1 Test Summary Test Item Section in CFR 47 Result RF Exposure (SAR) Part 1.1307 Part 2.1093 Pass*(Please refer MPE Report) RF Output Power Part 2.1046 Part 22.913(a) (5) Part 24.232…

Text truncated - open the document above for the full version.

Page 56 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 7 / 5MHz /1RB Test Mode: LTE Band 7 / 5MHz /25RB Lowest channel Middle channel Highest channel Page 57 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 7 / 10MHz /1RB Test Mode: LTE Band 7 / 10MHz /50RB Lowest channel Middle channel Highest channel Page 58 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 7 / 15MHz /1RB Test Mode: LTE Band 7 / 15MHz /75RB Lowest channel Middle channel Highest channel Page 59 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 7 / 20MHz /1RB Test Mode: LTE Band 7 / 20MHz /100RB Lowest channel Middle channel Highest channel Page 60 of 141 Report No.: A2207239-C01-R19 Band Edge Test Mode: LTE Band 2 / 1.4MHz / 1RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 2 / 1.4MHz / 6RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 2 / 3MHz / 1RB / QPSK Lowest channel Highest channel Page 61 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 2 / 3MHz / 15RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 2 / 5MHz / 1RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 2 / 5MHz / 25RB / QPSK Lowest channel Highest channel Page 62 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 2 / 10MHz / 1RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 2 / 10MHz / 50RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 2 / 15MHz / 1RB / QPSK Lowest channel Highest channel Page 63 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 2 / 15MHz / 75RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 2 / 20MHz / 1RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 2 / 20MHz / 100RB / QPSK Lowest channel Highest channel Page 64 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 2 / 1.4MHz / 1RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 2 / 1.4MHz / 6RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 2 / 3MHz / 1RB / 16-QAM Lowest channel Highest channel Page 65 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 2 / 3MHz / 15RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 2 / 5MHz / 1RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 2 / 5MHz / 25RB / 16-QAM Lowest channel Highest channel Page 66 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 2 / 10MHz / 1RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 2 / 10MHz / 50RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 2 / 15MHz / 1RB / 16-QAM Lowest channel Highest channel Page 67 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 2 / 15MHz / 75RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 2 / 20MHz / 1RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 2 / 20MHz / 100RB / 16-QAM Lowest channel Highest channel Page 68 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 4 / 1.4MHz / 1RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 4 / 1.4MHz / 6RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 4 / 3MHz / 1RB / QPSK Lowest channel Highest channel Page 69 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 4 / 3MHz / 15RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 4 / 5MHz / 1RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 4 / 5MHz / 25RB / QPSK Lowest channel Highest channel Page 70 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 4 / 10MHz / 1RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 4 / 10MHz / 50RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 4 / 15MHz / 1RB / QPSK Lowest channel Highest channel Page 71 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 4 / 15MHz / 75RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 4 / 20MHz / 1RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 4 / 20MHz / 100RB / QPSK Lowest channel Highest channel Page 72 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 4 / 1.4MHz / 1RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 4 / 1.4MHz / 6RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 4 / 3MHz / 1RB / 16-QAM Lowest channel Highest channel Page 73 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 4 / 3MHz / 15RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 4 / 5MHz / 1RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 4 / 5MHz / 25RB / 16-QAM Lowest channel Highest channel Page 74 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 4 / 10MHz / 1RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 4 / 10MHz / 50RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 4 / 15MHz / 1RB / 16-QAM Lowest channel Highest channel Page 75 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 4 / 15MHz / 75RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 4 / 20MHz / 1RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 4 / 20MHz / 100RB / 16-QAM Lowest channel Highest channel Page 76 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 5 / 1.4MHz / 1RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 5 / 1.4MHz / 6RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 5 / 3MHz / 1RB / QPSK Lowest channel Highest channel Page 77 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 5 / 3MHz / 15RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 5 / 5MHz / 1RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 5 / 5MHz / 25RB / QPSK Lowest channel Highest channel Page 78 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 5 / 10MHz / 1RB / QPSK Lowest channel Highest channel Test Mode: LTE Band 5 / 10MHz / 50RB / QPSK Lowest channel Highest channel Page 79 of 141 Report No.: A2207239-C01-R19 Test Mode: LTE Band 5 / 1.4MHz / 1RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 5 / 1.4MHz / 6RB / 16-QAM Lowest channel Highest channel Test Mode: LTE Band 5 / 3MHz / 1RB / 16-QAM Lowest channel Highest channel Page 80 of 141 Report No.: A2…

Text truncated - open the document above for the full version.

Page 103 of 141 Report No.: A2207239-C01-R19 EUT mode Channel RB Size RB Offset EUT Pol. Antenna Pol. EIRP(dBm) Limit (dBm) Result LTE Band 4 (3MHz) QPSK Lowest 15 0 H V 23.95 30.00 Pass H 22.07 E1 V 22.97 H 22.76 E2 V 24.33 H 21.07 Middle 15 0 H V 23.43 30.00 Pass H 21.90 E1 V 21.74 H 21.41 E2 V 22.25 H 23.11 Highest 15 0 H V 20.52 30.00 Pass H 22.82 E1 V 22.37 H 22.24 E2 V 23.87 H 21.82 Page 104 of 141 Report No.: A2207239-C01-R19 EUT mode Channel RB Size RB Offset EUT Pol. Antenna Pol. EIRP(dBm) Limit (dBm) Result LTE Band 4 (5MHz) QPSK Lowest 25 0 H V 24.39 30.00 Pass H 21.68 E1 V 22.82 H 22.77 E2 V 24.45 H 20.53 Middle 25 0 H V 23.09 30.00 Pass H 21.22 E1 V 21.80 H 21.35 E2 V 21.96 H 22.69 Highest 25 0 H V 20.73 30.00 Pass H 23.18 E1 V 22.69 H 22.64 E2 V 23.70 H 21.69 Page 105 of 141 Report No.: A2207239-C01-R19 EUT mode Channel RB Size RB Offset EUT Pol. Antenna Pol. EIRP(dBm) Limit (dBm) Result LTE Band 4 (10MHz) QPSK Lowest 50 0 H V 23.90 30.00 Pass H 21.73 E1 V 23.14 H 21.94 E2 V 23.70 H 20.62 Middle 50 0 H V 23.54 30.00 Pass H 21.74 E1 V 21.99 H 20.89 E2 V 21.94 H 23.24 Highest 50 0 H V 21.19 30.00 Pass H 23.28 E1 V 22.53 H 22.51 E2 V 23.54 H 22.11 Page 106 of 141 Report No.: A2207239-C01-R19 EUT mode Channel RB Size RB Offset EUT Pol. Antenna Pol. EIRP(dBm) Limit…
