2AXYP-OTW-340-RTure Wireless Earbuds

www.oraimo.com @oraimo accessories For more information, please visit: ثانیة 1 على سماعة أذن واحدة لمدة ً اضغط مطولا رفض مكالمة واردة: انقر مرتین الرد/ إنھاء مكالمة: ( انقــر مرتیــن علــى ســماعة أذن واحــدة لتعلیــق المكالمــة أ الحالیــة والــرد على 1 عندمــا یوجــد مكالمــة واردة جدیــدة أثنــاء اتصــال المكالمــة: )الاتصــال ثلاثــي الاتــجاه، ثانیــة للتبدیــل بیــن المكالمــة أ والمكالمــة ب، انقــر مرتیــن علــى ســماعة أذن واحــدة لإنھــاء المكالمة 1ــ على ســماعة أذن واحــدة لمــدة ً المكالمــة الــواردة ب، اضغــط مطولا ثانیة لرفض المكالمة ب الواردة.1 على سماعة أذن واحدة لمدة ً ( اضغط مطولا2الحالیة. )

Attestation Statements (May 05,2023) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA RE: Attestation Statements Part 2.911(d)(7) request for (FCC ID: 2AXYP) (ORAIMO TECHNOLOGY LIMITED), the undersigned, hereby authorize Lucky Cowboy Global Services, LLC to act as our designated U.S. agent for service of process, (ORAIMO TECHNOLOGY LIMITED) accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Lucky Cowboy Global Services, LLC accepts the responsibility to act as designated U.S. agent for service of process. Applicant Information： Company name: ORAIMO TECHNOLOGY LIMITED Contact Name: Greeny Xian Address: FLAT N 16/F BLOCK B UNIVERSAL INDUSTRIAL CENTRE 19-25 SHAN MEI STREET FOTAN NT HONGKONG FRN: 0030126577 Telephone No: 15814421443 Email: [email protected] Signature [Greeny Xian] U.S. Agent Information: Company Name: Lucky Cowboy Global Services, LLC Address: 2213 S. Braeswood Blvd. #12E Houston, TX 77030 USA FRN: 0033510934 Contact Name: Louie Liu Telephone No: +1 (713) 992-3369 Email: [email protected] Signature [Louie Liu]

ORAIMO TECHNOLOGY LIMITED Agent Authorization Letter (December 29, 2023) Eurofins MET Labs 914 West Patapsco Avenue Baltimore, MD 21230 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize (WORLD STANDARDIZATION CERTIFICATION & TESTING GROUP (SHENZHEN) CO., LTD.) to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Greeny Xian / Manager

ORAIMO TECHNOLOGY LIMITED Short Term Confidentiality Request Letter (December 29, 2023) MET Laboratories, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Short Term Confidentiality Request For( True Wireless Earbuds / OTW-340# 2AXYP-OTW-340-R#) To Whom It May Concern: In accordance with sections 0.457 and 0.459 of CFR 47, < ORAIMO TECHNOLOGY LIMITED>. requests short-term Confidentiality of following sections of this application for a period of 180 days after grant is issued. Test setup photos External photos Internal photos User’s manual These documents contain detailed system and equipment descriptions and related information about the product, which < ORAIMO TECHNOLOGY LIMITED. > considers to be proprietary, confidential, and a custom design and otherwise, would not release to the general public. Since this design is a basis from which future technological products will evolve, < ORAIMO TECHNOLOGY LIMITED.> feels that this information would be of benefit to its competitors, and that the disclosure of the information in these documents would give our competitors an unfair advantage in the market. Please contact me if there is any information you may need. Sincerely, Name: Greeny Xian Function: Manager Signature:

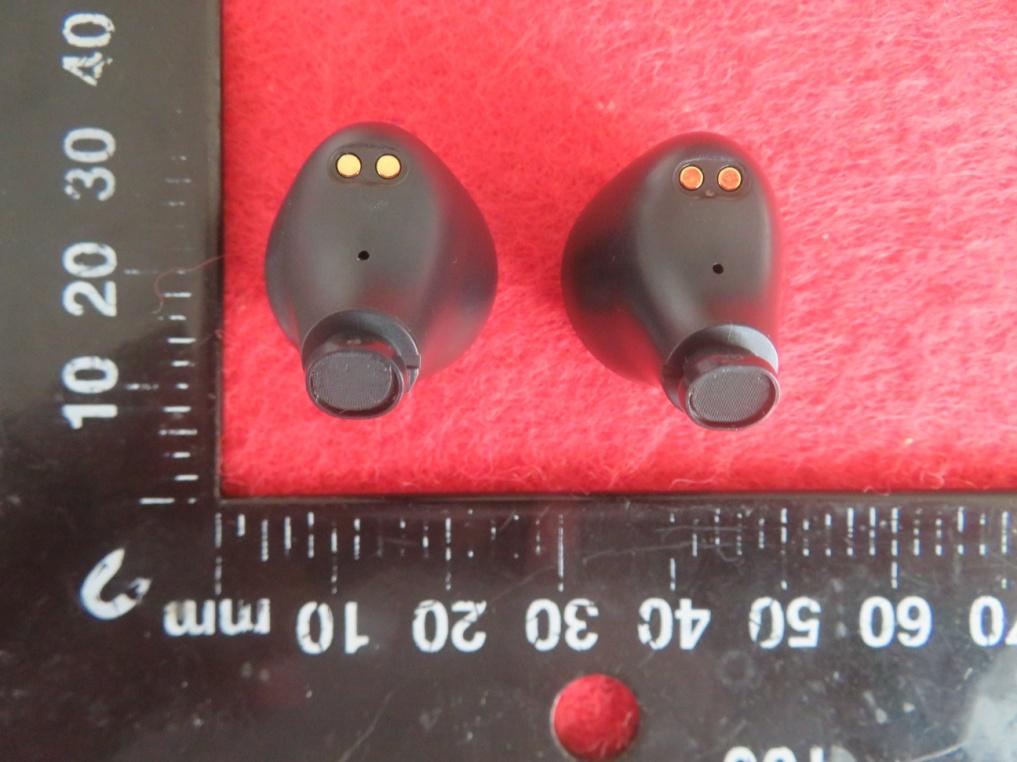

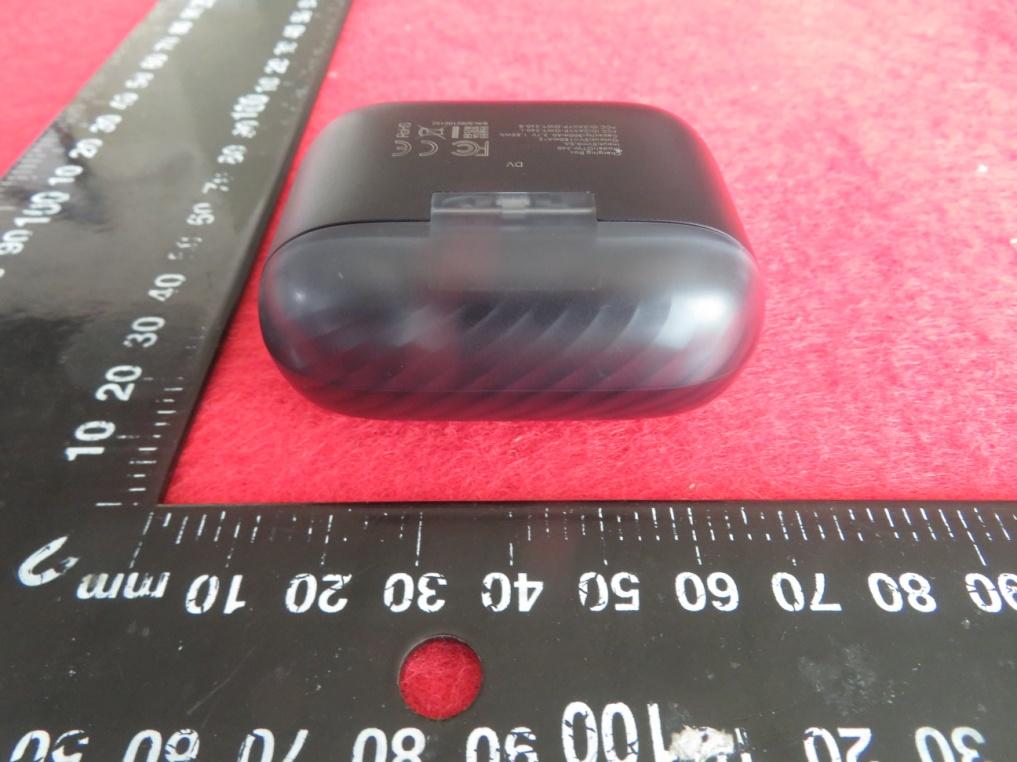

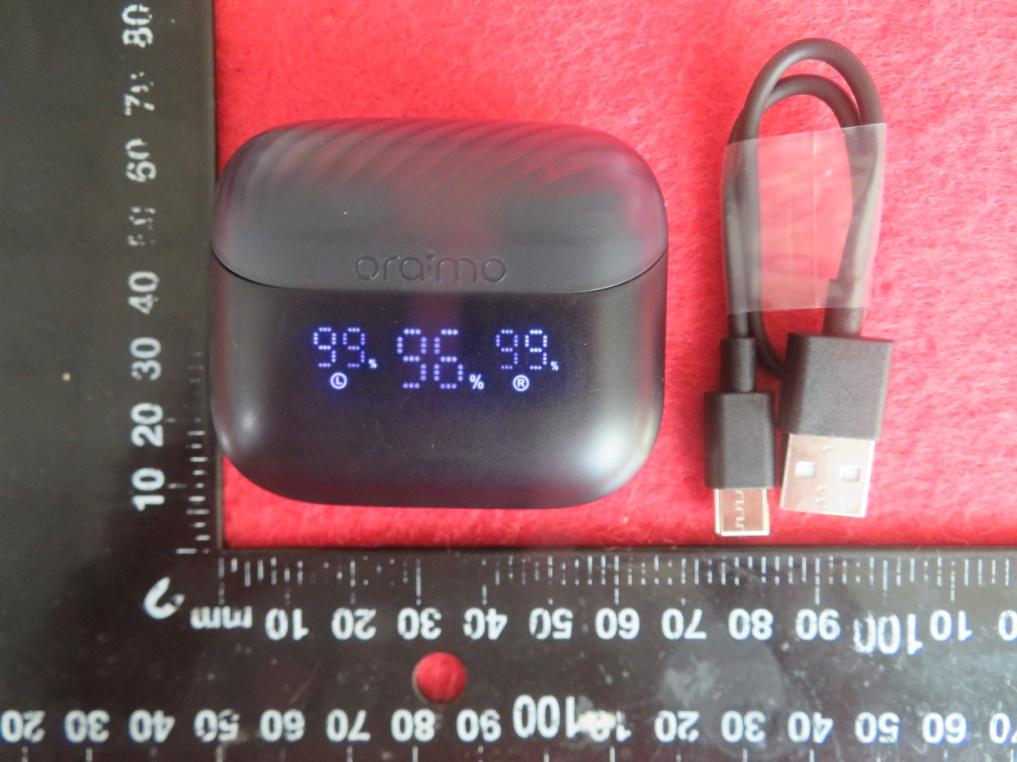

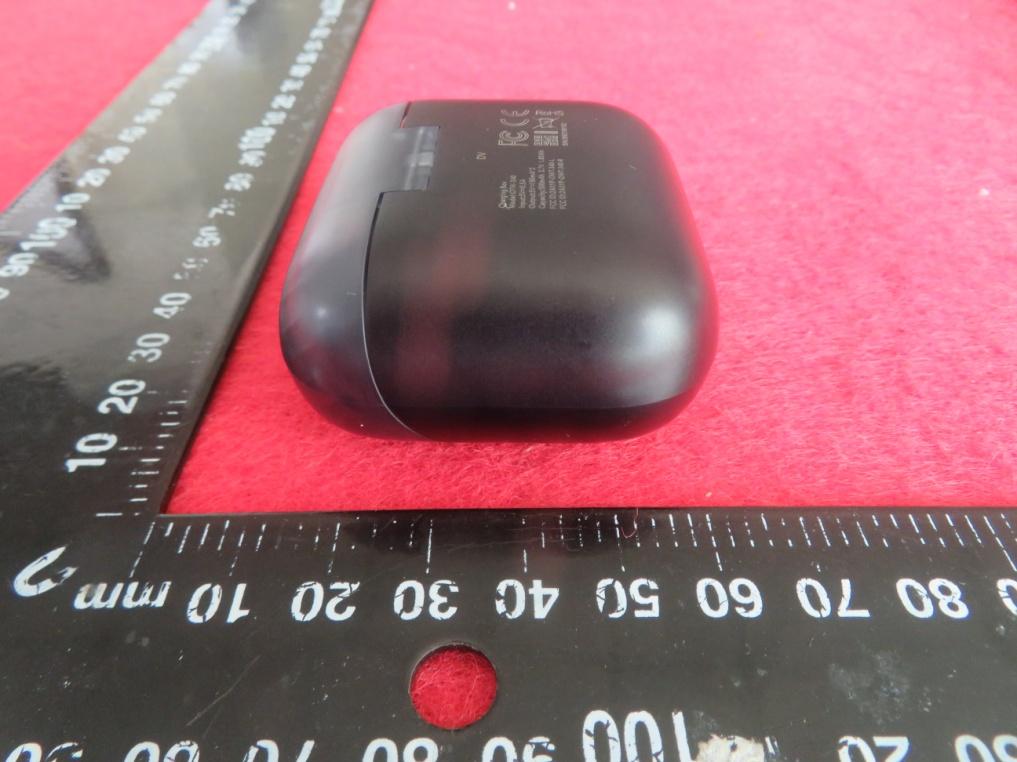

Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT Appearance photograph of EUT

Label Location: This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT ANT Internal photograph of EUT Internal photograph of EUT Internal photograph of EUT

FCC ID: 2AXYP-OTW-340-R Portable device According to §15.247(e)(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g SAR and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)]·[√f(GHZ)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f(GHZ) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT: Test Mode Channel Frequency (GHz) Conducted power (dBm) Conducted power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculation SAR Exclusion threshold SAR test exclusion GFSK 2.402 -0.28 0.94 0+1 1.00 1.26 <5 0.323 3.00 YES 2.441 0.46 1.11 0+1 1.00 1.26 <5 0.386 3.00 YES 2.480 0.55 1.14 0+1 1.00 1.26 <5 0.397 3.00 YES π/4- DQPSK 2.402 0.56 1.14 0+1 1.00 1.26 <5 0.392 3.00 YES 2.441 1.23 1.33 1+1 2.00 1.58 <5 0.461 3.00 YES 2.480 1.38 1.37 1+1 2.00 1.58 <5 0.481 3.00 YES 8-DPSK 2.402 -0.46 0.90 0+1 1.00 1.26 <5 0.310 3.00 YES 2.441 0.36 1.09 0+1 1.00 1.26 <5 0.377 3.00 YES 2.480 0.40 1.10 0+1 1.00 1.26 <5 0.384 3.00 YES BLE: Test Mode Channel Frequency (GHz) Conducted power (dBm) Conducted power (mW) Tune-up power (dBm) Max tune-up power (dBm) Max tune-up power (mW) Distance (mm) Result calculation SAR Exclusion threshold SAR test exclusion BLE(1M) 2.402 -2.93 0.51 0+1 1.00 1.26 <5 0.175 3.00 YES 2.441 -2.12 0.61 0+1 1.00 1.26 <5 0.213 3.00 YES 2.480 -1.92 0.64 0+1 1.00 1.26 <5 0.225 3.00 YES BLE(2M) 2.402 -2.82 0.52 0+1 1.00 1.26 <5 0.180 3.00 YES 2.441 -2.03 0.63 0+1 1.00 1.26 <5 0.218 3.00 YES 2.480 -1.84 0.65 0+1 1.00 1.26 <5 0.229 3.00 YES Conclusion: For the max result : 0.481≤ FCC Limit 3.0 for 1g SAR.

Report No.: WSCT-A2LA-R&E231200025A-LE Page 2 of 45 TABLE OF CONTENTS 1. Test Certification....................................................................................... 3 2. Test Result Summary ............................................................................... 4 3. EUT Description ........................................................................................ 5 4. Genera Information ................................................................................... 6 4.1. TEST ENVIRONMENT AND MODE .............................................................................................................. 6 4.2. DESCRIPTION OF SUPPORT UNITS .......................................................................................................... 6 5. Facilities and Accreditations ................................................................... 7 5.1. FACILITIES ............................................................................................................................................ 7 5.2. ACCREDITATIONS ............................................................................................................................ 7 5.3. MEASUREMENT UNCERTAINTY ............................................................................................................... 8 5.4. MEASUREMENT INSTRUMENTS ..................................................................................................... 9 6. Test Results and Measurement Data .................................................... 10 6.1. ANTENNA REQUIREMENT ...................................................................................................................... 10 6.2. CONDUCTED EMISSION ........................................................................................................................ 11 6.3. CONDUCTED OUTPUT POWER .............................................................................................................. 13 6.4. EMISSION BANDWIDTH ......................................................................................................................... 18 6.5. POWER SPECTRAL DENSITY ................................................................................................................ 23 6.6. CONDUCTED BAND EDGE AND SPURIOUS EMISSION MEASUREMENT ..................................................... 28 6.7. RADIATED SPURIOUS EMISSION MEASUREMENT ................................................................................... 39 Report No.: WSCT-A2LA-R&E231200025A-LE Page 4 of 45 2. Test Result Summary Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247 (c) PASS AC Power Line Conducted Emission §15.207 N/A Conducted Peak Output Power §15.247 (b)(3) §2.1046 PASS 6dB Emission Bandwidth §15.247 (a)(2) §2.1049 PASS Power Spectral Density §15.247 (e) PASS Band Edge 1§5.247(d) §2.1051, §2.1057 PASS Spurious Emission §15.205/§15.209 §2.1053, §2.1057 PASS Note: 1. PASS: Test item meets the requirement. 2. Fail: Test item does not meet the requirement. 3. N/A: Test case does not apply to the test object. 4. The test result judgment is decided by the limit of test standard. Report No.: WSCT-A2LA-R&E231200025A-LE Page 5 of 45 3. EUT Description Product Name: True Wireless Earbuds Model : OTW-340 Trade Mark: oraimo Operation Frequency: 2402MHz~2480MHz Channel Separation: 2MHz Number of Channel: 40 Modulation Technology: GFSK Antenna Type: FPC Antenna Antenna Gain: 0.41dBi Operating Voltage Li-ion Battery: 501012 Voltage: 3.7V Rated Capacity: 40mAh Limited Charge Voltage: 4.2V Charging Box : 802035 Input: 5V0.5A Output: 5V150mA*2 Capacity:500mAh 3.7V 1.85Wh Remark: N/A. Operation Frequency each of channel Channel Frequency Channel Frequency Channel Frequency Channel Frequency 0 2402MHz 10 2422MHz 20 2442MHz 30 2462MHz 1 2404MHz 11 2424MHz 21 2444MHz 31 2464MHz ... ... ... ... ... ... ... ... 8 2418MHz 18 2438MHz 28 2458MHz 38 2478MHz 9 2420MHz 19 2440MHz 29 2460MHz 39 2480MHz Remark: Channel 0, 19 & 39 have been tested. Report No.: WSCT-A2LA-R&E231200025A-LE Page 6 of 45 4. Genera Information 4.1. Test environment and mode Operating Environment: Temperature: 25.0 C Humidity: 56 % RH Atmospheric Pressure: 1010 mbar Test Mode: Engineering mode: Keep the EUT in continuous transmitting by select channel and modulations(The value of duty cycle is 98.46%) with Fully-charged battery. The sample was placed (0.1m below 1GHz, 1.5m above 1GHz) above the ground plane of 3m chamber. Measurements in both horizontal and vertical polarities were performed. During the test, each emission was maximized by: having the EUT continuously working, investigated all operating modes, rotated about all 3 axis (X, Y & Z) and considered typical configuration to obtain worst position, manipulating interconnecting cables, rotating the turntable, varying antenna height from 1m to 4m in both horizontal and vertical polarizations. The emissions worst-case are shown in Test Results of the following pages. 4.2. Description of Support Units The EUT has been tested as an independent unit together with other necessary accessories or support units. The following support units or accessories were used to form a representative test configuration during the tests. Equipment Model No. Serial No. FCC ID Trade Name / / / / / Note: 1. All the equipment/cables were placed in the worst-case configuration to maximize the emission during the test. 2. Grounding was established in accordance with the manufacturer’s requirements and conditions for the intended use. 3. For conducted measurements (Output Power, 6dB Emission Bandwidth, Power Spectral Density, Spurious Emissions), the antenna of EUT is connected to the test equipment via temporary antenna connector, the antenna connector is soldered on the antenna port of EUT, and the temporary antenna connector is listed in the Test Instruments. Report No.: WSCT-A2LA-R&E231200025A-LE Page 7 of 45 5. Facilities and A…

Text truncated - open the document above for the full version.

RADIATED EMISSION TEST (Frequency from 30MHz to 1GHz) RADIATED EMISSION TEST (Frequency above 1GHz) RF Test setup photos
