4. Perform the injection as described in the Instructions for Use of your pen injector. Press and hold down Mallya G dose dialing button. Watch as the dose counter returns to 0. The 0 must line up with the pen dose pointer. During a dose injection, Mallya G ’s light is green (Figure S). NOTE: Do not pause during the injection, you may experience harm due to miscalculation of doses. 5. At the end of injection, keep the pressure on the button and the needle in your skin until the green rapid flashing turns off (6 seconds) (Figure T). IMPORTANT: Green light will remain on throughout the injection if green light does not come on and is not flashing at the end of injection, the injection will not be recorded. NOTE: Safety tests performed to check the flow (priming), will also be automatically detected, and recorded by Mallya G . Perform the safety test to check the flow as described in the Instructions for Use of your pen injector. Indication for use The Mallya ®G Injection Pen Adapter is indicated for the capture and wireless transmission of dosing information of compatible reusable and disposable pen injectors. Device features Mallya G is able to : • be assembled with Novo Nordisk ® pen injector designed for growth disorder treatment, • record the amount of dose increments injected by the pen, • record the timestamp (date & time) of each injection, • transmit information relating to dose, time, and date of each injection to a mobile app on a smartphone, when the device is connected to it, using Bluetooth ® technology. Clinical environment The Mallya G device is intended to be used by patients in the same use environment as their compatible pen injector. There are no known contraindications to the use of Mallya G for these patients. NOTE: A list of all compatible injection pens is available in the legal manufacturer device technical documentation and on the website at: https://my-mallya.com/us/growth-disorder. Mallya G x1 USB cable x1 User instructions x1 NOTE: the USB charger is not included. Use a Class II USB wall charger, with output 5V and at least 500mA (Figure B). 5V ≥ 500mA Novo Nordisk ® pen injector Mallya G Download a connectable app and pair with Mallya G Wake up and charge Mallya G Attach Mallya G to your pen Mallya G is turned off when it is shipped. You will need to wake it up and make sure it is charged enough before use. 1.1. Connect Mallya G to the supplied USB cable (Figure E). 1.2. Connect the cable to a powered USB wall charger (Figure E). 1.3. Let the device charge for at least 10 minutes before its first use (Figure F). 1.4. Unplug the cable and Mallya G (Figure G) then unplug the charger. The blue light signal indicates that the device is not paired yet. Getting to know Mallya G and the pen Intended use How to setup your Mallya G Package contents Before you can use your Mallya G , you will need to pair it with a mobile application on your smartphone. 3.1. Please refer to Mallya G internet website https://my-mallya.com/us/growth- disorder, or by scanning this QR Code (Figure K). 3.2. Download the mobile application on Google Play™ (Android) or the App Store ® (Apple) (Figure L). 3.3. Activate the Bluetooth ® on your smartphone, if not already done. 3.4. Keep Mallya G less than 10 cm away from your smartphone (Figure M). 3.5. Open the App and follow the instructions to pair Mallya G . Once paired, Mallya G ’s light signal turns green, then off (Figure N). 3.6. Once the device is paired, follow the instructions in the connected mobile application. < 10 cm < 4 in 2.1. Hold the pen with one hand, keeping the dose button accessible, and protect the needle with the pen cap (if already mounted). 2.2. With your other hand, hold Mallya G by the Body, without pressing on its dose dialing button. 2.3. Insert Mallya G on the pen dose button, aligning the Notch of Mallya G with the pen Dose counter (Figure H). 2.4. Push Mallya G fully onto the pen, pressing the button with the palm of your hand. It must be inserted all the way onto the dose selector (Figure I). 2.5. Make sure Mallya G is properly mounted on the pen as shown on the picture (Figure J). Refer to the Instructions for Use of your pen for the flow check and the injection instructions. Monitor your treatment as instructed by your healthcare provider. If you have any doubts about your treatment, please consult your healthcare provider. 1. Before you start selecting the dose, make sure the pen dose counter shows the number 0. The number 0 should line up in front of the pen dose pointer. 2. Use the Mallya G device black dose dialing button to select the dose (Figure Q). 3. Turn Mallya G ’s button to select the dose you need. The selected dose should line up in front of the pen dose pointer. During a dose selection, Mallya G ’s light is green (Figure Q). IMPORTANT: If the light does not turn green, Mallya G is not ready and will not record the injection. It needs to be put on active mode before performing an injection. Follow the step 4 in the “How to setup your Mallya G “ section above to put the device into active mode. NOTE: Do not use the transparent body of Mallya G to select your dose (Figure R). Put Mallya G into active mode 14 32 4.1. Firmly press and hold the Mallya G ’s button down for at least 5 seconds until the light turns purple (Figure O). NOTE: If the light does not turn purple make sure Mallya G is pushed all the way down (see Figure I in step 2.4). 4.2. Then, lift your finger from the button. The light will then turn green showing the device is now in active mode (Figure P). Mallya G is now ready for use. NOTE: Green light will remain on throughout the injection. If green ight does not come on, the injection will not be recorded. Make sure Mallya G is sufficiently inserted on your pen. Repeat step 2.4 to push Mallya G onto your pen to fully insert it. Then proceed to activate it, following the instructions in step 4.1. IMPORTANT: Follow the “Injecting a dose with Mallya G attached to your pen” section below …

Text truncated - open the document above for the full version.

V02072023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July 23, 2024 Ref: Attestation Statement Part 2.911(d)(7) Filing FCC ID: 2AYCW-MALLYANN BIOCORP certifies that, as of the dates of this application, Americas Compliance Consulting LLC dba iCertifi “iCertifi” is our designated U.S. agent for service of process for the above referenced FCC ID. BIOCORP accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any commission- related proceeding involving the equipment. iCertifi accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service process for the above referenced FCC ID. Designated U.S. Agent Information: Name: Americas Compliance consulting, LLC dba iCertifi FCC FRN: 0033399411 Address: 2445 NE Division Street, Suite 202 Bend, OR 97703 United States Contact Person: Paul Preston Tel: 866-885-4575 Email: [email protected] Sincerely, BIOCORP FRN : 0030249189 Americas Compliance Consulting LLC dba iCertifi Alexia GARIN , VP Quality & Regulatory Affairs Paul Preston V02072023 Signature

Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July 23, 2024 Ref: Attestation Statements Part 2.911(d)(5)(i) Filing FCC ID: 2AYCW-MALLYANN BIOCORP (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Link: List of Equipment and Services Covered By Section 2 of The Secure Networks Act Sincerely, BIOCORP Alexia GARIN Signature: Rev 1/26/2023 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: July 23, 2024 Ref: Attestation Statements Part 2.911(d)(5)(ii) Filing FCC ID: 2AYCW-MALLYANN BIOCORP (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Link: List of Equipment and Services Covered By Section 2 of The Secure Networks Act Sincerely, BIOCORP Alexia GARIN Signature:

Letter of Agency July 23, 2024 To: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046-1609 Timco Engineering, Inc. 13146 NW 86th Drive, Suite 400 Alachua, FL 32615- United States We, the undersigned BIOCORP hereby authorizes Majid MOURZAGH, LCIE SUD EST, to act on our behalf in all matters relating to all processes required for FCC certification of our devices. Any and all acts carried out by the above agent on our behalf shall have the same effects as acts of our own. This authorization is valid until: December 31, 2024 If you have any questions regarding this authorization, let us know please. Sincerely, Alexia GARIN Signature:

COVER LETTER MALLYA – EFA2 / CND1 FCC ID: 2AYCW-MALLYANN July 23, 2024 This report concerns: File : Original Grant SubPart: SubPart 15C Equipment type : Smart cap for pen injectors Request issue of grant : __ Immediately upon completion of review ___ Defer grant per 47 CFR 0.457(d)(1)(ii) until ____ date _____. Company Name agrees to notify the Commission by _____date_____ of the intended date of announcement of the product so that the grant can be issued on that date. Confidentiality of grant : __ Applicant requests the existence of this grant to be kept confidential until ____date____. The announcement of this product before this date via freedom of information would be detrimental to Company Name, and therefore must be considered a business secret. Public announcement of this product will not be made prior to this date. (Max. 60 days after grant issued). Limits used : (check one) CISPR 22: ______ Part15: ______ Measurement procedure used is ANSI C63.4-2014 / C63.10-2013 unless another is specified. Other test procedure : ____________________________________________________ Application for verification Applicant for this device Prepared by : Majid MOURZAGH LCIE Sud-Est ZI Centr’Alp – 170, rue de Chatagnon 38430 MOIRANS - France Ph. : 33 4 76 07 36 36 Fax : 33 4 76 55 90 88 e-mail : [email protected] FRN : 0005-0971-18 Alexia GARIN BIOCORP ZI de Lavaur - La Bechade 63500 - ISSOIRE - France Ph. : +33 +33645620362 Fax : +33 / e-mail: [email protected] FRN : 0030249189 Signature : Signature : *Not to be filed with Equipment Authorization Branch of FCC unless requested Report format prepared by the Information Technology Industry Council (ITI) ESC-5 and reviewed by FCC staff in 1994

CONFIDENTIALITY REQUEST To: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046-1609 Cc: Timco Engineering, Inc. 13146 NW 86th Drive, Suite 400 Alachua, FL 32615- United States July 23, 2024 Subject: Confidentiality request FCC ID: 2AYCW-MALLYANN BIOCORP requests, pursuant to 47CFR 0.457 and 0.459, post grant confidentiality for portions of the material contained in this application. The following document regarding this submission for FCC ID: 2AYCW-MALLYANN shall be kept confidential: LONG-TERM CONFIDENTIALITY: 1. Block Diagram description of the equipment (file: Block Diagram - 2AYCW-MALLYANN.pdf) 2. Operational description of the equipment (file: Operational Description -2AYCW-MALLYANN.pdf) 3. Schematic Diagram of the equipment (file: Schematic -2AYCW-MALLYANN.pdf) The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. The applicant understands that disclosure of this application and all accompanying documentation will not be made before the date of the Grant for this application. Sincerely, Responsible party: Alexia GARIN Title: VP Quality & Regulatory Affairs Signature:

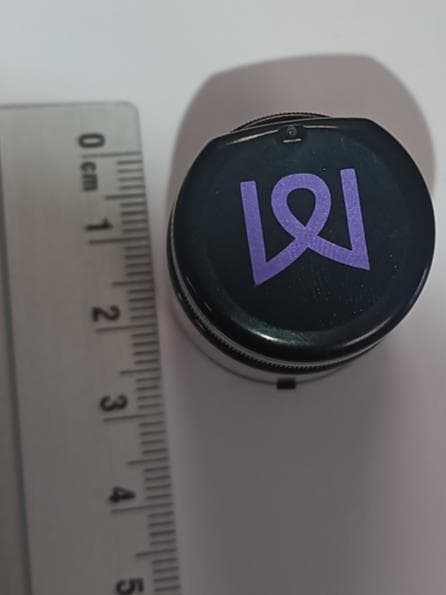

LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS – France Page 1/2 EXTERNAL PHOTOS OF EQUIPMENT FCCID: 2AYCW-MALLYANN LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS – France Page 2/2

LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS - FRANCE Page 1/2 PRODUCT LABELING FCCID: 2AYCW-MALLYANN Id label Location on packaging LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS - FRANCE Page 2/2 Label

LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS – France Page 1/1 INTERNAL PHOTOS OF EQUIPMENT FCCID: 2AYCW-MALLYANN RF ANTENNA

LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS – FRANCE RF Exposure Considerations for FCC ID: 2AYCW-MALLYANN Per FCC KDB 447498 D01 General RF Exposure Guidance v06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions. The minimum test separation distance defined in 4.1 f) is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander. Minimum test separation distance: 5 mm Step a) For 100 MHz to 6 GHz and test separation distances ≤ 50 mm The 1-g and 10-g SAR test exclusion thresholds are determined by the following: (max푝표푤푒푟표푓 푐ℎ푎푛푛푒푙 ( 푚푊 ) ) (min푡푒푠푡푠푒푝푎푟푎푡푖표푛 푑푖푠푡푎푛푐푒 ( 푚푚 ) ) × √ 푓 ( 퐺퐻푧 ) ≤3.0 푓표푟 1−푔 푆퐴푅 표푟 ≤7.5 푓표푟 10−푔 푒푥푡푟푒푚푖푡푦 푆퐴푅 Where: ▪ f(GHz) is the RF channel transmit frequency in GHz ▪ Power and distance are rounded to the nearest mW and mm before calculation31 ▪ The result is rounded to one decimal place for comparison ▪ The values 3.0 and 7.5 are referred to as numeric thresholds in step b) below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm, and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. (dBm) (mW) Min 2.402 -0.42 0.91 5 0.28 3 7.5 Exempt from SAR Mid 2.440 -0.75 0.84 5 0.26 3 7.5 Exempt from SAR Max 2.480 -1.17 0.76 5 0.24 3 7.5 Exempt from SAR Limit for 10-g extremity SAR Verdict Maximum source-based time averaged conducted output power or EIRP (worst case) including tune-up tolerance Channel Frequency (GHz) Minimum separation distance (mm) Result of Eq. 1 Limit for 1-g SAR Conclusion: Therefore our device complies with FCC’s RF radiation exposure limits for general population without SAR evaluation.

Template : March 29 th , 2023 This document shall not be reproduced, except in full, without the written approval of the LCIE. This document contains results related only to the items tested. It does not imply the conformity of the whole production to the items tested. Unless otherwise specified or rule defined by the test method, the decision of conformity doesn’t take into account the uncertainty of measures. This document doesn’t anticipate any certification decision. The COFRAC accreditation attests the technical capability of the testing laboratory for the only tests covered by the accreditation. If some tests mentioned in this report are carried out outside the framework of COFRAC accreditation, they are indicated by the symbol . LCIE Laboratoire Central des Industries Electriques Une société Bureau Veritas Z.I Centr'alp 170, Rue de Chatagnon 38430 Moirans FRANCE Tél. + 33 4 76 07 36 36 [email protected] www.lcie.fr SAS au capital de 15 745 984€ / RCS Nanterre B 408 363 174 / N° TVA intracommunautaire FR01 408 363 174 / N°SIRET 408 363 174 00017 Accreditation N°1-1633 Scope available on www.cofrac.fr TEST REPORT N°: 19798078-792767-A(FILE#5506002) Version: 02 Subject Radio spectrum tests according to the standards: FCC CFR 47 Part 15.247 & ANSI C63.10 RSS-247 & RSS-Gen Issued to BIOCORP Parc Technologique de Lavaur- La Bechade 63500 - ISSOIRE FRANCE Apparatus under test  Product Smart cap for pen injectors  Trade mark Mallya  Manufacturer BIOCORP  Family range EFA1 / EFA2 / CND1  Model under test EFA2  Serial number None  FCCID 2AYCW-MALLYANN  IC 26747- MALLYANN Conclusion See Test Program chapter Test date September 12, 2023 to September 14, 2023 Test location LCIE Grenoble FCC Test site FR0008 - 197516 (MOI) ISED Test site 6500A (MOI) Sample receipt date August 30, 2023 Composition of document 57 pages Document issued on July 23, 2024 Written by : Approved by : Majid MOURZAGH Anthony MERLIN Tests operator Technical manager TEST REPORT N°19798078-792767-A(FILE#5506002) Version : 02 Page 2/57 PUBLICATION HISTORY Version Date Author Modification 01 November 08, 2023 Majid MOURZAGH Creation of the document 02 July 23, 2024 Majid MOURZAGH Add model CND1 on Family range Each new edition of this test report replaces and cancels the previous edition. The control of the old editions of report is under responsibility of client. TEST REPORT N°19798078-792767-A(FILE#5506002) Version : 02 Page 3/57 SUMMARY 1. TEST PROGRAM ............................................................................................................................. 4 2. EQUIPMENT UNDER TEST: CONFIGURATION (DECLARED BY PROVIDER) .............................. 5 3. OCCUPIED BANDWIDTH ............................................................................................................... 12 4. 6DB BANDWIDTH .......................................................................................................................... 15 5. MAXIMUM CONDUCTED OUTPUT POWER ................................................................................. 18 6. POWER SPECTRAL DENSITY ...................................................................................................... 21 7. UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS ..................................... 24 8. AC POWER LINE CONDUCTED EMISSIONS ............................................................................... 29 9. UNWANTED EMISSIONS IN RESTRICTED FREQUENCY BANDS .............................................. 41 10. UNCERTAINTIES CHART .............................................................................................................. 57 TEST REPORT N°19798078-792767-A(FILE#5506002) Version : 02 Page 4/57 1. TEST PROGRAM References ➢ 47 CFR Part 15.247 (2023) ➢ RSS 247 Issue 2 ➢ RSS Gen Issue 5 ➢ KDB 558074 D01 DTS Meas Guidance v05r02  ➢ KDB 662911 D01 Multiple Transmitter Output v02r01 ➢ ANSI C63.10 (2013) Radio requirement: Clause - Test Description Test result - Comments Occupied Bandwidth ISED PASS 6dB Bandwidth FCC & ISED PASS Maximum Conducted Output Power FCC & ISED PASS Power Spectral Density FCC & ISED PASS Unwanted Emissions in Non-Restricted Frequency Bands FCC & ISED PASS Unwanted Emissions in Restricted Frequency Bands FCC & ISED PASS Receiver Radiated Emissions ISED PASS(2) AC Power Line Conducted Emission FCC & ISED PASS This table is a summary of test report, see conclusion of each clause of this test report for detail. (1) Limited program (2) Testing covered the receive mode, and receiver spurious emissions are considered to be the same as transmitter. PASS: EUT complies with standard’s requirement FAIL: EUT does not comply with standard’s requirement NA: Not Applicable NP: Test Not Performed TEST REPORT N°19798078-792767-A(FILE#5506002) Version : 02 Page 5/57 2. EQUIPMENT UNDER TEST: CONFIGURATION (DECLARED BY PROVIDER) 2.1. HARDWARE IDENTIFICATION (EUT AND AUXILIARIES): Equipment under test (EUT): Model under test: EFA2 Serial Number: None Dimensions: 24,8mm diameter/40,1mm height Type: Table-Top Power supply: Name Type Rating Reference / Sn Comments Supply1 Battery 3.7Vdc / / Supply2 DC 5Vdc 2A / / NC: Not communicated by provider TEST REPORT N°19798078-792767-A(FILE#5506002) Version : 02 Page 6/57 Inputs/outputs - Cable: Access Type Length used (m) Declared <3m Shielded Comments Supply2 USB cable 0.9 Yes Yes / NC: Not communicated by provider Auxiliary equipment used during test: Type Reference Sn Comments Laptop LENOVO L460 / / AC/DC PSU LENOVO / Development map ARM mbed L460 Used for the configuration of the product AC/ DC Switching Adapter SOY-0200500EU / 100-240Vac 56/60Hz NC: Not communicated by provider TEST REPORT N°19798078-792767-A(FILE#5506002) Version : 02 Page 7/57 Equipment information (declaration of provider): Bluetooth Low Energy: v5.2 Chipset nRF52832 Frequency band: [2400 – 2483.5] MHz Spectrum Modulation: DSSS (Tested like it – international agreements) Number of Channel:…

Text truncated - open the document above for the full version.

2.4GHz Mini Antenna, SMTP/N 2450AT18B100 Detail Specification: Page 1 of 5 *Efficiency based on Johanson's standard evaluation board ±± ±± ±± https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.0 2018 Johanson Technology, Inc. All Rights Reserved Want the layout file? Request it at: https://www.johansontechnology.com/ask-a-question High Frequency Ceramic Solutions Part Number 11/5/2018 Avg. Rad Efficiency* Let us help you with the antenna design, optimization, and tuning! 2450AT18B100 2400 - 2500 76% General Specifications Frequency (MHz) -45 to +125°C -45 to +125°C 3000pcs Return Loss (dB) Impedance Input Power Storage Temperature Operating Temperature Reel Quantity 50 Ω 2 Watts max. (CW) Recommended Storage Conditions of unused product on T&R and period. +5 to +35°C Humidity 45~75%RH 18 months max. Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. e.g. 2450AT18B100(E or S)100% Tin Packing Style Evaluation Board 2450AT18B100-EB1SMA (see page 2&3 for details) Bulk (loose) T & R Suffix = E or S Suffix = E P/N Suffix Mechanical Dimensions In L 0.1260.0083.200.2 W 0.0630.0081.600.2 T 0.0511.30 +0.1/-0.2+.004/-.008 a 0.0200.0080.500.2 Terminal Configuration Function FEED NC No. 1 2 mm e.g. 2450AT18B100E e.g. 2450AT18B100SSuffix = S Part Number Explanation Peak Gain (dBi typ.) Average Gain (dBi typ.) 0.5 -0.5 9.5 min. ① ② L W a T 2.4GHz Mini Antenna, SMTP/N 2450AT18B100 Detail Specification: Page 2 of 5 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.0 2018 Johanson Technology, Inc. All Rights Reserved High Frequency Ceramic Solutions 11/5/2018 Mounting Considerations 1: Evaluation Board Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. To order a pre‐tuned 50Ω EVB with a female SMA connector click here: https://www.johansontechnology.com/request‐a‐sample Reference p/n: 2450AT18B100‐EB1SMA GND NO GND Units in mm ) ) 13.5 6.5 39.5 6.5 50Feed Line Antenna 4 ) Matching Component JTI P/Ns: L-14C2N7JV4 L-14C2N2JV4 * 2.6 4.2 1.6 1.9 0.4 2.7nH 1.2pF 3.3nH JTI P/N for Matching Circuit: Capacitor (1.2pF): 500R07S1R2BV4T Inductor (2.7nH): L-07C2N7SV6T Inductor (3.3nH): L-07C3N3SV6T *Line width should be designed to provied 50Ω impedance 2.4GHz Mini Antenna, SMTP/N 2450AT18B100 Detail Specification: Page 3 of 5 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.0 2018 Johanson Technology, Inc. All Rights Reserved High Frequency Ceramic Solutions 11/5/2018 Mounting Considerations 1: Typical Electrical Performance (T=25°C) Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. Would you like the antenna layout? Have antenna tuning issues? Please contact us if you have any questions regarding the implementation of this antenna in your PCB's layout. We'll be happy to guide you to maximize the antenna's performance. Contact our applications engineers at: https://www.johansontechnology.com/ask‐a‐question 2.4GHz Mini Antenna, SMTP/N 2450AT18B100 Detail Specification: Page 4 of 5 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.0 2018 Johanson Technology, Inc. All Rights Reserved High Frequency Ceramic Solutions 11/5/2018 Mounting Considerations 1: Antenna Performance Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. θ +Z (θ= 0°) +Y (θ= 90°) -Y -Z Typical 2D radiation patterns @ 2.44GHz YZ‐plane XZ‐plane XY‐plane Z Y Z X X Y φ +X (φ= 0°) -X +Y (φ= 90°) -Y θ +Z (θ= 0°) +X (θ= 90°) -X -Z 2.4GHz Mini Antenna, SMTP/N 2450AT18B100 Detail Specification: Page 5 of 5 https://www.johansontechnology.com 4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821 Ver. 4.0 2018 Johanson Technology, Inc. All Rights Reserved https://www.johansontechnology.com/rohs-compliance Need help designing the antenna in? Use our antenna design services! https://www.johansontechnology.com/ipc-antenna-services We provide 2 free layout reviews and if you need us to tune and characterize the antenna on your product (inside our anechoic chamber) we can do that too. Small lab fee may apply. High Frequency Ceramic Solutions Antenna tuning, optimization, and validation services: For more antennas and to download measured S-parameters, go to: 11/5/2018 Johanson Technology, Inc. reserves the right to make design changes without notice. All sales are subject to Johanson Technology, Inc. terms and conditions. RoHS Compliance Soldering Information For layout review contact our Applications Team at: MSL Info Packaging information https://www.johansontechnology.com/ipc-antenna-services https://www.johansontechnology.com/antennas https://www.johansontechnology.com/ipcsoldering-profile https://www.johansontechnology.com/msl-rating https://www.johansontechnology.com/tape-reel-packaging https://www.johansontechnology.com/ask-a-question

LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS - FRANCE Page 1/4 CONDUCTED AND RADIATED MEASUREMENT PHOTO FCCID: 2AYCW-MALLYANN 1.1 Conducted emission LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS - FRANCE Page 2/4 LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS - FRANCE Page 3/4 1.2 Radiated emissions LCIE SUD EST Laboratoire de Moirans Z.I. Centr’Alp 170, Rue de Chatagnon 38430 MOIRANS - FRANCE Page 4/4
