2AYGCHJC-LX9Smart Phone

Quick Start Guide HJC-LX9 HJC-LX3 Know Your Device Before using the device, familiarize yourself with its basic operations. •To power on your device, press and hold the power button until the screen turns on. •To power off your device, press and hold the power button, and then touch . •To restart your device, press and hold the power button, and then touch . •Press and hold the power button for 10 or more seconds to force restart your device. Power buttonVolume button USB Type-C port/ Headset jack In-screen fingerprint Card slot •Only HJC-LX9 supports NFC. Please keep the NFC area close to other devices or objects while using the NFC function. •Check out the pre-installed Tips app and master all the great features on your device. 1 Getting Started •Be careful not to scratch your device or hurt yourself when using the eject pin. •Store the eject pin out of the reach of children to prevent accidental swallowing or injury. •Do not use cut or modified SIM cards with your device as these may not be recognized and could damage the card tray (slot). •If your SIM card does not match your device, please contact your carrier. Follow the instructions in the following figures to set up your device. Please use the eject pin included. Ensure that the card is correctly aligned and that the card tray is level when you insert it into your device. Single-SIM card: Dual-SIM card: SIM Card Management Select the default mobile data card and calling card as needed. For details, check out the pre-installed Tips app. 2 •4G service depends on the support of your network carrier and its deployment of relevant services. Please contact your carrier to activate 4G service. •4G service may be unavailable in certain areas due to network interference. •If this guide is inconsistent with the description on the official website, the latter prevails. For More Information If you encounter any problems while using your device, you can obtain help from the following resources: •Visit https://www.hihonor.com to view device information and other information. •Visit https://www.hihonor.com/en/support for the most up-to-date contact information for your country or region. •Go to Settings and enter the following keywords in the search box to view the corresponding information. E.g. Legal, Safety information, Authentication info, Certification logos. Safety Information Please read all of the safety information carefully before using your device to ensure its safe and proper operation and to learn how to dispose of your device properly. Operation and safety • To prevent possible hearing damage, do not listen at high volume levels for long periods. •Using an unapproved or incompatible power adapter, charger, or battery may damage your device, shorten its lifespan, or cause a fire, explosion, or other hazards. •Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are -20 °C to +45 °C. •Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. 3 •Keep the device and the battery away from excessive heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, stoves, or radiators. •Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. •While flying in an aircraft or immediately before boarding, only use your device according to instructions provided. Use of a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. •In order to avoid damaging the internal circuit of the device or charger, do not use the device in a dusty, damp, or dirty place, or near a magnetic field. •When charging the device, make sure the power adapter is plugged into a socket near the devices and is easily accessible. •Unplug the charger from electrical outlets and the device when not in use. •Do not use, store or transport the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. •Keep the battery away from fire, and do not disassemble, modify, throw, or squeeze it. Do not insert foreign objects into it, submerge it in water or other liquids, or expose it to external force or pressure, as this may cause the battery to leak, overheat, catch fire, or even explode. •Dispose of this device, the battery, and accessories according to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion, or other hazards. •This device contains a built-in battery. Do not attempt to replace the battery by yourself. Otherwise, the device may not run properly or it may damage the battery. For your personal safety and to ensure that your device runs properly, you are strongly advised to contact an authorized service center for a replacement. 4 Disposal and recycling information The symbol on the product, battery, literature, or packaging means that the products and batteries should be taken to separate waste collection points designated by local authorities at the end of the lifespan. This will ensure that EEE waste is recycled and treated in a manner that conserves valuable materials and protects human health and the environment. For more information, please contact your local authorities, retailer, or household waste disposal service or visit the website https://www.hihonor.com/. Reduction of hazardous substances This device and its electrical accessories comply with local applicable rules on the restriction of the use of certain hazardous substances in electrical and electronic equipment, such as EU REACH regulation, RoHS and Batteries (where included) dir…

Text truncated - open the document above for the full version.

20_Authorization LetterV1.0 Honor Device Co., Ltd. Federal Communications Commission 2021-02-01 Oakland Mills Road Columbia MD 21046 Let ter of Authorization To whom it may concern: We the undersigned, hereby authorize TÜV Rheinland (Shenzhen) Co., Ltd. to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by TÜV Rheinland (Shenzhen) Co., Ltd. on our behalf shall have the same affect as acts of our own. I , the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from Honor Device Co., Ltd. . Sincerely, For and Behalf of: Honor Device Co., Ltd. Liming Certification Manager Honor Device Co., Ltd. E- mail: [email protected] Tel: +86-13760231984 Fax: NA

18_Confidentiality Letter V1.0 Honor Device Co., Ltd. Federal Communications Commission 2021-02-01 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AYGCHJC-LX9 To Whom It May Concern: P ursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. S chematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure A bove mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2021-06-01 E xternal Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. B est Regards 18_Confidentiality Letter V1.0 Liming Certification Manager Honor Device Co., Ltd. E- mail: [email protected] Tel: +86-13760231984 Fax: NA

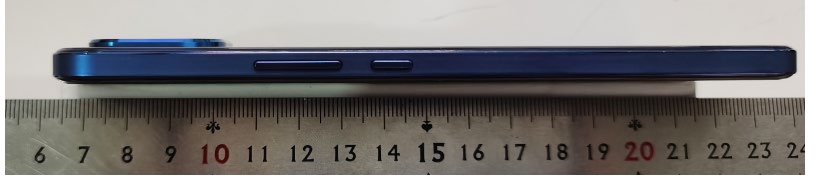

HJC-LX9 Smart Phone SECRET Page1, Total 4 External Photos of HJC-LX9 HJC-LX9 Smart Phone SECRET Page2, Total 4 HJC-LX9 Smart Phone SECRET Page3, Total 4

HJC-LX9 Smart Phone SECRET Page1, Total 4 ID Label & Label Location of HJC-LX9 HJC-LX9 Smart Phone SECRET Page2, Total 4 Lable &Location on the phone In the software Settings > About Phone > Regulatory Information Software：#06# can see IMEI and SN

HJC-LX9 Smart Phone SECRET Page1,Total 5 Int ernal Photos of HJC-LX9 HJC-LX9 Smart Phone SECRET Page2,Total 5 HJC-LX9 Smart Phone SECRET Page3,Total 5 HJC-LX9 Smart Phone SECRET Page4,Total 5 HJC-LX9 Smart Phone SECRET Page5,Total 5

SAR TEST REPORT Applicant Honor Device Co., Ltd. FCC ID 2AYGCHJC-LX9 Product Smart Phone Model HJC-LX9 Report No. R2009H0243-S1V3 Issue Date February 5, 2021 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in IEEE 1528- 2013, ANSI C95.1: 1992, IEEE C95.1: 1991. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Prepared by: Yu Wang Approved by: Guangchang Fan TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 2 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Table of Contents 1 Test Laboratory ............................................................................................................................... 5 1.1 Notes of the Test Report ......................................................................................................... 5 1.2 Test facility .............................................................................................................................. 5 1.3 Testing Location ...................................................................................................................... 5 1.4 Laboratory Environment .......................................................................................................... 6 2 Statement of Compliance ............................................................................................................... 7 3 Description of Equipment under Test .............................................................................................. 9 4 Test Specification, Methods and Procedures ............................................................................... 12 5 Operational Conditions during Test .............................................................................................. 13 5.1 Test Positions ........................................................................................................................ 13 5.1.1 Against Phantom Head ......................................................................................... 13 5.1.2 Body Worn Configuration ...................................................................................... 13 5.1.3 Phablet SAR test considerations ........................................................................... 14 5.2 Measurement Variability ........................................................................................................ 15 5.3 Test Configuration ................................................................................................................. 16 5.3.1 GSM Test Configuration ....................................................................................... 16 5.3.2 UMTS Test Configuration ..................................................................................... 16 5.3.3 LTE Test Configuration ......................................................................................... 20 5.3.4 Additional requirements for TDD LTE specification ............................................... 21 5.3.5 Wi-Fi Test Configuration ....................................................................................... 24 5.3.6 BT Test Configuration ........................................................................................... 25 5.3.7 Uplink LTE CA specification .................................................................................. 26 5.3.8 Dynamic antenna tuning description ..................................................................... 27 5.3.9 Receiver detection mechanism specification ........................................................ 27 6 SAR Measurements System Configuration .................................................................................. 29 6.1 SAR Measurement Set-up .................................................................................................... 29 6.2 DASY5 E-field Probe System ................................................................................................ 30 6.3 SAR Measurement Procedure .............................................................................................. 31 7 Main Test Equipment .................................................................................................................... 33 8 Tissue Dielectric Parameter Measurements & System Verification .............................................. 34 8.1 Tissue Verification ................................................................................................................. 34 8.2 System Performance Check .................................................................................................. 36 8.3 SAR System Validation ......................................................................................................... 38 9 Normal and Maximum Output Power ........................................................................................... 39 9.1 GSM Mode ............................................................................................................................ 39 9.2 WCDMA Mode ...................................................................................................................... 42 9.3 LTE Mode .............................................................................................................................. 46 9.4 WLAN Mode ......................................................................................................................... 112 9.5 Bluetooth Mode .................................................................................................................... 119 10 Meas…

Text truncated - open the document above for the full version.

SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 251 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Wi-Fi-Antenna Plot 83 802.11b Left Cheek High Date: 9/6/2020 Communication System: UID 0, 802.11b (0); Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2462 MHz; σ = 1.824 S/m; ε r = 38.534; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Phantom section: Left Section Probe: EX3DV4 - SN3677; ConvF(7.54, 7.54, 7.54); Calibrated: 7/6/2020; Electronics: DAE4 SN1291; Calibrated: 2/24/2020 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.14 (7483) Left Cheek High/Area Scan (10x18x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.127 W/kg Left Cheek High/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 2.494 V/m; Power Drift = -0.064 dB Peak SAR (extrapolated) = 0.337 W/kg SAR(1 g) = 0.123 W/kg; SAR(10 g) = 0.049 W/kg Maximum value of SAR (measured) = 0.132 W/kg SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 252 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot 84 802.11b Front Side Low (Distance 15mm) Date: 9/6/2020 Communication System: UID 0, 802.11b (0); Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; σ = 1.769 S/m; ε r = 38.73; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 1.4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(7.54, 7.54, 7.54); Calibrated: 7/6/2020; Electronics: DAE4 SN1291; Calibrated: 2/24/2020 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.14 (7483) Front Side Low/Area Scan (10x18x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.101 W/kg Front Side Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 3.101 V/m; Power Drift = -0.082 dB Peak SAR (extrapolated) = 0.195 W/kg SAR(1 g) = 0.094 W/kg; SAR(10 g) = 0.046 W/kg Maximum value of SAR (measured) = 0.104 W/kg SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 253 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot 85 802.11b Right Edge Low (Distance 10mm) Date: 9/6/2020 Communication System: UID 0, 802.11b (0); Frequency: 2412 MHz;Duty Cycle: 1:1 Medium parameters used: f = 2412 MHz; σ = 1.769 S/m; ε r = 38.73; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 1.4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(7.54, 7.54, 7.54); Calibrated: 7/6/2020; Electronics: DAE4 SN1291; Calibrated: 2/24/2020 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.14 (7483) Right Edge Low/Area Scan (5x17x1): Measurement grid: dx=12mm, dy=12mm Maximum value of SAR (measured) = 0.231 W/kg Right Edge Low/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 6.619 V/m; Power Drift = -0.035 dB Peak SAR (extrapolated) = 0.661 W/kg SAR(1 g) = 0.341 W/kg; SAR(10 g) = 0.152 W/kg Maximum value of SAR (measured) = 0.362 W/kg SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 254 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot 86 802.11a U-NII-1 Left Tilt CH48 Date: 9/4/2020 Communication System: UID 0, 802.11a (0); Frequency: 5240 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5240 MHz; σ = 4.847 S/m; ε r = 36.872; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Left Section DASY5 Configuration: Sensor-Surface: 1.4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(5.55, 5.55, 5.55); Calibrated: 7/6/2020; Electronics: DAE4 SN1291; Calibrated: 2/24/2020 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.14 (7483) Left Tilt CH48/Area Scan (12x21x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.184 W/kg Left Tilt CH48/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 3.695 V/m; Power Drift = -0.15 dB Peak SAR (extrapolated) = 0.513 W/kg SAR(1 g) = 0.181 W/kg; SAR(10 g) = 0.067 W/kg Maximum value of SAR (measured) = 0.200 W/kg SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 255 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Plot 87 802.11ac-VHT40 U-NII-1 Back Side CH46 (Distance 15mm) Date: 9/4/2020 Communication System: UID 0, 802.11ac VHT 40; Frequency: 5230 MHz;Duty Cycle: 1:1 Medium parameters used: f = 5230 MHz; σ = 4.858 S/m; ε r = 36.82; ρ = 1000 kg/m 3 Ambient Temperature:22.3 °C Liquid Temperature: 21.5°C Phantom section: Flat Section DASY5 Configuration: Sensor-Surface: 1.4mm (Mechanical Surface Detection) Probe: EX3DV4 - SN3677; ConvF(5.55, 5.55, 5.55); Calibrated: 7/6/2020; Electronics: DAE4 SN1291; Calibrated: 2/24/2020 Phantom: SAM1; Type: SAM; Serial: TP-1534 Measurement SW: DASY52, Version 52.10 (1); SEMCAD X Version 14.6.14 (7483) Back Side CH46/Area Scan (12x21x1): Measurement grid: dx=10mm, dy=10mm Maximum value of SAR (measured) = 0.0937 W/kg Back Side CH46/Zoom Scan (7x7x12)/Cube 0: Measurement grid: dx=4mm, dy=4mm, dz=2mm Reference Value = 0.8170 V/m; Power Drift = 0.021 dB Peak SAR (extrapolated) = 0.271 W/kg SAR(1 g) = 0.142 W/kg; SAR(10 g) = 0.057 W/kg Maximum val…

Text truncated - open the document above for the full version.

SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 293 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. ANNEX G: D1900V2 Dipole Calibration Certificate SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 294 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 295 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 296 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 297 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 298 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 299 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 300 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 301 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. ANNEX H: D2450V2 Dipole Calibration Certificate SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 302 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 303 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 304 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 305 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 306 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 307 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 308 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 309 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. ANNEX I: D2600V2 Dipole Calibration Certificate SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 310 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 311 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 312 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 313 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 314 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 315 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 316 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 317 of 335 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. ANNEX J: D5GHzV2 Dipole Calibration Certificate SAR Test Report Report No.: R2009H0243-S1V3 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 318 of 335…

Text truncated - open the document above for the full version.

RF TEST REPORT Applicant Honor Device Co., Ltd. FCC ID 2AYGCHJC-LX9 Product Smart Phone Model HJC-LX9 Report No. R2009H0243-R6V1 Issue Date January 28, 2021 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in FCC CFR47 Part 15C (2019). The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Prepared by: Peng Tao Approved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 RF Test Report Report No.: R2009H0243-R6V1 TA Technology (Shanghai) Co., Ltd. TA-MB-04-004R Page 2 of 64 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENT 1 Test Laboratory ............................................................................................................................... 5 1.1 Notes of the Test Report ......................................................................................................... 5 1.2. Test facility .............................................................................................................................. 5 1.3 Testing Location ...................................................................................................................... 5 2 General Description of Equipment under Test ................................................................................ 6 2.1 Applicant and Manufacturer Information.................................................................................. 6 2.2 General information ................................................................................................................. 6 3 Applied Standards .......................................................................................................................... 8 4 Information about the FHSS characteristics ................................................................................... 9 4.1 Frequency Hopping System Requirement............................................................................... 9 4.2 Pseudorandom Frequency Hopping Sequence ..................................................................... 10 4.3 Equal Hopping Frequency Use ............................................................…

Text truncated - open the document above for the full version.
