2AYGCNTN-LX3Smart Phone

Quick Start Guide NTN-LX1 NTN-L22 NTN-LX3 Know Your Device Before using the device, familiarize yourself with its basic operations. •To power on your device, press and hold the power button until the screen turns on. •To power off your device, press and hold the power button, and then touch . •To restart your device, press and hold the power button, and then touch . Headset jackVolume button Power button/Fingerprint sensor Card slot USB Type-C port •Only NTN-LX1 supports NFC. Please keep the NFC area close to other devices or objects while using the NFC function. •Check out the pre-installed Tips app and master all the great features on your device. 1 Getting Started •Be careful not to scratch your device or hurt yourself when using the eject pin. •Store the eject pin out of the reach of children to prevent accidental swallowing or injury. •Do not use cut or modified SIM cards with your device as these may not be recognized and could damage the card tray (slot). •If your SIM card does not match your device, please contact your carrier. Follow the instructions in the following figures to set up your device. Please use the eject pin included. Ensure that the card is correctly aligned and its notch is first inserted into the card tray. Single-SIM card: Dual-SIM card: SIM Card Management Select the default mobile data card and calling card as needed. For details, check out the pre-installed Tips app. 2 •4G service depends on the support of your network carrier and its deployment of relevant services. Please contact your carrier to activate 4G service. •4G service may be unavailable in certain areas due to network interference. •If this guide is inconsistent with the description on the official website, the latter prevails. For More Information If you encounter any problems while using your device, you can obtain help from the following resources: •Visit https://www.hihonor.com/ to view device information and other information. •Visit https://www.hihonor.com/global/support/ for the most up-to-date contact information for your country or region. •Go to Settings and enter the following keywords in the search box to view the corresponding information. E.g. Legal, Safety information, Authentication info, Certification logos. Safety Information Please read all of the safety information carefully before using your device to ensure its safe and proper operation and to learn how to dispose of your device properly. Operation and safety • To prevent possible hearing damage, do not listen at high volume levels for long periods. •Using an unapproved or incompatible power adapter, charger, or battery may damage your device, shorten its lifespan, or cause a fire, explosion, or other hazards. •Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are -20 °C to +45 °C. •Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. 3 •Keep the device and the battery away from excessive heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, stoves, or radiators. •Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. •While flying in an aircraft or immediately before boarding, only use your device according to instructions provided. Use of a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. •In order to avoid damaging the internal circuit of the device or charger, do not use the device in a dusty, damp, or dirty place, or near a magnetic field. •When charging the device, make sure the power adapter is plugged into a socket near the devices and is easily accessible. •Unplug the charger from electrical outlets and the device when not in use. •Do not use, store or transport the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. •Keep the battery away from fire, and do not disassemble, modify, throw, or squeeze it. Do not insert foreign objects into it, submerge it in water or other liquids, or expose it to external force or pressure, as this may cause the battery to leak, overheat, catch fire, or even explode. •Dispose of this device, the battery, and accessories according to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion, or other hazards. •This device contains a built-in battery. Do not attempt to replace the battery by yourself. Otherwise, the device may not run properly or it may damage the battery. For your personal safety and to ensure that your device runs properly, you are strongly advised to contact an authorized service center for a replacement. 4 Disposal and recycling information The symbol on the product, battery, literature, or packaging means that the products and batteries should be taken to separate waste collection points designated by local authorities at the end of the lifespan. This will ensure that EEE waste is recycled and treated in a manner that conserves valuable materials and protects human health and the environment. For more information, please contact your local authorities, retailer, or household waste disposal service or visit the website https://www.hihonor.com/ . Reduction of hazardous substances This device and its electrical accessories comply with local applicable rules on the restriction of the use of certain hazardous substances in electrical and electronic equipment, such as EU REACH regulation, RoHS and Batteries (where included) directive. For declarations of conformity about REACH and RoHS, please visit the website https:…

Text truncated - open the document above for the full version.

18_Confidentiality Letter V1.0 Honor Device Co., Ltd. Federal Communications Commission 2021-03-12 Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AYGCNTN-LX3 T o Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2021-09-09 E xternal Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. B est Regards 18_Confidentiality Letter V1.0 Liming Certification Manager Honor Device Co., Ltd. E- mail: [email protected] Tel: 0755-61886688 Fax: NA

Amendment Letter CTC Engineering, Inc. This is to request report update for FCC ID: 2AYGCNTN-LX3, The Major change filed under this application and the relevant report numbers are as below: Original report number New report number Revise content HR/2021/1001401 HR/2021/1001401-01 1.Add test site Information in section 3, 3.2 and 3.3. 2.Update equipment list in section 5. 3. Updated the report NO. of appendix B in header with “-01” HR/2021/1001402 HR/2021/1001402-01 1.Add test site Information in section 3, 3.2 and 3.3 2.Modify data conversion error of antenna height in radiated spurious emission and Radiated band- edge. 3.Update equipment list in section 6. HR/2021/1001403 HR/2021/1001403-01 1.Add test site Information in section 3, 3.2 and 3.3 2.Modify data conversion error of antenna height in radiated spurious emission and Radiated band- edge. 3.Update equipment list in section 6. HR/2021/1001404 HR/2021/1001404-01 1.Add test site Information in section 3, 3.2 and 3.3 2.Modify data conversion error of antenna height in radiated spurious emission and Radiated band- edge. 3.Update equipment list in section 6. HR/2021/1001405 HR/2021/1001405-01 1.Add test site Information in section 3, 3.2 and 3.3 2.Modify data conversion error of antenna height in radiated spurious emission and Radiated band- edge. 3.Update equipment list in section 6. HR/2021/1001406 HR/2021/1001406-01 1.Modify data conversion error of antenna height in radiated emission. 2. Update equipment list in section 3. Setup photo Add test location. Best Regards Liming Certification Manager Honor Device Co., Ltd. Shum Yip Sky Park, No. 8089, Hongli West Road, Shenzhen, Guangdong, China E-mail: [email protected] Tel: 0755-61886688 Fax: NA Date:2021/8/5

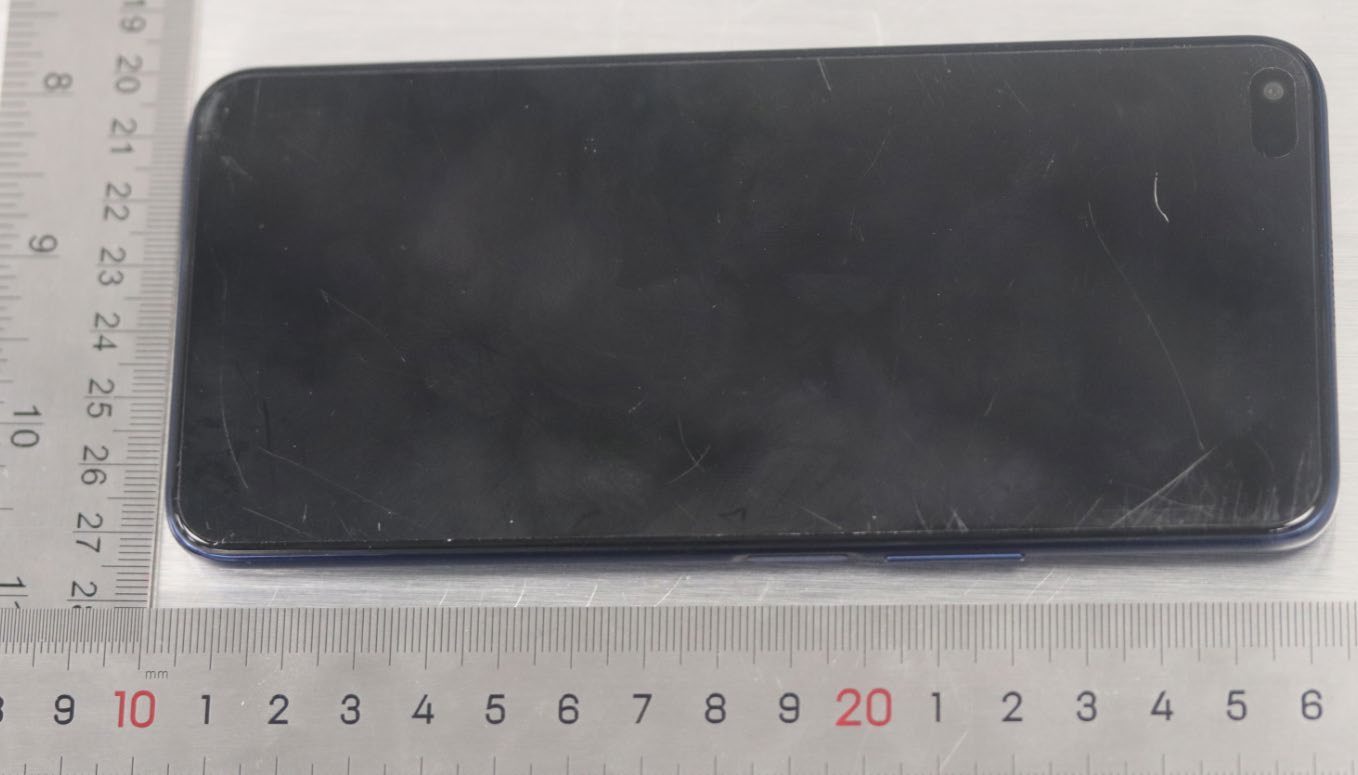

HONOR Smart phone NTN-LX3 SECRET 3/11/2021 Page1,Total 3 E xternal Photos of NTN-L X3 HONOR Smart phone NTN-LX3 SECRET 3/11/2021 Page2,Total 3 01. Front 02. Back HONOR Smart phone NTN-LX3 SECRET 3/11/2021 Page3,Total 3 03. Left 04. Right 05. Bottom 06. Top

Report No.: HR/2021/1001407 Appendix D Photographs 1. SAR measurement System 2. Photographs of Tissue Simulate Liquid 3. Photographs of EUT test position 4. EUT Constructional Details Report No.: HR/2021/1001407 1. SAR measurement System Report No.: HR/2021/1001407 2. Photographs of Tissue Simulate Liquid Photo 1: Tissue Simulant Liquid for HBBL600-10000MHz NA NA Report No.: HR/2021/1001407 3. Photographs of EUT test position Photo 2: Left cheek Photo 3: Left tilted Photo 4: Right cheek Photo 5: Right tilted Photo 6: Front side 15mm Photo 7: Back side 15mm Report No.: HR/2021/1001407 Photo 8: Front side 10mm Photo 9: Back side 10mm Photo 10: Left side 10mm Photo 11: Right side 10mm Photo 12: Top side 10mm Photo 13: Bottom side 10mm Report No.: HR/2021/1001407 Photo 14: Front side 0mm Photo 15: Back side 0mm Photo 16: Left side 0mm Photo 17: Right side 0mm Photo 18: Top side 0mm Report No.: HR/2021/1001407 4. Constructional Details Photo 19: Front View Photo 20: Back View Report No.: HR/2021/1001407 Photo 21: EUT Antenna location

NTN-LX3 Smart Phone 2021-3-11 HONOR Confidential Page1, Total2 Label and label Location: F CC ID electronic label: Settings-->System & updates-->Certification logos NTN-LX3 Smart Phone 2021-3-11 HONOR Confidential Page2, Total2

HONOR Smart Phone NTN-LX3 SECRET 2021-03-11 Page1, Total6 I nternal Photos of NTN-LX3 HONOR Smart Phone NTN-LX3 SECRET 2021-03-11 Page2, Total6 HONOR Smart Phone NTN-LX3 SECRET 2021-03-11 Page3, Total6 HONOR Smart Phone NTN-LX3 SECRET 2021-03-11 Page4, Total6 HONOR Smart Phone NTN-LX3 SECRET 2021-03-11 Page5, Total6 HONOR Smart Phone NTN-LX3 SECRET 2021-03-11 Page6, Total6

Report No: HR/2021/1001407 Appendix A Detailed System Check Results 1. System Performance Check System Performance Check 750 MHz Head System Performance Check 835 MHz Head System Performance Check 1750 MHz Head System Performance Check 1900 MHz Head System Performance Check 2450 MHz Head System Performance Check 2600 MHz Head System Performance Check 5250 MHz Head System Performance Check 5600 MHz Head System Performance Check 5750 MHz Head Date: 2021/02/16 Test Laboratory: SGS-SAR Lab System Performance Check 750 MHz Head DUT: D750V3; Type: D750V3; Serial: 1160 Communication System: UID 0, CW (0); Frequency: 750 MHz;Duty Cycle: 1:1 Medium: HSL750;Medium parameters used: f = 750 MHz; σ = 0.898 S/m; ε r = 41.66; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3962; ConvF(10.16, 10.16, 10.16); Calibrated: 2020/04/01; Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1428; Calibrated: 2020/03/03 Phantom: SAM 3; Type: SAM; Serial: 1912 DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Body/d=15mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.69 W/kg Body/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 44.74 V/m; Power Drift = 0.02 dB Peak SAR (extrapolated) = 3.45 W/kg SAR(1 g) = 2.17 W/kg; SAR(10 g) = 1.4 W/kg Maximum value of SAR (measured) = 3.00 W/kg 0 dB = 3.00 W/kg = 4.77 dBW/kg Date: 2021/02/20 Test Laboratory: SGS-SAR Lab System Performance Check 835 MHz Head DUT: D835V2; Type: D835V2; Serial: 4d105 Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL835;Medium parameters used: f = 835 MHz; σ = 0.909 S/m; ε r = 42.668; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3962; ConvF(9.85, 9.85, 9.85); Calibrated: 2020/04/01; Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1428; Calibrated: 2020/03/03 Phantom: SAM 2; Type: SAM; Serial: 1913 DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Body/d=15mm, Pin=250mW/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 3.05 W/kg Body/d=15mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 53.84 V/m; Power Drift = -0.05 dB Peak SAR (extrapolated) = 3.90 W/kg SAR(1 g) = 2.53 W/kg; SAR(10 g) = 1.65 W/kg Maximum value of SAR (measured) = 3.25 W/kg 0 dB = 3.25 W/kg = 5.12 dBW/kg Date: 2021/02/21 Test Laboratory: SGS-SAR Lab System Performance Check 835 MHz Head DUT: D835V2; Type: D835V2; Serial: 4d105 Communication System: UID 0, CW (0); Frequency: 835 MHz;Duty Cycle: 1:1 Medium: HSL835;Medium parameters used: f = 835 MHz; σ = 0.904 S/m; ε r = 42.661; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3962; ConvF(9.85, 9.85, 9.85); Calibrated: 2020/04/01; Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1428; Calibrated: 2020/03/03 Phantom: SAM 2; Type: SAM; Serial: 1913 DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Body/d=15mm, Pin=250mW/Area Scan (7x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 2.66 W/kg Body/d=15mm, Pin=250mW/Zoom Scan (7x7x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Value = 55.76 V/m; Power Drift = -0.08 dB Peak SAR (extrapolated) = 3.75 W/kg SAR(1 g) = 2.51 W/kg; SAR(10 g) = 1.68 W/kg Maximum value of SAR (measured) = 2.73 W/kg 0 dB = 2.73 W/kg = 4.36 dBW/kg Date: 2021/02/24 Test Laboratory: SGS-SAR Lab System Performance Check 1750 MHz Head DUT: D1750V2; Type: D1750V2; Serial: 1149 Communication System: UID 0, CW (0); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL1750;Medium parameters used: f = 1750 MHz; σ = 1.318 S/m; ε r = 40.413; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3962; ConvF(8.50, 8.50, 8.50); Calibrated: 2020/04/01; Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1428; Calibrated: 2020/03/03 Phantom: SAM 2; Type: SAM; Serial: 1913 DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Body/d=10mm, Pin=250mW/Area Scan (7x10x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 13.8 W/kg Body/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 85.92 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 17.0 W/kg SAR(1 g) = 9.18 W/kg; SAR(10 g) = 4.88 W/kg Maximum value of SAR (measured) = 14.1 W/kg 0 dB = 14.1 W/kg = 11.49 dBW/kg Date: 2021/02/25 Test Laboratory: SGS-SAR Lab System Performance Check 1750 MHz Head DUT: D1750V2; Type: D1750V2; Serial: 1149 Communication System: UID 0, CW (0); Frequency: 1750 MHz;Duty Cycle: 1:1 Medium: HSL1750;Medium parameters used: f = 1750 MHz; σ = 1.309 S/m; ε r = 40.271; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3962; ConvF(8.50, 8.50, 8.50); Calibrated: 2020/04/01; Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1428; Calibrated: 2020/03/03 Phantom: SAM 2; Type: SAM; Serial: 1913 DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/d=10mm, Pin=250mW/Area Scan (6x8x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 10.7 W/kg Configuration/d=10mm, Pin=250mW/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 82.80 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 15.5 W/kg SAR(1 g) = 8.95 W/kg; SAR(10 g) = 4.85 W/kg Maximum value of SAR (measured) = 12.4 W/kg 0 dB = 12.4 W/kg = 10.93 dBW/kg Date: 2021/02/19 Test Laboratory: SGS-SAR Lab System Performance Check 1900 MHz Head DUT: D1900V2; Type: D1900V2; Serial: 5d028 Communication System: UID 0, CW (0); Frequency: 1900 MHz;Duty Cycle: 1:1 Medium: HSL1900;Medium parameters used: f = 1900 MHz; σ = 1.376 S/m; ε r = 40.173; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3962; ConvF…

Text truncated - open the document above for the full version.

Report No: HR/2021/1001407 Appendix B Detailed Test Results 1. GSM GSM850 for Head, Body GSM1900 for Head, Body 2. WCDMA WCDMA Band II for Head, Body WCDMA Band IV for Head, Body WCDMA Band V for Head, Body 3. LTE LTE Band 2 for Head, Body LTE Band 4 for Head, Body LTE Band 5 for Head, Body LTE Band 7 for Head, Body LTE Band 12 for Head, Body LTE Band 17 for Head, Body LTE Band 26 for Head, Body LTE Band 66 for Head, Body 4. WIFI & BT WIFI 2.4G for Head, Body WIFI 5G for Head, Body BT for Head, Body Date: 2021/02/20 Test Laboratory: SGS-SAR Lab NTN-LX3 GSM 850 GSM 190CH Left cheek Ant1 DUT: NTN-LX3; Type: Mobile Phone; Serial: ACSPUT1108000286 Communication System: UID 0, GSM Only Communication System (0); Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium: HSL835;Medium parameters used: f = 837 MHz; σ = 0.912 S/m; ε r = 42.599; ρ = 1000 kg/m 3 Phantom section: Left Section DASY 5 Configuration: Probe: EX3DV4 - SN3962; ConvF(9.85, 9.85, 9.85); Calibrated: 2020/04/01; Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1428; Calibrated: 2020/03/03 Phantom: SAM 2; Type: SAM; Serial: 1913 DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Head/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.116 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 2.926 V/m; Power Drift = 0.03 dB Peak SAR (extrapolated) = 0.136 W/kg SAR(1 g) = 0.104 W/kg; SAR(10 g) = 0.078 W/kg Maximum value of SAR (measured) = 0.120 W/kg 0 dB = 0.120 W/kg = -9.21 dBW/kg Date: 2021/02/20 Test Laboratory: SGS-SAR Lab NTN-LX3 GSM 850 GSM 190CH Back side 15mm Ant1 DUT: NTN-LX3; Type: Mobile Phone; Serial: ACSPUT1108000286 Communication System: UID 0, GSM Only Communication System (0); Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium: HSL835;Medium parameters used: f = 837 MHz; σ = 0.912 S/m; ε r = 42.599; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3962; ConvF(9.85, 9.85, 9.85); Calibrated: 2020/04/01; Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1428; Calibrated: 2020/03/03 Phantom: SAM 2; Type: SAM; Serial: 1913 DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.191 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 11.52 V/m; Power Drift = -0.03 dB Peak SAR (extrapolated) = 0.238 W/kg SAR(1 g) = 0.161 W/kg; SAR(10 g) = 0.110 W/kg Maximum value of SAR (measured) = 0.200 W/kg 0 dB = 0.200 W/kg = -6.99 dBW/kg Date: 2021/02/20 Test Laboratory: SGS-SAR Lab NTN-LX3 GSM 850 GPRS 2TS 190CH Back side 10mm Ant1 DUT: NTN-LX3; Type: Mobile Phone; Serial: ACSPUT1108000286 Communication System: UID 0, GPRS/EGPRS Mode(2up) Communication System (0); Frequency: 836.6 MHz;Duty Cycle: 1:4.14954 Medium: HSL835;Medium parameters used: f = 837 MHz; σ = 0.912 S/m; ε r = 42.599; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3962; ConvF(9.85, 9.85, 9.85); Calibrated: 2020/04/01; Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1428; Calibrated: 2020/03/03 Phantom: SAM 2; Type: SAM; Serial: 1913 DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.150 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.286 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.343 W/kg SAR(1 g) = 0.149 W/kg; SAR(10 g) = 0.083 W/kg Maximum value of SAR (measured) = 0.152 W/kg 0 dB = 0.152 W/kg = -8.18 dBW/kg Date: 2021/02/20 Test Laboratory: SGS-SAR Lab NTN-LX3 GSM 850 GSM 190CH Right cheek Ant3 DUT: NTN-LX3; Type: Mobile Phone; Serial: ACSPUT1108000286 Communication System: UID 0, GSM Only Communication System (0); Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium: HSL835;Medium parameters used: f = 837 MHz; σ = 0.912 S/m; ε r = 42.599; ρ = 1000 kg/m 3 Phantom section: Right Section DASY 5 Configuration: Probe: EX3DV4 - SN3962; ConvF(9.85, 9.85, 9.85); Calibrated: 2020/04/01; Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1428; Calibrated: 2020/03/03 Phantom: SAM 2; Type: SAM; Serial: 1913 DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Head/Area Scan (8x14x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.145 W/kg Configuration/Head/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 8.291 V/m; Power Drift = -0.18 dB Peak SAR (extrapolated) = 0.248 W/kg SAR(1 g) = 0.111 W/kg; SAR(10 g) = 0.060 W/kg Maximum value of SAR (measured) = 0.171 W/kg 0 dB = 0.171 W/kg = -7.67 dBW/kg Date: 2021/02/20 Test Laboratory: SGS-SAR Lab NTN-LX3 GSM 850 GSM 190CH Back side 15mm Ant3 DUT: NTN-LX3; Type: Mobile Phone; Serial: ACSPUT1108000286 Communication System: UID 0, GSM Only Communication System (0); Frequency: 836.6 MHz;Duty Cycle: 1:8.30042 Medium: HSL835;Medium parameters used: f = 837 MHz; σ = 0.912 S/m; ε r = 42.599; ρ = 1000 kg/m 3 Phantom section: Flat Section DASY 5 Configuration: Probe: EX3DV4 - SN3962; ConvF(9.85, 9.85, 9.85); Calibrated: 2020/04/01; Sensor-Surface: 1.4mm (Mechanical Surface Detection) Electronics: DAE4 Sn1428; Calibrated: 2020/03/03 Phantom: SAM 2; Type: SAM; Serial: 1913 DASY52 52.8.8(1222); SEMCAD X 14.6.10(7331) Configuration/Body/Area Scan (8x13x1): Measurement grid: dx=15mm, dy=15mm Maximum value of SAR (measured) = 0.0397 W/kg Configuration/Body/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 3.837 V/m; Power Drift = -0.06 dB Peak SAR (extrapolated) = 0.0530 W/kg SAR(1 g) = 0.031 W/kg; SAR(10 g) = 0.018 W/kg Maximum value of SAR (measured) = 0.0414 W/kg 0 dB = 0.0414 W/kg = -13.83 dBW/kg Date: 2021/02/20 Test Laboratory: S…

Text truncated - open the document above for the full version.

Report No.: HR/2021/1001407 Appendix C Calibration certificate 1. Dipole D750V3-SN 1160(2019-05-22) D835V2-SN 4d105(2019-12-17) D1750V2-SN 1149(2019-05-21) D1900V2- SN 5d028(2019-12-17) D2450V2-SN 733(2019-12-17) D2600V2-SN 1125(2019-05-20) D5GHzV2-SN 1165(2019-12-20) 2. DAE DAE4 SN-1428 (2020-03-03) 3. Probe EX3DV4-SN 3962(2020-04-01)

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HR/2021/1001407 Page : 1 of 163 FCC SAR TEST REPORT Report No: HR/2021/1001407 Applicant: Honor Device Co., Ltd. Manufacturer: Honor Device Co., Ltd. Product Name: Smart Phone Model No.(EUT): NTN-LX3 Trade Mark: HONOR FCC ID: 2AYGCNTN-LX3 Standards: FCC 47CFR §2.1093 Date of Receipt: 2021-01-28 Date of Test: 2021-02-16 to 2021-02-27 Date of Issue: 2021-03-09 Test conclusion: PASS * * In the configuration tested, the EUT detailed in this report complied with the standards specified above. Authorized Signature: Derek Yang Wireless Laboratory Manager The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. Any mention of SGS International Electrical Approvals or testing done by SGS International Electrical Approvals in connection with, distribution or use of the product described in this report must be approved by SGS International Electrical Approvals in writing. SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HR/2021/1001407 Page : 2 of 163 REVISION HISTORY Report Number Revision Description Issue Date HR/2021/1001407 01 Original 2021-03-09 SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HR/2021/1001407 Page : 3 of 163 TEST SUMMARY Frequency Band Maximum Reported SAR(W/kg) Head Body-worn Hotspot Product specific 10g SAR GSM850 0.14 0.21 0.18 / GSM1900 0.79 0.18 0.32 / WCDMA Band II 0.61 0.40 0.44 / WCDMA Band IV 0.70 0.31 0.38 / WCDMA Band V 0.23 0.26 0.46 / LTE Band 2 0.76 0.35 0.41 / LTE Band 4 0.63 0.27 0.35 / LTE Band 5 0.14 0.21 0.33 / LTE Band 7 0.98 0.31 0.65 / LTE Band 12 0.10 0.19 0.25 / LTE Band 17 0.12 0.21 0.30 / LTE Band 26 0.14 0.25 0.39 / LTE Band 66 0.45 0.20 0.33 / WI-FI (2.4GHz) 0.12 0.01 0.35 / WI-FI (5GHz) 0.17 0.34 0.47 1.23 BT 0.13 0.03 0.09 / SAR Limited(W/kg) 1.6 4.0 Maximum Simultaneous Transmission SAR (W/kg) Scenario Head Body-worn Hotspot Product specific 10g SAR Sum SAR 1.05 0.75 0.76 1.23 SPLSR N/A N/A N/A N/A SPLSR Limited 0.04 0.1 Note: The Simultaneous transmission SAR is the same test position of the WWAN antenna + WiFi/BT antenna. Reviewed by Jackson Li Prepared by Roman Pan SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: HR/2021/1001407 Page : 4 of 163 CONTENTS 1 GENERAL INFORMATION .................................................................................................................................... 6 1.1 DETAILS OF CLIENT ................................................................................................................................................. 6 1.2 TEST LOCATION ...................................................................................................................................................... 6 1.3 TEST FACILITY ......................................................................................................................................................... 7 1.4 GENERAL DESCRIPTION OF EUT ............................................................................................................................ 8 1.4.1 DUT Antenna Locations(Back View) ............................................................................................................. 9 1.4.2 Power reduction specification ......................................................................................................................... 9 1.5 TEST SPECIFICATION ............................................................................................................................................ 12 1.6 RF EXPOSURE LIMITS ............................................................................................................................................ 13 2 LABORATORY ENVIRONMENT ........................................................................................................................ 14 3 SAR MEASUREMENTS SYSTEM CONFIGURATION ...................................................................................... 15 3.1 THE SAR MEASUREMENT SYSTEM ...................................................................................................................... 15 3.2 ISOTROPIC E-FIELD PROBE EX3DV4 .................................................................................................................. 16 3.3 DATA ACQUISITION ELECTRONICS (DAE) ........................................................................................................... 17 3.4 SAM TWIN PHANTOM ........................................................................................................................................... 17 3.5 ELI PHANTOM ....................................................................................................................................................... 18 3.6 DEVICE HOLDER FOR TRANSMITTERS .................................................................................................................. 19 3.7 MEASUREMENT PROCEDURE ................................................................................................................................ 20 3.7.1 Scanning procedure ....................................................................................................................................... 20 3.7.2 Data Storage ................................................................................................................................................... 22 3.7.3 Data Evaluation by SEMCAD ....................................................................................................................... 22 4 SAR MEASUREMENT VARIABILITY AND UNCERTAINTY .......................................................…

Text truncated - open the document above for the full version.

SGS-CSTC Standards Technical Services Co., Ltd. Shenzhen Branch Report No.: H…
