2AYGCRKY-LX3Smart Phone

HONOR HONOR Confidential Authorization Letter Date:8 November 2022 Federal Communications Commission Oakland Mills Road Columbia MD 21046 To whom it may concern: We the undersigned, hereby authorize TÜV Rheinland (Shenzhen) Co., Ltd to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by TÜV Rheinland (Shenzhen) Co., Ltd on our behalf shall have the same affect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from Honor Device Co., Ltd. . Name, Surname: Liming Position/Title:Certification Manager Honor Device Co., Ltd. Address: Shum Yip Sky Park, No. 8089, Hongli West Road, Shenzhen, China E-mail: [email protected] Tel: 0755-61886688

HONOR HONOR Confidential Confidentiality Letter Date:8 November 2022 Federal Communications Commission Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AYGCRKY-LX3 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure KDB Inquiry Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2023-5-8 External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards HONOR HONOR Confidential Name, Surname: Liming Position/Title:Certification Manager Honor Device Co., Ltd. Address: Shum Yip Sky Park, No. 8089, Hongli West Road, Shenzhen, China E-mail: [email protected] Tel: 0755-61886688

HONOR HONOR Confidential Electronic Label Letter Date:8 November 2022 Federal Communications Commission Oakland Mills Road Columbia MD 21046 Subject:Electronic Label Letter FCC ID:2AYGCRKY-LX3. To Whom It May Concern: Pursuant to the provisions of KDB 784748 D02 e labeling v02, we hereby provide the following statement: This device have a integrated display screen can present the required label information electronically (e-label) in lieu of a physical label or nameplate. The end user can access the electronic label with three steps. The information of electronic label is programmed by Honor, any can’t be modified by any third party. If have any questions concerning the above, please contact the undersigned. Best Regards Name, Surname: Liming Position/Title:Certification Manager Honor Device Co., Ltd. Address: Shum Yip Sky Park, No. 8089, Hongli West Road, Shenzhen, China E-mail: [email protected] Tel: 0755-61886688

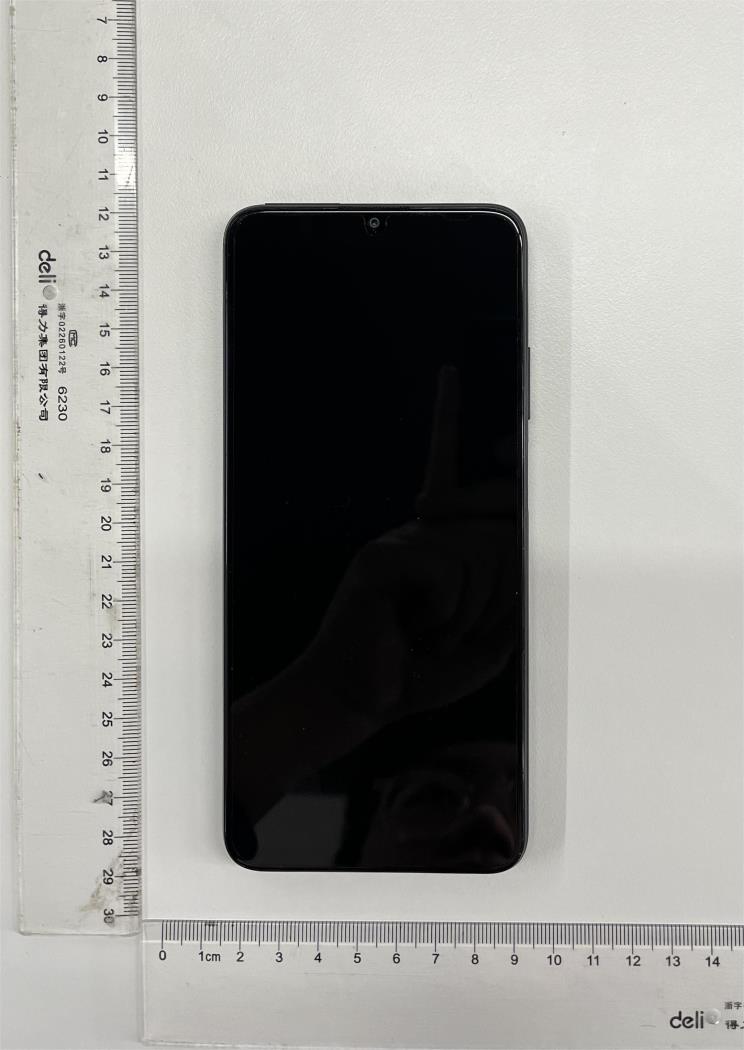

HONOR HONOR Confidential External Photos of RKY-LX3 Front: HONOR HONOR Confidential Back: HONOR HONOR Confidential Left Side: Right Side: HONOR HONOR Confidential Top: Bottom:

HONOR HONOR Confidential Label and label Location of RKY-LX3 HONOR HONOR Confidential ： HONOR HONOR Confidential FCC ID electronic label: Settings-->System & updates-->Regulatory information

HONOR HONOR Confidential Internal Photos of RKY-LX3 HONOR HONOR Confidential HONOR HONOR Confidential HONOR HONOR Confidential

Prepared by: Wei Fangying Approved by: Fan Guangchang TA Technology (Shanghai) Co., Ltd. Building 3, No.145, Jintang Rd, Pudong Shanghai, P.R.China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 SAR TEST REPORT Applicant Honor Device Co., Ltd. FCC ID 2AYGCRKY-LX3 Product Smart Phone Model RKY-LX3 Report No. R2210A0923-S1V1 Issue Date November 9, 2022 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in IEEE 1528-2013, ANSI C95.1: 1992, IEEE C95.1: 1991. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 2 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Table of Contents 1 Test Laboratory ............................................................................................................................... 5 1.1 Notes of the Test Report ......................................................................................................... 5 1.2 Test Facility ............................................................................................................................. 5 1.3 Testing Location ...................................................................................................................... 5 1.4 Laboratory Environment .......................................................................................................... 5 2 Statement of Compliance ............................................................................................................... 6 3 Description of Equipment Under Test ............................................................................................. 8 4 Test Specification, Methods and Procedures ............................................................................... 10 5 Operational Conditions during Test ............................................................................................... 11 5.1 Test Positions ......................................................................................................................... 11 5.1.1 Against Phantom Head ................................................................................................... 11 5.1.2 Body Worn Configuration ................................................................................................ 11 5.1.3 Phablet SAR Test Considerations ................................................................................. 12 5.2 Measurement Variability ........................................................................................................ 13 5.3 Test Configuration ................................................................................................................. 14 5.3.1 GSM Test Configuratio n ................................................................................................. 14 5.3.2 WCDMA Test Configuration ........................................................................................... 14 5.3.3 LTE Test Configuration ................................................................................................... 18 5.3.4 Additional Requirements for TDD LTE Specification .................................................. 19 5.3.5 Wi-Fi Test Configuration ................................................................................................. 22 5.3.6 Bluetooth Test Configuration .......................................................................................... 23 5.3.7 SAR Detection Mechanism Specification ..................................................................... 24 5.3.8 Country Code Detection Mechanism ............................................................................ 25 6 SAR Measurements System Configuration .................................................................................. 27 6.1 SAR Measurement Set-up .................................................................................................... 27 6.2 DASY5 E-field Probe System ................................................................................................ 28 6.3 SAR Measurement Procedure .............................................................................................. 29 7 Main Test Equipment .................................................................................................................... 31 8 Tissue Dielectric Parameter Measurements & System Check ..................................................... 32 8.1 Tissue Verification ................................................................................................................. 32 8.2 System Check ....................................................................................................................... 34 8.3 SAR System Validation ......................................................................................................... 37 9 Normal and Maximum Output Power ........................................................................................... 38 9.1 GSM Mode ............................................................................................................................ 38 9.2 WCDMA Mode ...................................................................................................................... 40 9.3 LTE Mode .............................................................................................................................. 47 9.4 WLAN Mode ........................................................................................................................ 129 9.5 Bluetooth Mode ................................................................................................................... 137 10 Measured and Reported (Scaled) SAR …

Text truncated - open the document above for the full version.

SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 233 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. ANNEX D: Probe Calibration Certificate (SN: 3677) SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 234 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 235 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 236 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 237 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 238 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 239 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 240 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 241 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 242 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 243 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 244 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 245 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 246 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 247 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 248 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 249 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 250 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 251 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 252 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 253 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 254 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 255 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. ANNEX E: D750V3 Dipole Calibration Certificate SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 256 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 257 of 320 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2210A0923-S1V1 TA Technology (Shanghai) Co., Ltd. TA-MB-06-003S Page 258 of 320 This report shall not be reproduced except in full, without the written approval of TA Technol…

Text truncated - open the document above for the full version.

Certificate #5505.02 TEST REPORT FOR WLAN TESTING Report No.: SRTC2022-9004(F)-22101205(G) Product Name: Smart Phone Model Name: RKY-LX3 Applicant: Honor Device Co., Ltd. Manufacturer: Honor Device Co., Ltd. Specification: FCC Part 15 Subpart E (2021) ANSI C63.10 (2013) FCC ID: 2AYGCRKY-LX3 The State Radio_monitoring_center Testing Center (SRTC) 15th Building, No.30 Shixing Street, Shijingshan District, Beijing, P.R.China Tel: 86-10-57996183 Fax: 86-10-5799638 No.: SRTC2022-9004(F)-22101205(G) FCC ID: 2AYGCRKY-LX3 The State Radio_monitoring_center Testing Center (SRTC) Page number: 1 of 26 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 CONTENTS 1. GENERAL INFORMATION ................................................................................................................................ 2 1.1 Notes of the test report .............................................................................................................................. 2 1.2 Information about the testing laboratory ................................................................................................. 2 1.3 Applicant’s details ....................................................................................................................................... 2 1.4 Manufacturer’s details ................................................................................................................................ 2 1.5 Test Environment ....................................................................................................................................... 2 2. DESCRIPTION OF THE DEVICE UNDER TEST ........................................................................................... 3 2.1Final Equipment Build Status ..................................................................................................................... 3 2.2 Wireless Technology and Frequency Range .......................................................................................... 4 2.3 Support Equipment .................................................................................................................................... 5 2.4 Note .............................................................................................................................................................. 5 3 REFERENCE SPECIFICATION ......................................................................................................................... 6 4 KEY TO NOTES AND RESULT CODES .......................................................................................................... 6 5. RESULT SUMMARY ........................................................................................................................................... 7 6 TEST RESULT ....................................................................................................................................................... 9 6.1 26dB Bandwidth .......................................................................................................................................... 9 6.2 6dB Bandwidth(Only for 5.725 – 5.850GHz band) .............................................................................. 10 6.3 Maximum Conducted Output Power...................................................................................................... 11 6.4 Maximum Power Spectral Density ......................................................................................................... 12 6.5 Unwanted Radiated Emission Measurement ....................................................................................... 13 6.6 AC Power line Conducted Emission ...................................................................................................... 17 6.7 Dynamic Frequency Selection ................................................................................................................ 17 7 MEASUREMENT UNCERTAINTIES ............................................................................................................... 24 8 TEST EQUIPMENTS .......................................................................................................................................... 25 APPENDIX A – TEST DATA OF CONDUCTED EMISSION ........................................................................... 26 APPENDIX B – TEST DATA OF RADIATED EMISSION ................................................................................ 26 No.: SRTC2022-9004(F)-22101205(G) FCC ID: 2AYGCRKY-LX3 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 26 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 1. GENERAL INFORMATION 1.1 Notes of the test report The test report may only be reproduced or published in full. Reproduction or publication of extracts from the report requires the prior written permission of The State Radio_monitoring_center Testing Center (SRTC). The test results relate only to individual items of the samples which have been tested. The certification and accreditation identifiers used in this report shall not be applicable to the tested or calibrated samples thereof. The manufacturer shall not mark the tested samples or items (or a separate part of the item) with the identifiers of certification and accreditation to mislead relevant parties about the tested samples or items. 1.2 Information about the testing laboratory Company: The State Radio_monitoring_center Testing Center (SRTC) Test Site 1: 15th Building, No.30 Shixing Street, Shijingshan District Test Site 2: No.80, Zhaojiachang, Beizang, Daxing District City: Beijing Country or Region: P.R.China Contacted person: Liu Jia Te l : +86 10 57996183 Fax: +86 10 57996388 Email: [email protected] Designation Number: CN1267 Registration number: 239125 1.3 Applicant’s details Company: Honor Device Co., Ltd. Address: Shum Yip Sky Park, No. 8089, Hongli West Road, Shenzhen, China 1.4 Manufacturer’s details Company: Hono…

Text truncated - open the document above for the full version.

No.: SRTC2022-9004(F)-22101205(G) FCC ID: 2AYGCRKY-LX3 APPENDIX A – TEST DATA OF CONDUCTED EMISSION Duty Cycle Test Mode Frequency (MHz) Duty Cycle (%) Correction Factor(dB) Plot 802.11a 5180 98.70% 0 Fig.1 802.11n HT20 5180 98.58% 0 Fig.2 802.11ac VHT20 5180 98.60% 0 Fig.3 802.11n HT40 5190 97.30% 0.12 Fig.4 802.11ac VHT40 5190 97.35% 0.12 Fig.5 802.11ac VHT80 5210 94.91% 0.23 Fig.6 Note: Correction Factor=10*log (1/Duty Cycle) Fig.1 Fig.2 Fig.3 Fig.4 The State Radio_monitoring_center Testing Center (SRTC) Page number: 1 of 15 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 No.: SRTC2022-9004(F)-22101205(G) FCC ID: 2AYGCRKY-LX3 Fig.5 Fig.6 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 15 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 No.: SRTC2022-9004(F)-22101205(G) FCC ID: 2AYGCRKY-LX3 Output Power Mode Tones/ RUIndex Freq (MHz) Antenna Conducted average power output(dBm) EIRP (dBm) 802.11a NA 5180 Chain0 13.24 12.04 802.11a NA 5220 Chain0 15.82 14.62 802.11a NA 5240 Chain0 15.51 14.31 802.11n HT20 NA 5180 Chain0 13.10 11.90 802.11n HT20 NA 5220 Chain0 15.64 14.44 802.11n HT20 NA 5240 Chain0 15.48 14.28 802.11ac VHT20 NA 5180 Chain0 12.93 11.73 802.11ac VHT20 NA 5220 Chain0 15.74 14.54 802.11ac VHT20 NA 5240 Chain0 15.51 14.31 802.11n HT40 NA 5190 Chain0 11.48 10.28 802.11n HT40 NA 5230 Chain0 15.45 14.25 802.11ac VHT40 NA 5190 Chain0 11.44 10.24 802.11ac VHT40 NA 5230 Chain0 15.44 14.24 802.11ac VHT80 NA 5210 Chain0 9.53 8.33 The State Radio_monitoring_center Testing Center (SRTC) Page number: 3 of 15 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 No.: SRTC2022-9004(F)-22101205(G) FCC ID: 2AYGCRKY-LX3 Emission Bandwidth Offset 11.76dB = Attenuator + Temporary antenna connector loss + Cable loss Test Mode Antenna 26dB Bandwidth (MHz) Channel No.554 Channel No.562 Channel No.566 5180MHz 5220MHz 5240MHz 802.11a Chain0 29.31 26.01 29.45 802.11n HT20 Chain0 28.89 25.67 28.92 802.11ac VHT20 Chain0 22.28 20.24 22.82 Test Mode Antenna 26dB Bandwidth (MHz) Channel No.556 --- Channel No.564 5190MHz --- 5230MHz 802.11n HT40 Chain0 40.28 --- 39.80 802.11ac VHT40 Chain0 40.18 --- 44.08 Test Mode Antenna 26dB Bandwidth (MHz) Channel No.560 --- --- 5210MHz --- --- 802.11ac VHT80 Chain0 80.66 --- --- The State Radio_monitoring_center Testing Center (SRTC) Page number: 4 of 15 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 No.: SRTC2022-9004(F)-22101205(G) FCC ID: 2AYGCRKY-LX3 Test Mode: 802.11a Test Mode:802.11a 5180MHz Chain0 Test Mode:802.11a 5220MHz Chain0 Test Mode:802.11a 5240MHz Chain0 Test Mode: 802.11n HT20 Test Mode:802.11n HT20 5180MHz Chain0 Test Mode:802.11n HT20 5220MHz Chain0 The State Radio_monitoring_center Testing Center (SRTC) Page number: 5 of 15 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 No.: SRTC2022-9004(F)-22101205(G) FCC ID: 2AYGCRKY-LX3 Test Mode:802.11n HT20 5240MHz Chain0 Test Mode: 802.11ac VHT20 Test Mode:802.11ac VHT20 5180MHz Chain0 Test Mode:802.11ac VHT20 5220MHz Chain0 Test Mode:802.11ac VHT20 5240MHz Chain0 The State Radio_monitoring_center Testing Center (SRTC) Page number: 6 of 15 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 No.: SRTC2022-9004(F)-22101205(G) FCC ID: 2AYGCRKY-LX3 Test Mode: 802.11n HT40 Test Mode:802.11n HT40 5190MHz Chain0 Test Mode:802.11n HT40 5230MHz Chain0 Test Mode: 802.11ac VHT40 Test Mode:802.11ac VHT40 5190MHz Chain0 Test Mode:802.11ac VHT40 5230MHz Chain0 Test Mode: 802.11ac VHT80 Test Mode:802.11ac VHT80 5210MHz Chain0 The State Radio_monitoring_center Testing Center (SRTC) Page number: 7 of 15 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 No.: SRTC2022-9004(F)-22101205(G) FCC ID: 2AYGCRKY-LX3 Occupied Bandwidth Offset 11.76dB = Attenuator + Temporary antenna connector loss + Cable loss Test Mode Antenna Occupied Bandwidth (MHz) Channel No.554 Channel No.562 Channel No.566 5180MHz 5220MHz 5240MHz 802.11a Chain0 16.861 16.775 16.951 802.11n HT20 Chain0 17.875 17.848 17.837 802.11ac VHT20 Chain0 17.662 17.785 17.755 Test Mode Antenna Occupied Bandwidth (MHz) Channel No.556 --- Channel No.564 5190MHz --- 5230MHz 802.11n HT40 Chain0 36.082 --- 36.064 802.11ac VHT40 Chain0 36.066 --- 36.179 Test Mode Antenna Occupied Bandwidth (MHz) Channel No.560 --- --- 5210MHz --- --- 802.11ac VHT80 Chain0 75.707 --- --- The State Radio_monitoring_center Testing Center (SRTC) Page number: 8 of 15 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 No.: SRTC2022-9004(F)-22101205(G) FCC ID: 2AYGCRKY-LX3 Test Mode: 802.11a Test Mode:802.11a 5180MHz Chain0 Test Mode:802.11a 5220MHz Chain0 Test Mode:802.11a 5240MHz Chain0 Test Mode: 802.11n HT20 Test Mode:802.11n HT20 5180MHz Chain0 Test Mode:802.11n HT20 5220MHz Chain0 The State Radio_monitoring_center Testing Center (SRTC) Page number: 9 of 15 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 No.: SRTC2022-9004(F)-22101205(G) FCC ID: 2AYGCRKY-LX3 Test Mode:802.11n HT20 5240MHz Chain0 Test Mode: 802.11ac VHT20 Test Mode:802.11ac VHT20 5180MHz Chain0 Test Mode:802.11ac VHT20 5220MHz Chain0 Test Mode:802.11ac VHT20 5240MHz Chain0 The State Radio_monitoring_center Testing Center (SRTC) Page number: 10 of 15 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 No.: SRTC2022-9004(F)-22101205(G) FCC ID: 2AYGCRKY-LX3 Test Mode: 802.11n HT40 Test Mode:802.11n HT40 5190MHz Chain0 Test Mode:802.11n HT40 5230MHz Chain0 Test Mode: 802.11ac VHT40 Test Mode:802.11ac VHT40 5190MHz Chain0 Test Mode:802.11ac VHT40 5230MHz Chain0 Test Mode: 802.11ac VHT80 Test Mode:802.11ac VHT80 5210MHz Chain0 The State Radio_monitoring_center Testing Center (SRTC) Page number: 11 of 15 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 No.: SRTC2022-9004(F)-22101205(G) FCC ID: 2AYGCRKY-LX3 Transmitter Power Spectral Density Offset 11.76dB = Attenuator + Temporary antenna connector loss + Cable loss Te s t Mode Antenn a Tone s 5180MHz 5220MHz 5240MHz Correction Factor(dB ) Power Density (dBm/MHz ) Correction Factor(dB ) Power Density (dBm/MHz ) Correction Factor(dB ) Power Density (dBm/MHz ) 802.11a Chain0 NA 0 6.878 6.168 6.2…

Text truncated - open the document above for the full version.

No.: SRTC2022-9004(F)-22101205(G) FCC ID: 2AYGCRKY-LX3 APPENDIX A – TEST DATA OF CONDUCTED EMISSION Duty Cycle Test Mode Frequency (MHz) Duty Cycle (%) Correction Factor(dB) Plot 802.11a 5260 98.66% 0 Fig.1 802.11n HT20 5260 98.63% 0 Fig.2 802.11ac VHT20 5260 98.61% 0 Fig.3 802.11n HT40 5270 97.25% 0.12 Fig.4 802.11ac VHT40 5270 97.30% 0.12 Fig.5 802.11ac VHT80 5290 94.92% 0.23 Fig.6 Note: Correction Factor=10*log (1/Duty Cycle) Fig.1 Fig.2 Fig.3 Fig.4 The State Radio_monitoring_center Testing Center (SRTC) Page number: 1 of 21 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 No.: SRTC2022-9004(F)-22101205(G) FCC ID: 2AYGCRKY-LX3 Fig.5 Fig.6 The State Radio_monitoring_center Testing Center (SRTC) Page number: 2 of 21 Tel: 86-10-57996183 Fax: 86-10-57996388 V3.0.0 No.: SRTC2022-9004(F)-22101205(G) FCC ID: 2AYGCRKY-LX3 Output Power Mode Tones/ RUIndex Freq (MHz) Antenna Conducted average power output(dBm) EIRP (dBm) 802.11a NA 5260 Chain0 15.67 14.47 802.11a NA 5280 Chain0 15.80 14.60 802.11a NA 5320 Chain0 13.33 12.13 802.11n HT20 NA 5260 Chain0 15.49 14.29 802.11n HT20 NA 5280 Chain0 15.60 14.40 802.11n HT20 NA 5320 Chain0 13.16 11.96 802.11ac VHT20 NA 5260 Chain0 15.49 14.29 802.11ac VHT20 NA 5280 Chain0 15.68 14.48 802.11ac VHT20 NA 5320 Chain0 13.35 12.15 802.11n HT40 NA 5270 Chain0 15.40 14.20 802.11n HT40 NA 5310 Chain0 10.43 9.23 802.11ac VHT40 NA 5270 Chain0 15.31 14.11 802.11ac VHT40 NA 5310 Chain0 10.39 9.19 802.11ac VHT80 NA 5290 Chain0 9.47 8.27 The State Radio_monitoring_center Testing Center (SRTC) Page nu…

Text truncated - open the document above for the full version.
