2AYGCVNE-LX1Smart Phone

Quick Start Guide VNE-LX1 VNE-LX2 VNE-LX3 Know Your Device Before using the device, familiarize yourself with its basic operations. •To power on your device, press and hold the power button until the screen turns on. •To power off your device, press and hold the power button, and then touch . •To restart your device, press and hold the power button, and then touch . •Press and hold the power button for 10 or more seconds to force restart your device. NFC Volume button Power button/ Fingerprint sensor USB Type-C portHeadset jack Card slot •Only VNE-LX1 supports NFC. Please keep the NFC area close to other devices or objects while using the NFC function. •Check out the pre-installed Tips app and master all the great features on your device. 1 Getting Started •Be careful not to scratch your device or hurt yourself when using the eject pin. •Store the eject pin out of the reach of children to prevent accidental swallowing or injury. •Do not use cut or modified SIM or microSD cards with your device as these may not be recognized and could damage the card tray (slot). •If your SIM card does not match your device, please contact your carrier. Follow the instructions in the following figures to set up your device. Please use the eject pin included. Ensure that the card is correctly aligned and that the card tray is level when you insert it into your device. Single-SIM card: Dual-SIM card: SIM Card Management Select the default mobile data card and calling card as needed. For details, check out the pre-installed Tips app. 2 •4G service depends on the support of your network carrier and its deployment of relevant services. Please contact your carrier to activate 4G service. •4G service may be unavailable in certain areas due to network interference. •If this guide is inconsistent with the description on the official website, the latter prevails. For More Information If you encounter any problems while using your device, you can obtain help from the following resources: •Visit https://www.hihonor.com to view device information and other information. •Visit https://www.hihonor.com/global/support/ for the most up-to-date contact information for your country or region. •Go to Settings and enter the following keywords in the search box to view the corresponding information. E.g. Legal information, Safety information, Authentication info, Regulatory information. •Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can go to Settings and touch System & updates > Regulatory information to view FCC ID. If your device does not have an FCC ID, the device has not been authorized for sale in the U.S. or its territories and may only be brought to the U.S. for the owner's personal use. Safety Information Please read all of the safety information carefully before using your device to ensure its safe and proper operation and to learn how to dispose of your device properly. Operation and safety • To prevent possible hearing damage, do not listen at high volume levels for long periods. 3 •Using an unapproved or incompatible power adapter, charger, or battery may damage your device, shorten its lifespan, or cause a fire, explosion, or other hazards. •Ideal operating temperatures are 0 °C to 35 °C. Ideal storage temperatures are -20 °C to +45 °C. •Pacemaker manufacturers recommend that a minimum distance of 15 cm be maintained between a device and a pacemaker to prevent potential interference with the pacemaker. If using a pacemaker, hold the device on the side opposite the pacemaker and do not carry the device in your front pocket. •Keep the device and the battery away from excessive heat and direct sunlight. Do not place them on or in heating devices, such as microwave ovens, stoves, or radiators. •Observe local laws and regulations while using the device. To reduce the risk of accidents, do not use your wireless device while driving. •While flying in an aircraft or immediately before boarding, only use your device according to instructions provided. Use of a wireless device in an aircraft may disrupt wireless networks, present a hazard to aircraft operation, or be illegal. •In order to avoid damaging the internal circuit of the device or charger, do not use the device in a dusty, damp, or dirty place, or near a magnetic field. •When charging the device, make sure the power adapter is plugged into a socket near the devices and is easily accessible. •Unplug the charger from electrical outlets and the device when not in use. •Do not use, store or transport the device where flammables or explosives are stored (in a gas station, oil depot, or chemical plant, for example). Using your device in these environments increases the risk of explosion or fire. •Keep the battery away from fire, and do not disassemble, modify, throw, or squeeze it. Do not insert foreign objects into it, submerge it in water or other liquids, or expose it to external force or pressure, as this may cause the battery to leak, overheat, catch fire, or even explode. 4 •Dispose of this device, the battery, and accessories according to local regulations. They should not be disposed of in normal household waste. Improper battery use may lead to fire, explosion, or other hazards. •This device contains a built-in battery. Do not attempt to replace the battery by yourself. Otherwise, the device may not run properly or it may damage the battery. For your personal safety and to ensure that your device runs properly, you are strongly advised to contact an authorized service center for a replacement. Disposal and Recycling Information The symbol on the product, battery, literature, or packaging means that the products and batteries should be taken to separate waste collection points designated by local authorities at the end of the lifespan. This will ensure that EEE waste is recycled and treated in a manner that conserves valuable materials a…

Text truncated - open the document above for the full version.

HONOR HONOR Confidential Authorization Letter Date:12 Aug. 2022 Federal Communications Commission Oakland Mills Road Columbia MD 21046 To whom it may concern: We the undersigned, hereby authorize TÜV Rheinland (Shenzhen) Co., Ltd to act on our behalf in all manners relating to application for equipment authorization, including signing of all documents relating to these matters. Any and all acts carried out by TÜV Rheinland (Shenzhen) Co., Ltd on our behalf shall have the same affect as acts of our own. I, the undersigned, hereby certify that we are not subject to a denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. This authorization is valid until further written notice from Honor Device Co., Ltd. . Name, Surname: Liming Position/Title:Certification Manager Honor Device Co., Ltd. Address: Shum Yip Sky Park, No. 8089, Hongli West Road, Shenzhen, China E-mail: [email protected] Tel: 0755-61886688

HONOR HONOR Confidential Confidentiality Letter Date: Aug 12, 2022 Federal Communications Commission Oakland Mills Road Columbia MD 21046 Subject: Request for Confidentiality FCC ID: 2AYGCVNE-LX1 To Whom It May Concern: Pursuant to the provisions of Sections 0.457 and 0.459 of the Commission’s rules (47 CFR §§ 0.457, 0.459), we are requesting the Commission to withhold the following attachments as confidential document from public disclosure indefinitely. Schematic Diagram Block Diagram Operational Description Bom List Tune-Up Procedure KDB Inquiry Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. ***************************************************************************** In additional to above mentioned documents, pursuant to Public Notice DA 04-1705 of the Commission’s policy, in order to comply with the marketing regulations in 47 CFR §2.803 and the importation rules in 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices. We are requesting the Commission withholds the following documents from public viewing until 2022-11-30 External Photos Internal Photos Test Setup Photos User Manual ****************************************************************************** It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Best Regards HONOR HONOR Confidential Name, Surname: Liming Position/Title:Certification Manager Honor Device Co., Ltd. Address: Shum Yip Sky Park, No. 8089, Hongli West Road, Shenzhen, China E-mail: [email protected] Tel: 0755-61886688

HONOR HONOR Confidential Electronic Label Letter Date: Aug 12, 2022 Federal Communications Commission Oakland Mills Road Columbia MD 21046 Subject:Electronic Label Letter FCC ID:2AYGCVNE-LX1. To Whom It May Concern: Pursuant to the provisions of KDB 784748 D02 e labeling v02, we hereby provide the following statement: This device have a integrated display screen can present the required label information electronically (e-label) in lieu of a physical label or nameplate. The end user can access the electronic label with three steps. The information of electronic label is programmed by Honor, any can’t be modified by any third party. If have any questions concerning the above, please contact the undersigned. Best Regards Name, Surname: Liming Position/Title:Certification Manager Honor Device Co., Ltd. Address: Shum Yip Sky Park, No. 8089, Hongli West Road, Shenzhen, China E-mail: [email protected] Tel: 0755-61886688

HONOR HONOR Confidential Declaration of test data reuse Letter Date:16 August 2022 Federal Communications Commission Oakland Mills Road Columbia MD 21046 To whom it may concern: VNE-LX1（FCC ID: 2AYGCVNE-LX1）is a variant of VNE-LX3 (FCC ID: 2AYGCVNE-LX3),The difference between model VNE-LX3 and model VNE-LX1 is show in the below table: Model VNE-LX3 VNE-LX1 Licensed Frequency LTE BAND B2/B4/B5/B7/B13/B26/B 38/B66 B5/B7 UMTS BAND B2/B4/B5 B2/B5 Antenna The antenna matching and routing of the same frequency are the same. The antenna matching and routing of the same frequency are the same. Unlicensed Frequency NFC Not support Support Software Version 2.1.0.34(SP02C900E5R 1P1) 2.1.0.57(SP03C900E5R1P1) RF RF circuit The RF circuit of the same frequency is the same. The RF circuit of the same frequency is the same. the different frequency changed by hardware and some RF parameters. Changes are followed: delete W B4、LTE B2/B4/B13/B66/B38 SAWS and RF matching components. Tune-up the tune-up of the same frequency are the same. the tune-up of the same frequency are the same. HONOR HONOR Confidential The test plans as below EMC: VNE-LX1 test RE(worst mode ) of VNE-LX3,Other data use VNE-LX3 data. RF: VNE-LX1 test NFC,Other data use VNE-LX3 data. RSE:VNE-LX1 test the worst RSE(2G\3G\4G) of VNE-LX3,Other data use VNE-LX3 data. SAR: VNE-LX1 test the worst SAR of VNE-LX3,Other data use VNE-LX3 data. Name, Surname: Liming Position/Title:Certification Manager Honor Device Co., Ltd. Address: Shum Yip Sky Park, No. 8089, Hongli West Road, Shenzhen, China E-mail: [email protected] Tel: 0755-61886688

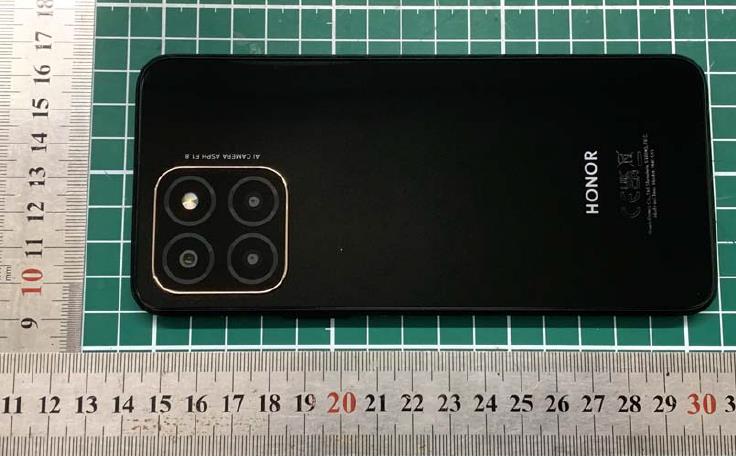

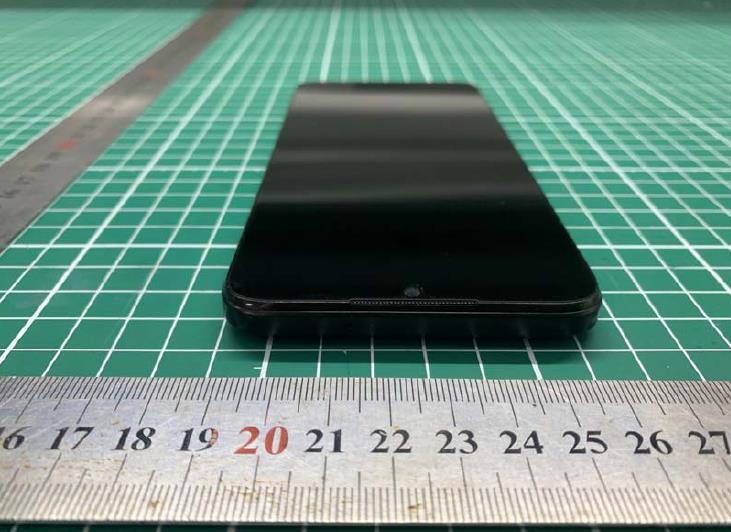

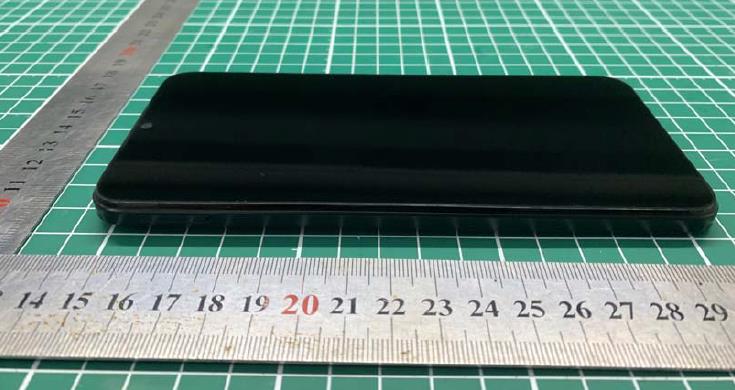

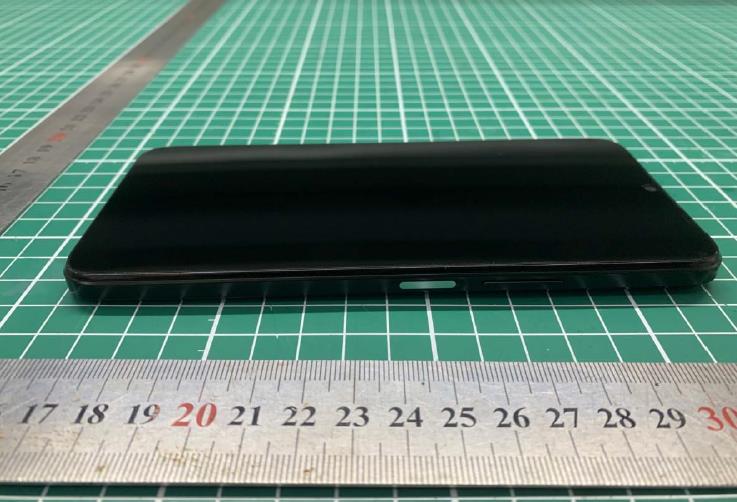

HONOR HONOR Confidential External Photos of VNE-LX1 HONOR HONOR Confidential Front: Back: HONOR HONOR Confidential Left Side: Right Side: HONOR HONOR Confidential Top: HONOR HONOR Confidential Bottom:

HONOR HONOR Confidential Label and Label Location of VNE-LX1 FCC ID electronic label: HONOR HONOR Confidential Settings-->System & updates-->Regulatory information

HONOR HONOR Confidential Internal Photos of VNE-LX1 HONOR HONOR Confidential HONOR HONOR Confidential HONOR HONOR Confidential HONOR HONOR Confidential

Prepared by: Wei Fangying Approved by: Fan Guangchang TA Technology (Shanghai) Co., Ltd. Building 3, No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 SAR TEST REPORT Applicant Honor Device Co., Ltd. FCC ID 2AYGCVNE-LX1 Product Smart Phone Model VNE-LX1 Report No. R2208A0708-S1 Issue Date August 10, 2022 TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in IEEE 1528- 2013, ANSI C95.1: 1992, IEEE C95.1: 1991. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 2 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Table of Contents 1 Test Laboratory ............................................................................................................................... 4 1.1 Notes of the Test Report ......................................................................................................... 4 1.2 Test facility .............................................................................................................................. 4 1.3 Testing Location ...................................................................................................................... 4 1.4 Laboratory Environment .......................................................................................................... 5 2 Statement of Compliance ............................................................................................................... 6 3 Description of Equipment under Test .............................................................................................. 9 4 Test Specification, Methods and Procedures ............................................................................... 12 5 Operational Conditions during Test .............................................................................................. 13 5.1 Test Positions ........................................................................................................................ 13 5.1.1 Against Phantom Head ................................................................................................... 13 5.1.2 Body Worn Configuration ................................................................................................ 13 5.1.3 Phablet SAR test considerations ................................................................................... 14 5.2 Measurement Variability ........................................................................................................ 15 5.3 Test Configuration ................................................................................................................. 16 5.3.1 GSM Test Configuration ................................................................................................. 16 5.3.2 UMTS Test Configuration ............................................................................................... 16 5.3.3 LTE Test Configuration ................................................................................................... 20 5.3.4 Additional requirements for TDD LTE specification .................................................... 21 5.3.5 Wi-Fi Test Configuration ................................................................................................. 24 5.3.6 BT Test Configuration ..................................................................................................... 25 5.3.7 SAR detection mechanism specification ...................................................................... 26 5.3.8 Country code detection mechanism .............................................................................. 27 6 SAR Measurements System Configuration .................................................................................. 28 6.1 SAR Measurement Set-up .................................................................................................... 28 6.2 DASY5 E-field Probe System ................................................................................................ 29 6.3 SAR Measurement Procedure .............................................................................................. 30 7 Main Test Equipment .................................................................................................................... 32 8 Tissue Dielectric Parameter Measurements & System Verification .............................................. 33 8.1 Tissue Verification ................................................................................................................. 33 8.2 System Performance Check .................................................................................................. 35 8.3 SAR System Validation ......................................................................................................... 38 9 Normal and Maximum Output Power ........................................................................................... 39 9.1 GSM Mode ............................................................................................................................ 39 9.2 WCDMA Mode ...................................................................................................................... 42 9.3 LTE Mode .............................................................................................................................. 48 9.4 WLAN Mode .......................................................................................................................... 65 9.5 Bluetooth Mode ..................................................................................................................... 80 10 Measured and …

Text truncated - open the document above for the full version.

SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 158 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. ANNEX D: Probe Calibration Certificate SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 159 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 160 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 161 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 162 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 163 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 164 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 165 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 166 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 167 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. ANNEX E: D750V3 Dipole Calibration Certificate SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 168 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 169 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 170 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 171 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 172 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 173 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 174 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 175 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. ANNEX F: D835V2 Dipole Calibration Certificate SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 176 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 177 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 178 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 179 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 180 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 181 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 182 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. SAR Test Report Report No.: R2208A0708-S1 TA Technology (Shanghai) Co., Ltd. TA-MB-05-003S Page 183 of 234 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) C…

Text truncated - open the document above for the full version.

Prepared by: Xu Ying Approved by: Xu Kai TA Technology (Shanghai) Co., Ltd. Building 3, No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86-021-50791141/2/3 FAX: +86-021-50791141/2/3-8000 RF TEST REPORT Applicant Honor Device Co., Ltd. FCC ID 2AYGCVNE-LX1 Product Smart Phone Model VNE-LX1 Report No. R2208A0708-R6V1 Issue Date August 15, 2022 TA Technology (Shanghai) Co., Ltd. Tested the above equipment in accordance with the requirements in FCC CFR47 Part 15C (2021). The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. RF Test Report Report No.: R2208A0708-R6V1 TA Technology (Shanghai) Co., Ltd. TA-MB-04-005R Page 2 of 161 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENT 1. Test Laboratory ............................................................................................................................ 5 1.1. Notes of the test report ......................................................................................................... 5 1.2. Test facility ........................................................................................................................... 5 1.3. Testing Location ................................................................................................................... 5 2. General Description of Equipment under Test .............................................................................. 6 2.1. Applicant and Manufacturer Information ............................................................................... 6 2.2. General information .............................................................................................................. 6 3. Applied Standards ........................................................................................................................ 8 4. Test Configuration ........................................................................................................................ 9 5. Test Case Results ...................................................................................................................... 10 5.1. Maximum output power ...................................................................................................... 10 5.2. 99% Bandwidth and 6dB Bandwidth .................................................................................. 13 5.3. Band Edge ......................................................................................................................... 29 5.4. Power Spectral Density ...................................................................................................... 41 5.5. Spurious RF Conducted Emissions .................................................................................... 52 5.6. Unwanted Emission ........................................................................................................... 67 5.7. Conducted Emission ........................................................................................................ 153 6. Main Test Instruments .............................................................................................................. 158 ANNEX A: The EUT Appearance .................................................................................................... 159 ANNEX B: Test Setup Photos ......................................................................................................... 160 ANNEX C: Product Change Description .......................................................................................... 161 RF Test Report Report No.: R2208A0708-R6V1 TA Technology (Shanghai) Co., Ltd. TA-MB-04-005R Page 3 of 161 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Version Revision description Issue Date Rev.0 Initial issue of report. August 10, 2022 Rev.1 Update information. August 15, 2022 Note: This revised report (Report No. R2208A0708-R6V1) supersedes and replaces the previously issued report (Report No. R2208A0708-R6). Please discard or destroy the previously issued report and dispose of it accordingly. RF Test Report Report No.: R2208A0708-R6V1 TA Technology (Shanghai) Co., Ltd. TA-MB-04-005R Page 4 of 161 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. Summary of measurement results Number Test Case Clause in FCC rules Verdict 1 Maximum output power 15.247(b)(3) PASS 2 6 dB bandwidth 15.247(a)(2) PASS 3 Power spectral density 15.247(e) PASS 4 Band Edge 15.247(d) PASS 5 Spurious RF Conducted Emissions 15.247(d) PASS 6 Unwanted Emissions 15.247(d),15.205,15.209 PASS 7 Conducted Emissions 15.207 PASS Date of Testing: July 9, 2022 ~ July 21, 2022 Date of Sample Received: July 5, 2022 Note: All indications of Pass/Fail in this report are opinions expressed by TA Technology (Shanghai) Co., Ltd. based on interpretations and/or observations of test results. Measurement Uncertainties were not taken into account and are published for informational purposes only. VNE-LX1 (Report No.: R2208A0708-R6V1) is a variant model of VNE-LX3 (Report No.: R2207A0619-R6V1). Test values all duplicated from Original for variant. There is no tested in this report. The difference between VNE-LX3 and VNE-LX1 are show in the below table: / Model VNE-LX3 VNE-LX1 Licensed Frequency LTE Band B2/B4/B5/B7/B13/B26/B38/B66 B5/B7 UMTS Band B2/B4/B5 B2/B5 Unlicensed Frequency NFC Not support Support Software Version 2.1.0.34(SP02C900E5R1P1) 2.1.0.57(SP03C900E5R1P1) RF RF circuit The RF circuit of the same frequency is the same. The RF circuit of the same frequency is the same. The different frequency changed by hardware and some RF parameters. Cha…

Text truncated - open the document above for the full version.
