2AYLE-AVMAGIC-A8Sports Smart Bluetooth Audio Glasses

①旋转解开绳链子。 ②捏住绳圈穿过眼镜脚架的挂绳孔。 ③然后用另一端穿过挂绳圈，接着拉紧。 ④旋转拧紧绳链子即可。 挂绳孔使用技巧 ①Turn to untie the rope chain. ②Pinch the loop through the lanyard hole of the glasses tripod. ③Then use the other end to pass through the lanyard loop, and then pull it tight. ④ Rotate and tighten the rope chain. USE TECHNIQUE OF L ANYARD HOLE ⑦ 挂绳孔 ⑦ ⑦ ⑦ ⑦ ⑦ Lanyard hole 145mAh 145mAh 中英文 配偏光镀膜镜片 测试片: 戴上偏光眼镜即可看到测试片上有漂亮的图案。 无偏光镀膜 偏光镀膜UV400防紫外线 UV 400 阻隔眩光防蓝光护目清晰视觉 防刮膜抗污疏水膜抗冲击易洁耐用高透光率 With polarized coated lens TEST: Wear glasses to see the beautiful pattern. Polarizing coating UV400 UV protection UV 400 Anti blue light eye protection Clear vision Anti-scratch film Antifouling Hydrophobic Film Impact resistance Easy to clean and durable High transmittance Block glare Polarized coatingNo polarizing coating 有偏光镀膜 7小时 7H 1.5小时 约44克 6小时 运动智能蓝牙眼镜耳机 SPORTS SMART BLUETOOTH AUDIO GLASSES

Shenzhen Oneking Technologies co.,Ltd. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 6/26/2023 U.S. Agent Designation Shenzhen Oneking Technologies co.,Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AYLE-AVMAGIC-A8): Name and company of U.S. agent: FCC US Agent, LLC Physical U.S. address of agent: 3722 Illinois Avenue, Saint Charles, IL, 60174, USA FRN of U.S. agent: 0033402884 Email address of U.S. agent: [email protected] FCC US Agent, LLC acknowledges their obligation to accept service of process on behalf of Shenzhen Oneking Technologies co.,Ltd.. Shenzhen Oneking Technologies co.,Ltd. with the FRN 0030343800 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. S incerely, Signature Jinghan She Sales manager Shenzhen Oneking Technologies co.,Ltd. Signature Tim Payne Manager FCC US Agent, LLC 48_[model] US_Agent_2.911(d)(7)-U, V05

Covered Equipment Identification Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows: We, applicant Company Name: Shenzhen Oneking Technologies co.,Ltd. Address: F5, Bldg7, RunDongSheng Industrial Park,107 Nationa Road XiXiang No.467(GuShu Road Crossing), LongTeng Community, XiXiang Street, BaoAn District, Shenzhen, China Phone: +86-755-26588265 certify that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-06-26 Name / Title: Jinghan She / Sales manager Company: Shenzhen Oneking Technologies co.,Ltd. Address: F5, Bldg7, RunDongSheng Industrial Park,107 Nationa Road XiXiang No.467(GuShu Road Crossing), LongTeng Community, XiXiang Street, BaoAn District,Shenzhen, China Phone: +86-755-26588265 Fax: +86-755-26588269 E-Mail: [email protected]

Covered Equipment Attestation Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(5)(i)-(ii) of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2AYLE-AVMAGIC-A8 A8, A801, A802, A803, A804, A805, A806, A807, A808, A809, A810, A811, A812, A813, A814, A815, A816, A817, A818, A819, A820, A821, A822, A823, A824, A825, A826, A827, A828, A829, A830 We, applicant Company Name: Shenzhen Oneking Technologies co.,Ltd. Address: F5, Bldg7, RunDongSheng Industrial Park,107 Nationa Road XiXiang No.467(GuShu Road Crossing), LongTeng Community, XiXiang Street, BaoAn District, Shenzhen, China Phone: +86-755-26588265 certify that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-06-26 Name / Title: Jinghan She / Sales manager Company: Shenzhen Oneking Technologies co.,Ltd. Address: F5, Bldg7, RunDongSheng Industrial Park,107 Nationa Road XiXiang No.467(GuShu Road Crossing), LongTeng Community, XiXiang Street, BaoAn District,Shenzhen, China Phone: +86-755-26588265 Fax: +86-755-26588269 E-Mail: [email protected]

Confidentiality Request Letter For Certification Service in the USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we request confidentiality for the documentation of the following products: FCC ID Model name 2AYLE-AVMAGIC-A8 A8, A801, A802, A803, A804, A805, A806, A807, A808, A809, A810, A811, A812, A813, A814, A815, A816, A817, A818, A819, A820, A821, A822, A823, A824, A825, A826, A827, A828, A829, A830 For the products listed above, we request permanent confidentiality for all applicable exhibits as there are: • the Operational Description • the Block Diagram • the Schematics The above listed exhibits contain trade secrets and proprietary information that could be of benefit to our competitors. If you have any questions, please feel free to contact us at the address shown below. Sincerely, Signature Date:2023-06-26 Name / Title: Jinghan She / Sales manager Company: Shenzhen Oneking Technologies co.,Ltd. Address: F5, Bldg7, RunDongSheng Industrial Park,107 Nationa Road XiXiang No.467(GuShu Road Crossing), LongTeng Community, XiXiang Street, BaoAn District,Shenzhen, China Phone: +86-755-26588265 Fax: +86-755-26588269 E-Mail: [email protected]

Shenzhen Oneking Technologies co.,Ltd. F5, Bldg7, RunDongSheng Industrial Park,107 Nationa Road XiXiang No.467(GuShu Road Crossing), LongTeng Community, XiXiang Street, BaoAn District, Shenzhen, China Date: June 26, 2023 FCC ID: 2AYLE-AVMAGIC-A8 Model Number: A8, A801, A802, A803, A804, A805, A806, A807, A808, A809, A810, A811, A812, A813, A814, A815, A816, A817, A818, A819, A820, A821, A822, A823, A824, A825, A826, A827, A828, A829, A830 To: Federal Communication Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21048 To Whom It May Concern, We, Shenzhen Oneking Technologies co.,Ltd. hereby declare that our product (Sports Smart Bluetooth Audio Glasses) Model Number: A8, A801, A802, A803, A804, A805, A806, A807, A808, A809, A810, A811, A812, A813, A814, A815, A816, A817, A818, A819, A820, A821, A822, A823, A824, A825, A826, A827, A828, A829, A830 board, Schematic, Hardware version, Software version, structure and internal photos are same, named differently due to marketing purposes. Should you have any questions or comments regarding this matter, please have my best attention. Sincerely, (Signed) Name/Title: Jinghan She / Sales manager Company: Shenzhen Oneking Technologies co.,Ltd. Address: F5, Bldg7, RunDongSheng Industrial Park,107 Nationa Road XiXiang No.467(GuShu Road Crossing), LongTeng Community, XiXiang Street, BaoAn District, Shenzhen, China Tel: +86-755-26588265 Fax: +86-755-26588269 E-Mail: [email protected]

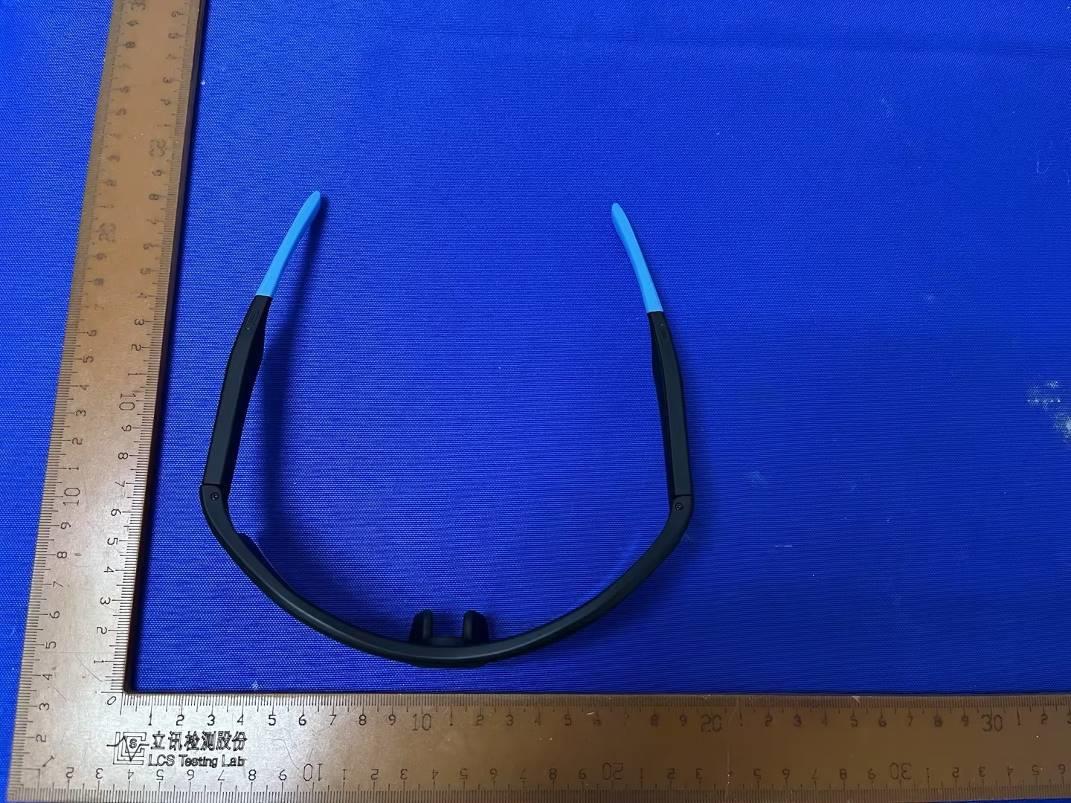

Page 1 of 4 FCC ID: 2AYLE-AVMAGIC-A8 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity External Photos of the EUT Fig. 1 Fig. 2 Page 2 of 4 FCC ID: 2AYLE-AVMAGIC-A8 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 4 FCC ID: 2AYLE-AVMAGIC-A8 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 4 FCC ID: 2AYLE-AVMAGIC-A8 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7

Page 1 of 1 FCC ID: 2AYLE-AVMAGIC-A8 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity LABEL AND LOCATION (Size: L 4.0cm x 1.0cm) Label Location Sports Smart Bluetooth Audio Glasses Model: A8 FCC ID: 2AYLE-AVMAGIC-A8

Page 1 of 6 FCC ID: 2AYLE-AVMAGIC-A8 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Internal Photos of the EUT Fig. 1 Fig. 2 Page 2 of 6 FCC ID: 2AYLE-AVMAGIC-A8 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 3 Fig. 4 Page 3 of 6 FCC ID: 2AYLE-AVMAGIC-A8 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 5 Fig. 6 Page 4 of 6 FCC ID: 2AYLE-AVMAGIC-A8 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 7 Fig. 8 Antenna Page 5 of 6 FCC ID: 2AYLE-AVMAGIC-A8 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 9 Fig. 10 Page 6 of 6 FCC ID: 2AYLE-AVMAGIC-A8 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity Fig. 11

Page 1 of 3 FCC ID: 2AYLE-AVMAGIC-A8 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity FCC RF Exposure Evaluation 1. Product Information Product name : Sports Smart Bluetooth Audio Glasses Test Model : A8 Additional Model No. : A801, A802, A803, A804, A805, A806, A807, A808, A809, A810, A811, A812, A813, A814, A815, A816, A817, A818, A819, A820, A821, A822, A823, A824, A825, A826, A827, A828, A829, A830 Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested Power Supply : Input: DC 5V, 1A DC 3.7V by Rechargeable Li-ion Battery, 145mAh Hardware Version : A8 Software Version : V8.00 Bluetooth Frequency Range : 2402MHz~2480MHz Channel Number : 79 channels for Bluetooth V5.2(DSS) Channel Spacing : 1MHz for Bluetooth V5.2(DSS) Modulation Type : GFSK, π/4-DQPSK, 8-DPSK for Bluetooth V5.2(DSS) Bluetooth Version : V5.2 Antenna Description : Ceramic Antenna, 3.12dBi (max.) Exposure category : General population/uncontrolled environment EUT Type : Production Unit Device Type : Portable Device 2. Evaluation method and Limit According to KDB447498 D01 General RF Exposure Guidance v06 Section 4.3.1 Standalone SAR test exclusion considerations: “Unless specifically required by the published RF exposure KDB procedures, standalone 1-g head or body and 10-g extremity SAR evaluation for general population exposure conditions, by measurement or numerical simulation, is not required when the corresponding SAR Test Exclusion Threshold condition, listed below, is satisfied. These test exclusion conditions are based on source-based time-averaged maximum conducted output power of the RF channel requiring evaluation, adjusted for tune-up tolerance, and the minimum test separation distance required for the exposure conditions.22 The minimum test separation distance is determined by the smallest distance from the antenna and radiating structures or outer surface of the device, according to the host form factor, exposure conditions and platform requirements, to any part of the body or extremity of a user or bystander (see 5) of section 4.1). To qualify for SAR test exclusion, the test separation distances applied must be fully explained and justified by the operating configurations and exposure conditions of the transmitter and applicable host platform requirements, typically in the SAR measurement or SAR analysis report, according to the required published RF exposure KDB procedures. When no other RF exposure testing or reporting is required, a statement of justification and compliance must be included in the equipment approval, in lieu of the SAR report, to qualify for the SAR test exclusion. When required, the device specific conditions described in the other published RF exposure KDB procedures must be satisfied before Page 2 of 3 FCC ID: 2AYLE-AVMAGIC-A8 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, Juji Industrial Park Yabianxueziwei, Shajing Street, Baoan District, Shenzhen, 518000, China Tel: +(86) 0755-82591330 | E-mail: [email protected] | Web: www.lcs-cert.com Scan code to check authenticity applying these SAR test exclusion provisions; for example, handheld PTT two-way radios, handsets, laptops & tablets etc.“ [(max. power of channel, including tune-up tolerance, mW)/ (min. test separation distance, mm)] · [√f (GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where: • f (GHz) is the RF channel transmit frequency in GHz • Power and distance are rounded to the nearest mW and mm before calculation • The result is rounded to one decimal place for comparison • 3.0 and 7.5 are referred to as the numeric thresholds in the step 2 below The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm according to f) in section 4.1 is applied to determine SAR test exclusion. When one of the following test exclusion conditions is satisfied for all combinations of simultaneous transmission configurations, further equipment approval is not required to incorporate transmitter modules in host devices that operate in the mixed mobile and portable host platform exposure conditions. The grantee is responsible for documenting this according to Class I permissive change requirements. Antennas that qualify for standalone SAR test exclusion must apply the estimated standalone SAR to determine simultaneous transmission test exclusion. a) The [∑ of (the highest measured or estimated SAR for each standalone antenna configuration, adjusted for maximum tune-up tolerance) / 1.6 W/kg] + [∑ of MPE ratios] is ≤ 1.0. b)The SAR to peak location separation ratios of all simultaneously transmitting antenna pairs operating in portable device exposure conditions are all ≤ 0.04, and the [∑ of MPE ratios] is ≤ 1.0. 3. Refer Evaluation Method ANSI C95.1–1999: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz. FCC KDB publication 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies. FCC CFR 47 part1 1.1310: Radiofrequency radiation exposure limits. FCC CFR 47 part2 2.1093: Radiofrequency radiation exposure evaluation: portable devices 4. Conducted Power Results <BT> Mode Channel Frequency (MHz) Peak Conducted Output Power (dBm) GFSK 0 2402 -3.85 39 2441 -4.28 78 2480 -4.74 π/4DQPSK 0 2402 -2.99 39 2441 -3.4 78 2480 -3.83 8DPSK 0 2402 -4.72 39 2441 -4.89 78 2480 -5.15 Page 3 of 3 FCC ID: 2AYLE-AVMAGIC-A8 Shenzhen LCS Compliance Testing Laboratory Ltd. Add: 101, 201 Bldg A & 301 Bldg C, …
