2AYLE-KS-G3B-13M-D5.8G Wireless Dongle

Wireless Conferencing Speakerphone with Expansion Microphone(s) Battery info Functions LEDs indicator The indicator lights up when using the device. Notes-Tips 1) The audio output of this device can choose RF5.8G wireless or USB2.0 interface, support standard UAC protocol. All the software which supports the UAC protocol can collect the audio of this device. When the RF5.8G receiver and USB 2.0 interface are connected at the same time, the computer will select the RF5.8G receiver to transmit audio by default. 2) Daisy-chain max up to 3 wireless expansion microphones connect to main unit via RF2.4G transmission. Each expansion microphone provides 3 meters pick up range. To ensure the call quality and echo cancellation effect, please do not move the expansion microphone after placing it on the table. At the same time, expansion microphones need a distance at least 1 meter from the speaker. 3) The main unit has an internal auxiliary microphone for emergency use when the expansion mics are out of power. Expansion mics are recommended for the best call experience. When any expansion mic is turned on, the internal mic will be automatically disabled. 2 Combination Key Function 2) Prompt tone ON/OFF Prompt tone is turned on by default. Press and hold turn ON/OFF. 3) Enable or disable the internal microphone for 5 seconds to Press and hold for 5 seconds to enable or disable the internal mic 4) Pairing RF5.8G receiver with main unit (The finished product has been successfully paired by default) Press and hold 5) Remote upgrade mode for 5 seconds to enter RF5.8G pairing model. (This function needs the support of the manufacturer, please do not use it under normal circumstances) Press and hold for 5 seconds to enter remote upgrade mode, only the Connected to PC successfully via 5.8G Connected to PC successfully via USB orange indicator of Power button lights. Press and hold for 5 seconds to exit the upgrade mode. Pairing Wireless Microphones microphone close to the main unit. paired. Short press to display battery level Indicate charge status Orange LED: Charging Blue LED: Fully charged Music Mode main unit Orange/Blue LED lights Microphone mute Conferencing speakerphone main unit * 1 -2 -2 -2 5.8G wireless receiver * 1 Red LED flashes Low battery Battery Charging time Standby time Working time Main unit 3400mAh * 2pcs 1 hours 3 months 4 hours Expansion mic 800mAh 1 hours 6 months 8 hours 1 microphone 2 microphones conferencing speakerphone conferencing speakerphone conferencing speakerphone ❶ Connect the 12V power supply to the conferencing speakerphone. Connect the standard USB cable with the conferencing speakerphone and computer or other host computer. Refer to the following picture: ❷ Connect RF5.8G receiver to PC. 3 microphones FCC Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. To assure continued compliance, any changes or modifications not expressly approved by the party. Responsible for compliance could void the user’s authority to operate this equipment. (Example- use only shielded interface cables when connecting to computer or peripheral devices). This equipment complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. RF warning statement: (for 5.8G Wireless Dongle) The device has been evaluated to meet general RF exposure requirement. Th e device can be used in portable exposure condition without restriction. FCC Radiation Exposur e Statement: (for Wireless Conferencing Speakerphone with Expansion Microphone(s)) The equipment complies with FCC Radiation exposure limits set forth for uncontrolled enviroment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Shenzhen Oneking Technologies co., Ltd. Add: F5, Bldg7,YuSheng Industrial Park, Gushu Xixiang 107 National Road Baoan, Shenzhen, China Date: 2021-5-11 FCC ID: 2AYLE-KS-G3B-13M-D Dear Sir/Madam, We, Shenzhen Oneking Technologies co., Ltd. Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: 5.8G Wireless Dongle Model no.: KS-G3B-13M, KS-G3B-11M, KS-G3B-12M, KS-G3B-21M, KS-G3B-22M, KS-G3B-23M, KS-G3B-11N, KS-G3B-12N, KS-G3B-13N Sincerely, Name/Title： Jinghan She/Sales manager Company: Shenzhen Oneking Technologies co., Ltd. Address: F5, Bldg7,YuSheng Industrial Park, Gushu Xixiang 107 National Road Baoan, Shenzhen, China Phone: +86-755-26588265 Fax: +86-755-26588269 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-5-11> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AYLE-KS-G3B-13M-D KS-G3B-13M For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Jinghan She/Sales manager Company: Shenzhen Oneking Technologies co., Ltd. Address: F5, Bldg7,YuSheng Industrial Park, Gushu Xixiang 107 National Road Baoan, Shenzhen, China Phone: +86-755-26588265 Fax: +86-755-26588269 E-Mail: [email protected]

Shenzhen Oneking Technologies co., Ltd. F5, Bldg7,YuSheng Industrial Park, Gushu Xixiang 107 National Road Baoan, Shenzhen, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-5-11 To whom it may concern: We, Shenzhen Oneking Technologies co., Ltd. the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AYLE-KS-G3B-13M-D including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Jinghan She/Sales manager Company: Shenzhen Oneking Technologies co., Ltd. Address: F5, Bldg7,YuSheng Industrial Park, Gushu Xixiang 107 National Road Baoan, Shenzhen, China Phone: +86-755-26588265 Fax: +86-755-26588269 E-Mail: [email protected]

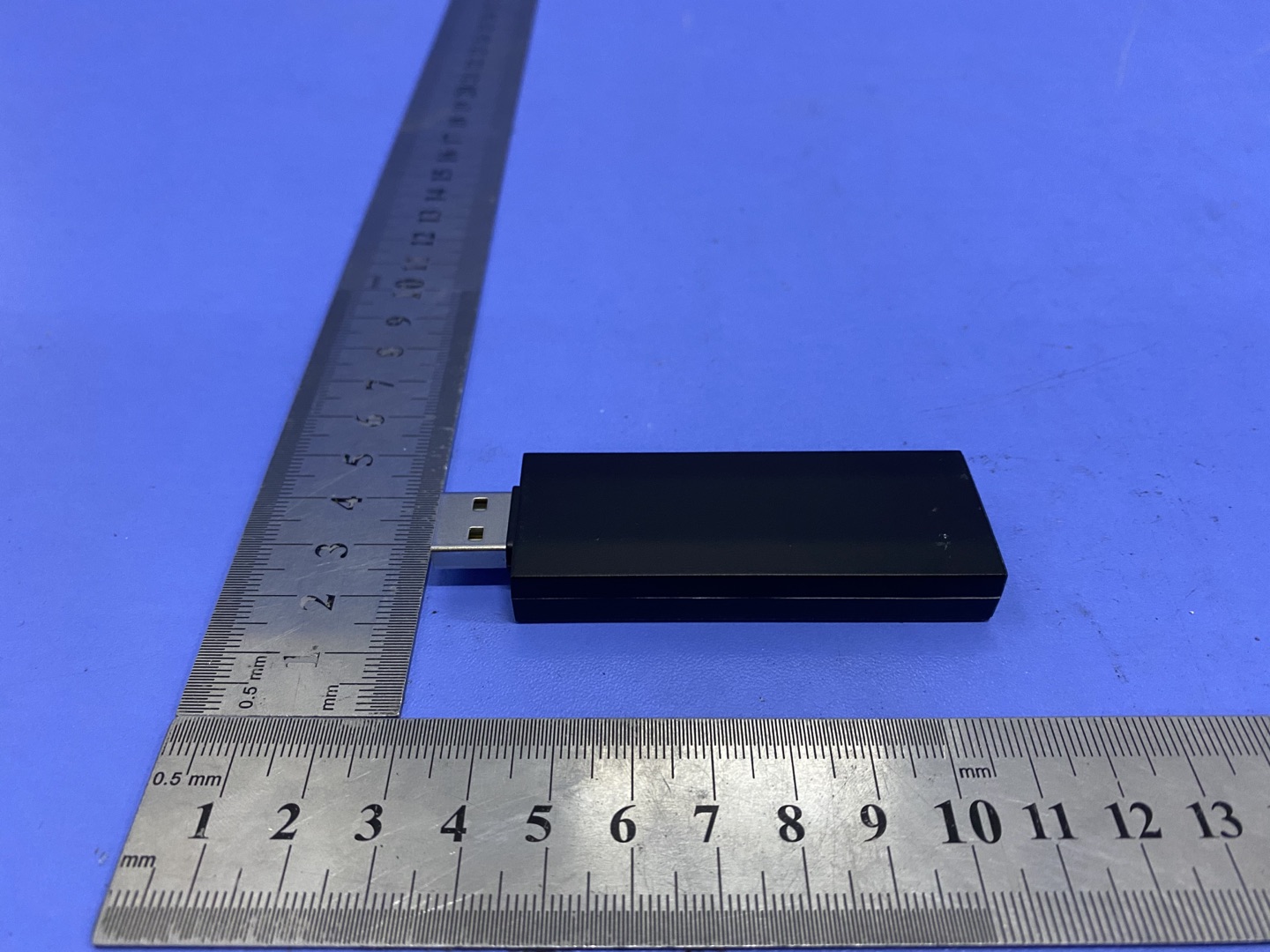

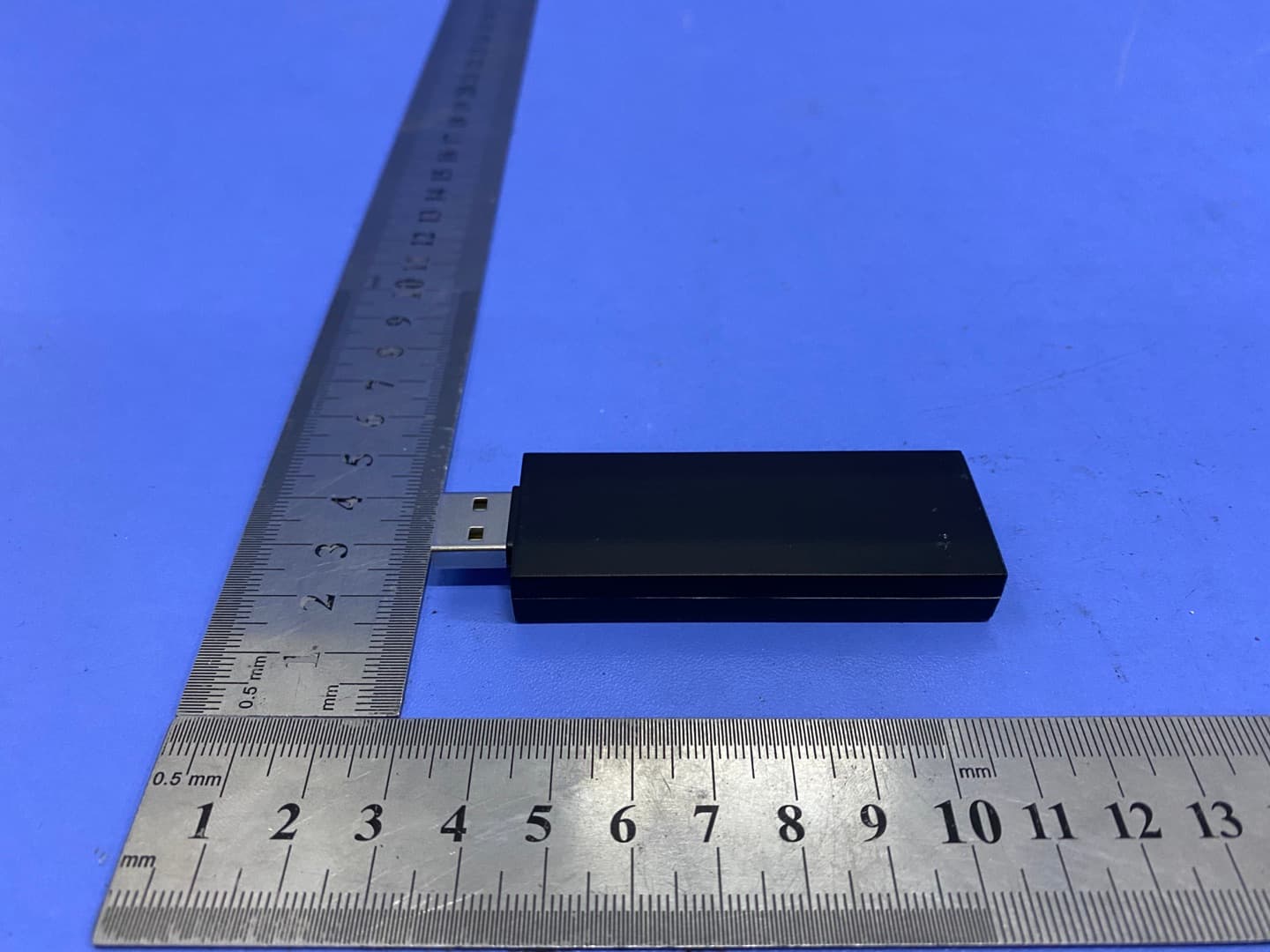

FCC ID: 2AYLE-KS-G3B-13M-D TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID: 2AYLE-KS-G3B-13M-D TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT FCC ID: 2AYLE-KS-G3B-13M-D TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT FCC ID: 2AYLE-KS-G3B-13M-D TB-RF-074-1.0 Photo 7 Appearance of EUT Photo 8 Appearance of EUT

FCC ID: 2AYLE-KS-G3B-13M-D TB-RF-074-1.0 Appendix IFCC ID Label FCC ID: 2AYLE-KS-G3B-13M-D TB-RF-074-1.0 Appendix II ID Label Location ID LOCATION

FCC ID: 2AYLE-KS-G3B-13M-D TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 9 Internal of EUT Photo 10 Internal of EUT FCC ID: 2AYLE-KS-G3B-13M-D TB-RF-074-1.0 Photo 11 Appearance of PCB Photo 12 Appearance of PCB 5.8G Antenna

Shenzhen Toby Technology Co., Ltd. Report No.: TB-FCC179746 Page: 1 of 37 TB-RF-074- 1.0 1 / F.,Building 6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao'an District, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 FCC Radio Test Report FCC ID: 2 AY L E-KS-G3B-13M-D Report No. : TB-FCC179746 Applicant : Shenzhen Oneking Technologies co., Ltd. Equipment Under Test (EUT) EUT Name : 5.8G Wireless Dongle Model No. : KS-G3B-13M Serial Model No. : KS-G3B-11M, KS-G3B-12M, KS-G3B-21M, KS-G3B-22M, KS-G3B-23M, KS-G3B-11N, KS-G3B-12N, KS-G3B-13N Brand Name : ---- Sample ID : 20210412-31-01 & 20210412-31-02 Receipt Date : 2021-04-14 Test Date : 2021-04-16 to 2021-05-06 Issue Date : 2021-05-11 Standards : FCC Part 15, Subpart C (15.249: 2018) Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Wade. Lv Engineer Supervisor : IVAN SU Approved & Authorized : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TB-FCC179746 Page: 2 of 37 TB-RF-074- 1.1 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT.............................................................................. 4 1.1 Client Information ................................................................................................................. 4 1.2 General Description of EUT (Equipment Under Test) ................................................... 4 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 5 1.4 Description of Support Units .............................................................................................. 6 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 7 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 8 2. TEST SUMMARY ....................................................................................................................... 9 3. TEST EQUIPMENT .................................................................................................................. 10 4. CONDUCTED EMISSION TEST ........................................................................................... 11 4.1 Test Standard and Limit .................................................................................................... 11 4.2 Test Setup ........................................................................................................................... 11 4.3 Test Procedure ................................................................................................................... 11 4.4 EUT Operating Mode ........................................................................................................ 12 4.5 Test Data ............................................................................................................................. 12 5. RADIATED EMISSION TEST ................................................................................................ 13 5.1 Test Standard and Limit .................................................................................................... 13 5.2 Test Setup ........................................................................................................................... 14 5.3 Test Procedure ................................................................................................................... 15 5.4 EUT Operating Condition ................................................................................................. 16 5.5 Test Data ............................................................................................................................. 16 6. BANDWIDTH TEST ................................................................................................................. 17 6.1 Test Setup ........................................................................................................................... 17 6.2 Test Procedure ................................................................................................................... 17 6.3 EUT Operating Condition ................................................................................................. 17 6.4 Test Data ............................................................................................................................. 17 7. ANTENNA REQUIREMENT ................................................................................................... 18 7.1 Standard Requirement ...................................................................................................... 18 7.2 Antenna Connected Construction ................................................................................... 18 7.3 Result ................................................................................................................................... 18 ATTACHMENT A--CONDUCTED EMISSION TEST DATA ........................................................ 19 ATTACHMENT C--BANDWIDTH DATA .........................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2AYLE-KS-G3B-13M-D TB-RF-074-1.0 Appendix V EUT Test Photographs 15C Test Setup Photo of Setup for Radiated Emission (Above 1 GHz) Photo of Setup for Radiated Emission (Below 1 GHz) FCC ID: 2AYLE-KS-G3B-13M-D TB-RF-074-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
