2AYQ8-S1-433TPMS Sensor

General programmable sensor instructions Model: S1 FCC ID: 2AYQ8-S1-433 Before installing the sensor, be sure to read the installation instructions carefully and operate according to the requirements: 1. Do not use sensors with damaged appearance; 2. The installation process should be operated by trained professionals according to the guidance requirements; 3. The warranty period is 12 months or 20000 km, whichever comes first Screw、Shell、Valve、Valve Cap Product Name: built in sensor working voltage:3V Emission current:6.7MA Air pressure range:0-5.8Bar Air pressure accuracy:±0.1Bar Temperature accuracy:±3°C working temperature:-40°C-105°C working frequency:433MHZ Product weight:21.8g Operation steps: 1. Before the sensor is installed, it should be programmed with ateq tool according to the model year; 2. Install it on the wheel hub according to the following figure: Select the direction suitable for the angle and screw on the air nozzle nut Keep the white surface of the sensor parallel to the wheel hub surface, and tighten the air nozzle nut with 8nm torque Tire power balance Installation precautions: 1. The valve should not extend out of the rim 2. The sensor shell shall not interfere with the wheel rim 3. The white surface of the sensor shall be parallel to the rim surface 4。 The sensor housing must not extend beyond the rim flange FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two cond itions: (1) this device may not cause harmful interference, and (2) this device must accept any int erference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital de vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protec tion against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructi ons, may cause harmful interference to radio communications. However, there is no guarantee th at interference will not occur in a particular installation. If this equipment does cause harmful int erference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help important announcement Radiation Exposure Statement The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021/01/25 TO WHOM IT MAY CONCERN Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AYQ8-S1-433 S1 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Yinyan Ju/ Manager Company: JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Address: No.243, Chenglu Road, Huashi Town, Jiangyin City, Jiangsu, China. Phone: +86 0510-86218280 E-Mail: [email protected]

JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD No.243, Chenglu Road, Huashi Town, Jiangyin City, Jiangsu, China. Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 01/25/2021 To whom it may concern: We, JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AYQ8-S1-433 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Yinyan Ju/ Manager Company: JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Address: No.243, Chenglu Road, Huashi Town, Jiangyin City, Jiangsu, China. Phone: +86 0510-86218280 E-Mail: [email protected]

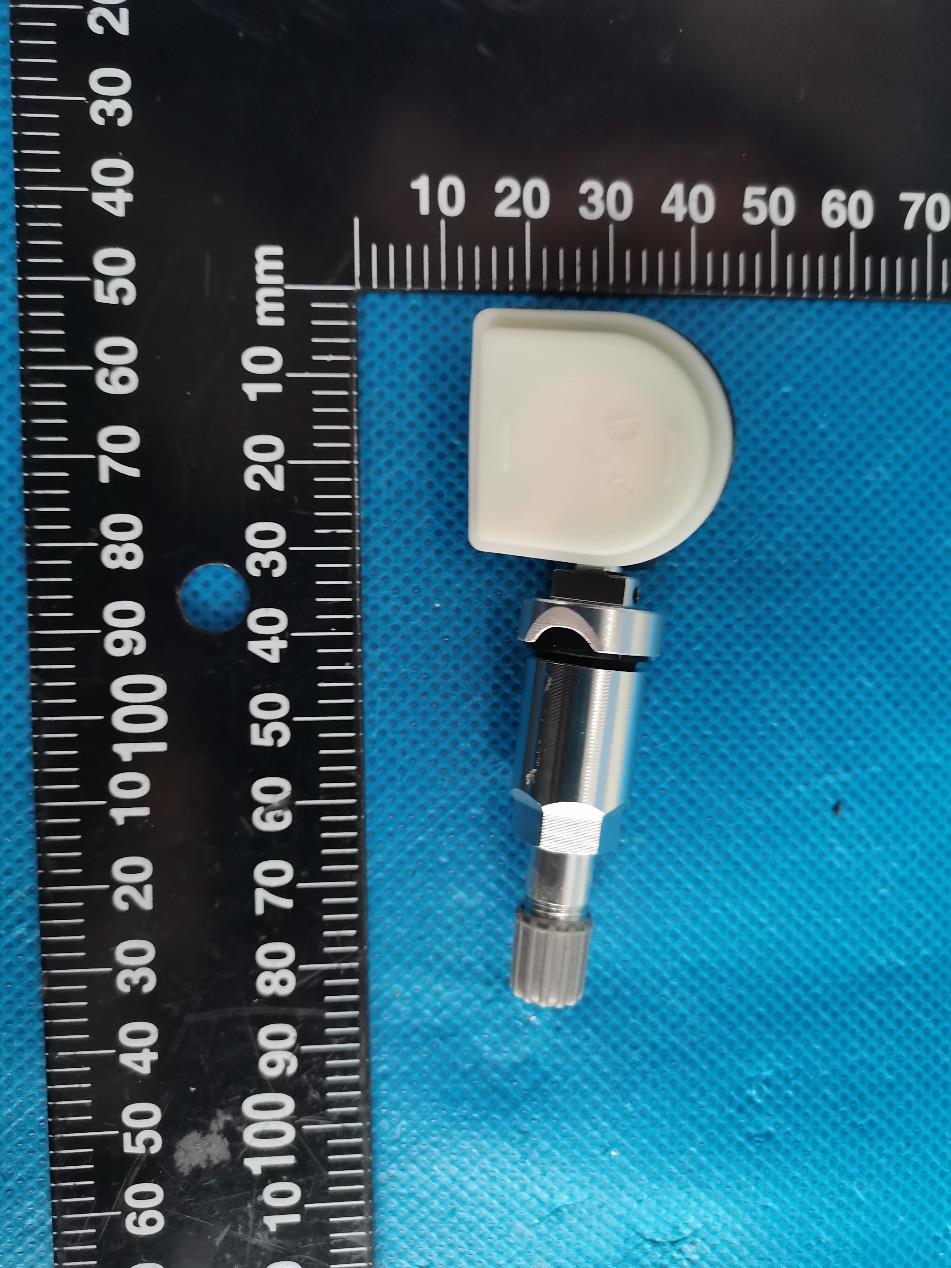

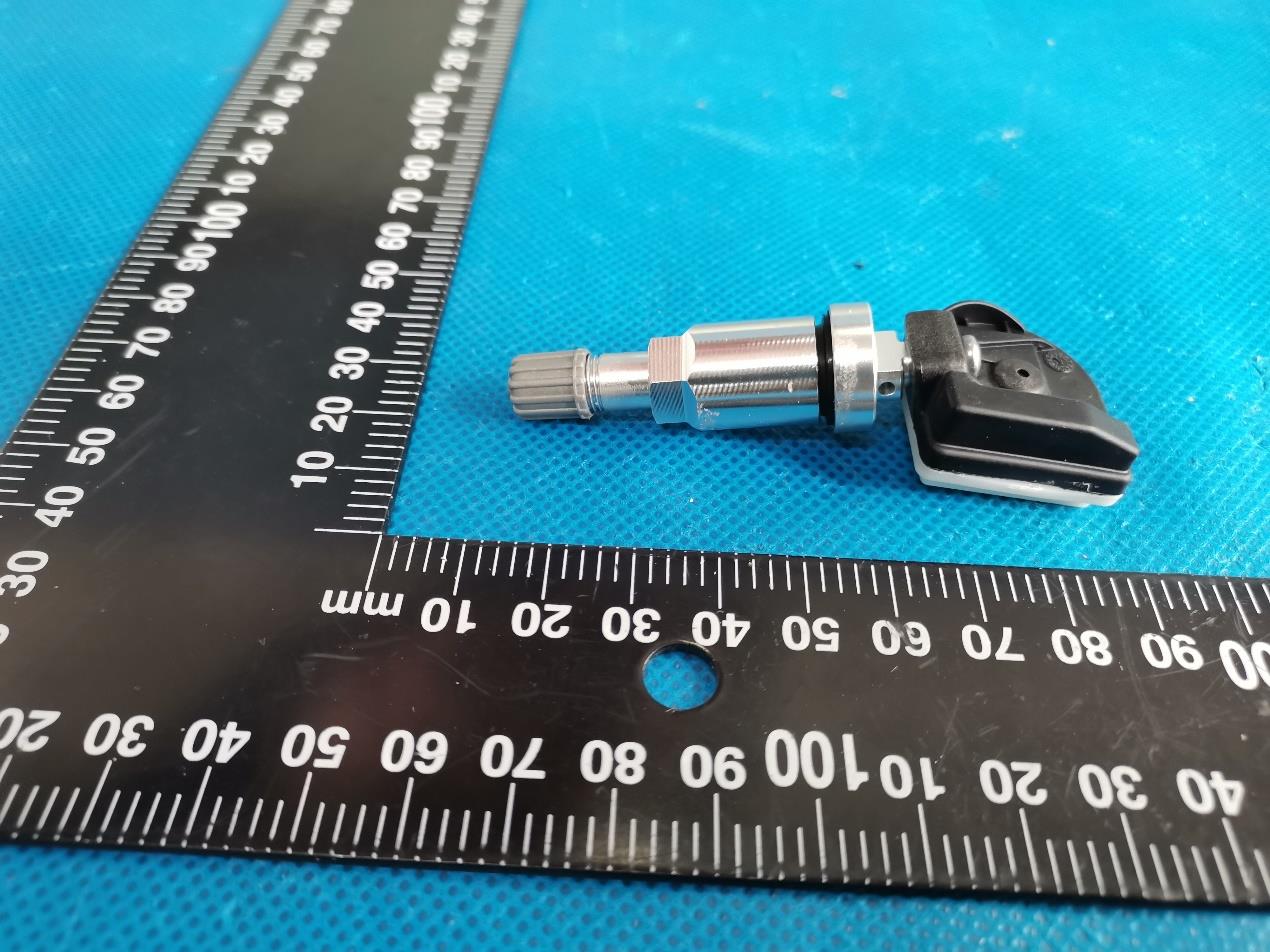

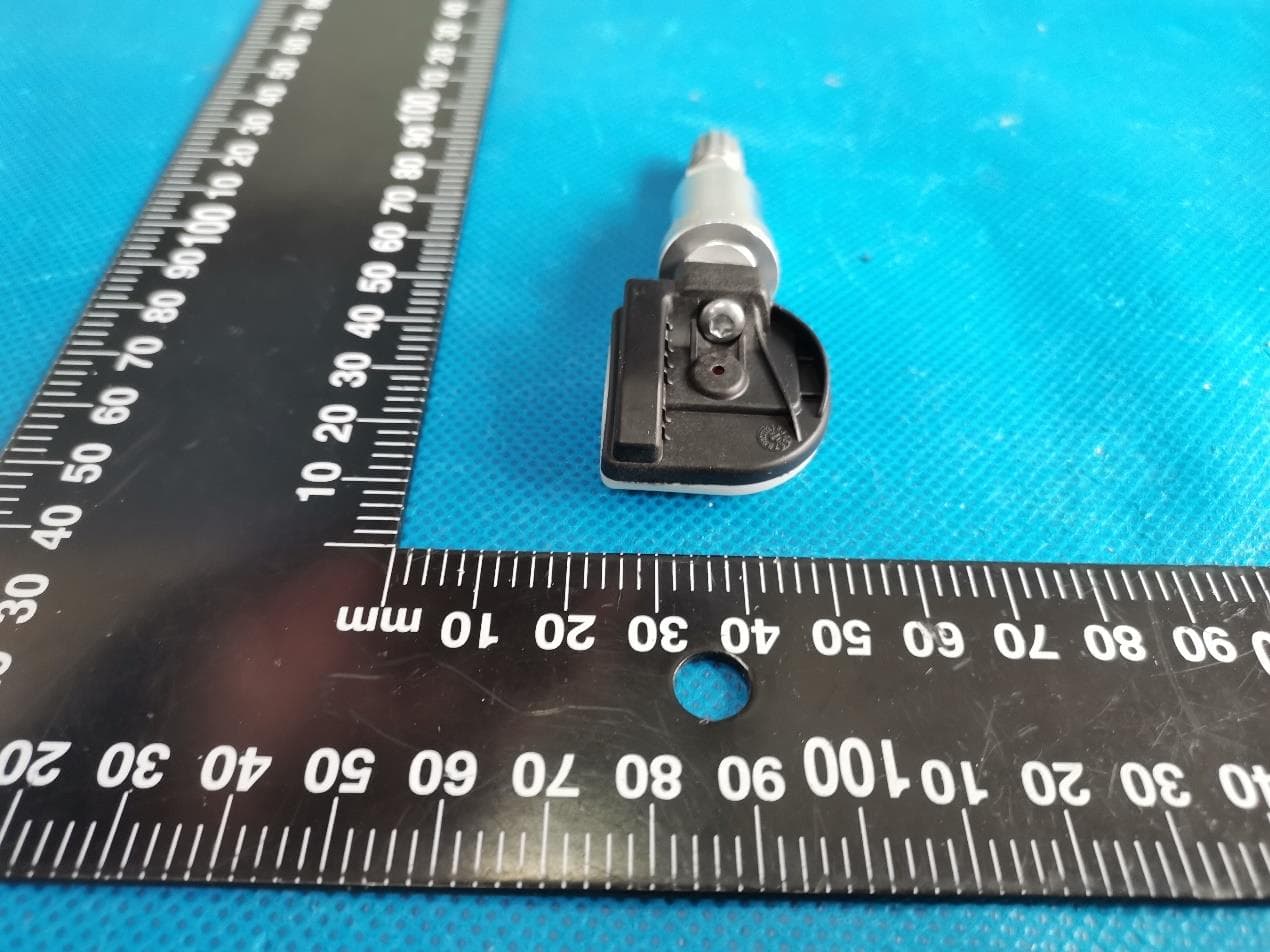

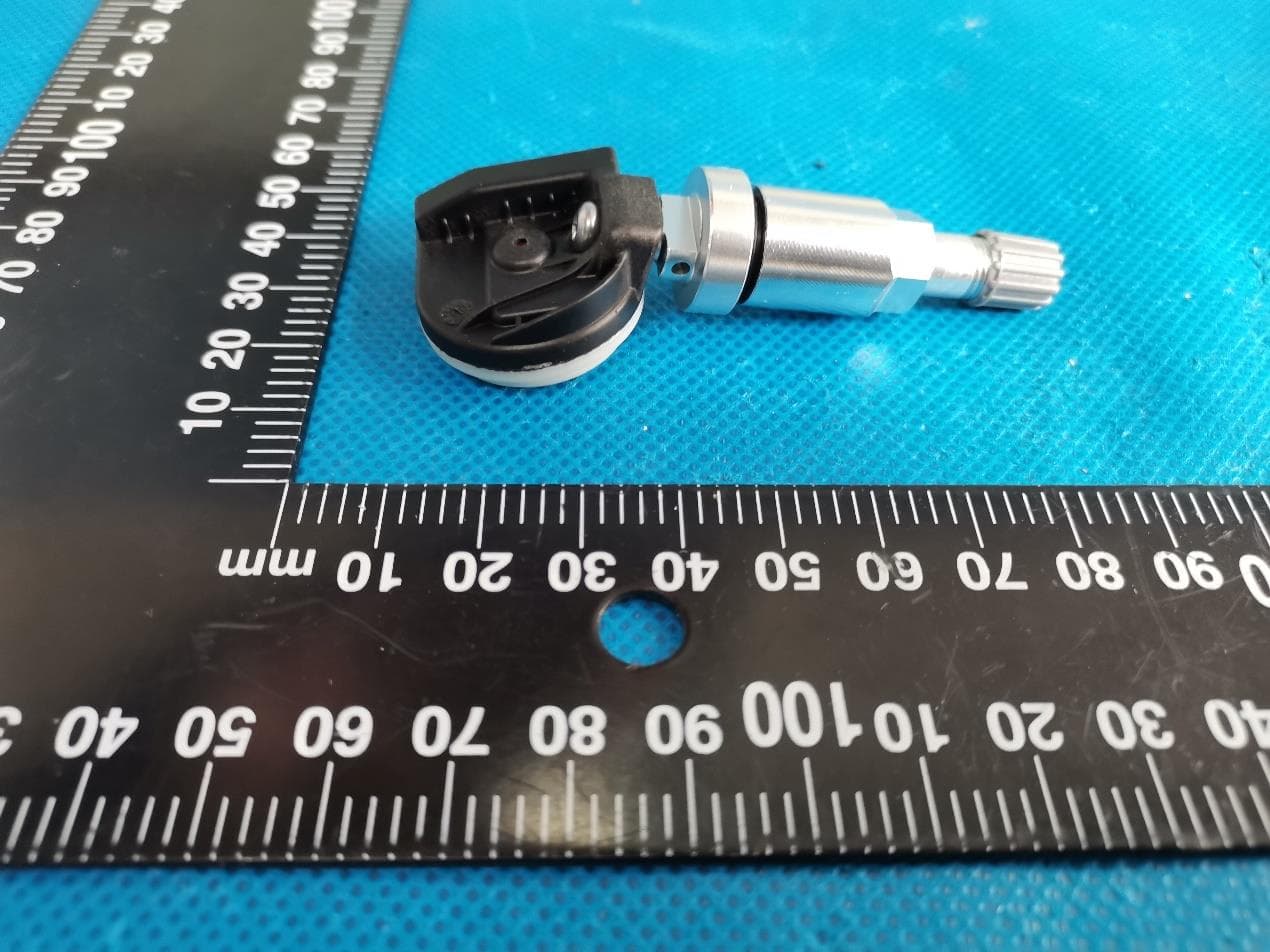

GTSL202101000040 Product Name: TPMS Sensor Test Model No.: S1 EUT Constructional Details External Photo Fig.1 Fig.2 GTSL202101000040 Fig.3 Fig.4 GTSL202101000040 Fig.5 Fig.6

FCC ID: 2AYQ8-S1-433

GTSL202101000040 Product Name: TPMS Sensor Test Model No.: S1 EUT Constructional Details Internal Photo Fig.1 Fig.2 GTSL202101000040 Fig.3 Fig.4

Global United Technology Services Co., Ltd. Report No.: GTSL202101000040F01 Authorized Signature: Robinson Luo Laboratory Manager This results shown in this test report refer only to the sample(s) tested, this test report cannot be reproduced, except in full, without prior written permission of the company. The report would be invalid without specific stamp of test institute and the signatures of compiler and approver. Page 1 of 18 Cover Page TEST REPORT Applicant: JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Address of Applicant: No.243, Chenglu Road, Huashi Town, Jiangyin City, Jiangsu, China. Manufacturer: JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Address of Manufacturer: No.243, Chenglu Road, Huashi Town, Jiangyin City, Jiangsu, China. Equipment Under Test (EUT) Product Name: TPMS Sensor Trademark： N/A Model No.: S1 FCC ID: 2AYQ8-S1-433 Applicable standards: FCC CFR Title 47 Part 15 Subpart C Section 15.231 Date of sample receipt: Jan.01,2021 Date of Test: Jan.01,2021- Jan.19,2021 Date of report issued: Jan.19,2021 Test Result : PASS * * In the configuration tested, the EUT complied with the standards specified above. Report No.: GTSL202101000040F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 18 2 Version Version No. Date Description 01 Jan.19,2021 Original Prepared By: Date: Jan.19,2021 Project Engineer Check By: Date: Jan.19,2021 Reviewer Report No.: GTSL202101000040F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 18 3 Contents Page 1 COVER PAGE ...........................................................................................................................................1 2 VERSION ...................................................................................................................................................2 3 CONTENTS ...............................................................................................................................................3 4 TEST SUMMARY ......................................................................................................................................4 4.1 MEASUREMENT UNCERTAINTY .............................................................................................................4 5 GENERAL INFORMATION .......................................................................................................................5 5.1 GENERAL DESCRIPTION OF EUT ..........................................................................................................5 5.2 TEST MODE .........................................................................................................................................6 5.3 DESCRIPTION OF SUPPORT UNITS ........................................................................................................6 5.4 TEST FACILITY ....................................................................................................................................6 5.5 TEST LOCATION ..................................................................................................................................6 5.6 OTHER INFORMATION REQUESTED BY THE CUSTOMER ..........................................................................6 5.7 DEVIATION FROM STANDARDS ..............................................................................................................6 5.8 ABNORMALITIES FROM STANDARD CONDITIONS ....................................................................................6 5.9 ADDITIONAL INSTRUCTIONS ..................................................................................................................6 6 TEST INSTRUMENTS LIST ......................................................................................................................7 7 TEST RESULTS AND MEASUREMENT DATA .......................................................................................9 7.1 ANTENNA REQUIREMENT .....................................................................................................................9 7.2 RADIATED EMISSION METHOD ............................................................................................................10 7.3 20DB OCCUPY BANDWIDTH ...............................................................................................................14 7.4 DEACTIVATION TIME ..........................................................................................................................15 7.5 DUTY CYCLE .....................................................................................................................................16 8 TEST SETUP PHOTO .............................................................................................................................18 9 EUT CONSTRUCTIONAL DETAILS .......................................................................................................18 Report No.: GTSL202101000040F01 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 18 4 Test Summary Test Item Section in CFR 47 Result Antenna Requirement 15.203 Pass Conduction Emission 15.207 N/A Field strength of the Fundamental Signal 15.231 (e) Pass Spurious Emissions 15.231 (e)/15.209 Pass 20dB Bandwidth 15.231 (c) Pass Transmission Time 15.231 (e) Pass Pass: The EUT complies with the essential requirements in the standard. 4.1 Measurement Uncert…

Text truncated - open the document above for the full version.

GTSL202101000040 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 1 Product Name: TPMS Sensor Test Model No.: S1 Test Setup Photo Radiated Emission ------End------
