2AYQ8-S2Tpms Sensor

FCC Warnning: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection againstharmful interference in a residential installation. This equipment generates, uses and can radiateradio frequency energy and, if not installed and used in accordance with the instructions, maycause harmful interference to radio communications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause harmfulinterference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouraged to try to correct the interference by one or more of thefollowing measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Caution: Any changes or modifications to this device not explicitly approved by manufacturer could void your authority to operate this equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Sincerely, Name/Title： Yinyan Ju/Manager Company: JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Address: No.243, Chenglu Road, Huashi Town, Jiangyin City, Jiangsu, China Phone: +86 0510-86218280 Fax: N/A E-Mail: [email protected]

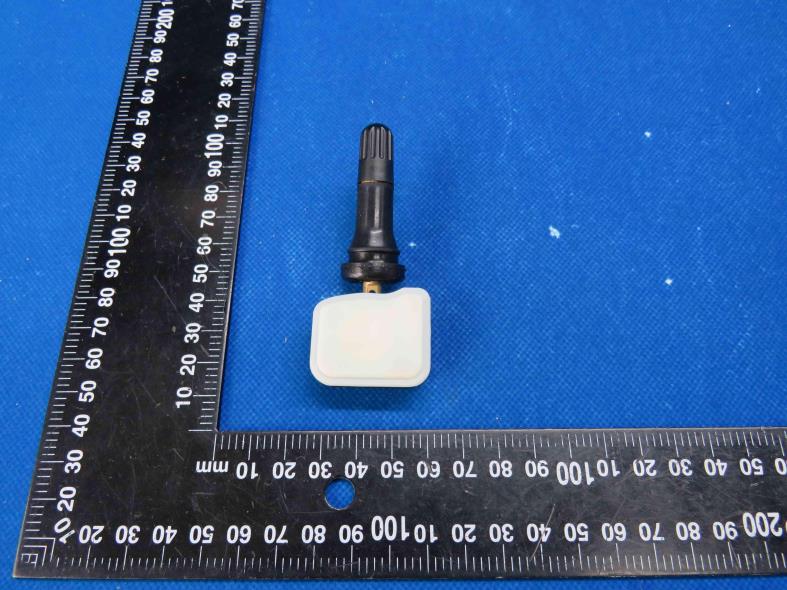

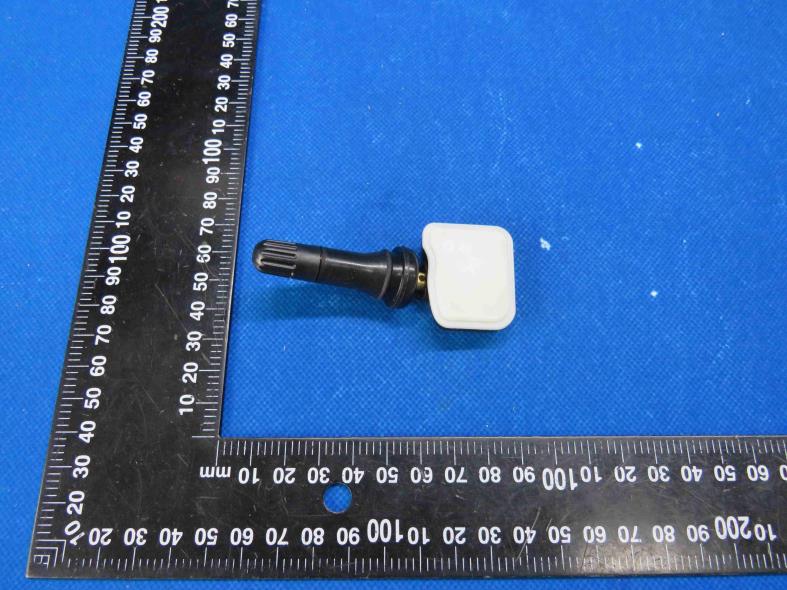

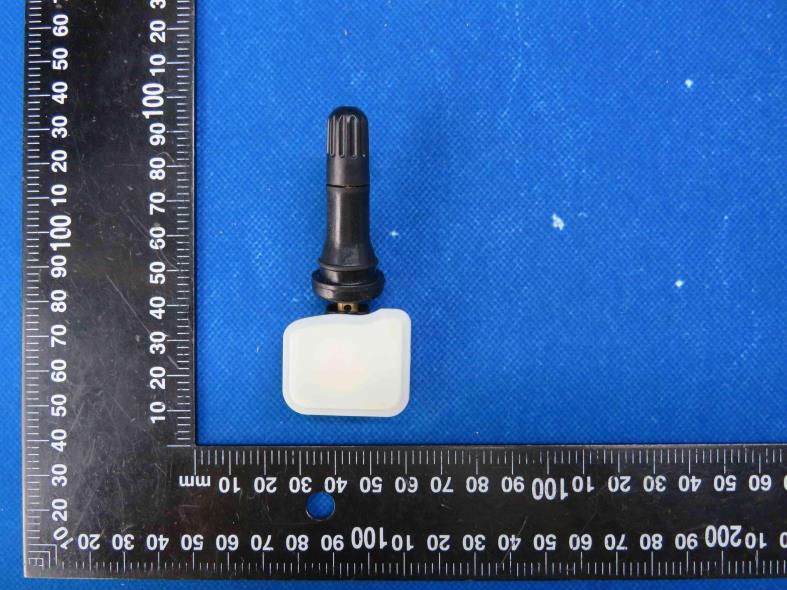

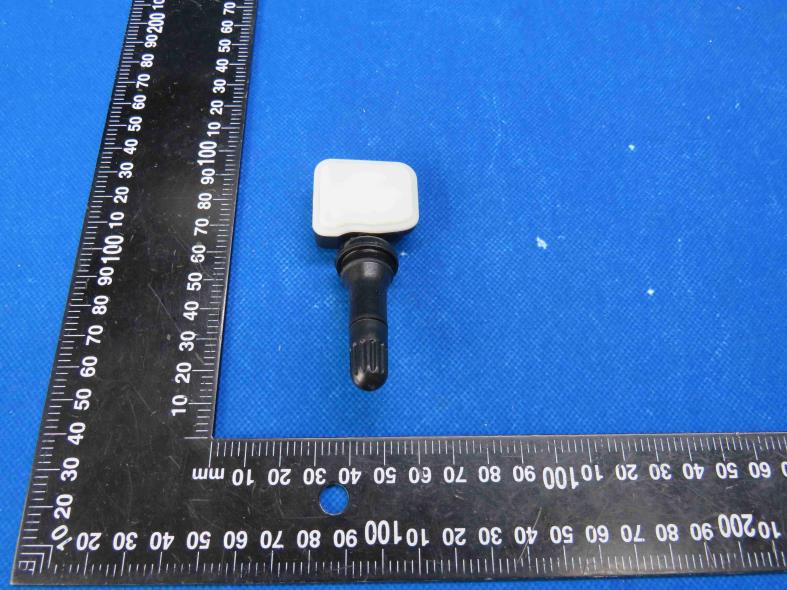

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202304349 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Tpms Sensor Model No.: S2 EUT Constructional Details External Photo Report No.: HTT202304349 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202304349 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

Label and Location Size: L: 1.0cm*W: 0.5cm Label and Location FCC ID : 2AYQ8-S2

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202304349 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 2 Product Name: Tpms Sensor Model No.: S2 EUT Constructional Details Internal Photo Report No.: HTT202304349 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 2 ------End------

RF Exposure evaluation FCC ID: 2AYQ8-S2 Exposure category: General population/uncontrolled environment EUT Type: Production Unit Device Type: Mobile Device 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Antenna Information S2 can only use antennas certificated as follows provided by manufacturer; Antenna No. Model No. of antenna: Type of antenna: Gain of the antenna (Max.) Frequency range: SRD / Internal ANT 0.00dBi for 315MHz; 5. Manufacturing Tolerance Freq. (MHz) Field strength(max)(dBuV/m) EIRP (max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] 315MHz 63.45 -31.81 -31±1 -30.0 Note: EIRP=E-104.8+20logD, D=3 6. Standalone MPE Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 0.0dBi, the RF power density can be obtained. Modulation Type Output power Antenna Gain (dBi) Antenna Gain (linear) MPE (mW/cm 2 ) MPE Limits (mW/cm 2 ) dBm mW SRD -30.0 0.0010 0.0 1.000 0.0000 1.0000 Remark: 1. Output power (Peak) including turn-up tolerance; 2. MPE evaluate distance is 20cm from user manual provide by manufacturer. 7. Conclusion The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. ----------------THE END OF REPORT---------------

V2V1 日期 修改内容 版本 RECISIONS 1/1 V0 金属天线 S2 2019.12.06 单 位 标准尺寸 项目名称 版本 材 料 日 期 比 例 表面工艺 零件名称 制 作 审 核 批 准 数量 页码 1:1 A4 1 mm 公差 （-/+） 0 5 0.05 >5 20 0.1 >20 100 0.15 >100 200 0.2 >200 400 0.5 >400 0.8 角度公差 0.5° 黄志 技术要求: 1.图中带有特别标识的标注尺寸为重点管控尺寸 ； 2.图中未标注公差依标题栏中公差要求管控 ； 3.未标注尺寸参照3 D 图档 ； 4.零件外观不得有缩水 、 披锋 、 刮伤或其它缺陷 ； 5.材料及表面处理需符合 RoHS 要求 ； 6.试产 、 量产过程中的图纸变更 ， 版本号以 V0,V1,V2.... 表示; V0 表示为原始版本图纸 ， V1 表示为第一次变更版本图纸... 付平 洋白铜 Antenna gain:0 dBi JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD

Shenzhen HTT Technology Co., Ltd. FCC PART 15 SUBPART C TEST REPORT FCC PART 15.231 Report Reference No. ..................... : FCC ID. ............................................ : HTT202304349F01 2AYQ8-S2 Compiled by ( position+printed name+signature) .. : File administrators Supervised by ( position+printed name+signature) .. : Project Engineer Approved by ( position+printed name+signature) .. : RF Manager Date of issue ..................................... : Apr.27,2023 Testing Laboratory Name .............: Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Address ............................................ : No.243, Chenglu Road, Huashi Town, Jiangyin City, Jiangsu, China Test specification ...........................: Standard ........................................... : FCC Part 15.231 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description .....................: Tpms Sensor Trade Mark ....................................... : NOVOSENSOR Manufacturer .................................... : JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Model/Type reference....................... : S2 Listed Models .................................. : N/A Ratings ............................................. : DC 3.0V From Battery Modulation ....................................... : ASK Frequency .......................................... 315.00MHz Result................................................ : PASS Report No.: HTT202304349F01 Page 2 of 17 T E S T R E P O R T Equipment under Test : Tpms Sensor Model /Type : S2 Applicant : JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Address : No.243, Chenglu Road, Huashi Town, Jiangyin City, Jiangsu, China Manufacturer : JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Address : No.243, Chenglu Road, Huashi Town, Jiangyin City, Jiangsu, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202304349F01 Page 3 of 17 Contents 1 T E S T S T A N D A R D S ................................................................. 4 2 S U M M A R Y ............................................................................ 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 Block Diagram of Test Setup 5 2.6 Special Accessories 5 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T .............................................................. 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ........................................... 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 11 4.3 20dB Bandwidth 14 4.4 Duration of each Transmission and the silent period 15 4.5 Antenna Requirement 16 5 T E S T S E T U P P H O T O S O F T H E E U T ......................................... 17 6 P H O T O S O F T H E E U T ........................................................... 17 Report No.: HTT202304349F01 Page 4 of 17 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.231:Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. ANSI C63.10:2013 : American National Standard for Testing Unlicensed Wireless Devices Report No.: HTT202304349F01 Page 5 of 17 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Apr.18,2023 Testing commenced on : Apr.18,2023 Testing concluded on : Apr.27,2023 2.2 Product Description Product Name: Tpms Sensor Model/Type reference: S2 Testing sample ID： HTT202304349-1# (Engineer sample), HTT202304349-2#(Normal sample) Power supply: DC 3.0V From Battery Modulation: ASK Operation frequency: 315.00MHz Channel number: 1 Antenna type: Internal antenna Antenna gain: 0 dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 3.0V From Battery 2.4 Short description of the Equipment under Test (EUT) This is a Tpms Sensor. For more details, refer to the user’s manual of the EUT. 2.5 Block Diagram of Test Setup 2.6 Special Accessories Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: Description Manufacturer Model Technical Parameters Certificate Provided by / / / / / / / / / / / / EUT Battery Report No.: HTT202304349F01 Page 6 of 17 2.7 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for the device filing to comply with Section 15.231 of the FCC Part 15, Subpart C Rules. 2.8 Modifications No modifications were implemented to meet testing criteria. Report No.: HTT202304349F01 Page 7 of 17 3 T E S T E N V I R O N M E N T 3.1 Address of the test laboratory Shenzhen HTT Technology Co.,Ltd. 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China 3.2 Test Facility The test facility is recognized, certified…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202304349 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 1 Product Name: Tpms Sensor Model No.: S2 Test Setup Photo Radiated Emission ------End------
