2AYQ8-S1GTpms Sensor

General programmable sensor instructions Before installing the sensor, be sure to read the installation instructions carefully and operate according to the requirements: 1. Do not use sensors with damaged appearance; 2. The installation process should be operated by trained professionals according to the guidance requirements; 3. The warranty period is 12 months or 20000 km, whichever comes first Screw、Shell、Valve、Valve Cap Product Name: Tpms Sensor working voltage:3V Emission current:6.7MA Air pressure range:0-5.8Bar Air pressure accuracy:±0.1Bar Temperature accuracy:±3°C working temperature:-40°C-105°C working frequency: 314.985MHz/433.89MHz Product weight:21.8g Operation steps: 1. Before the sensor is installed, it should be programmed with ateq tool according to the model year; 2. Install it on the wheel hub according to the following figure: Select the direction suitable for the angle and screw on the air nozzle nut Keep the white surface of the sensor parallel to the wheel hub surface, and tighten the air nozzle nut with 8nm torque Tire power balance Installation precautions: 1. The valve should not extend out of the rim 2. The sensor shell shall not interfere with the wheel rim 3. The white surface of the sensor shall be parallel to the rim surface 4。 The sensor housing must not extend beyond the rim flange FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital de vice, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructi ons, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help important announcement RF Exposure Information This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Add: No.243, Chenglu Road, Huashi Town,Jiangyin City, Jiangsu, China Date: 2022-4-8 FCC ID: 2AYQ8-S1G Dear Sir/Madam, We, JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: Tpms Sensor Model no.: S1G, S1, S1G-LZ Sincerely, Name/Title： Yinyan Ju/Manager Company: JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Address: No.243, Chenglu Road, Huashi Town,Jiangyin City, Jiangsu, China Phone: +86 0510-86218280 Fax: N/A E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2022-4-8> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AYQ8-S1G S1G For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Yinyan Ju/Manager Company: JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Address: No.243, Chenglu Road, Huashi Town,Jiangyin City, Jiangsu, China Phone: +86 0510-86218280 Fax: N/A E-Mail: [email protected]

JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD No.243, Chenglu Road, Huashi Town,Jiangyin City, Jiangsu, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2022-4-8 To whom it may concern: We, JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AYQ8-S1G including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Yinyan Ju/Manager Company: JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Address: No.243, Chenglu Road, Huashi Town,Jiangyin City, Jiangsu, China Phone: +86 0510-86218280 Fax: N/A E-Mail: [email protected]

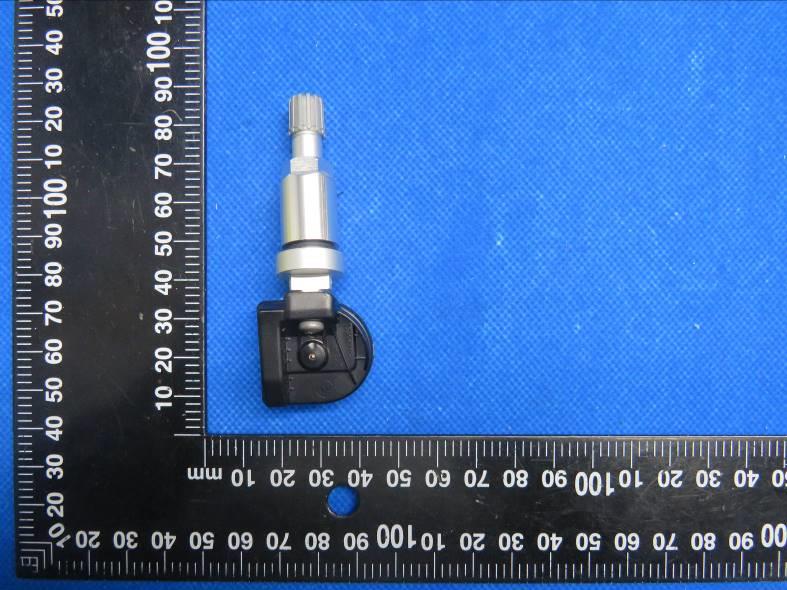

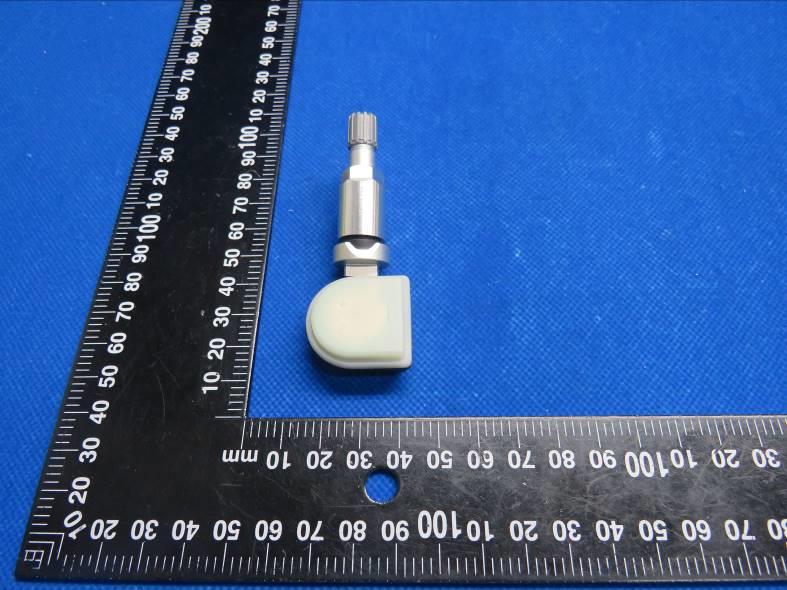

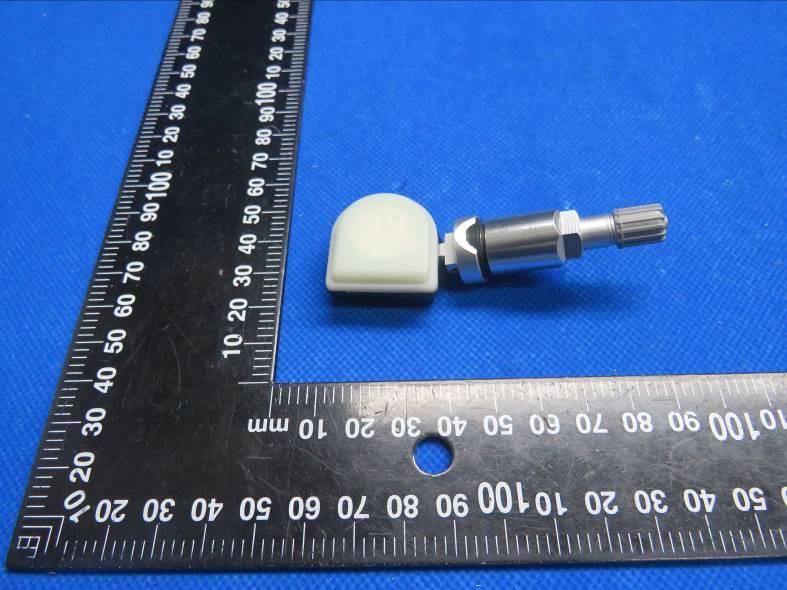

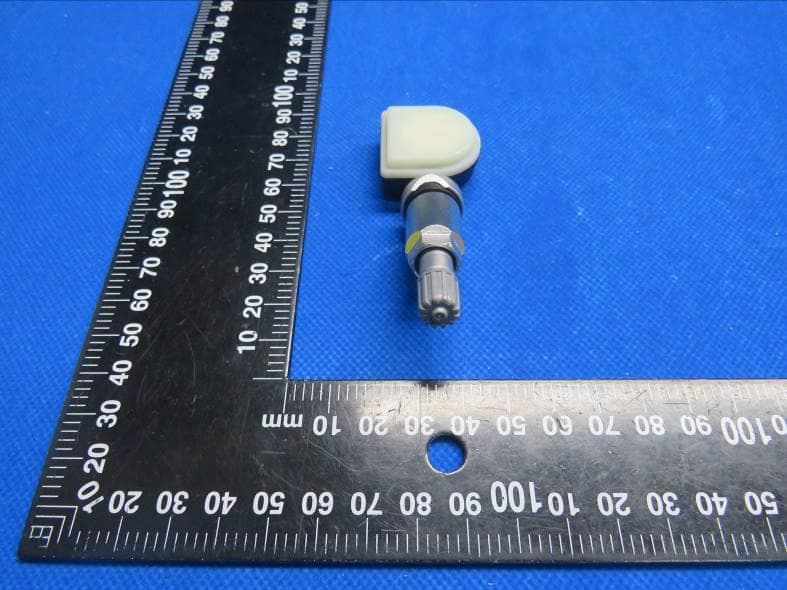

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202203177 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Tpms Sensor Model No.: S1G EUT Constructional Details External Photo Report No.: HTT202203177 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202203177 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

FCC ID: 2AYQ8-S1G Label and Location Size: L: 1.5cm*W: 1.0cm Label and Location FCC ID : 2AYQ8-S1G

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202203177 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 3 Product Name: Tpms Sensor Model No.: S1G EUT Constructional Details Internal Photo Report No.: HTT202203177 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 2 of 3 Report No.: HTT202203177 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 3 of 3 ------End------

Shenzhen HTT Technology Co., Ltd. FCC PART 15 SUBPART C TEST REPORT FCC PART 15.231 Report Reference No. ..................... : FCC ID. ........................................... : HTT202203177F01 2AYQ8-S1G Compiled by ( position+printed name+signature) .. : File administrators Supervised by ( position+printed name+signature) .. : Project Engineer Approved by ( position+printed name+signature) .. : RF Manager Date of issue ..................................... : Mar.26,2022 Testing Laboratory Name .............: Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Address ............................................ : No.243, Chenglu Road, Huashi Town, Jiangyin City, Jiangsu, China Test specification ...........................: Standard ........................................... : FCC Part 15.231 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Tpms Sensor Trade Mark ....................................... : NOVOSENSOR Manufacturer .................................... : JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Model/Type reference....................... : S1G Listed Models .................................. : S1, S1G-LZ Ratings ............................................. : DC 3.0V From Battery Modulation ....................................... : ASK Frequency .......................................... 433.89MHz Result................................................ : PASS Report No.: HTT202203177F01 Page 2 of 21 T E S T R E P O R T Equipment under Test : Tpms Sensor Model /Type : S1G Listed Models : S1, S1G-LZ Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Applicant : JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Address : No.243, Chenglu Road, Huashi Town, Jiangyin City, Jiangsu, China Manufacturer : JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Address : No.243, Chenglu Road, Huashi Town, Jiangyin City, Jiangsu, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202203177F01 Page 3 of 21 Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 Block Diagram of Test Setup 5 2.6 Special Accessories 5 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 11 4.3 20dB Bandwidth 14 4.4 Duration of each Transmission and the silent period 15 4.5 Antenna Requirement 16 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 17 6 P H O T O S O F T H E E U T ............................................................. 18 Report No.: HTT202203177F01 Page 4 of 21 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.231:Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. ANSI C63.10:2013 : American National Standard for Testing Unlicensed Wireless Devices Report No.: HTT202203177F01 Page 5 of 21 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Mar.15,2022 Testing commenced on : Mar.15,2022 Testing concluded on : Mar.26,2022 2.2 Product Description Product Name: Tpms Sensor Model/Type reference: S1G Testing sample ID： HTT202203177-1# (Engineer sample), HTT202203177-2#(Normal sample) Power supply: DC 3.0V From Battery Modulation: ASK Operation frequency: 433.89MHz Channel number: 1 Antenna type: Internal antenna Antenna gain: 0 dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 3.0V From Battery 2.4 Short description of the Equipment under Test (EUT) This is a Tpms Sensor. For more details, refer to the user’s manual of the EUT. 2.5 Block Diagram of Test Setup 2.6 Special Accessories Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: Description Manufacturer Model Technical Parameters Certificate Provided by / / / / / / / / / / / / EUT Battery Report No.: HTT202203177F01 Page 6 of 21 2.7 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for the device filing to comply with Section 15.231 of the FCC Part 15, Subpart C Rules. 2.8 Modifications No modifications were implemented to meet testing criteria. Report No.: HTT202203177F01 Page 7 of 21 3 T E S T E N V I R O N M E N T 3.1 Address of the test laboratory Shenzhen HTT Technology Co.,Ltd. 1F, Building B, Huafeng International Robotics Indu…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. FCC PART 15 SUBPART C TEST REPORT FCC PART 15.231 Report Reference No. ..................... : FCC ID. ........................................... : HTT202203177F02 2AYQ8-S1G Compiled by ( position+printed name+signature) .. : File administrators Supervised by ( position+printed name+signature) .. : Project Engineer Approved by ( position+printed name+signature) .. : RF Manager Date of issue ..................................... : Mar.26,2022 Testing Laboratory Name .............: Shenzhen HTT Technology Co.,Ltd. Address ............................................ : 1F, Building B, Huafeng International Robotics Industrial Park, Hangcheng Road,Nanchang Community, Xixiang Street, Bao’an District, Shenzhen, Guangdong, China Applicant’s name ............................ : JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Address ............................................ : No.243, Chenglu Road, Huashi Town, Jiangyin City, Jiangsu, China Test specification ...........................: Standard ........................................... : FCC Part 15.231 Shenzhen HTT Technology Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen HTT Technology Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen HTT Technology Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : Tpms Sensor Trade Mark ....................................... : NOVOSENSOR Manufacturer .................................... : JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Model/Type reference....................... : S1G Listed Models .................................. : S1, S1G-LZ Ratings ............................................. : DC 3.0V From Battery Modulation ....................................... : ASK Frequency .......................................... 314.985MHz Result................................................ : PASS Report No.: HTT202203177F02 Page 2 of 17 T E S T R E P O R T Equipment under Test : Tpms Sensor Model /Type : S1G Listed Models : S1, S1G-LZ Model Declaration : PCB board, structure and internal of these model(s) are the same, So no additional models were tested. Applicant : JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Address : No.243, Chenglu Road, Huashi Town, Jiangyin City, Jiangsu, China Manufacturer : JIANGYIN PREMIER AUTOPARTS INDUSTRY CO.,LTD Address : No.243, Chenglu Road, Huashi Town, Jiangyin City, Jiangsu, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: HTT202203177F02 Page 3 of 17 Contents 1 T E S T S T A N D A R D S .................................................................. 4 2 S U M M A R Y ............................................................................. 5 2.1 General Remarks 5 2.2 Product Description 5 2.3 Equipment Under Test 5 2.4 Short description of the Equipment under Test (EUT) 5 2.5 Block Diagram of Test Setup 5 2.6 Special Accessories 5 2.7 Related Submittal(s) / Grant (s) 6 2.8 Modifications 6 3 T E S T E N V I R O N M E N T ............................................................... 7 3.1 Address of the test laboratory 7 3.2 Test Facility 7 3.3 Environmental conditions 7 3.4 Summary of measurement results 8 3.5 Statement of the measurement uncertainty 8 3.6 Equipments Used during the Test 9 4 T E S T C O N D I T I O N S A N D R E S U L T S ............................................ 10 4.1 AC Power Conducted Emission 10 4.2 Radiated Emission 11 4.3 20dB Bandwidth 14 4.4 Duration of each Transmission and the silent period 15 4.5 Antenna Requirement 16 5 T E S T S E T U P P H O T O S O F T H E E U T .......................................... 17 6 P H O T O S O F T H E E U T ............................................................. 17 Report No.: HTT202203177F02 Page 4 of 17 1 T E S T S T A N D A R D S The tests were performed according to following standards: FCC Rules Part 15.231:Periodic operation in the band 40.66-40.70 MHz and above 70 MHz. ANSI C63.10:2013 : American National Standard for Testing Unlicensed Wireless Devices Report No.: HTT202203177F02 Page 5 of 17 2 S U M M A R Y 2.1 General Remarks Date of receipt of test sample : Mar.15,2022 Testing commenced on : Mar.15,2022 Testing concluded on : Mar.26,2022 2.2 Product Description Product Name: Tpms Sensor Model/Type reference: S1G Testing sample ID： HTT202203177-1# (Engineer sample), HTT202203177-2#(Normal sample) Power supply: DC 3.0V From Battery Modulation: ASK Operation frequency: 314.9850MHz Channel number: 1 Antenna type: Internal antenna Antenna gain: 0 dBi 2.3 Equipment Under Test Power supply system utilised Power supply voltage : ○ 230V / 50 Hz ○ 120V / 60Hz ○ 12 V DC ○ 24 V DC ● Other (specified in blank below) DC 3.0V From Battery 2.4 Short description of the Equipment under Test (EUT) This is a Tpms Sensor. For more details, refer to the user’s manual of the EUT. 2.5 Block Diagram of Test Setup 2.6 Special Accessories Follow auxiliary equipment(s) test with EUT that provided by the manufacturer or laboratory is listed as follow: Description Manufacturer Model Technical Parameters Certificate Provided by / / / / / / / / / / / / EUT Battery Report No.: HTT202203177F02 Page 6 of 17 2.7 Related Submittal(s) / Grant (s) This submittal(s) (test report) is intended for the device filing to comply with Section 15.231 of the FCC Part 15, Subpart C Rules. 2.8 Modifications No modifications were implemented to meet testing criteria. Report No.: HTT202203177F02 Page 7 of 17 3 T E S T E N V I R O N M E N T 3.1 Address of the test laboratory Shenzhen HTT Technology Co.,Ltd. 1F, Building B, Huafeng International Robotics I…

Text truncated - open the document above for the full version.

Shenzhen HTT Technology Co., Ltd. Report No.: HTT202203177 Shenzhen HTT Technology Co.,Ltd. Tel: 0755-23595200 Fax: 0755-23595201 1F, Building B, Huafeng International Robotics Industrial Park,Hangcheng Road, Nanchang Community, Xixiang Street, Bao'an District, Guangdong Province, Shenzhen, China Page 1 of 1 Product Name: Tpms Sensor Model No.: S1G Test Setup Photo Radiated Emission ------End------
