Please read the quick start manual carefully before using and keep it for future reference. FIMI X8 MINI Drone Quick Start Manual Product Introduction 1 Drone Clockwise propellerCounterclockwise propeller Integrated gimbal cameraLanding gearMotor RC WIFI Charging port WIFI/RC switchFlight status light TOF sensor Optical flow camera Power buttonBattery level light 2 Remote controller Stick Auto returnCharging portStick storage slot Mobile holderPower buttonBattery level lights Record button Antenna Dial Shoot button Description of RC Button Buttons Left stick Right stick Auto return Shoot button Record button Dial Power button 1 2 3 4 5 6 7 Function description Push stick upward, the drone goes up Pull stick downward, the drone goes down Toggle stick to left, the drone rotates anticlockwise Toggle stick to right, the drone rotates clockwise Push stick upward, the drone flies forward Pull stick downward, the drone flies backward Toggle stick to left, the drone flies to left Toggle stick to right, the drone flies to right Long press the button for over 2 seconds, and the drone will enter RTH mode when you hear a beep. Short press the button to cancel RTH mode Short press to shoot the picture Short press to start / stop recording Adjust the pitch angle of gimbal camera Short press to view the battery level Short press+long press 2 seconds to power on/off Up Down Counter clockwise Clockwise Note: The stick mode can be set in FIMI Navi Mini app. (The default is Mode 2) Up Down Drone heading Left stickRight stick Backward Forward Right Left Forward Backward RightLeft Drone Specifications Drone Product model：FMWRJ04A7 Max ascending speed：5m/s Max descending speed：3.5m/s Max flight speed：16m/s Operating temperature：0~40°C Suitable altitude：≤4000m FCC ID: 2AYVYFMWRJ04A7 Operating frequency：5.725-5.850GHz Dimensions：145×85×56mm (folded) 200×145×56mm (unfolded) Take-off weight：Drone with standard version battery weight: around 258g Drone with pro version battery weight: around 245g Flight time： Standard version battery usage time: 30-minutes (no wind environment and at a constant flying speed of 6m/s) Pro version battery usage time: 31-minutes (no wind environment and at a constant flying speed of 6m/s) Satellite positioning systems：GPS/GLONASS/BEIDOU Hovering accuracy：Vertical±0.1m (within TOF sensor working range) ±0.5m（when GPS positioning is active） Horizontal: ±1.5 Remote controller Product model： FMYKQ04A7 Net weight：About 260g Dimensions: 165x89x47mm Operating frequency：5.725-5.850GHz Type：Rechargeable lithium battery Battery voltage: 3500mAh Nominal voltage: 3.7V Input: 5V 2A Max transmission distance: About 8000m Operating temperature: 0~40°C Suitable altitude：≤4000m FCC ID: 2AYVYFMYKQ04A7 Note： *The standard version battery usage time is 30 minutes, measured at a constant flying speed of 6m/s (no wind or breeze environment) after being fully charged *The Pro version battery usage time is 31 minutes, measured at a constant flying speed of 6m/s (no wind or breeze environment) after being fully charged *Remote control distance reaches to 8km (FCC) in open area and no interference. All t esting and data above come from FIMI laboratory. Errors may occur in actual use because of operating and environmental changes. Gimbal camera Controllable rotation range: 10° ~ -90°(Pitch) Angular vibration range：±0.005° Lens: FOV 80° Camera aperture：f2.0 Camera focal distance：3.54mm Equivalent focal distance：26mm Sensor：1/2.6" SONY CMOS Effective pixels：12M pixels ISO range：100-3200 Shutter speed：32~1/8000s Max video resolution： 3840×2160I30fpsI25fpsI24fps Max bitrate：100Mbps File system：FAT32 Image format: JPG，JPG+DNG Video format： MP4 Recommended SD card： Micro SD(U3 grade and above）8~256GB Standard version smart battery Type：Li-ion 2S Weight： 102g Capacity：2400mAh Voltage：7.2V Limited voltage：8.4V Energy：17.28Wh Suitable charging temperature: 5~40°C Pro version smart battery Type：LiPo 2S Weight： 86g Capacity：2200mAh Voltage：7.7V Limited voltage：8.8V Energy：16.94Wh Suitable charging temperature: 5~40°C Ready to fly 1 Equip and remove the gimbal protector Equip and remove the gimbal protector as shown Equip the gimbal protector as the arrow leading Remove the gimbal protector as the arrow leading Safety tips: Please take the battery out of the drone and keep it separately when not in use. 2 Battery Hard push the battery. There will be a “click” sound if the battery is installed in place. To remove the battery, you need to press the bottom battery buckle to pull out. Battery buckle 3 Propeller Please install and remove the propellers as the picture shown. The propellers need to be installed according to the marks on the arms and propellers, and distinguished the forward and reverse propellers (the attached picture shows the forward propeller.) Need to use a screwdriver for installation and make sure the screws are locked well. To keep safe, screws should be replaced together with propellers. 4 Insert Micro SD card When installing Micro SD card, please pull out the battery. Insert the SD card into the SD card slot. When removing SD card, press the SD card to pop out. SD 5 Charge Connect the remote controller to a power adapter as shown below. When the RC is in charge, the battery level lights are flashing. When the RC is fully charged, the battery level lights go out. It takes about 2.5 hours to fully charge the RC in the powered off condition. The battery status light keeps on when charging. The battery level light off when charging finished. It takes 2.5h to fully charge the batter via 5V/2A, 1.5h via 9V/2A and 1h via 9V/3A. Use USB cable to connect the device as shown. Unfold the RC to place the device. 6 Remote controller Safety tips：User should face to the tail of drone when operating it, in case of accident caused by wrong direction. Drone heading The side of gimbal camera is head of drone. Distinguish the direction of drone through status light. 7 Distinguish the direction of drone 8 urning on/off the d…

Text truncated - open the document above for the full version.

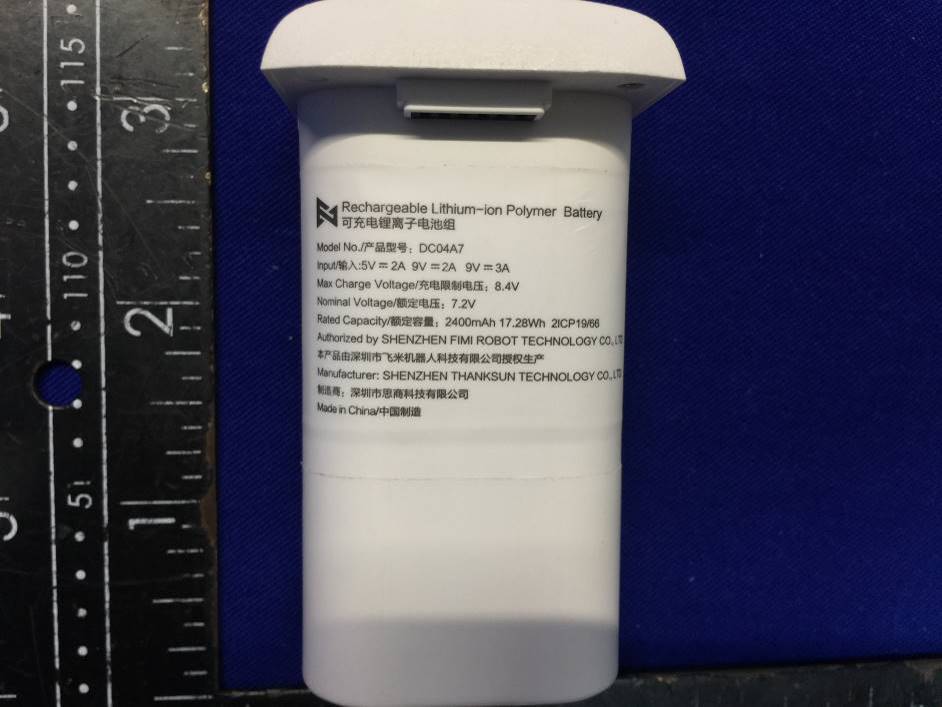

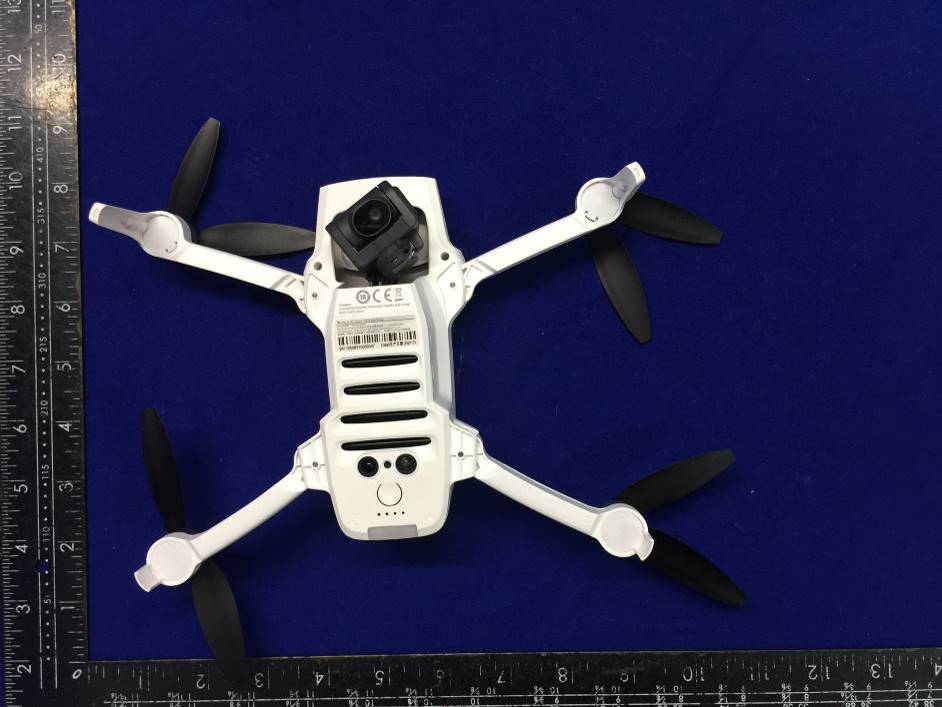

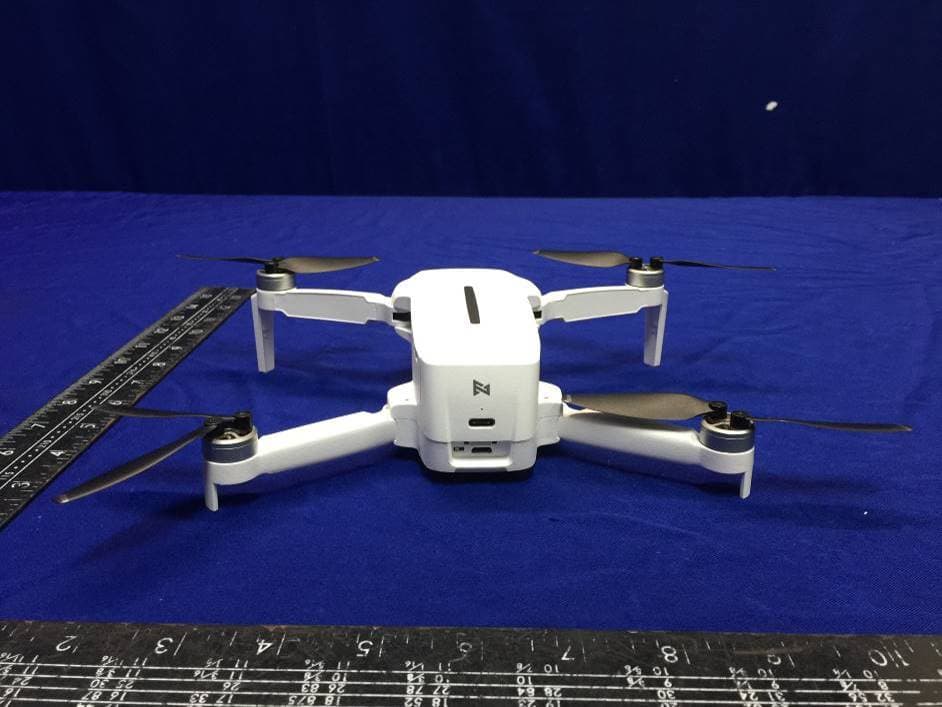

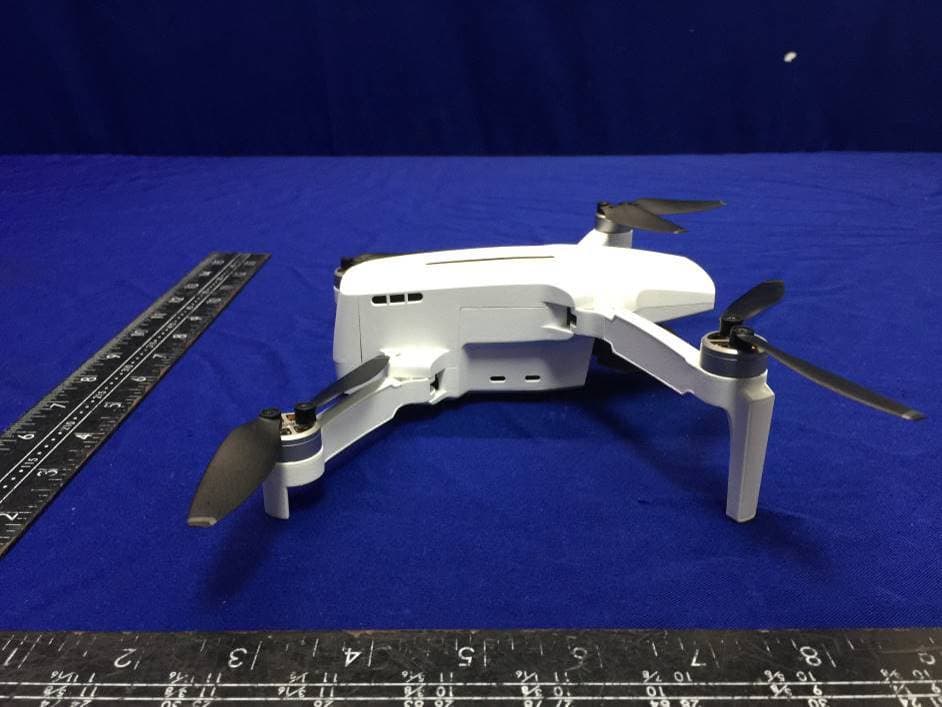

EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 EUT View 3 EUT View 4 EUT View 5 EUT View 6 EUT View 7 ----------------The end----------------

Label and label location

EUT INTERNAL PHOTOGRAPHS EUT Housing and Board View 1 Solder Board-Component View 1 Solder Board-Component View 2 Solder Board-Component View 3 Solder Board-Component View 4 Solder Board-Component View 5 Solder Board-Component View 6 Solder Board-Component View 7 Solder Board-Component View 8 Solder Board-Component View 9 Solder Board-Component View 10 Solder Board-Component View 11 Solder Board-Component View 12 Antenna ----------------The end----------------

FCC ID : 2AYVYFMWRJ04A7 RF EXPOSURE EVALUATION According to FCC 1.1310: The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) Radiation as specified in §1.1307(b) Limits for Maximum Permissible Exposure (MPE) Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density(mW/cm 2 ) Average Time (A) Limits for Occupational/Control Exposures 300-1500 -- -- F/300 6 1500- 100000 -- -- 5 6 (B) Limits for General Population/Uncontrol Exposures 300-1500 -- -- F/1500 6 1500- 100000 -- -- 1 30 11.1 Friis transmission formula: Pd= (Pout*G)\ (4*pi*R 2 ) Where Pd= Power density in mW/cm 2 Pout=output power to antenna in mW G= Numeric gain of the antenna relative to isotropic antenna Pi=3.1416 R= distance between observation point and center of the radiator in cm Pd the limit of MPE, 1mW/cm 2 ,If we know the maximum gain of the nd total power input to the antenna, through the calculation, we will know the distance where the MPE limit is reached. RF Exposure Information: The radiated output power of this device meets the limits of FCC/IC radio frequency exposure limits.This device should be operated with a minimum separation distance of 20cm (8 inches) between the equipment and a person's body. 11.2 Measurement Result Wifi 5G Antenna gain: 2.5 dBi U-NII – 3 Channel Freq. (MHz) Measured power (dBm) Tune-up power (dBm) Max tune- up power (dBm) Antenna Gain Numeric Evaluation result (mW/cm2 ) Power density Limits (mW/cm2 ) 5745 21.16 20 to 22 22 1.78 0.056 1 5785 21.71 20 to 22 22 1.78 0.056 1 5825 21.40 20 to 22 22 1.78 0.056 1

Report No.ES210226056W Page 1 of 47 Ver.1.0 TEST REPORT Product Name ： FIMI X8 Mini Drone Model Number ： FMWRJ04A7 FCC ID ： 2AYVYFMWRJ04A7 Prepared for : Shenzhen FIMI Robot Technology Co.,Ltd Address : 2nd Floor,East Block,Tianliao Building, 1133 Xueyuan Avenue, Taoyuan Street，Nanshan District, Shenzhen City,Guangdong Province, China Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES210226056W Date(s) of Tests : Mar. 5, 2021 to Mar. 25, 2021 Date of issue : Mar. 30, 2021 $二维码$ Report No.ES210226056W Page 2 of 47 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Shenzhen FIMI Robot Technology Co.,Ltd Address： 2nd Floor,East Block,Tianliao Building, 1133 Xueyuan Avenue, Taoyuan Street， Nanshan District, Shenzhen City,Guangdong Province, China Manufacturer : Shenzhen FIMI Robot Technology Co.,Ltd Address： 2nd Floor,East Block,Tianliao Building, 1133 Xueyuan Avenue, Taoyuan Street， Nanshan District, Shenzhen City,Guangdong Province, China EUT : FIMI X8 Mini Drone Model Name : FMWRJ04A7 Trademark : N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2, Subpart J FCC 47 CFR Part 15, Subpart E PASS The above equipment was tested by EMTEK (SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.407 The test results of this report relate only to the tested sample identified in this report. Date of Test : Mar. 5, 2021 to Mar. 25, 2021 Prepared by : Sewen Guo /Editor Reviewer : Sevin Li /Supervisor Approved & Authorized Signer : Lisa Wang/Manager Report No.ES210226056W Page 3 of 47 Ver.1.0 TABLE OF CONTENTS 1 TEST RESULT CERTIFICAT I O N ....................................................................................................... 2 2 EUT TECHNICAL DESCRIPTION ..................................................................................................... 4 3 SUMMARY OF TEST RESULT .......................................................................................................... 5 4 TEST METHODOLOGY ..................................................................................................................... 6 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS ............................................................. 6 4.2 MEASUREMENT EQUIPMENT USED ....................................................................................... 6 4.3 DESCRIPTION OF TEST MODES .............................................................................................. 7 5 FACILITIES AND ACCREDITATIONS ............................................................................................... 8 5.1 FACILITIES ................................................................................................................................. 8 5.2 LABORATORY ACCREDITATIONS AND LISTINGS .................................................................. 8 6 TEST SYSTEM UNCERTAINTY ........................................................................................................ 9 7 SETUP OF EQUIPMENT UNDER TEST ......................................................................................... 10 7.1 RADIO FREQUENCY TEST SETUP ......................................................................................... 10 7.2 RADIO FREQUENCY TEST SETUP ......................................................................................... 10 7.3 CONDUCTED EMISSION TEST SETUP .................................................................................. 12 7.4 BLOCK DIAGRAM CONFIGURATION OF TEST SYSTEM ...................................................... 13 7.5 SUPPORT EQUIPMENT ........................................................................................................... 13 8 TEST REQUIREMENTS................................................................................................................... 14 8.1 BANDWIDTH MEASUREMENT ............................................................................................... 14 8.2 MAXIMUM CONDUCTED OUTPUT POWER ........................................................................... 20 8.3 MAXIMUM PEAK POWER DENSITY ....................................................................................... 22 8.4 FREQUENCY STABILITY ......................................................................................................... 27 8.5 UNDESIRABLE RADIATED SPURIOUS EMISSION ................................................................ 29 8.6 POWER LINE CONDUCTED EMISSIONS ............................................................................... 43 8.7 ANTENNA APPLICATION ......................................................................................................... 46 Report No.ES210226056W Page 4 of 47 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Characteristics Description Product FIMI X8 Mini Drone Model Number FMWRJ04A7 Wifi Type UNII-3 with 5725MHz-5850MHz Band WLAN Supported 802.11a 802.11n(20MHz channel bandwidth) 802.11n(40MHz channel bandwidth) 802.11ac(20MHz channel bandwidth) 802.11ac(40MHz channel bandwidth) 802.11ac(80MHz channel bandwidth) Data Rate 802.11a:54/48/36/24/18/12/9/6Mbps Modulation OFDM with BPSK/QPSK/16QAM/64QAM for 802.11a; OFDM with BPSK/QPSK/16QAM/64QAM/256QAM for 802.11ac; Frequency Range UNII-3 with 5725MHz-5850MHz Band 5745-5825MHz for 802.11a; 5745-5825MHz for 802.11n(HT20); 5745-5825MHz for 802.11ac(HT20); 5755-5795MHz for 802.11n(HT40); 5755-5795MHz for 802.11ac(HT40); 5775MHz for 802.11ac(HT80); TPC Function Applicable Not Applicable Antenna Type Internal Antenna Antenna Gain 2.5 dBi Transmit …
