2AYVYYTXJ06FMPALM 2 Gimbal Camera

FCC statement This device complies with Part 15 of the FCC rules. Operation is subject to the following two conditions: 1) this device may not cause harmful interference, and 2) this device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation between the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienced radio/TV technician for help. Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC Radiation Exposure Statement This device complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. This model product has been tested and meets the FCC RF exposure guidelines with the test distance 20mm for body worn

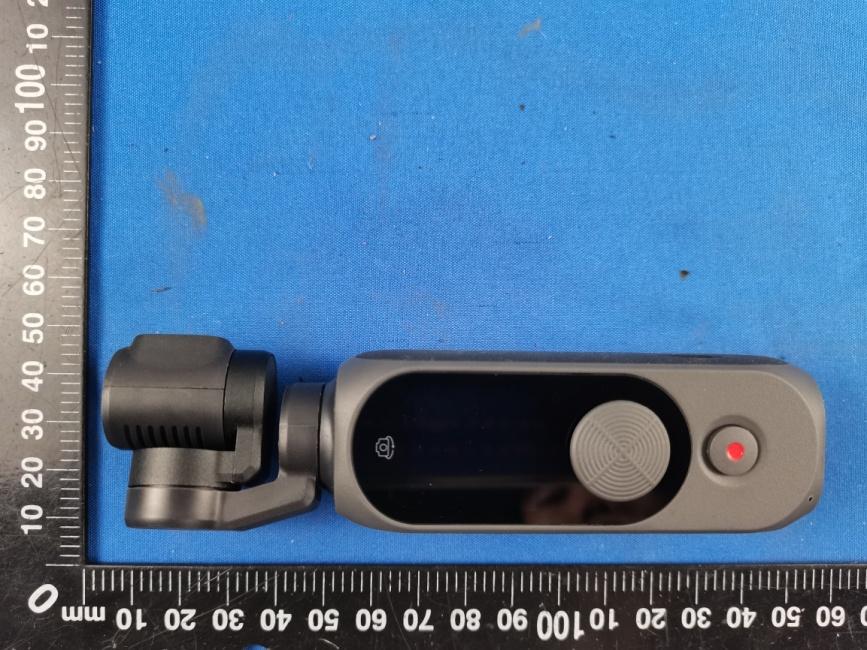

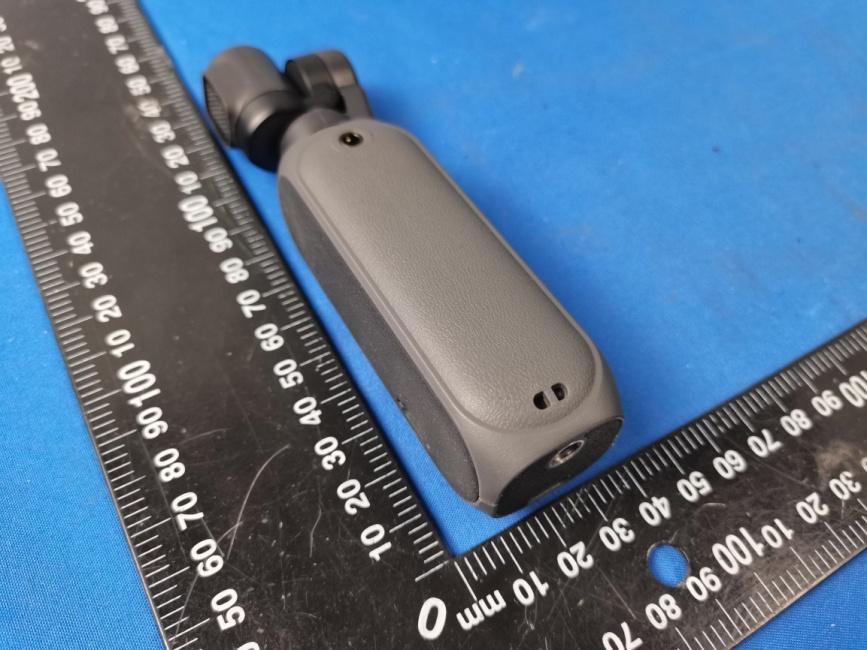

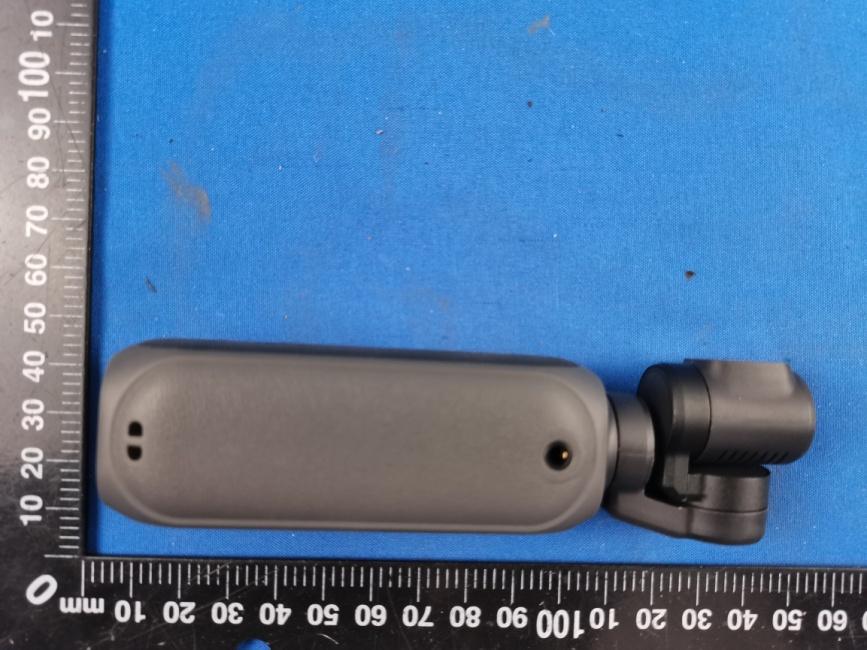

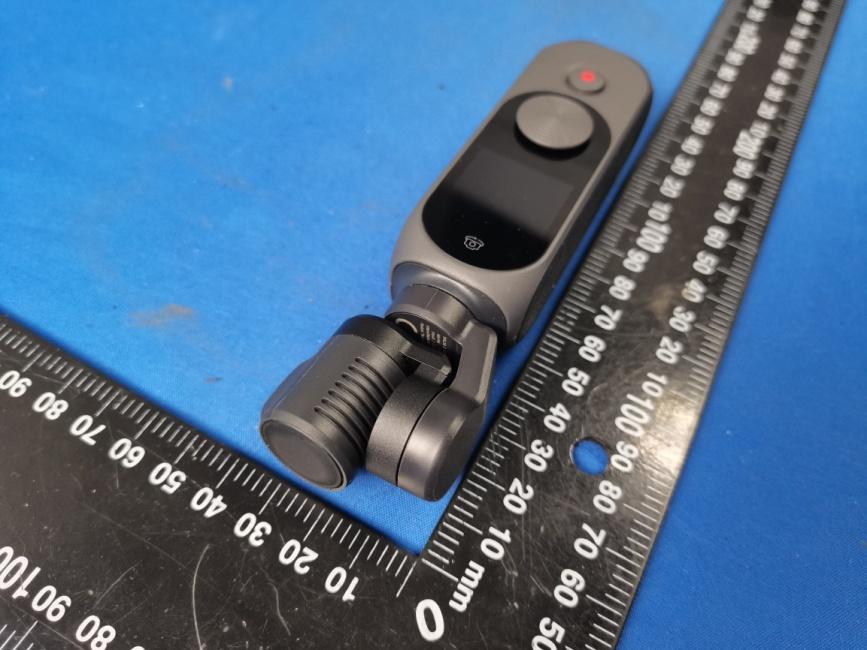

FCC-ID: 2AYVYYTXJ06FM Page 1 of 2 Report No.: CTL2012221011-WF External Photos of EUT FCC-ID: 2AYVYYTXJ06FM Page 2 of 2 Report No.: CTL2012221011-WF

FCC-ID:2AYVYYTXJ06FM Page 1 of 1 Report No.: CTL2012221011-WF FCC ID Label Information 1. Label location: 2. FCC ID Label: 2AYVYYTXJ06FM PALM 2 Gimbal Camera Model: YTXJ06FM FCC ID: 2AYVYYTXJ06FM This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC-ID: 2AYVYYTXJ06FM Page 1 of 4 Report No.: CTL2012221011-WF Internal Photos of EUT FCC-ID: 2AYVYYTXJ06FM Page 2 of 4 Report No.: CTL2012221011-WF FCC-ID: 2AYVYYTXJ06FM Page 3 of 4 Report No.: CTL2012221011-WF Antenna FCC-ID: 2AYVYYTXJ06FM Page 4 of 4 Report No.: CTL2012221011-WF

version01 Shenzhen FIMI Robot Technology Co., Ltd 2nd Floor, East Block, Tianliao Building, 1133 Xueyuan Avenue, Taoyuan Street, Nanshan District, Shenzhen City, Guangdong Province, China Tel: 755-86549354 Fax: 755-86549354 Declaration concerning Antenna Specification It is hereby declared that the product Model No.: YTXJ06FM fulfills the requirement in FCC test relating to the antenna type. The device specified above confirms to the FCC recommendations for Chip antenna type(s) described below: Model No. of antenna: N/A Type of antenna: Chip Antenna Gain of the antenna: 1.0dBi Frequency range: 2412-2462 MHz The mounting of the antenna is fixed to the radio module and no other antenna should be used. Company name: Shenzhen FIMI Robot Technology Co., Ltd Address: 2nd Floor, East Block, Tianliao Building, 1133 Xueyuan Avenue, Taoyuan Street, Nanshan District, Shenzhen City, Guangdong Province, China City: Guangdong Province ZIP / Postal code: Country: China Place: Certification Manager Date: 2021-02-24 Signature:

FCC-ID: 2AYVYYTXJ06FM Page 1 of 2 Report No.: CTL2012221011-WF RF Exposure evaluation FCC ID: 2AYVYYTXJ06FM 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density FCC-ID: 2AYVYYTXJ06FM Page 2 of 2 Report No.: CTL2012221011-WF 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is 1.0dBi for 2.4GHz, the RF power density can be obtained. For 2.4Ghz wifi Frequency (MHz) Max. Output Power (dBm) Max. Output Power (mW) Antenna Gain (Numeric) Power Density At 20 cm (mW/cm 2 ) Power Density Limit FCC (mW/cm 2 ) Test Results 2422 8.79 7.5683 1.2589 0.0019 1.0000 PASS 2437 8.77 7.5336 1.2589 0.0019 1.0000 PASS 2452 8.72 7.4473 1.2589 0.0019 1.0000 PASS 5. Conclusion The SAR evaluation is not required.

V1.0 Page 1 of 42 Report No.: CTL2012221011-WF Appendix for 15.247 1. Bandwidth 1.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. 6dB Bandwidth Verdict Test Result (MHz) 802.11b 2412 SISO 1 10.660 PASS 2437 SISO 1 10.482 PASS 2462 SISO 1 10.455 PASS 802.11g 2412 SISO 1 16.424 PASS 2437 SISO 1 16.387 PASS 2462 SISO 1 16.418 PASS 802.11n(HT20) 2412 SISO 1 17.383 PASS 2437 SISO 1 17.323 PASS 2462 SISO 1 17.457 PASS 802.11n(HT40) 2422 SISO 1 35.582 PASS 2437 SISO 1 35.331 PASS 2452 SISO 1 35.547 PASS Test Mode Frequency (MHz) TX Type ANT No. 99% Occupied Bandwidth Test Result (MHz) 802.11b 2412 SISO 1 14.816 Only for Report Use 2437 SISO 1 14.880 Only for Report Use 2462 SISO 1 14.888 Only for Report Use 802.11g 2412 SISO 1 16.824 Only for Report Use 2437 SISO 1 16.673 Only for Report Use 2462 SISO 1 16.612 Only for Report Use 802.11n(HT20) 2412 SISO 1 17.655 Only for Report Use 2437 SISO 1 17.744 Only for Report Use 2462 SISO 1 17.740 Only for Report Use 802.11n(HT40) 2422 SISO 1 36.414 Only for Report Use 2437 SISO 1 36.273 Only for Report Use 2452 SISO 1 36.179 Only for Report Use 1.2 Test Graph - 6dB Bandwidth V1.0 Page 2 of 42 Report No.: CTL2012221011-WF V1.0 Page 3 of 42 Report No.: CTL2012221011-WF V1.0 Page 4 of 42 Report No.: CTL2012221011-WF V1.0 Page 5 of 42 Report No.: CTL2012221011-WF V1.0 Page 6 of 42 Report No.: CTL2012221011-WF V1.0 Page 7 of 42 Report No.: CTL2012221011-WF V1.0 Page 8 of 42 Report No.: CTL2012221011-WF 1.3 Test Graph - 99% Occupied Bandwidth V1.0 Page 9 of 42 Report No.: CTL2012221011-WF V1.0 Page 10 of 42 Report No.: CTL2012221011-WF V1.0 Page 11 of 42 Report No.: CTL2012221011-WF V1.0 Page 12 of 42 Report No.: CTL2012221011-WF V1.0 Page 13 of 42 Report No.: CTL2012221011-WF V1.0 Page 14 of 42 Report No.: CTL2012221011-WF 2. Maximum Conducted Output Power 2.1 Test Result Test Mode Frequency (MHz) Tx Type Measured Peak Output Power (dBm) Limits (dBm) Verdict Ant 1 802.11b 2412 SISO 8.63 30 PASS 2437 SISO 8.27 30 PASS 2462 SISO 7.90 30 PASS 802.11g 2412 SISO 8.47 30 PASS 2437 SISO 8.35 30 PASS 2462 SISO 7.92 30 PASS 802.11n(HT20) 2412 SISO 8.12 30 PASS 2437 SISO 8.29 30 PASS 2462 SISO 8.07 30 PASS 802.11n(HT40) 2422 SISO 8.79 30 PASS 2437 SISO 8.77 30 PASS 2452 SISO 8.72 30 PASS 2.2 Test Graph V1.0 Page 15 of 42 Report No.: CTL2012221011-WF V1.0 Page 16 of 42 Report No.: CTL2012221011-WF V1.0 Page 17 of 42 Report No.: CTL2012221011-WF V1.0 Page 18 of 42 Report No.: CTL2012221011-WF V1.0 Page 19 of 42 Report No.: CTL2012221011-WF V1.0 Page 20 of 42 Report No.: CTL2012221011-WF 3. Maximum Power Spectral Density (PSD) 3.1 Test Result Test Mode Frequency (MHz) Tx Type Maximum Power Spectral Density (dBm/3KHz) Limits (dBm/3kHz) Verdict Ant 1 802.11b 2412 SISO -20.94 ≤8 PASS 2437 SISO -20.90 ≤8 PASS 2462 SISO -21.54 ≤8 PASS 802.11g 2412 SISO -25.87 ≤8 PASS 2437 SISO -25.41 ≤8 PASS 2462 SISO -24.79 ≤8 PASS 802.11n(HT20) 2412 SISO -25.23 ≤8 PASS 2437 SISO -26.11 ≤8 PASS 2462 SISO -25.13 ≤8 PASS 802.11n(HT40) 2422 SISO -26.99 ≤8 PASS 2437 SISO -27.47 ≤8 PASS 2452 SISO -27.28 ≤8 PASS 3.2 Test Graph V1.0 Page 21 of 42 Report No.: CTL2012221011-WF V1.0 Page 22 of 42 Report No.: CTL2012221011-WF V1.0 Page 23 of 42 Report No.: CTL2012221011-WF V1.0 Page 24 of 42 Report No.: CTL2012221011-WF V1.0 Page 25 of 42 Report No.: CTL2012221011-WF V1.0 Page 26 of 42 Report No.: CTL2012221011-WF V1.0 Page 27 of 42 Report No.: CTL2012221011-WF 4. Unwanted Emissions in Non-restricted Frequency Bands 4.1 Test Result Test Mode Frequency (MHz) TX Type ANT No. Spurious Conducted Emission (dBm) Limits (dBm) Verdict 802.11b 2412 SISO 1 Refer to test graph -25.76 PASS 2437 SISO 1 Refer to test graph -25.76 PASS 2462 SISO 1 Refer to test graph -25.76 PASS 802.11g 2412 SISO 1 Refer to test graph -29.65 PASS 2437 SISO 1 Refer to test graph -29.65 PASS 2462 SISO 1 Refer to test graph -29.65 PASS 802.11n(HT20) 2412 SISO 1 Refer to test graph -29.98 PASS 2437 SISO 1 Refer to test graph -29.98 PASS 2462 SISO 1 Refer to test graph -29.98 PASS 802.11n(HT40) 2422 SISO 1 Refer to test graph -32.16 PASS 2437 SISO 1 Refer to test graph -32.16 PASS 2452 SISO 1 Refer to test graph -32.16 PASS 4.2 Test Graph V1.0 Page 28 of 42 Report No.: CTL2012221011-WF V1.0 Page 29 of 42 Report No.: CTL2012221011-WF V1.0 Page 30 of 42 Report No.: CTL2012221011-WF V1.0 Page 31 of 42 Report No.: CTL2012221011-WF V1.0 Page 32 of 42 Report No.: CTL2012221011-WF V1.0 Page 33 of 42 Report No.: CTL2012221011-WF V1.0 Page 34 of 42 Report No.: CTL2012221011-WF V1.0 Page 35 of 42 Report No.: CTL2012221011-WF V1.0 Page 36 of 42 Report No.: CTL2012221011-WF V1.0 Page 37 of 42 Report No.: CTL2012221011-WF V1.0 Page 38 of 42 Report No.: CTL2012221011-WF V1.0 Page 39 of 42 Report No.: CTL2012221011-WF V1.0 Page 40 of 42 Report No.: CTL2012221011-WF V1.0 Page 41 of 42 Report No.: CTL2012221011-WF V1.0 Page 42 of 42 Report No.: CTL2012221011-WF

Shenzhen CTL Testing Technology Co., Ltd. Tel: +86-755-89486194 E-mail: [email protected] TEST REPORT FCC PART 15.247 Report Reference No. ................ : CTL2012221011-WF Compiled by: ( position+printed name+signature) Happy Guo (File administrators) Tested by: ( position+printed name+signature) Gary Gao (Test Engineer) Approved by: ( position+printed name+signature) Ivan Xie (Manager) Product Name ............................ : PALM 2 Gimbal Camera Model/Type reference ................ : YTXJ06FM List Model(s) ............................... : N/A Trade Mark .................................. : FCC ID ......................................... : 2AYVYYTXJ06FM Applicant’s name ....................... : Shenzhen FIMI Robot Technology Co., Ltd Address of applicant ................. : 2nd Floor, East Block, Tianliao Building, 1133 Xueyuan Avenue, Taoyuan Street, Nanshan District, Shenzhen City, Guangdong Province, China Test Firm ..................................... : Shenzhen CTL Testing Technology Co., Ltd. Address of Test Firm ................. : Floor 1-A, Baisha Technology Park, No.3011, Shahexi Road, Nanshan District, Shenzhen, China 518055 Test specification ....................... : Standard ...................................... : 47 CFR FCC Part 15 Subpart C 15.247 TRF Originator ............................. : Shenzhen CTL Testing Technology Co., Ltd. Master TRF .................................. : Dated 2011-01 Date of receipt of test item ........ : Dec. 23, 2020 Date of sampling ........................ : Dec. 23, 2020 Date of Test Date ........................ : Dec. 23, 2020–Jan. 25, 2021 Date of Issue .............................. : Jan. 26, 2021 Result .......................................... : Pass Shenzhen CTL Testing Technology Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen CTL Testing Technology Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen CTL Testing Technology Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. V1.0 Page 2 of 32 Report No.: CTL2012221011-WF TEST REPORT Test Report No. : CTL2012221011-WF Jan. 26, 2021 Date of issue Equipment under Test : PALM 2 Gimbal Camera Sample No. CTL201222101-1-S001 Model /Type : YTXJ06FM Listed Models : N/A Applicant : Shenzhen FIMI Robot Technology Co., Ltd Address : 2nd Floor, East Block, Tianliao Building, 1133 Xueyuan Avenue, Taoyuan Street, Nanshan District, Shenzhen City, Guangdong Province, China Manufacturer : Shenzhen FIMI Robot Technology Co., Ltd Address : 2nd Floor, East Block, Tianliao Building, 1133 Xueyuan Avenue, Taoyuan Street, Nanshan District, Shenzhen City, Guangdong Province, China Test result Pass * * In the configuration tested, the EUT complied with the standards specified page 5. The test results presented in this report relate only to the object tested. This report shall not be reproduced, except in full, without the written approval of the issuing testing laboratory. V1.0 Page 3 of 32 Report No.: CTL2012221011-WF ** Modified History ** Revisions Description Issued Data Report No. Remark Version 1.0 Initial Test Report Release 2021-01-26 CTL2012221011-WF Tracy Qi V1.0 Page 4 of 32 Report No.: CTL2012221011-WF Table of Contents Page 1. SUMMARY ............................................................................................................................................................... 5 1.1. TEST STANDARDS ..................................................................................................................................................... 5 1.2. TEST DESCRIPTION ........................................................................................................................................................ 5 1.3. TEST FACILITY .............................................................................................................................................................. 6 1.4. STATEMENT OF THE MEASUREMENT UNCERTAINTY ............................................................................................................... 6 2. GENERAL INFORMATION .......................................................................................................................................... 8 2.1. ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 8 2.2. GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 8 2.3. DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 8 2.4. EQUIPMENTS USED DURING THE TEST .............................................................................................................................. 9 2.5. RELATED SUBMITTAL(S) / GRANT (S) .............................................................................................................................. 10 2.6. MODIFICATIONS ......................................................................................................................................................... 10 3. TEST CONDITIONS AND RESULTS ............................................................................................................................ 11 3.1. CONDUCTED EMISSIONS TEST ....................................................................................................................................... 11 3.2. RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 14 3.3. MAXIMUM CONDUCTED OUTPUT POWER…

Text truncated - open the document above for the full version.

FCC-ID: 2AYVYYTXJ06FM Page 1 of 1 Report No.: CTL2012221011-WF Test set-up Procedures
