2AZ4X-AB0286-AWIRELESS CHARGER

110 mm 90 mm90 mm90 mm 1. Do not expose this product to rain or damp conditions. 2. Prevent this ítem from falling as it could cause serious damage. 3. Do not dismantle, repair or modify this product by yourself, contact an authorized specialist. 4. In order to avoid any risk, do not dispose of this product inappropriately or throw it into the fire. 5. Clean it with a dry cloth. 6. Do not place this ítem near sources of heat or expose to direct sunlight. 7. Do not insert any metal objects into this device as there is a risk of causing a short circuit in the unit. 8. To avoid risk, do not place any metal objects between the charger and the mobile device during the charging process. 9. Do not use mobile devices with a metal case. 10. Keep out of reach of children. Wireless Charger User manual Product Overview: Specifications: Charging area Indicator Light USB Instruction sheet 1 2 3 4 4 It is recommended to read this user manual carefully and keep it for future reference. Input: 5V 2A, 9V 1.5A Wireless Output: 5W/7.5W/10W Working distance: 6mm Magnetic alignment suitable for compatible devices only. Suitable for all mobile devices with Qi technology. 1. Connect the cable into a USB port or into a USB AC adapter. 2. Put your Qi compatible device on top of the wireless charger, ensuring that it is face up and centrally positioned. 3. When the wireless charge is working correctly a white light of the USB connector will light up. Note: If your phone has a protective case you may need to remove it for a successful connection when using the wireless charger. Operation: Warnings: FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Caution: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ‐ Reorient or relocate the receiving antenna. ‐ Increase the separation between the equipment and receiver. ‐ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. ‐Consult the dealer or an experienced radio/TV technician for help important announcement Radiation Exposure Statement The equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. During the operation of device a distance of 15 cm surrounding the device and 20 cm above the top surface of the device must be respected.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-6-26> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AZ4X-AB0286-A AB0286-A For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： CHEN DEFANG/General Manager Company: Dongguan Leaper Electronic Technology CO.,LTD Address: NO.22 ,Xinbao second Street,Dalang new town, Dongguan City, China Phone: +86-13736068859 Fax: N/A E-Mail: [email protected]

Dongguan Leaper Electronic Technology CO.,LTD NO.22 ,Xinbao second Street,Dalang new town, Dongguan City, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-6-26 To whom it may concern: We, Dongguan Leaper Electronic Technology CO.,LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AZ4X-AB0286-A including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： CHEN DEFANG/General Manager Company: Dongguan Leaper Electronic Technology CO.,LTD Address: NO.22 ,Xinbao second Street,Dalang new town, Dongguan City, China Phone: +86-13736068859 Fax: N/A E-Mail: [email protected]

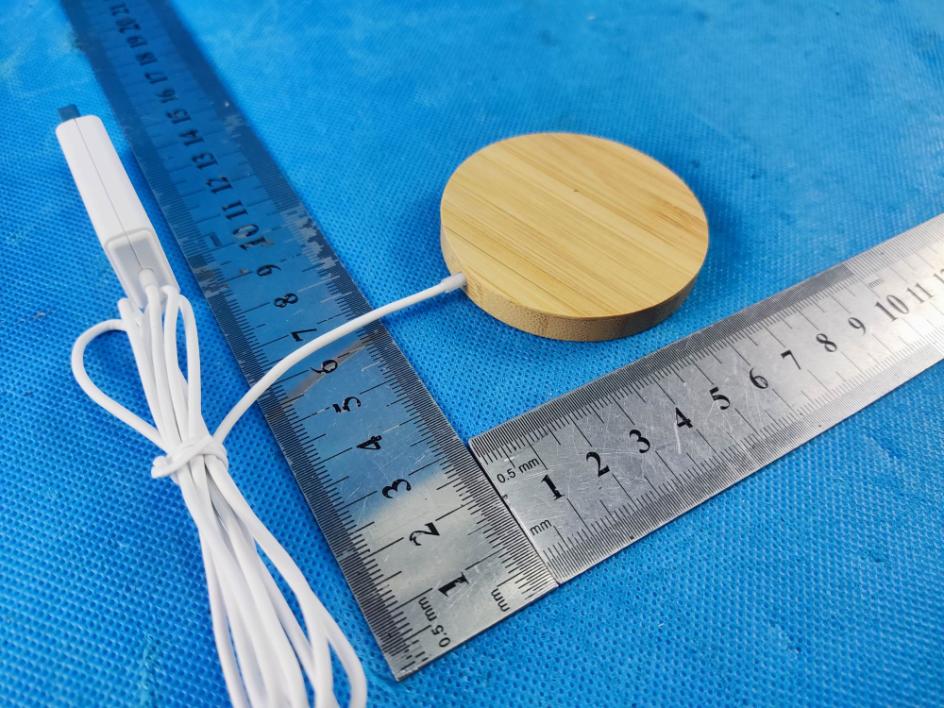

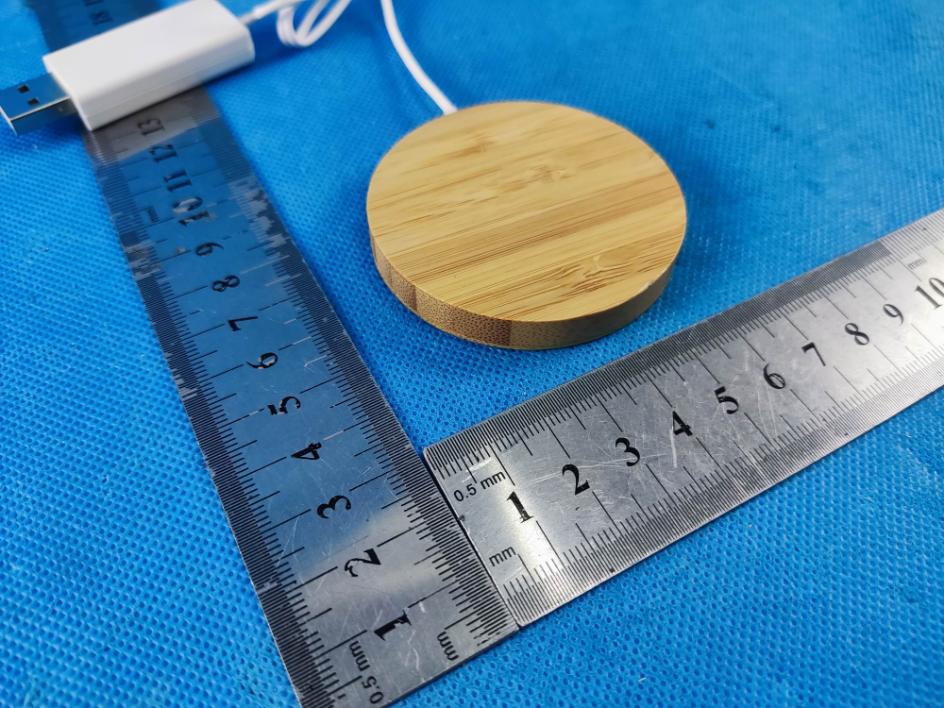

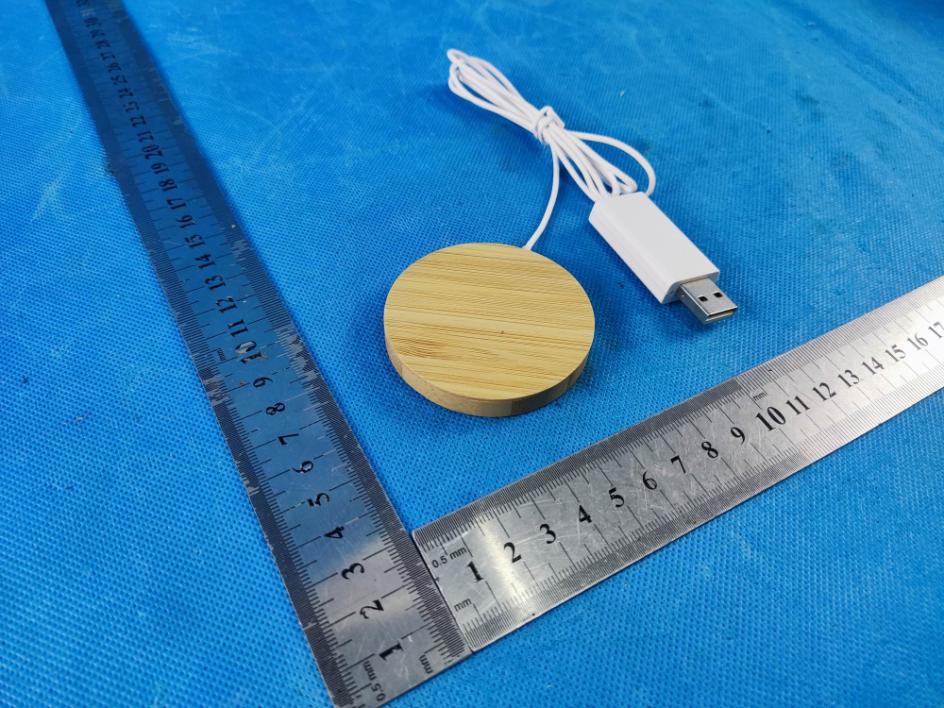

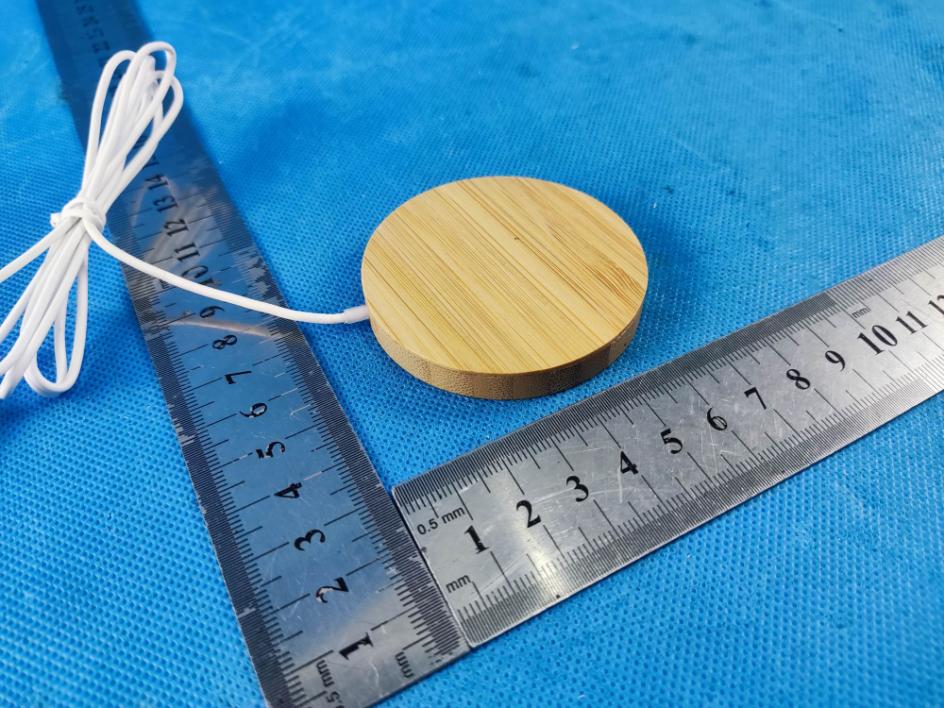

GTSL202106000028 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 7 Product Name: WIRELESS CHARGER Test Model No.: AB0286-A EUT Constructional Details External Photo Photo 1 Photo 2 GTSL202106000028 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 7 Photo 3 Photo 4 GTSL202106000028 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 7 Photo 5 Photo 6 GTSL202106000028 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 7 Photo 7

FCC ID: 2AZ4X‐AB0286‐A FCC ID: 2AZ4X-AB0286-A

GTSL202106000028 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 5 of 7 Product Name: WIRELESS CHARGER Test Model No.: AB0286-A EUT Constructional Details Internal Photo Photo 1 Photo 2 GTSL202106000028 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 6 of 7 Photo 3 Photo 4 Antenna GTSL202106000028 Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 7 of 7 Photo 5 ------End------

Global United Technology Services Co., Ltd. Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 1 of 6 Report No.: GTSL202106000028 RF Exposure Evaluation Applicant: Dongguan Leaper Electronic Technology CO.,LTD Address of Applicant: NO.22 ,Xinbao second Street,Dalang new town, Dongguan City, China Manufacturer/Factory: Dongguan Leaper Electronic Technology CO.,LTD Address of Manufacturer/Factory: NO.22 ,Xinbao second Street,Dalang new town, Dongguan City, China Equipment Under Test (EUT) Product Name: WIRELESS CHARGER Model No.: AB0286-A Test sample(s) ID: GTSL202106000028-1 Sample(s) Status Engineer sample Modulation type: MSK Antenna Type: Inductive loop coil Antenna Antenna gain: 0dBi Power supply: USB Input:5V2A,9V1.5A Wireless Output:5W,7.5W,10W FCC ID: 2AZ4X-AB0286-A Applicable standards: KDB 680106 D01 RF Exposure Wireless Charging Apps v03r01 Date of sample receipt: 2021-05-20 Date of Test: 2021-05-20~2021-06-17 Date of report issued: 2021-06-17 Global United Technology Services Co., Ltd. Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 2 of 6 1 Measuring Standard KDB 680106 D01 RF Exposure Wireless Charging Apps v03r01 2 Requirements According to the item 5 of KDB 680106 D01v03r01: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Power transfer frequency is less than 1MHz. The device operate in the frequency range 110KHz~205KHz. (2) Output power from each primary coil is less than or equal to 15 watts. The maximum output power for each primary coil is 15W. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. The transfer system includes 1 primary coils. (4) Client device is placed directly in contact with the transmitter. Client device is placed directly in contact with the transmitter (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). Mobile exposure conditions only. (6) The aggregate H-field strengths anywhere at or beyond 15 cm surrounding the device, and 20 cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 50% of the applicable MPE limit. The EUT H-field strengths at 15 cm surrounding the device and 20 cm above the top surface from all simultaneous transmitting coils are demonstrated to be less than 50% of the MPE limit. Remark: Meet all the above requirements. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Global United Technology Services Co., Ltd. Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 3 of 6 3 Test Setup 4 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (15 cm from all sides and 20 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 D01v03. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 5 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Electric and Magnetic Field Analyzer Narda EHP-200A GTS614 2020.11.16 2021.11.15 Magnetic field probe 100cm2 Narda ELT probe 100cm2 M0675 June. 25 2020 June. 24 2021 6 Test Support Equipment list Equipment Manufacturer Model No. SN. Remark Adapter Salcom V2323 N/A N/A Mobile phone Huawei Mate 30 N/A N/A Mobile phone Apple iphone X N/A N/A Global United Technology Services Co., Ltd. Global United Technology Services Co., Ltd. No. 123-128, Tower A, Jinyuan Business Building, No.2, Laodong Industrial Zone, Xixiang Road, Baoan District, Shenzhen, Guangdong, China 518102 Telephone: +86 (0) 755 2779 8480 Fax: +86 (0) 755 2779 8960 Page 4 of 6 7 Test Facility The test facility is recognized, certified, or accredited by the following organizations: ● FCC —Registration No.: 381383 FCC Designation Number:CN5029 Global United Technology Services Co., Ltd., Shenzhen EMC Laboratory has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in files. Registration 381383. ● IC —Registration No.: 9079A ISED Cab Identifier:CN0091 The 3m Semi-anechoic chamber of Global United Technology Services Co., Ltd. has been registered by Certification and Engineering Bureau of Industry Canada for radio equipment testing with Registration No.: 9079A ● NVLAP (LAB CODE:600179-0) Global United Technology Services Co., Ltd., is accredited by the National Voluntary Laboratory Accreditation Program (NVLAP). LAB CODE:600179-0 8 Test Result H-Filed Strength at 15 cm from the edges surrounding the EUT (A/m) Test Mod e Unit Charging Battery Level Frequenc y Range (MHz) Test Position A Test Position B Test Position C Test Position D Test Position E 50% Limits (A/m) Limits (A/m) Mate …
