2AZ4X-AB0308WIRELESS CHARGER

110 mm 90 mm90 mm90 mm 1. Do not expose this product to rain or damp conditions. 2. Prevent this ítem from falling as it could cause serious damage. 3. Do not dismantle, repair or modify this product by yourself, contact an authorized specialist. 4. In order to avoid any risk, do not dispose of this product inappropriately or throw it into the fire. 5. Clean it with a dry cloth. 6. Do not place this ítem near sources of heat or expose to direct sunlight. 7. Do not insert any metal objects into this device as there is a risk of causing a short circuit in the unit. 8. To avoid risk, do not place any metal objects between the charger and the mobile device during the charging process. 9. Do not use mobile devices with a metal case. 10. Keep out of reach of children. Bamboo MagSafe Wireless Charger for iphone 12 User manual Product Overview: Specifications: Charging area Indicator Light TYPE-C Instruction sheet 1 2 3 4 4 It is recommended to read this user manual carefully and keep it for future reference. Input: 5V 3A9V 2.67A Wireless Output:5V 1A,9V 1.1A,9V 1.67A; Working distance: 6mm Magnetic alignment suitable for compatible devices only. Suitable for all mobile devices with Qi technology. 1. Connect the cable into a USB port or into a USB AC adapter. 2. Put your Qi compatible device on top of the wireless charger, ensuring that it is face up and centrally positioned. 3. When the wireless charge is working correctly a white light of the USB connector will light up. Note: If your phone has a protective case you may need to remove it for a successful connection when using the wireless charger. Operation: Warnings: FCC statement This device complies with Part 15 of the FCC Rules. Operation is subject to the followi ng two conditions: (1) This device may n ot cause harmful interference, and (2) this device must accept any interference re ceived, including interference that may cause undesired operat ion. Caution: Changes or modifications not expr essly approved by the party responsible for compliance could void the user's authorit y to operate the equipment. NOTE: This equipment has been tested and found to comply with the lim its for a Class B digital device, pursuant to part 15 of t he FCC Rules. These limits are designed to provide reasonabl e protection against harmful interference in a residential installation. This equ ipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordanc e with the instructions, may cause harmf ul interference to radio communications. However, there is no guarantee that interferenc e will not occur in a partic ular installation. If this equipment does cause harmful interference to radio or televisi on reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: --Reorient or relocate the receiving antenna. --Increase the separation betwe en the equipment and receiver. --Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. --Consult the dealer or an experienc ed radio/TV technician for help. RF exposure statement:The equipment complies with FCC radiation exposure limits set forth for anuncontrolled environment. This device has been tested for human exposure limitsand found compliant at a minimum distance of 10cm during operation.

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2021-7-20> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AZ4X-AB0308 AB0308 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： CHEN DEFANG/General Manager Company: Dongguan Leaper Electronic Technology CO.,LTD Address: NO.22 ,Xinbao second Street,Dalang new town, Dongguan City, China Phone: +86-13736068859 Fax: N/A E-Mail: [email protected]

Dongguan Leaper Electronic Technology CO.,LTD NO.22 ,Xinbao second Street,Dalang new town, Dongguan City, China Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2021-7-20 To whom it may concern: We, Dongguan Leaper Electronic Technology CO.,LTD the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AZ4X-AB0308 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： CHEN DEFANG/General Manager Company: Dongguan Leaper Electronic Technology CO.,LTD Address: NO.22 ,Xinbao second Street,Dalang new town, Dongguan City, China Phone: +86-13736068859 Fax: N/A E-Mail: [email protected]

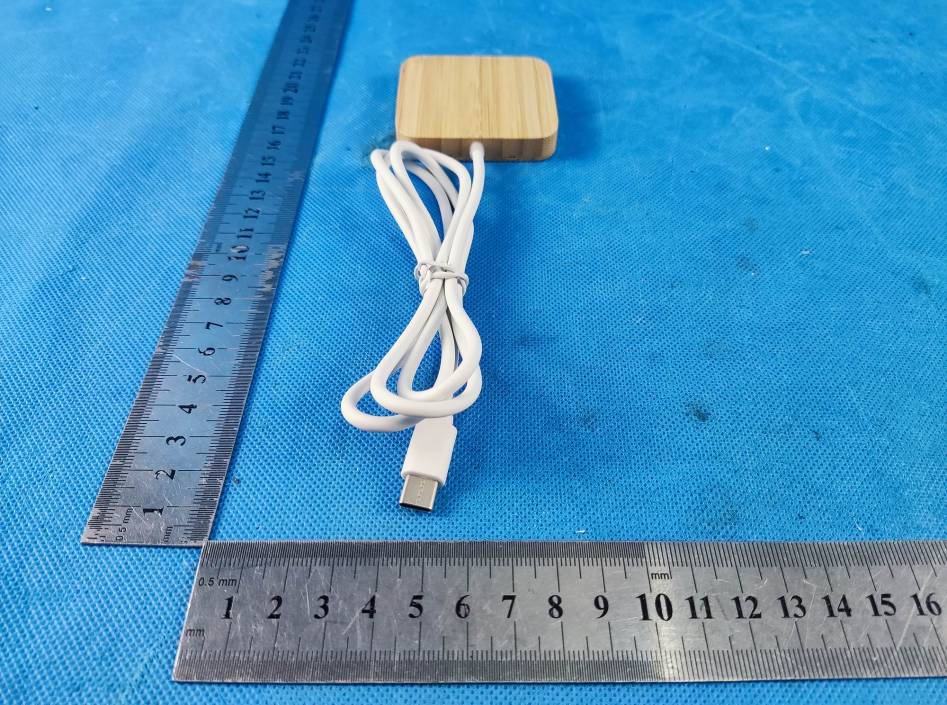

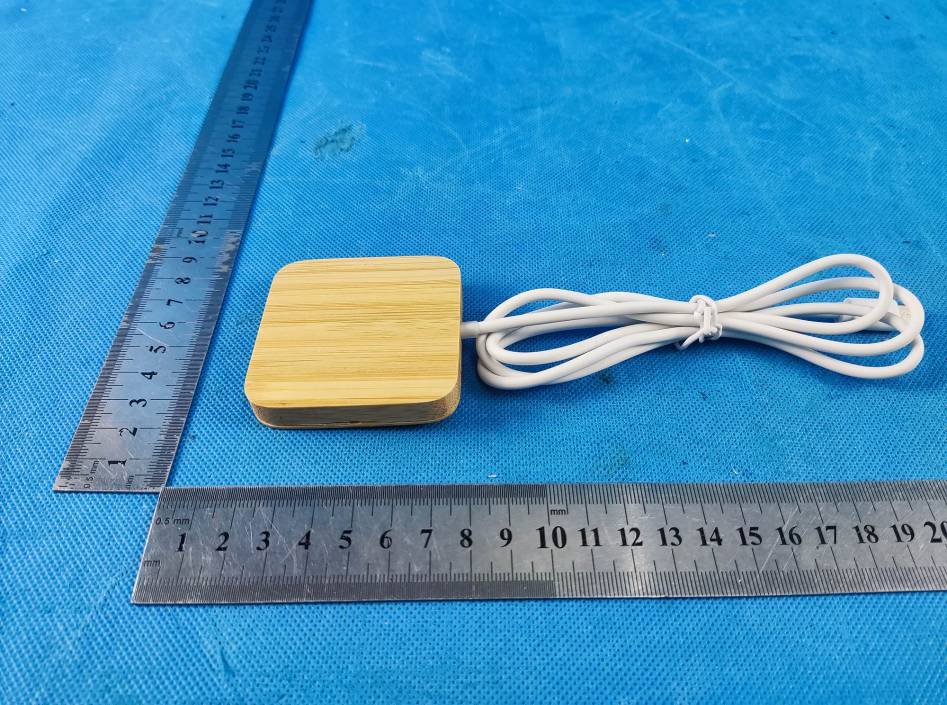

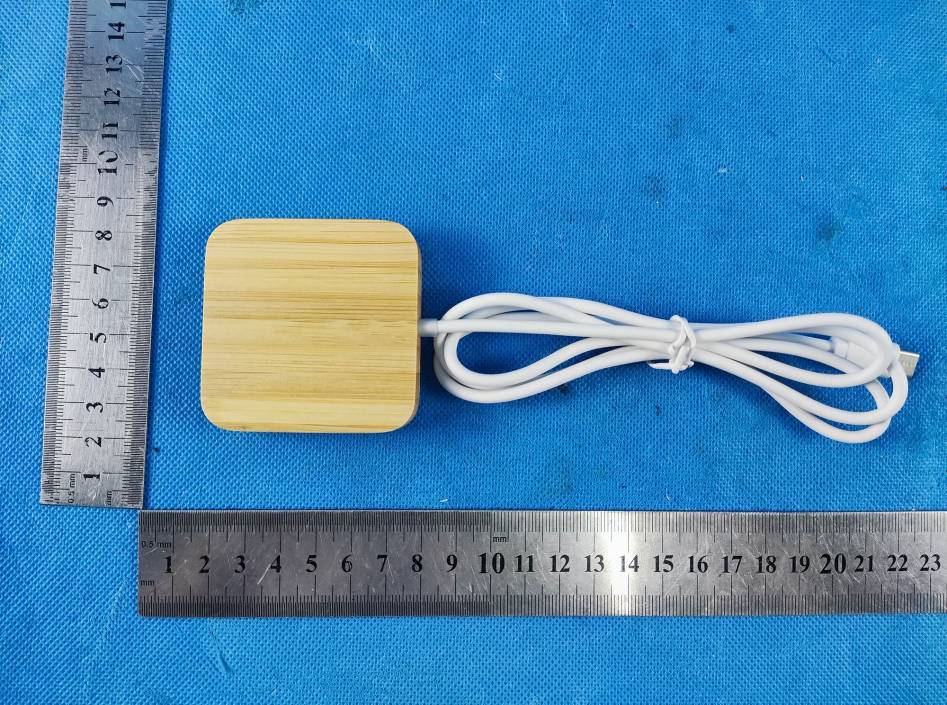

EUT PHOTO(External Photos) FCC ID: 2AZ4X-AB0308

FCC ID: 2AZ4X‐AB0286‐A FCC ID: 2AZ4X-AB0286-A

EUT PHOTO(Internal Photos) FCC ID: 2AZ4X-AB0308 ANT END OF REPORT ※※※※※ ※※※※※

Project No.: ZKT-210709L3291E-1 Page 1 of 9 FCC ID: 2AZ4X-AB0308 RF Exposure Evaluation 1 Product Information Report Number ZKT-210709L3291E-1 Product Name: WIRELESS CHARGER Model No.: AB0308 Power supply: Input: 5V 3A, 9V 2.67A Wireless Output:5V 1A,9V 1.1A,9V 1.67A Maximum Rated Power of WPT 5W Modulation Type CW (Continuous Wave) Frequency Range 110kHz ~ 205KHz Exposure category General population/uncontrolled environment EUT Type Production Unit Device Type Mobile Device Sample No. ZKT-210709L3291-S Testing procedure and testing location: Testing Laboratory : Shenzhen ZKT Technology Co., Ltd. Address : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Alen He Tested by (name + signature) : Joe Liu Reviewer (name + signature) : Lake Xie Approved (name + signature) : Project No.: ZKT-210709L3291E-1 Page 2 of 9 2 Measuring Standard KDB 680106 RF Exposure Wireless Charging Apps v03r01 3 Requirements According to the item 5 of KDB 680106 v03r01: Inductive wireless power transfer applications that meet all of the following requirements are excluded from submitting an RF exposure evaluation. (1) Power transfer frequency is less than 1MHz. (2) Output power from each primary coil is less than or equal to 15 watts. (3) The system may consist of more than one source primary coils, charging one or more clients. If more than one primary coil is present, the coil pairs may be powered on at the same time. (4) Client device is placed directly in contact with the transmitter. (5) Mobile exposure conditions only (portable exposure conditions are not covered by this exclusion). (6) The H-field and E-Filed strengths anywhere at or beyond 10cm to 2cm at iteration, i.e. at a distance of 10cm,9cm,8cm,.....2cm away from the surface from all coils that by design can simultaneously transmit, and while those coils are simultaneously energized, are demonstrated to be less than 10% of the applicable MPE limit. Remark: Meet all the above requirements. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) Limits for Maximum Permissible Exposure (MPE) Project No.: ZKT-210709L3291E-1 Page 3 of 9 Test Facility and Accreditation Shenzhen ZKT Technology Co., Ltd. Add. : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China FCC Test Firm Registration Number: 692225 Designation Number: CN1299 IC Registered No.: 27033 4 Test Setup 5 Test Procedure 1) The RF exposure test was performed in anechoic chamber. 2) The measurement probe was placed at test distance (2-10 cm from all sides and 2-10 cm from the top) which is between the edge of the charger and the geometric center of probe. 3) The highest emission level was recorded and compared with limit as soon as measurement of each points (A, B, C, D, E) were completed. 4) The EUT was measured according to the dictates of KDB 680106 v03r01. Remark：The EUT’s test position A, B, C, D and E is valid for the E and H field measurements. 6 Test Instruments list Test Equipment Manufacturer Model No. SN. Cal.Date (mm-dd-yy) Cal.Due date (mm-dd-yy) Exposure Level Tester Narda ELT-400 N-0231 June. 26 2021 June. 25 2022 Magnetic field probe 100cm 2 Narda ELT probe 100cm 2 M0675 June. 26 2021 June. 25 2022 Project No.: ZKT-210709L3291E-1 Page 4 of 9 7 Test Result E-Filed Strength at 10 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) 0.110-0.205 0.69 0.70 0.70 0.69 614 E-Filed Strength at 10 cm from the top of the EUT (V/m) Frequency Range (MHz) Test Position E Limits (V/m) 0.110-0.205 0.70 614 E-Filed Strength at 9 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) 0.110-0.205 0.69 0.67 0.68 0.69 614 E-Filed Strength at 9 cm from the top of the EUT (V/m) Frequency Range (MHz) Test Position E Limits (V/m) 0.110-0.205 0.69 614 E-Filed Strength at 8 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) 0.110-0.205 0.70 0.71 0.73 0.70 614 E-Filed Strength at 8 cm from the top of the EUT (V/m) Frequency Range (MHz) Test Position E Limits (V/m) 0.110-0.205 0.73 614 E-Filed Strength at 7 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) 0.110-0.205 0.81 0.79 0.82 0.81 614 E-Filed Strength at 7 cm from the top of the EUT (V/m) Frequency Range (MHz) Test Position E Limits (V/m) 0.110-0.205 0.76 614 Project No.: ZKT-210709L3291E-1 Page 5 of 9 E-Filed Strength at 6 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) 0.110-0.205 0.82 0.83 0.81 0.83 614 E-Filed Strength at 6 cm from the top of the EUT (V/m) Frequency Range (MHz) Test Position E Limits (V/m) 0.110-0.205 0.83 614 E-Filed Strength at 5 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) 0.110-0.205 0.89 0.88 0.87 0.89 614 E-Filed Strength at 5 cm from the top of the EUT (V/m) Frequency Range (MHz) Test Position E Limits (V/m) 0.110-0.205 0.89 614 E-Filed Strength at 4 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) 0.110-0.205 0.90 0.91 0.91 0.90 614 E-Filed Strength at 4 cm from the top of the EUT (V/m) Frequency Range (MHz) Test Position E Limits (V/m) 0.110-0.205 0.91 614 E-Filed Strength at 3 cm from the edges surrounding the EUT (V/m) Frequency Range (MHz) Test Position A Test Position B Test Position C Test Position D Limits (V/m) 0.110-0.205 0.91 0.…

Text truncated - open the document above for the full version.

Project No.: ZKT-210709L3291E Page 1 of 19 FCC TEST REPORT FCC ID:2AZ4X-AB0308 Report Number. .............................. : ZKT-210709L3291E Date of Test ........................................ Mar. 25, 2021 to Jul. 03, 2021 Date of issue .................................... : Jul. 03, 2021 Total number of pages ...................... 21 Test Result ..................................... : PASS Testing Laboratory. ........................ : Shenzhen ZKT Technology Co., Ltd. Address .......................................... : 1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Applicant's name ......................... : Dongguan Leaper Electronic Technology CO.,LTD Address .......................................... : NO.22 ,Xinbao second Street,Dalang new town, Dongguan City, China Manufacturer's name ................... : Dongguan Leaper Electronic Technology CO.,LTD Address .......................................... : NO.22 ,Xinbao second Street,Dalang new town, Dongguan City, China Test specification: Standard ........................................... : FCC CFR Title 47 Part 18 Test procedure ................................. : / Non-standard test method ............. : N/A Test Report Form No. ...................... : TRF-EL-107_V0 Test Report Form(s) Originator ........ : ZKT Testing Master TRF .................................... : Dated: 2020-01-06 This device described above has been tested by ZKT, and the test results show that the equipment under test (EUT) is in compliance with the FCC requirements. And it is applicable only to the tested sample identified in the report. This report shall not be reproduced except in full, without the written approval of ZKT, this document may be altered or revised by ZKT, personal only, and shall be noted in the revision of the document. Product name ................................. : WIRELESS CHARGER Trademark ...................................... : N/A Model/Type reference ...................... : AB0308 Ratings.............................................: Input: 5V 3A, 9V 2.67A Wireless Output:5V 1A,9V 1.1A,9V 1.67A Project No.: ZKT-210709L3291E Page 2 of 19 Testing procedure and testing location: Testing Laboratory ................................... : Shenzhen ZKT Technology Co., Ltd. Address ...................................................... :1/F, No. 101, Building B, No. 6, Tangwei Community Industrial Avenue, Fuhai Street, Bao'an District, Shenzhen, China Alen He Tested by (name + signature) .................... : Joe Liu Reviewer (name + signature) ..................... : Lake Xie Approved (name + signature) .................... : Project No.: ZKT-210709L3291E Page 3 of 19 TABLE OF CONTENTS 1. VERSION ....................................................................................................................................... 4 2. TEST SUMMARY ........................................................................................................................ 5 2.1 TEST FACILITY .................................................................................................................................... 6 2.2 MEASUREMENT UNCERTAINTY .................................................................................................... 6 3. GENERAL INFORMATION ....................................................................................................... 7 3.1 GENERAL DESCRIPTION OF EUT ................................................................................................. 7 3.2 Test mode .............................................................................................................................................. 7 3.3 Block Diagram of EUT Configuration ................................................................................................ 7 3.4 Test Conditions ..................................................................................................................................... 7 3.5 Description Of Support Units (Conducted Mode) ............................................................................ 7 3.6 EQUIPMENTS LIST FOR ALL TEST ITEMS .................................................................................. 9 4. CONDUCTED EMISSION TEST ............................................................................................. 10 4.1 CONDUCTED EMISSION MEASUREMENT ................................................................................ 10 4.2 POWER LINE CONDUCTED EMISSION Limits ........................................................................... 10 4.3 TEST PROCEDURE .......................................................................................................................... 10 4.4 DEVIATION FROM TEST STANDARD .......................................................................................... 10 4.5 TEST SETUP ...................................................................................................................................... 11 4.6 EUT OPERATING CONDITIONS .................................................................................................... 11 4.7 Test Result .......................................................................................................................................... 12 5. RADIATED EMISSION MEASUREMENT ............................................................................ 14 5.1 Radiated Emission Limits .................................................................................................................. 14 5.3 Test Procedure ................................................................................................................................... 15 5.4 DEVIATION FROM TEST STANDARD .......................................................................................... 15 5.5 Test Result ........................................................…

Text truncated - open the document above for the full version.

EUT TEST PHOTO EUT TEST PHOTO
