2AZB9-QWCJY001SWHOTO Smart Laser Measure

26ft ft ft 深达威版 深达威版 V 1.0 20210419 陈姝彤 f t f t User Manual for HO TO Smart Laser Measur e 折叠方式 User Manual for HO TO Smart Laser M easur e Any Changes or modifications no t expr essly appr oved by the party responsible for compliance could void the user' s authority to oper ate the equipment. No te: This equipment has been tes ted and found to comply with the limit s for a Class B digit al de vic e, pur suant to part 15 of the FCC Rules. These limit s ar e designed to pr ovide reasonable pr otec tion ag ains t harmful int erf er enc e in a residential ins talla tion. This equipment gener ates uses and can radia te radio fr equency ener gy and, if no t ins talled and used in ac cor danc e with the ins truc tions, may cause harmful int erf er enc e to radio communications. Ho wever , ther e is no guar ant ee tha t int erf er enc e will no t oc cur in a particular ins talla tion. If this equipment does cause harmful int erf er enc e to radio or tele vision rec ep tion, which can be de termined by turning the equipment off and on, the user is enc our ag ed to tr y to corr ec t the int erf er enc e by one or mor e of the follo wing measur es: This de vic e complies with part 15 of the FCC Rules. Oper ation is subject to the follo wing tw o conditions: (1) This de vic e may no t cause harmful int erf er enc e, and (2) this de vic e mus t ac cep t any int erf er enc e rec eiv ed, including interf er enc e tha t may cause undesired operation. This equipment complies with RF radia tion exposure limit s se t forth for an unc ontr olled environment. Reorient or reloc ate the rec eiving antenna. Incr ease the separ ation betw een the equipment and rec eiv er . Conne FCC ID: 2AZB9-QWCJY001SW ct the equipment int o an outle t on a cir cuit diff er ent fr om tha t to which the rec eiv er is connected. Consult the dealer or an experienced r adio/TV technician for help.

Rev 11/20/07 Shanghai HOTO Technology Co., Ltd. Federal Communications Commission Authorization and Evaluation Division Confidentiality Request regarding application for certification of FCC ID: 2AZB9-QWCJY001SW Pursuant to Sections 0.457 and 0.459 of the Commission’s Rules, we hereby request confidential treatment of information accompanying this application as outlined below: Exhibit Type File Name Block Diagram, Schematics, Operational Description, Block Diagram Operation Description schematic diagram The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Yong Zhang / DQE Shanghai HOTO Technology Co., Ltd.

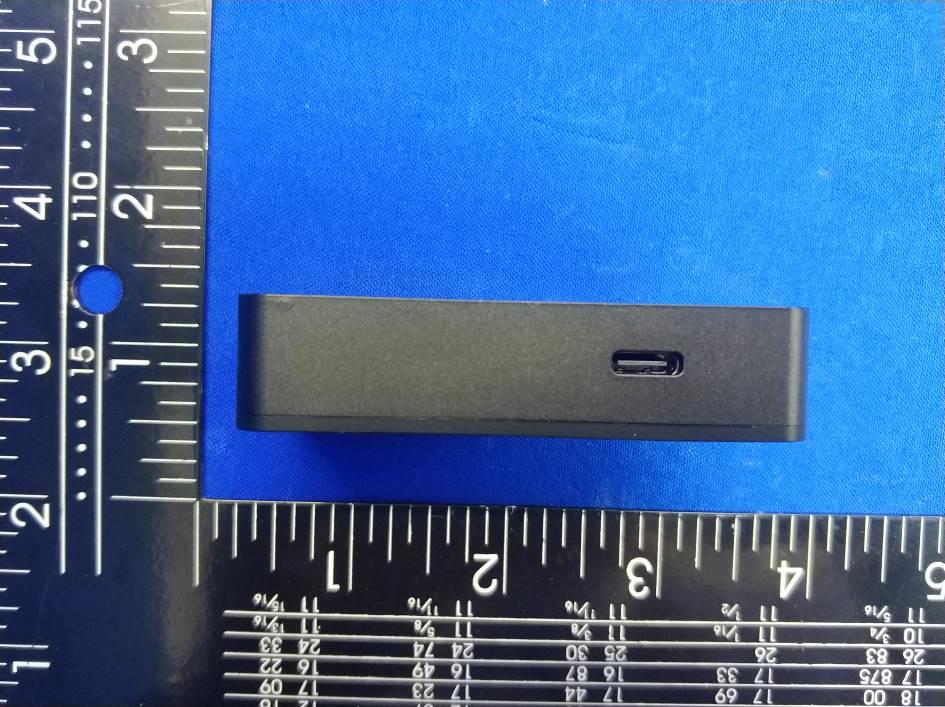

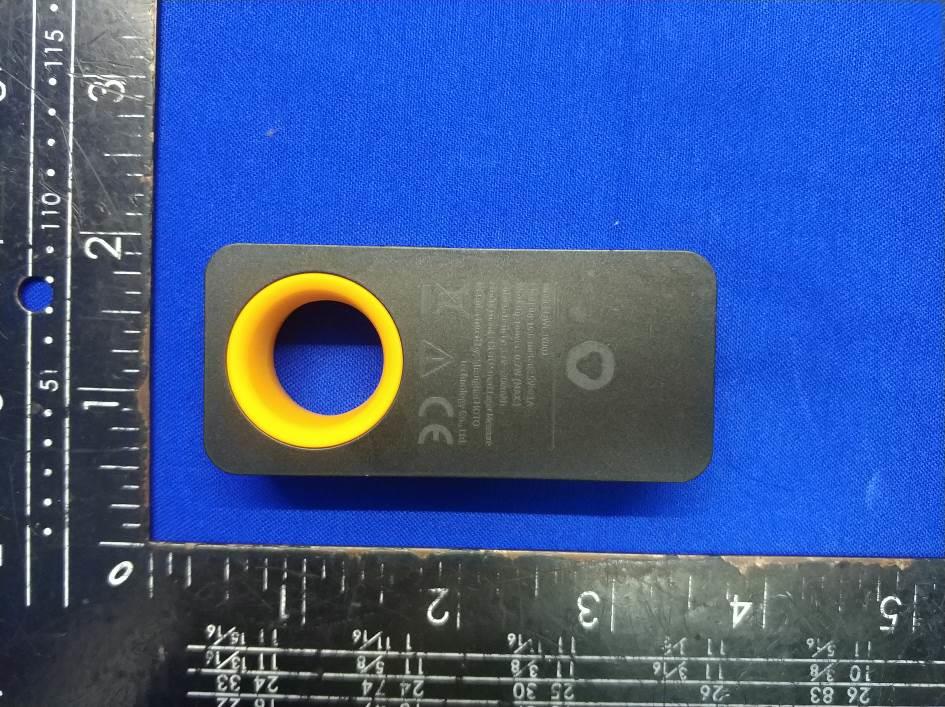

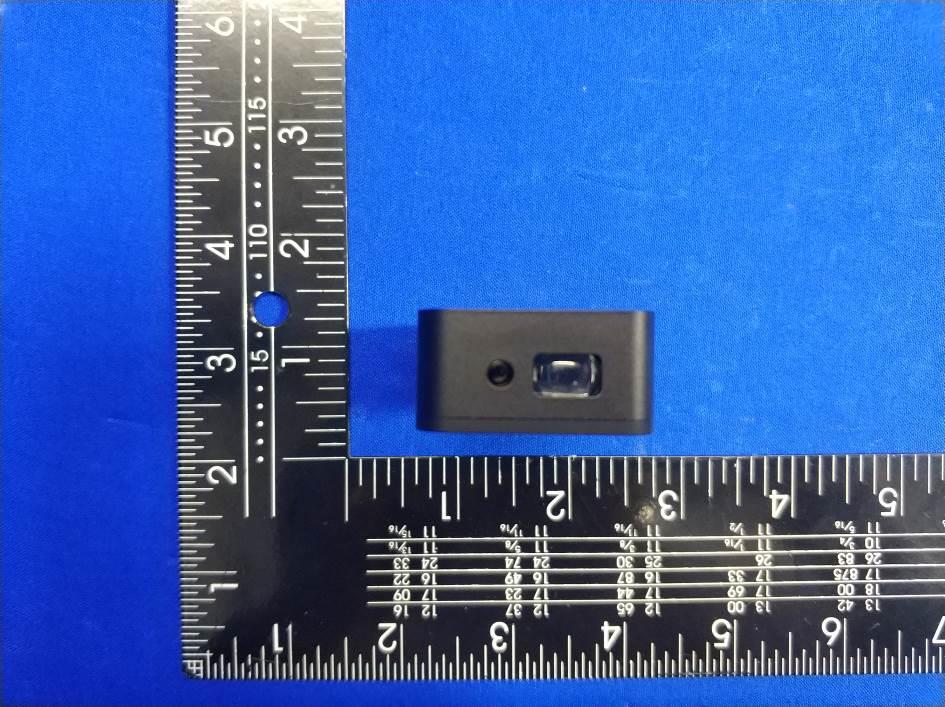

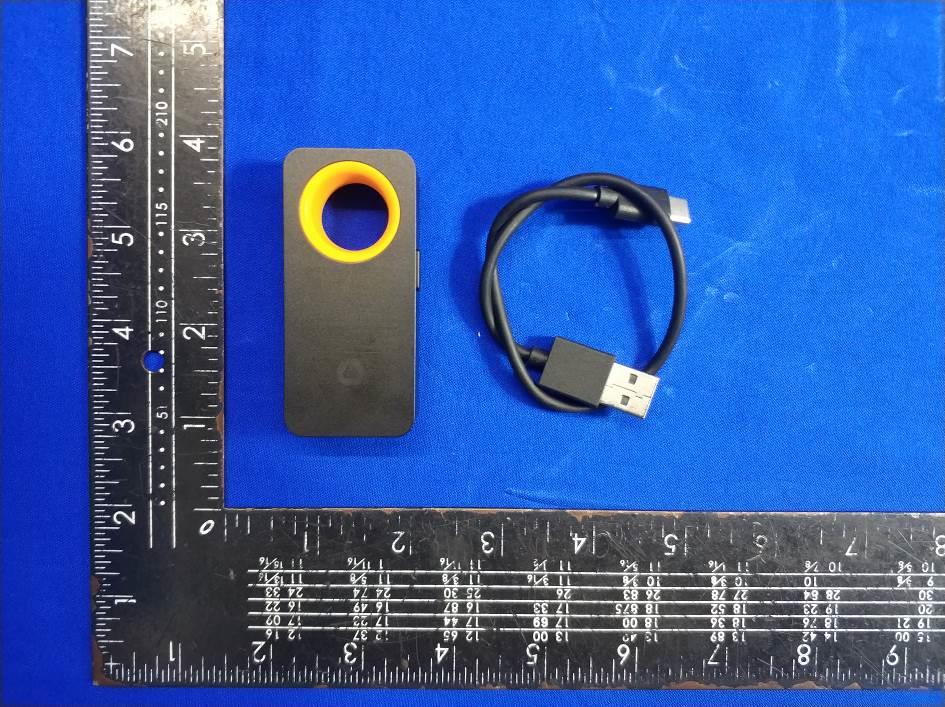

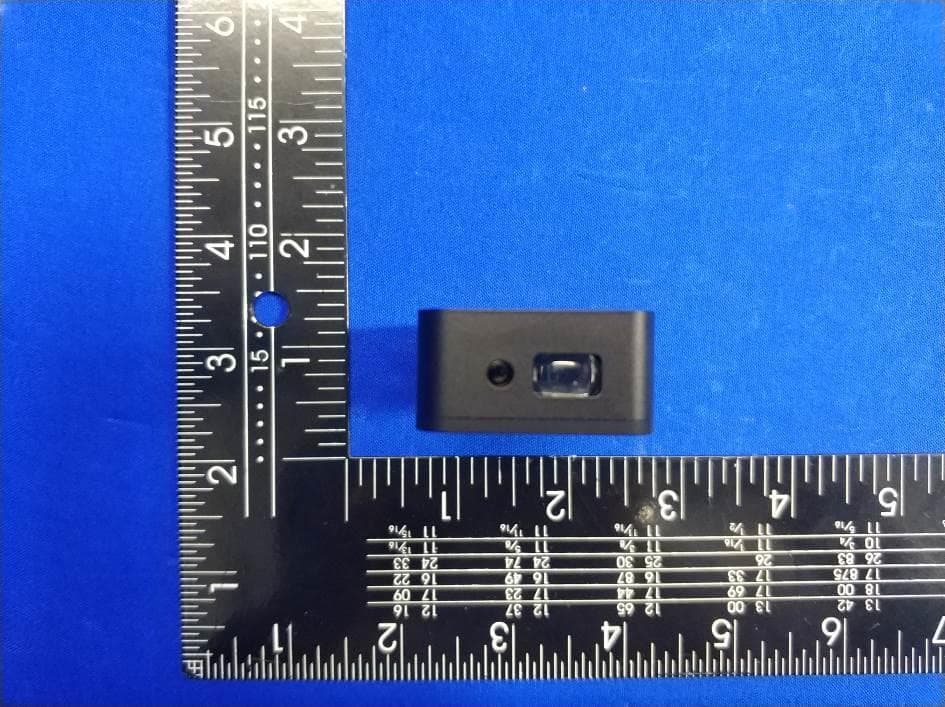

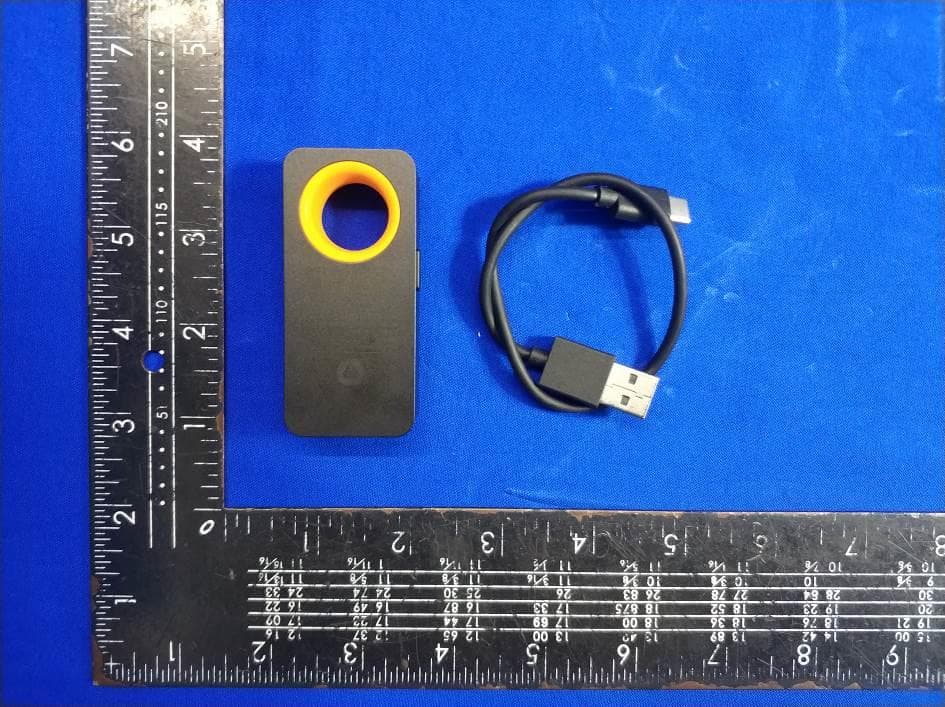

EUT EXTERNAL PHOTOGRAPHS EUT View 1 EUT View 2 EUT View 3 EUT View 4 EUT View 5 EUT View 6 EUT View 7 EUT View 8 EUT View 9 EUT View 10 ----------------The end----------------

Label:

EUT INTERNAL PHOTOGRAPHS View 1: View 2: View 3: View 4: BT ANT. View 5: View 6: Battery: ----------------The end----------------

FCC ID: 2AZB9-QWCJY001SW Portable device According to § 15.247(i) and § 1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to KDB447498 D01 General RF Exposure Guidance V06 The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR, where f(GHz) is the RF channel transmit frequency in GHz； Power and distance are rounded to the nearest mW and mm before calculation； The result is rounded to one decimal place for comparison； The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. We use 5mm as separation distance to calculate. The max conducted power including tune-up tolerance is 2.49 dBm (1.7742mW). [(max.power of channel, mw)/(min. test separation distance, mm)][ √f(GHz)] =1.7742/5*(√2.480)=0.559<3.0 Conclusion: For the max result : 0.577≤ 3.0 for 1-g SAR extremity SAR, No SAR is required.

Report No. ES210413068W Page 1 of 50 Ver.1.0 TEST REPORT Product Name ： HOTO Smart Laser Measure Model Number ： QWCJY001 FCC ID ： 2AZB9-QWCJY001SW Prepared for : Shanghai HOTO Technology Co., Ltd. Address : Room 205, Building 4A, M50 Park, No.50 Moganshan Road, Shanghai Prepared by : EMTEK (SHENZHEN) CO., LTD. Address : Building 69, Majialong Industry Zone, Nanshan District, Shenzhen, Guangdong, China Tel: (0755) 26954280 Fax: (0755) 26954282 Report Number : ES210413068W Date(s) of Tests : Apr. 13, 2021 to Apr. 25, 2021 Date of issue : Apr. 25, 2021 Report No. ES210413068W Page 2 of 50 Ver.1.0 Table of Contents 1 TEST RESULT CERTIFICATION ..................................................................................................................................... 3 2 EUT TECHNICAL DESCRIPTION ................................................................................................................................... 5 3 SUMMARY OF TEST RESULT ......................................................................................................................................... 6 4 TEST METHODOLOGY .................................................................................................................................................... 7 4.1 GENERAL DESCRIPTION OF APPLIED STANDARDS .......................................................................... 7 4.2 MEASUREMENT EQUIPMENT USED ..................................................................................................... 7 4.3 DESCRIPTION OF TEST MODES ............................................................................................................. 8 5 FACILITIES AND ACCREDITATIONS ............................................................................................................................ 9 5.1 FACILITIES ................................................................................................................................................. 9 5.2 LABORATORY ACCREDITATIONS AND LISTINGS .............................................................................. 9 6 TEST SYSTEM UNCERTAINTY ..................................................................................................................................... 10 7 SETUP OF EQUIPMENT UNDER TEST ........................................................................................................................ 11 7.1 RADIO FREQUENCY TEST SETUP 1 ..................................................................................................... 11 7.2 RADIO FREQUENCY TEST SETUP 2 ..................................................................................................... 11 7.3 CONDUCTED EMISSION TEST SETUP ................................................................................................. 12 7.4 SUPPORT EQUIPMENT ........................................................................................................................... 13 8 TEST REQUIREMENTS .................................................................................................................................................. 14 8.1 DTS 6DB BANDWIDTH ........................................................................................................................... 14 8.2 MAXIMUM PEAK CONDUCTED OUTPUT POWER ............................................................................ 19 8.3 MAXIMUM POWER SPECTRAL DENSITY .......................................................................................... 24 8.4 UNWANTED EMISSIONS IN NON-RESTRICTED FREQUENCY BANDS ......................................... 29 8.5 RADIATED SPURIOUS EMISSION ........................................................................................................ 34 8.6 CONDUCTED EMISSIONS TEST ........................................................................................................... 46 8.7 ANTENNA APPLICATION ....................................................................................................................... 49 Report No. ES210413068W Page 3 of 50 Ver.1.0 1 TEST RESULT CERTIFICATION Applicant : Shanghai HOTO Technology Co., Ltd. Address : Room 205, Building 4A, M50 Park, No.50 Moganshan Road, Shanghai Manufacturer : Shanghai HOTO Technology Co., Ltd. Address : Room 205, Building 4A, M50 Park, No.50 Moganshan Road, Shanghai EUT : HOTO Smart Laser Measure Model Name : QWCJY001 Trademark : N/A Measurement Procedure Used: APPLICABLE STANDARDS STANDARD TEST RESULT FCC 47 CFR Part 2 , Subpart J FCC 47 CFR Part 15, Subpart C PASS The above equipment was tested by EMTEK(SHENZHEN) CO., LTD. The test data, data evaluation, test procedures, and equipment configurations shown in this report were made in accordance with the procedures given in ANSI C63.10 (2013) and the energy emitted by the sample EUT tested as described in this report is in compliance with the requirements of FCC Rules Part 2 and Part 15.247 The test results of this report relate only to the tested sample identified in this report Date of Test : Apr. 13, 2021 to Apr. 25, 2021 Prepared by : Qiang Wang/Editor Reviewer : Sewen Guo/Supervisor Approved & Authorized Signer : Lisa Wang/Manager Report No. ES210413068W Page 4 of 50 Ver.1.0 Modified History Version Report No. Revision Date Summary Ver.1.0 ES210413068W / Original Report Report No. ES210413068W Page 5 of 50 Ver.1.0 2 EUT TECHNICAL DESCRIPTION Product HOTO Smart Laser Measure Model Number QWCJY001 Device Type Bluetooth V5.0 Data Rate : 2Mbps for GFSK modulation Modulation: GFSK Operating Frequency Range: 2402-2480MHz Number of Channels: 40 Channels for Bluetooth DTS Transmit Power Max: 2.49 dBm Antenna Type: PCB Antenna Antenna Gain: 0.2 dBi Power supply: DC 3.7V from battery DC 5V from adapter Battery: 200mAh, 0.74Wh, 3.7V Temperature Range: -10°C ~ +50°C Note: for more details, please refer to the User’s manual of the EUT. Report No. ES210413068W Page 6 of 50 Ver…

Text truncated - open the document above for the full version.

TEST SETUP PHOTOGRAPHS 1.1. Photos of Radiation Emission Measurement Spurious Emission Test Setup (Below 1GHz) Spurious Emission Test Setup (Above 1GHz) 1.2. Photos of Conducted Emission Measurement ----------------The end----------------
