2AZDM-CSR8510Bluetooth 4.0 usb dongle

CSR8510 chipset Bluetooth 4.0 dongle Model No.: FX-8510A 1. Description: This mini USB Bluetooth 4.0 Adapter enables short-range wireless data connectivity between computers and Bluetooth enabled devices. Personal digital assistants, cellular phones, and other devices can connect with your computer easily. Bluetooth devices can communicate with each other within a 20M range. Transfer rate is much faster than previous Bluetooth versions! It can backward supports 3.0/2.0 versions. 2. Features:  Dual-mode Bluetooth transfer  Low-power 1.2 to 3.6VI/O  Supporting Bluetooth voice date  Supporting Multi-languages  WLAN coexistence interface  Plug and Play  Bluetooth V4.0 Compliant  Support Profiles: Networking, Dial-up, Fax, LAN access, and Headset.  Operation system: win98,98se,Me,2000,XP,Vista,win7/win8/windows10  Interface: USB compliance  Symbol rate: 3Mbps  Receiving/ Sending range: 20m-50m  Unit size : 22*15*5(mm)  Unit weight:20g 3. Specifications: Bluetooth Specification Standard Bluetooth V4.0 Profiles Bluetooth low energy Dual-mode Bluetooth Frequency Band 2.402Ghz-2.480Ghz Sensitivity [email protected]%BER RF TX Prower +6dBm(ClassП) Power Supply Voltage 5V DC(MAX5.75V) Working Current Depends on profiles, 22mA typical Standby Current (Connected ) 0.4uA Operating Environment Temperature -20°C to +70°C Humidity 10%-90% Non- Condensing Certifications ROHS/CE This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help.

Nebra Ltd 1/1 Letter of Authorization Company: Nebra Ltd Address: Unit 4 Bells Yew Green Business Court, Bells Yew Green, East Sussex, United Kingdom Product Name: Bluetooth 4.0 usb dongle Model Number: FX-8510A FCC Identifier: 2AZDM-CSR8510 We authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, to act on our behalf on all matters concerning the above named equipment. Any individual within LGAI Technological Center S.A. is authorized to act on our behalf and take action on the application. We declare that authorize LGAI Technological Center S.A., Ronda de la Font del Carme, s/n, 08193 Bellaterra, Spain, is allowed to forward all information related to the approval project to the Federal Communication Commission and to discuss any issues concerning the approval application. Any and all acts carried out by LGAI Technological Center S.A. on our behalf shall have the same effect as acts of our own. Name: Aaron Shaw Date: 2021-05-31 Title: CEO Signature of applicant:

Nebra Ltd 1/1 Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2021-05-31 Subject: Request for Confidentiality FCC ID: 2AZDM-CSR8510 To Whom It May Concern, Pursuant to the provisions of Sections 0.457 and 0.459 of Commission's rules (47CFR0.457, 0.459), we are requesting the Commission to withhold the following attachment(s) as confidential document from public disclosure. Exhibits Long-Term Confidentiality Short-Term Confidentiality NOTE 2 ID Label/Location No No Attestation Statement No No External Photos No ☐ Block Diagram ☒ ☐ Schematics ☒ ☐ Test Report No No Test Setup Photos No ☐ User’s Manual No ☐ Internal Photos No ☐ Parts List / Tune Up ☐ ☐ RF Exposure Info No No Operational Description ☒ ☐ Cover Letter(s) No No SDR Software / Security Info ☐ No NOTE 1: Long-Term Confidentiality may be permitted under special conditions (See II. LONG-TERM CONFIDENTIALITY, Section 3 of KDB 726920, use last in force) NOTE 2: Short-Term Confidentiality can be requested for a maximum of 180 days from the date of the grant. Above mentioned document contains detailed system and equipment description are considered as proprietary information in operation of the equipment. The public disclosure of above documents might be harmful to our company and would give competitor an unfair advantage in the market. It is our understanding that all measurement test reports, FCC ID label format and correspondent during certification review process cannot be granted as confidential documents and those information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Aaron Shaw Title: CEO

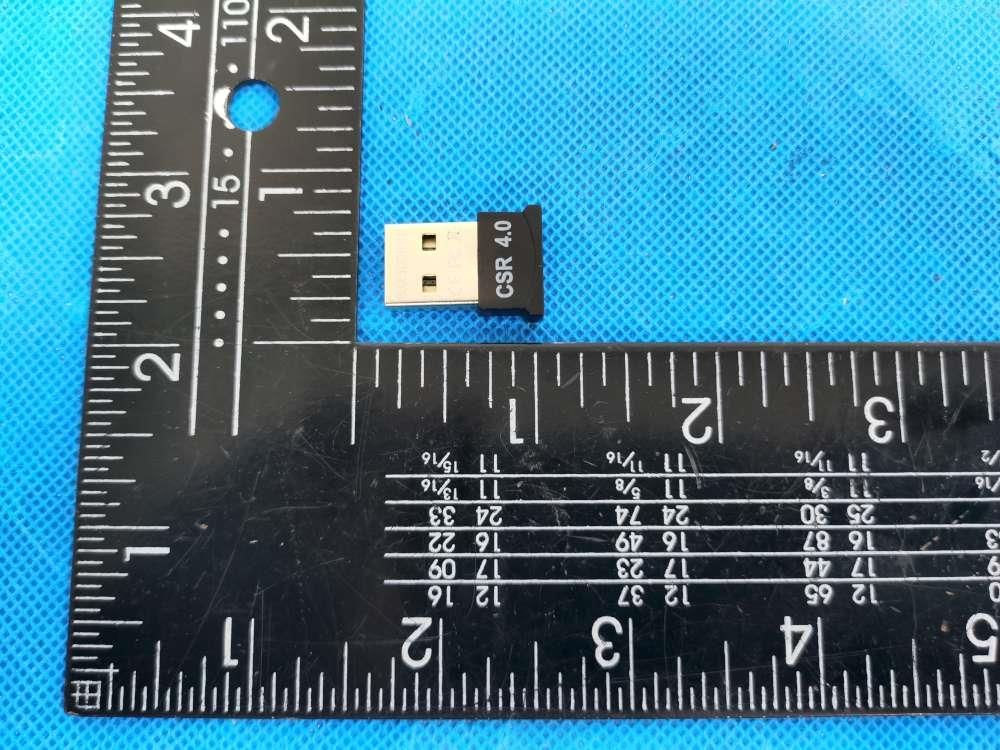

EUT PHOTO(External Photos)

Size:10.5*6.5mm M/N: FX-8510A FCC ID: 2AZDM-CSR8510 Label location

EUT PHOTO(Internal Photos) ※※※※※ END OF REPORT ※※※※※ ANT 1 Photo s RF chipset
