2AZDM-HNTOUTNebra Smart Outdoor LoRa Gateway / Nebra HNT Outdoor Hotspot Miner

Nebra Ltd

Click to zoom

Application Details

Equipment Class: PCB - PCS Licensed Transmitter
Date of Grant: Jul 26, 2021
Application Purpose: Original Equipment
Date of Application: Jul 26, 2021
Equipment Note: Nebra Smart Outdoor LoRa Gateway / Nebra HNT Outdoor Hotspot Miner
Frequency Range: 2506.00000000 - 2680.00000000
Company: Nebra Ltd
Country: United Kingdom

Documents & Files

Select a file to view

Document Text

Text extracted from the exhibit documents filed with the FCC. Open a document above to read the original.

Users Manual

OUTDOOR HOTSPOT QUICK START GUIDE Outdoor Hotspot Quick Start Guide Chapter 1: Hardware Setup Box Contents Your Nebra Outdoor Helium Hotspot comes with the following items: • The Nebra Helium Outdoor Hotspot • 3 dBi N-Type Glass Fiber Antenna You will need a power source such as a DC Power Supply, or provide both combined power and network connection by using Power Over Ethernet with the unit. Warnings Please remember to follow the following steps when using your Nebra Outdoor Hotspot. • NeverpowerontheOutdoorhotspotwithoutit’santennaconnectedasthismaydam- age the unit. Preparing Your Nebra Outdoor Hotspot This section will be written soon. Configuring Your Nebra Outdoor Hotspot ToconfigureyourHotspotyouwillrequiretheHeliumNetworkapplicationinstalledonaMo- bile Phone and for you to have gone through the account setup process to continue. Step 1:Open the Helium application and login, then press hotspots. Step 2:Next click Set up Hotspot , from here you will want to select Nebra Outdoor Hotspot. Step3:AfterfollowingthestepsontheApptogettothispage, Pushthebuttonontheback of the unit once to enable pairing and then press scan on the App. Step 5:Press the entry for your hotspot in the app, you can check it is the correct one by matching the last 6 characters shown in the application with the last 6 characters of the mac address printed on the sticker on the bottom of the hotspot. Step 6:The app will show the available Wi-Fi networks within range of your Hotspot. If you are using Ethernet,tap Use Ethernet Instead and skip to Step 7. If using Wi-Fi,tap on the name of your Wi-Fi network on the app which will bring you to the following screen. Type in your Wi-Fi’s network password then tap Connect and it should connect to your wi-fi network. Step 7:The app will then ask for you to set your hotspot’s location. 1Nebra LTD. 2021 OUTDOOR HOTSPOT QUICK START GUIDE Figure 1:Android Placeholder 2Nebra LTD. 2021 OUTDOOR HOTSPOT QUICK START GUIDE Figure 2:Android Placeholder 3Nebra LTD. 2021 OUTDOOR HOTSPOT QUICK START GUIDE Figure 3:Android Placeholder 4Nebra LTD. 2021 OUTDOOR HOTSPOT QUICK START GUIDE Figure 4:Android Placeholder 5Nebra LTD. 2021 OUTDOOR HOTSPOT QUICK START GUIDE Figure 5:Android Placeholder 6Nebra LTD. 2021 OUTDOOR HOTSPOT QUICK START GUIDE Figure 6:Android Placeholder 7Nebra LTD. 2021 OUTDOOR HOTSPOT QUICK START GUIDE Step 8:Finally you can confirm the location of your hotspot. Click continue and you should be presented with a map to then place where your hotspot is on the app. Step 9:The setup should now be complete, it’ll submit the details of the Hotspot to the He- lium network and then within 15 minutes confirm it’s added to the network. 8Nebra LTD. 2021 OUTDOOR HOTSPOT QUICK START GUIDE Figure 7:Android Placeholder 9Nebra LTD. 2021 OUTDOOR HOTSPOT QUICK START GUIDE Figure 8:Android Placeholder 10Nebra LTD. 2021 FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 10mm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.

Cover Letter(s)

Nebra LTD. Date: 2021-7-22 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Compliance Testing, LLC to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). Sincerely, Dated this 2021-7-22 By: Aaron Shaw Signature Printed Title: CEO On behalf of : Nebra LTD. Telephone: +441892750345

Cover Letter(s)

Nebra LTD. DATE:2021-7-22 Federal Communications Commission Authorization & Evaluation Division 7345 Oakland Mills Road Columbia, Maryland 21046 Authority to Act asAgent On our behalf, I appoint JianYan Testing Group Shenzhen Co., Ltd.; No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Communit y,Xinqiao Street, Bao’an District, Shenzhen, Guangdong,People’s Republic of China.;Bru ce.Zhang, to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with Nebra Ltd/ Unit 4 Bells Yew Green Business Court, Bells Yew Green, Tunbridge Wells TN3 9BJ Dated this 2021-7-22 By: Aaron Shaw Signature Printed Title: CEO On behalf of : Nebra LTD. Telephone: +86 21527638

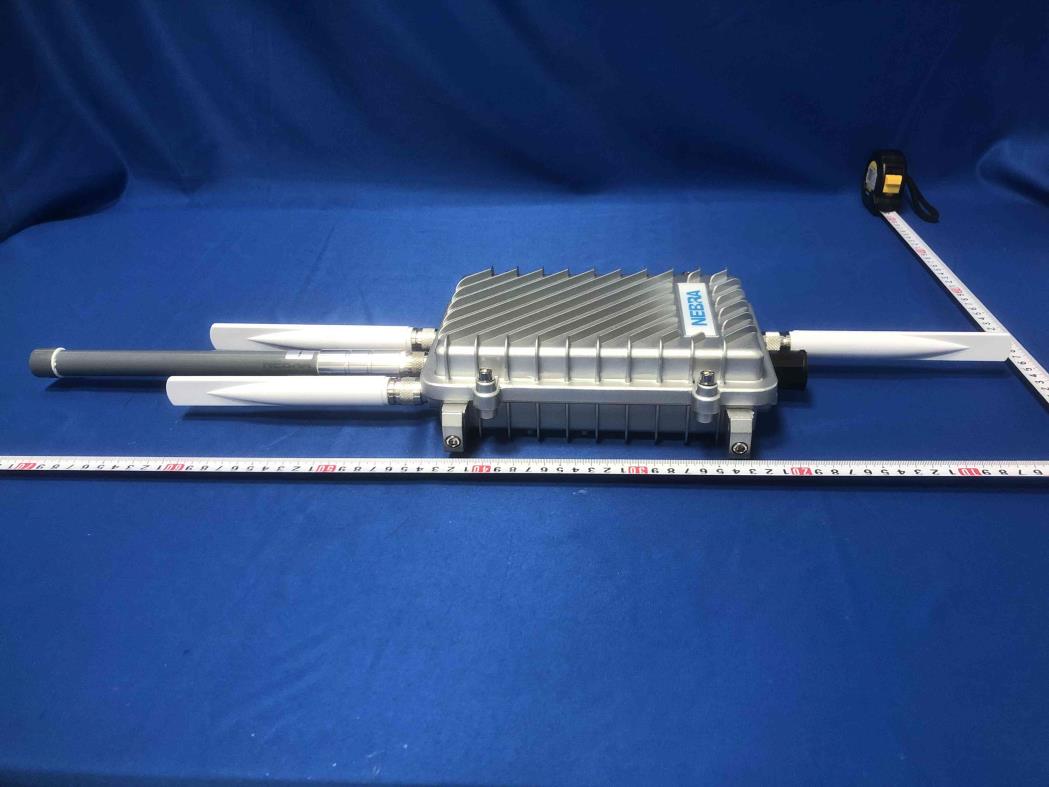

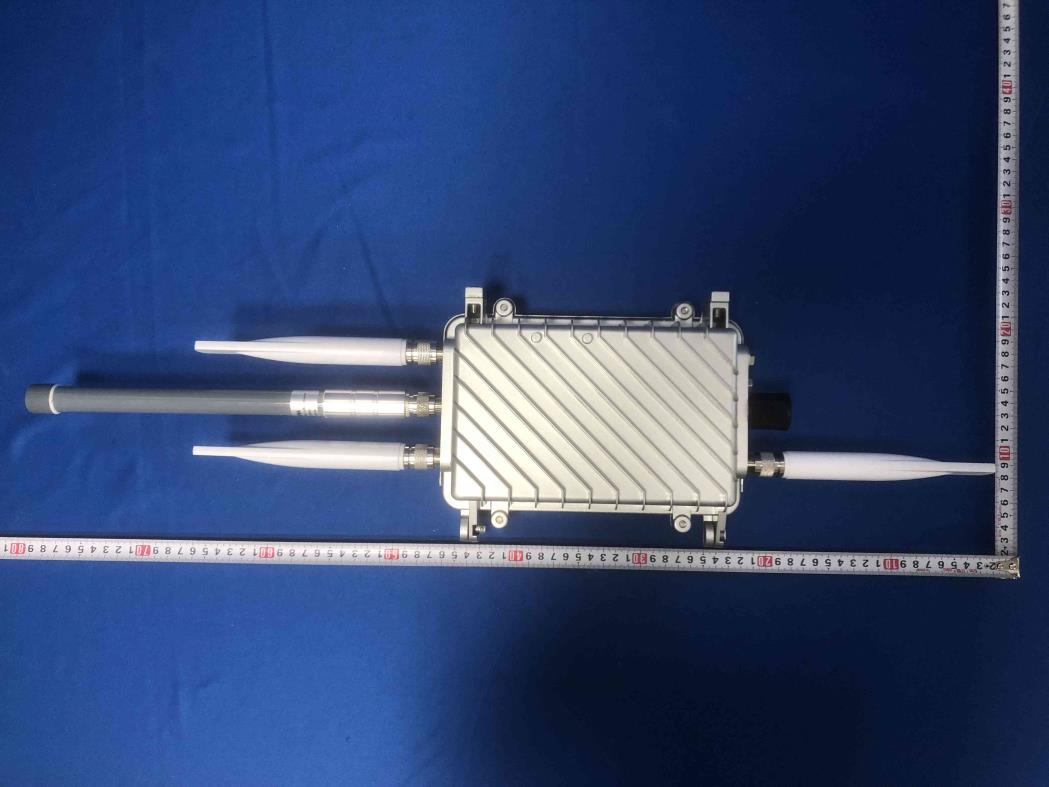

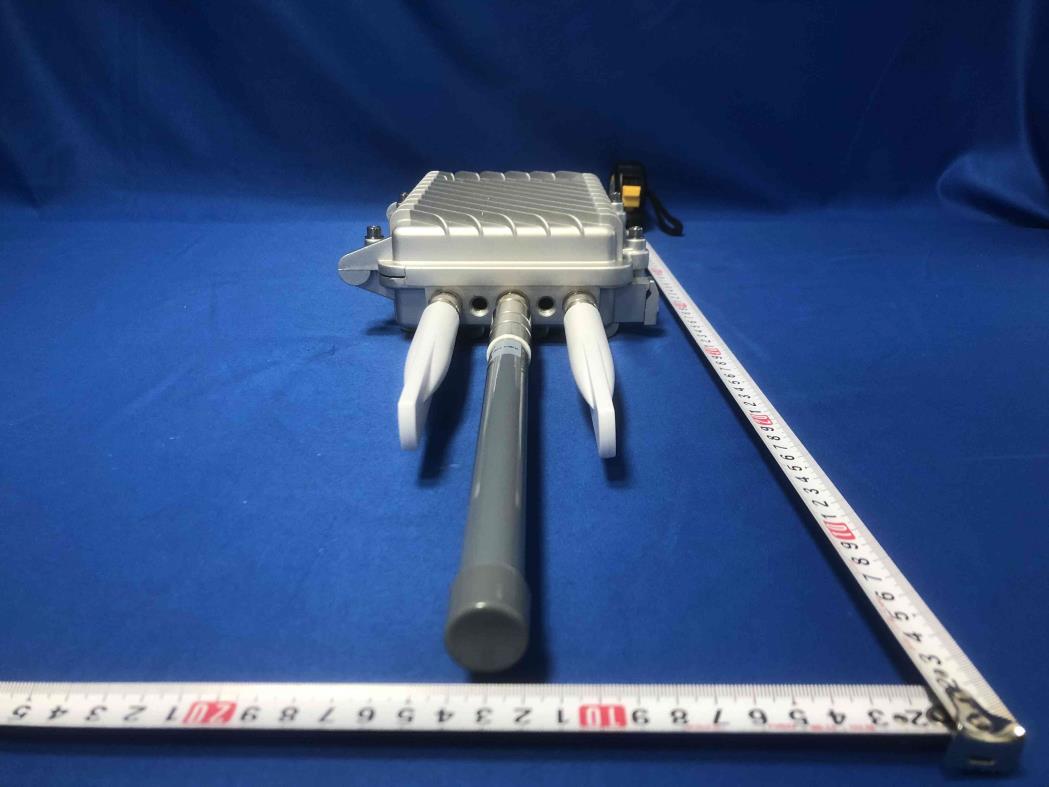

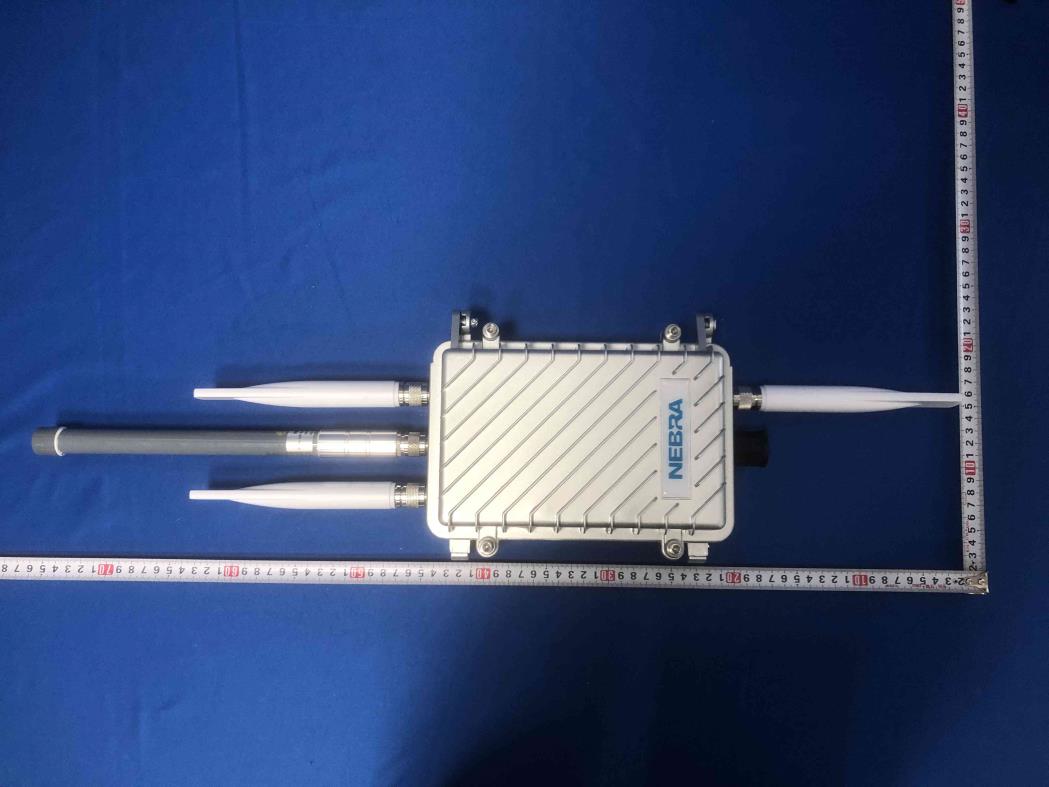

External Photos

ID Label/Location Info

label location label location

Internal Photos

Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 25 of 40 Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 26 of 40 Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 27 of 40 Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 28 of 40 Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 29 of 40 Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 30 of 40 Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 31 of 40 Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 32 of 40 Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 33 of 40 Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 34 of 40 Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 35 of 40 Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 36 of 40 Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 37 of 40 Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 38 of 40 Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 39 of 40 Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 40 of 40 ------End of report------

RF Exposure Info

JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R12-2100994 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the JYT product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1 Cover Page RF Exposure Evaluation Report Applicant: Nebra LTD. Address of Applicant: Unit 4 Bells Yew Green Business Court, Bells Yew Green, Tunbridge Wells TN3 9BJ Equipment Under Test (EUT) Product Name: Nebra Smart Outdoor LoRa Gateway / Nebra HNT Outdoor Hotspot Miner Model No.: HNTOUT-915-G-LT+, HNTOUT-915-G-LT, HNTOUT-915-LT+, HNTOUT-915 –LT, HNTOUT-915-G-LT+, HNTOUT-915-G, HNTOUT-915 Trade mark: Nebra FCC ID: 2AZDM-HNTOUT Applicable standards: FCC CFR Title 47 Part 2 Subpart J Section 2.1091 Date of sample receipt: 01 Jun., 2021 Date of Test: 01 Jun., to 08 Jul., 2021 Date of report issue: 09 Jul., 2021 Test Result: PASS* Report No: JYTSZB-R12-2100994 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 2 of 7 2 Version Version No. Date Description 00 09 Jul., 2021 Original Tested by: Date: 09 Jul., 2021 Test Engineer Reviewed by: Date: 09 Jul., 2021 Project Engineer Report No: JYTSZB-R12-2100994 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 3 of 7 3 Contents Page 1 COVER PAGE ....................................................................................................................................................... 1 2 VERSION ............................................................................................................................................................... 2 3 CONTENTS ........................................................................................................................................................... 3 4 GENERAL INFORMATION .................................................................................................................................. 4 4.1 CLIENT INFORMATION ........................................................................................................................................... 4 4.2 GENERAL DESCRIPTION OF E.U.T. ...................................................................................................................... 4 4.3 OPERATING MODES .............................................................................................................................................. 5 4.4 ADDITIONS TO, DEVIATIONS, OR EXCLUSIONS FROM THE METHOD ...................................................................... 5 4.5 LABORATORY FACILITY ........................................................................................................................................ 5 4.6 LABORATORY LOCATION ...................................................................................................................................... 5 5 TECHNICAL REQUIREMENTS SPECIFICATION IN FCC CFR TITLE 47 PART 2.1091 ............................ 6 5.1 LIMITS .................................................................................................................................................................... 6 5.2 TEST PROCEDURE ................................................................................................................................................. 6 5.3 RESULT .................................................................................................................................................................. 7 5.4 CONCLUSION ......................................................................................................................................................... 7 Report No: JYTSZB-R12-2100994 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Telephone: +86 (0) 755 23118282 Fax: +86 (0) 755 23116366 Page 4 of 7 4 General Information 4.1 Client Information Applicant: Nebra LTD. Address: Unit 4 Bells Yew Green Business Court, Bells Yew Green, Tunbridge Wells TN3 9BJ Manufacturer: Nebra LTD. Address: Unit 4 Bells Yew Green Business Court, Bells Yew Green, Tunbridge Wells TN3 9BJ Factory: SUNSOAR TECH CO., LIMITED Address: 4/F, Block E, Fengze Building, Huafeng No.2 Industrial Park, Hangkong Road, XiXiang Town, BaoAn District, Shenzhen, China 4.2 General Description of E.U.T. Product Name: Nebra Smart Outdoor LoRa Gateway / Nebra HNT Outdoor Hotspot Miner Model No.: HNTOUT-915-G-LT+, HNTOUT-915-G-LT, HNTOUT-915-LT+, HNTOUT-91…

Text truncated - open the document above for the full version.

Test Report

JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R12-2100992 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the JYT product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1. Cover Page FCC REPORT (GSM & WCDMA) Applicant: Nebra LTD. Address of Applicant: Unit 4 Bells Yew Green Business Court, Bells Yew Green, Tunbridge Wells TN3 9BJ Equipment Under Test (EUT) Product Name: Nebra Smart Outdoor LoRa Gateway / Nebra HNT Outdoor Hotspot Miner Model No.: HNTOUT-915-G-LT+, HNTOUT-915-G-LT, HNTOUT-915-LT+, HNTOUT-915 –LT, HNTOUT-915-G-LT+, HNTOUT-915-G, HNTOUT-915 Trade mark: Nebra FCC ID: 2AZDM-HNTOUT Applicable standards: FCC CFR Title 47 Part 2 FCC CFR Title 47 Part 22 Subpart H FCC CFR Title 47 Part 24 Subpart E FCC CFR Title 47 Part 27 Subpart L Date of sample receipt: 18 May, 2021 Date of Test: 18 May, to 17 Jun., 2021 Date of report issued: 27 Jun., 2021 Test Result: PASS* * In the configuration tested, the EUT complied with the standards specified above. Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 41 2. Version Version No. Date Description 00 09 Jul., 2021 Original 01 26 Jun., 2021 Update Section 6.1 02 27 Jun., 2021 Update page 10 Remark: The FCC ID number of the module quoted in this report is XMR201903EG25G. The difference between the two is as follows: The antenna and is now used inside the whole machine. Therefore, the AC Power Line Conducted Emission and the Radiated Spurious Emission are retested. Tested by: Date: 27 Jun., 2021 Test Engineer Reviewed by: Date: 27 Jun., 2021 Project Engineer Report No: JYTSZB-R12-2100992 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 41 3. Contents Page 1. COVER PAGE .............................................................................................................................................................. 1 2. VERSION ....................................................................................................................................................................... 2 3. CONTENTS ................................................................................................................................................................... 3 4. TEST SUMMARY ......................................................................................................................................................... 4 5. GENERAL INFORMATION ........................................................................................................................................ 5 5.1 CLIENT INFORMATION ............................................................................................................................................ 5 5.2 GENERAL DESCRIPTION OF E.U.T. ....................................................................................................................... 5 5.3 TEST ENVIRONMENT AND MODE, AND TEST SAMPLES PLANS ............................................................................... 7 5.4 DESCRIPTION OF SUPPORT UNITS ........................................................................................................................ 7 5.5 MEASUREMENT UNCERTAINTY .............................................................................................................................. 7 5.6 ADDITIONS TO, DEVIATIONS, OR EXCLUSIONS FROM THE METHOD....................................................................... 7 5.7 LABORATORY FACILITY .......................................................................................................................................... 8 5.8 LABORATORY LOCATION ....................................................................................................................................... 8 5.9 TEST INSTRUMENTS LIST ....................................................................................................................................... 8 6. TEST RESULTS ........................................................................................................................................................... 9 6.1 CONDUCTED OUTPUT POWER, ERP AND EIRP .................................................................................................. 9 6.2 PEAK-TO-AVERAGE POWER RATIO .................................................................................................................... 11 6.3 OCCUPY BANDWIDTH .........................................................................................................................…

Text truncated - open the document above for the full version.

Test Report

JianYan Testing Group Shenzhen Co., Ltd. Report No: JYTSZB-R12-2100993 Authorized Signature: Bruce Zhang Laboratory Manager This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product and does not permit the use of the JYT product certification mark. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in this report. This report may only be reproduced and distributed in full. If the product in this report is used in any configuration other than that detailed in the report, the manufacturer must ensure the new system complies with all relevant standards. This document cannot be reproduced except in full, without prior written approval of the Company. Any unauthorized alteration, forgery or falsification of the content or appearance of this document is unlawful, and offenders may be prosecuted to the fullest extent of the law. Unless otherwise stated the results shown in this test report refer only to the sample(s) tested and such sample(s) are retained for 90 days only. 1. Cover Page FCC REPORT (LTE) Applicant: Nebra LTD. Address of Applicant: Unit 4 Bells Yew Green Business Court, Bells Yew Green, Tunbridge Wells TN3 9BJ Equipment Under Test (EUT) Product Name: Nebra Smart Outdoor LoRa Gateway / Nebra HNT Outdoor Hotspot Miner Model No.: HNTOUT-915-G-LT+, HNTOUT-915-G-LT, HNTOUT-915-LT+, HNTOUT-915 –LT, HNTOUT-915-G-LT+, HNTOUT-915-G, HNTOUT-915 Trade mark: Nebra FCC ID: 2AZDM-HNTOUT Applicable standards: FCC CFR Title 47 Part 2 FCC CFR Title 47 Part 22 Subpart H FCC CFR Title 47 Part 24 Subpart E FCC CFR Title 47 Part 27 Subpart L FCC CFR Title 47 Part 27 Subpart M FCC CFR Title 47 Part 27 Subpart H FCC CFR Title 47 Part 27 Subpart E FCC CFR Title 47 Part 90 Subpart S Date of sample receipt: 01 Jun., 2021 Date of Test: 01 Jun., to 08 Jul., 2021 Date of report issued: 26 Jul., 2021 Test Result: PASS* *In the configuration tested, the EUT complied with the standards specified above. Report No: JYTSZB-R12-2100993 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 2 of 66 2. Version Version No. Date Description 00 09 Jul., 2021 Original 01 26 Jul., 2021 Update page 11 and Section 6.1 Tested by: Date: 26 Jul., 2021 Test Engineer Reviewed by: Date: 26 Jul., 2021 Project Engineer Report No: JYTSZB-R12-2100993 JianYan Testing Group Shenzhen Co., Ltd. Project No.: JYTSZE2105127 No.101, Building 8, Innovation Wisdom Port, No.155 Hongtian Road, Huangpu Community, Xinqiao Street, Bao'an District, Shenzhen, Guangdong, People's Republic of China. Tel: +86-755-23118282, Fax: +86-755-23116366 Page 3 of 66 3. Contents Page 1. COVER PAGE .............................................................................................................................................................. 1 2. VERSION ....................................................................................................................................................................... 2 3. CONTENTS ................................................................................................................................................................... 3 4. TEST SUMMARY ......................................................................................................................................................... 4 5. GENERAL INFORMATION ........................................................................................................................................ 6 5.1 CLIENT INFORMATION .................................................................................................................................................... 6 5.2 GENERAL DESCRIPTION OF E.U.T. ............................................................................................................................... 6 5.3 TEST ENVIRONMENT AND MODE, AND TEST SAMPLES PLANS ..................................................................................... 18 5.4 DESCRIPTION OF SUPPORT UNITS .............................................................................................................................. 18 5.5 MEASUREMENT UNCERTAINTY.................................................................................................................................... 18 5.6 RELATED SUBMITTAL(S) / GRANT (S) ..........................................................................................................…

Text truncated - open the document above for the full version.

Contact Information

Applicant

Aaron Joseph Shaw(Mr)

[email protected]+441892750345Fax: +441892750345

Test Firm

JianYan Testing Group Shenzhen Co., Ltd.Bruce Zhang

[email protected]+86 (0) 755 23118282

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
29	27	2.51 GHz - 2.68 GHz	328.10 mW	17M9W7D	0.1 ppm

Confidentiality

Long Term

Grant Notes

Power output listed is ERP for Part 22 and Part 27 below 1 GHz, EIRP for Part 24 and Part 27 above 1 GHz, and conducted for Part 90 operations. The antenna(s) used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co-located or operating in conjunction with any other transmitter. End-users and installers must be provided with antenna installation instructions and transmitter operating conditions for satisfying RF exposure compliance. This device contains functions that are not operational in the U.S. Territories. This filing is only applicable for U.S. operations.
