2AZHH-RT18wireless keypad

1 Wireless Keypad Manual Warnings: 1. Note that automatic gate and door systems must be installed exclusively by qualified technical personnel in full compliance with statutory legislation. 2. Before starting the installation procedure check that the values given in the "Technical Specifications “chapter are compatible with the application. 3. This product has been designed to control door openers, gate openers and similar mechanisms. Any other use of the product will be considered improper. Packing list No.123 Picture/Name Wireless keypad Screws Manual Allen wrench Technical parameters: 7. Number of passwords: 0 to 8 digits 8. Launch distance: Wide distance 200 meters,indoor distance 35 meters 9. Protection level: IP54 10. Dimensions: 85 × 75 × 35mm 11. Weight: 150g 1.Power supply: 6VDC 2 CR2032 (230mAh) lithium battery 2.Battery life: about 2 years, based on 10 times per day 3.Operating frequency: 433.92 MHz +/-75 KHz 4.Encoding format: HCS101 standard format 5.Working temperature: -20 ° C ~ +55 ° C Product description 1. This is a dual channel transmitters that are activated only after having entered a Suitable combination. 2. The units are designed for installation in indoor or outdoor locations. 3. That ensures the utmost security because the transmitted code is changed at each transmission session. 4. The estimated transmission range is 200 m in open space and 35 m indoors. 5. The units are designed to ensure battery life equivalent to an estimated 2 years of operation considering 10 transmissions/day. Function description Automatic lighting: when the ambient light is insufficient, the button input signal led automatically lights up; Automatic standby: when there is no input signal for 10 seconds, the system automatically enters the power-saving standby state; Audible signalstatus 1 short beepKeypad tone 1 long beepChange password successfully (or transmit code) 3 long beepsModification of combination confirmed 5 short beepsError during combination put or combination edit operation 10 rapid beepsBattery low warning signal New batteries required Low Voltage Alarm: When the cell voltage is under 4 volts, each time after pressing the button, it’ll make a beeping sound twice. Installation Step1: Tools (A&B or A&C) Screwdriver Allen wrench Hand electric drillHammer and nail ABC Step2: Installation 1.Remove the metal cover 2.Unscrew the hex screws 3.Make 4 holes on this plate with tool B or C 4.Embedded plastic expansion screws on the wall 5. At last, Install the plate on the wall and screw the keypads on the plate. Note: 1. Before physically installing it in their mounting position it is good practice to perform a practical test to assess their functionality and effective range. 2. Consider that range may be up to 25 or 30% less when battery power is low. 2 3.Apartfromthedistancefromthereceiver,theunitsshouldnotbepositionedinthevicinityofor-worsestill-incontactwithmetalstructures,which couldotherwiseexertasignalshieldingeffect. ThankstotheenclosureprotectionratingofIP54,thedigitalselectorscanbeinstalledoutdoorsifrequired. Instructionsforuse Thewirelesskeypadhastwochannels:“Channel1”and“Channel2”,youcanchooseoneofthem. Channel1:Channel2: Enterthepasswordofchannel1,press<,(originalpasswordis“11”);Enterthepasswordofchannel2,press>,(originalpasswordis“22”); Ifthepasswordiscorrect,sendchannel1codedsignaland1longbeep;Ifthepasswordiscorrect,sendchannel2codedsignalsand1longbeep; Ifthepasswordisincorrect,thebuzzerwillgive5shortbeeps.Ifthepasswordisincorrect,thebuzzerwillmake5shortbeeps. Note: 1.Ifyoudonotpress>(or<)within10secondsafterenteringthepassword,theoriginalinputpasswordisinvalid,youneedtore-enterthepassword,and thenpress>(or<). 2.Ifthepasswordis027,thepasswordssimilarto27and0027arenotconsideredcorrect. 3.Ifthepasswordis0(nopassword):directlypress>(or<)tosendthecorrespondingchannelcode. 4.Ifthenumberofdigitsenteredisgreaterthan8digits,itwillbeprocessedasanerrorpassword. Changethepassword Channel1:Thefactorypasswordispresetto:11.Channel2:Thefactorypasswordispresetto:22. Step1:Pressbutton”0”andholdit;Step1:Pressbutton”0”andholdit; Step2:Pressbutton<,thenreleasebutton<;Step2:Pressbutton>,thenreleasebutton>; Step3:Releasebutton”0”,enterpasswordchangestate,Step3:Releasebutton”0”,enterpasswordchangestate,buzzerwillsend1longbeep; buzzerwillsend1longbeep;Step4:Inputoriginalpassword,andpress>; Step4:Inputoriginalpassword,andpress<;Step5:Enteranewpassword,suchas28111976(nomorethan8digits),press>; Step5:Enteranewpassword,suchas28111976Step6:Enterthenewpassword28111976again,thenpress>. (nomorethan8digits),press<;Thepasswordischangedsuccessfully,thebuzzeremits1longbeep. Step6:Enterthenewpassword28111976again,thenpress<. Thepasswordischangedsuccessfully,thebuzzeremits1longbeep. Note: 1.Ifthenewpasswordexceeds8digitsorthenewpasswordisinconsistent,thepasswordchangeerrorwillbedisplayed,thebuzzerwillmake5short beepsandexitthepasswordchangestatus. 2.Inthepasswordchangestatus,ifyoudonotenterthepassword,andyoupressthebutton>(or<)twice,thepasswordis0digit,thatmeansno password,justpressthebutton>(or<)tosendtheencodedsignal. Codematching Channel1:Channel2: Step1:Pressthe“learningbutton”onthegateopenercontrolpanel.Step1:Pressthecodebuttononthegateopenercontrolpanel. Step2:Inputthepasswordof1-8digits,press<;Step2:Inputthepasswordof1-8digits,press>; Step3:Inputthepasswordof1-8digitsagain,press<;Step3:Inputthepasswordof1-8digitsagain,press>; Step4:Theindicatoronthecontrolpanelflashes,indicatingsuccessfully;Step4:Theindicatoronthecontrolpanelflashes,indicatingsuccessfully; Step5:Re-enterthepasswordof1-8digits,press<toconfirmwhetheryouStep5:Re-enterthepasswordof1-8digits,press>toconfirmwhether cancontrolthegateopener.youcancontrolthegateopener. Resetthepassword Ifyouforgetthecorrectpassword,pleaseopenthewirelesskeypad,andpressthe“RESETBUTTON”.Thentheoldcorrectpasswordwillbecleared (Reverttofactorypassword),youcansetanewpasswordfollowedmanual. Note: 1.Encodingdefinition,outputencodinginstandardHCS101format,28-digitser…

Text truncated - open the document above for the full version.

Zhejiang Joytech Electronics Co., Ltd. 2021.04.02 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: wireless keypad Trademark: N/A MODEL : RT18 FCC ID: 2AZHH-RT18 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title :Louis mao/Manager Contact information / address: NO.651 HENGXING ROAD, PUYUAN TOWN, TONGXIANG, ZHEJIANG, CHINA

Zhejiang Joytech Electronics Co., Ltd. 2022.2.21 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Louis mao Contact information / address: NO.651 HENGXING ROAD, PUYUAN TOWN, TONGXIANG, ZHEJIANG, CHINA

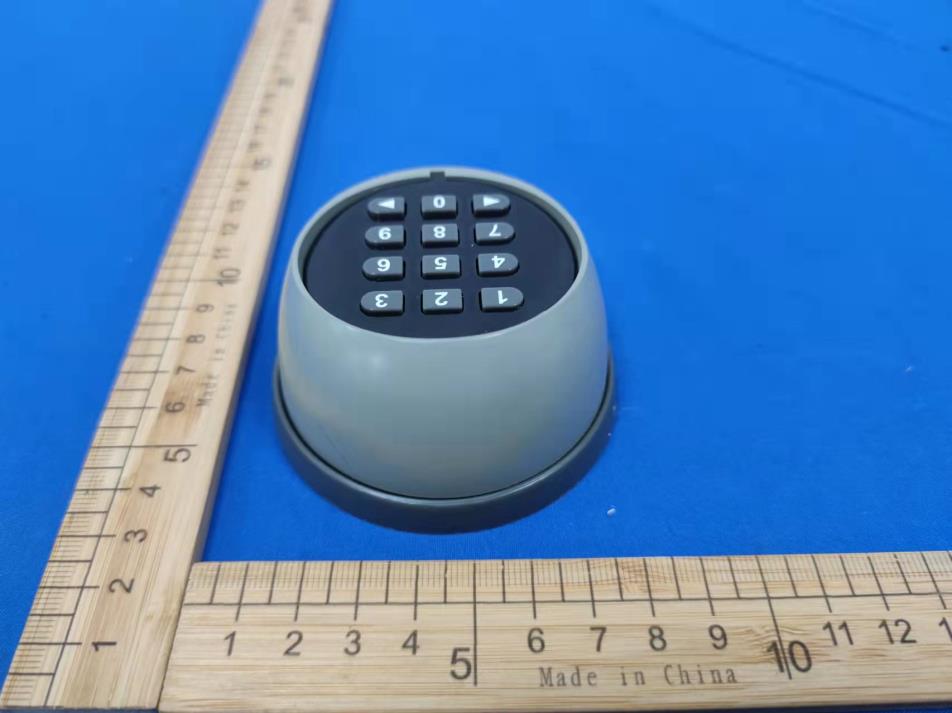

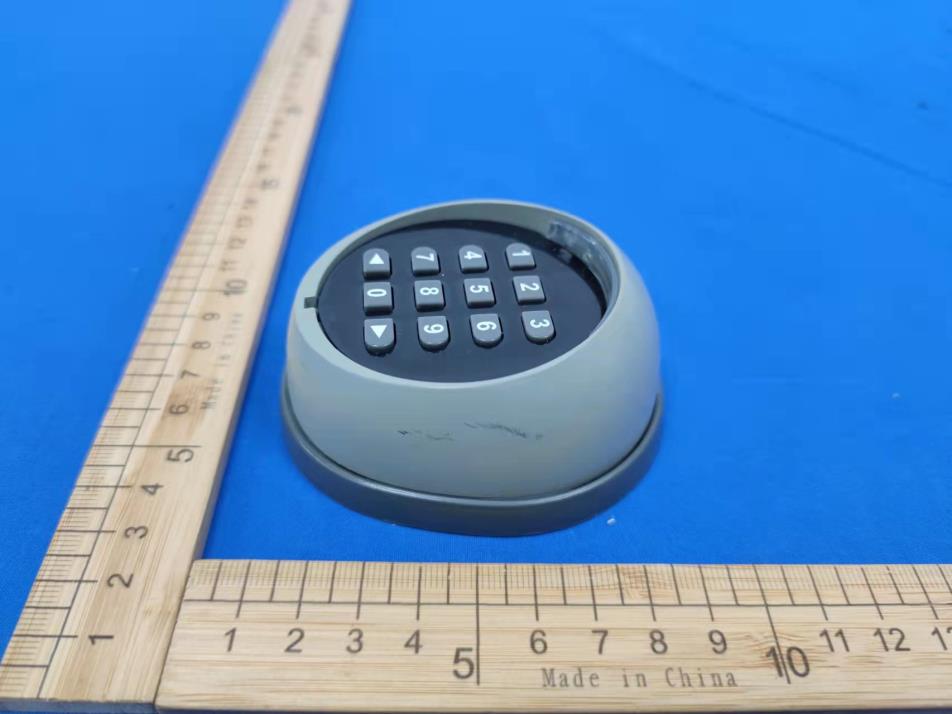

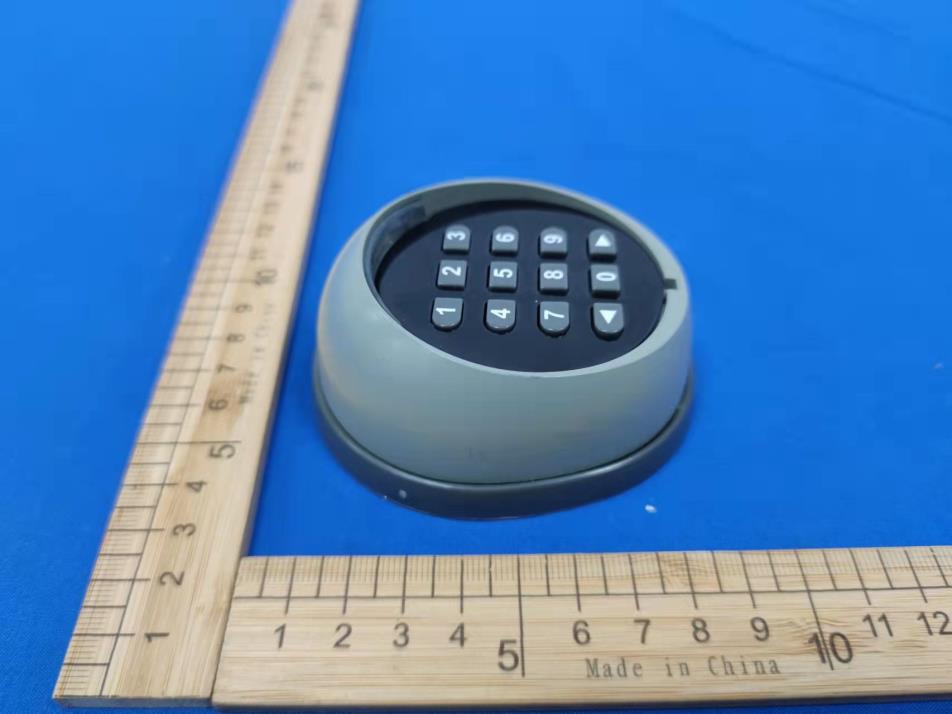

External Photos

Label & label location wireless keypad FCC ID: 2AZHH-RT18

Internal Photos Antenna

No.：BCTC/RF-EMC-005 Page: 1 of 31 Edition：A.4 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2202307783E Applicant: Zhejiang Joytech Electronics Co.,Ltd Product Name: wireless keypad Model/Type reference: RT18 Tested Date: 2022-02-14 to 2022-02-18 Issued Date: 2022-02-18 Report No.: BCTC2202307783E No.：BCTC/RF-EMC-005 Page: 2 of 31 Edition：A.4 FCC ID:2AZHH-RT18 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: wireless keypad Trademark: N/A Model/Type Reference: RT18 Prepared For: Zhejiang Joytech Electronics Co.,Ltd Address: NO.651 HENGXING ROAD, PUYUAN TOWN, TONGXIANG, ZHEJIANG, CHINA Manufacturer: Zhejiang Joytech Electronics Co.,Ltd Address: NO.651 HENGXING ROAD, PUYUAN TOWN, TONGXIANG, ZHEJIANG, CHINA Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Tangwei, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2022-02-14 Sample tested Date: 2022-02-14 to 2022-02-18 Issue Date: 2022-02-18 Report No.: BCTC2202307783E Test Standards: FCC Part15.231 ANSI C63.10-2013 Test Results: PASS Tested by: Approved by: Kelsey Tan/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2202307783E No.：BCTC/RF-EMC-005 Page: 3 of 31 Edition：A.4 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 4 2. Test Summary ....................................................................................................... 5 3. Measurement Uncertainty ..................................................................................... 6 4. Product Information And Test Setup ..................................................................... 7 4.1 Product Information ............................................................................................... 7 4.2 Test Setup Configuration ...................................................................................... 7 4.3 Support Equipment ............................................................................................... 8 4.4 Channel List .......................................................................................................... 8 4.5 Test Mode ............................................................................................................. 8 5. Test Facility and test Instrument Used .................................................................. 9 5.1 Test Facility ........................................................................................................... 9 5.2 Test Instrument Used ............................................................................................ 9 6. Conducted Emissions .......................................................................................... 11 6.1 Block Diagram Of Test Setup .............................................................................. 11 6.2 Limit .................................................................................................................... 11 6.3 Test procedure .................................................................................................... 11 6.4 EUT operating Conditions ................................................................................... 11 6.5 Test Result .......................................................................................................... 11 7. Radiated Emissions ............................................................................................. 12 7.1 Block Diagram Of Test Setup .............................................................................. 12 7.2 Limit .................................................................................................................... 13 7.3 Test procedure .................................................................................................... 14 7.4 EUT operating Conditions ................................................................................... 16 7.5 Test Result .......................................................................................................... 17 8. Bandwidth Test .................................................................................................... 21 8.1 Block Diagram Of Test Setup .............................................................................. 21 8.2 Limit .................................................................................................................... 21 8.3 Test procedure .................................................................................................... 21 8.4 EUT operating Conditions ................................................................................... 21 8.5 Test Result .......................................................................................................... 22 9. Calculation of Average Factor ............................................................................. 23 10. Transmission Deactivate Time ............................................................................ 26 10.1 Block Diagram Of Test Setup ............................................................................ 26 10.2 Limit .................................................................................................................. 26 10.3 Test procedure .................................................................................................. 26 10.4 Test Result ........................................................................................................ 27 11. Antenna Requirement ...................…
