2AZHH-RT77Remote controller

RT77 Wireless Remote Technology Parameter: ⚫ Working voltage:12V ⚫ Working current: ≤12mA ⚫ Transmitting frequency: 433.92M ⚫ Frequency deviation:150K ⚫ Chip: Common code: rolling code ⚫ Transmit distance: 30m ⚫ Applications： gate operator FCC Caution： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction.

Zhejiang Joytech Electronics Co., Ltd U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: GATEXPERT GLOBAL ENTERPRIESES INC. FRN: 0033812744 Contact Name: Zhengyi Li Street Address: 350 NOTTHERN BLVD STE 324-1331 City/Province/Zip: ALBANY, NY 12204, USA Telephone No: (186)678-9915 8 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2023-05-24 Signed by (Printed Name/Title): Zhengyi Li/ Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Zhejiang Joytech Electronics Co., Ltd Grantee Code: 2AZHH FCC ID: 2AZHH-RT77 Contact Name: Louis mao Street Address: NO.651 HENGXING ROAD, PUYUAN TOWN, TONGXIANG, City/Province/Zip: ZHEJIANG, China Telephone No: +86 573 81884618 Email: [email protected] Applicant Signature: Date: 2023-05-24 Signed by (Printed Name/Title): Louis mao / Manager

Zhejiang Joytech Electronics Co., Ltd 2023.05.27 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for 2AZHH-RT77 [Zhejiang Joytech Electronics Co., Ltd] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Louis mao SHENZHEN YIFENG HONGTUO TECHNOLOGY CO.,LTD. 2023.05.27 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for 2AZHH-RT77 [Zhejiang Joytech Electronics Co., Ltd] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Louis mao

Zhejiang Joytech Electronics Co., Ltd 2023.05.27 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Remote controller Trademark: N/A MODEL : RT77 FCC ID : 2AZHH-RT77 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : Louis mao / Manager Contact information / address: NO.651 HENGXING ROAD, PUYUAN TOWN, TONGXIANG, ZHEJIANG, China

Zhejiang Joytech Electronics Co., Ltd 2023.05.27 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : Louis mao / Manager Contact information / address: NO.651 HENGXING ROAD, PUYUAN TOWN, TONGXIANG, ZHEJIANG, China

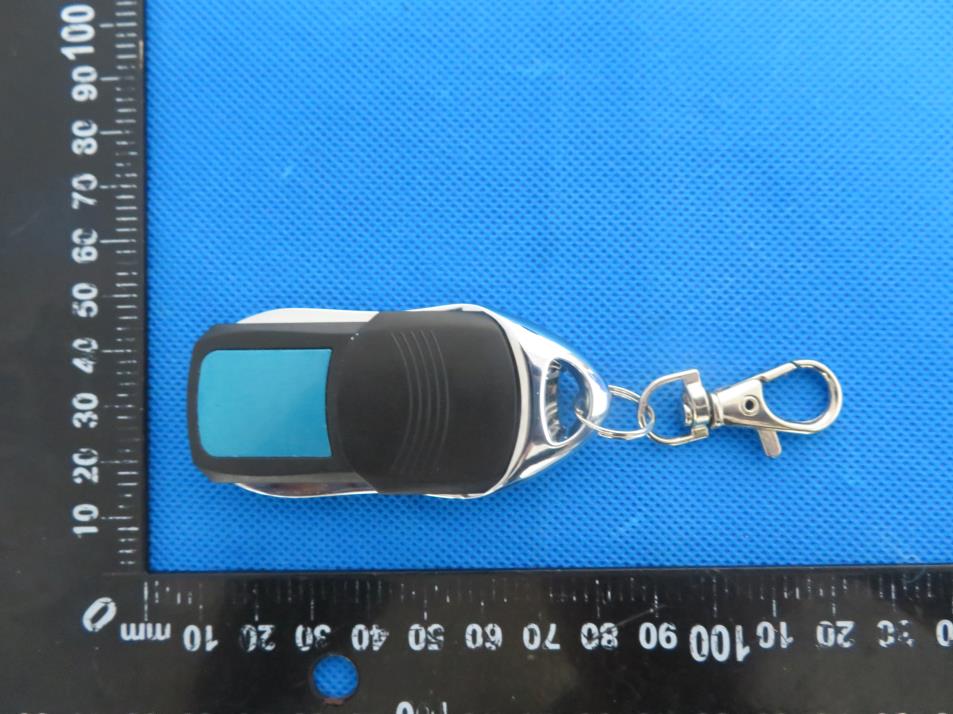

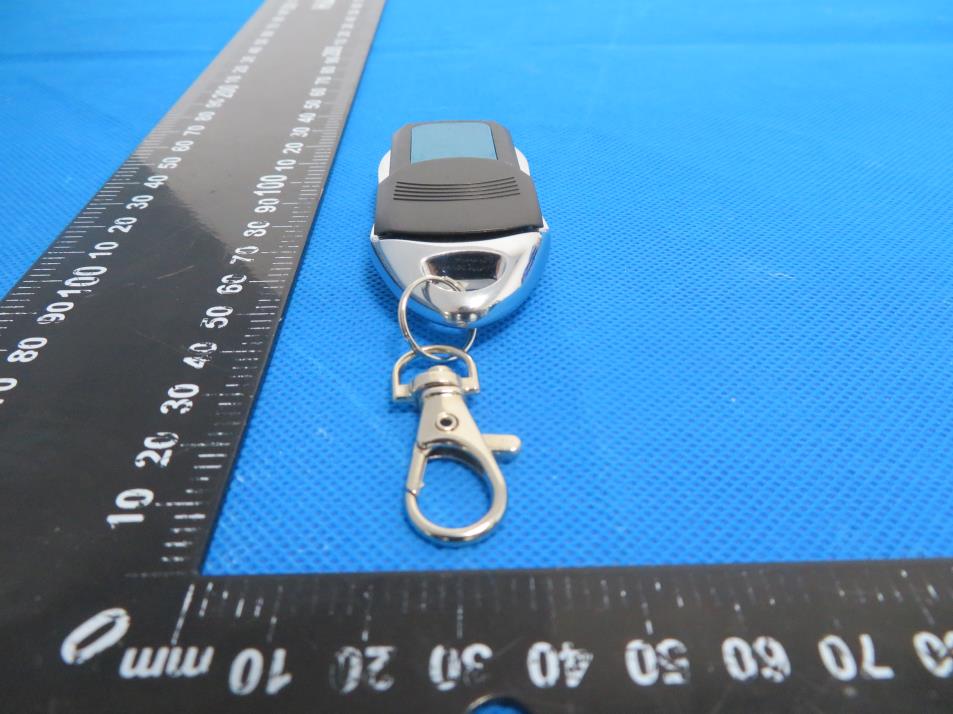

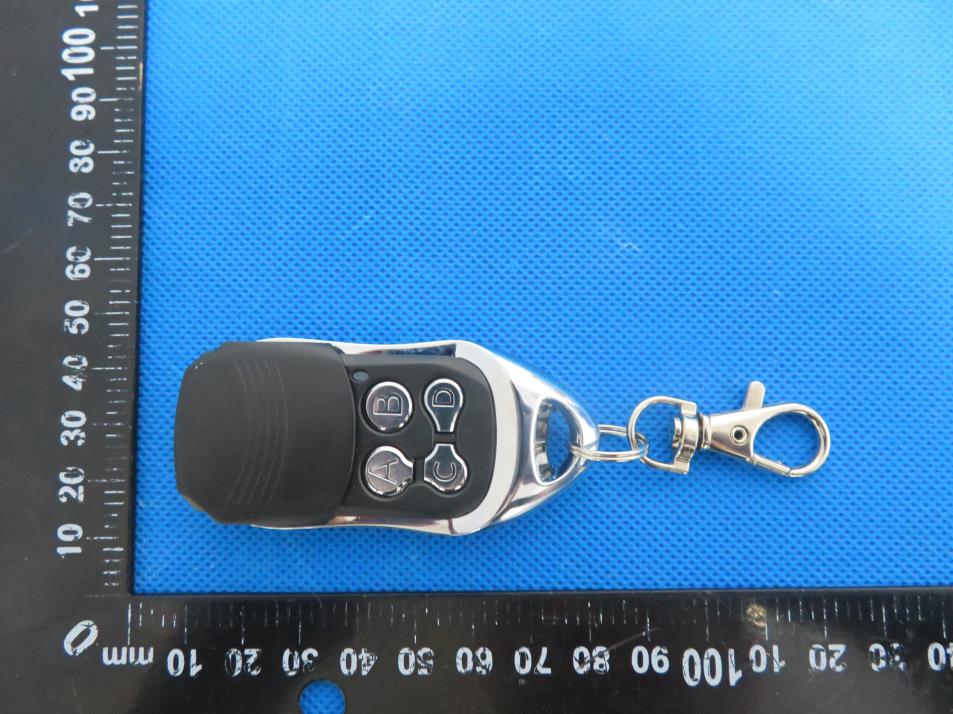

External Photos

Size:20*10mm Remote controller FCC ID: 2AZHH-RT77 Label location

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2AZHH-RT77 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. Modulation Test Channel Output Power (dBuV/m) Output Power (dBm) ASK 433.92 65.36 -34.54 Below 1GHz: dBm=dBuV/m-95.2-4.7 max possible output power (PK,ERP)：-34±1dBm 3dBi logarithmic terms convert to numeric result is nearly 2 -33dBm=0.0005mW [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]=0.0005/5*√0.43392=0.000066≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

Zhejiang Joytech Electronics Co., Ltd NO.651 HENGXING ROAD, PUYUAN TOWN, TONGXIANG, ZHEJIANG Product nameProduct model Remote control RT77 Antenna specification Note: The remote control adopts PCB onboard antenna radiation power, antenna width 1.4mm, 3dBi gain, SWR < 2.0

No.：BCTC/RF-EMC-005 Page: 1 of 28 Edition：A.5 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2304472570E Applicant: Zhejiang Joytech Electronics Co., Ltd Product Name: Remote controller Model/Type reference: RT77 Tested Date: 2023-04-26 to 2023-05-16 Issued Date: 2023-05-16 Report No.: BCTC2304472570E No.：BCTC/RF-EMC-005 Page: 2 of 28 Edition：A.5 FCC ID: 2AZHH-RT77 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Remote controller Trademark: N/A Model/Type reference: RT77 Prepared For: Zhejiang Joytech Electronics Co., Ltd Address: NO.651 HENGXING ROAD, PUYUAN TOWN, TONGXIANG, ZHEJIANG, China Manufacturer: Zhejiang Joytech Electronics Co., Ltd Address: NO.651 HENGXING ROAD, PUYUAN TOWN, TONGXIANG, ZHEJIANG, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-04-26 Sample tested Date: 2023-04-26 to 2023-05-16 Issue Date: 2023-05-16 Report No.: BCTC2304472570E Test Standards: FCC Part15.231 ANSI C63.10-2013 Test Results: PASS Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2304472570E No.：BCTC/RF-EMC-005 Page: 3 of 28 Edition：A.5 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 4 2. Test Summary ....................................................................................................... 5 3. Measurement Uncertainty ..................................................................................... 6 4. Product Information And Test Setup ..................................................................... 7 4.1 Product Information ............................................................................................... 7 4.2 Test Setup Configuration ...................................................................................... 7 4.3 Support Equipment ............................................................................................... 8 4.4 Channel List .......................................................................................................... 8 4.5 Test Mode ............................................................................................................. 8 5. Test Facility And Test Instrument Used ................................................................. 9 5.1 Test Facility ........................................................................................................... 9 5.2 Test Instrument Used ............................................................................................ 9 6. Conducted Emissions .......................................................................................... 11 6.1 Block Diagram Of Test Setup .............................................................................. 11 6.2 Limit .................................................................................................................... 11 6.3 Test Procedure ................................................................................................... 11 6.4 EUT Operating Conditions .................................................................................. 11 6.5 Test Result .......................................................................................................... 11 7. Radiated Emissions ............................................................................................. 12 7.1 Block Diagram Of Test Setup .............................................................................. 12 7.2 Limit .................................................................................................................... 13 7.3 Test Procedure ................................................................................................... 14 7.4 EUT Operating Conditions .................................................................................. 15 7.5 Test Result .......................................................................................................... 15 8. Bandwidth Test .................................................................................................... 19 8.1 Block Diagram Of Test Setup .............................................................................. 19 8.2 Limit .................................................................................................................... 19 8.3 Test Procedure ................................................................................................... 19 8.4 EUT Operating Conditions .................................................................................. 19 8.5 Test Result .......................................................................................................... 20 9. Calculation Of Average Factor ............................................................................ 21 10. Dwell Time........................................................................................................... 23 10.1 Block Diagram Of Test Setup ............................................................................ 23 10.2 Limit .................................................................................................................. 23 10.3 Test Procedure ................................................................................................. 23 10.4 Test Result ........................................................................................................ 24 11. Antenna Requirement .........…

Text truncated - open the document above for the full version.

Report No.: BCTC2304472570E No.：BCTC/RF-EMC-005 Page: 27 of 28 Edition：A.5 13. EUT Test Setup Photographs Radiated Measurement Photos
