2AZHU-W03Smart WI-FI Camera

മ㓨ਁᐳ㊫࡛ ↓ᔿᖂẓമ㓨 J [PP[PP 䧭ᄩ㽯㼄 㾝䒓㕃㽯㼄 FCC Warning Statement Changes or modifications not expressly approved by the party re sponsible for compliance couldvoid the user’s authority to operate the equipment. This equipm ent has been tested and found to comply with the limits for a Class B d igital device, pursuant to Part 15 of the FCC Rules. Theselimits are designed to provide reasonable protection against ha rmful interference in a residentialinstallation. This equipment generates uses and can radiate rad io frequency energy and, if notinstalled and used in accordance with the instructions, may cau se harmful interference to radiocommunications. However, there is no guarantee that interferenc e will not occur in a particularinstallation. If this equipment does cause harmful interference to radio or television reception,which can be determined by turning the equipment off and on, th e user is encouraged to try tocorrect the interference by one or more of the following measur es: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different fro m that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for h elp. This device complies with part 15 of the FCC Rules. Operation i s subject to the followingtwo conditions: (1) This device may not cause harmful interfere nce, and (2) this device must accept any interference received, includin g interference that maycause undesired operation.RF Exposure StatementTo maintain compliance with FCC's RF Exposure guidelines, This equipment should beinstalled and operated with minimum distance of 20cm the radiat or your body. This deviceand its antenna(s) must not be co-located or operation in conju nction with any other antenna or transmitter.

Section Compan y n Address: 3 Shenzhen, C Product Na FCCID: 2AZ Model(s): W 2.91 1(d)(5 ) We , [ Shenz authorizatio Pro Ide n Y ours sinc e Name: liu y Signature: T itle and C o NOTE 1 “Covered List https://www.f c Refere nces; 1) 986 446 D 0 https://apps.fc 2) F ederal R e https://www.fe munications-s Sh 2.911(d) name: Shen F, building B China ame: Smart ZHU-W03 W03, W03ZA )(i) Equipm zhen Pentas on is sough hibited fro m ntified as an erely, yangming ompany na ” ; is the List o cc.gov/supplyc 01 Covered Eq cc.gov/oetcf/kd egister docume ederalregister. supply-chain-t henzhe )(5)(i) Ce nzhen Zigxic B, Shuichan WI-FI Cam A2, W03ZA ment Type smart Techno t through ce m receiving n equipmen me: Mana g of Equipment a chain/covered quipment v01 db/forms/FTS ent 2022-2826 gov/documen hrough-the n Zigxic ertificatio co Technolo njingwan Fir mera A2-V1, W03 ology Co., L ertification i an equipm e nt type in the ger/ Shenzh and Services C list SearchResul t 63 published o nts/2023/02/06 co Tech on – Equi ogy Co., Ltd rst Industria ZA3, W07Z Ltd] (“the ap s not: ent authoriz e “Covered en Zigxico Covered By S tPage.cfm?sw on 02/06/23 6/2022-28263/ hnology 2. ipment T d. al Park, Gus ZA2, W07ZA plicant”) ce zation pursu List” NOTE 1 Date: Te c h n o l o g y ection 2 of Th witch=P&id=32 /protecting-ag y Co., Lt 911 (d)(5)(i) Eq Type shu,Xixiang A3, W88ZA rtify that th e uant to § 2.9 Mar. 28, 20 y Co., Ltd. e Secure Netw 5672 ainst-national - td. quipment Type A g Street, Bao 2, W08ZA3 e equipmen 903; of the F 023 works Act, ava -security-threa Attestation v1.2 oan District 3, C1, C3 nt for which FCC rules. ailable at ats-to-the-com 2 t, m

Section Company n Address: 3 Shenzhen, C Product Na FCCID: 2AZ Model(s): W 2.911(d)(5 ) We, [Shenz of the appli pursuant t o Yours sinc e Name: liu y Signature: Title and C o NOTE 1 Delete option NOTE 2 “Covered List https://www.f c References; 1) 986446 D 0 https://apps.fc 2) Federal R e https://www.fe munications-s S 2.911(d) name: Shen F, building B China ame: Smart ZHU-W03 W03, W03ZA )(ii) Applica zhen Zigxico cation, the o §1.50002 erely, yangming ompany na not applicable ”; is the List o cc.gov/supplyc 01 Covered Eq cc.gov/oetcf/kd egister docume ederalregister. supply-chain-t Shenzhe )(5)(ii) Ce nzhen Zigxic B, Shuichan WI-FI Cam A2, W03ZA ant filing o Technolog applicant is of this chap me: Mana g e to this applic of Equipment a chain/covered quipment v01 db/forms/FTS ent 2022-2826 gov/documen hrough-the en Zigxi ertificatio co Technolo njingwan Fir mera A2-V1, W03 gy Co., Ltd. s not identi pter, as an e ger/ Shenzh cation. and Services C list SearchResul t 63 published o nts/2023/02/06 co Tech on – App ogy Co., Ltd rst Industria ZA3, W07Z .] (“the appl fied NOTE 1 o entity produ en Zigxico Covered By S tPage.cfm?sw on 02/06/23 6/2022-28263/ hnology plicant (C d. al Park, Gus ZA2, W07ZA icant”) certi on the “Cove cing covere Date: Technolog y ection 2 of Th witch=P&id=32 /protecting-ag Co., Ltd 2.911 (d)(5 Covered L shu,Xixiang A3, W88ZA fy that, as o ered List” NO ed commun Mar. 28, 2 0 y Co., Ltd. e Secure Netw 5672 ainst-national - d. 5)(ii) Applicant A List ) g Street, Bao 2, W08ZA3 of the date o OTE 2 , establ ications eq 023 works Act, ava -security-threa Attestation v1.3 oan District 3, C1, C3 of the filing ished uipment. ailable at ats-to-the-com 3 t, m

S Co m Ad d Bao Pr o Mo d W08 Pr o We act We an d issu our Sig Na m Title Com Shenz mpany: She dress: 3F, b oan District oduct Name del Numbe 8ZA3, C1, C oduct Desc authorize M on our beha declare tha d certificatio ues concern behalf shal nature: me: e: mpany: zhen enzhen Zig building B, t, Shenzhe e: Smart W er(s): W03, C3 ription: S m MiCOM Lab alf on all ma at MiCOM L n of equipm ning the app ll have the s liu yang m Manager Shenzhen Zigxi Agen gxico Tech , Shuichanj en,China WI-FI Camer W03ZA2, W mart WI-FI C bs Inc., 575 atters conce Labs Inc. is ment to the r proval applic same effect ming n Zigxico T ico Te nt Auth nology Co jingwan Fi ra W03ZA2-V1 Camera Boulder C o erning the c allowed to f regulatory a cation. Any t as acts of Technology echno horizat ., Ltd. rst Indust r 1, W03ZA3, ourt, Pleasa certification forward all i agencies as and all acts our own. y Co., Ltd. ology tion rial Park, G , W07ZA2, anton, Califo of above na information s required a s carried ou Date: y Co., Gushu,Xixia W07ZA3, W ornia 94566 amed equip related to t nd to discu ut by MiCOM Mar. 28, 20 , Ltd. ang Street, W88ZA2, 6, USA, to pment. the approva ss any M Labs on 023 . al

Office o Federa 7435 O Columb USA Subjec t FCC ID To Wh o Pursua are req u docume These d propriet might b In addi t in Title busine s authoriz For 4 O For 1 It is ou r corresp docume authoriz Sincer e Signatu Name: Title: M S of Engineeri l Communic Oakland Mills bia, MD 210 t; Request f D: 2AZHU-W om It May C nt to the pro uesting the ents from pu documents tary informa be harmful to Schemat Block Di Parts Lis Operatio Tune-up tional to abo 47 CFR §2 ss sensitive zed devices External Test Set Internal P User Ma 45 days, pu OR 180 days pu r understand pondence du ents and thi zation is iss ely, ure: liu yangmi n anager Shenzhe ing Techno cations Com s Road 046 for Confiden W03 Concern, ovisions of t Commissio ublic disclos contain det ation in ope o our comp tic Diagram agram st onal Descrip Procedure ove mention .803 and th informatio n s, we reque Photos tup Photos Photos anual rsuant to P u ursuantto KD ding that all uring the ce s informatio sued. ng en Zigx logy mmission ntiality the Commis on to withho sure indefin tailed syste ration of th e any and wo m ption ned docume e importatio n remains c st Short Te ublic Notice DB 726920 l measurem ertification re on will be av xico Tec ssion’s rule old the follow nitely. m and equi e equipmen ould give co ents, in orde on rules in T confidential rm Confide e DA 04-170 0 D01. ment test rep eview proce vailable for chnolog s Title 47 S wing attach pment desc nt. The publ ompetitors a er to comply Title 47 CFR until the act ntiality of th 05. ports, FCC ess cannot public revi e gy Co., L Sections §0. hment(s) as criptions an ic disclosu r an unfair ad y with the m R §2.1204, tual market he following ID label for be granted ew once the Ltd. Date: Mar. 457 and § 0 confidentia d are consi re of these d vantage in marketing re while ensu ting of newly attachmen mat and as confide n e grant of eq 28, 2023 0.459, we al dered as documents the market . egulations ring that y t(s); ntial quipment .

To W We, Nu m mod Test Ple a Sig Na m Title She Whom It May Shenzhen Z mber: W03, W del’s the func t sample mo ase contact m nature: me: li e: M enzhen Mo y Concern, Zigxico Tech W03ZA2, W0 ction, softwar del: W03. me if you hav u yangmin Manager n Zigx odel Di nology Co., 03ZA2-V1, W re and electr ve any quest ng xico Te fferenc Ltd. (Smart W W03ZA3, W07 ric circuit are tion. echno ce Dec WI-FI Camer 7ZA2, W07Z the same, o ology C claratio ra); Trade Ma ZA3, W88ZA2 only color and Date: Co., Lt on ark: Zigxico, 2, W08ZA3, d model nam Mar. 28, 20 td. Model C1, C3; All med different. 023 .

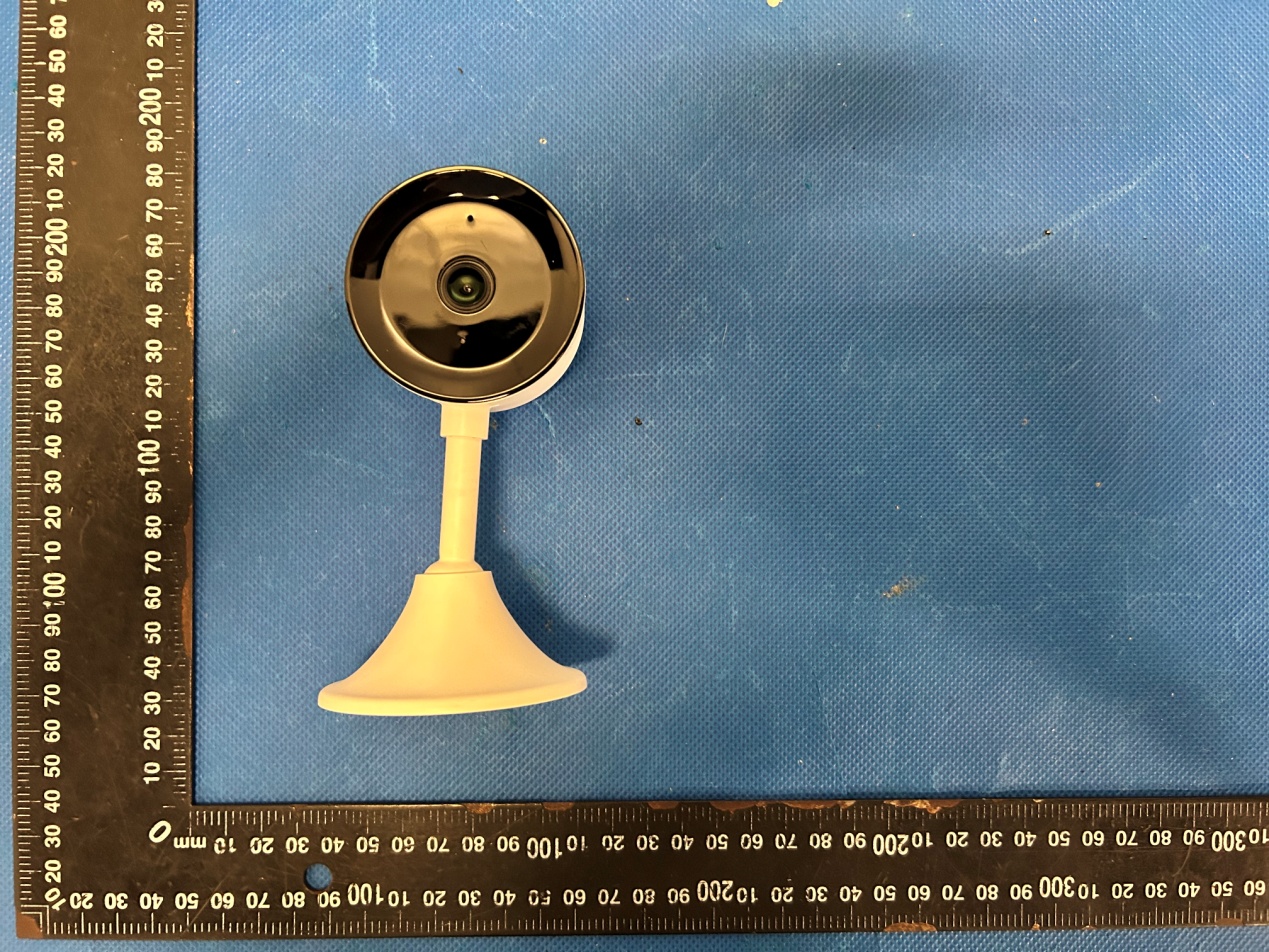

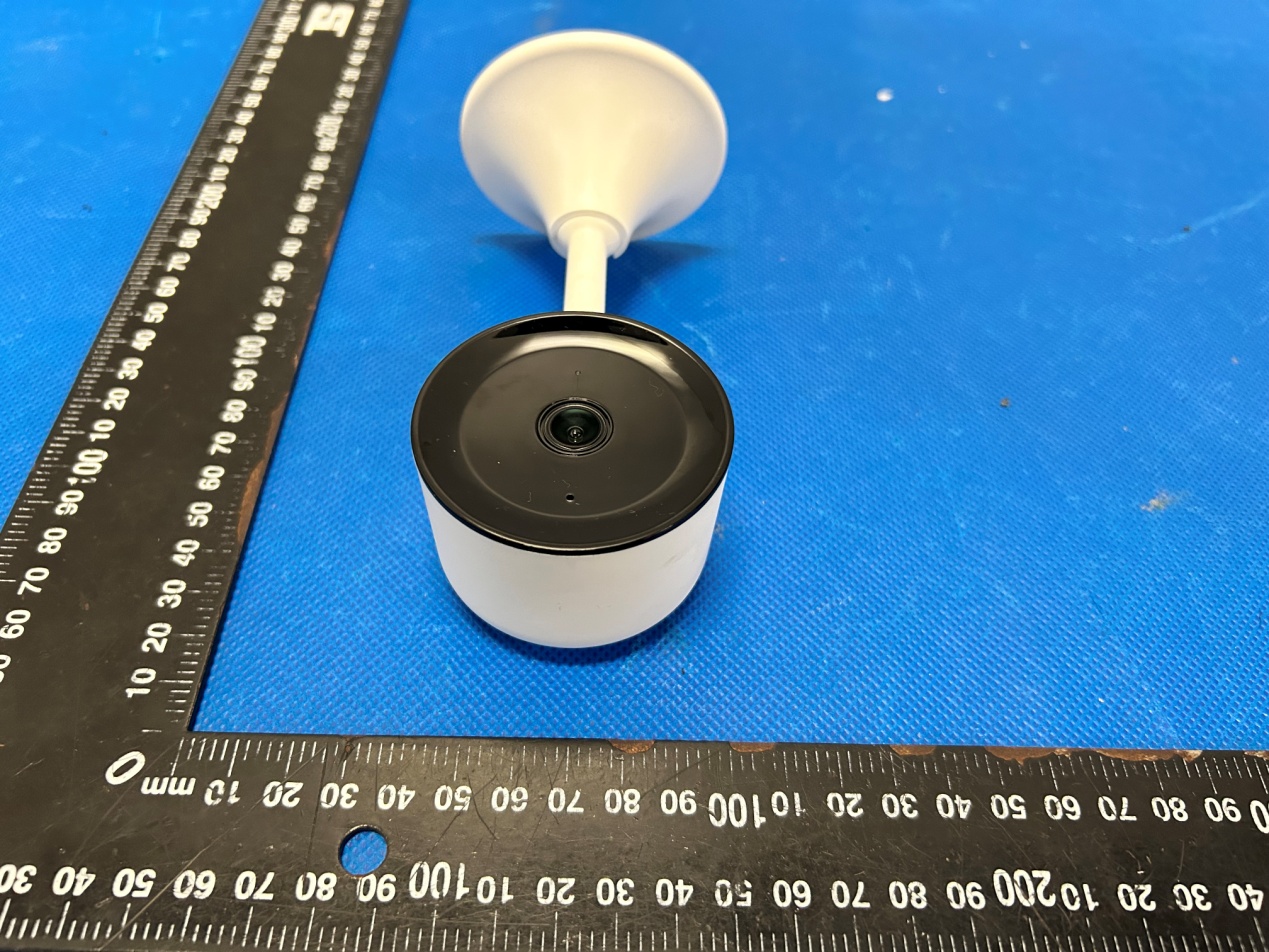

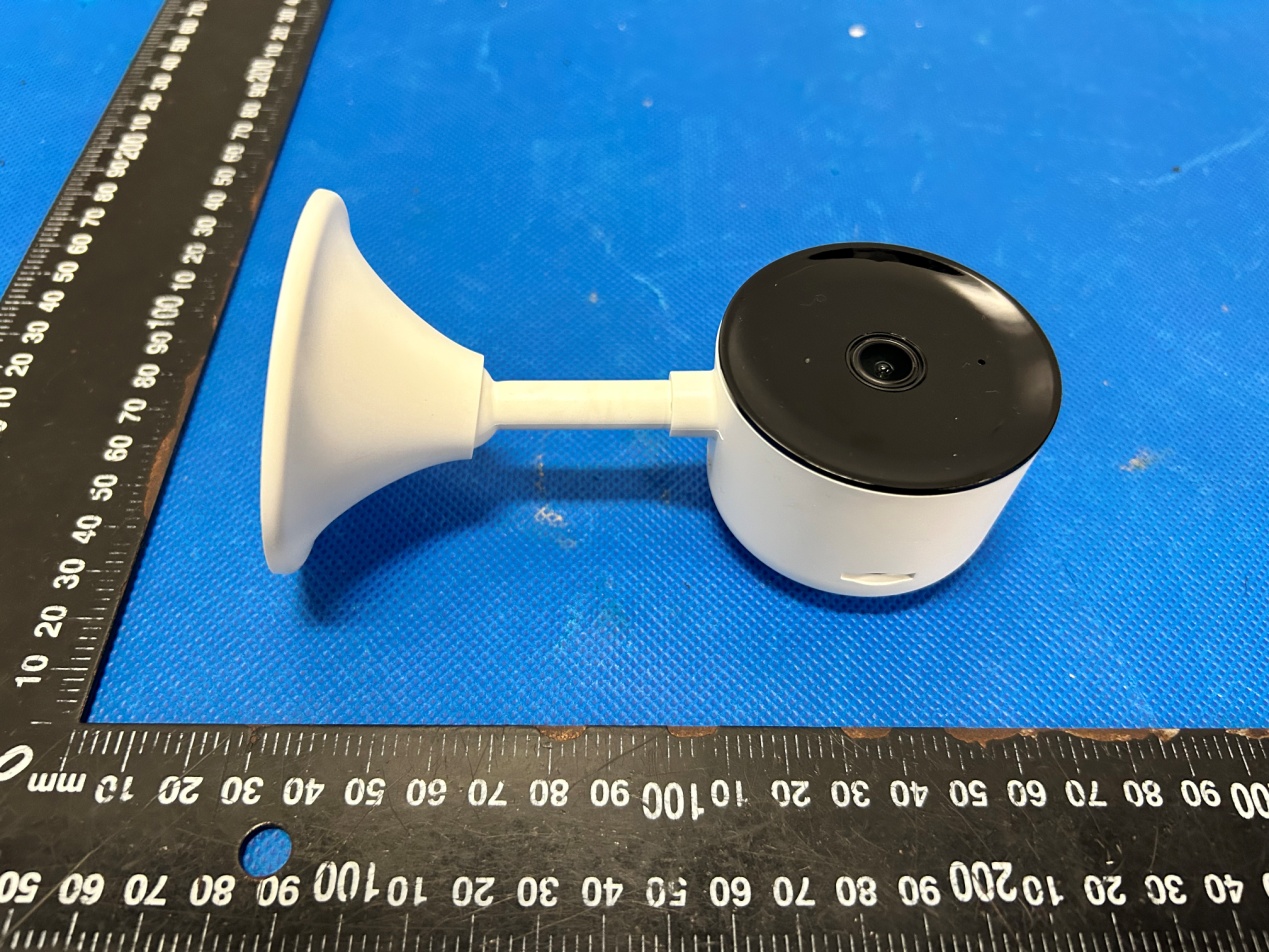

Annex A External Photos Report No.: HK2302270525-E Page 1 of 3 Report No.: HK2302270525-E Page 2 of 3 Report No.: HK2302270525-E Page 3 of 3

FCC ID LABEL: Ca: 10mm x 40mm Label Location FCC ID: 2AZHU-W03

Annex B Internal Photo Report No.: HK2302270525-E Page 1 of 4 Report No.: HK2302270525-E Page 2 of 4 Antenna Report No.: HK2302270525-E Page 3 of 4 Report No.: HK2302270525-E Page 4 of 4

MPE ESTIMATION FCC ID: 2AZHU-W03 1,Per FCC Part 2.1091 Radiofrequency radiation exposure evaluation: mobile devices, the limit for General Population/ Uncontrolled Exposures Frequency Power density (mW/ cm 2 ) Averaging time(minutes) 300MHz----1.5GHz F/1500 30 1.5GHz---100GHz 1.0 30 Note: F= Frequency in MHz 2, Estimation Result Mode Frequency (MHz) Max PK Output power(dBm) Tune Up Power(dBm) Max Tune Up power(mW) Antenna Gain(dBi) Antenna Gain (linear) MPE ( mW/cm²) WiFi 2452 19.03 19±1(20) 100 3.5 2.239 0.0445 Note: Note: The estimation distance is 20cm Note: PK Output power= conducted power. Conducted power see the test report HK2302270525-E, antenna gain=3.5dBi The certified sample is portable device, when the minimum test separation distance is >20 cm, a distance of 20 cm is applied to determine RF Exposure test exclusion. The test exclusion threshold is 0.0445 mW/cm² which is< 1.0mW/cm², RF Exposure testing is not required. -------The End-------

东莞地址：东莞市塘厦镇林村社区新太阳工业城79栋 杭州地址：杭州市滨江区秋溢路500号乐通科技园3栋106室 电话：0769-81777126 传真：0769-81777126 网址：www.ubuant.com 1 承认书 SPECIFICATIONFORAPPROVAL 客户名称 CUSTOMERNAME: 产品名称 PRODUCTNAME:2.4G 陶瓷贴片天线 客户料号 CUSTOMERP/N: 优比电子料号 UBP/N:UB01NP3D75AREV:A MANUFACTURER SIGNATURE CUSTOMER SIGNATURE CHECKEDBY: Mark.liang APPROVEDBY:Changxing.Liu DATE:2020/12/11 东莞地址：东莞市塘厦镇林村社区新太阳工业城79栋 杭州地址：杭州市滨江区秋溢路500号乐通科技园3栋106室 电话：0769-81777126 传真：0769-81777126 网址：www.ubuant.com 2 变更覆历Changecalendar 版本Version修改内容ContentRevised创建者Modifier时间Date AOriginalversionMark.Liang2020-12-11 东莞地址：东莞市塘厦镇林村社区新太阳工业城79栋 杭州地址：杭州市滨江区秋溢路500号乐通科技园3栋106室 电话：0769-81777126 传真：0769-81777126 网址：www.ubuant.com 3 Contents ltemDescription 1.-------------------------------------------------------------------ElectricalSpecification 2.---------------------------------------------------------------Testitemsandequipment 3.----------------------------------------------------------------------------------------VSWR 3.------------------------------------------------------------------ReturnLossandVSWR 4.-------------------------------------------------------EfficiencyandPeakGainValue 5.-------------------------------------------------------------------------RadiationPattern 6.------------------------------------------------------------------------------Activetestdata 7.--------------------------------------------------------------Antennainstallationdiagram 8.-----------------------------------------------------------------MechanicalSpecification 东莞地址：东莞市塘厦镇林村社区新太阳工业城79栋 杭州地址：杭州市滨江区秋溢路500号乐通科技园3栋106室 电话：0769-81777126 传真：0769-81777126 网址：www.ubuant.com 4 1.ElectricalSpecification: 2.Testitemsandequipment CharacteristicsSpecificationsUnit OutlineDimensions10.4x5.4x3.0mm WorkingFrequency2400~2500MHz InputImpedance50Ω VSWR2.0Max PolarizationLinearPolarization Gain3.0±0.5 dBi Efficiency≥40 % ConnectorTypeOpen Operatingtemperature -20 °C ~+70 °C StorageTemp -20 °C ~+50 °C TestitemsTestequipment Parameter 1.ReturnLoss 2.VSWR Networkanalyzer (AgilentE5071B) Passiveparameters ofthewholemachine 1.Frequency 2.Gain 3.Radiation Pattern 1.3Dmicrowavedarkroom (5m*5m*4m) 2.Networkanalyzer (AgilentE5071B) Activeparameters ofthewholemachine 1.TRP 2.TIS 1.3Dmicrowavedarkroom (5m*5m*4m) 2.Comprehensivetestinstrument (CMW500) 东莞地址：东莞市塘厦镇林村社区新太阳工业城79栋 杭州地址：杭州市滨江区秋溢路500号乐通科技园3栋106室 电话：0769-81777126 传真：0769-81777126 网址：www.ubuant.com 5 3.ReturnLossandVSWR *VoltageStandingWaveRatio(VSWR) ReturnLoss(RL) RL=20*log10[(VSWR+1)/(VSWR-1) 4.EfficiencyandGainValue Frequency (MHz) 240024502500 Efficiency (%) 56.152.0252.82 PeakGain (dB) 2.932.743.47 Frequency (MHz) ReturnLoss VSWR 2400-16.1181.37 2450-15.9371.37 2500-12.9021.58 东莞地址：东莞市塘厦镇林村社区新太阳工业城79栋 杭州地址：杭州市滨江区秋溢路500号乐通科技园3栋106室 电话：0769-81777126 传真：0769-81777126 网址：www.ubuant.com 6 5.RadiationPattern 5-1Antenan3DRadiationPattern 2400MHz 2450MHz 2500MHz 东莞地址：东莞市塘厦镇林村社区新太阳工业城79栋 杭州地址：杭州市滨江区秋溢路500号乐通科技园3栋106室 电话：0769-81777126 传真：0769-81777126 网址：www.ubuant.com 7 5-2Antenan2DRadiationPattern Phi02D Phi902D Theta902D Vertical Plane Horizontal Plane 东莞地址：东莞市塘厦镇林村社区新太阳工业城79栋 杭州地址：杭州市滨江区秋溢路500号乐通科技园3栋106室 电话：0769-81777126 传真：0769-81777126 网址：www.ubuant.com 8 6.Activetestdata: Antennacompletemachinetest 7.AntennaMatchingNetwork 8.Antennainstallationdiagram ElementValue E10.5PF E23.9NH E3N/A *Matchtheelectroniccomponentsaccordingtotheabovetoachievethereported antennaperformance Antenna Antenna 主板净空状态,若净空有设变需重新评估调试,以达到天线的最佳性能 整机外观 东莞地址：东莞市塘厦镇林村社区新太阳工业城79栋 杭州地址：杭州市滨江区秋溢路500号乐通科技园3栋106室 电话：0769-81777126 传真：0769-81777126 网址：www.ubuant.com 9 9.MechanicalSpecification

Page 1 of 70 Report No.: HK2302270525-E FCC TEST REPORT Test report On Behalf of Shenzhen Zigxico Technology Co., Ltd. For Smart WI-FI Camera Model No.: W03, W03ZA2, W03ZA2-V1, W03ZA3, W07ZA2, W07ZA3, W88ZA2, W08ZA3, C1, C3 FCC ID: 2AZHU-W03 Prepared For : Shenzhen Zigxico Technology Co., Ltd. 3F, building B, Shuichanjingwan First Industrial Park, Gushu,Xixiang Street, Baoan District, Shenzhen,China Prepared By : Shenzhen HUAK Testing Technology Co., Ltd. 1-2/F., Building B2, Junfeng Zhongcheng Zhizao Innovation Park, Heping, Fuhai Street, Bao’an District, Shenzhen, Guangdong, China Date of Test: Mar. 13, 2023 ~ Mar. 21, 2023 Date of Report: Mar. 21, 2023 Report Number: HK2302270525-E Applicant’s Address .... Manufact u Address .... Product d e Trade Mark Product na Model and / Standards This public Shenzhen H material. S assume liab to its placem Date of Tes Date (s) of Date of Iss u Test Result s name ..... .................. ure's Name .................. escription k: me .............. /or type refe ................. ation may b HUAK Testi Shenzhen H bility for dam ment and c st ............... performan c ue .............. .................. Te s Te c Aut TES ............ : S ............ : 3 S ............ : S ............ : 3 S Z ...............: S erence : W W ............ : F A be reproduc ing Technol HUAK Testi mages resu ontext. .................. ce of tests ... .................. .................. sting Engine chnical Man thorized Sig ST RESU Shenzhen Z 3F, building Street, Baoa Shenzhen Z 3F, building Street, Baoa Zigxico Smart WI-FI W03, W03ZA W88ZA2, W FCC Rules a ANSI C63.10 ced in whol ogy Co., Lt ing Techno ulting from t .......... : .......... : M .......... : M .......... : P eer : nager : gnatory : Page 2 of ULT CER Zigxico Tech B, Shuicha an District, S Zigxico Tech B, Shuicha an District, S Camera A2, W03ZA W08ZA3, C1 and Regulat 0: 2013 e or in par t d. is acknow ology Co., L the reader's Mar. 13, 2023 Mar. 21, 2023 ass f70 RTIFICAT hnology Co. anjingwan F Shenzhen,C hnology Co. anjingwan F Shenzhen,C A2-V1, W03 , C3 tions Part 15 t for non-co wledged as Ltd. takes s interpretat 3 ~ Mar. 21, 2 3 (Gary Qi a (Eden H u (Jason Zho Report TION , Ltd. First Industri China , Ltd. First Industri China ZA3, W07 Z 5 Subpart C ommercial p copyright o no respons ion of the re 2023 an) u) ou) No.: HK230 ial Park, Gu ial Park, Gu ZA2, W07ZA C Section 15 purposes as owner and s sibility for eproduced 02270525-E ushu,Xixian ushu,Xixian A3, 5.247 s long as th source of th and will n o material du g g e e ot e Page 3 of 70 Report No.: HK2302270525-E TABLE OF CONTENTS 1. TEST RESULT SUMMARY ........................................................................ 5 1.1. TEST PROCEDURES AND RESULTS ............................................................................................... 5 1.2. INFORMATION OF THE TEST LABORATORY ................................................................................ 5 1.3. MEASUREMENT UNCERTAINTY ..................................................................................................... 6 2. EUT DESCRIPTION ................................................................................... 7 2.1. GENERAL DESCRIPTION OF EUT ................................................................................................... 7 2.2. CARRIER FREQUENCY OF CHANNELS ..................................................................................................... 8 2.3. OPERATION OF EUT DURING TESTING .......................................................................................... 8 2.4. DESCRIPTION OF TEST SETUP ....................................................................................................... 9 3. ENERA INFORMATION ........................................................................... 10 3.1. TEST ENVIRONMENT AND MODE ................................................................................................. 10 3.2. DESCRIPTION OF SUPPORT UNITS .............................................................................................. 11 4. TEST RESULTS AND MEASUREMENT DATA ...................................... 12 4.1. CONDUCTED EMISSION ................................................................................................................. 12 4.2. TEST RESULT .................................................................................................................................. 14 4.3. MAXIMUM CONDUCTED OUTPUT POWER ................................................................................... 16 4.4. EMISSION BANDWIDTH .................................................................................................................. 18 4.5. POWER SPECTRAL DENSITY ........................................................................................................ 24 4.6. CONDUCTED BAND EDGE AND SPURIOUS EMISSION MEASUREMENT ................................. 27 4.7. RADIATED SPURIOUS EMISSION MEASUREMENT .................................................................... 41 4.8. ANTENNA REQUIREMENT ............................................................................................................. 67 5. PHOTOGRAPH OF TEST ........................................................................ 68 6. PHOTOS OF THE EUT ............................................................................ 70 Page 4 of 70 Report No.: HK2302270525-E ** Modified History ** Revision Description Issued Data Remark Revision 1.0 Initial Test Report Release Mar. 21, 2023 Jason Zhou Page 5 of 70 Report No.: HK2302270525-E 1. TEST RESULT SUMMARY 1.1. TEST PROCEDURES AND RESULTS Requirement CFR 47 Section Result Antenna requirement §15.203/§15.247(b)(4) PASS AC Power Line Conducted Emission §15.207 PASS Conducted Peak Output Power §15.247(b)(3) PASS 6dB Emission Bandwidth §15.247(a)(2) PASS Power Spectral Density §15.247(e) PASS Band Edge §15.247(d) PASS Spurious Emission …

Text truncated - open the document above for the full version.

W03 Radiated Emissions Conducted Emission
