UHF Wireless Microphone Instruction Manual TW364 Thank you for purchasing TONOR wireless microphone. This manual is intended to help you understand all about this microphone and how to use it. TONOR always strives for the ultimate user experience. All our knowledge and passion for audio technology are incorpo- rated into building microphones with high performance for you. The TONOR microphone is high quality and easy to use to achieve the best user experience. Enjoy your microphone! TONOR Team ABOUT THIS MANUAL Package Including x4 x4 x4 When using this device, keep it away from water. Use the device in ventilated environment, keep it away from fire. Since it's a wireless device, please keep it away from other interfering sources. Don't take apart the device. Please use the standard power supply, high voltage may damage the device. Please place the used batteries into the recycle bin, don't litter them. Frequency Response: 40Hz-18Khz Maximum Radio-frequency Power Transmitted: 8.5 dBm Operating Frequency(US): MIC: 915.4-926.8MHz Operating Range: Up to 60m Frequency Stability: ±10ppm SNR: ≥96dB Sound Distortion: ≤0.03% Mic Input Sensitivity: -52dB±3dB(0dB=1v/μ bar at 1KHz) RF Sensitivity: -95dBm Operating Temperature: 0 ̊C to +55 ̊C OPERATING ENVIRONMENTS & NOTES SPECIFICATIONS English or BODYPACK OPERATION INSTRUCTION 6 4 3 5 8 7 2 1 1. SET Button A. Click to change the frequency. B. When the bodypack is on, long press for 5 seconds into the pairing mode. C. When the bodypack is off, hold the SET button, then switch on the bodypack. Wait for about 10 seconds to switch between A and B bodypack or C and D bodypack. The LCD will show whether the switching is successful. Release the set button after success. 2. MUTE/VOL Click to turn on or mute the sound. Long press for 3 seconds into the volume adjustment mode, and the LCD screen will flash. Click the MUTE/VOL button to increase the volume, the highest level up to 40, and Click the SET button to decrease the volume, the lowest level down to 0. 3. 3.5mm Jack 4. LED Light Green for power on. Red for Mute. 5. On/Off Switch 6. Antenna 7. LCD Display 8. Battery Compartment Turn on all the microphones or bodypacks, but one of them has on sound. Reconnect the microphone or bodypack and receiver. Received signal with noise or interference Change to other frequencies. Check whether the receiving distance exceeds the maximum range. Microphone or bodypack cannot be tumed on Check whether batteries are installed correctly. Install new batteries. When multiple groups are used, the frequency of the receiver is unstable. One receiver can only be connected to four microphones or bodypacks. And each group has the same factory settings. Therefore, when using multiple groups, the microphones or bodypacks and receivers in each group need to be re-paired according to the STEPS TO PAIR. Each microphone or bodypack needs to be set with a unique frequency so that it will not interfere with each other. TROUBLESHOOTING TONOR provides 2 years of after-sales service, free replacement to products that are NOT damaged resulting from accident, alteration, misuse, negligence, or abuse. If exceeding 30 days of Amazon return policy, you can still contact us through our Shopify TONOR- MIC. We will serve you with full sincerity! WARRANTY Conditions and restrictions for using frequencies There may be special conditions and restrictions for using frequencies in your country. Before putting the product into operation, find the information for your country at the following address: https://www.tonormic.com/pages/permitted-frequency-bands FCC Caution: This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. ISED Statement English:This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. The digital apparatus complies with Canadian CAN ICES-3 (B)/NMB-3(B). French: Cet appareil contient des émetteurs/récepteurs exempts de licence qui sont conformes aux RSS exemptés de licence d'Innovation, Sciences et Développement économique Canada. L'exploitation est soumise aux deux conditions suivantes : (1) Cet appareil…

Text truncated - open the document above for the full version.

Fujian EastWest Lifewit Technology Co.,LTD Rm 1201-1205,Bld 18,2nd Phase of Innovation Park, no.7,Wulongjiang Mid- Ave,Fuzhou High-tech Zone Fuzhou, Fujian Province Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-7-26 To whom it may concern: We, Fujian EastWest Lifewit Technology Co.,LTD, hereby certify that the equipment for which authorization is sought (FCC ID: 2AZNY-TW366) is not “covered” equipment prohibited from receiving an equipment authorization pursuant to § 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, we are not identified on the Covered List (https://www.fcc.gov/supplychain/coveredlist) as an entity producing “covered” equipment. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(b) and (d)(5) and (6). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. Sincerely, Signature Yanbing Li Product Director Fujian EastWest Lifewit Technology Co.,LTD 62_[model] CoveredEqu_2.911(d)(5)(i) and (ii) - U, V03

FujianEastWestLifewitTechnologyCo.,LTD FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 7/24/24 U.S.AgentDesignation FujianEastWestLifewitTechnologyCo.,LTDacknowledgestheirconsentforthefollowingcontactlocatedin theUnitedStatestoactastheiragentforserviceofprocessfortheequipmentforwhichauthorizationissought (FCCID:2AZNY-TW366): NameandcompanyofU.S.agent:EASTWESTELECTRONICCOMMERCECOUSLIMITED PhysicalU.S.addressofagent:3500SouthDupontHighway,DoverDE19901US FRNofU.S.agent:0033602186 EmailaddressofU.S.agent:[email protected] EASTWESTELECTRONICCOMMERCECOUSLIMITEDacknowledgestheirobligationtoacceptserviceof processonbehalfofFujianEastWestLifewitTechnologyCo.,LTD. FujianEastWestLifewitTechnologyCo.,LTDwiththeFRN0030816284acceptsitsobligationtomaintainan agentforserviceofprocessintheUnitedStatesfornolessthanoneyearaftereitherthegranteehas permanentlyterminatedallmarketingandimportationoftheapplicableequipmentwithintheU.S.,orthe conclusionofanyCommission-relatedadministrativeorjudicialproceedinginvolvingtheequipment,whicheveris later. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslistedunder§ 2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB 986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotify theFCCwithin30daysviathegrantingTCB. Sincerely, Signature YanbingLi ProductDirector FujianEastWestLifewitTechnologyCo.,LTD Signature XUEFANGTANG Director EASTWESTELECTRONICCOMMERCECOUS LIMITED 4 8 _ [ m o d e l ] U S _ A g e n t _ 2 . 9 1 1 ( d ) ( 7 ) - U , V 0 5

Fujian EastWest Lifewit Technology Co.,LTD Add: Rm 1201-1205,Bld 18,2nd Phase of Innovation Park, no.7,Wulongjiang Mid- Ave,Fuzhou High-tech Zone Fuzhou, Fujian Province Date: 2024-7-26 FCC ID: 2AZNY-TW366 Dear Sir/Madam, We, Fujian EastWest Lifewit Technology Co.,LTD Hereby declares the following statement for Federal Communications Commission, PCB board, circuit, structure and internal of these model(s) are the same, Only model number is different for these model: Product name: WIRELESS MICROPHONE Model no.: TW364, TW360, TW362, TW380, TW382, TW384, TW386, TW388 Sincerely, Name/Title： Yanbing Li/Product Director Company: Fujian EastWest Lifewit Technology Co.,LTD Address: Rm 1201-1205,Bld 18,2nd Phase of Innovation Park, no.7,Wulongjiang Mid-Ave,Fuzhou High-tech Zone Fuzhou, Fujian Province Phone: +86-13655006868 Fax: +86-13655006868 E-Mail: [email protected]

CONFIDENTIALITY REQUEST for Certification Service in USA Federal Communication Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21046 Date:<2024-7-26> Pursuant to Paragraphs §0.457 and 0.459 of the Commission’s Rules (47 C.F.R.) and Section §552(b)(4) of the Freedom of Information Act, we requests confidentiality for the following products: FCC ID Model name 2AZNY-TW366 TW364 For the product stated above, we request that the following information be held confidential; Exhibits Long-Term Confidentiality Short-Term Confidentiality Short-Term Confidentiality Days External Photos Internal Photos Block Diagram Schematics Test Setup Photos User’s Manual Parts List Tune Up Operational Descriptions The long-term confidentiality exhibits contain our trade secrets and proprietary information that could be of benefit to our competitors. The short-term confidentiality on the basis of ensuring that business sensitive information remains confidential until the actual marketing of our new device. If you have any questions, please feel free to contact me at the address shown below. Sincerely, Name/Title： Yanbing Li/Product Director Company: Fujian EastWest Lifewit Technology Co.,LTD Address: Rm 1201-1205,Bld 18,2nd Phase of Innovation Park, no.7,Wulongjiang Mid-Ave,Fuzhou High-tech Zone Fuzhou, Fujian Province Phone: +86-13655006868 Fax: +86-13655006868 E-Mail: [email protected]

Fujian EastWest Lifewit Technology Co.,LTD Rm 1201-1205,Bld 18,2nd Phase of Innovation Park, no.7,Wulongjiang Mid-Ave,Fuzhou High-tech Zone Fuzhou, Fujian Province Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 2024-7-26 To whom it may concern: We, the undersigned, hereby authorize Eurofins Product Service GmbH to act on our behalf in all matters relating to applications for equipment authorization FCC ID: 2AZNY-TW366 including the signing of all documents related to these matters. Any and all acts carried out by Eurofins Product Service GmbH on our behalf shall have the same effect as acts of our own. By signing this application form, we agree to Eurofins’ current valid General Terms and Conditions (AGB),Testing and Certification Regulations (PZO) which can be viewed on following website www.eurofins.de/ee or retrieved on request. We also hereby certify that no party to this application is subject to a denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Sincerely, Name/Title： Yanbing Li/Product Director Company: Fujian EastWest Lifewit Technology Co.,LTD Address: Rm 1201-1205,Bld 18,2nd Phase of Innovation Park, no.7,Wulongjiang Mid-Ave,Fuzhou High-tech Zone Fuzhou, Fujian Province Phone: +86-13655006868 Fax: +86-13655006868 E-Mail: [email protected]

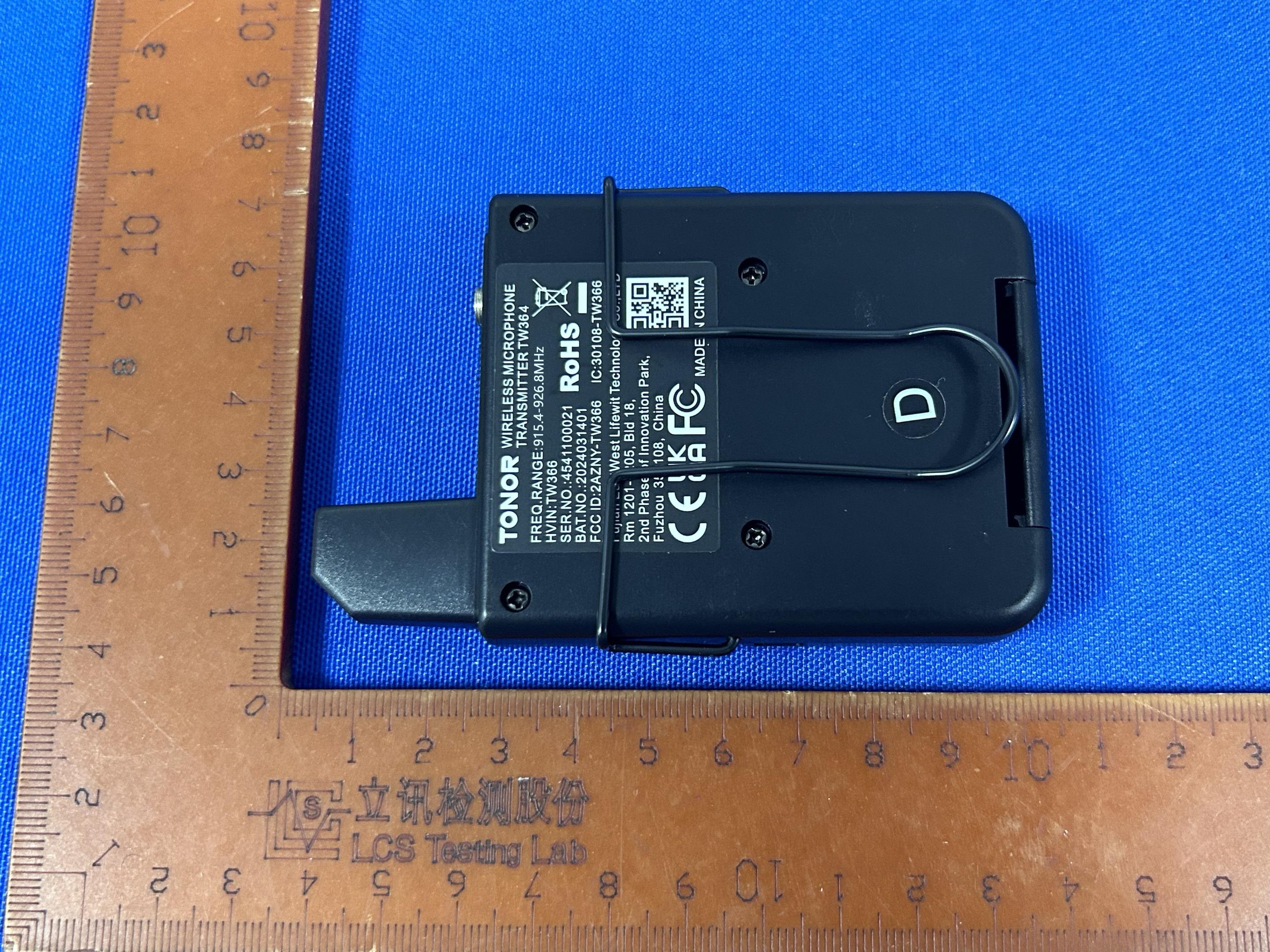

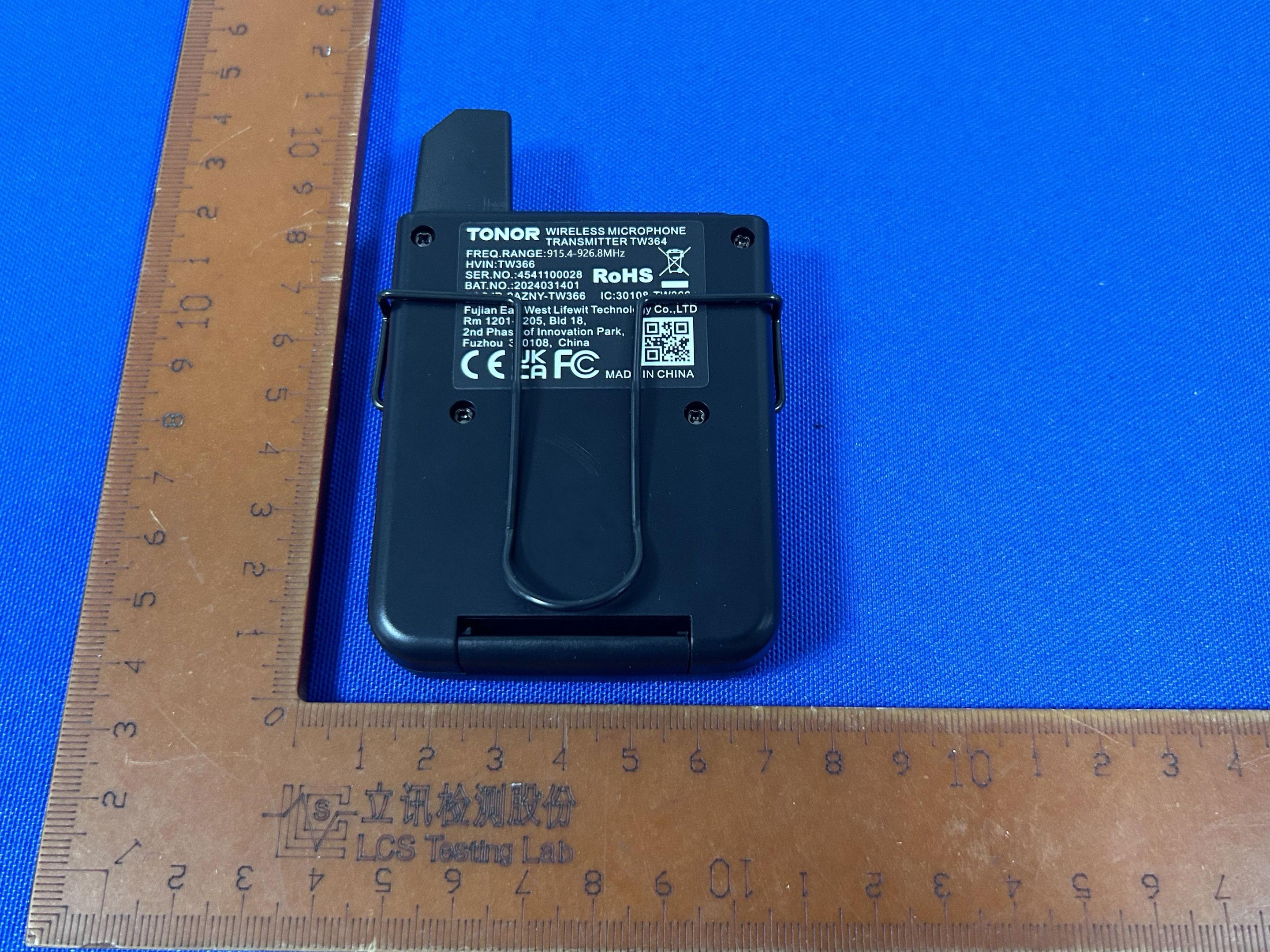

Page1of5FCCID:2AZNY-TW366 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of5FCCID:2AZNY-TW366 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of5FCCID:2AZNY-TW366 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of5FCCID:2AZNY-TW366 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8 Page5of5FCCID:2AZNY-TW366 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.9
