2AZNY-TW790WIRELESS MICROPHONE

UHF Wireless Microphone Instruction Manual TW790 Thank you for purchasing TONOR wireless microphone. This manual is intended to help you understand all about this microphone and how to use it. TONOR always strives for the ultimate user experience. All our knowledge and passion for audio technology are incorpo- rated into building microphones with high performance for you. The TONOR microphone is high quality and easy to use to achieve the best user experience. Enjoy your microphone! TONOR Team ABOUT THIS MANUAL Package Including x2 - When using this device, keep it away from water. - Use the device in ventilated environment, keep it away from fire. - Since it's a wireless device, please keep it away from other interfering sources. - Don't take apart the device. - Please use the standard power supply, high voltage may damage the device. - When the battery is low, the mic or receiver will automatically shut down. Please charge it. - Recommended to use the original charging cable for all charging equipment. Or use a Type-A to Type-C charging cable. - Not recommended to use equipment while charging. 1. Frequency range: 538.1-597.8MHz 2. Channels: 100ch/each channel 3. RF power: 10dBm 4. Frequency response: 40Hz-18kHz 5. T.H.D: ≤0.5% 6. Mic Battery: Lithium battery 14650 3.7V/1100mAh 7. Mic Charging Time: 3-4 hours 8. Mic Battery Life: 10 hours 9. Receiver powered: DC 13.5V, 1000mA 10. Working distance: Up to 80m OPERATING ENVIRONMENTS & NOTES SPECIFICATIONS English 1. Volume + - When adjusting the volume, the screen will display from U00 to U16. 2. Volume - - When adjusting the volume, the screen will display from U00 to U16. - Note that when the volume is adjusted to U00, it will return to U12 for hearing protection next time it is turned on. 3. Frequency Number - CHA from CH000 to CH099. CHB from CH100 to CH199. 4. Current Frequency 5. Microphone real-time battery level 6. IR Infrared Pairing Window 7. Power Switch with LED Indicator - Press and hold for two seconds to turn on and off the microphone. - The power indicator light is always green when the mic is turned on. 8. Wireless Charging Point MICROPHONE OPERATION INSTRUCTION 6 3 4 1 2 5 7 8 MHz 538.10 CH:000 1. Turn on the microphone and receiver. 2. Recommended Automatic setting: Press and hold the set button for 2 seconds for CHA to automatically search for the best frequency. When the receiver selects the frequency, align the microphone IR window with the receiver IR window within 20cm. Click the set button, and wait for 3 seconds. When the frequencies of the microphone and receiver are consistent, pairing is successful. If unsuccessful, click the set button again and wait 3 seconds to pair again. 3. Optional Manual setting: Click receiver up button 5 or down button 7 to choose the free frequency needed for CHA. Align the CHA IR window with the receiver IR window for CHA within 20cm. Click set button for CHA to pair. When the frequencies of the microphone and receiver are consistent, pairing is successful. If unsuccessful, click the set button again and wait 3 seconds to pair again. 4. Repeat 2 or 3 step for others to finish pairing for CHB. 5. The pairing steps of CHB are the same as CHA. When operating CHB, just follow the buttons on CHB. 6. Multiple sets used together: - Make sure all devices are turned off. Then turn on the first set of receivers and pair CHA and CHB according to step 2. Keep the paired microphone and receiver turned on. - Later turn on the second set of receivers and repeat step 2, and so on. Please keep paired devices turned on until all devices are paired. It is recommended that up to 6-7 sets be used at the same time. STEPS TO PAIR Turn on all the microphones, but one of them has on sound. Reconnect the microphone and receiver according to the STEPS TO PAIR. Received signal with noise or interference Change to other frequencies. Check whether the receiving distance exceeds the maximum range. Microphone cannot be tumed on. Check whether microphone is full charged. TROUBLESHOOTING TONOR provides 2 years of after-sales service, free replacement to products that are NOT damaged resulting from accident, alteration, misuse, negligence, or abuse. If exceeding 30 days of Amazon return policy, you can still contact us through our Shopify TONOR- MIC. We will serve you with full sincerity! WARRANTY EU Declaration of conformity • RoHS Directive (2011/65/EU) Hereby, Fujian EastWest Lifewit Technology Co.,LTD declares that the radio equipment type TW790 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.tonormic.com/pages/eu-declaration-of-conformity Conditions and restrictions for using frequencies Conditions and restrictions for using frequencies There may be special conditions and restrictions for using frequencies in your country. Before putting the product into operation, find the information for your country at the following address: https://www.tonormic.com/pages/permitted-frequency-bands ISED Statement CA This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device. This device operates on a no-interference, no-protechion basis. Should the user seek to obtain protection fiom other radio services operating in the same TV bands, a radio licence is required For finther details, consult Innovation, Science and Economic Development Canada's Client Procedures Circular CPC-2-1-28, VoluntaryLicensing ofLicence-Exempi Mireless Microphones in the I/Bands. FR L’émetteur/récepteur exempt de licence contenu dans le présent appareil est conforme aux CNR d’Innovation, Sciences et Dévelop- pement économique Canada applicab…

Text truncated - open the document above for the full version.

Fujian Ea stW est Life wit Technology Co.,LTD Federa l Communications Commission Authori zation and Evaluation Division Equipment Authori zation Bra nch 7435 Oakland Mills Road Columbia, MD 21046 U.S. Agent Designatio 6/27/24 n Name and company of U.S. agent:EASTWEST ELECTRONIC COMMERCE CO US LIMITED Physical U.S. addre ss of agent:3500 South Dupont Highway, Dover DE 19901 US FRN of U.S. agent:003360218 Fujian EastWest Lifewit Technology Co.,LTD acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2AZNY-TW790): 6 Email addre ss of U.S. agent:[email protected] EASTWEST ELECTRONIC COMMERCE CO US LIMITEDacknowledges their obligation to accept serv ice of pro cess on behalf ofFujian EastW est Life wit Technology Co.,LTD. Fujian EastW est Life wit Technology Co.,LTDwith the FRN0030816284accepts its obligation to maintain an agent for serv ice of pro cess in the United States for no less than one year after either the gra ntee has perm anently term inated all marketing and import a tion of the applicable equipment within the U.S., or the conclusion of any Commission-re lated administra tive or judicial pro ceeding involving the equipment, whichever is later. By signing this form , we confirm the above and that we are aware of the application re quire ments listed under § 2.911(d )(7 ). The inform ation pro vided in this letter is based on the re fere nced ru le part s of Title 47 of the CFR as well as KDB 986446 D01. An expira tion date for this letter does not exis t. In case the U.S. agent changes, the gra ntee is obligated to notify the FCC within 30 days via the gra nting TCB. Sincerely, Signature YanbingLi ProductDirector FujianEastWestLifewitTechnologyCo.,LTD Signature XUEFANGTANG Director EASTWESTELECTRONICCOMMERCECOUS LIMITED 48_[model] US_Agent_2.911(d)(7)-U, V05

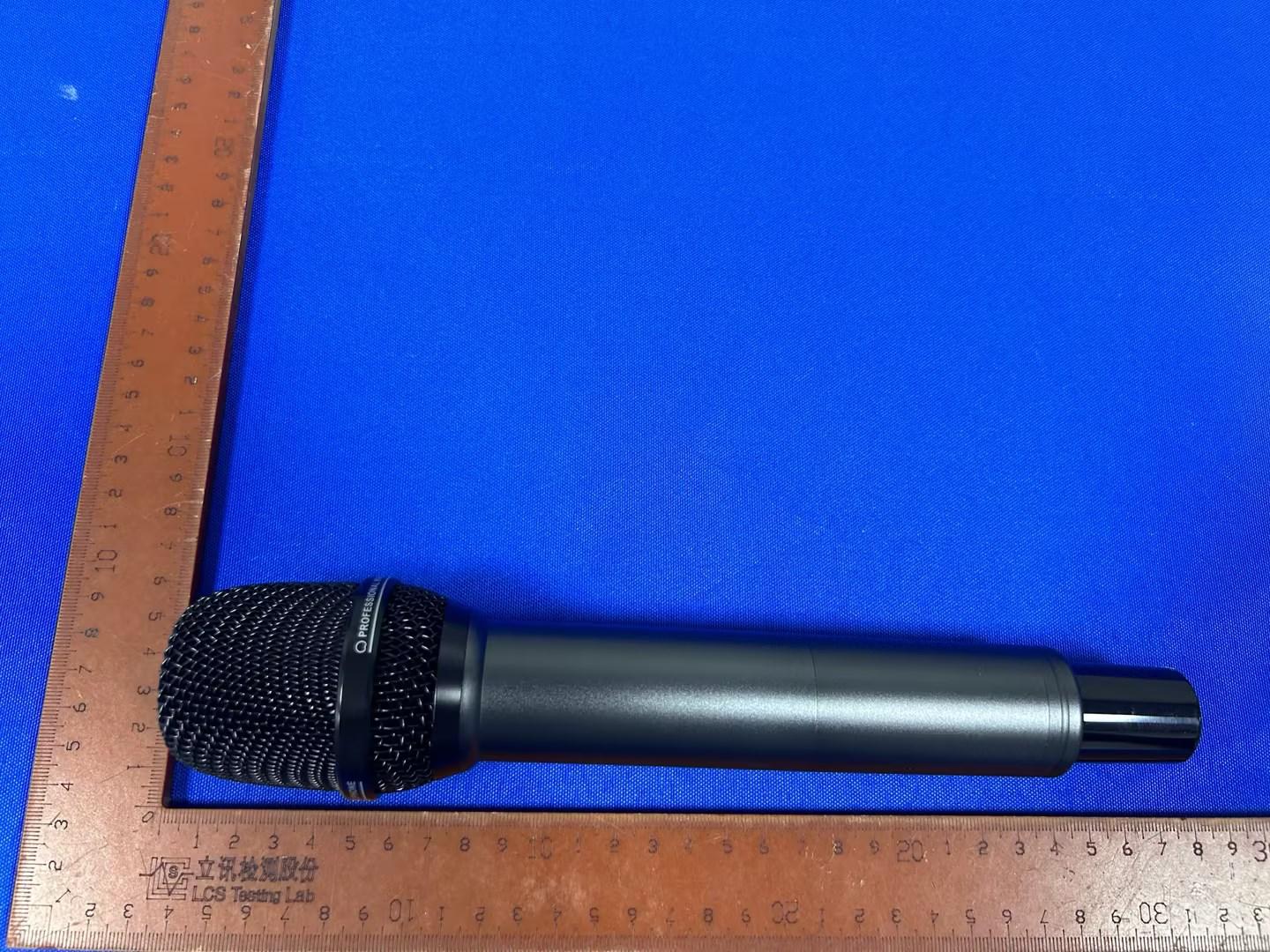

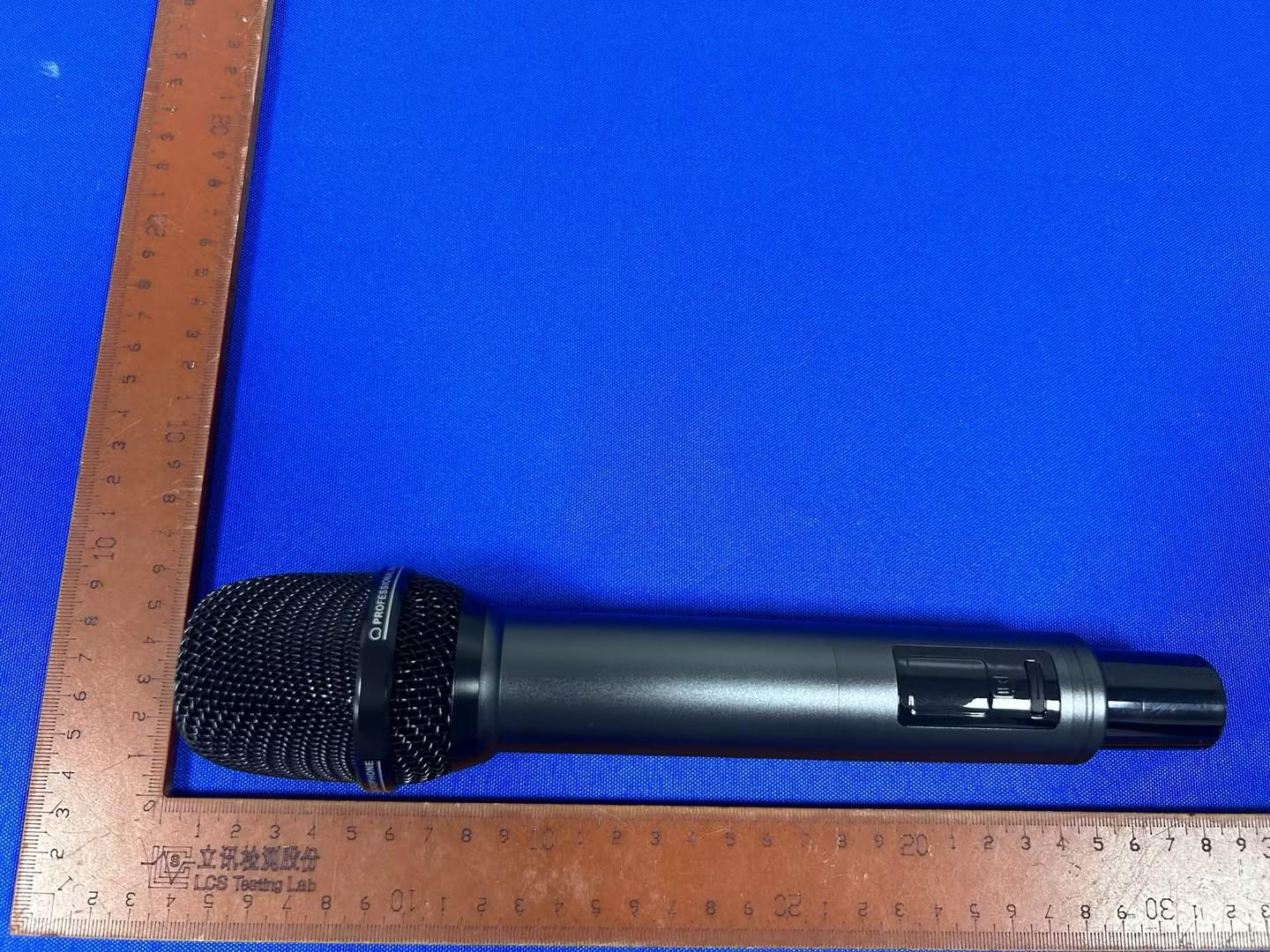

Page1of4FCCID:2AZNY-TW790 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity ExternalPhotosoftheEUT Fig.1 Fig.2 Page2of4FCCID:2AZNY-TW790 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.3 Fig.4 Page3of4FCCID:2AZNY-TW790 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.5 Fig.6 Page4of4FCCID:2AZNY-TW790 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity Fig.7 Fig.8

Page1of1FCCID:2AZNY-TW790 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity LABELANDLOCATION Material:tagboard Gule:adhesivesticker Fontcolor:white Labelcolor:black&silverpolyester (Size:L4.0cmxW2.0cm) LabelLocation WIRELESSMICROPHONE Model:TW790 FCCID:2AZNY-TW790

Page1of2FCCID:2AZNY-TW790 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCRFExposureEvaluation 1.ProductInformation ProductnameWIRELESSMICROPHONE TestModelTW790 AdditionalModelNo.TW760,TW762,TW770,TW772,TW780,TW782,TW792 ModelDeclarationPCBboard,structureandinternalofthesemodel(s)arethesame,Sonoadditional modelsweretested PowersupplyDC3.7VbyRechargeableLi-ionBattery,1100mA HardwareVersionCD-06TX(V3.1B) SoftwareVersionfw5000_ab8918a_cd-06tx_(538d1_597d8)_9801_(D80E9294_FF14C0B9)_20240403 FrequencyRange530MHz~599MHz ChannelNumber200channels ModulationTypeFM AntenneDescriptionInternalantenna,3dBi(Max.) ExposurecategoryGeneralpopulation/uncontrolledenvironment EUTTypeProductionUnit DeviceTypePortableDevice 2.EvaluationmethodandLimit AccordingtoKDB447498D01GeneralRFExposureGuidancev06Section4.3.1StandaloneSAR testexclusionconsiderations:“UnlessspecificallyrequiredbythepublishedRFexposureKDB procedures,standalone1-gheadorbodyand10-gextremitySARevaluationforgeneralpopulation exposureconditions,bymeasurementornumericalsimulation,isnotrequiredwhenthe correspondingSARTestExclusionThresholdcondition,listedbelow,issatisfied.Thesetest exclusionconditionsarebasedonsource-basedtime-averagedmaximumconductedoutputpower oftheRFchannelrequiringevaluation,adjustedfortune-uptolerance,andtheminimumtest separationdistancerequiredfortheexposureconditions.22Theminimumtestseparationdistance isdeterminedbythesmallestdistancefromtheantennaandradiatingstructuresoroutersurfaceof thedevice,accordingtothehostformfactor,exposureconditionsandplatformrequirements,toany partofthebodyorextremityofauserorbystander(see5)ofsection4.1).ToqualifyforSARtest exclusion,thetestseparationdistancesappliedmustbefullyexplainedandjustifiedbythe operatingconfigurationsandexposureconditionsofthetransmitterandapplicablehostplatform requirements,typicallyintheSARmeasurementorSARanalysisreport,accordingtotherequired publishedRFexposureKDBprocedures.WhennootherRFexposuretestingorreportingis required,astatementofjustificationandcompliancemustbeincludedintheequipmentapproval,in lieuoftheSARreport,toqualifyfortheSARtestexclusion.Whenrequired,thedevicespecific conditionsdescribedintheotherpublishedRFexposureKDBproceduresmustbesatisfiedbefore applyingtheseSARtestexclusionprovisions;forexample,handheldPTTtwo-wayradios,handsets, laptops&tabletsetc.23“ [(max.powerofchannel,includingtune-uptolerance,mW)/(min.testseparationdistance, mm)]·[√f(GHz)]≤3.0for1-gSARand≤7.5for10-gextremitySAR,where: •f(GHz)istheRFchanneltransmitfrequencyinGHz •PoweranddistanceareroundedtothenearestmWandmmbeforecalculation •Theresultisroundedtoonedecimalplaceforcomparison •3.0and7.5arereferredtoasthenumericthresholdsinthestep2below Thetestexclusionsareapplicableonlywhentheminimumtestseparationdistanceis≤50mm andfortransmissionfrequenciesbetween100MHzand6GHz.Whentheminimumtest separationdistanceis<5mm,adistanceof5mmaccordingtof)insection4.1isappliedto determineSARtestexclusion. Page2of2FCCID:2AZNY-TW790 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity 3.Referevaluationmethod ANSIC95.1–1999:IEEEStandardforSafetyLevelswithRespecttoHumanExposuretoRadio FrequencyElectromagneticFields,3kHzto300GHz. FCCKDBpublication447498D01GeneralRFExposureGuidancev06:MobileandPortable DevicesRFExposureProceduresandEquipmentAuthorizationPolicies. FCCCFR47part11.1310:Radiofrequencyradiationexposurelimits. FCCCFR47part22.1093:Radiofrequencyradiationexposureevaluation:portabledevices 4.ConductedPowerResults TestMode Frequency (MHz) Measured MaximumPeak Power(dBm) Limits (dBm) Verdict FM538.18.09624PASS FM567.87.72324PASS FM597.87.99224PASS 5.Manufacturingtolerance FMChannel(MHz)(Peak) Frequency538.1567.8597.8 Target(dBm) 8.0 7.07.0 Tolerance±(dB) 1.0 1.01.0 6.EvaluationResults Band/Modef(GHz) AntennaDistance (mm) RFoutputpower SARTestExclusion Threshold SARTest Exclusion dBmmW FM0.538159.07.94331.1654<3.0Yes FM0.567858.06.30960.9511<3.0Yes FM0.597858.06.30960.9757<3.0Yes Remark: 1.Outputpowerincludingtuneuptolerance; 2.Whentheminimumtestseparationdistanceis<5mm,adistanceof5mmaccordingtof)in section4.1ofKDB447498isappliedtodetermineSARtestexclusion. 7.Conclusion ThemeasurementresultscomplywiththeFCCLimitper47CFR2.1093fortheuncontrolledRF ExposureandSARExclusionThresholdperKDB447498v06. .......................THEENDOFREPORT.........................

CD-06 TX Antenna Specification 3 、 Antenna Radiation Pattern : Radiation Pattern@4 70-960MHz angle 。 45 90 1 35 1 80 2 35 2 70 3 1 5 Attenu ation - 1 5 - 5 - 8 - 9 - 2 0 - 2 3 - 1 5 - 1 0 value Ma x A n te n na g a in : 3 d B i A n te n na im p e d a nc e : 5 0 o h m s Su pplier: E nping Hai yu e E lectronics F actor y

Page 1 of 31 FCCID:2AZNY-TW790ReportNo.:LCSA06144018EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT For FujianEastWestLifewitTechnologyCo.,LTD WIRELESSMICROPHONE TestModel:TW790 AdditionalModelNo.:PleaseRefertoPage6 Preparedfor:FujianEastWestLifewitTechnologyCo.,LTD Address:Rm1201-1205,Bld18,2ndPhaseofInnovationPark,no.7, WulongjiangMid-Ave,FuzhouHigh-techZone,Fuzhou,Fujian Province Preparedby:ShenzhenLCSComplianceTestingLaboratoryLtd. Address:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China Tel:(+86)755-82591330 Fax:(+86)755-82591332 Web:www.LCS-cert.com Mail:[email protected] Dateofreceiptoftestsample:June20,2024 Numberoftestedsamples:2 SampleNo:A240614061-1,A240614061-2 Serialnumber:Prototype DateofTest:June20,2024~July11,2024 DateofReport:July12,2024 Page 2 of 31 FCCID:2AZNY-TW790ReportNo.:LCSA06144018EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCCTESTREPORT FCCCFR47PART74 ReportReferenceNo......................:LCSA06144018EA DateofIssue.......................................: July12,2024 TestingLaboratoryName..............:ShenzhenLCSComplianceTestingLaboratoryLtd. Address................................................:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei, ShajingStreet,BaoanDistrict,Shenzhen,518000,China TestingLocation/Procedure............:FullapplicationofHarmonisedstandards■ PartialapplicationofHarmonisedstandards□ Otherstandardtestingmethod□ Applicant’sName.............................:FujianEastWestLifewitTechnologyCo.,LTD Address................................................:Rm1201-1205,Bld18,2ndPhaseofInnovationPark,no.7, WulongjiangMid-Ave,FuzhouHigh-techZone,Fuzhou,Fujian Province TestSpecification Standard..............................................: FCCCFR47PART74 TestReportFormNo......................:LCSEMC-1.0 TRFOriginator....................................:ShenzhenLCSComplianceTestingLaboratoryLtd. MasterTRF.........................................:Dated2011-03 ShenzhenLCSComplianceTestingLaboratoryLtd.Allrightsreserved. Thispublicationmaybereproducedinwholeorinpartfornon-commercialpurposesaslongasthe ShenzhenLCSComplianceTestingLaboratoryLtd.isacknowledgedascopyrightownerandsourceofthe material.ShenzhenLCSComplianceTestingLaboratoryLtd.takesnoresponsibilityforandwillnot assumeliabilityfordamagesresultingfromthereader'sinterpretationofthereproducedmaterialduetoits placementandcontext. EUTDescription...............................:WIRELESSMICROPHONE TradeMark..........................................:TONOR TestModel...........................................: TW790 Ratings.................................................: DC3.7VbyRechargeableLi-ionBattery,1100mA Result...................................................: Positive Compiledby:Supervisedby:Approvedby: KevinHuang/AdministratorCaryLuo/TechniqueprincipalGavinLiang/Manager Page 3 of 31 FCCID:2AZNY-TW790ReportNo.:LCSA06144018EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity FCC--TESTREPORT TestModel...........................:TW790 EUT.........................................:WIRELESSMICROPHONE Applicant...............................: FujianEastWestLifewitTechnologyCo.,LTD Address..................................:Rm1201-1205,Bld18,2ndPhaseofInnovationPark,no.7, WulongjiangMid-Ave,FuzhouHigh-techZone,Fuzhou,Fujian Province Telephone...............................: / Fax..........................................: / Manufacturer........................: FujianEastWestLifewitTechnologyCo.,LTD Address...................................:Rm1201-1205,Bld18,2ndPhaseofInnovationPark,no.7, WulongjiangMid-Ave,FuzhouHigh-techZone,Fuzhou,Fujian Province Telephone...............................: / Fax..........................................: / Factory...................................: FujianEastWestLifewitTechnologyCo.,LTD Address...................................:Rm1201-1205,Bld18,2ndPhaseofInnovationPark,no.7, WulongjiangMid-Ave,FuzhouHigh-techZone,Fuzhou,Fujian Province Telephone...............................:/ Fax..........................................:/ TestResultPositive Thetestreportmerelycorrespondstothetestsample. Itisnotpermittedtocopyextractsofthesetestresultwithoutthewrittenpermissionofthetestlaboratory. TestReportNo.:LCSA06144018EA July12,2024 Dateofissue Page 4 of 31 FCCID:2AZNY-TW790ReportNo.:LCSA06144018EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity RevisionHistory RevisionIssueDateRevisionContentRevisedBy 000July12,2024InitialIssue-- Page 5 of 31 FCCID:2AZNY-TW790ReportNo.:LCSA06144018EA ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TABLEOFCONTENTS 1.GENERALINFORMATION....................................................................................................................................................6 1.1.DESCRIPTIONOFDEVICE(EUT)............................................................................................................................…

Text truncated - open the document above for the full version.

Page1of1FCCID:2AZNY-TW790 ShenzhenLCSComplianceTestingLaboratoryLtd. Add:101,201BldgA&301BldgC,JujiIndustrialParkYabianxueziwei,ShajingStreet,BaoanDistrict,Shenzhen, 518000,China Tel:+(86)0755-82591330|E-mail:[email protected]|Web:www.lcs-cert.com Scancodetocheckauthenticity TestSetupPhotosoftheEUT Below1GHz Above1GHz
