2AZP5-E506TASmart Phone

1 Attentions SWITCH OFF IN HOSPITALS Please abide by relevant provisions or regulations. Please turn off your mobile phone near medical equipment. SWITCH OFF WHEN REFUELING Don’t use the phone at a refueling point. Don’t use near fuel or chemicals. Micro SIM CARDS ARE PORTABLE Keep your phone, phone parts and accessories out of children’s reach. BATTERY Please do not destroy or damage the battery, it can be dangerous and cause fire. Please do not throw battery in fire to avoid hazard. When battery cannot be used, please dispose in safe environment. Do not try to dismantle the battery. If the battery or the charger is broken or old, please stop using them, and replace with certified genuine battery USE QUALITY EQUIPMENT Use authorized equipment to avoid danger ROAD SAFETY COMES FIRST Give full attention while driving, Park before using your phone. Please follow traffic rules of local citytown. 2 INTERFERENCE All wireless devices may be susceptible to cause interference, which could affect performance. SWITCH OFF IN AIRCRAFT Wireless devices can cause interference in aircraft. It’s not only dangerous but also illegal to use mobile phone in an aircraft. Get Started Get to grip with the basics and have your phone up and running in no time. Over View USB port Headset Jack Receiver Front Camera Touch Screen Microphone Volume Key Power Key Rear Camera Flash 3 Keys definition Keys Definition Power key (Right side) a) Press to Turns on/off the screen. b) Press and Hold to power off, restart the phone or screenshot. Volume key (Right side) a) Press when call is in progress, increase or decrease the volume, when the phone is ringing, silences the ringer. On the home screen when no call in progress, increase or decrease the media volume.In other applications, controls the volume of music, spoken directions and other audio. Recent key Press to open recently used programs list Home key a) Tap to return to Home screen b) Long press to enter Google Assistant Back key a) Tap to return to the previous screen. 4 Insert SIM card and SD card 1.<1>Insert SIM card 1: We can put the SIM card 1 into the right side card slot of the phone. <2>Insert SIM card 2: We can insert the SIM card 2 into SIM card 2 slot. 2. The SD card should be installed in the micro SD card slot. ★Tip:The SIM card is a small part. Please keep away from Children to avoid swallowing the card by accident. Please do not touch the metal surface of SIM card and away from electromagnetic field to avoid damage data. 5 Charge the Battery Charge the battery before using it. Connect the USB cable to the USB power adaptor, and then plug the end of the USB cable into the USB Port. ★Tip:You can use USB charging when a wall outlet is not available. Data can be transferred while charging the device. The efficiency of USB charging power varies significantly, and it may take a long time for charging to start and the device to start functioning. First connect the USB cable to computer USB port, then to your phone. When charging is done, first disconnect the USB cable from your phone, then from the computer USB port. First start-up Learn how to get your new phone up and running. Basic operations ● Turn on the phone Press and hold a while of power key to turn on the phone. If the power is enough, The mobile phone will boot. 6 ● Turn off the phone Long press the power key until a menu will show. Choose “Power off’’ to turn off the phone. ● Reboot the phone Option 1: Long press the power key until a menu will show. Choose “Restart” to restart the phone. Option 2: Long press the power key till 10 seconds to auto restart the phone. ● Airplane mode Drop the status bar ,click on the airplane mode icon. ● Lock the screen Option 1: Press the power key to turn off the screen and lock it Option 2: The screen will auto lock if you don't use the phone for a while. ● Unlock the screen Option 1:Press the power key, and then swipe the screen upward for unlocking. Toolbox operation ● Enable the toolbox Swipe the touch panel from top to bottom,then can enable the toolbox. 7 Touch operations ● Touch: To act on items on the screen, such as application and settings icons, to type letters and symbols using the onscreen keyboard, or to press onscreen buttons, you simply touch them with your finger. ● Touch & hold: Touch & hold an item on the screen by touching it and not lifting your finger until an action occurs. ● Drag: Touch & hold an item for a moment and then, without lifting your finger, move your finger on the screen until you reach the target position. You drag items on the Home screen to reposition them and you drag to open the Notification panel. ● Swipe or slide: To swipe or slide, you quickly move your finger across the surface of the screen, without pausing when you first touch (so you don’t drag an item instead). For example, you slide the screen up or down to scroll a list, and in some Calendar views you swipe quickly across the screen to change the range of time visible. ● Pinch: In some applications (Such as Mapsand Gallery) you can zoom in and out by placing two fingers on the screen at once and pinching them together (to zoom out) or spreading them apart (to zoom in). ● Rotate the screen: On most screens, the orientation of the screen rotates with the phone as you turn it from upright to its side and back again. You can turn this feature on and off. Warnings and notes IMPORTANTINFORMATION ON SAFE AND EFFICIENT OPERATION. Read this information before using your phone. For the safe and efficient operation of your phone, observe these guidelines: Potentially explosive at atmospheres:Turn off your phone when you are in any areas with a potentially explosive atmosphere, such as fueling areas (gas or petrol stations, below deck on boats), storage facilities for fuel or chemicals, blasting areas and areas near electrical 8 blasting caps, and areas where there are chemicals or particles (Such as metal powders, grains, and dust) in the air. Interference to medical and pe…

Text truncated - open the document above for the full version.

2021-08-06 Nemko Canada Inc 303 River Road Ottawa, Ontario, Canada K1V 1H2 Attn: Director of Certification Authority to Act as Agent On our behalf, I appoint Shenzhen Huatongwei International Inspection Co., Ltd./ 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China / Hans Hu,. to act as our agent in the preparation of this application for equipment certification. I certify that submitted documents properly describe the device or system for which equipment certification is sought. I also certify that each unit manufactured, imported or marketed, as defined in the Federal Communications Commission’s regulations will have affixed to it a label identical to that submitted for approval with this application. For instances where our authorized agent signs the application for certification on our behalf, I acknowledge that all responsibility for complying with the terms and conditions for certification, as specified by Nemko Canada Inc, still resides with DUO AMERICA, LLC / 8925 NW 26TH ST, DORAL, MIAMI, Florida, United States Agency agreement expiration date: Aug. 05, 2022 By: JOHN NAM Signature Printed Title: Manager On behalf of : DUO AMERICA, LLC Telephone: 305 392 6998

2021-08-06 Equipment Autorisation Division Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: 2AZP5-E506TA Product Name: Smart Phone Request for Confidentiality Pursuant to Sections 0.457 and 0.459 of the commissions rules, we hereby request that the following documents be held confidential:  Schematics  Block diagram  Operation description  BOM  Tune up These materials contain trade secrets and proprietary information and are not customarily released to the public. The public disclosure of this information might be harmful to the company and provide unjustified benefits to our competitors. By: JOHN NAM Signature Printed Title: Manager On behalf of : DUO AMERICA, LLC Telephone: 305 392 6998

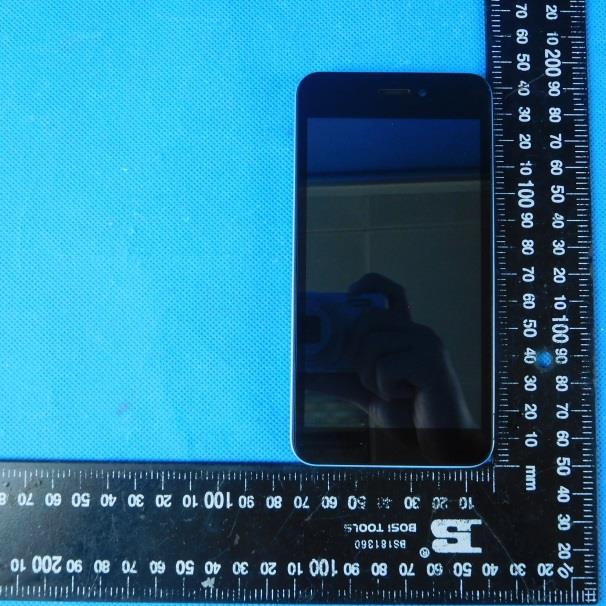

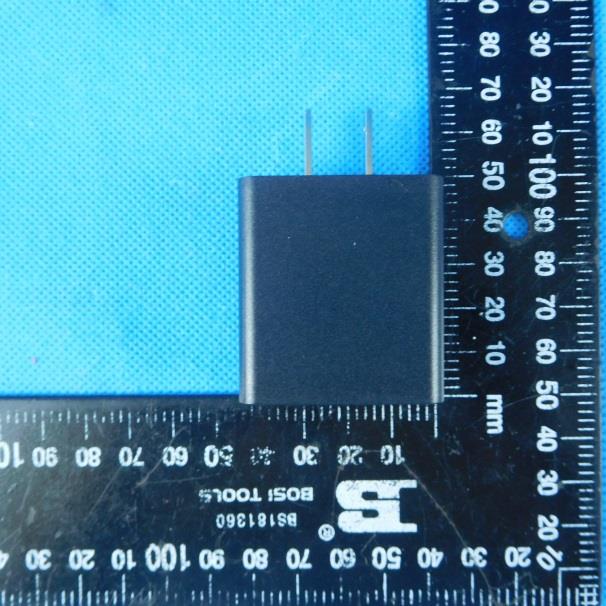

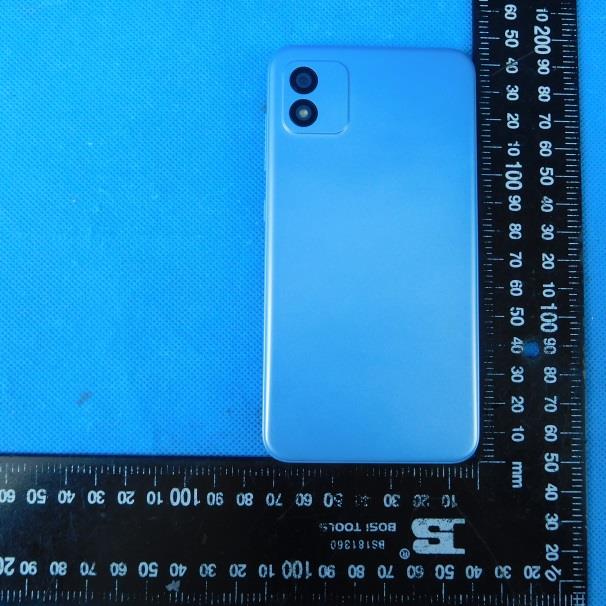

7.EXTERNAL AND INTERNAL PHOTOS OF THE EUT External photos of the EUT M odel:E506

Internal photos of the EUT Model:E506

Page: 1 of 57 TEST REPORT Report No. ...................................... : CHTEW21070173 Report verificaiton: Project No. ...................................... : SHT2107001004EW FCC ID ............................................. : 2AZP5-E506TA Applicant’s name ........................... : DUO AMERICA, LLC Address ............................................. : 8925 NW 26TH ST, DORAL, MIAMI, Florida, United States Test item description .................... : Smart Phone Trade Mark ....................................... : HYUNDAI Model/Type reference ....................... : E506 Listed Model(s) ................................. : - Standard ......................................... : FCC 47 CFR Part2.1093 IEEE Std C95.1, 1999 Edition IEEE 1528: 2013 Date of receipt of test sample..........: Jul. 02, 2021 Date of testing..............................: Jul. 03, 2021- Jul. 26, 2021 Date of issue...............................: Jul. 27, 2021 Result .................. ........................: PASS Compiled by ( position+printedname+signature) ... : File administrators:Silvia Li Supervised by ( position+printedname+signature) ... : Test Engineer: Patrick Qiu Approved by ( position+printedname+signature) ... : Manager: Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW21070173 Page: 2 of 57 Issued: 2021-07-27 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1. Statement of Compliance 4 2. Test Standards and Report version 5 2.1. Test Standards 5 2.2. Report version 5 3. Summary 6 3.1. Client Information 6 3.2. Product Description 6 3.3. RF Specification Description 6 3.4. Testing Laboratory Information 8 3.5. Environmental conditions 8 4. Equipments Used during the Test 9 5. Measurement Uncertainty 10 6. SAR Measurements System Configuration 11 6.1. SAR Measurement Set-up 11 6.2. DASY5 E-field Probe System 12 6.3. Phantoms 13 6.4. Device Holder 13 7. SAR Test Procedure 14 7.1. Scanning Procedure 14 7.2. Data Storage and Evaluation 16 8. Position of the wireless device in relation to the phantom 18 8.1. Head Position 18 8.2. Body Position 19 8.3. Hotspot Mode Exposure conditions 19 9. Dielectric Property Measurements & System Check 20 9.1. Tissue Dielectric Parameters 20 9.2. System Check 22 10. SAR Exposure Limits 27 11. Conducted Power Measurement Results 28 11.1. GSM 28 11.2. WCDMA 29 11.3. Wi-Fi 31 11.4. Bluetooth 31 12. Maximum Tune-up Limit 32 13. Antenna Location 34 14. Measured and Reported SAR Results 36 14.1. Head SAR 38 14.2. Body SAR 43 14.3. Hotspot SAR 46 15. SAR Measurement Variability 49 16. Simultaneous Transmission analysis 50 16.1. Head 51 16.2. Body-worn 53 16.3. Hotspot 54 Report No.: CHTEW21070173 Page: 3 of 57 Issued: 2021-07-27 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 17. TestSetup Photos 55 18. External and Internal Photos of the EUT 57 Report No.: CHTEW21070173 Page: 4 of 57 Issued: 2021-07-27 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1. Statement of Compliance Maximum Reported SAR (W/kg @1g) RF Exposure Conditions PCE DTS Simultaneous TX Head 0.413 0.259 0.663 Body-worn(Dist.= 10mm) 0.809 0.105 0.914 Hotspot(Dist.= 10mm) 0.809 0.105 0.914 This device is in compliance with Specific Absorption Rate (SAR) for general population/uncontrolled exposure limits (1.6 W/kg) specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEE C95.1-1992, and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2013 and FCC KDB publications. Report No.: CHTEW21070173 Page: 5 of 57 Issued: 2021-07-27 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2. Test Standards and Report version 2.1. Test Standards The tests were performed according to following standards: FCC 47 Part 2.1093: Radiofrequency radiation exposure evaluation: portable devices. IEEE Std C95.1, 1999 Edition: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE Std 1528™-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. FCC published RF exposure KDB procedures: 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04: SAR Measurement Requirements for 100 MHz to 6 GHz 865664 D02 RF Exposure Reporting v01r02: RF Exposure Compliance Reporting and Documentation Considerations 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 248227 D01 802 11 Wi-Fi SAR v02r02: SAR Measurement Proceduresfor802.11 a/b/g Transmitters 648474 D04 Handset SAR v01r03: SAR Evaluation Considerations for Wireless Handsets 941225 D01 3G SAR Procedures v03r01: SAR Measurement Procedures for 3G Devices 941225 D06 Hotspot Mode v02r01: SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities TCB workshop April, 2019; Page 19, Tissue Simulating Liquids (TSL) 2.2. Report version Revision No. Date of issue Description N/A 2021-07-27 Origin…

Text truncated - open the document above for the full version.

Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 7/7/2021 GSM 850-Head Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 824.2 MHz;Duty Cycle: 1:2.66993 Medium parameters used: f = 825 MHz; σ = 0.944 S/m; ε r = 40.177; ρ = 1000 kg/m 3 Phantom section: Left Section Ambient Temperature:22.6°C;Liquid Temperature:22.4°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(10.41, 10.41, 10.41) @ 824.2 MHz; Calibrated: 4/9/2021 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/23/2021 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Head/CH 128/Area Scan (71x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Maximum value of SAR (interpolated) = 0.489 W/kg Head/CH 128/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 6.567 V/m; Power Drift = -0.10 dB Peak SAR (extrapolated) = 0.552 W/kg SAR(1 g) = 0.400 W/kg; SAR(10 g) = 0.295 W/kg Maximum value of SAR (measured) = 0.498 W/kg 0 dB = 0.498 W/kg = -3.03 dBW/kg Appendix A:SAR Test Data Plots Plot No.1 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 7/8/2021 GSM 1900-Head Communication System: UID 0, Generic GPRS(TDMA, GMSK, TN 0-1-2) (0); Frequency: 1850.2 MHz;Duty Cycle: 1:2.66993 Medium parameters used (interpolated): f = 1850.2 MHz; σ = 1.435 S/m; ε r = 38.47; ρ = 1000 kg/m 3 Phantom section: Left Section Ambient Temperature:22.6°C;Liquid Temperature:22.4°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.55, 8.55, 8.55) @ 1850.2 MHz; Calibrated: 4/9/2021 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/23/2021 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Head/CH 512/Area Scan (71x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.149 W/kg Head/CH 512/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 4.691 V/m; Power Drift = -0.01 dB Peak SAR (extrapolated) = 0.176 W/kg SAR(1 g) = 0.107 W/kg; SAR(10 g) = 0.064 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.148 W/kg 0 dB = 0.148 W/kg = -8.30 dBW/kg Appendix A:SAR Test Data Plots Plot No.1 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 7/8/2021 WCDMA Band II-Head Communication System: UID 0, Generic UMTS (0); Frequency: 1852.4 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 1852.4 MHz; σ = 1.436 S/m; ε r = 38.468; ρ = 1000 kg/m 3 Phantom section: Left Section Ambient Temperature:22.2°C;Liquid Temperature:22.0°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(8.55, 8.55, 8.55) @ 1852.4 MHz; Calibrated: 4/9/2021 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/23/2021 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Head/CH 9262/Area Scan (71x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.360 W/kg Head/CH 9262/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 7.312 V/m; Power Drift = -0.07 dB Peak SAR (extrapolated) = 0.418 W/kg SAR(1 g) = 0.253 W/kg; SAR(10 g) = 0.151 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.351 W/kg 0 dB = 0.351 W/kg = -4.55 dBW/kg Appendix A:SAR Test Data Plots Plot No.2 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 7/7/2021 WCDMA Band V-Head Communication System: UID 0, Generic UMTS (0); Frequency: 836.6 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 836.6 MHz; σ = 0.948 S/m; ε r = 40.143; ρ = 1000 kg/m 3 Phantom section: Left Section Ambient Temperature:22.5°C;Liquid Temperature:22.3°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(10.41, 10.41, 10.41) @ 836.6 MHz; Calibrated: 4/9/2021 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/23/2021 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Head/CH 4183/Area Scan (71x101x1): Interpolated grid: dx=1.500 mm, dy=1.500 mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.418 W/kg Head/CH 4183/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=8mm, dy=8mm, dz=5mm Reference Value = 5.170 V/m; Power Drift = 0.12 dB Peak SAR (extrapolated) = 0.468 W/kg SAR(1 g) = 0.341 W/kg; SAR(10 g) = 0.252 W/kg Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (measured) = 0.418 W/kg 0 dB = 0.418 W/kg = -3.79 dBW/kg Appendix A:SAR Test Data Plots Plot No.3 Test Laboratory: Huatongwei International Inspection Co., Ltd.,SAR Lab Date: 7/13/2021 Wifi 2.4G-Head Communication System: UID 0, Generic WIFI (0); Frequency: 2462 MHz;Duty Cycle: 1:1 Medium parameters used (interpolated): f = 2462 MHz; σ = 1.819 S/m; ε r = 38.894; ρ = 1000 kg/m 3 Phantom section: Right Section Ambient Temperature:22.2°C;Liquid Temperature:22.0°C; DASY Configuration: lProbe: EX3DV4 - SN7494; ConvF(7.97, 7.97, 7.97) @ 2462 MHz; Calibrated: 4/9/2021 lSensor-Surface: 1.4mm (Mechanical Surface Detection) lElectronics: DAE4 Sn1549; Calibrated: 3/23/2021 lPhantom: Twin-SAM V8.0 ; Type: QD 000 P41 AA; Serial: 1974 lDASY52 52.10.2(1495); SEMCAD X 14.6.12(7450) Head/CH 11/Area Scan (71x101x1): Interpolated grid: dx=1.200 mm, dy=1.200 mm Info: Interpolated medium parameters used for SAR evaluation. Maximum value of SAR (interpolated) = 0.470 W/kg Head/CH 11/Zoom Scan (5x5x7)/Cube 0: Measurement grid: dx=5mm, dy=5mm, dz=5mm Reference Val ue = 10.38 V/m; Power Drift = -0.11 dB Peak SAR (ext…

Text truncated - open the document above for the full version.

Appendix B: DAE and Probe Calibration Certificate 1 of 12 1.1.1. DAE4 Calibration Certificate Appendix B: DAE and Probe Calibration Certificate 2 of 12 Appendix B: DAE and Probe Calibration Certificate 3 of 12 Appendix B: DAE and Probe Calibration Certificate 4 of 12 1.2. Probe Calibration Certificate Appendix B: DAE and Probe Calibration Certificate 5 of 12 Appendix B: DAE and Probe Calibration Certificate 6 of 12 Appendix B: DAE and Probe Calibration Certificate 7 of 12 Appendix B: DAE and Probe Calibration Certificate 8 of 12 Appendix B: DAE and Probe Calibration Certificate 9 of 12 Appendix B: DAE and Probe Calibration Certificate 10 of 12 Appendix B: DAE and Probe Calibration Certificate 11 of 12 Appendix B: DAE and Probe Calibration Certificate 12 of 12

Appendix C: Dipole Calibration Certificate 1 of 18 1.1. D835V2 Dipole Calibration Certificate Appendix C: Dipole Calibration Certificate 2 of 18 Appendix C: Dipole Calibration Certificate 3 of 18 Appendix C: Dipole Calibration Certificate 4 of 18 Appendix C: Dipole Calibration Certificate 5 of 18 Appendix C: Dipole Calibration Certificate 6 of 18 Appendix C: Dipole Calibration Certificate 7 of 18 1.2. D1900V2 Dipole Calibration Certificate Appendix C: Dipole Calibration Certificate 8 of 18 Appendix C: Dipole Calibration Certificate 9 of 18 Appendix C: Dipole Calibration Certificate 10 of 18 Appendix C: Dipole Calibration Certificate 11 of 18 Appendix C: Dipole Calibration Certificate 12 of 18 Appendix C: Dipole Calibration Certificate 13 of 18 1.3. D2450V2 Dipole Calibration Certificate Appendix C: Dipole Calibration Certificate 14 of 18 Appendix C: Dipole Calibration Certificate 15 of 18 Appendix C: Dipole Calibration Certificate 16 of 18 Appendix C: Dipole Calibration Certificate 17 of 18 Appendix C: Dipole Calibration Certificate 18 of 18

Page: 1 of 26 FCC REPORT Report Reference No. .................... : CHTEW21080008 Report Verification: Project No.................................： SHT2107001003EW FCC ID ............................................. : 2AZP5-E506TA Applicant’s name ........................... : DUO AMERICA, LLC Address ............................................. : 8925 NW 26TH ST, DORAL, MIAMI, Florida, United States Test item description .................... : Smart Phone Trade Mark ....................................... : HYUNDAI Model/Type reference ....................... : E506 Listed Model(s) ................................. : - Standard ......................................... : FCC CFR Title 47 Part 2 FCC CFR Title 47 Part 22 FCC CFR Title 47 Part 24 Date of receipt of test sample..........: Jul. 02, 2021 Date of testing..............................: Jul. 03, 2021- Aug. 02, 2021 Date of issue...............................: Aug. 03, 2021 Result .................. ........................: Pass Compiled by ( position+printedname+signature) ... : File administrators Silvia Li Supervised by (position+printedname+signature) .... : Project Engineer Aaron Fang Approved by (position+printedname+signature) .... : Manager Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd. Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW21080008 Page: 2 of 31 Issued: 2021-08-03 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1. TE S T S T AN D A R D S A N D R EP O R T V E R S I O N 3 1.1. Applicable Standards 3 1.2. Report version information 3 2. T E S T D E S C R I P T I O N 4 3. S U M M AR Y 5 3.1. Client Information 5 3.2. Product Description 5 3.3. Operation state 6 3.4. EUT configuration 6 3.5. Modifications 6 4. T E S T E N V I R O N M E N T 7 4.1. Testing Laboratory Information 7 4.2. Equipments Used during the Test 8 4.3. Environmental conditions 9 4.4. Statement of the measurement uncertainty 9 5. T E S T C O N D I T I O N S A N D R E S U L T S 10 5.1. Conducted Output Power 10 5.2. Peak-to-Average Ratio 11 5.3. 99% Occupied Bandwidth & 26 dB Bandwidth 12 5.4. Band Edge 13 5.5. Conducted Spurious Emissions 14 5.6. Frequency stability VS Temperature measurement 15 5.7. Frequency stability VS Voltage measurement 16 5.8. ERP and EIRP 17 5.9. Radiated Spurious Emission 20 6. TE S T S E T U P P H O T O S O F T H E E U T 24 7. EX T E R N AL AN D I N T E R N AL P H O T O S O F T H E E U T 25 8. A P P E N D I X R E P O R T 31 Report No.: CHTEW21080008 Page: 3 of 31 Issued: 2021-08-03 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1. TEST STANDARDS AND REPORT VERSION 1.1. Applicable Standards The tests were performed according to following standards: FCC Rules Part 2: FREQUENCY ALLOCATIONS AND RADIO TREATY MATTERS; GENERAL RULES AND REGULATIONS FCC Rules Part 22: PUBLIC MOBILE SERVICES FCC Rules Part 24: PERSONAL COMMUNICATIONS SERVICES TIA/EIA 603 E March 2016: Land Mobile FM or PM Communications Equipment Measurement and Performance Standards. ANSI C63.26-2015: American National Standard for Compliance Testing of Transmitters Used in Licensed Radio Services KDB 971168 D01 Power Meas License Digital Systems v03: MEASUREMENT GUIDANCE FOR CERTIFICATION OF LICENSED DIGITAL TRANSMITTERS 1.2. Report version information Revision No. Date of issue Description N/A 2021-08-03 Original Report No.: CHTEW21080008 Page: 4 of 31 Issued: 2021-08-03 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2. Test Description Test Item Section in CFR 47 Result Test Engineer Conducted Output Power Part 2.1046 Part 22.913(a) Part 24.232(c) Pass Jiongsheng Feng Peak-to-Average Ratio Part 24.232 Pass Jiongsheng Feng 99% Occupied Bandwidth & 26 dB Bandwidth Part 2.1049 Part 22.917(b) Part 24.238(b) Pass Jiongsheng Feng Band Edge Part 2.1051 Part 22.917 Part 24.238 Pass Jiongsheng Feng Conducted Spurious Emissions Part 2.1051 Part 22.917 Part 24.238 Pass Jiongsheng Feng Frequency stability VS Temperature Part 2.1055(a)(1)(b) Part 22.355 Part 24.235 Pass Jiongsheng Feng Frequency stability VS Voltage Part 2.1055(d)(1)(2) Part 22.355 Part 24.235 Pass Jiongsheng Feng ERP and EIRP Part 22.913(a) Part 24.232(b) Pass Pan Xie Radiated Spurious Emissions Part 2.1053 Part 22.917 Part 24.238 Pass Pan Xie Note: The measurement uncertainty is not included in the test result. Report No.: CHTEW21080008 Page: 5 of 31 Issued: 2021-08-03 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 3. SUMM ARY 3.1. Client Information Applicant: DUO AMERICA, LLC Address: 8925 NW 26TH ST, DORAL, MIAMI, Florida, United States Manufacturer: Shenzhen Tinno Mobile Technology Corp Address: No.33, Xiandong Road, Nanshan District, Shenzhen, P.R.China 3.2. Product Description Name of EUT: Smart Phone Trade Mark: HYUNDAI Model No.: E506 Listed Model(s): - SIM Information: Support Two SIM Card Power supply: DC 3.8V Adapter information: Model:TN-050120U9 Input: AC100-240V, 50/60Hz 0.2A Output: 5.0Vdc, 1.2A 6.0W Hardware version: V0.3 Software version: HYUNDAI_E506_V1.1.1_20210611_debug 2G: Support Network: GSM, GPRS Support Band: GSM850, PCS1900 Modulation: GSM/GPRS: …

Text truncated - open the document above for the full version.

Project No.: SHT2107001003EW Radio Specification: GSM Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 1 of 30 APPENDIX REPORT Project No. SHT2107001003EW Radio Specification GSM Test sample No. YPHT21070010040 Model No. E506 Start test date 2021/7/9 Finish date 2021/7/9 Temperature 26.4°C Humidity 31% Test Engineer Jiongsheng.Feng Auditor Appendix clause Test item Result A Conducted Output Power PASS B Peak-to-Average Ratio PASS C 26 dB Bandwidth and Occupied Bandwidth PASS D Band edge PASS E Conducted Spurious Emission PASS F Frequency Stability PASS Project No.: SHT2107001003EW Radio Specification: GSM Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 2 of 30 8.1 Appendix A: Conducted Output Power Test Result Band Channel PCL Power(dBm) Limit(dBm) Verdict GSM850 128 5 33.77 38.5 PASS GSM850 190 5 33.67 38.5 PASS GSM850 251 5 33.62 38.5 PASS GSM1900 512 0 30.25 33 PASS GSM1900 661 0 30.40 33 PASS GSM1900 810 0 30.55 33 PASS Project No.: SHT2107001003EW Radio Specification: GSM Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 3 of 30 Band Channel PCL Slot Power(dBm) Limit(dBm) Verdict GPRS850 128 5 1 33.98 38.5 PASS GPRS850 128 5 2 32.57 38.5 PASS GPRS850 128 5 3 30.86 38.5 PASS GPRS850 128 5 4 28.89 38.5 PASS GPRS850 190 5 1 33.80 38.5 PASS GPRS850 190 5 2 32.36 38.5 PASS GPRS850 190 5 3 30.61 38.5 PASS GPRS850 190 5 4 28.64 38.5 PASS GPRS850 251 5 1 33.71 38.5 PASS GPRS850 251 5 2 32.21 38.5 PASS GPRS850 251 5 3 30.20 38.5 PASS GPRS850 251 5 4 28.41 38.5 PASS GPRS1900 512 0 1 30.23 33 PASS GPRS1900 512 0 2 28.54 33 PASS GPRS1900 512 0 3 26.93 33 PASS GPRS1900 512 0 4 24.82 33 PASS GPRS1900 661 0 1 30.22 33 PASS GPRS1900 661 0 2 28.49 33 PASS GPRS1900 661 0 3 26.85 33 PASS GPRS1900 661 0 4 25.03 33 PASS GPRS1900 810 0 1 30.31 33 PASS GPRS1900 810 0 2 28.50 33 PASS GPRS1900 810 0 3 26.87 33 PASS GPRS1900 810 0 4 25.06 33 PASS Project No.: SHT2107001003EW Radio Specification: GSM Shenzhen Huatongwei International Inspection Co., Ltd. Appendix report page: 4 of 30 8.2 Appendix…

Text truncated - open the document above for the full version.
