2AZP5-FS28001Mobile Phone

L365 Atenciones Desconectoenhospitales Porfavorrespetelasdisposicionesoreglamentospertinentes.Por favorapaguesuteléfonomóvilcercadeequipomédico. Apaguecuandorecarguecombustible Nouseselteléfonoenunpuntoderecarga.Nousecercade combustiblesoproductosquímicoss. LastarjetasmicrodeSIMsonportables Mantengaelteléfono,laspiezasdelteléfonoylosaccesoriosfuera delalcancedelosniños. BATTERY Porfavor,nodestruyaodanéslabatería,puedeserpeligrosoy causarunincendio. Porfavor,noarrojelabateríaalfuegoparaevitarriesgos. Cuandonosepuedeusarlabatería,desécheloenunambiente seguro. SinintentosDesmontarlabatería. Silabateríaoelcargadorestárotooviejo,dejeporfavorde usarlos,ysubstituyaconlabateríagenuinacertificada. USEQUALITYEQUIPMENT Useequipoautorizadoparaevitarelpeligro. Laseguridadvialesloprimero Prestetodalaatenciónmientrasconduce,estacioneantesdeusar suteléfono.Porfavorsigalasreglasdetráficolocalesciudad. Interferencia Todoslosdispositivosbatteriespuedensersusceptiblesacausar interferencias,loquepodríaafectarelrendimiento. Apagarenaeronaves Losdispositivosbatteriespuedencausarinterferenciasenlas aeronaves.Nosóloespeligroso,sinotambiénilegalutilizarel teléfonomóvilenunavión. Empezar Llegaraagarrarseconlobásicoytenersuteléfonoenmarchaen ningúnmomento. Overview Definicióndeclaves: LlavesDefinición Teclade alimentació n(tecla final) Pulseestateclaparaterminarunallamada encursooparaterminarunallamadaen curso Pulseestateclaparasalirdelmenúyvolver alEstadodeespera Puedesostenerlodurantedosotres segundosyluegoencender/apagarsu teléfono Teclade marcado Pulseestateclaparainiciarunallamada introduciendounnúmerollamadoo seleccionandouncontactodelaguía telefónica Presionarlopararecibirunallamadaentrante Presióneloenelestadodeesperapara mostrarlosúltimosregistrosdellamadas.Si quieresmarcarunallamada Teclasdirecc ionales Presiónelosparadesplazarseporlas opcionesalnavegarporunalistade funciones Enestadodeedición,presionelasteclasde direcciónparanavegar teclade función izquierday derecha Lalíneainferiordelapantallamuestralas funcionesdelasteclasdefunciónizquierda yderecha. TeclaOKPresióneloparaconfirmarunaselección Teclas numéricas, tecla*y tecla# 1.Pulselasteclasnuméricas0a9para introduciroeditarelestadodeingresode númerosycaracteres; 2.Enlapantallainactiva,puedepresionar* parabloquear/desbloquearelteclado. 3.Pulselatecla*dosveces,introduzca"+" enlainterfazdeespera,y"+"seutilizapara hacerllamadasinternacionalescuandoel símbolo"+"aparece. InsertartarjetaSIM 1.Retirelatapadelabatería. 2.Retirelatapadelabatería,coloquelatarjetaSIMenlaranura paratarjetas. 3.ColoquelatarjetaSDenlaranuradelatarjeta. Consejo:latarjetaSIM/SDsonpiezaspequeñas. Manténgasealejadodelosniñosparaevitarquesetraguenla tarjetaporaccidente. Porfavor,notoquelasuperficiedemetaldelatarjetaSIMylejos delcampoelectromagnéticoparaevitardañosenlosdatos. Cargarlabatería Cargarlabateríaantesdeusarla.ConecteelcableUSBal adaptadordecorrienteUSByluegoconecteelextremodelcable USBalpuertoUSB. Configuraciones Redyconectividad Enestemenú,puedeconfigurarsegúndiferentessituaciones (modoavión,redmóvilydatos,Wi-Fi,Bluetooth,geolocalización, administradorSIM,llamadas,llamadasVoLTE/Wi-Fi,uso compartidodeInternet,emergenciainalámbrica,mensajede transmisióncelular,etc.en.) Personalización Enestemenú,puedeconfigurardeacuerdoasuspreferenciasy endiferentessituaciones(desonido,visualización,búsqueda, notificaciones,fechayhora,elidioma,elmétododeentradayasí sucesivamente.) Privacidadyseguridad Estafunciónleproporcionaparámetrosrelacionadossobreeluso deseguridad(bloqueodepantalla,lospermisosdelaaplicación, nohacenunseguimiento,Navegarporlaprivacidad,Sobre KAIOS.yasísucesivamente.) Almacenamiento Enestemenú,puedeconfigurardeacuerdoadiferentes situaciones(CleanUpalmacenamiento,almacenamientoUSB,la ubicaciónpordefectodecomunicación,losmediosde comunicación,losdatosdeaplicaciónyasísucesivamente). Dispositivo Enestemenú,puedeconfigurarsegúndiferentessituaciones (Informacióndeldispositivo,Descargas,Batería,Accesibilidad, etc.) Cuenta Enestemenú,puedeconfigurarsegúndiferentessituaciones (cuentaKaiOS,Antirobo,etc.) Observaciones:enelprocesoderegistrodeunacuenta,aveces noestarconectadoalservidorKAIOSpuedeserelmotivodela red,puedeintentarlodenuevoenlamemoriaclara. Advertenciasynotas INFORMACIÓNIMPORTANTESOBREFUNCIONAMIENTO SEGUROYEFICIENTE. Leeestainformaciónantesdeusarelteléfono.Parael funcionamientoseguroyeficientedesuteléfono,observeestas pautas: Atmósferaspotencialmenteexplosivas:Cuandoustedestáen cualquieráreapotencialmenteexplosiva,comounagasolinera (gasolineraogasolinera,debajodelacubiertadelbuque), instalacionesdealmacenamientodecombustibleoproductos químicos,áreasdeexplosiónyáreascercanasadetonadores eléctricos,asícomolapresenciadeproductosquímicoso partículas(porejemplo,polvometálico,partículas,Polvoenelaire. Interferenciaadispositivoselectrónicosmédicosy personales: Lamayoríaperonotodoslosequiposelectrónicosestán protegidoscontralasseñalesdeRFyciertosequiposelectrónicos puedennoestarprotegidoscontralasseñalesdeRFdesu teléfono. Seguridaddeaudio:Esteteléfonoescapazdeproducirruidos fuertesquepuedendañarsuaudición.Cuandoutilicelafunciónde altavoz,serecomiendaquecoloquesuteléfonoaunadistancia seguradesuoído. Otrosdispositivosdemedios,hospitales:ISiutilizacualquier otrodispositivomédicopersonal,consultealfabricantedesu dispositivoparadeterminarsiestáprotegidoadecuadamente contralaenergíadeRFexterna.Esposiblequesumédicopueda ayudarloaobtenerestainformación.APAGUEelteléfonoenlas instalacionesdeatenciónmédicacuandolasregulaciones publicadasenestasáreasseloindiquen.Esposiblequelos hospitalesolasinstalacionessanitariasutilicenequipossensibles alaenergíaderadiofrecuenciaexterna. Declaracióndelproductosobremanipulaciónyuso:Ustedes elúnicoresponsabledecómousasuteléfonoylasconsecuencias desuuso. Siempredebeapagarsuteléfonodondeestéprohibidosuuso.El usodesuteléfonoestásujetoamedidasdeseguridaddiseñadas paraprotegeralosusuariosysuentorno. Siempretratesuteléfonoysusaccesoriosconcuidadoy manténgaloenunluga…

Text truncated - open the document above for the full version.

DUO AMERICA, LLC Agent Authorization Company: DUO AMERICA, LLC Address: 8925 NW 26TH ST, DORAL, MIAMI, FL 33172 UNITED STATES OF AMERICA Product Name: Mobile Phone Trade Mark: HYUNDAI Model Number(s): L365 FCC ID: 2AZP5-FS28001 We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2021-05-14 Name: JOHN NAM Title: Manager Company: DUO AMERICA, LLC

DUO AMERICA, LLC Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2021-05-22 Subject; Request for Confidentiality FCC ID: 2AZP5-FS28001 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Software Security Requirements Tune up In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name / Title: JOHN NAM / Manager Company: DUO AMERICA, LLC Address: 8925 NW 26TH ST, DORAL, MIAMI, FL 33172 UNITED STATES OF AMERICA Phone: 305 392 6998 Fax: 305 392 6998 E-Mail: [email protected]

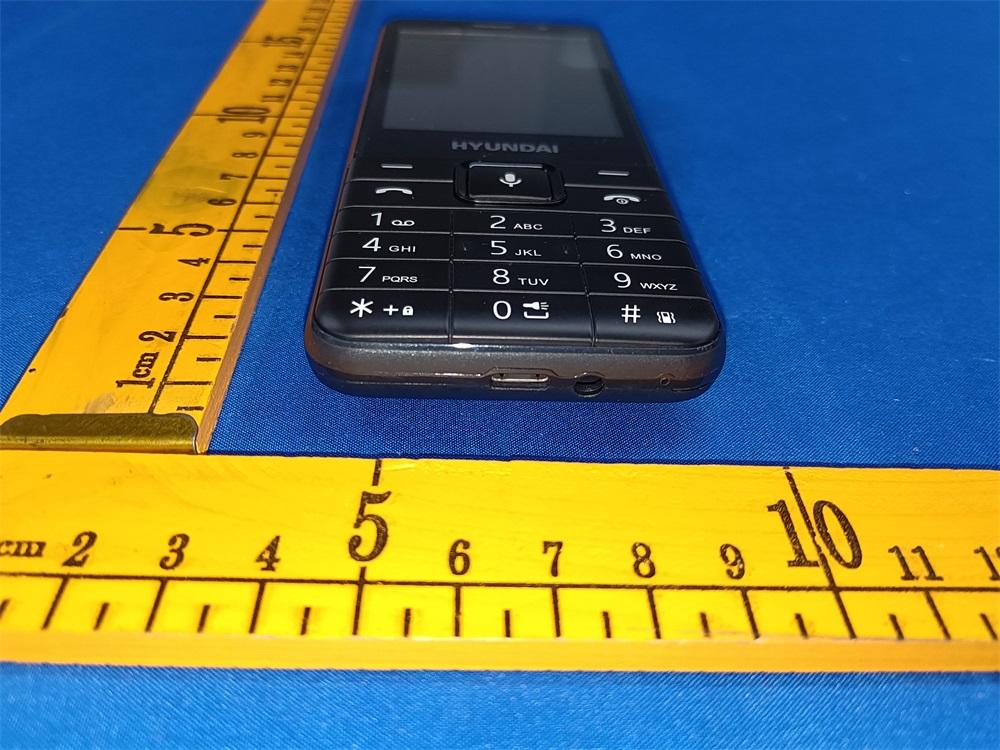

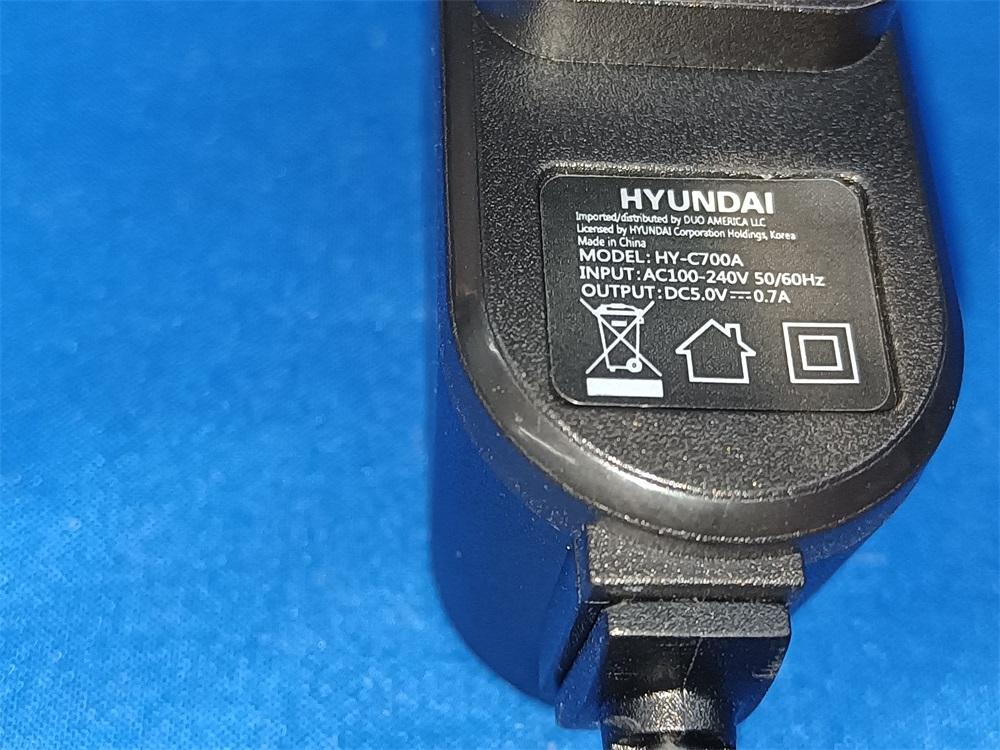

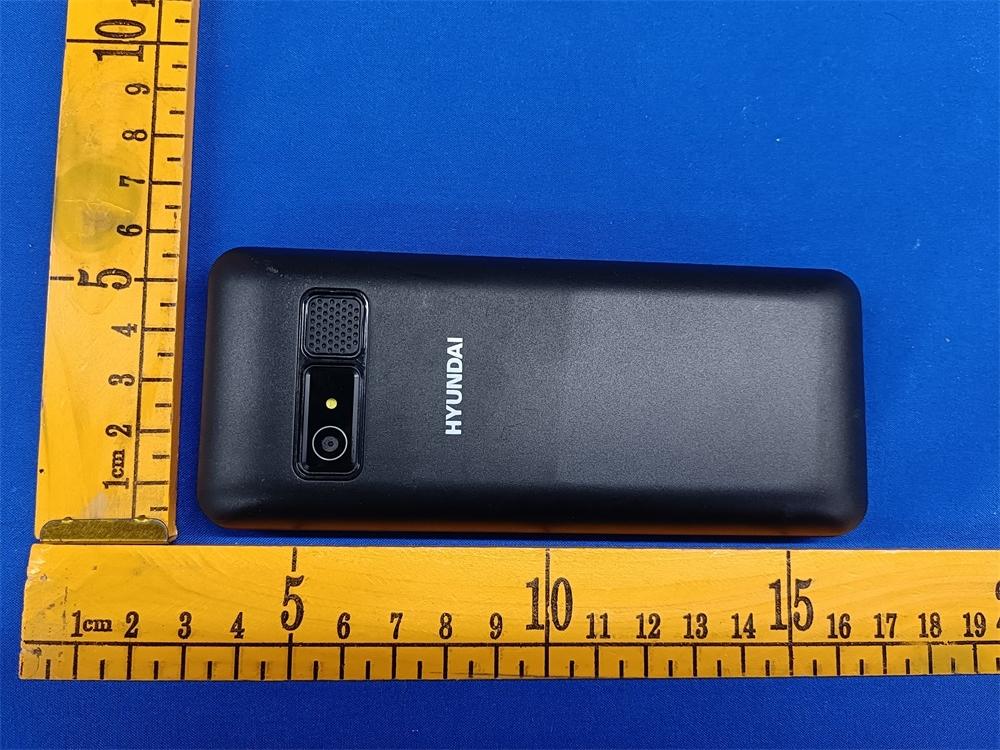

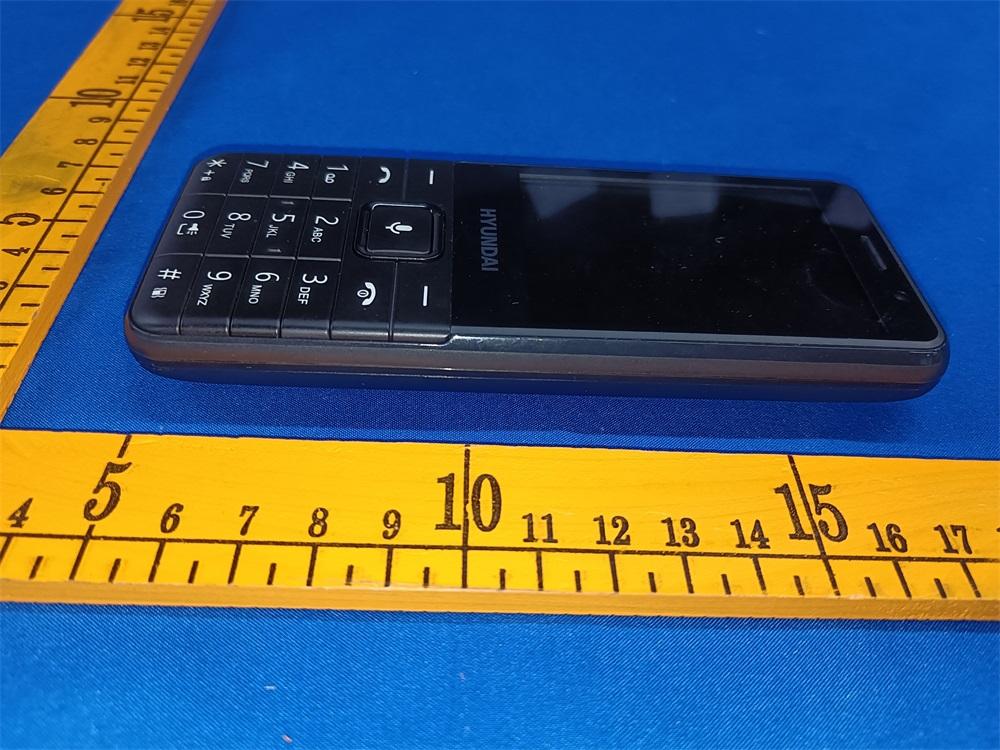

FCC ID: 2AZP5-FS28001 Fig. 1 Fig. 2 FCC ID: 2AZP5-FS28001 Fig. 3 Fig. 4 FCC ID: 2AZP5-FS28001 Fig. 5 Fig. 6 FCC ID: 2AZP5-FS28001 Fig. 7 Fig. 8 FCC ID: 2AZP5-FS28001 Fig. 9

_____________________________________________________________________________________________________ LABEL AND LOCATION (Size: L3.66cm x 2.15cm) Label Location

FCC ID: 2AZP5-FS28001 Fig. 1 Fig. 2 BT/WLAN/ GPS(RX) Antenna GSM&WCDMA&LTE Main Antenna LTE Diversity Antenna FCC ID: 2AZP5-FS28001 Fig. 3 Fig. 4 FCC ID: 2AZP5-FS28001 Fig. 5 Fig. 6 FCC ID: 2AZP5-FS28001 Fig. 7 Fig. 8 FM(RX) Antenna FCC ID: 2AZP5-FS28001 Fig. 9 Fig. 10 FCC ID: 2AZP5-FS28001 Fig. 11

Page: 1 of 81 TEST REPORT Report No. ...................................... : CHTEW21050136 Report verificaiton: Project No. ...................................... : SHT2105041001EW FCC ID ............................................. : 2AZP5-FS28001 Applicant’s name ........................... : DUO AMERICA, LLC Address ............................................. : 8925 NW 26TH ST, DORAL, MIAMI, FL 33172 UNITED STATES OF AMERICA Test item description .................... : Mobile Phone Trade Mark ....................................... : HYUNDAI Model/Type reference ....................... : L365 Listed Model(s) ................................. : - Standard ......................................... : FCC 47 CFR Part2.1093 IEEE Std C95.1, 1999 Edition IEEE 1528: 2013 Date of receipt of test sample..........: May 12,2021 Date of testing..............................: May 12,2021 ~ May 17,2021 Date of issue...............................: May 24,2021 Result .................. ........................: PASS Compiled by ( position+printedname+signature) ... : File administrators:Fanghui Zhu Supervised by ( position+printedname+signature) ... : Test Engineer: Patrick Qiu Approved by ( position+printedname+signature) ... : Manager: Hans Hu Testing Laboratory Name ............. : Shenzhen Huatongwei International Inspection Co., Ltd Address ............................................. : 1/F, Bldg 3, Hongfa Hi-tech Industrial Park, Genyu Road, Tianliao, Gongming, Shenzhen, China Shenzhen Huatongwei International Inspection Co., Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Huatongwei International Inspection Co., Ltd is acknowledged as copyright owner and source of the material. Shenzhen Huatongwei International Inspection Co., Ltd takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report merely correspond to the test sample. Report No.: CHTEW21050136 Page: 2 of 81 Issued: 2021-05-24 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) Contents 1. Statement of Compliance 4 2. Test Standards and Report version 5 2.1. Test Standards 5 2.2. Report version 5 3. Summary 6 3.1. Client Information 6 3.2. Product Description 6 3.3. RF Specification Description 6 3.4. Testing Laboratory Information 9 3.5. Environmental conditions 9 4. Equipments Used during the Test 10 5. Measurement Uncertainty 11 6. SAR Measurements System Configuration 12 6.1. SAR Measurement Set-up 12 6.2. DASY5 E-field Probe System 13 6.3. Phantoms 14 6.4. Device Holder 14 7. SAR Test Procedure 15 7.1. Scanning Procedure 15 7.2. Data Storage and Evaluation 17 8. Position of the wireless device in relation to the phantom 19 8.1. Head Position 19 8.2. Body Position 20 8.3. Hotspot Mode Exposure conditions 20 9. Dielectric Property Measurements & System Check 21 9.1. Tissue Dielectric Parameters 21 9.2. System Check 23 10. SAR Exposure Limits 30 11. Conducted Power Measurement Results 31 11.1. GSM 31 11.2. WCDMA 32 11.3. LTE 34 11.4. Wi-Fi 43 11.5. Bluetooth 43 12. Maximum Tune-up Limit 44 13. Antenna Location 49 14. Measured and Reported SAR Results 50 14.1. Head SAR 52 14.2. Body SAR 58 14.3. Hotspot SAR 61 15. SAR Measurement Variability 67 16. Simultaneous Transmission analysis 68 16.1. Head 69 16.2. Body-worn 73 Report No.: CHTEW21050136 Page: 3 of 81 Issued: 2021-05-24 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 16.3. Hotspot 75 17. TestSetup Photos 77 18. External and Internal Photos of the EUT 79 Report No.: CHTEW21050136 Page: 4 of 81 Issued: 2021-05-24 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 1. Statement of Compliance Maximum Reported SAR (W/kg @1g) RF Exposure Conditions PCE DTS Simultaneous TX Head 0.296 0.271 0.567 Body-worn(Dist.= 10mm) 1.040 0.243 1.283 Hotspot(Dist.= 10mm) 1.040 0.243 1.283 This device is in compliance with Specific Absorption Rate (SAR) for general population/uncontrolled exposure limits (1.6 W/kg) specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEE C95.1-1992, and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2013 and FCC KDB publications. Report No.: CHTEW21050136 Page: 5 of 81 Issued: 2021-05-24 Shenzhen Huatongwei International Inspection Co., Ltd. Report Template Version: V03 (2021-01) 2. Test Standards and Report version 2.1. Test Standards The tests were performed according to following standards: FCC 47 Part 2.1093: Radiofrequency radiation exposure evaluation: portable devices. IEEE Std C95.1, 1999 Edition: IEEE Standard for Safety Levels with Respect to Human Exposure to Radio Frequency Electromagnetic Fields, 3 kHz to 300 GHz IEEE Std 1528™-2013: IEEE Recommended Practice for Determining the Peak Spatial-Average Specific Absorption Rate (SAR) in the Human Head from Wireless Communications Devices: Measurement Techniques. FCC published RF exposure KDB procedures: 865664 D01 SAR Measurement 100 MHz to 6 GHz v01r04: SAR Measurement Requirements for 100 MHz to 6 GHz 865664 D02 RF Exposure Reporting v01r02: RF Exposure Compliance Reporting and Documentation Considerations 447498 D01 General RF Exposure Guidance v06: Mobile and Portable Device RF Exposure Procedures and Equipment Authorization Policies 248227 D01 802 11 Wi-Fi SAR v02r02: SAR Measurement Proceduresfor802.11 a/b/g Transmitters 648474 D04 Handset SAR v01r03: SAR Evaluation Considerations for Wireless Handsets 941225 D01 3G SAR Procedures v03r01: SAR Measurement Procedures for 3G Devices 941225 D05 SAR for LTE Devices v02r05: SAR Evaluation Considerations for LTE Devices 941225 D06 Hotspot Mode v02r01: SAR Evaluation Procedures for Portable Devices with Wireless Router Capabilities TCB workshop April, 2019; Page 19, Tissu…

Text truncated - open the document above for the full version.

Appendix A: Peak-to-Average Ratio(CCDF) Test Result Band Bandwidth Modulation Channel RB Configuration Result(dB) Limit(dB) Verdict Band2 1.4MHz QPSK 18607 6RB#0 4.87 13 PASS Band2 1.4MHz QPSK 18900 6RB#0 5.13 13 PASS Band2 1.4MHz QPSK 19193 6RB#0 4.81 13 PASS Band2 1.4MHz 16QAM 18607 6RB#0 5.74 13 PASS Band2 1.4MHz 16QAM 18900 6RB#0 5.91 13 PASS Band2 1.4MHz 16QAM 19193 6RB#0 5.65 13 PASS Band2 3MHz QPSK 18615 15RB#0 5.01 13 PASS Band2 3MHz QPSK 18900 15RB#0 5.16 13 PASS Band2 3MHz QPSK 19185 15RB#0 4.87 13 PASS Band2 3MHz 16QAM 18615 15RB#0 5.77 13 PASS Band2 3MHz 16QAM 18900 15RB#0 6.00 13 PASS Band2 3MHz 16QAM 19185 15RB#0 5.68 13 PASS Band2 5MHz QPSK 18625 25RB#0 5.07 13 PASS Band2 5MHz QPSK 18900 25RB#0 5.19 13 PASS Band2 5MHz QPSK 19175 25RB#0 4.84 13 PASS Band2 5MHz 16QAM 18625 25RB#0 5.77 13 PASS Band2 5MHz 16QAM 18900 25RB#0 5.86 13 PASS Band2 5MHz 16QAM 19175 25RB#0 5.57 13 PASS Band2 10MHz QPSK 18650 50RB#0 5.07 13 PASS Band2 10MHz QPSK 18900 50RB#0 5.13 13 PASS Band2 10MHz QPSK 19150 50RB#0 4.61 13 PASS Band2 10MHz 16QAM 18650 50RB#0 5.80 13 PASS Band2 10MHz 16QAM 18900 50RB#0 5.91 13 PASS Band2 10MHz 16QAM 19150 50RB#0 5.39 13 PASS Band2 15MHz QPSK 18675 75RB#0 5.13 13 PASS Band2 15MHz QPSK 18900 75RB#0 5.28 13 PASS Band2 15MHz QPSK 19125 75RB#0 4.70 13 PASS Band2 15MHz 16QAM 18675 75RB#0 5.71 13 PASS Band2 15MHz 16QAM 18900 75RB#0 5.86 13 PASS Band2 15MHz 16QAM 19125 75RB#0 5.28 13 PASS Band2 20MHz QPSK 18700 100RB#0 4.81 13 PASS Band2 20MHz QPSK 18900 100RB#0 5.07 13 PASS Band2 20MHz QPSK 19100 100RB#0 4.67 13 PASS Band2 20MHz 16QAM 18700 100RB#0 5.65 13 PASS Band2 20MHz 16QAM 18900 100RB#0 5.86 13 PASS Band2 20MHz 16QAM 19100 100RB#0 5.45 13 PASS Test Graphs Band2-1.4MHz-QPSK-18607-6RB#0 Band2-1.4MHz-QPSK-18900-6RB#0 Band2-1.4MHz-QPSK-19193-6RB#0 Band2-1.4MHz-16QAM-18607-6RB#0 Band2-1.4MHz-16QAM-18900-6RB#0 Band2-1.4MHz-16QAM-19193-6RB#0 Band2-3MHz-QPSK-18615-15RB#0 Band2-3MHz-QPSK-18900-15RB#0 Band2-3MHz-QPSK-19185-15RB#0 Band2-3MHz-16QAM-18615-15RB#0 Band2-3MHz-16QAM-18900-15RB#0 Band2-3MHz-16QAM-19185-15RB#0 Band2-5MHz-QPSK-18625-25RB#0 Band2-5MHz-QPSK-18900-25RB#0 Band2-5MHz-QPSK-19175-25RB#0 Band2-5MHz-16QAM-18625-25RB#0 Band2-5MHz-16QAM-18900-25RB#0 Band2-5MHz-16QAM-19175-25RB#0 Band2-10MHz-QPSK-18650-50RB#0 Band2-10MHz-QPSK-18900-50RB#0 Band2-10MHz-QPSK-19150-50RB#0 Band2-10MHz-16QAM-18650-50RB#0 Band2-10MHz-16QAM-18900-50RB#0 Band2-10MHz-16QAM-19150-50RB#0 Band2-15MHz-QPSK-18675-75RB#0 Band2-15MHz-QPSK-18900-75RB#0 Band2-15MHz-QPSK-19125-75RB#0 Band2-15MHz-16QAM-18675-75RB#0 Band2-15MHz-16QAM-18900-75RB#0 Band2-15MHz-16QAM-19125-75RB#0 Band2-20MHz-QPSK-18700-100RB#0 Band2-20MHz-QPSK-18900-100RB#0 Band2-20MHz-QPSK-19100-100RB#0 Band2-20MHz-16QAM-18700-100RB#0 Band2-20MHz-16QAM-18900-100RB#0 Band2-20MHz-16QAM-19100-100RB#0 Appendix B: 26dB Bandwidth and Occupied Bandwidth Test Result Band Bandwidth Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Band2 1.4MHz QPSK 18607 6RB#0 1.093 1.320 PASS Band2 1.4MHz QPSK 18900 6RB#0 1.098 1.310 PASS Band2 1.4MHz QPSK 19193 6RB#0 1.098 1.310 PASS Band2 1.4MHz 16QAM 18607 6RB#0 1.108 1.335 PASS Band2 1.4MHz 16QAM 18900 6RB#0 1.113 1.320 PASS Band2 1.4MHz 16QAM 19193 6RB#0 1.113 1.355 PASS Band2 3MHz QPSK 18615 15RB#0 2.725 3.130 PASS Band2 3MHz QPSK 18900 15RB#0 2.725 3.130 PASS Band2 3MHz QPSK 19185 15RB#0 2.715 3.140 PASS Band2 3MHz 16QAM 18615 15RB#0 2.705 3.110 PASS Band2 3MHz 16QAM 18900 15RB#0 2.705 3.110 PASS Band2 3MHz 16QAM 19185 15RB#0 2.696 3.110 PASS Band2 5MHz QPSK 18625 25RB#0 4.525 5.350 PASS Band2 5MHz QPSK 18900 25RB#0 4.535 5.380 PASS Band2 5MHz QPSK 19175 25RB#0 4.525 5.430 PASS Band2 5MHz 16QAM 18625 25RB#0 4.525 5.320 PASS Band2 5MHz 16QAM 18900 25RB#0 4.525 5.330 PASS Band2 5MHz 16QAM 19175 25RB#0 4.525 5.300 PASS Band2 10MHz QPSK 18650 50RB#0 9.018 10.200 PASS Band2 10MHz QPSK 18900 50RB#0 8.985 10.233 PASS Band2 10MHz QPSK 19150 50RB#0 8.985 10.267 PASS Band2 10MHz 16QAM 18650 50RB#0 8.985 10.233 PASS Band2 10MHz 16QAM 18900 50RB#0 8.985 10.167 PASS Band2 10MHz 16QAM 19150 50RB#0 9.018 10.200 PASS Band2 15MHz QPSK 18675 75RB#0 13.527 15.550 PASS Band2 15MHz QPSK 18900 75RB#0 13.527 15.550 PASS Band2 15MHz QPSK 19125 75RB#0 13.527 15.550 PASS Band2 15MHz 16QAM 18675 75RB#0 13.527 15.250 PASS Band2 15MHz 16QAM 18900 75RB#0 13.478 15.150 PASS Band2 15MHz 16QAM 19125 75RB#0 13.478 15.200 PASS Band2 20MHz QPSK 18700 100RB#0 18.103 20.467 PASS Band2 20MHz QPSK 18900 100RB#0 18.17 20.933 PASS Band2 20MHz QPSK 19100 100RB#0 18.103 20.467 PASS Band2 20MHz 16QAM 18700 100RB#0 18.17 20.600 PASS Band2 20MHz 16QAM 18900 100RB#0 18.103 20.800 PASS Band2 20MHz 16QAM 19100 100RB#0 18.17 20.600 PASS Test Graphs Band2-1.4MHz-QPSK-18607-6RB#0 Band2-1.4MHz-QPSK-18900-6RB#0 Band2-1.4MHz-QPSK-19193-6RB#0 Band2-1.4MHz-16QAM-18607-6RB#0 Band2-1.4MHz-16QAM-18900-6RB#0 Band2-1.4MHz-16QAM-19193-6RB#0 Band2-3MHz-QPSK-18615-15RB#0 Band2-3MHz-QPSK-18900-15RB#0 Band2-3MHz-QPSK-19185-15RB#0 Band2-3MHz-16QAM-18615-15RB#0 Band2-3MHz-16QAM-18900-15RB#0 Band2-3MHz-16QAM-19185-15RB#0 Band2-5MHz-QPSK-18625-25RB#0 Band2-5MHz-QPSK-18900-25RB#0 Band2-5MHz-QPSK-19175-25RB#0 Band2-5MHz-16QAM-18625-25RB#0 Band2-5MHz-16QAM-18900-25RB#0 Band2-5MHz-16QAM-19175-25RB#0 Band2-10MHz-QPSK-18650-50RB#0 Band2-10MHz-QPSK-18900-50RB#0 Band2-10MHz-QPSK-19150-50RB#0 Band2-10MHz-16QAM-18650-50RB#0 Band2-10MHz-16QAM-18900-50RB#0 Band2-10MHz-16QAM-19150-50RB#0 Band2-15MHz-QPSK-18675-75RB#0 Band2-15MHz-QPSK-18900-75RB#0 Band2-15MHz-QPSK-19125-75RB#0 Band2-15MHz-16QAM-18675-75RB#0 Band2-15MHz-16QAM-18900-75RB#0 Band2-15MHz-16QAM-19125-75RB#0 Band2-20MHz-QPSK-18700-100RB#0 Band2-20MHz-QPSK-18900-100RB#0 Band2-20MHz-QPSK-19100-100RB#0 Band2-20MHz-16QAM-18700-100RB#0 Band2-20MHz-16QAM-18900-100RB#0 Band2-20MHz-16QAM-19100-100RB#0 Appendix C: Band Edge Test Result Band Bandwidth Modulation Channel RB Configuration Result(dBm) Verdict Band2 1.4MHz QPSK 18607 6RB#0 -29.27 PASS Band2 1.4MHz QPSK 19193 6RB#0 -30.87 PASS Band2 1.4MHz …

Text truncated - open the document above for the full version.

Appendix A: Peak-to-Average Ratio(CCDF) Test Result Band Bandwidth Modulation Channel RB Configuration Result(dB) Limit(dB) Verdict Band4 1.4MHz QPSK 19957 1RB#0 5.19 13 PASS Band4 1.4MHz QPSK 19957 6RB#0 5.57 13 PASS Band4 1.4MHz QPSK 20175 1RB#0 5.04 13 PASS Band4 1.4MHz QPSK 20175 6RB#0 5.45 13 PASS Band4 1.4MHz QPSK 20393 1RB#0 5.07 13 PASS Band4 1.4MHz QPSK 20393 6RB#0 5.51 13 PASS Band4 1.4MHz 16QAM 19957 1RB#0 6.03 13 PASS Band4 1.4MHz 16QAM 19957 6RB#0 6.26 13 PASS Band4 1.4MHz 16QAM 20175 1RB#0 5.86 13 PASS Band4 1.4MHz 16QAM 20175 6RB#0 6.23 13 PASS Band4 1.4MHz 16QAM 20393 1RB#0 5.62 13 PASS Band4 1.4MHz 16QAM 20393 6RB#0 6.26 13 PASS Band4 3MHz QPSK 19965 15RB#0 5.54 13 PASS Band4 3MHz QPSK 20175 15RB#0 5.51 13 PASS Band4 3MHz QPSK 20385 15RB#0 5.51 13 PASS Band4 3MHz 16QAM 19965 15RB#0 6.32 13 PASS Band4 3MHz 16QAM 20175 15RB#0 6.29 13 PASS Band4 3MHz 16QAM 20385 15RB#0 6.26 13 PASS Band4 5MHz QPSK 19975 25RB#0 5.54 13 PASS Band4 5MHz QPSK 20175 25RB#0 5.45 13 PASS Band4 5MHz QPSK 20375 25RB#0 5.51 13 PASS Band4 5MHz 16QAM 19975 25RB#0 6.26 13 PASS Band4 5MHz 16QAM 20175 25RB#0 6.23 13 PASS Band4 5MHz 16QAM 20375 25RB#0 6.17 13 PASS Band4 10MHz QPSK 20000 50RB#0 5.48 13 PASS Band4 10MHz QPSK 20175 50RB#0 5.48 13 PASS Band4 10MHz QPSK 20350 50RB#0 5.48 13 PASS Band4 10MHz 16QAM 20000 50RB#0 6.26 13 PASS Band4 10MHz 16QAM 20175 50RB#0 6.23 13 PASS Band4 10MHz 16QAM 20350 50RB#0 6.23 13 PASS Band4 15MHz QPSK 20025 75RB#0 5.80 13 PASS Band4 15MHz QPSK 20175 75RB#0 5.71 13 PASS Band4 15MHz QPSK 20325 75RB#0 5.74 13 PASS Band4 15MHz 16QAM 20025 75RB#0 6.29 13 PASS Band4 15MHz 16QAM 20175 75RB#0 6.23 13 PASS Band4 15MHz 16QAM 20325 75RB#0 6.26 13 PASS Band4 20MHz QPSK 20050 100RB#0 5.42 13 PASS Band4 20MHz QPSK 20175 100RB#0 5.42 13 PASS Band4 20MHz QPSK 20300 100RB#0 5.39 13 PASS Band4 20MHz 16QAM 20050 100RB#0 6.23 13 PASS Band4 20MHz 16QAM 20175 100RB#0 6.17 13 PASS Band4 20MHz 16QAM 20300 100RB#0 6.20 13 PASS Test Graphs Band4-1.4MHz-QPSK-19957-1RB#0 Band4-1.4MHz-QPSK-19957-6RB#0 Band4-1.4MHz-QPSK-20175-1RB#0 Band4-1.4MHz-QPSK-20175-6RB#0 Band4-1.4MHz-QPSK-20393-1RB#0 Band4-1.4MHz-QPSK-20393-6RB#0 Band4-1.4MHz-16QAM-19957-1RB#0 Band4-1.4MHz-16QAM-19957-6RB#0 Band4-1.4MHz-16QAM-20175-1RB#0 Band4-1.4MHz-16QAM-20175-6RB#0 Band4-1.4MHz-16QAM-20393-1RB#0 Band4-1.4MHz-16QAM-20393-6RB#0 Band4-3MHz-QPSK-19965-15RB#0 Band4-3MHz-QPSK-20175-15RB#0 Band4-3MHz-QPSK-20385-15RB#0 Band4-3MHz-16QAM-19965-15RB#0 Band4-3MHz-16QAM-20175-15RB#0 Band4-3MHz-16QAM-20385-15RB#0 Band4-5MHz-QPSK-19975-25RB#0 Band4-5MHz-QPSK-20175-25RB#0 Band4-5MHz-QPSK-20375-25RB#0 Band4-5MHz-16QAM-19975-25RB#0 Band4-5MHz-16QAM-20175-25RB#0 Band4-5MHz-16QAM-20375-25RB#0 Band4-10MHz-QPSK-20000-50RB#0 Band4-10MHz-QPSK-20175-50RB#0 Band4-10MHz-QPSK-20350-50RB#0 Band4-10MHz-16QAM-20000-50RB#0 Band4-10MHz-16QAM-20175-50RB#0 Band4-10MHz-16QAM-20350-50RB#0 Band4-15MHz-QPSK-20025-75RB#0 Band4-15MHz-QPSK-20175-75RB#0 Band4-15MHz-QPSK-20325-75RB#0 Band4-15MHz-16QAM-20025-75RB#0 Band4-15MHz-16QAM-20175-75RB#0 Band4-15MHz-16QAM-20325-75RB#0 Band4-20MHz-QPSK-20050-100RB#0 Band4-20MHz-QPSK-20175-100RB#0 Band4-20MHz-QPSK-20300-100RB#0 Band4-20MHz-16QAM-20050-100RB#0 Band4-20MHz-16QAM-20175-100RB#0 Band4-20MHz-16QAM-20300-100RB#0 Appendix B: 26dB Bandwidth and Occupied Bandwidth Test Result Band Bandwidth Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Band4 1.4MHz QPSK 19957 6RB#0 1.098 1.315 PASS Band4 1.4MHz QPSK 20175 6RB#0 1.098 1.345 PASS Band4 1.4MHz QPSK 20393 6RB#0 1.098 1.320 PASS Band4 1.4MHz 16QAM 19957 6RB#0 1.103 1.330 PASS Band4 1.4MHz 16QAM 20175 6RB#0 1.108 1.390 PASS Band4 1.4MHz 16QAM 20393 6RB#0 1.113 1.340 PASS Band4 3MHz QPSK 19965 15RB#0 2.715 3.130 PASS Band4 3MHz QPSK 20175 15RB#0 2.715 3.220 PASS Band4 3MHz QPSK 20385 15RB#0 2.725 3.130 PASS Band4 3MHz 16QAM 19965 15RB#0 2.705 3.120 PASS Band4 3MHz 16QAM 20175 15RB#0 2.715 3.240 PASS Band4 3MHz 16QAM 20385 15RB#0 2.705 3.120 PASS Band4 5MHz QPSK 19975 25RB#0 4.525 5.370 PASS Band4 5MHz QPSK 20175 25RB#0 4.515 5.460 PASS Band4 5MHz QPSK 20375 25RB#0 4.535 5.390 PASS Band4 5MHz 16QAM 19975 25RB#0 4.525 5.330 PASS Band4 5MHz 16QAM 20175 25RB#0 4.535 5.430 PASS Band4 5MHz 16QAM 20375 25RB#0 4.525 5.330 PASS Band4 10MHz QPSK 20000 50RB#0 9.018 10.200 PASS Band4 10MHz QPSK 20175 50RB#0 9.018 10.233 PASS Band4 10MHz QPSK 20350 50RB#0 8.985 10.267 PASS Band4 10MHz 16QAM 20000 50RB#0 9.018 10.167 PASS Band4 10MHz 16QAM 20175 50RB#0 9.018 10.467 PASS Band4 10MHz 16QAM 20350 50RB#0 9.018 10.233 PASS Band4 15MHz QPSK 20025 75RB#0 13.527 15.600 PASS Band4 15MHz QPSK 20175 75RB#0 13.527 16.050 PASS Band4 15MHz QPSK 20325 75RB#0 13.527 15.500 PASS Band4 15MHz 16QAM 20025 75RB#0 13.527 15.250 PASS Band4 15MHz 16QAM 20175 75RB#0 13.478 15.000 PASS Band4 15MHz 16QAM 20325 75RB#0 13.478 15.000 PASS Band4 20MHz QPSK 20050 100RB#0 18.037 20.533 PASS Band4 20MHz QPSK 20175 100RB#0 18.17 20.800 PASS Band4 20MHz QPSK 20300 100RB#0 18.103 20.467 PASS Band4 20MHz 16QAM 20050 100RB#0 18.17 20.667 PASS Band4 20MHz 16QAM 20175 100RB#0 18.103 20.600 PASS Band4 20MHz 16QAM 20300 100RB#0 18.037 20.933 PASS Test Graphs Band4-1.4MHz-QPSK-19957-6RB#0 Band4-1.4MHz-QPSK-20175-6RB#0 Band4-1.4MHz-QPSK-20393-6RB#0 Band4-1.4MHz-16QAM-19957-6RB#0 Band4-1.4MHz-16QAM-20175-6RB#0 Band4-1.4MHz-16QAM-20393-6RB#0 Band4-3MHz-QPSK-19965-15RB#0 Band4-3MHz-QPSK-20175-15RB#0 Band4-3MHz-QPSK-20385-15RB#0 Band4-3MHz-16QAM-19965-15RB#0 Band4-3MHz-16QAM-20175-15RB#0 Band4-3MHz-16QAM-20385-15RB#0 Band4-5MHz-QPSK-19975-25RB#0 Band4-5MHz-QPSK-20175-25RB#0 Band4-5MHz-QPSK-20375-25RB#0 Band4-5MHz-16QAM-19975-25RB#0 Band4-5MHz-16QAM-20175-25RB#0 Band4-5MHz-16QAM-20375-25RB#0 Band4-10MHz-QPSK-20000-50RB#0 Band4-10MHz-QPSK-20175-50RB#0 Band4-10MHz-QPSK-20350-50RB#0 Band4-10MHz-16QAM-20000-50RB#0 Band4-10MHz-16QAM-20175-50RB#0 Band4-10MHz-16QAM-20350-50RB#0 Band4-15MHz-QPSK-20025-75RB#0 Band4-15MHz-QPSK-20175-75RB#0 Band4-15MHz-QPSK-20325-75RB#0 Band4-15MHz-16QAM-20025-75RB#0 Band4-15…

Text truncated - open the document above for the full version.

Appendix A: Peak-to-Average Ratio(CCDF) Test Result Band Bandwidth Modulation Channel RB Configuration Result(dB) Limit(dB) Verdict Band7 5MHz QPSK 20775 25RB#0 4.70 13 PASS Band7 5MHz QPSK 21100 25RB#0 4.96 13 PASS Band7 5MHz QPSK 21425 25RB#0 4.87 13 PASS Band7 5MHz 16QAM 20775 25RB#0 5.42 13 PASS Band7 5MHz 16QAM 21100 25RB#0 5.65 13 PASS Band7 5MHz 16QAM 21425 25RB#0 5.54 13 PASS Band7 10MHz QPSK 20800 50RB#0 4.84 13 PASS Band7 10MHz QPSK 21100 50RB#0 5.10 13 PASS Band7 10MHz QPSK 21400 50RB#0 4.96 13 PASS Band7 10MHz 16QAM 20800 50RB#0 5.57 13 PASS Band7 10MHz 16QAM 21100 50RB#0 5.86 13 PASS Band7 10MHz 16QAM 21400 50RB#0 5.74 13 PASS Band7 15MHz QPSK 20825 75RB#0 4.99 13 PASS Band7 15MHz QPSK 21100 75RB#0 5.25 13 PASS Band7 15MHz QPSK 21375 75RB#0 5.16 13 PASS Band7 15MHz 16QAM 20825 75RB#0 5.59 13 PASS Band7 15MHz 16QAM 21100 75RB#0 5.83 13 PASS Band7 15MHz 16QAM 21375 75RB#0 5.74 13 PASS Band7 20MHz QPSK 20850 100RB#0 4.75 13 PASS Band7 20MHz QPSK 21100 100RB#0 5.01 13 PASS Band7 20MHz QPSK 21350 100RB#0 4.90 13 PASS Band7 20MHz 16QAM 20850 100RB#0 5.54 13 PASS Band7 20MHz 16QAM 21100 100RB#0 5.80 13 PASS Band7 20MHz 16QAM 21350 100RB#0 5.68 13 PASS Test Graphs Band7-5MHz-QPSK-20775-25RB#0 Band7-5MHz-QPSK-21100-25RB#0 Band7-5MHz-QPSK-21425-25RB#0 Band7-5MHz-16QAM-20775-25RB#0 Band7-5MHz-16QAM-21100-25RB#0 Band7-5MHz-16QAM-21425-25RB#0 Band7-10MHz-QPSK-20800-50RB#0 Band7-10MHz-QPSK-21100-50RB#0 Band7-10MHz-QPSK-21400-50RB#0 Band7-10MHz-16QAM-20800-50RB#0 Band7-10MHz-16QAM-21100-50RB#0 Band7-10MHz-16QAM-21400-50RB#0 Band7-15MHz-QPSK-20825-75RB#0 Band7-15MHz-QPSK-21100-75RB#0 Band7-15MHz-QPSK-21375-75RB#0 Band7-15MHz-16QAM-20825-75RB#0 Band7-15MHz-16QAM-21100-75RB#0 Band7-15MHz-16QAM-21375-75RB#0 Band7-20MHz-QPSK-20850-100RB#0 Band7-20MHz-QPSK-21100-100RB#0 Band7-20MHz-QPSK-21350-100RB#0 Band7-20MHz-16QAM-20850-100RB#0 Band7-20MHz-16QAM-21100-100RB#0 Band7-20MHz-16QAM-21350-100RB#0 Appendix B: 26dB Bandwidth and Occupied Bandwidth Test Result Band Bandwidth Modulation Channel RB Configuration Occupied Bandwidth (MHz) 26dB Bandwidth (MHz) Verdict Band7 5MHz QPSK 20775 25RB#0 4.525 5.370 PASS Band7 5MHz QPSK 21100 25RB#0 4.535 5.400 PASS Band7 5MHz QPSK 21425 25RB#0 4.525 5.410 PASS Band7 5MHz 16QAM 20775 25RB#0 4.525 5.320 PASS Band7 5MHz 16QAM 21100 25RB#0 4.515 5.340 PASS Band7 5MHz 16QAM 21425 25RB#0 4.515 5.340 PASS Band7 10MHz QPSK 20800 50RB#0 9.018 10.133 PASS Band7 10MHz QPSK 21100 50RB#0 9.018 10.233 PASS Band7 10MHz QPSK 21400 50RB#0 9.018 10.200 PASS Band7 10MHz 16QAM 20800 50RB#0 9.018 10.267 PASS Band7 10MHz 16QAM 21100 50RB#0 8.985 10.167 PASS Band7 10MHz 16QAM 21400 50RB#0 9.018 10.133 PASS Band7 15MHz QPSK 20825 75…

Text truncated - open the document above for the full version.
