2BAK2-F112PRO

Shenzhen Qichang Intelligent Technology Co., Ltd

Smartphone

Click to zoom

Application Details

Equipment Class: PCE - PCS Licensed Transmitter held to ear
Date of Grant: Feb 20, 2025
Application Purpose: Original Equipment
Equipment Note: Smartphone
Frequency Range: 699.70000000 - 715.30000000
Company: Shenzhen Qichang Intelligent Technology Co., Ltd
Country: China

Documents & Files

Select a file to view

Users Manual

Attestation Statements

Cover Letter(s)

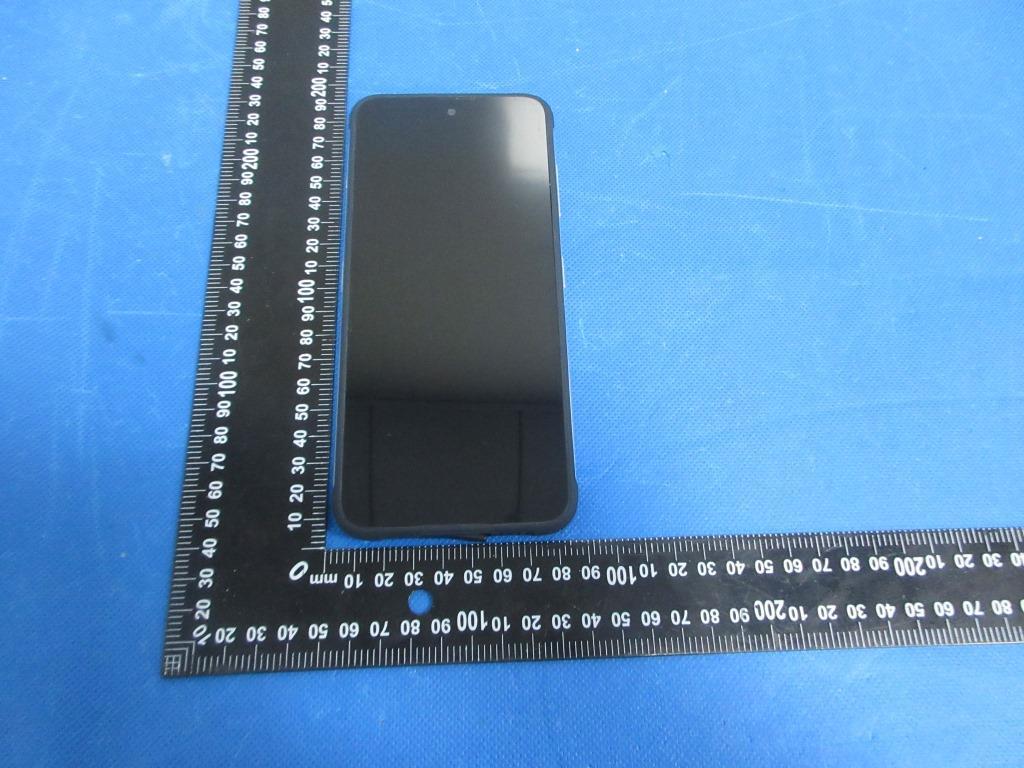

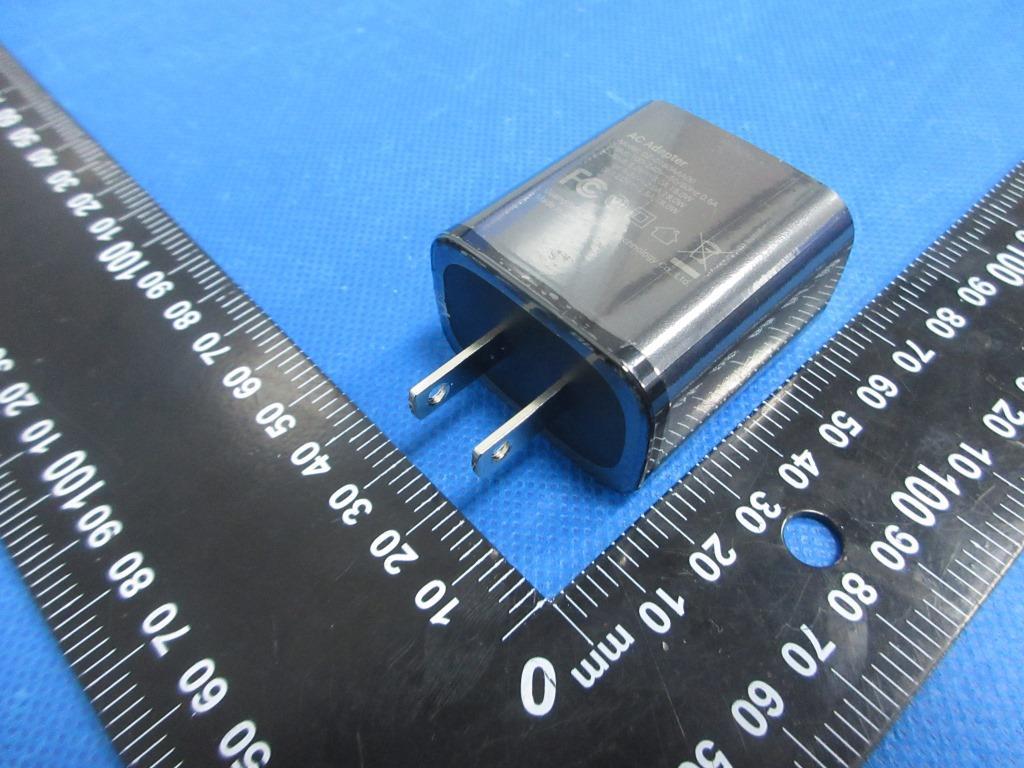

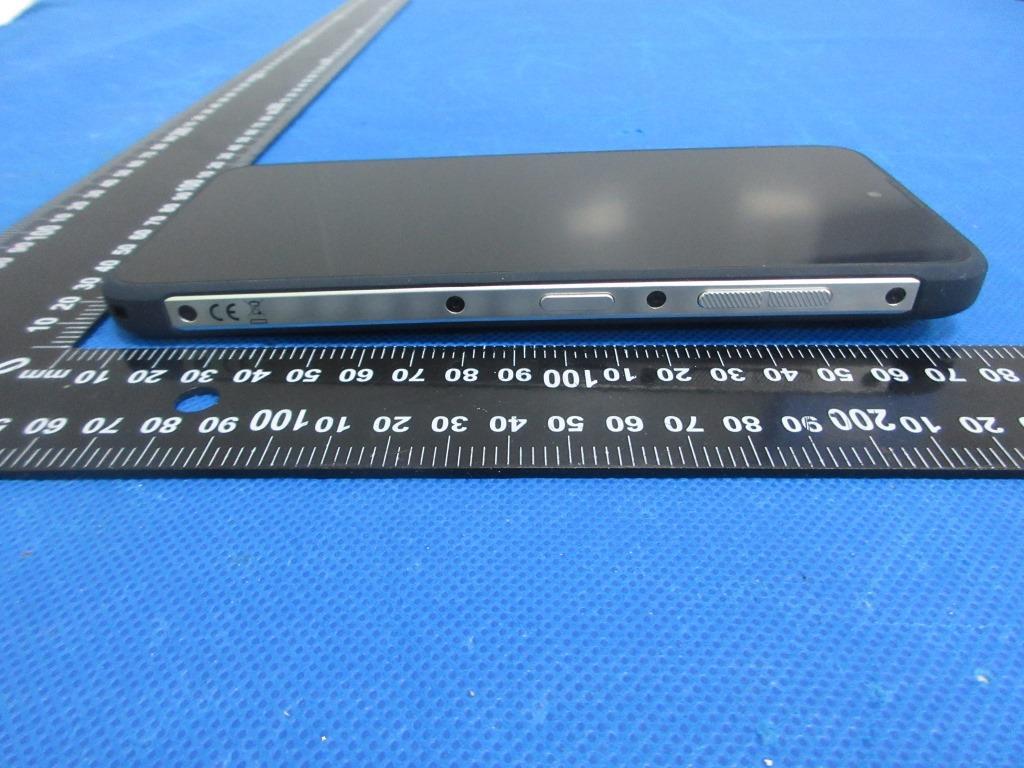

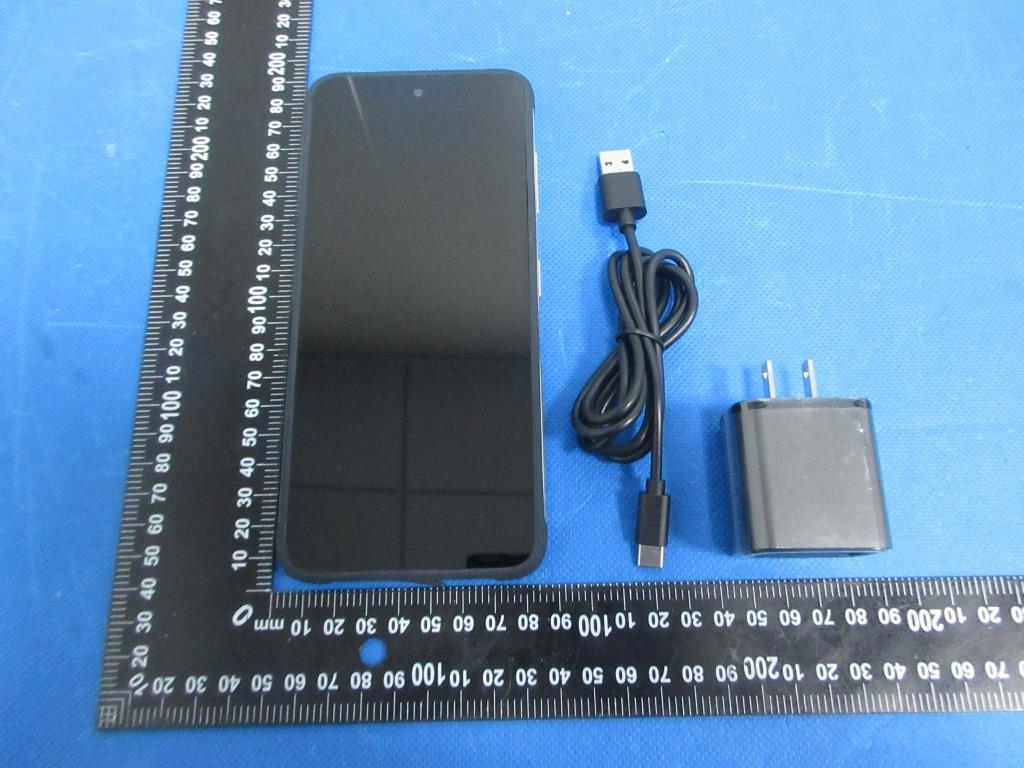

External Photos

ID Label/Location Info

Internal Photos

RF Exposure Info

Test Report

Test Setup Photos

Technical Specifications

#	Rule Parts	Frequency Range	Power Output	Emission	Tolerance
1	22H	824.2 MHz - 848.8 MHz	1.479108 W	250KGXW	0.015088ppm
2	22H	824.2 MHz - 848.8 MHz	367.28 mW	259KG7W	0.011298ppm
3	24E	1.85 GHz - 1.91 GHz	1.119438 W	249KGXW	0.011043ppm
4	24E	1.85 GHz - 1.91 GHz	417.83 mW	259KG7W	0.013154ppm
5	24E	1.85 GHz - 1.91 GHz	164.44 mW	4M16F9W	0.010564ppm
6	27	1.71 GHz - 1.75 GHz	153.46 mW	4M17F9W	0.011914ppm
7	22H	826.4 MHz - 846.6 MHz	130.92 mW	4M17F9W	0.027941ppm
8	24E	1.85 GHz - 1.91 GHz	211.84 mW	17M9G7D	0.007889ppm
9	24E	1.85 GHz - 1.91 GHz	174.58 mW	18M0W7D	0.005428ppm
1	27	1.71 GHz - 1.75 GHz	190.55 mW	17M9G7D	0.005302ppm
11	27	1.71 GHz - 1.75 GHz	157.76 mW	18M0W7D	0.005802ppm
12	22H	824.7 MHz - 848.3 MHz	81.10 mW	8M99G7D	0.007939ppm
13	22H	824.7 MHz - 848.3 MHz	87.70 mW	8M96W7D	0.008222ppm
14	27	2.50 GHz - 2.57 GHz	174.58 mW	17M9G7D	0.003995ppm
15	27	2.50 GHz - 2.57 GHz	168.66 mW	17M9W7D	0.002763ppm
16	27	699.7 MHz - 715.3 MHz	206.54 mW	8M92G7D	0.014305ppm
17	27	699.7 MHz - 715.3 MHz	107.90 mW	8M92W7D	0.01435ppm
18	27	779.5 MHz - 784.5 MHz	184.08 mW	8M99G7D	0.021762ppm
19	27	779.5 MHz - 784.5 MHz	176.20 mW	8M98W7D	0.020968ppm
2	27	706.5 MHz - 713.5 MHz	102.80 mW	8M95G7D	0.013735ppm
21	27	706.5 MHz - 713.5 MHz	107.15 mW	8M94W7D	0.014611ppm
22	22H	832.5 MHz - 842.5 MHz	167.11 mW	13M5G7D	0.011886ppm
23	22H	832.5 MHz - 842.5 MHz	139.96 mW	13M5W7D	0.008239ppm
24	24E	1.85 GHz - 1.91 GHz	207.49 mW	18M0G7D	0.005352ppm
25	24E	1.85 GHz - 1.91 GHz	140.28 mW	18M0W7D	0.005337ppm
26	27	2.57 GHz - 2.62 GHz	508.16 mW	18M0G7D	0.00348ppm
27	27	2.57 GHz - 2.62 GHz	427.56 mW	17M9W7D	0.003468ppm
28	27	2.54 GHz - 2.65 GHz	739.60 mW	17M9G7D	0.003472ppm
29	27	2.54 GHz - 2.65 GHz	625.17 mW	17M9W7D	0.003599ppm
3	27	3.45 GHz - 3.55 GHz	342.77 mW	96M7G7D	0.004329ppm

Confidentiality

Long Term

Grant Notes

Power output listed is ERP for frequencies below 1GHz and EIRP for frequencies above 1GHz. SAR compliance for body-worn operating configurations is limited to the specific configurations tested for this filing. Body-worn operations are restricted to belt-clips, holsters or similar accessories that have no metallic component in the assembly and must provide at least 10 mm separation between the device and the body of the user. End-users must be informed of the body-worn operating requirements for satisfying RF exposure compliance. The highest reported SAR for head, body-worn, hotspot and simultaneous SAR accessory is 0.68 W/kg, 1.27 W/kg, 1.27 W/kg and 1.49 W/kg respectively. This device also contains functions that are not operational in U.S. Territories. This filing is only applicable for US operations.
