2BAK2-S3Smart phone

.，仁ητ司耳Ti开Ti丁丁＇CT,::…………………………·· Dis pl部1 6.6T FHD> 2K Dlspl，可 Dlsp国y2: 1.1寸τT/2‘σ2‘Opx Ope目ti『咱可冒回m Android™ Pro四盟soc. MediaTek Hello GBS. Octa co陪 Mam。 ry. 6Ci目RAM+12BGB ROM Up恒20CBRAM恼CB+l4CB臼阴阳ionl 目a忧＜＞ry. 5000n鸭hBa筒，叨，18WFa目Cha用e 回臼mera Rear四mera.64MP PDAF + 2MP Microspur Front Cam 8MP Flash Led E臼nnectlon(l/0 】 国otherFNtu帽 Video,AVI. M同a WiMV. MKV. MOV. ASF. FLV, RMV日，RM Audio, SupportAVI. MP4. WMV. RMVB. MKV. MOV. ASF. RM. FLV and other v闺阁form副suptolOBOp／：如吊e rmag配JPEC.BMP.CIF. PNC e) Dim四•Ion• Haig hi坠162..SmmWldth, 74.3mm lhlckn画画自由Smm M抽lght:19匈 13'.l' p 础啕 ·臼刷刷 l'USB C目blel'Ch目『gerl' 53 l' SIM Card Pin l' Mult1-lar咽uageManual,/\Narranty咀咱/Bat悟，ywaming label l' Pro国ctlv田film1' TPU Cover Android Isa tr刮•markofG。咱leLLC. s FCC Statement Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -- Reorient or relocate the receiving antenna. -- Increase the separation between the equipment and receiver. -- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -- Consult the dealer or an experienced radio/TV technician for help This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions (1)this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. FCC/IC RF Radiation Exposure and SAR Statements The Smart Phone S3 has been tested for body-worn Specific Absorption Rate(SAR) compliance. The FCC/IC has established detailed SAR requirements and has established that these requirements. RF Exposure Information The radio module has been evaluated under FCC Bulletin C95.1 and IEEE 1528 and found to be compliant to RF Exposure from radio frequency devices. This model meets the applicable government requirements for exposure to radio frequency waves. The highest reported SAR level for usage near the body (10mm) is 0.578 W/kg, Body simultaneous transmission is 0.970W/kg at the same time.SAR level for usage near the Head is 0.595 W/kg and Head simultaneous transmission is 0.788 W/kg ， SAR level for usage near the Hotspot is 1.352 W/kg and Hotspot simultaneous transmission is 1.352 W/kg

Shenzhen Qichang Intelligent Technology Co., Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen Qichang Intelligent Technology Co., Ltd Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang , Shenzhen Product Name: Smart Phone FCC ID: 2BAK2-S3 Model(s): S3, S3 Pro,S3 Plus,S3 P, S3 + 2.911(d)(5)(i) Equipment Type We, [Shenzhen Qichang Intelligent Technology Co., Ltd] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Wenwen Jiang Date: 2024.11.22 Title and Company name: Manager/ Shenzhen Qichang Intelligent Technology Co., Ltd NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Qichang Intelligent Technology Co., Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Qichang Intelligent Technology Co., Ltd Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang , Shenzhen Product Name: Smart Phone FCC ID: 2BAK2-S3 Model(s): S3, S3 Pro,S3 Plus,S3 P, S3 + 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Qichang Intelligent Technology Co., Ltd] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2, established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Wenwen Jiang Date: 2024.11.22 Title and Company name: Manager/ Shenzhen Qichang Intelligent Technology Co., Ltd NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Qichang Intelligent Technology Co., Ltd 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen Qichang Intelligent Technology Co., Ltd Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang , Shenzhen Product Name: Smart Phone FCC ID: 2BAK2-S3 Model(s): S3, S3 Pro,S3 Plus,S3 P, S3 + 2.911(d)(5)(i) Equipment Type We, [Shenzhen Qichang Intelligent Technology Co., Ltd] (“the applicant”) certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Wenwen Jiang Date: 2024.11.22 Title and Company name: Manager/ Shenzhen Qichang Intelligent Technology Co., Ltd NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Qichang Intelligent Technology Co., Ltd 2.911 (d)(5)(ii) Applicant Attestation v1.2 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen Qichang Intelligent Technology Co., Ltd Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang , Shenzhen Product Name: Smart Phone FCC ID: 2BAK2-S3 Model(s): S3, S3 Pro,S3 Plus,S3 P, S3 + 2.911(d)(5)(ii) Applicant filing We, [Shenzhen Qichang Intelligent Technology Co., Ltd] (“the applicant”) certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2, established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Wenwen Jiang Date: 2024.11.22 Title and Company name: Manager/ Shenzhen Qichang Intelligent Technology Co., Ltd NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen Qichang Intelligent Technology Co., Ltd U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: Baihetian Innovative Solutions FRN: 0033401605 Contact Name: Kenneth Young Street Address: 6837 Chase Rd City/Province/Zip: Dearborn, MI 48126 Telephone No: 313-395-3113 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2024/11/22 Signed by (Printed Name/Title): Kenneth Young/Manager Applicant Signature: Date: 2024/11/22 Signed by (Printed Name/Title): Wenwen Jiang /Manager The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: Shenzhen Qichang Intelligent Technology Co., Ltd Grantee Code: 2BAK2 FCC ID: 2BAK2-S3 Contact Name: Wenwen Jiang Street Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, City/Province/Zip: Longgang , Shenzhen Telephone No: +86-755-81797123 Email: [email protected] FRN:0033625682

FCC Software Configuration Control Declaration Rev1.1 Shenzhen Qichang Intelligent Technology Co., Ltd FCC Software Configuration Control Declaration Date: November 22, 2024 Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Attn: OET Dept. Product/ Model Number: Smart phone / S3, S3 Pro,S3 Plus,S3 P, S3 + Regarding FCC Country Code Selection guidelines identified in KDB 594280 D01 Software Configuration Control v02r01. “All applications for equipment authorization for transmitters that can have radio parameters, or other technical parameters, reported to the Commission set by software must have an attestation indicating that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified.” We declare that no third party will have software, or configuration control, to program the device out of compliance of the technical rules under which it has been certified. Name: Wenwen Jiang Date: 2024/11/22 Title: Manager Signatureof applicant

Shenzhen Qichang Intelligent Technology Co., Ltd Authorization Company: Shenzhen Qichang Intelligent Technology Co., Ltd Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang , Shenzhen Product Name: Smart phone Model Number(s): S3, S3 Pro,S3 Plus,S3 P, S3 + Product Description: Smart phone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2024/11/22 Name: Wenwen Jiang Title: Manager Company: Shenzhen Qichang Intelligent Technology Co., Ltd

Shenzhen Qichang Intelligent Technology Co., Ltd Authorization Company: Shenzhen Qichang Intelligent Technology Co., Ltd Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang , Shenzhen Product Name: Smart phone Model Number(s): S3, S3 Pro,S3 Plus,S3 P, S3 + Product Description: Smart phone We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2024/11/22 Name: Wenwen Jiang Title: Manager Company: Shenzhen Qichang Intelligent Technology Co., Ltd

Shenzhen Qichang Intelligent Technology Co., Ltd Model Difference 2024/11/22 EUT NAME: Smart phone FCC ID: 2BAK2-S3 MODEL : S3, S3 Pro,S3 Plus,S3 P, S3 + All the model are the same circuit and RF module, except model names. Sincerely Client’s signature Client’s name / title : Wenwen Jiang / manager Contact information / address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang , Shenzhen

Shenzhen Qichang Intelligent Technology Co., Ltd Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Subject; Request for Confidentiality FCC ID: 2BAK2-S3 Date: 2024/11/22 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Operational Description BOM Tune-up Procedure software security requirement In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuantto KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Sincerely, Signature: Name: Wenwen Jiang Title: Manager

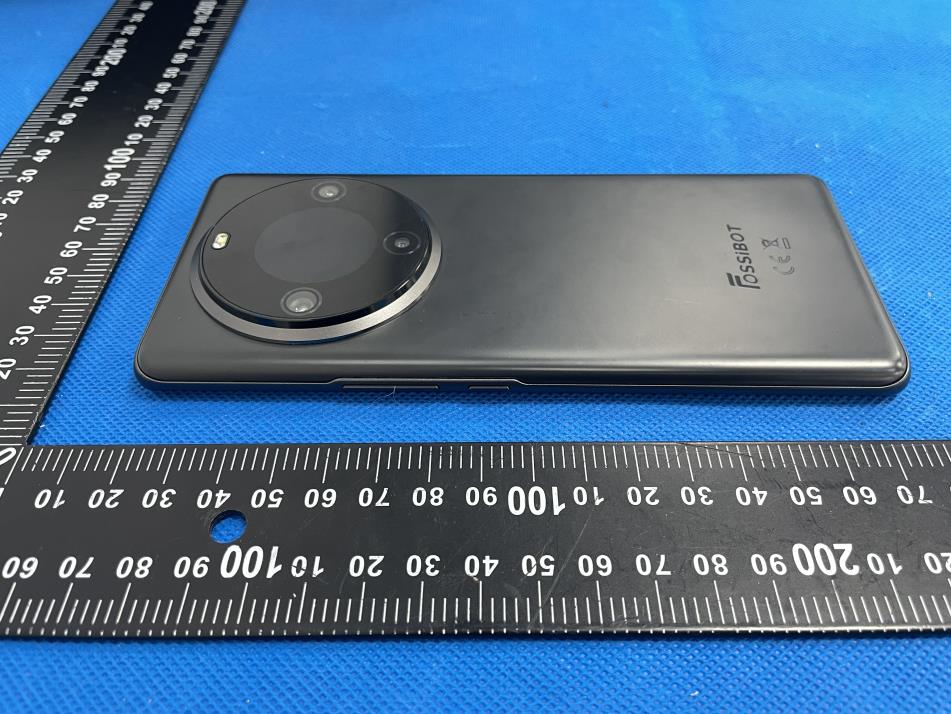

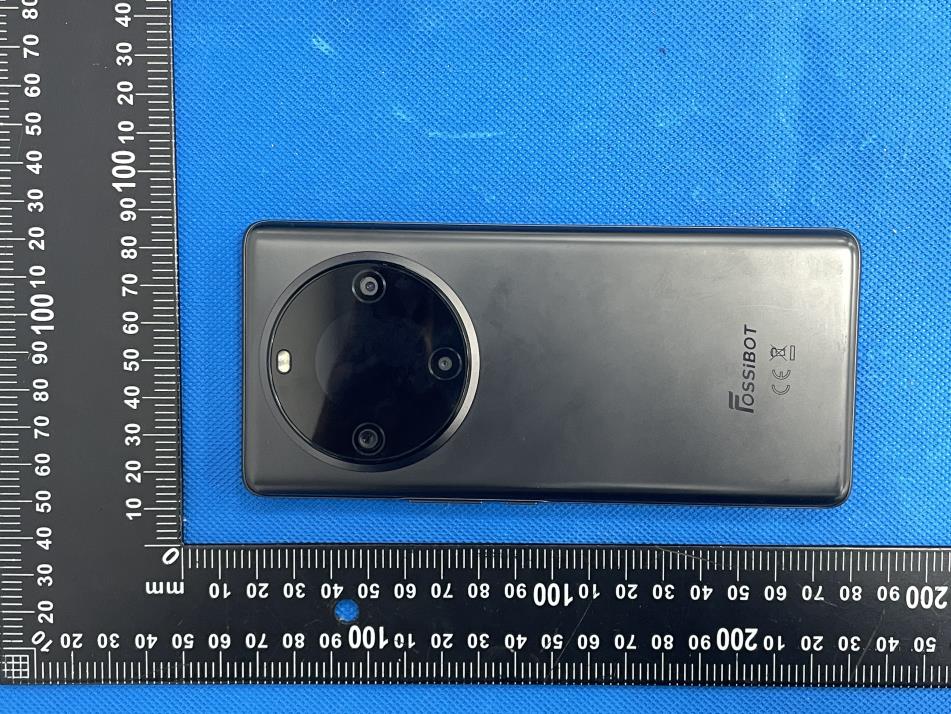

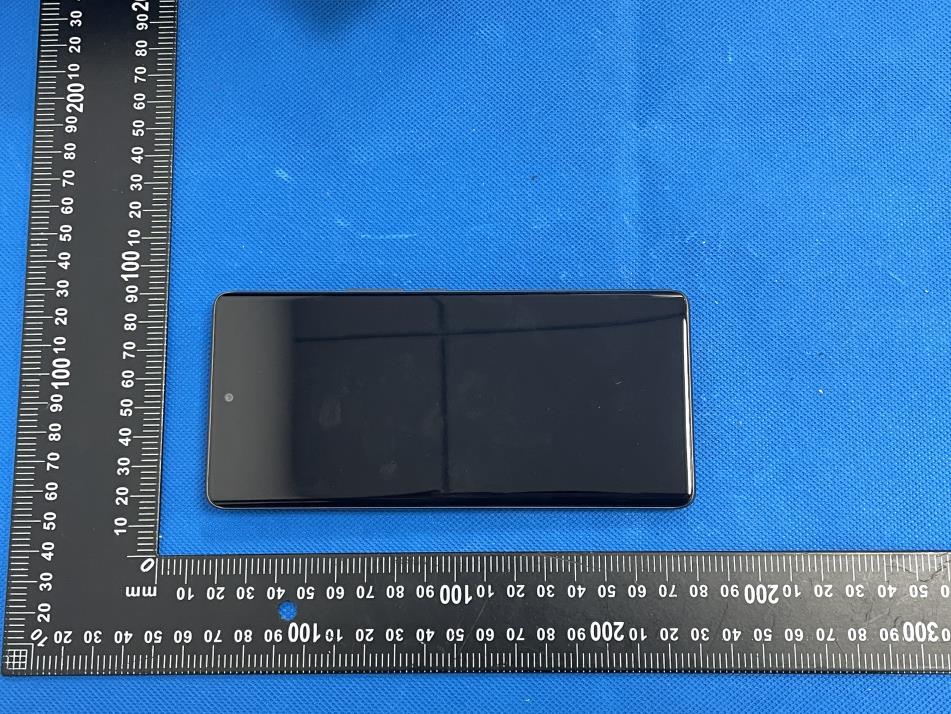

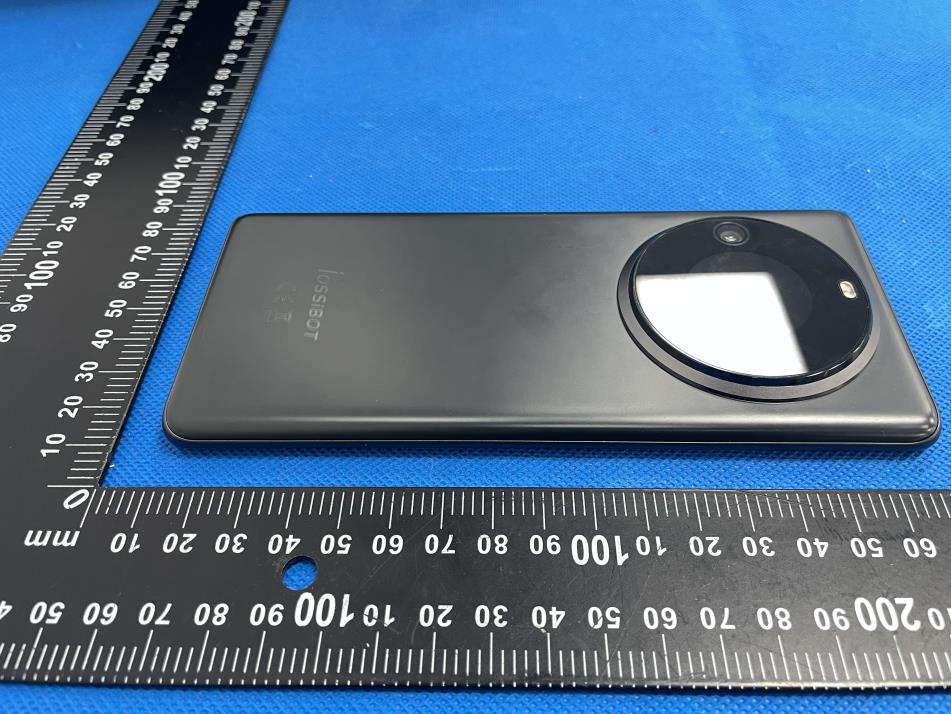

External Photos

Size:10*10mm FCC ID: 2BAK2-S3 Label location

Internal Photos 2G/3G/4G Main Antenna 2G/3G/4G DIV Antenna 5G WIFI Antenna BT/2.4G WIFI Antenna

No.：BCTC/RF-EMC-005 Page 1 of 229 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2410616495E Applicant: Shenzhen Qichang Intelligent Technology Co., Ltd Product Name: Smart phone Test Model: S3 Tested Date: 2024-10-14 to 2024-11-15 Issued Date: 2024-11-15 Report No：BCTC2410616495E No.：BCTC/RF-EMC-005 Page 2 of 229 Edition：B.2 FCC ID: 2BAK2-S3 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: Smart phone Trademark: Model/Type Ref.: S3 S3 Pro, S3 Plus, S3 P, S3 + Applicant: Shenzhen Qichang Intelligent Technology Co., Ltd Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang , Shenzhen Manufacturer: Shenzhen Qichang Intelligent Technology Co., Ltd Address: Room 510, Building 7, Yunli Intelligent Park, No. 7, Bantian Street, Longgang , Shenzhen Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-10-14 Sample tested Date: 2024-10-14 to 2024-11-15 Issue Date: 2024-11-15 Test Standards: IEEE Std C95.1-2019 IEEE Std 1528-2013 FCC Part 2.1093 Test Results: PASS Remark: This is SAR test report Tested by: Approved by: Min Zhi Cheng/ Project Handler Zero Zhou/Reviewer Report No：BCTC2410616495E No.：BCTC/RF-EMC-005 Page 3 of 229 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Standards ...................................................................................................... 6 3. Test Summary ....................................................................................................... 7 4. SAR Limits............................................................................................................. 8 5. Measurement Uncertainty ..................................................................................... 9 6. Product Information and Test Setup .................................................................... 10 6.1 Product Information ............................................................................................... 10 6.2 Test Setup Configuration ....................................................................................... 14 6.3 Support Equipment ................................................................................................ 14 6.4 Test Environment .................................................................................................. 14 7. Test Facility and Test Instrument Used ............................................................... 15 7.1 Test Facility ........................................................................................................... 15 7.2 Test Instrument Used ............................................................................................ 16 8. Specific Absorption Rate (SAR) .......................................................................... 17 8.1 Introduction ............................................................................................................ 17 8.2 SAR Definition ....................................................................................................... 17 9. SAR Measurement System ................................................................................. 18 9.1 The Measurement System ..................................................................................... 18 9.2 Probe ..................................................................................................................... 18 9.3 Probe Calibration Process ..................................................................................... 20 9.4 Phantom ................................................................................................................ 21 9.5 Device Holder ........................................................................................................ 21 10. Tissue Simulating Liquids .................................................................................... 22 10.1 Composition of Tissue Simulating Liquid ............................................................. 22 10.2 Limit ..................................................................................................................... 23 10.3 Tissue Calibration Result ..................................................................................... 24 11. System Check ..................................................................................................... 25 11.1 Purpose of System Performance Check .............................................................. 25 11.2 System Setup ...................................................................................................... 25 11.3 Validation Results ................................................................................................ 26 12. EUT Testing Position ........................................................................................... 27 12.1 Define Two Imaginary Lines on the Handset ....................................................... 27 12.2 Cheek Position .................................................................................................... 27 12.3 Tilted Position ...................................................................................................... 28 12.4 Body Position ....................................................................................................... 28 13. SAR Measurement Procedures ....................…

Text truncated - open the document above for the full version.

Report No：BCTC2410616495E No.：BCTC/RF-EMC-005 Page 46 of 229 Edition：B.2 Band4 20 20175 1 #Mid QPSK 23.74 -0.2 23.54 PASS Band4 20 20175 1 #Max QPSK 23.35 -0.2 23.15 PASS Band4 20 20175 50 #0 QPSK 22.60 -0.2 22.40 PASS Band4 20 20175 50 #Mid QPSK 22.61 -0.2 22.41 PASS Band4 20 20175 50 #Max QPSK 22.64 -0.2 22.44 PASS Band4 20 20175 100 #0 QPSK 22.60 -0.2 22.40 PASS Band4 20 20175 1 #0 16QAM 22.79 -0.2 22.59 PASS Band4 20 20175 1 #Mid 16QAM 23.00 -0.2 22.80 PASS Band4 20 20175 1 #Max 16QAM 22.63 -0.2 22.43 PASS Band4 20 20175 50 #0 16QAM 21.64 -0.2 21.44 PASS Band4 20 20175 50 #Mid 16QAM 21.64 -0.2 21.44 PASS Band4 20 20175 50 #Max 16QAM 21.61 -0.2 21.41 PASS Band4 20 20175 100 #0 16QAM 21.66 -0.2 21.46 PASS Band4 20 20300 1 #0 QPSK 23.36 -0.2 23.16 PASS Band4 20 20300 1 #Mid QPSK 23.54 -0.2 23.34 PASS Band4 20 20300 1 #Max QPSK 23.19 -0.2 22.99 PASS Band4 20 20300 50 #0 QPSK 22.40 -0.2 22.20 PASS Band4 20 20300 50 #Mid QPSK 22.48 -0.2 22.28 PASS Band4 20 20300 50 #Max QPSK 22.30 -0.2 22.10 PASS Band4 20 20300 100 #0 QPSK 22.34 -0.2 22.14 PASS Band4 20 20300 1 #0 16QAM 22.67 -0.2 22.47 PASS Band4 20 20300 1 #Mid 16QAM 22.87 -0.2 22.67 PASS Band4 20 20300 1 #Max 16QAM 22.49 -0.2 22.29 PASS Band4 20 20300 50 #0 16QAM 21.44 -0.2 21.24 PASS Band4 20 20300 50 #Mid 16QAM 21.56 -0.2 21.36 PASS Band4 20 20300 50 #Max 16QAM 21.34 -0.2 21.14 PASS Band4 20 20300 100 #0 16QAM 21.36 -0.2 21.16 PASS Report No：BCTC2410616495E No.：BCTC/RF-EMC-005 Page 47 of 229 Edition：B.2 Band Bandwidth (MHz) UL Channel RB Size RB Position Modulation Power (dBm) Gain (dBm) ERP (dBm) Verdict Band5 1.4 20407 1 #0 QPSK 23.58 -4.3 17.13 PASS Band5 1.4 20407 1 #Mid QPSK 23.81 -4.3 17.36 PASS Band5 1.4 20407 1 #Max QPSK 23.62 -4.3 17.17 PASS Band5 1.4 20407 3 #0 QPSK 23.75 -4.3 17.30 PASS Band5 1.4 20407 3 #Mid QPSK 23.72 -4.3 17.27 PASS Band5 1.4 20407 3 #Max QPSK 23.71 -4.3 17.26 PASS Band5 1.4 20407 6 #0 QPSK 22.71 -4.3 16.26 PASS Band5 1.4 20407 1 #0 16QAM 22.87 -4.3 16.42 PASS Band5 1.4 20407 1 #Mid 16QAM 22.99 -4.3 16.54 PASS Band5 1.4 20407 1 #Max 16QAM 22.92 -4.3 16.47 PASS Band5 1.4 20407 3 #0 16QAM 23.01 -4.3 16.56 PASS Band5 1.4 20407 3 #Mid 16QAM 23.01 -4.3 16.56 PASS Band5 1.4 20407 3 #Max 16QAM 23.02 -4.3 16.57 PASS Band5 1.4 20407 6 #0 16QAM 21.90 -4.3 15.45 PASS Band5 1.4 20525 1 #0 QPSK 23.76 -4.3 17.31 PASS Band5 1.4 20525 1 #Mid QPSK 23.95 -4.3 17.50 PASS Band5 1.4 20525 1 #Max QPSK 23.79 -4.3 17.34 PASS Band5 1.4 20525 3 #0 QPSK 23.82 -4.3 17.37 PASS Band5 1.4 20525 3 #Mid QPSK 23.82 -4.3 17.37 PASS Band5 1.4 20525 3 #Max QPSK 23.81 -4.3 17.36 PASS Band5 1.4 20525 6 #0 QPSK 22.85 -4.3 16.40 PASS Band5 1.4 20525 1 #0 16QAM 22.68 -4.3 16.23 PASS Band5 1.4 20525 1 #Mid 16QAM 22.82 -4.3 16.37 PASS Band5 1.4 20525 1 #Max 16QAM 22.69 -4.3 16.24 PASS Band5 1.4 20525 3 #0 16QAM 23.01 -4.3 16.56 PASS Band5 1.4 20525 3 #Mid 16QAM 22.99 -4.3 16.54 PASS Band5 1.4 20525 3 #Max 16QAM 23.04 -4.3 16.59 PASS Band5 1.4 20525 6 #0 16QAM 22.04 -4.3 15.59 PASS Band5 1.4 20643 1 #0 QPSK 23.76 -4.3 17.31 PASS Band5 1.4 20643 1 #Mid QPSK 23.92 -4.3 17.47 PASS Band5 1.4 20643 1 #Max QPSK 23.76 -4.3 17.31 PASS Band5 1.4 20643 3 #0 QPSK 23.79 -4.3 17.34 PASS Band5 1.4 20643 3 #Mid QPSK 23.78 -4.3 17.33 PASS Band5 1.4 20643 3 #Max QPSK 23.83 -4.3 17.38 PASS Band5 1.4 20643 6 #0 QPSK 22.78 -4.3 16.33 PASS Band5 1.4 20643 1 #0 16QAM 22.84 -4.3 16.39 PASS Band5 1.4 20643 1 #Mid 16QAM 22.98 -4.3 16.53 PASS Band5 1.4 20643 1 #Max 16QAM 22.84 -4.3 16.39 PASS Band5 1.4 20643 3 #0 16QAM 22.90 -4.3 16.45 PASS Band5 1.4 20643 3 #Mid 16QAM 22.85 -4.3 16.40 PASS Band5 1.4 20643 3 #Max 16QAM 22.94 -4.3 16.49 PASS Band5 1.4 20643 6 #0 16QAM 22.01 -4.3 15.56 PASS Band5 3 20415 1 #0 QPSK 23.63 -4.3 17.18 PASS Band5 3 20415 1 #Mid QPSK 23.91 -4.3 17.46 PASS Band5 3 20415 1 #Max QPSK 23.62 -4.3 17.17 PASS Band5 3 20415 8 #0 QPSK 22.67 -4.3 16.22 PASS Band5 3 20415 8 #Mid QPSK 22.65 -4.3 16.20 PASS Band5 3 20415 8 #Max QPSK 22.71 -4.3 16.26 PASS Band5 3 20415 15 #0 QPSK 22.63 -4.3 16.18 PASS Band5 3 20415 1 #0 16QAM 23.10 -4.3 16.65 PASS Band5 3 20415 1 #Mid 16QAM 23.42 -4.3 16.97 PASS Band5 3 20415 1 #Max 16QAM 23.15 -4.3 16.70 PASS Band5 3 20415 8 #0 16QAM 21.69 -4.3 15.24 PASS Band5 3 20415 8 #Mid 16QAM 21.73 -4.3 15.28 PASS Report No：BCTC2410616495E No.：BCTC/RF-EMC-005 Page 48 of 229 Edition：B.2 Band5 3 20415 8 #Max 16QAM 21.73 -4.3 15.28 PASS Band5 3 20415 15 #0 16QAM 21.70 -4.3 15.25 PASS Band5 3 20525 1 #0 QPSK 23.73 -4.3 17.28 PASS Band5 3 20525 1 #Mid QPSK 23.75 -4.3 17.30 PASS Band5 3 20525 1 #Max QPSK 23.74 -4.3 17.29 PASS Band5 3 20525 8 #0 QPSK 22.79 -4.3 16.34 PASS Band5 3 20525 8 #Mid QPSK 22.82 -4.3 16.37 PASS Band5 3 20525 8 #Max QPSK 22.79 -4.3 16.34 PASS Band5 3 20525 15 #0 QPSK 22.78 -4.3 16.33 PASS Band5 3 20525 1 #0 16QAM 22.99 -4.3 16.54 PASS Band5 3 20525 1 #Mid 16QAM 23.25 -4.3 16.80 PASS Band5 3 20525 1 #Max 16QAM 23.00 -4.3 16.55 PASS Band5 3 20525 8 #0 16QAM 21.81 -4.3 15.36 PASS Band5 3 20525 8 #Mid 16QAM 21.84 -4.3 15.39 PASS Band5 3 20525 8 #Max 16QAM 21.78 -4.3 15.33 PASS Band5 3 20525 15 #0 16QAM 21.74 -4.3 15.29 PASS Band5 3 20635 1 #0 QPSK 23.83 -4.3 17.38 PASS Band5 3 20635 1 #Mid QPSK 24.04 -4.3 17.59 PASS Band5 3 20635 1 #Max QPSK 23.78 -4.3 17.33 PASS Band5 3 20635 8 #0 QPSK 22.77 -4.3 16.32 PASS Band5 3 20635 8 #Mid QPSK 22.80 -4.3 16.35 PASS Band5 3 20635 8 #Max QPSK 22.67 -4.3 16.22 PASS Band5 3 20635 15 #0 QPSK 22.72 -4.3 16.27 PASS Band5 3 20635 1 #0 16QAM 22.66 -4.3 16.21 PASS Band5 3 20635 1 #Mid 16QAM 22.96 -4.3 16.51 PASS Band5 3 20635 1 #Max 16QAM 22.59 -4.3 16.14 PASS Band5 3 20635 8 #0 16QAM 21.81 -4.3 15.36 PASS Band5 3 20635 8 #Mid 16QAM 21.82 -4.3 15.37 PASS Band5 3 20635 8 #Max 16QAM 21.75 -4.3 15.30 PASS Band5 3 20635 15 #0 16QAM 21.85 -4.3 15.40 PASS Band5 5 20425 1 #0 QPSK 23.57 -4.3 17.12 PASS Band5 5 20425 1 #Mid QPSK 23.98 -4.3 17.53 PASS Band5 5 20425 1 #Max QPSK 23.56 -4.3 17.11 PASS Band5 5 20425 12 #0 QPSK 22.66 -4.3 16.21 PASS Band5 5 20425 12 #Mid QPSK 22.76 -4.3 16.31 PASS Band5 5 2042…

Text truncated - open the document above for the full version.

Report No：BCTC2410616495E No.：BCTC/RF-EMC-005 Page 103 of 229 Edition：B.2 Plot 7 Date of measurement: 6/11/2024 A. Experimental conditions. Probe SN 26/23 EPGO420 ConvF 0.96 Area Scan surf_sam_plan.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5.0mm Phantom Validation plane Device Position Body Band Band 4 (1700) Signal WCDMA Mode Release 99 Connection Type RMC, 12.2 kbps B. Permitivity Frequency (MHz) 1740.000 Relative permitivity (real part) 41.479 Relative permitivity (imaginary part) 14.189 Conductivity (S/m) 1.377 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=5.00, Y=13.00 ; SAR Peak: 1.62 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.500 SAR 1g (W/Kg) 0.925 Variation (%) 2.380 Horizontal validation criteria: minimum distance (mm) 0.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 0.000000 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 1.504 0.973 0.564 0.348 0.241 Report No：BCTC2410616495E No.：BCTC/RF-EMC-005 Page 104 of 229 Edition：B.2 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2410616495E No.：BCTC/RF-EMC-005 Page 105 of 229 Edition：B.2 Plot 8 Date of measurement: 4/11/2024 A. Experimental conditions. Probe SN 26/23 EPGO420 ConvF 0.81 Area Scan surf_sam_plan.txt Zoom Scan 5x5x7,dx=8mm dy=8mm dz=5.0mm Phantom Validation plane Device Position Body Band Band 5 (850) Signal WCDMA Mode Release 99 Connection Type RMC, 12.2 kbps B. Permitivity Frequency (MHz) 836.400 Relative permitivity (real part) 42.303 Relative permitivity (imaginary part) 19.400 Conductivity (S/m) 0.936 C. SAR Surface and Volume SURFACE SAR VOLUME SAR Maximum location: X=17.00, Y=-9.00 ; SAR Peak: 0.36 W/kg D. SAR 1g & 10g SAR 10g (W/Kg) 0.132 SAR 1g (W/Kg) 0.225 Variation (%) -2.130 Horizontal validation criteria: minimum distance (mm) 0.000000 Vertical validation criteria: SAR ratio M2/M1 (%) 0.000000 E. Z Axis Scan Z (mm) 0.00 4.00 9.00 14.00 19.00 SAR (W/Kg) 0.601 0.233 0.110 0.096 0.066 Report No：BCTC2410616495E No.：BCTC/RF-EMC-005 Page 106 of 229 Edition：B.2 F. 3D Image 3D screen shot Hot spot position Report No：BCTC2410616495E No.：BCTC/RF-EMC-005 Page 107 of 229 Edition：B.2 Plot 9 Date of measurement: 7/11/2024 A. Experimental conditions. Probe SN 26/23 EPGO420 ConvF 1.04 Area S…

Text truncated - open the document above for the full version.
