2BAQM-Q31smart watch

FCC Caution ： This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference toradio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. -Increase the separation between the equipment and receiver. -Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. -Consult the dealer or an experienced radio/TV technician for help. The device has been evaluated to meet general RF exposure requirement. The device can be used in portable exposure condition without restriction. Warnings The contents of this manual are provided by "as is" and, except as required by applicable laws, Ultra Easy Health Technology (Guangzhou) Co., Ltd, does not disclaim any expressed or implied warranties, including but not limit to warranties to marketability or fitness for a particular purpose with respect to the contents of this manual. To the extent permitted by applicable laws, Ultra Easy Health Technology (Guangzhou) Co., Ltd , shall in not event be liable for any special, incidental, indirect or consequential damages, nor for any loss of profit, data or anticipated savings, arising out of the use of the relevant contents of this manual, and the product described in this manual. To the extent permitted by relevant laws, in any event, the maximum liability of Ultra Easy Health Technology (Guangzhou) Co., Ltd for damages arising from using the product described in this manual (except for damages under applicable law in cases involving personal injury) is limited to the product price paid by you. Office address:228 Huadi Avenue Middle, Liwan District, Guangzhou China 51000 Manufacturer: Ultra Easy Health Technology (Guangzhou) Co., Ltd

Ultra Easy Health Technology (Guangzhou) Co., LTD 2023.04.10 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for 2BAQM-Q31 [Ultra Easy Health Technology (Guangzhou) Co., LTD] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) xuyuan chen Ultra Easy Health Technology (Guangzhou) Co., LTD 2023.04.10 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for 2BAQM-Q31 [Ultra Easy Health Technology (Guangzhou) Co., LTD] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) xuyuan chen

Ultra Easy Health Technology (Guangzhou) Co., LTD 2023.04.10 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: smart watch Trademark: N/A MODEL : Q31 FCC ID : 2BAQM-Q31 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title : xuyuan chen /Manager Contact information / address: 228 Huadi Avenue Middle, Liwan District, Guangzhou, China 51000

Ultra Easy Health Technology (Guangzhou) Co., LTD 2023.04.10 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title : xuyuan chen /Manager Contact information / address: 228 Huadi Avenue Middle, Liwan District, Guangzhou, China 51000

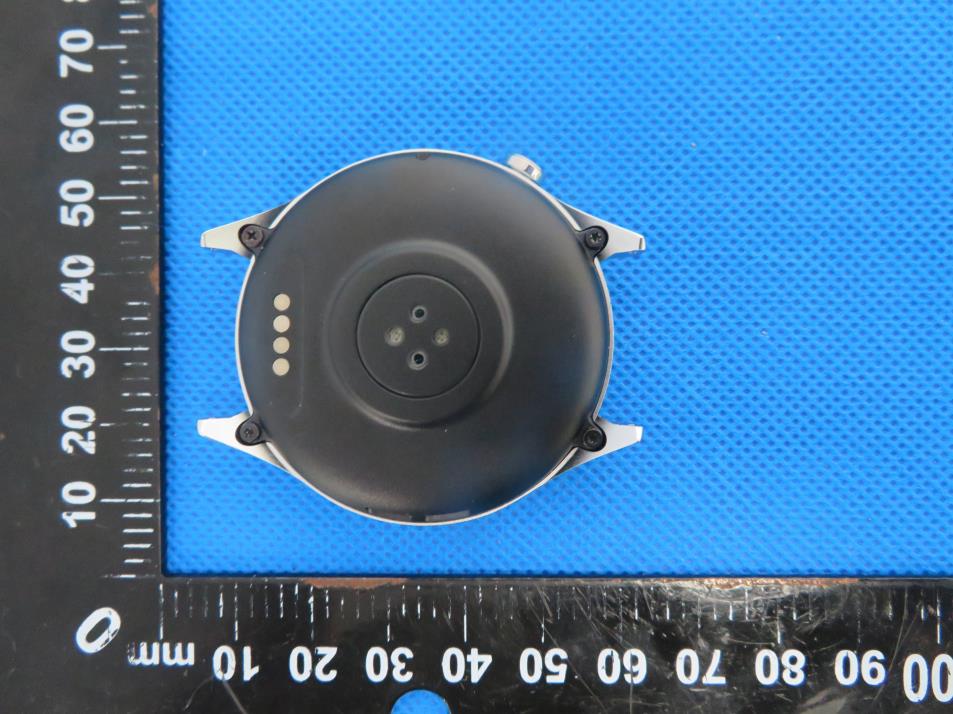

External Photos

Size:10*5mm smart watch FCC ID: 2BAQM-Q31 Label location

Internal Photos Antenna

RF EXPOSURE EVALUATION METHOD FCC ID: 2BAQM-Q31 Applicable standard： In accordance with FCC 47 CFR part 2 (2.1093) this device has been defined as a portable device which is defined as a transmitting device designed to be used so that the radiating structure(s) of the device is/are within 20 centimeters of the body of the user. Portable devices must be evaluated using the specified in FCC 47 CFR part 2 (2.1093) and ANSI/IEEEC95.1-1992. and had been tested in accordance with the measurement methods and procedures specified in IEEE 1528-2003. Per FCC KDB 447498 D01 v06, the 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances s 50 mm are determined by: SAR Test Exclusion Thresholds for 100 MHz – 6 GHz and ≤ 50 mm Approximate SAR Test Exclusion Power Thresholds at Selected Frequencies and Test Separation Distances are illustrated in the following Table. The 1-g and 10-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR and ≤ 7.5 for 10-g extremity SAR,where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation The result is rounded to one decimal place for comparison The test exclusions are applicable only when the minimum test separation distance is ≤ 50 mm and for transmission frequencies between 100 MHz and 6 GHz. When the minimum test separation distance is < 5 mm, a distance of 5 mm is applied to determine SAR test exclusion. BT Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH1 2402 -1.96 21 Pass NVNT 1-DH1 2441 -1.3 21 Pass NVNT 1-DH1 2480 -1.87 21 Pass NVNT 2-DH1 2402 -1.68 21 Pass NVNT 2-DH1 2441 -1.03 21 Pass NVNT 2-DH1 2480 -1.8 21 Pass NVNT 3-DH1 2402 -1.2 21 Pass NVNT 3-DH1 2441 -1.16 21 Pass NVNT 3-DH1 2480 -1.71 21 Pass max possible output power (PK,conducted)：-1±1dBm -0.62dBi logarithmic terms convert to numeric result is nearly 0.87 0dBm=1mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1/5*√2.402=0.31≤3.0 2441MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1/5*√2.441=0.312≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1/5*√2.48=0.315≤3.0 BLE Frequency Maximum Conducted Output Power(PK) Conducted Output Power Limit (MHz) (dBm) dBm GFSK 1Mbps 2402 -0.86 30 2440 -0.26 30 2480 -1.05 30 GFSK 2Mbps 2402 -0.74 30 2440 -0.15 30 2480 -0.94 30 max possible output power (PK,conducted)：-1±1dBm -0.62dBi logarithmic terms convert to numeric result is nearly 0.87 0dBm=1mW 2402MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1/5*√2.402=0.31≤3.0 2440MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1/5*√2.440=0.312≤3.0 2480MHz [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance,mm)] · [√f(GHz)]= 1/5*√2.48=0.315≤3.0 Conclusion: 1. [(max. power of channel, including tune-up tolerance, mW)/(min. test separation distance, mm)] * [√f(GHz)] < 3.0. 2. SAR Test Exclusion Thresholds is 3.0 for separation distance 5mm. Therefore, SAR test is not required.

Antenna specification Address: 2 / F, JB Office Building, Longcheng Industrial Zone, 440 Fanguan Avenue, JB Hua District Test environment and equipment Test itemTest equipment S11、S12 、VSWR 、LOSS Network analyzer E5071B、E5062A Efficiency、Gain 3D Radiation Pattern Satimo SG16、GP7*4*3、E5071B TRP、TIS Satimo SG16、GP7*4*3、8960 、 CMW500、MT8820C、E4438C、 Machine type watch Antenna band ANT 2400-2480M Antenna material FPC Antenna size diagram Unit: mm Passive standing wave pattern Passive test data Passive test apple chart

No.：BCTC/RF-EMC-005 Page: 1 of 52 Edition：A.5 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2303127274-2E Applicant: Ultra Easy Health Technology (Guangzhou) Co., LTD Product Name: smart watch Model/Type Ref.: Q31 Tested Date: 2023-03-30 to 2023-04-04 Issued Date: 2023-04-04 Report No.: BCTC2303127274-2E No.：BCTC/RF-EMC-005 Page: 2 of 52 Edition：A.5 FCC ID: 2BAQM-Q31 The test report is effective only with both signature and specialized stamp. This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full. The tested sample(s) and the sample information are provided by the client. Product Name: smart watch Trademark: N/A Model/Type Ref.: Q31 Prepared For: Ultra Easy Health Technology (Guangzhou) Co., LTD Address: 228 Huadi Avenue Middle, Liwan District, Guangzhou, China 51000 Manufacturer: Ultra Easy Health Technology (Guangzhou) Co., LTD Address: 228 Huadi Avenue Middle, Liwan District, Guangzhou, China 51000 Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2023-03-30 Sample tested Date: 2023-03-30 to 2023-04-04 Issue Date: 2023-04-04 Report No.: BCTC2303127274-2E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth BLE radio test report. Tested by: Approved by: Lei Chen/Project Handler Zero Zhou/Reviewer Report No.: BCTC2303127274-2E No.：BCTC/RF-EMC-005 Page: 3 of 52 Edition：A.5 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 8 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ............................................................................................................. 9 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test Procedure ................................................................................................... 13 6.4 EUT Operating Conditions .................................................................................. 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test Procedure ................................................................................................... 18 7.4 EUT Operating Conditions .................................................................................. 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 23 8.1 Block Diagram Of Test Setup .............................................................................. 23 8.2 Limit .................................................................................................................... 23 8.3 Test Procedure ................................................................................................... 24 8.4 EUT operating Conditions ................................................................................... 24 8.5 Test Result .......................................................................................................... 25 9. Power Spectral Density Test ............................................................................... 26 9.1 Block Diagram Of Test Setup .............................................................................. 26 9.2 Limit .................................................................................................................... 26 9.3 Test Procedure ................................................................................................... 26 9.4 EUT Operating Conditions .................................................................................. 26 9.5 Test Result .......................................................................................................... 27 10. Bandwidth Test ......…

Text truncated - open the document above for the full version.

Report No.: BCTC2303127274-1E No.：BCTC/RF-EMC-007 Page: 77 of 79 Edition：A.5 17. EUT Test Setup Photographs Conducted Measurement Photo Radiated Measurement Photos Report No.: BCTC2303127274-1E No.：BCTC/RF-EMC-007 Page: 78 of 79 Edition：A.5
