2BAS6-BQDRYMINIFilament Dryer

BQDry Mini User Manual Product Overview: BQDry Mini is a compact heating module designed for 3D-printing environments. It provides stable active heating for enclosures that do not have built-in heating. Its modular design allows installation inside devices such as the Bambu Lab AMS without modifying the original structure or compromising the seal. This adds active filament-drying capability for filament storage, maintaining a warm environment during printing, and supporting high-temperature material printing. Multiple BQDry Mini units can also be combined to expand the heating area for different enclosure sizes. Temperature, duration, and other settings can be precisely controlled through the Web UI. Key Features: 1. No-Modification AMS Installation: Designed specifically for the first-generation Bambu Lab AMS. Installs easily inside the AMS without permanent modification, adding active heating capability. 2. Precise Temperature Control: Adjustable from 35°C to 60°C to meet the drying and print-environment requirements of different filament types. 3. Versatile Applications: Suitable not only for the AMS, but also for printer chambers, filament storage boxes, and other enclosed heating applications. 4. Convenient Dual Control: Control the temperature, duration, and operating status using either the physical buttons or the Web UI. 5. Efficient, Safe Heating: Low-voltage power and multiple safety protections provide reliable heating for stable long-term operation. Applications: Application 1: AMS Filament Drying For users of the first-generation Bambu Lab AMS. BQDry Mini raises the temperature inside the AMS to actively dry filament. Its independent power supply allows filament to be dried while printing. Application 2: Add Chamber Heating For 3D printers without an actively heated chamber. Adding BQDry Mini provides environmental heating and expands the range of materials the printer can use. Application 3: Improve Filament Storage Install BQDry Mini in another sealed filament box or storage enclosure to reduce moisture exposure and extend filament storage life. Specifications Product: Filament Dryer Model No.: BQDry Mini Input: 24 V DC, 5 A Rated power: 116 W Operating environment: Ambient temperature: 10-35°C; Relative humidity: <95% Heating range: 35-60°C (at a standard ambient temperature of 26°C) Timer: 0-99 h (plus Continuous mode) Product dimensions: / Package Contents Image Item Qty. Control module 1 Output module 2 24 V 5 A DC power adapter 1 DC connector adapter cable Control module power cable 1 AMS replacement power board 1 Y-cable 1 AMS replacement handle 1 Thin white nylon washers 4 Cable clips 2 Mounting tape 3 1.5 mm L-shaped hex key 1 Installation 1. Prepare the AMS: Disconnect the cable and PTFE tube between the AMS and the printer. Remove all filament from the AMS and store it temporarily in a dry location. 2. Remove the Rear PTFE Tube: Open the AMS lid. Press and hold the internal PTFE tube release collar, then pull the PTFE tube out from the rear of the AMS. 3. Remove the Frame Screws: Use the included hex key to remove the two screws from the AMS main frame, as shown. 4. Lift the Main Frame: Press the release button on the five-way hub, then fully lift the rear of the main frame. Note: Internal cables are still connected. Do not pull or lift forcefully. Disconnect the 485 communication cable and power cable from the AMS power board. Remove the AMS main-frame assembly and set it aside. 5. Replace the Power Board: Remove the original AMS power board and install the [AMS Replacement Power Board]. When securing the replacement board, place a nylon washer on the nut side of each screw to prevent overtightening from damaging the board. Return the original AMS board to its antistatic bag and store it safely. 6. Reconnect the Cables: Reconnect the 485 communication cable and power cable to the new board. Take the [Control Module Power Cable] from the accessory pack and connect either end to the new power board. 7. Route the Power Cable: Install the two cable clips under the AMS main frame as shown. Secure the [Control Module Power Cable], then route it from the center of the AMS toward the front, following the illustrated cable path. Keep the cable clear of the AMS gear assemblies and all moving parts. 8. Apply Mounting Tape: Apply the double-sided [Mounting Tape] to both [Output Modules] and the [Control Module] as shown. The tape will secure the modules during installation. 9. Connect the Modules: Connect the [Control Module Power Cable] to the [Control Module]. Connect the two [Output Modules] to any two of the three identical ports on the control module using their attached cables. 10. Mount the Modules: Peel off the release liners from the mounting tape, then attach the control module and output modules to the positions shown on the AMS main frame. Note: The rear cover of the control module has a cable-routing channel for the power cable. Press part of the cable into the channel so the module sits flush. 11. Reinstall the Main Frame: Place the AMS main-frame assembly, with the control and output modules installed, back into the AMS housing as shown. 12. Secure the Main Frame: Reinstall the two screws and the PTFE tube removed earlier. 13. Connect the External Cables: Connect the [Y-Cable] and [DC Connector Adapter Cable]. The Y-cable preserves support for daisy-chaining multiple AMS units. You may omit it when no AMS daisy chain is required. The DC connector adapter cable connects the DC power adapter to provide independent power to the BQDry Mini. 14. Install the Replacement Handle: Use the included L-shaped hex key to remove the original AMS handle and install the replacement handle. The replacement handle offers two opening positions. Adjust the gap as needed to create a suitable moisture exhaust path, allowing humid air to escape and helping prevent condensation inside the AMS. Installation is now complete. Connect power to begin using the BQDry Mini. Operation 1. On…

Text truncated - open the document above for the full version.

(Shenzhen BIQU Innovation Technology Co., Ltd.) (2026/8/28) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BAS6-BQDRYMINI) [Shenzhen BIQU Innovation Technology Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the 2026/7/13 of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Eric Zhang (Shenzhen BIQU Innovation Technology Co., Ltd.) (2026/8/28) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BAS6-BQDRYMINI) [Shenzhen BIQU Innovation Technology Co., Ltd.] (“the applicant”) certifies that, as of the 2026/7/13 of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Eric Zhang

Shenzhen BIQU Innovation Technology Co., Ltd. 1508, Building T1, Lijincheng Center Yousong Community, Longhua Subdistrict, Longhua District, Shenzhen Guangdong Province, China. TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2026/8/28 Ref: Attestation Statements Part 2.911(d)(7) Filing FCC ID: 2BAS6-BQDRYMINI Applicant FRN: 0033640442 [Shenzhen BIQU Innovation Technology Co., Ltd.] certifies that, as of the date of the filing of the application, [ANTEK SERVICE INC] is our designated U.S. agent for service of process for the above referenced FCC ID. [Shenzhen BIQU Innovation Technology Co., Ltd.] accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. [ANTEK SERVICE INC] accepts, as of the date of the filing of the application, the obligation of the designated U.S. agent for service of process for the above referenced FCC ID. Designated U.S. Agent Information: FRN: 0033437609 Company Name: ANTEK SERVICE INC Contact Name: Shirley Kwok Address: 1901 N PENNSYLVANIA ST STE 0 DENVER, CO 80203, United States Email: [email protected] Phone: (303) 800-6306 Sincerely, Shenzhen BIQU Innovation Technology Co., Ltd. ANTEK SERVICE INC Eric Zhang Shirley Kwok

Shenzhen BIQU Innovation Technology Co., Ltd. 1508, Building T1, Lijincheng Center Yousong Community, Longhua Subdistrict, Longhua District, Shenzhen Guangdong Province, China. 2026/8/28 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: Filament Dryer Trademark: MODEL: BQDry Mini, BQDry Mini V1.1, BQDry Mini V1.2 FCC ID: 2BAS6-BQDRYMINI To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Technology Co., Ltd. to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title: Eric Zhang / General Manager Contact information / address: 1508, Building T1, Lijincheng Center Yousong Community, Longhua Subdistrict, Longhua District, Shenzhen Guangdong Province, China.

Shenzhen BIQU Innovation Technology Co., Ltd. 1508, Building T1, Lijincheng Center Yousong Community, Longhua Subdistrict, Longhua District, Shenzhen Guangdong Province, China. 2026/8/28 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Filament Dryer Trademark: MODEL: BQDry Mini, BQDry Mini V1.1, BQDry Mini V1.2 FCC ID: 2BAS6-BQDRYMINI To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title: Eric Zhang / General Manager Contact information / address: 1508, Building T1, Lijincheng Center Yousong Community, Longhua Subdistrict, Longhua District, Shenzhen Guangdong Province, China.

Shenzhen BIQU Innovation Technology Co., Ltd. 1508, Building T1, Lijincheng Center Yousong Community, Longhua Subdistrict, Longhua District, Shenzhen Guangdong Province, China. 2026/8/28 EUT NAME: Filament Dryer Trademark: MODEL: BQDry Mini, BQDry Mini V1.1, BQDry Mini V1.2 FCC ID: 2BAS6-BQDRYMINI All the models have the same circuitry and radio frequency modules, only the model names are different. Client’s signature: Client’s name / title: Eric Zhang / General Manager Contact information / address: 1508, Building T1, Lijincheng Center Yousong Community, Longhua Subdistrict, Longhua District, Shenzhen Guangdong Province, China.

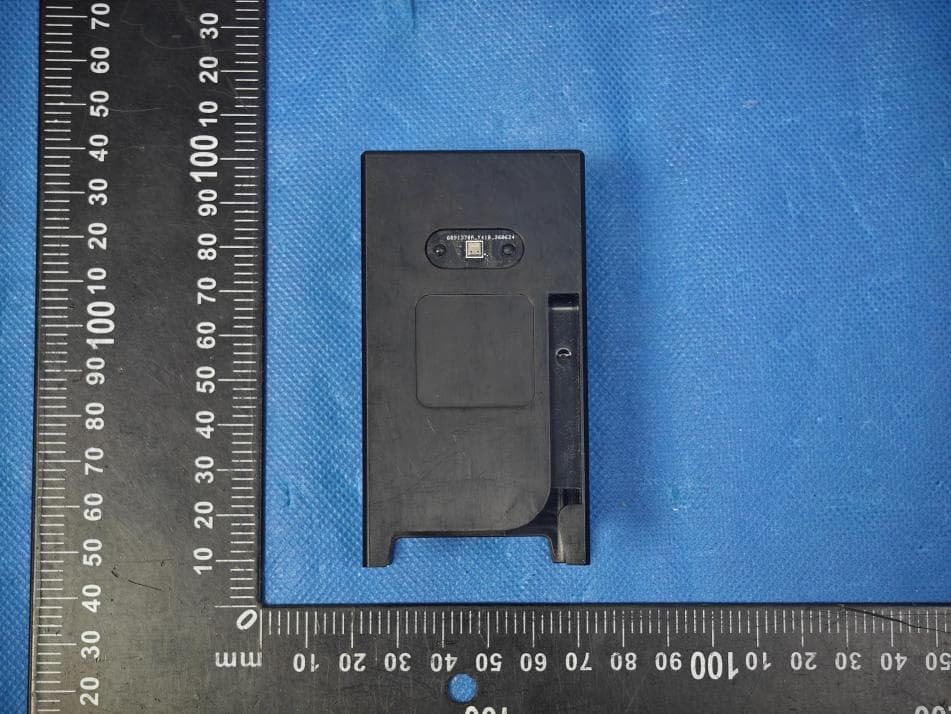

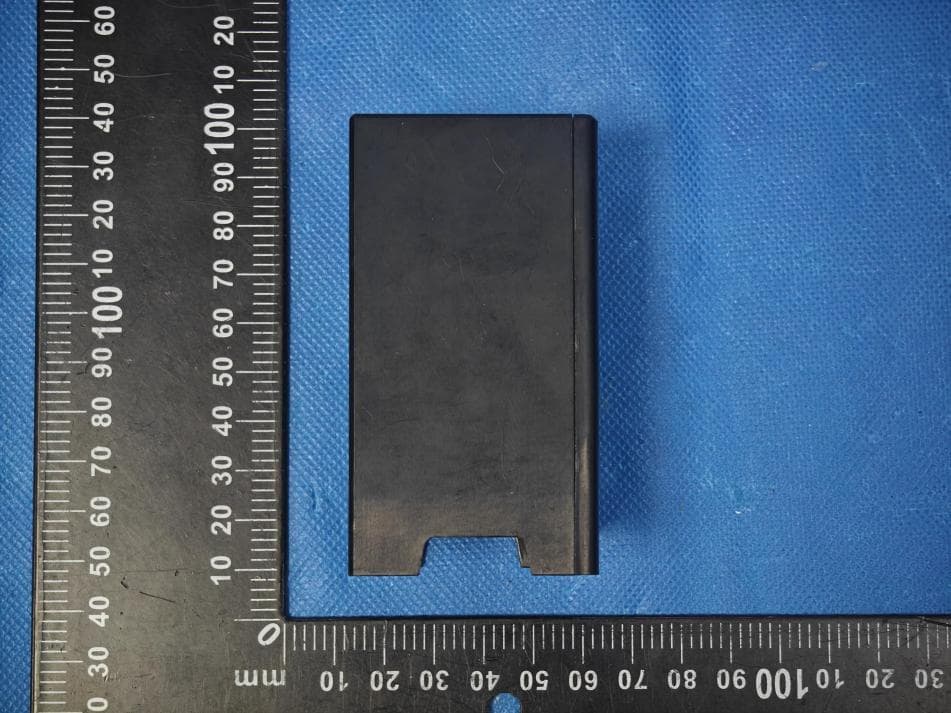

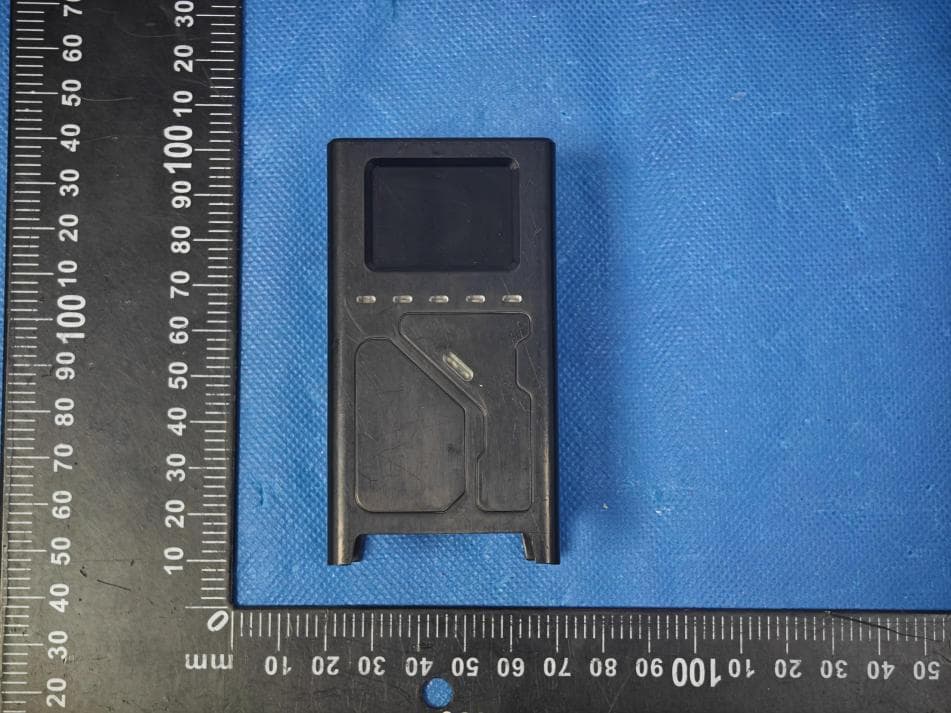

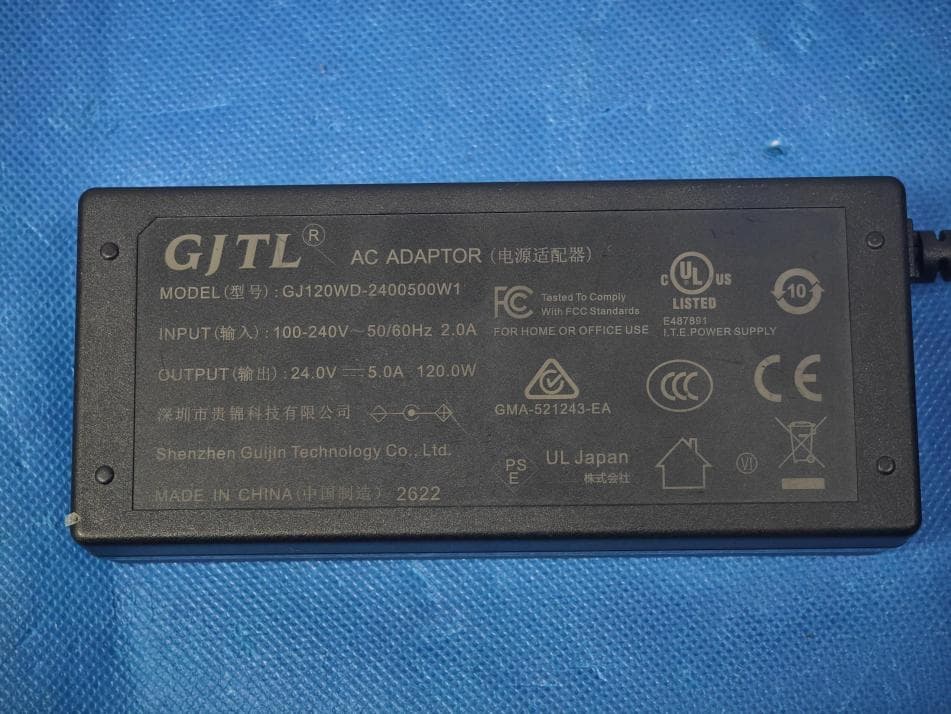

Report No.: BCTC2607656442E External Photos Report No.: BCTC2607656442E Report No.: BCTC2607656442E Report No.: BCTC2607656442E

FCC ID: 2BAS6-BQDRYMINI Size:18*1mm FCC ID: 2BAS6-BQDRYMINI Label location

Report No.: BCTC2607656442E Internal Photos Report No.: BCTC2607656442E Antenna Report No.: BCTC2607656442E Report No.: BCTC2607656442E Report No.: BCTC2607656442E

FCC §15.247 (i), §2.1091 – RF Exposure FCC ID: 2BAS6-BQDRYMINI Applied procedures / limit According to FCC §15.247(i) and §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. Limits for Occupational / Controlled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-3.0 614 1.63 (100)* 6 3.0-30 1842 / f 4.89 / f (900 / f)* 6 30-300 61.4 0.163 1.0 6 300-1500 F/300 6 1500-100,000 5 6 Note: ƒ is frequency in MHz * = Power density limit is applicable at frequencies greater than 100 MHz Limits for General Population / Uncontrolled Exposure Frequency Range (MHz) Electric Field Strength (E) (V/m) Magnetic Field Strength (H) (A/m) Power Density (S) (mW/ cm 2 ) Averaging Time |E| 2 ,|H| 2 or S (minutes) 0.3-1.34 614 1.63 (100)* 30 1.34-30 824/f 2.19/f (180/f)* 30 30-300 27.5 0.073 0.2 30 300-1500 F/1500 30 1500-100,000 1.0 30 Note: f = frequency in MHz * = Plane-wave equivalent power density MPE PREDICTION Predication of MPE limit at a given distance, Equation from OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to antenna G = power gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna, R=0.2m TEST RESULTS Maximum Emissions Level Mode Frequency (MHz) Max. Power (dBm) Tune-up Power Antenna Gain Power Density (mW/cm 2 ) Limit (mW/cm 2 ) Result (dBm) (mW) (dBi) (mW) 802.11b 2412 16.00 16.5 44.67 4.16 2.61 0.023166 1.0 Pass For the max result: 0.023166＜1.0, compliance with FCC's RF Exposure

OTA TEST REPORT TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in ANSI/IEEE Std 149-2008. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Prepared by: Peng Tao Approved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86‐021‐50791141/2/3 FAX: +86‐021‐50791141/2/3‐8000 Applicant Espressif System (Shanghai) Co.,Ltd Product ESP32-C3-MINI-1 Model ESP-ANT D-H Report No. Y2102A0260-T2 Issue Date March 9, 2021 OTA Test Report Report No: Y2102A0260-T2 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 2 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENTS 1. Test Laboratory .............................................................................................................................. 3 1.1. Notes of the Test Report ................................................................................................... 3 1.2. Test facility ........................................................................................................................ 3 1.3. Testing Location ................................................................................................................ 3 1.4. Laboratory Environment .................................................................................................... 4 2. General Description of Equipment under Test ............................................................................... 5 2.1. Applicant and Manufacturer Information ............................................................................ 5 2.2. General information ........................................................................................................... 5 2.3. Test Date ........................................................................................................................... 5 2.4. Receiving Date .................................................................................................................. 5 2.5. Applied Standards ............................................................................................................. 6 3. Test Conditions .............................................................................................................................. 7 3.1. Test Configuration ............................................................................................................. 7 3.2. Test Measurement ............................................................................................................. 7 4. Test Results ................................................................................................................................... 8 4.1. Gain and Efficiency ............................................................................................................ 8 5. Equipment List ............................................................................................................................... 9 ANNEX A 3-D Pattern Plots ................................................................................................................... 10 ANNEX B：The EUT Appearance and Test Configuration ...................................................................... 12 B.1 EUT Appearance ................................................................................................................... 12 B.2 Test Configuration ................................................................................................................. 13 OTA Test Report Report No: Y2102A0260-T2 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 3 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1. Test Laboratory 1.1. Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein .Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Test facility A2LA (Certificate Number: 3857.01) TA Technology (Shanghai) Co., Ltd. has been listed by American Association for Laboratory Accreditation to perform measurement. 1.3. Testing Location Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China City: Shanghai Post code: 201201 Country: P. R. China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] OTA Test Report Report No: Y2102A0260-T2 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 4 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1.4. Laboratory Environment Temperature Min. =19°C，Max. = 25°C Relative humidity Min. =40%，Max. =72% Shield effect 0.7-6GHz > 100dB Ground resistance <0.5 OTA Test Report Report No: Y2102A0260-T2 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 5 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 2. General Description of Equipment under Test 2.1. Applicant and Manufacturer Information Applicant Name Espressif System (Shanghai) Co.,Ltd Applicant address Suite 204 Block 2, 690 Bibo Road, Zhang Jiang Hi-Tech Park, Shanghai, China Manufacturer Name Espressif System (Shanghai) Co.,Ltd Manufacturer address Suite 204 Block 2, 690 Bibo Road, Zhang Jiang Hi-Tech Park, Shanghai, China 2.2. …

Text truncated - open the document above for the full version.

No.：BCTC/KJ-RF-ICT-001 Page 1 of 79 Edition：B.1 TEST REPORT Shenzhen BCTC Technology Co., Ltd. Report No.: BCTC2607454442E Applicant: Shenzhen BIQU Innovation Technology Co., Ltd. Product Name: Filament Dryer Test Model: BQDry Mini Tested Date: 2026-07-29 to 2026-08-13 Issued Date: 2026-08-13 Report No.: BCTC2607454442E No.：BCTC/KJ-RF-ICT-001 Page 2 of 79 Edition：B.1 FCC ID: 2BAS6-BQDRYMINI The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Technology Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Filament Dryer Trademark: Model/Type Reference: BQDry Mini BQDry Mini V1.1, BQDry Mini V1.2 Prepared For: Shenzhen BIQU Innovation Technology Co., Ltd. Address: 1508, Building T1, Lijincheng Center Yousong Community, Longhua Subdistrict, Longhua District, Shenzhen Guangdong Province, China. Manufacturer: Shenzhen BIQU Innovation Technology Co., Ltd. Address: 1508, Building T1, Lijincheng Center Yousong Community, Longhua Subdistrict, Longhua District, Shenzhen Guangdong Province, China. Prepared By: Shenzhen BCTC Technology Co., Ltd. Address: Room 101M, Unit 1, Building1, Pengyuan, No.18, Lilang Road, Shanglilang, Nanwan Subdistrict, Longgang District, Shenzhen, Guangdong, China Sample Received Date: 2026-07-29 Sample Tested Date: 2026-07-29 to 2026-08-13 Report No.: BCTC2607454442E Test Standards: 47 CFR Part 15 Subpart C (clause 15.247) ANSI C63.10-2020 + Cor.1-2023+C63.10a-2024 + Errata to C63.10a-2024 Test Results: PASS Remark: This is WIFI-2.4GHz band radio test report. Prepared by : Reviewer by : Approved by: Louis Zeng / Editor Mike Zheng / Supervisor Sewen Guo / Manager Report No.: BCTC2607454442E No.：BCTC/KJ-RF-ICT-001 Page 3 of 79 Edition：B.1 Table of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information and Test Setup ...................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List .......................................................................................................... 9 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated Emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT Operating Conditions .................................................................................. 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement and Restricted Bands Of Operation ...... 26 8.1 Block Diagram Of Test Setup .............................................................................. 26 8.2 Limit .................................................................................................................... 26 8.3 Test procedure .................................................................................................... 27 8.4 EUT Operating Conditions .................................................................................. 27 8.5 Test Result .......................................................................................................... 28 9. Power Spectral Density Test ............................................................................... 30 9.1 Block Diagram Of Test Setup .............................................................................. 30 9.2 Limit ..................................................................................................................…

Text truncated - open the document above for the full version.

Report No.: BCTC2607454442E No.：BCTC/KJ-RF-ICT-001 Page 30 of 79 Edition：B.1 9. Power Spectral Density Test 9.1 Block Diagram Of Test Setup 9.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247 Power Spectral Density 8 dBm (in any 3KHz) 2400-2483.5 PASS Limits Of Radiated Emission Measurement (Above 1000MHz) 9.3 Test procedure 1. Set analyzer center frequency to DTS channel center frequency. 2. Set the span to 1.5 times the DTS bandwidth. 3. Set the RBW to: 3 kHz 4. Set the VBW ≥ 3 x RBW. 5. Detector = peak. 6. Sweep time = auto couple. 7. Trace mode = max hold. 8. Allow trace to fully stabilize. 9. Use the peak marker function to determine the maximum amplitude level within the RBW. 10. If measured value exceeds limit, reduce RBW (no less than 3 kHz) and repeat. 9.4 EUT Operating Conditions The EUT tested system was configured as the statements of 4.6 Unless otherwise a special operating condition is specified in the follows during the testing. Note: Power Spectral Density(dBm)=Reading+Cable Loss Report No.: BCTC2607454442E No.：BCTC/KJ-RF-ICT-001 Page 31 of 79 Edition：B.1 9.5 Test Result Temperature: 24°C Relative Humidity: 50%RH Pressure: 101KPa Test Voltage: AC 120V/60Hz Test Mode Frequency Power Spectral Density (dBm/3kHz) Limit (dBm/3kHz) Result TX b Mode 2412 MHz -11.31 8 PASS 2437 MHz -11.63 8 PASS 2462 MHz -11.52 8 PASS TX g Mode 2412 MHz -15.27 8 PASS 2437 MHz -14.15 8 PASS 2462 MHz -14.08 8 PASS TX n Mode(20M) 2412 MHz -15.27 8 PASS 2437 MHz -15.85 8 PASS 2462 MHz -14.41 8 PASS TX n Mode(40M) 2422 MHz -19.39 8 PASS 2437 MHz -18.69 8 PASS 2452 MHz -18.20 8 PASS Report No.: BCTC2607454442E No.：BCTC/KJ-RF-ICT-001 Page 32 of 79 Edition：B.1 Test Graphs PSD NVNT b 2412MHz PSD NVNT b 2437MHz Report No.: BCTC2607454442E No.：BCTC/KJ-RF-ICT-001 Page 33 of 79 Edition：B.1 PSD NVNT b 2462MHz PSD NVNT g 2412MHz Report No.: BCTC2607454442E No.：BCTC/KJ-RF-ICT-001 Page 34 of 79 Edition：B.1 PSD NVNT g 2437MHz PSD NVNT g 2462MHz Report No.: BCTC2607454442E No.：BCTC/KJ-RF-ICT-001 Page 35 of 79 Edition：B.1 PSD NVNT n20 2412MHz PSD NVNT n20 2437MHz Report No.: BCTC2607454442E No.：BCTC/KJ-RF-ICT-001 Page 36 of 79 Edition：B.1 PSD NVNT n20 2462MHz PSD NVNT n40 2422MHz Report No.: BCTC2607454442E No.：BCTC/KJ-RF-ICT-001 Page 37 of 79 Edition：B.1 PSD NVNT n40 2437MHz PSD NVNT n40 2452MHz Report No.: BCTC2607454442E No.：BCTC/KJ-RF-ICT-001 Page 38 of 79 Edition：B.1 10. -6dB Bandwidth Test 10.1 Block Diagram Of Test Setup 10.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(a)(2) Bandwidth >= 500KHz (-6dB bandwidth) 2400-2483.5 PASS 10.3 Test procedure 1. Set RBW = 100 kHz. 2. Set the video bandwidth (VBW) ≥ 3 x RBW. 3. Detector = Peak. 4. Trace mode = max hold. 5. Sweep = auto couple. 6. Allow the trace to stabilize. 7. Measure the maximum width of the emission that is constrained by the frequencies associated with the two outermost amplitude points (upper and lower frequencies) that are attenuated by 6 dB relative to the maximum level measured in the fundamental emission. 10.4 EUT Operating Conditions The EUT tested system was configured as the statements of 4.6 Unless otherwise a special operating condition is specified in the follows during the testing. Note: Power Spectral Density(dBm)=Reading+Cable Loss Report No.: BCTC2607454442E No.：BCTC/KJ-RF-ICT-001 Page 39 of 79 Edition：B.1 10.5 Test Result Temperature: 24°C Relative Humidity: 50%RH Pressure: 101KPa Test Voltage: AC 120V/60Hz Test Mode Frequency (MHz) -6dB bandwidth (MHz) Limit (kHz) Result TX b Mode 2412 8.764 500 Pass 2437 8.877 500 Pass 2462 10.030 500 Pass TX g Mode 2412 16.468 500 Pass 2437 16.467 500 Pass 2462 16.425 500 Pass TX n Mode(20M) 2412 17.358 500 Pass 2437 17.334 500 Pass 2462 17.337 500 Pass TX n Mode(40M) 2422 35.628 500 Pass 2437 35.613 500 Pass 2452 35.596 500 Pass Report No.: BCTC2607454442E No.：BCTC/KJ-RF-ICT-001 Page 40 of 79 Edition：B.1 Test Graphs -6dB Bandw…
