2BATE-WG1LWireless Gaming Headset

WG1 Wireless Gaming Headset The date of Manual: Aug 19, 2025 WG1 Wireless Gaming Headset English 1-15 Deutsch 16-30 1 Product Features Warm Tips 1. Before using the wireless gaming headset for the first time, please charge it for at least 2 hours. 2. When the battery level falls below 10%, you will hear a “Low Battery” voice prompt. 3. The red LED will indicate that the wireless headset is charging. Once fully charged, the LED will turn green. 4. To maintain normal battery life, use the product at least once every two weeks and charge the headset in time after use. Immerse Yourself in Perfect Sound: Indulge in stereo surround audio for an unparalleled experience. Versatile Connectivity: Seamlessly switch between Bluetooth, 2.4GHz. Ultra-Low Delay, Maximum Excitement: Delight in low latency for precise, immersive audio. Ultimate Comfort: Lightweight, foldable, and ergonomic design ensures extended comfort during wear. Gaming Without Limits: Enjoy up to 50 hours of playtime with just a 2.5 hour charge. Vibrant Gaming Ambience: Captivating lighting effects to enhance the gaming experience for passionate gamers. English 2 Product Overview Turn on/off --- Long press 3s; Voice prompt: "Power on"/"Power off" Play/Pause --- Single click; Answer/Hang up call --- Single click; Voice prompt: "Di Di". Reject call --- Long press 2s Voice prompt: "Di ~". Call back --- Double click. 5. If there's no sound from the microphone or headset during use, it may be due to compatibility issues or improper use. 6. Please refrain from using high-power or low-quality chargers to charge the gaming headsets. 7. The microphone is not available when connected to the Nintendo Switch. 8. This headset is not compatible with Xbox 360 or earlier models released before 2015, as these models do not support USB audio or wireless dongle connections. Volume down --- Single click. Previous track --- Long press 2s. Volume up --- Single click. Next track --- Long press 2s. Clear bluetooth devices ---Press and hold both the Volume Up and Volume Down buttons for 6 s. Microphone on / off --- Single click; Voice prompt: "Microphone on"/"Microphone off". Bluetooth mode ⇆ 2.4GHz Dongle mode--- Long press 2s. English ② ① ③ ④ ⑤ 3 How to connect to Xbox Controller Turn on/off RGB --- Single click; Voice prompt: "RGB on"/ "RGB off". Game mode/Music mode --- Double click; Voice prompt: "Game mode/Music mode". Bluetooth Re-Pairing---Long press 3s; Voice prompt: "Pairing" with Flashing blue light. 1. Insert the 2.4GHz Transmitter into the Xbox Controller directly. A: Third-party controllers are not supported. B: Make sure the transmitter is firmly inserted into the controller until you hear a sound similar to a “snap”, indicating it is securely locked. A loose connection may cause noise, echo, low volume, or no sound in the headset. 2. Power on the headset and ensure it stays in 2.4GHz mode. A: The transmitter indicator will start flashing blue, indicating it is ready for pairing. English ＋= Connected 2.4Ghz mode 4 3. On your Xbox console, go to “Settings > General > Volume & Audio Output > Headset Audio”, and check the headset connection status. A: The headset should auto-connect within a few seconds. If not, try re-plugging the transmitter. 4. Adjust volume settings: A: Navigate to Audio or or Volume & Audio Output in system settings. B: Make sure both headset volume and microphone are turned on. C: If this is your first time using headphones with the controller, default volume may be low and mic monitoring may be enabled. Adjust as needed. 5. Remove the 2.4GHz transmitter from the Xbox controller. A: Release the latch on the back of the controller and the dongle. English General – Volume & Audio Output Speaker AudioAdvanced Headset Connected HDMI Audio Headset Format Headset Audio Headset Format Windows Sonic for Headphones Additional Options Your headset is connected. HDMI audio output is temporarily disabled. When using this headset format, make sure the headset’s own surround sound processing is turned off. All current audio output is optimized for your headset. Once the headset is disconnected, settings will return to normal. Audio Test & Detailed Information Volume Settings 5 HOW TO USE TWO MODES B: 2.4GHz Dongle Mode Voice Prompt & LED Light: "Dongle Mode"Flashing Green light. "Dongle Connected"Breathing Green light. "Dongle Disconnected "Flashing Green light. 1. 2.4GHz Dongle Mode B: Once you hear a sound similar to a “snap”, the latch has been disengaged. C: Pull the dongle out of the controller. English APlug the USB 2.4GHz Dongle transmitter into the device's port and turn on the headset. The LED light will be Green and flash slowly while waiting for pairing. snap 6 2.4GHz dongle mode is compatible with Xbox One S, Xbox One X, Xbox One S All-Digital, Xbox Series S (white) , Xbox Series X, Xbox Series S (black 1TB) , PC, PS4, PS5, Laptop, Mobile Phone. If you're using USB dongle to connect a Mac or Nintendo Switch, you'll need a USB-A to USB-C adapter (package not included). 2.4GHz wireless dongle delivers a more stable signal and reduced latency. Firmly insert the 2.4GHz dongle transmitter into the dedicated port on the Xbox controller. A sound similar to a “snap” indicates a successful connection. The solid blue light on the 2.4GHz dongle indicates a successful connection. The 2.4GHz Dongle Mode to PS4/PS5/PC, or Other USB-A Enabled Devices: Plug one end of the included USB adapter into the 2.4GHz transmitter, and insert the USB-A end into a USB port on your PS4, PS5, PC, or other compatible USB-A devices. This connection ensures a stable wireless performance. English 7 A: Turn on the headset and enable Bluetooth on your device (Computer, Mobile phone, Mac, Nintendo Switch). Set it to discoverable mode and search for new devices. Find "WG1" in the searched device list and click to pair. B: Bluetooth mode Voice Prompt & LED Light: "Bluetooth Mode": Flashing Blue light. "Bluetooth Connected": Breathing Blue light. "Bluetooth Discon…

Text truncated - open the document above for the full version.

Local Representative Letter For Certification Service in the USA Federal Communications Commission Equipment Authorization Division, Application Processing Branch 7435 Oakland Mills Road Columbia, MD 21048 To whom it may concern Pursuant to Section 2.911(d)(7), of the Commission’s Rules (47 C.F.R.) we attest as follows for the product listed below: FCC ID Model name 2BATE-WG1L WG1, WG1L, WG1X, WG2, WG3, WG4, WG5, WG6, WG7, WG8 We hereby acknowledge as follows: i. both signees confirm that the point of contact accepts responsibility to act as a US- American Representative on behalf of the applicant ii. the point of contact provides the physical U.S. address and email as listed below iii. both parties maintain the requirements of this agreement for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. iv. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. US-American Point of Contact Applicant/Approval Holder Signature Date: 2025-9-17 Signature Date: 2025-9-17 Company Name: GLOCERTS TECHNOLOGY INC Shenzhen wei bo technology co., LTD FRN: 0036339737 0033641028 Contact Name: Huiying Fan Wei Chen Address: 19784 SUNKISSED RIDGE DR, RIVERSIDE, CA 92507 Room 601, Tower A, Yousuowei Building, No. 2000, Jiaxian Road, Bantian street, Longgang District, Shenzhen Phone: (626) 588-8039 +86-13620214161 Email: [email protected] [email protected]

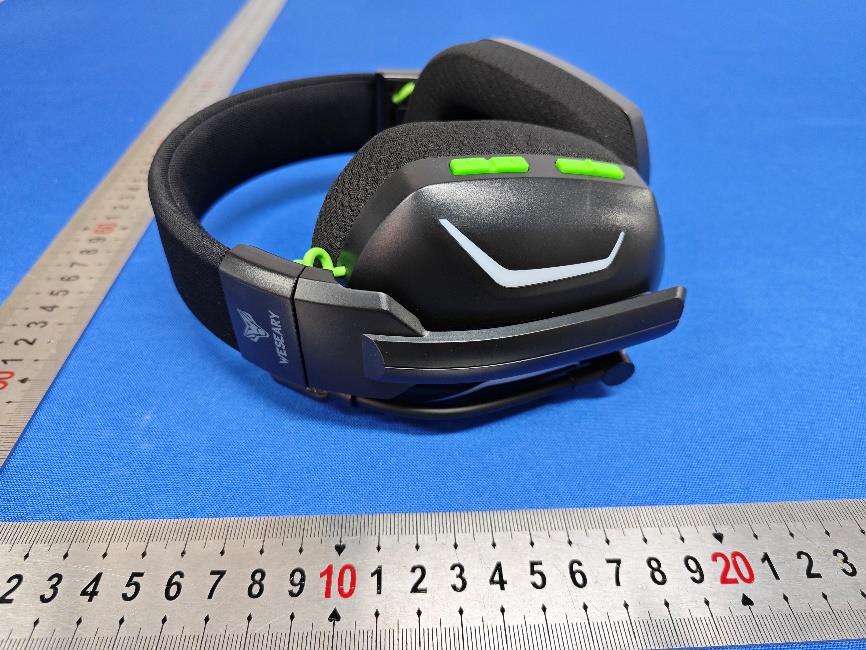

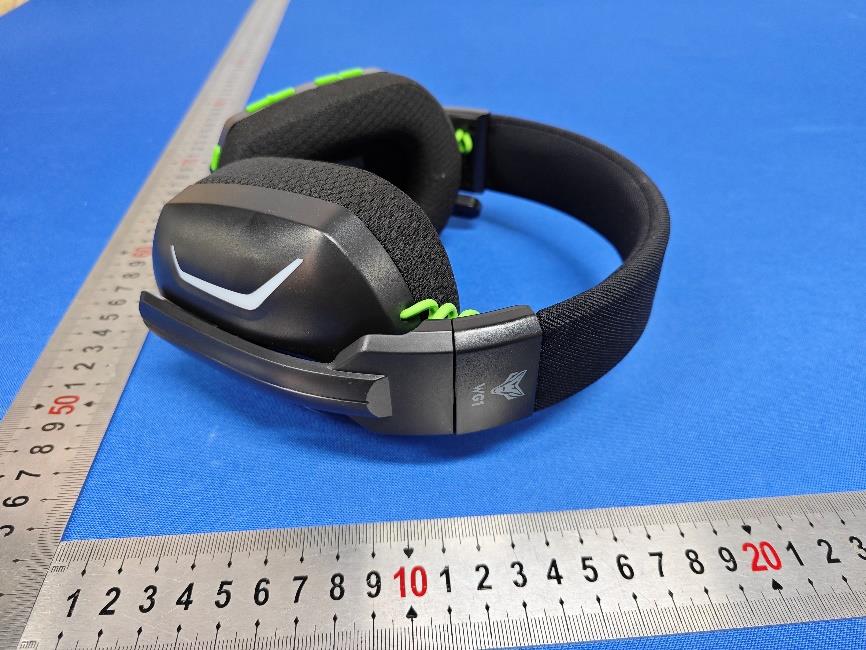

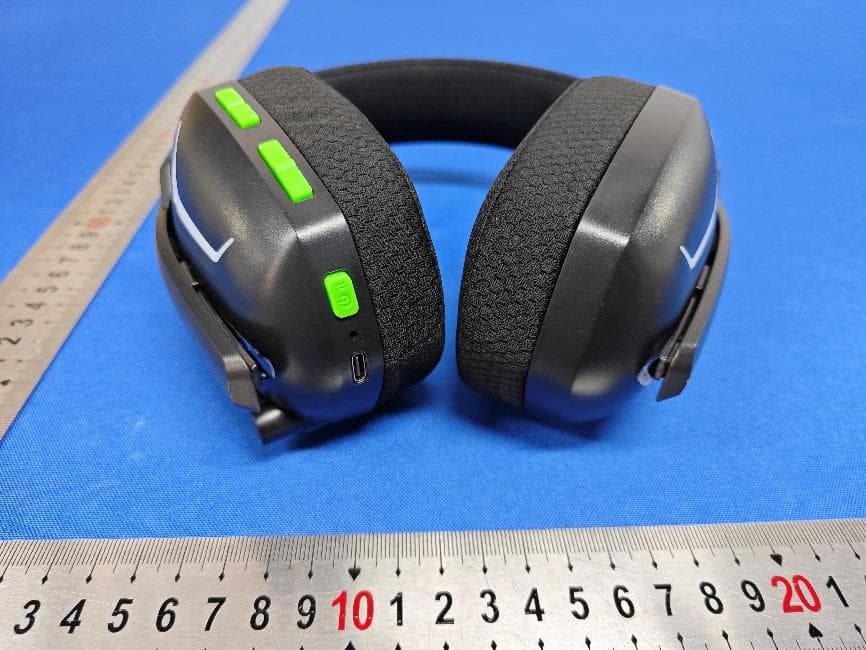

FCC ID: 2BATE-WG1L External Photos FCC ID: 2BATE-WG1L FCC ID: 2BATE-WG1L

FCC ID: 2BATE-WG1L Internal photos FCC ID: 2BATE-WG1L ANT

Page 1 of 7 Report No.:AiTSZ-250901013FW3 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. RF Exposure evaluation Product Name : Wireless Gaming Headset Brand Name : N/A Model : WG1 Series Model : WG1L, WG1X, WG2, WG3, WG4, WG5, WG6, WG7, WG8 FCC ID : 2BATE-WG1L Applicant : Shenzhen wei bo technology co., LTD Address : Room 601, Tower A, Yousuowei Building, No. 2000, Jiaxian Road, Bantian street, Longgang District, Shenzhen Manufacturer : Shenzhen Xintaiyang Technology Co., Ltd. Address : Room 103, Building 2, Area C, Xinwei 1 Industrial Zone, Xinzhuang Community, Matian Street, Guangming District, Shenzhen City, Guangdong Province, China Standard(s) : 47CFR §1.1310, 47CFR §2.1093 KDB447498 D01 General RF Exposure Guidance v06 Date of Receipt : Sep. 01, 2025 Date of Test : Sep. 01, 2025~ Sep. 20, 2025 Issued Date : Sep. 20, 2025 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 7 Report No.: AiTSZ-250901013FW3 Report Revise Record Report Version Issued Date Notes M1 Sep. 20, 2025 Initial Release Page 3 of 7 Report No.: AiTSZ-250901013FW3 Contents 1 GENERAL INFORMATION ....................................................................................................................................... 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 METHOD OF MEASUREMENT ................................................................................................................................ 6 2.1 APPLICABLE STANDARD .................................................................................................................................................. 6 2.2 EVALUATION METHOD AND LIMIT .................................................................................................................................... 6 2.3 MANUFACTURING TOLERANCE ........................................................................................................................................ 7 2.4 EVALUATION RESULT ..................................................................................................................................................... 7 2.5 CONCLUSION ............................................................................................................................................................... 7 Page 4 of 7 Report No.: AiTSZ-250901013FW3 1 GENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: Wireless Gaming Headset Model/Type reference: WG1 Serial Model: WG1L, WG1X, WG2, WG3, WG4, WG5, WG6, WG7, WG8 Model different: All models are the same except for the model name and color Power Supply: DC 3.7V from battery or DC 5V from external circuit Hardware Version: N/A Software Version: N/A Sample(s) Status: AiTSZ-250901013-1(Normal sample) AiTSZ-250901013-2(Engineer sample) Bluetooth: Supported type: Bluetooth BR/EDR Modulation: GFSK, π/4DQPSK, 8DPSK Operation frequency: 2402MHz~2480MHz Channel number: 79 Channel separation: 1MHz Antenna type: Ceramic antenna Antenna gain: 2.70dBi 2.4GHz transceiver: Modulation: GFSK Operation frequency: 2402MHz~2480MHz Channel number: 40 Channel separation: 2MHz Antenna type: Ceramic antenna Antenna gain: 2.70dBi Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual.. Page 5 of 7 Report No.: AiTSZ-250901013FW3 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China The test facility is recognized, certified or accredited by the following organizations: FCC-Registration No.: 251906 Designation Number: CN1376 Guangdong Asia Hongke Test Technology Limited has been registered and fully described in a report filed with the (FCC) Federal Communications Commission. The acceptance letter from the FCC is maintained in our files. IC —Registration No.: 31737 CAB identifier: CN0165 The 3m Semi-anechoic chamber of Guangdong Asia Hongke Test Technology Limited has been registered by Certification and Engineering Bureau of…

Text truncated - open the document above for the full version.

Page 1 of 35 Report No.: AiTSZ-250901013FW1 Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : Wireless Gaming Headset Brand Name : N/A Model : WG1 Series Model : WG1L, WG1X, WG2, WG3, WG4, WG5, WG6, WG7, WG8 FCC ID : 2BATE-WG1L Applicant : Shenzhen wei bo technology co., LTD Address : Room 601, Tower A, Yousuowei Building, No. 2000, Jiaxian Road, Bantian street, Longgang District, Shenzhen Manufacturer : Shenzhen Xintaiyang Technology Co., Ltd. Address : Room 103, Building 2, Area C, Xinwei 1 Industrial Zone, Xinzhuang Community, Matian Street, Guangming District, Shenzhen City, Guangdong Province, China Standard(s) : FCC CFR Title 47 Part 15 Subpart C Section 15.247 Date of Receipt : Sep. 01, 2025 Date of Test : Sep. 01, 2025~ Sep. 20, 2025 Issued Date : Sep. 20, 2025 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Aalen.Ye Allen Wang Page 2 of 35 Report No.: AiTSZ-250901013FW1 Report Revise Record Report Version Issued Date Notes M1 Sep. 20, 2025 Initial Release Page 3 of 35 Report No.: AiTSZ-250901013FW1 Contents 1 TEST SUMMARY .................................................................................................................................................... 4 1.1 TEST STANDARDS ......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENERAL INFORMATION ....................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF TEST MODES AND TEST FREQUENCY .......................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 8 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 8 3 TEST CONDITIONS AND RESULTS ......................................................................................................................... 10 3.1 CONDUCTED EMISSIONS TEST ....................................................................................................................................... 10 3.2 RADIATED EMISSIONS AND BAND EDGE .......................................................................................................................... 13 3.3 MAXIMUM PEAK OUTPUT POWER ................................................................................................................................. 20 3.4 20DB BANDWIDTH ..................................................................................................................................................... 21 3.5 OCCUPIED BANDWIDTH ............................................................................................................................................... 22 3.6 FREQUENCY SEPARATION ............................................................................................................................................. 23 3.7 NUMBER OF HOPPING FREQUENCY ................................................................................................................................. 24 3.8 TIME OF OCCUPANCY (DWELL TIME) .............................................................................................................................. 25 3.9 OUT-OF-BAND EMISSIONS ........................................................................................................................................... 26 3.10 PSEUDORANDOM FREQUENCY HOPPING SEQUENCE .......................................................................................................... 28 3.11 ANTENNA REQUIREMENT ............................................................................................................................................. 29 4 TEST SETUP PHOTOGRAPHS OF EUT ............................................................…

Text truncated - open the document above for the full version.

2.4GHz 3216 Chip Antenna: RANT3216F245X07 _ Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT3216F24507 (A)(B)(C)(D)(F X (E)) ElectricalSpecification DimensionandTerminalConfiguration No.TerminalName 1Feeding/GNG 2GND/Feeding (A)ProductTypeChipAntenna (B)SizeCode 3.2x1.6mm( ± 0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=07 WorkingFrequencyRange2400~2500MHz Bandwidth120MHz(Min.) PeakGain2.7 dBi (Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280 °C ) TerminationNi/Au(Leadless) Dimension(mm) L 3.20±0.20 W 1.60±0.20 T 0.85±0.20 Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. RAIN International. Technology Co., Ltd. 2.4GHz 3216 Chip Antenna: RANT3216F245X07 _ 1 EvaluationBoardReference PCBDimensionAntennaLayoutReference Unit:mm ElectricalCharacteristics ReturnLoss&Radiation ReturnLoss Frequency(MHz) S11(dB) 2400-10.50 2450-30.62 2500-11.47 Radiation 2400MHz2450MHz2500MHz Efficiency82.52%85.26%83.01% X Y Z Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. RAIN International. Technology Co., Ltd. 2.4GHz 3216 Chip Antenna: RANT3216F245X07 _ TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 32167”4K/Reel 9.0±0.5 60±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTψDP PaperType3216 1.90±0.203.50±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.10 1.50±0.10 4.0±0.1 Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. RAIN International. Technology Co., Ltd. _ 2.4GHz 3216 Chip Antenna: RANT3216F245X07 Reliability Table TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. RAIN International. Technology Co., Ltd. 2.4GHz 3216 Chip Antenna: RANT3216F245X07 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds. NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 12019/03/01NewDatasheet 2Add2Dradiationcharacteristi2022/02/22c Room 707, Building F, Tongan Zhichuangyuan, xixiang street, Baoan District, Shenzhen. RAIN International. Technology Co., Ltd.

Page 1 of 16 Report No.: AiTSZ-250901013FW1 Duty Cycle Test Result Modulation Packets Channel On Time (ms) Period (ms) Duty Cycle (%) Duty Cycle (linear) Duty Cycle Factor (dB) 1/T GFSK DH5 0 2.908 3.748 77.59 0.7759 1.1019 0.3439 39 2.908 3.748 77.59 0.7759 1.1019 0.3439 78 2.910 3.748 77.64 0.7764 1.0991 0.3436 π/4DQPSK 2-DH5 0 2.898 3.748 77.32 0.7732 1.1171 0.3451 39 2.898 3.748 77.32 0.7732 1.1171 0.3451 78 2.896 3.748 77.27 0.7727 1.1199 0.3453 8DPSK 3-DH5 0 2.896 3.748 77.27 0.7727 1.1199 0.3453 39 2.896 3.748 77.27 0.7727 1.1199 0.3453 78 2.896 3.748 77.27 0.7727 1.1199 0.3453 Test Graphs GFSK(DH5)_Channel 0 GFSK(DH5)_Channel 39 GFSK(DH5)_Channel 78 π/4DQPSK(2-DH5)_Channel 0 Page 2 of 16 Report No.: AiTSZ-250901013FW1 π/4DQPSK(2-DH5)_Channel 39 π/4DQPSK(2-DH5)_Channel 78 8DPSK(3-DH5)_Channel 0 8DPSK(3-DH5)_Channel 39 8DPSK(3-DH5)_Channel 78 Page 3 of 16 Report No.: AiTSZ-250901013FW1 Conducted Output Power Test Result Modulation Packet Type Channel Peak Output Power (dBm) Limit (dBm) Result GFSK DH5 0 -2.11 ≤30 PASS 39 -2.28 PASS 78 -1.64 PASS π/4DQPSK 2-DH5 0 -1.23 ≤20.97 PASS 39 -1.85 PASS 78 -0.94 PASS 8DPSK 3-DH5 0 -1.00 PASS 39 -1.59 PASS 78 -0.76 PASS Test Graphs Peak Output Power GFSK_Channel 0 Peak Output Power GFSK_Channel 39 Peak Output Power GFSK_Channel 78 Peak Output Power π/4DQPSK_Channel 0 Page 4 of 16 Report No.: AiTSZ-250901013FW1 Peak Output Power π/4DQPSK_Channel 39 Peak Output Power π/4DQPSK_Channel 78 Peak Output Power 8DPSK_Channel 0 Peak Output Power 8DPSK_Channel 39 Peak Output Power 8DPSK_Channel 78 Page 5 of 16 Report No.: AiTSZ-250901013FW1 20dB Bandwidth Test Result Modulation Channel Center Frequency (MHz) 20 dB Bandwidth (MHz) GFSK 0 2402 MHz 0.9600 39 2441 MHz 0.9500 78 2480 MHz 0.9600 π/4DQPSK 0 2402 MHz 1.290 39 2441 MHz 1.280 78 2480 MHz 1.290 8DPSK 0 2402 MHz 1.300 39 2441 MHz 1.300 78 2480 MHz 1.300 Test Graphs GFSK_DH5_Channel 0 GFSK_DH5_Channel 39 GFSK_DH5_Channel 78 π/4DQPSK_2-DH5_Channel 0 π/4DQPSK_2-DH5_Channel 39 π/4DQPSK_2-DH5_Channel 78 Page 6 of 16 Report No.: AiTSZ-250901013FW1 8DPSK_3-DH5_Channel 0 8DPSK_3-DH5_Channel 39 8DPSK_3-DH5_Channel 78 Page 7 of 16 Report No.: AiTSZ-250901013FW1 Carrier Frequencies Separation Test Result Modulation Packet Left Center frequency (MHz) Right Center frequency (MHz) Hopping Frequency Separation (MHz) Limit (MHz) Result GFSK DH5 2439.8254 2440.8327 1.0073 0.640 PASS π/4DQPSK 2-DH5 2440.1595 2440.9979 0.8385 0.860 PASS 8DPSK 3-DH5 2439.8372 2441.1642 1.3269 0.867 PASS Test Graphs GFSK π/4DQPSK 8DPSK Page 8 of 16 Report No.: AiTSZ-250901013FW1 Number Of Hopping Channel Test Result Modulation Packet Number of Hopping Channel Limit Result GFSK DH5 79 15 PASS π/4DQPSK 2-DH5 79 15 PASS 8DPSK 3-DH5 79 15 PASS Test Graphs Low End Spectrum Channel Hopping Plot GFSK High End Spectrum Channel Hopping Plot GFSK Low End Spectrum Channel Hopping Plot π/4DQPSK High End Spectrum Channel Hopping Plot π/4DQPSK Low End Spectrum Channel Hopping Plot 8DPSK High End Spectrum Channel Hopping Plot 8DPSK Page 9 of 16 Report No.: AiTSZ-250901013FW1 Dwell Time Test Result Modulation Packet Channel Pulse Width (ms) Number of Pulses in 31.6 seconds Dwell Time (ms) Limit (ms) Result GFSK DH1 Hopping 0.4056 318 128.98 < 400 PASS DH3 1.656 166 274.9 PASS DH5 2.912 107 311.58 PASS π/4DQPSK 2-DH1 0.3972 318 126.31 PASS 2-DH3 1.632 155 252.96 PASS 2-DH5 2.896 106 306.98 PASS 8DPSK 3-DH1 0.3960 317 125.53 PASS 3-DH3 1.632 160 261.12 PASS 3-DH5 2.896 118 341.73 PASS Test Graphs Pulse Width GFSK_DH1 Number of Pulses in 31.6 seconds GFSK_DH1 Pulse Width GFSK_DH3 Number of Pulses in 31.6 seconds GFSK_DH3 Page 10 of 16 Report No.: AiTSZ-250901013FW1 Pulse Width GFSK_DH5 Number of Pulses in 31.6 seconds GFSK_DH5 Pulse Width π/4DQPSK_2-DH1 Number of Pulses in 31.6 seconds π/4DQPSK_2-DH1 Pulse Width π/4DQPSK_2-DH3 Number of Pulses in 31.6 seconds π/4DQPSK_2-DH3 Pulse Width π/4DQPSK_2-DH5 Number of Pulses in 31.6 seconds π/4DQPSK_2-DH5 Page 11 of 16 Report No.: AiTSZ-250901013FW1 Pulse Width 8DPSK_3-DH1 Number of Pulses in 31.6 seconds 8DPSK_3-DH1 Pulse Width 8DPSK_3-DH3 Number of Pulses in 31.6 seconds 8DPSK_3-DH3 Pulse Width 8DPSK_3-DH5 Number of Pulses in 31.6 seconds 8DPSK_3-DH5 Page 12 of 16 Report No.: AiTSZ-250901013FW1 Conducted Out Of Band Emission Test Result Non-Hopping Modulation Packet Channel OOB Emission Frequency (MHz) OOB Emission Level (dBm) Limit (dBm) Over Limit (dB) Result GFSK DH5 0 2336.60 -60.677 -22.59 -38.087 PASS 2400.00 -62.750 -22.59 -40.160 PASS 24995.6 -49.882 -22.59 -27.292 PASS 39 24940.1 -49.819 -22.84 -26.979 PASS 78 2483.50 -63.510 -22.17 -41.340 PASS 24398.2 -49.259 -22.17 -27.089 PASS π/4DQPSK 2-DH5 0 1756.05 -46.972 -23.65 -23.322 PASS 2400.00 -56.260 -23.65 -32.610 PASS 39 24377.6 -49.319 -23.81 -25.509 PASS 78 2483.50 -58.670 -22.93 -35.740 PASS 24446.3 -49.960 -22.93 -27.030 PASS 8DPSK 3-DH5 0 2400.00 -55.100 -23.36 -31.740 PASS 24317.7 -49.744 -23.36 -26.384 PASS 39 24912.0 -48.592 -23.81 -24.782 PASS 78 2483.50 -60.600 -22.93 -37.670 PASS 24998.1 -48.608 -22.93 -25.678 PASS Hopping Modulation Packet Channel OOB Emission Frequency (MHz) OOB Emission Level (dBm) Limit (dBm) Over Limit (dB) Result GFSK DH5 Hopping 2398.60 -58.702 -21.56 -37.142 PASS 2400.00 -61.380 -21.56 -39.820 PASS 2483.50 -61.680 -21.96 -39.720 PASS π/4DQPSK 2-DH5 2395.10 -50.351 -22.11 -28.241 PASS 2400.00 -56.280 -22.11 -34.170 …
