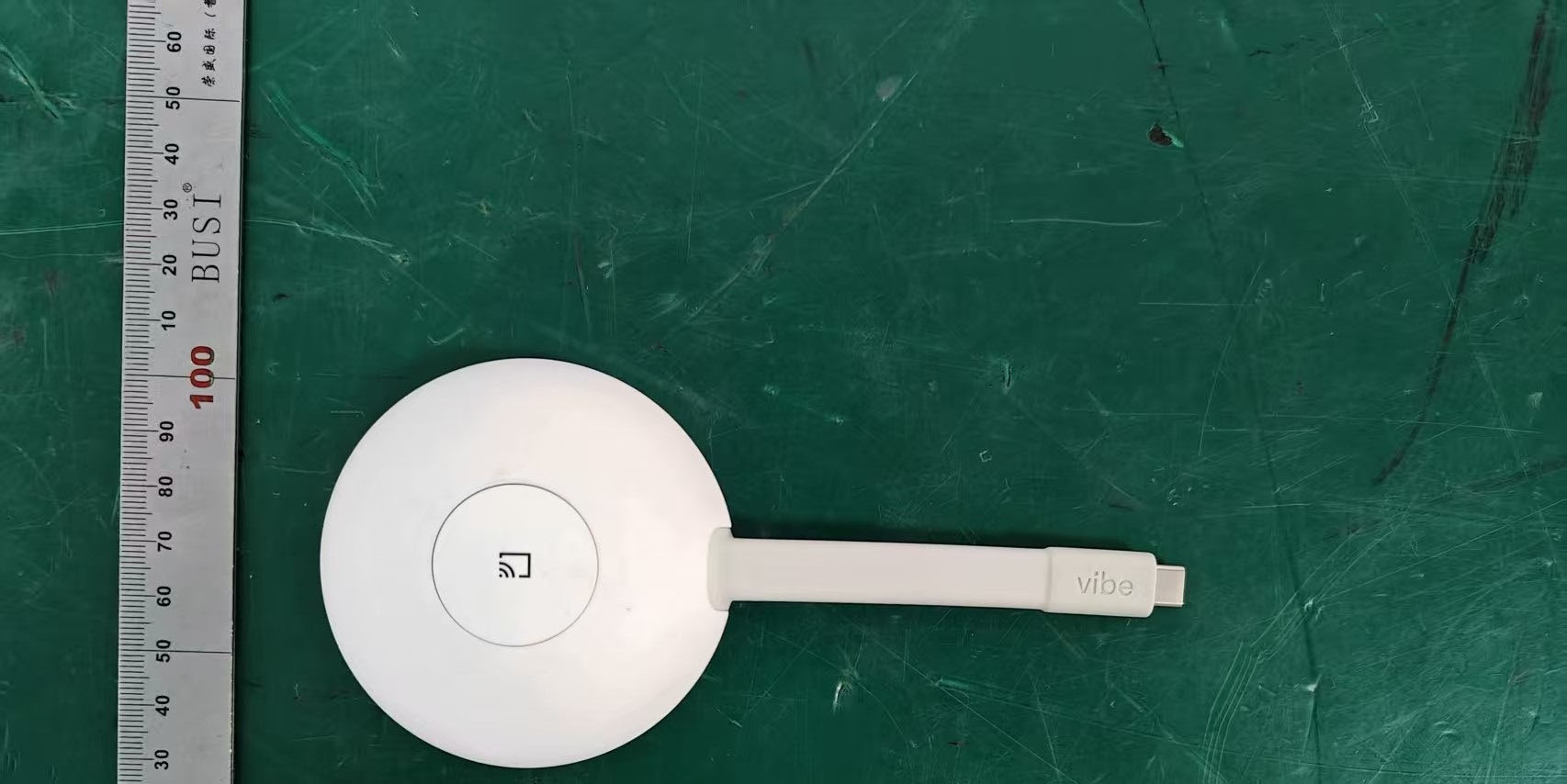

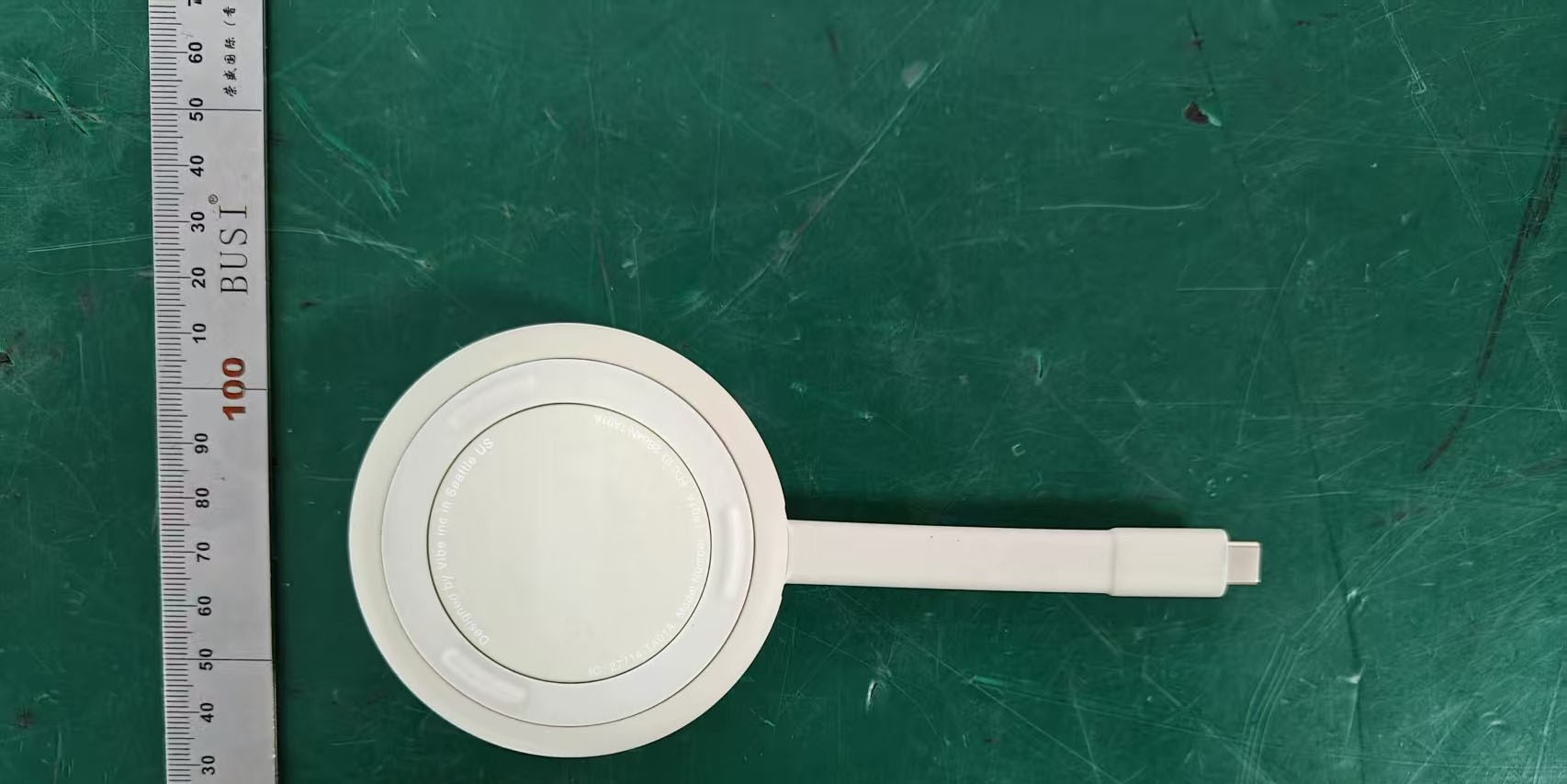

2BB4N-TA01BVibe Tap

成型尺寸：97 x 185mm 展开尺寸：291 x 185mm 成型方式：风琴折3折 材质：180g荷兰白 工艺：单色, 双面打印 -2mm 尺寸偏差 1 TA01B 2026.3.31 说明书 J0101-004118 V2.0：升级前料号8Q120-000064 V3.0：升级前料号8Q120-000129，FCC...SAR值有调整 陈庆耀线上审签线上审签线上审签 TCL 商用/CN TCL商用信息科技（惠州）有限责任公司 TCL Commercial Information Technology (Huizhou) Co., Ltd. R0 公差设定 尺寸范围0-60 ±1.0±1.5±2.0 ±2.0±3.0 ±2.5±3.0±4.0 > 60-100> 100-150> 15 0-2 00 > 2 00-600> 600 尺寸公差 图文位置偏移公差 (此处为默认公差，单独标注的公差范围除外）单位 : mm 红色虚线为折线， 实际成品无红色虚线 四角为出血线， 需按出血线裁切， 成品不保留四周边线 红色虚线为折线， 实际成品无红色虚线 四角为出血线， 需按出血线裁切， 成品不保留四周边线

Conducted Test Radiated Test (Below 1GHz) Radiated Test (Above 1GHz) Radio Spectrum Testing

SARSetupphotosforFCCID:2BB4N-TA01B BodyFrontside(separationdistanceis0mm) BodyBackside(separationdistanceis0mm) BodyLeftside(separationdistanceis0mm) BodyRightside(separationdistanceis0mm) BottomSideside(separationdistanceis0mm)

Page 39 of 94 Report No. ESTE-R2602160 Appendix B: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] 11A Ant1 5180 2.06 2.12 97.17 11A Ant1 5200 2.06 2.15 95.81 11A Ant1 5240 2.06 2.18 94.50 11A Ant1 5745 2.07 2.15 96.28 11A Ant1 5785 2.07 2.12 97.64 11A Ant1 5825 2.07 2.24 92.41 11N20SISO Ant1 5180 1.92 2.00 96.00 11N20SISO Ant1 5200 1.92 2.09 91.87 11N20SISO Ant1 5240 1.92 2.02 95.05 11N20SISO Ant1 5745 1.92 2.00 96.00 11N20SISO Ant1 5785 1.92 2.05 93.66 11N20SISO Ant1 5825 1.92 2.05 93.66 11N40SISO Ant1 5190 0.95 1.03 92.23 11N40SISO Ant1 5230 0.94 1.09 86.24 11N40SISO Ant1 5755 0.95 1.06 89.62 11N40SISO Ant1 5795 0.94 1.08 87.04 11AC20SISO Ant1 5180 1.93 2.06 93.69 11AC20SISO Ant1 5200 1.93 2.09 92.34 11AC20SISO Ant1 5240 1.93 2.11 91.47 11AC20SISO Ant1 5745 1.93 2.03 95.07 11AC20SISO Ant1 5785 1.93 2.05 94.15 11AC20SISO Ant1 5825 1.94 2.02 96.04 11AC40SISO Ant1 5190 0.96 1.04 92.31 11AC40SISO Ant1 5230 0.96 1.09 88.07 11AC40SISO Ant1 5755 0.95 1.12 84.82 11AC40SISO Ant1 5795 0.95 1.09 87.16 11AC80SISO Ant1 5210 0.46 0.63 73.02 11AC80SISO Ant1 5775 0.46 0.63 73.02 Page 40 of 94 Report No. ESTE-R2602160 Test Graphs NTNV-11A-Ant1-5180 NTNV-11A-Ant1-5200 NTNV-11A-Ant1-5240 Page 41 of 94 Report No. ESTE-R2602160 NTNV-11A-Ant1-5745 NTNV-11A-Ant1-5785 Page 42 of 94 Report No. ESTE-R2602160 NTNV-11A-Ant1-5825 NTNV-11N20SISO-Ant1-5180 Page 43 of 94 Report No. ESTE-R2602160 NTNV-11N20SISO-Ant1-5200 NTNV-11N20SISO-Ant1-5240 Page 44 of 94 Report No. ESTE-R2602160 NTNV-11N20SISO-Ant1-5745 NTNV-11N20SISO-Ant1-5785 Page 45 of 94 Report No. ESTE-R2602160 NTNV-11N20SISO-Ant1-5825 NTNV-11N40SISO-Ant1-5190 Page 46 of 94 Report No. ESTE-R2602160 NTNV-11N40SISO-Ant1-5230 NTNV-11N40SISO-Ant1-5755 Page 47 of 94 Report No. ESTE-R2602160 NTNV-11N40SISO-Ant1-5795 NTNV-11AC20SISO-Ant1-5180 Page 48 of 94 Report No. ESTE-R2602160 NTNV-11AC20SISO-Ant1-5200 NTNV-11AC20SISO-Ant1-5240 Page 49 of 94 Report No. ESTE-R2602160 NTNV-11AC20SISO-Ant1-5745 NTNV-11AC20SISO-Ant1-5785 Page 50 of 94 Report No. ESTE-R2602160 NTNV-11AC20SISO-Ant1-5825 NTNV-11AC40SISO-Ant1-5190 Page 51 of 94 Report No. ESTE-R2602160 NTNV-11AC40SISO-Ant1-5230 NTNV-11AC40SISO-Ant1-5755 Page 52 of 94 Report No. ESTE-R2602160 NTNV-11AC40SISO-Ant1-5795 NTNV-11AC80SISO-Ant1-5210 Page 53 of 94 Report No. ESTE-R2602160 NTNV-11AC80SISO-Ant1-5775 Page 54 of 94 Report No. ESTE-R2602160 Appendix C: Maximum conducted output power Test Result Channel Power Test Mode Antenna Frequenc y[MHz] Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant1 5180 14.42 97.17 0.12 14.54 ≤23.98 PASS 11A Ant1 5200 15.20 95.81 0.19 15.39 ≤23.98 PASS 11A Ant1 5240 15.27 94.50 0.25 15.52 ≤23.98 PASS 11A Ant1 5745 15.88 96.28 0.16 16.04 ≤30.00 PASS 11A Ant1 5785 15.54 97.64 0.10 15.64 ≤30.00 PASS 11A Ant1 5825 15.29 92.41 0.34 15.63 ≤30.00 PASS 11N20SI SO Ant1 5180 14.01 96.00 0.18 14.19 ≤23.98 PASS 11N20SI SO Ant1 5200 15.14 91.87 0.37 15.51 ≤23.98 PASS 11N20SI SO Ant1 5240 14.97 95.05 0.22 15.19 ≤23.98 PASS 11N20SI SO Ant1 5745 15.77 96.00 0.18 15.95 ≤30.00 PASS 11N20SI SO Ant1 5785 15.47 93.66 0.28 15.75 ≤30.00 PASS 11N20SI SO Ant1 5825 15.31 93.66 0.28 15.59 ≤30.00 PASS 11N40SI SO Ant1 5190 14.51 92.23 0.35 14.86 ≤23.98 PASS 11N40SI SO Ant1 5230 15.10 86.24 0.64 15.74 ≤23.98 PASS 11N40SI SO Ant1 5755 15.76 89.62 0.48 16.24 ≤30.00 PASS 11N40SI SO Ant1 5795 15.27 87.04 0.60 15.87 ≤30.00 PASS 11AC20S ISO Ant1 5180 14.55 93.69 0.28 14.83 ≤23.98 PASS 11AC20S ISO Ant1 5200 14.94 92.34 0.35 15.29 ≤23.98 PASS 11AC20S ISO Ant1 5240 14.85 91.47 0.39 15.24 ≤23.98 PASS 11AC20S ISO Ant1 5745 15.76 95.07 0.22 15.98 ≤30.00 PASS 11AC20S ISO Ant1 5785 15.71 94.15 0.26 15.97 ≤30.00 PASS 11AC20SAnt1 5825 15.33 96.04 0.18 15.51 ≤30.00 PASS Page 55 of 94 Report No. ESTE-R2602160 ISO 11AC40S ISO Ant1 5190 14.43 92.31 0.35 14.78 ≤23.98 PASS 11AC40S ISO Ant1 5230 14.96 88.07 0.55 15.51 ≤23.98 PASS 11AC40S ISO Ant1 5755 15.78 84.82 0.72 16.50 ≤30.00 PASS 11AC40S ISO Ant1 5795 15.24 87.16 0.60 15.84 ≤30.00 PASS 11AC80S ISO Ant1 5210 14.42 73.02 1.37 15.79 ≤23.98 PASS 11AC80S ISO Ant1 5775 15.08 73.02 1.37 16.45 ≤30.00 PASS Note：The Duty Cycle Factor is compensated in the graph. Page 56 of 94 Report No. ESTE-R2602160 Test Graphs Channel Power 11A-Ant1-5180-PASS 11A-Ant1-5200-PASS 11A-Ant1-5240-PASS Page 57 of 94 Report No. ESTE-R2602160 11A-Ant1-5745-PASS 11A-Ant1-5785-PASS Page 58 of 94 Report No. ESTE-R2602160 11A-Ant1-5825-PASS 11N20SISO-Ant1-5180-PASS Page 59 of 94 Report No. ESTE-R2602160 11N20SISO-Ant1-5200-PASS 11N20SISO-Ant1-5240-PASS Page 60 of 94 Report No. ESTE-R2602160 11N20SISO-Ant1-5745-PASS 11N20SISO-Ant1-5785-PASS Page 61 of 94 Report No. ESTE-R2602160 11N20SISO-Ant1-5825-PASS 11N40SISO-Ant1-5190-PASS Page 62 of 94 Report No. ESTE-R2602160 11N40SISO-Ant1-5230-PASS 11N40SISO-Ant1-5755-PASS Page 63 of 94 Report No. ESTE-R2602160 11N40SISO-Ant1-5795-PASS 11AC20SISO-Ant1-5180-PASS Page 64 of 94 Report No. ESTE-R2602160 11AC20SISO-Ant1-5200-PASS 11AC20SISO-Ant1-5240-PASS Page 65 of 94 Report No. ESTE-R2602160 11AC20SISO-Ant1-5745-PASS 11AC20SISO-Ant1-5785-PASS Page 66 of 94 Report No. ESTE-R2602160 11AC20SISO-Ant1-5825-PASS 11AC40SISO-Ant1-5190-PASS Page 67 of 94 Report No. ESTE-R2602160 11AC40SISO-Ant1-5230-PASS 11AC40SISO-Ant1-5755-PASS Page 68 of 94 Report No. ESTE-R2602160 11AC40SISO-Ant1-5795-PASS 11AC80SISO-Ant1-5210-PASS Page 69 of 94 Report No. ESTE-R2602160 11AC80SISO-Ant1-5775-PASS Page 70 of 94 Report No. ESTE-R2602160 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result [dBm/MHz] Limit[dBm/MHz] Verdict 11A Ant1 5180 3.30 ≤11.00 PASS 11A Ant1 5200 3.82 ≤11.00 PASS 11A Ant1 5240 4.14 ≤11.00 PASS 11A Ant1 5745 1.42 ≤30.00 PASS 11A Ant1 5785 1.17 ≤30.00 PASS 11A Ant1 5825 1.20 ≤30.00 PASS 11N20SISO Ant1 5180 3.98 ≤11.00 PASS 11N20SISO Ant1 5200 4.76 ≤11.00 PASS 11N20SISO Ant1 5240 4.81 ≤11.00 PASS 11N20SISO Ant1 5745 3.24 ≤30.00 PASS 11…

Text truncated - open the document above for the full version.

Page 1 of 94 Report No. ESTE-R2602160 Appendix A1: Emission Bandwidth Test Result TestMode Antenna Frequency[MHz] 26db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 20.520 5169.800 5190.320 --- --- 11A Ant1 5200 21.200 5189.400 5210.600 --- --- 11A Ant1 5240 20.840 5229.640 5250.480 --- --- 11A Ant1 5745 20.960 5734.480 5755.440 --- --- 11A Ant1 5785 20.880 5774.320 5795.200 --- --- 11A Ant1 5825 20.840 5814.800 5835.640 --- --- 11N20SISO Ant1 5180 21.280 5169.280 5190.560 --- --- 11N20SISO Ant1 5200 21.440 5189.160 5210.600 --- --- 11N20SISO Ant1 5240 20.920 5229.560 5250.480 --- --- 11N20SISO Ant1 5745 22.040 5733.960 5756.000 --- --- 11N20SISO Ant1 5785 21.520 5774.080 5795.600 --- --- 11N20SISO Ant1 5825 21.160 5814.600 5835.760 --- --- 11N40SISO Ant1 5190 42.000 5168.880 5210.880 --- --- 11N40SISO Ant1 5230 41.600 5209.280 5250.880 --- --- 11N40SISO Ant1 5755 42.000 5734.040 5776.040 --- --- 11N40SISO Ant1 5795 41.760 5774.520 5816.280 --- --- 11AC20SISO Ant1 5180 21.000 5169.520 5190.520 --- --- 11AC20SISO Ant1 5200 21.680 5189.040 5210.720 --- --- 11AC20SISO Ant1 5240 20.960 5229.480 5250.440 --- --- 11AC20SISO Ant1 5745 21.480 5734.240 5755.720 --- --- 11AC20SISO Ant1 5785 21.280 5774.400 5795.680 --- --- 11AC20SISO Ant1 5825 21.960 5813.720 5835.680 --- --- 11AC40SISO Ant1 5190 40.400 5170.160 5210.560 --- --- 11AC40SISO Ant1 5230 41.760 5209.200 5250.960 --- --- 11AC40SISO Ant1 5755 41.520 5734.280 5775.800 --- --- 11AC40SISO Ant1 5795 41.520 5774.360 5815.880 --- --- 11AC80SISO Ant1 5210 79.680 5170.320 5250.000 --- --- 11AC80SISO Ant1 5775 81.760 5734.040 5815.800 --- --- Page 2 of 94 Report No. ESTE-R2602160 Test Graphs 11A-Ant1-5180 11A-Ant1-5200 11A-Ant1-5240 Page 3 of 94 Report No. ESTE-R2602160 11A-Ant1-5745 11A-Ant1-5785 Page 4 of 94 Report No. ESTE-R2602160 11A-Ant1-5825 11N20SISO-Ant1-5180 Page 5 of 94 Report No. ESTE-R2602160 11N20SISO-Ant1-5200 11N20SISO-Ant1-5240 Page 6 of 94 Report No. ESTE-R2602160 11N20SISO-Ant1-5745 11N20SISO-Ant1-5785 Page 7 of 94 Report No. ESTE-R2602160 11N20SISO-Ant1-5825 11N40SISO-Ant1-5190 Page 8 of 94 Report No. ESTE-R2602160 11N40SISO-Ant1-5230 11N40SISO-Ant1-5755 Page 9 of 94 Report No. ESTE-R2602160 11N40SISO-Ant1-5795 11AC20SISO-Ant1-5180 Page 10 of 94 Report No. ESTE-R2602160 11AC20SISO-Ant1-5200 11AC20SISO-Ant1-5240 Page 11 of 94 Report No. ESTE-R2602160 11AC20SISO-Ant1-5745 11AC20SISO-Ant1-5785 Page 12 of 94 Report No. ESTE-R2602160 11AC20SISO-Ant1-5825 11AC40SISO-Ant1-5190 Page 13 of 94 Report No. ESTE-R2602160 11AC40SISO-Ant1-5230 11AC40SISO-Ant1-5755 Page 14 of 94 Report No. ESTE-R2602160 11AC40SISO-Ant1-5795 11AC80SISO-Ant1-5210 Page 15 of 94 Report No. ESTE-R2602160 11AC80SISO-Ant1-5775 Page 16 of 94 Report No. ESTE-R2602160 Appendix A2: Occupied channel bandwidth Test Result TestMode Antenna Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5180 16.708 5171.6828 5188.3908 --- --- 11A Ant1 5200 16.695 5191.6959 5208.3909 --- --- 11A Ant1 5240 16.770 5231.6489 5248.4189 --- --- 11A Ant1 5745 16.802 5736.6451 5753.4471 --- --- 11A Ant1 5785 16.778 5776.6164 5793.3944 --- --- 11A Ant1 5825 16.823 5816.6135 5833.4365 --- --- 11N20SISO Ant1 5180 17.753 5171.1546 5188.9076 --- --- 11N20SISO Ant1 5200 17.709 5191.1460 5208.8550 --- --- 11N20SISO Ant1 5240 17.740 5231.1597 5248.8997 --- --- 11N20SISO Ant1 5745 17.788 5736.1062 5753.8942 --- --- 11N20SISO Ant1 5785 17.786 5776.1432 5793.9292 --- --- 11N20SISO Ant1 5825 17.785 5816.1376 5833.9226 --- --- 11N40SISO Ant1 5190 36.491 5171.7806 5208.2716 --- --- 11N40SISO Ant1 5230 36.473 5211.8426 5248.3156 --- --- 11N40SISO Ant1 5755 36.487 5736.7437 5773.2307 --- --- 11N40SISO Ant1 5795 36.445 5776.8101 5813.2551 --- --- 11AC20SISO Ant1 5180 17.732 5171.1635 5188.8955 --- --- 11AC20SISO Ant1 5200 17.810 5191.0780 5208.8880 --- --- 11AC20SISO Ant1 5240 17.774 5231.1631 5248.9371 --- --- 11AC20SISO Ant1 5745 17.786 5736.1346 5753.9206 --- --- 11AC20SISO Ant1 5785 17.772 5776.1409 5793.9129 --- --- 11AC20SISO Ant1 5825 17.774 5816.1456 5833.9196 --- --- 11AC40SISO Ant1 5190 36.336 5171.8720 5208.2080 --- --- 11AC40SISO Ant1 5230 36.465 5211.8080 5248.2730 --- --- 11AC40SISO Ant1 5755 36.511 5736.7604 5773.2714 --- --- 11AC40SISO Ant1 5795 36.499 5776.7286 5813.2276 --- --- 11AC80SISO Ant1 5210 75.417 5172.3652 5247.7822 --- --- 11AC80SISO Ant1 5775 75.551 5737.2187 5812.7697 --- --- Page 17 of 94 Report No. ESTE-R2602160 Test Graphs 11A-Ant1-5180 11A-Ant1-5200 11A-Ant1-5240 Page 18 of 94 Report No. ESTE-R2602160 11A-Ant1-5745 11A-Ant1-5785 Page 19 of 94 Report No. ESTE-R2602160 11A-Ant1-5825 11N20SISO-Ant1-5180 Page 20 of 94 Report No. ESTE-R2602160 11N20SISO-Ant1-5200 11N20SISO-Ant1-5240 Page 21 of 94 Report No. ESTE-R2602160 11N20SISO-Ant1-5745 11N20SISO-Ant1-5785 Page 22 of 94 Report No. ESTE-R2602160 11N20SISO-Ant1-5825 11N40SISO-Ant1-5190 Page 23 of 94 Report No. ESTE-R2602160 11N40SISO-Ant1-5230 11N40SISO-Ant1-5755 Page 24 of 94 Report No. ESTE-R2602160 11N40SISO-Ant1-5795 11AC20SISO-Ant1-5180 Page 25 of 94 Report No. ESTE-R2602160 11AC20SISO-Ant1-5200 11AC20SISO-Ant1-5240 Page 26 of 94 Report No. ESTE-R2602160 11AC20SISO-Ant1-5745 11AC20SISO-Ant1-5785 Page 27 of 94 Report No. ESTE-R2602160 11AC20SISO-Ant1-5825 11AC40SISO-Ant1-5190 Page 28 of 94 Report No. ESTE-R2602160 11AC40SISO-Ant1-5230 11AC40SISO-Ant1-5755 Page 29 of 94 Report No. ESTE-R2602160 11AC40SISO-Ant1-5795 11AC80SISO-Ant1-5210 Page 30 of 94 Report No. ESTE-R2602160 11AC80SISO-Ant1-5775 Page 31 of 94 Report No. ESTE-R2602160 Appendix A3: Min emission bandwidth Test Result B4 TestMode Antenna Frequency[MHz] 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant1 5745 16.320 5736.840 5753.160 0.5 PASS 11A Ant1 5785 16.280 5776.880 5793.160 0.5 PASS 11A Ant1 5825 16.360 5816.840 5833.200 0.5 PASS 11N20SISO Ant1 5745 17.280 5736.480 5753.760 0.5 PASS 11N20SISO Ant1 5785 17.040 5776.480 5793.520 0.5 PASS 11N20SISO Ant1 5825 17.040 5816.440 5833.480 0.5 PASS 11N40SISO Ant1 5755 35.120 5737.400…

Text truncated - open the document above for the full version.

SPECIFICATION SPECIFICATION SHEETFORAPPROVAL （ Revision ： R ： A0 ） CUSTOMER(客户名称)TCL CSP/N(客户机种) WCT5S-8-D PARTNAME(品名)WIFI天线组件外露线长L=80mm FREQUENCY(频率)2400-2500MHz/5150~5850MHz 2.00006223 G.5.13.WCT5S29XAE DATE( 日期 ) 2023-06-01 CUSTOMER QA CHECKED ME CHECKED RF CHECKED MANAGER CHECKED Remark(备注)： Sign(客户确认签字盖章)： GSD NO.( 物料编号 ) ANTENNASPECIFICATION CUSP/N:WCT5S-8-DWIFI天线 ApplicationDate:Jun,01,2023Rev:R:A1 GSD P/N:WCT5S-8-DWIFI 天线 Editor:Page 1 of9 Revisionhistory 版本日期状态 A12023-06-01首版 ANTENNASPECIFICATION ApplicationDate:Jun,01,2023Rev:R:A1 Editor:Page 2 of9 Index Revisionhistory 1 Index 2 1MechanicalSpecification 3 1-1 MechanicalSpecification（WIFI组件） 3 2Testequipment 4 3Antennatestdata 5 3-1VSWR 5 3-2Matchingcircuit 5 3-3No-sourcetestdata 5 3-4Environmenttreatment 5 3-5 产品实物图片6 4EnvironmentCharacteristic 7 5RawMaterialDetectionList 7 6 Thepackingway 8 附页：出货标签模板9 GSD P/N :WCT5S-8-D WIFI 天 线 CUS P/N :WCT5S-8-D WIFI 天线 ANTENNASPECIFICATION ApplicationDate:Jun,01,2023Rev:R:A1 Editor:Page 3 of9 1.MechanicalSpecification 1-1MechanicalConfiguration（ WIFI 组件） GSD P/N :WCT5S-8-D WIFI 天 线 CUS P/N :WCT5S-8-D WIFI 天线 ANTENNASPECIFICATION ApplicationDate:Jun,01,2023Rev:R:A1 Editor:Page 4 of9 2.Testequipment GSD P/N :WCT5S-8-D WIFI 天 线 CUS P/N :WCT5S-8-D WIFI 天线 ANTENNASPECIFICATION ApplicationDate:Jun,01,2023Rev:R:A1 Editor:Page 5 of9 3.Antennatestdata 3-1VSWR 3-2Matchingcircuit N/A 3-3No-sourcetestdata 3-4Environmenttreatment N/A GSD P/N :WCT5S-8-D WIFI 天 线 CUS P/N :WCT5S-8-D WIFI 天线 ANTENNASPECIFICATION ApplicationDate:Jun,01,2023Rev:R:A1 Editor:Page 6 of9 3-5产品实物图片 GSD P/N :WCT5S-8-D WIFI 天 线 CUS P/N :WCT5S-8-D WIFI 天线 ANTENNASPECIFICATION ApplicationDate:Jun,01,2023Rev:R:A1 Editor:Page 7 of9 4.EnvironmentCharacteristic NO.ITEMTESTCONDITIONSPECIFICATION 4-1 HighTemperature/Humidity StorageTest(nonoperating) 1.Temperature:+80±2°C 2.Humidity:90~95%RH 3.Time:48hrs Nomaterialdeformationis allowed. TheVSWR,Gain,Radiation Patternmustbemet specificationsafterthesetest. 4-2 LowTemperature/Humidity StorageTest(nonoperating) 1.Temperature:-30±2°C 2.Humidity:0%RH 3.Time:48hrs 5.RawMaterialDetectionList GSD P/N :WCT5S-8-D WIFI 天 线 CUS P/N :WCT5S-8-D WIFI 天线 ANTENNASPECIFICATION ApplicationDate:Jun,01,2023Rev:R:A1 Editor:Page 8 of9 6.Thepackingway 包装规范&作业指导书 客户编号 TCL 产品型号WCT5S-8-D WIFI天线 产品名称WIFI天线组件 纸箱规格K=K(牛皮纸)46CM*32.5CM*42CM物料编号1.12.000004用量1PCS 纸箱(内)K3K38*26*9cm物料编号1.12.000044用量5PCS PE开口袋240*160*0.05mm物料编号1.12.000030用量50PCS 纸板规格2PCS/箱*5其他物料标签/橡皮筋/胶带 每箱数量5000PCS内箱数量1000pcsPE开口袋数量100PCS 包装简图： NO变更内容变更人及日期2023.05.17 标签简图： 外箱简图： 制表：审核：核准： 1. 取（ 100pcs ）产品整齐，线端采 用橡皮筋包扎，装袋，贴物料标签 ; 2.将包装好的产品装入内箱（1000pcs）， “十”字卡板间隔；贴标签， GSD P/N :WCT5S-8-D WIFI 天 线 CUS P/N :WCT5S-8-D WIFI 天线 ANTENNASPECIFICATION ApplicationDate:Jun,01,2023Rev:R:A1 Editor:Page 9 of9 附页：出货标签模板 GSD P/N :WCT5S-8-D WIFI 天 线 CUS P/N :WCT5S-8-D WIFI 天线

Page 1 of 54 Report No.ESTE-R2602160 FCC PART 15E TEST REPORT FOR CERTIFICATION On Behalf of SHENZHEN ZHOUGUANG TECHNOLOGY CO.LTD Vibe Tap Model Number: TA01B Additional Model: TA*****(*"can be any alphanumeric character including blank for marketing differences) FCC ID: 2BB4N-TA01B Applicant: SHENZHEN ZHOUGUANG TECHNOLOGY CO.LTD Address: B401-p, workshop2, longgang tian'an digital inovation park, no.449, north huangge road, huanggekeng community, longcheng street, longgang district, shenzhen Prepared By: EST Technology Co., Ltd. Chilingxiang, Qishantou, Santun, Houjie, Dongguan, Guangdong, China Tel: 86-769-83081888-808 Report Number: ESTE-R2602160 Date of Test: Feb. 05, 2026 to Feb. 26, 2026 Date of Report: Mar. 04, 2026 Page 2 of 54 Report No.ESTE-R2602160 TABLE OF CONTENTS Description Page TEST REPORT VERIFICATION .......................................................................................................... 3 1. GENERAL INFORMATION ................................................................................................................... 5 1.1. Description of Device (EUT) ............................................................................................................ 5 1.2. The antenna information for EUT ................................................................................................... 6 1.3. Information of RF Cable ................................................................................................................... 6 2. SUMMARY OF TEST ........................................................................................................................... 7 2.1. Summary of test result ..................................................................................................................... 7 2.2. Test Facilities ..................................................................................................................................... 8 2.3. Measurement uncertainty for EST Technology Co., Ltd. ............................................................ 9 2.4. Assistant equipment used for test .................................................................................................. 9 2.5. Block Diagram ................................................................................................................................... 9 2.6. Test Mode ........................................................................................................................................ 10 2.7. Channel List ..................................................................................................................................... 12 2.8. Power Setting of Test Software .................................................................................................... 13 2.9. Duty Cycle of Test Signal .............................................................................................................. 13 2.10. Test Equipment List ...................................................................................................................... 14 3. 6DB BANDWIDTH &26DB BANDWIDTH & 99% OCCUPIED BANDWIDTH ....................................... 16 3.1. Limit ................................................................................................................................................... 16 3.2. Test Setup ........................................................................................................................................ 16 3.3. Spectrum Analyzer Setting ............................................................................................................ 16 3.4. Test Procedure ................................................................................................................................ 17 3.5. Test Result ....................................................................................................................................... 17 4. MAXIMUM CONDUCTED OUTPUT POWER ...................................................................................... 18 4.1. Limit ................................................................................................................................................... 18 4.2. Test Setup ........................................................................................................................................ 18 4.3. Spectrum Analyzer Setting ............................................................................................................ 18 4.4. Test Procedure ................................................................................................................................ 18 4.5. Test Result ....................................................................................................................................... 19 5. PEAK POWER SPECTRAL DENSITY ................................................................................................ 20 5.1. Limit ................................................................................................................................................... 20 5.2. Test Setup ........................................................................................................................................ 20 5.3. Spectrum Analyzer Setting ............................................................................................................ 20 5.4. Test Procedure ................................................................................................................................ 20 5.5. Test Result ....................................................................................................................................... 20 6. UNWANTED EMISSIONS AND BAND EDGE ...................................................................................... 21 6.1. Limit ...................................................................................…

Text truncated - open the document above for the full version.

The test resultspresentedin this reportrelateonly to the objecttested.This reportshall not be reproduced,exceptin full, withoutthe writtenapprovalof the ShenzhenSTS Test ServicesCo., Ltd. SARTest Report ReportNo. :STS2603050H01 Issuedfor SHENZHENZHOUGUANGTECHNOLOGYCO.LTD B401-p,workshop2,longgangtian ’an digitalinnovationpark, no.449,northhuanggeroad,huanggekengcommunity, longchengstreet,longgangdistrict,shenzhen,guangdong, china. ProductName:Vibe Tap BrandName:N/A ModelName:TA01B SeriesModel(s):N/A FCC ID:2BB4N-TA01B Test Standard: ANSI/IEEEStd. C95.1 FCC 47 CFR Part 2 (2.1093) IEEEStd. 1528-2013 Max.Report SAR (1g) Body:0. 620 W/kg STLABS Page2 of 44ReportNo.: STS2603050 H01 TESTREPORTCERTIFICATION Applicant’s name .................... : SHENZHENZHOUGUANGTECHNOLOGYCO.LTD Address......................................: B401-p,workshop2,longgangtian ’an digitalinnovationpark, no.449,northhuanggeroad,huanggekengcommunity, longchengstreet,longgangdistrict,shenzhen,guangdong,china. Manufacturer'sName ............. : SHENZHENZHOUGUANGTECHNOLOGYCO.LTD Address......................................: B401-p,workshop2,longgangtian ’an digitalinnovationpark, no.449,northhuanggeroad,huanggekengcommunity, longchengstreet,longgangdistrict,shenzhen,guangdong,china. Productdescription Productname............................: Vibe Tap Brandname.............................: N/A Modelname ............................. : TA01B Seri es Model .............................. : N/A Standards..................................: ANSI/IEEEStd. C95.1 FCC 47 CFR Part 2 (2.1093) IEEEStd. 1528-2013 The devicewastestedby ShenzhenSTSTestServicesCo.,Ltd. in accordancewiththe measurementmethodsand proceduresspecifiedin KDB865664The test resultsin this report applyonly to the testedsampleof the stateddevice/equipment.Othersimilardevice/equipment will not necessarilyproducethe sameresultsdue to productiontoleranceand measurement uncertainties. Dateof Test...............................................: Date(s) of performanceof tests...............:10 Mar. 2026 Dateof Issue..............................................:17 Mar. 2026 Test Result .................................................. :Pass TestingEngineer: (Xin.Liu) TechnicalManager: (Shifan.Long) AuthorizedSignatory: (BoveyYang ) Page3 of 44ReportNo.: STS2603050 H01 Tableof Contents 1. GeneralInformation5 1.1 EUT Description5 1.2 Test Environment6 1.3 Test Factory6 2. Test Standardsand Limits7 3. SARMeasurementSystem8 3.1 Definitionof SpecificAbsorptionRate(SAR)8 3.2 SARSystem8 3.3 DASY5E-fieldProbeSystem10 3.4 Phantoms11 3.5 DeviceHolder11 3.6 ScanningProcedure12 3.7 DataStorageand Evaluation13 4. TissueSimulatingLiquids15 4.1 SimulatingLiquidsParameterCheck15 5. SARSystemValidation18 5.1 ValidationSystem18 5.2 ValidationResult19 6. SAREvaluationProcedures20 7. EUT Test Position21 8. Uncertainty22 8.1 MeasurementUncertainty22 9. ConductedPowerMeasurement25 9.1 Test Result25 10. EUT and Test SetupPhoto27 10.1 EUT Photo27 10.2 SetupPhoto30 12. SAR ResultSummary33 11. 1 Body-wornSAR33 12. EquipmentList34 AppendixA. SystemValidationPlots35 AppendixB. SAR Test Plots38 AppendixC. ProbeCalibrationand DipoleCalibrationReport44 Page4 of 44ReportNo.: STS2603050 H01 RevisionHistory Rev.IssueDateReportNo.EffectPageContents 0017 Mar. 2026 STS2603050H01 ALLInitialIssue Page5 of 44ReportNo.: STS2603050 H01 1. GeneralInformation Environmentalevaluationmeasurementsof specificabsorptionrate (SAR)distributionsin emulated humanheadand bodytissuesexposedto radiofrequency(RF) radiationfrom wirelessportable devicesfor compliancewith the rulesand regulationsof the U.S. FederalCommunications Commission(FCC). 1.1 EUT Description ProductNameVibe Tap BrandNameN/A ModelNameTA01B SeriesModel N/A ModelDifferenceN/A Samplenumber2603 05002-01 DeviceCategoryPortable ProductstageProductionunit RF Exposure Environment GeneralPopulation/ Uncontrolled HardwareVersion N/A SoftwareVersionN/A Frequency Range WLAN802.11b/g/n20 /ax20: 2412MHz ~ 24 62 MHz WLAN802.11n40 /ax40: 24 22 MHz ~ 24 52 MHz WLAN802.11a/n 20/n40/ac20/ac40/ac80/ax20/ax40/ax80: 5150~ 5250MHz WLAN802.11a/n 20/n40/ac20/ac40/ac80ax20/ax40/ax80: 5725~ 5850 MHz Bluetooth:2402MHz to 2480MHz Max.Reported SAR(1g): (L imit:1.6W/kg) Test distance: Head:0mm Body:0mm BandModeBodyWorn andHotspot(W/kg) DTS2.4GWLAN0.601 DSSBT0.160 NII5.2GWLAN0.531 NII5.8GWLAN0.620 FCC Equipment Class DigitalTransmissionSystem(DTS) Part 15 SpreadSpectrumTransmitter(DSS) UnlicensedNationalInformationInfrastructureTX(NII) OperatingMode: 2.4GWLAN: 802.11b(DSSS):CCK,DQPSK,DBPSK 802.11g(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11ax(OFDMA): BPSK,QPSK,16-QAM,64-QAM 5G WLAN: 802.11a(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11n(OFDM):BPSK,QPSK,16-QAM,64-QAM 802.11ac(OFDM):BPSK,QPSK,16-QAM,64-QAM,256-QAM 802.11ax(OFDMA): BPSK,QPSK,16-QAM,64-QAM Bluetooth:GFSK+π/4DQPSK+8DPSK BLE:GFSK Antenna Specification: WLAN/BT:Internalantenna Page6 of 44ReportNo.: STS2603050 H01 SIM CardNo SIM card HotspotModeNit Support DTMModeNot Support Note : 1. The EUT batterymustbe fully chargedand checkedperiodicallyduringthe test to ascertainuniform power 1.2 Test Environment Ambientconditionsin the SAR laboratory: ItemsRequired Temperature( °C ) 18-25 Humidity(%RH)30-70 1.3 Test Factory ShenZhenSTS Test ServicesCo.,Ltd. A 1/F, BuildingB, ZhuokeSciencePark,No.190ChongqingRoad,HepingShequ,Fuyong Sub-District,Bao ’an District,Shenzhen,GuangDong,China FCC test Firm RegistrationNo.: 625569 IC RegistrationNo.: 12108A A2LACertificateNo.: 4338.01 Page7 of 44ReportNo.: STS2603050 H01 2. Test Standardsand Limits No.IdentityDocumentTitle 1 47 CFRPart 2 FrequencyAllocationsand RadioTreatyMatters;General Rulesand Regulations 2 IEEEStd C95.1,2019 IEEEStandardfor SafetyLevelswith Respectto Human Exposureto Electric,Magnetic,and ElectromagneticFields,0 Hz to 300 GHz.It specifiesthe maximumexposurelimit of 1.6 W/kgas averagedover any 1 gramof tissuefor portable devicesbeingusedwithin20 cm of t…

Text truncated - open the document above for the full version.

Ref : ACR.262.12..MVGB.A SHENZHEN STS TEST SERVICES CO., LTD. 1/F., BUILDING B, ZHUOKE SCIENCE PARK,No.190, CHONGQINGROAD,FUYONG STREET, BAO’ AN DISTRICT, SHENZHEN,GUANGDONGCHINA MVG COMOSAR REFERENCE WAVEGUIDE FREQUENCY: 5000-6000 MHZ SERIAL NO.: SN 13/14 WGA32 SAR Reference Waveguide Calibration Report Summary: Calibrated at MVG Z.I. de la pointe du diable Technopôle Brest Iroise - 295 avenue Alexis de Rochon 29280 PLOUZANE - FRANCE Calibretion date: Page: 1/11 2 3 07/04/2023 Accreditations #2-6789 and #2-6814 Scope available on www.cofrac.fr This document presents the method and results from an accredited SAR reference dipole calibration performed in MVG using the COMOSAR test bench. All calibration results are traceable to national metrology institutions. SAR REFERENCE WAVEGUIDE CALIBRATION REPORT Ref: ACR.262.12..MVGB.A Page: 2/13 Template_ACR.DDD.N.YY.MVGB.ISSUE_COMOSAR Dipole vH This document shall not be reproduced, except in full or in part, without the written approval of MVG. The information contained herein is to be used only for the purpose for which it is submitted and is not to be released in whole or part without written approval of MVG. Name Function Date Signature Prepared by : Jérôme LUC Technical Manager Checked by : Jérôme LUC Technical Manager Approved by : Yann Toutain Laboratory Director Customer Name Distribution : Shenzhen STS Test Services Co., Ltd. Issue Date Modifications A Initial release Name Jérôme LUC 7/0/202 3 4 7/0/202 3 4 7/0/202 3 4 7/0/202 3 4 2 3 SAR REFERENCE WAVEGUIDE CALIBRATION REPORT Ref: ACR.262.12..MVGB.A TABLE OF CONTENTS 1 Introduction ................................................................................................................ 4 2 Device Under Test ..................................................................................................... 4 3 Product Description ................................................................................................... 4 3.1 General Information _______________________________________________________ 4 4 Measurement Method ................................................................................................ 4 4.1 Return Loss Requirements __________________________________________________ 4 4.2 Mechanical Requirements ___________________________________________________…

Text truncated - open the document above for the full version.
