2BB78-ITL-DCL-HL-V1Solid-state fan Speed Control

产品名称 （Product name ） Lo w-v o l ta g e f a n a nd hi g h-v o l ta g e l a m p co ntro l l e r ( s te p l e s s co l o r te m p e ra ture a d j us tm e nt) 产品型号 （Product model） ITL-DCL-HL-V1 WiFi 1、product description： 1.Pairing: The receiver and the transmitter have been paired. After being powered on, the receiver is in standby mode. To pair a new transmitter, follow these steps (within 30 seconds after the fan's power supply is connected, press the fan's off button to complete the re-learning process between the transmitter and the receiver. A successful learning process will be indicated by the light flashing twice as a reminder signal). 2. Fan: Press the fan off button to turn off the fan. The fan speed increases from level 1 to level 6 when the fan button is pressed (all fan levels have the function of turning on the fan, and the fan levels can be switched normally. Level 1 is the low fan speed and level 6 is the high fan speed). Press the fan off button to turn off the fan when the device is shut down. 3.LED Light: Turn On/Off the Light. Press the light switch key briefly to turn the light on or off according to the current state of the light. Press and hold the DIM key to enter the brightness adjustment. The brightness can be adjusted continuously upwards or downwards until it reaches the maximum or minimum brightness. Release to stop the brightness adjustment (minimum brightness stays for 1 second - the brightening/dimming process takes about 7 seconds - maximum brightness stays for 1 second, and the cycle adjustment time is about 16 seconds). Color Temperature Switching (In the off-light state, pressing the color temperature switching key is ineffective. In the on-light state, long press the CCT color temperature key to adjust the color temperature from 2700K to 5000K without steps). 4.Power-off memory: ①The light switch, fan switch, and gear position have power-off memory. ②The color temperature and brightness of the lamp are stored in the lamp panel's memory. 5. Set the shipment status as: Turn off the fan and turn off the lights. 6.Input power： 120V～60Hz 8.Maximum power of the 120V - 60Hz output lamp: 190W, supports thyristor dimming. 9.Maximum power of the DC24V fan: 40W, current: 1.6A 2、Wire requirements： 1.Power input cable - White (N, labeled with English "AC IN N" marking tube), Black (L, labeled with English "AC IN L" marking tube), Green (Ground wire, labeled with the wire marking tube (UL1015 18# wire with exposed 120mm □ Strip the wire □ 12mm with rubber cap)) 2.Motor output wire - Red W, equipped with English "TO MOTOR" wire label tube, Gray U, equipped with English "TO MOTOR" wire label tube, Yellow V, equipped with English "TO MOTOR" wire label tube (UL1015 18# wire with exposed 120mm outside □ Strip wire □ 12mm with rubber tip) 3.Light output cable - Blue (L, labeled with English "FOR LIGHT L" wire, White (N, labeled with English "FOR LIGHT N" wire (UL1015 18# wire with exposed length of 120mm □ Strip the wire □ 12mm with rubber cap)) 3、Product illustration： ITL-DCL-HL-V1 WiFi FCC Statement This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: • Reorient or relocate the receiving antenna. • Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.This equipment should be installed and operated with a minimum distance of 20cm between the radiator & your body.

ITL intelligence Lighting Technology Co., Ltd. Covered Equipment Certification Attestation Letter 9/2/2026 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2BB78-ITL-DCL-HL-V1 ITL intelligence Lighting Technology Co., Ltd.(“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Note: If the equipment for which the applicant seeks authorization is produced by any of the entities identified on the current Covered List, the applicant should include an explanation on why the equipment is not “covered” equipment. ITL intelligence Lighting Technology Co., Ltd.(“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. ITL intelligence Lighting Technology Co., Ltd.(“the applicant”) certifies that the equipment for which authorization issought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity oranti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). Signed: Printed name: Liu Zehao Title: General Manager Company Name: ITL intelligence Lighting Technology Co., Ltd. Date: 9/2/2026

ITL intelligence Lighting Technology Co., Ltd. * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter September 3, 2026 Nemko North America, Inc. 303 River Road Ottawa K1V 1H2 Canada ATTN.: Reviewing Engineer FCC ID: 2BB78-ITL-DCL-HL-V1 Per section 2.911(d)(7) of the FCC rules, ITL intelligence Lighting Technology Co., Ltd.(“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. Designated agent* for service of process: Company Name: TTS MARKET INC. Physical U.S. Company Address: 1178 Broadway Ste 324,New York, NY 10001, USA Agent name: Maverick Lim Agent Email Address: [email protected] FRN: 0036806057 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Designated Agent Signed: (Required, if different to Applicant): Signed: Signed: Printed name: Liu ze hao Printed name: Maverick Lim Title: General Manager Title: Manager Company Name: ITL intelligence Lighting Technology Co., Ltd Company Name: TTS MARKET INC. Date: May 11, 2026 Date: May 11, 2026 FRN Code: 0034047662 FRN Code: 0036806057

ITL intelligence Lighting Technology Co., Ltd September 2, 2026 Nemko North America, Inc. 303 River Road Ottawa, Ontario, Canada K1V 1H2 REQUEST FOR CONFIDENTIALITY - FCC FCC ID: 2BB78-ITL-DCL-HL-V1 Pursuant to Sections 0.457(d) and 0.459 of the Commission’s Rules and FCC Guidance document 726920, we hereby request permanent confidential treatment of exhibits identified as such in the table below and request they are permanently withheld from public review based on the documents containing trade secrets and proprietary information not customarily released to the public. The public disclosure of this information might be harmful to the applicant and provide unjustified benefits to its competitors. We also request short-term confidentiality on certain exhibits until the intended date of marketing as outlined below. We request the exhibits be withheld from public view for a period of insert number of days (cannot exceed 180 days) days. We attest marketing of the product will only commence after the period of short-term confidentiality expires, or if marketing is to commence before the requested number of days listed above, the grantee will inform Nemko to release the Short-Term Confidentiality information withheld on the FCC equipment authorization website. Exhibit Type of Confidentiality Requested Block Diagrams ☒Permanent ☐Short Term External Photos ------------------ ☐Short Term Internal Photos ☐Permanent*☐Short Term Operation Description ☒Permanent ☐Short Term Parts List & Placement/BOM ☒Permanent ☐Short Term Tune-Up Procedure ☐Permanent☐Short Term Schematic Diagrams ☒Permanent ☐Short Term Test Setup Photos ------------------ ☐Short Term User’s Manual ☐Permanent*☐Short Term The asterisked items (*) require further information to be provided in this justification letter before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. Note: any documents held under the Short-Term confidentiality will automatically become public after the requested time if an appropriate extension request has not been received. Any exhibits (i.e., schematic diagrams) that may have already been requested to have “Permanent” confidentiality as shown above need not be repeated under Short-Term confidentiality request. Sincerely, Signed: Printed name: Liu ze hao Title: General Manager Company Name: ITL intelligence Lighting Technology Co., Ltd

Label and Label Locaion

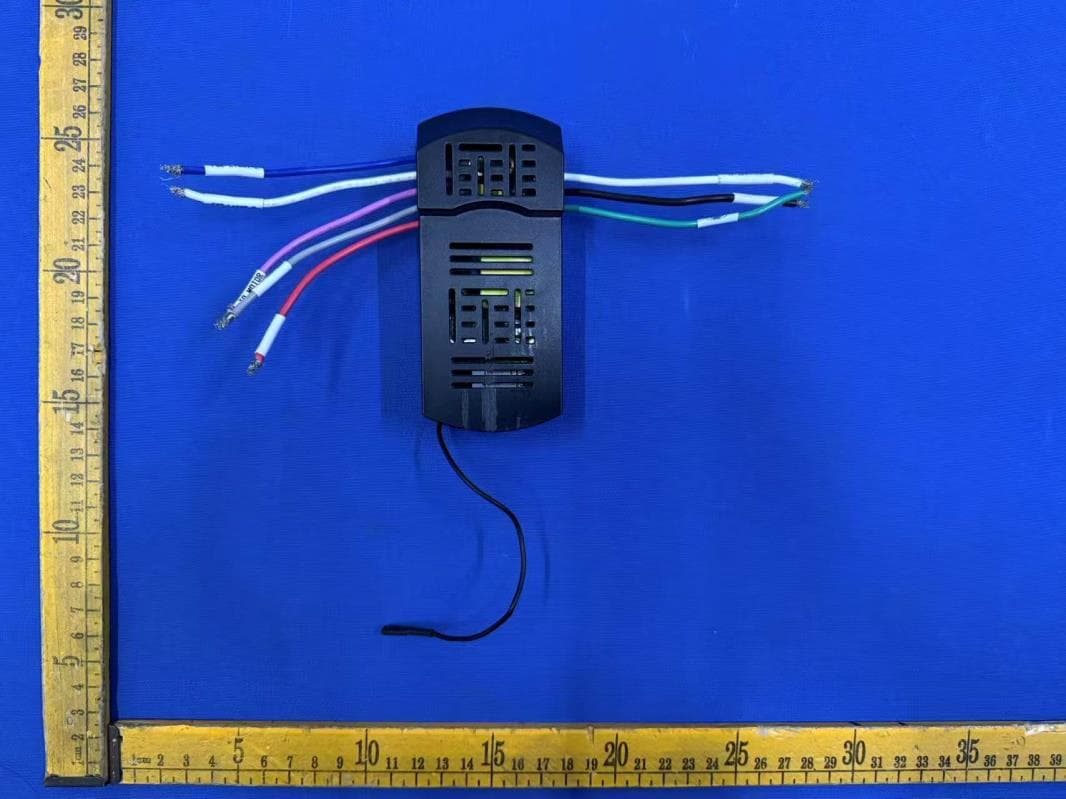

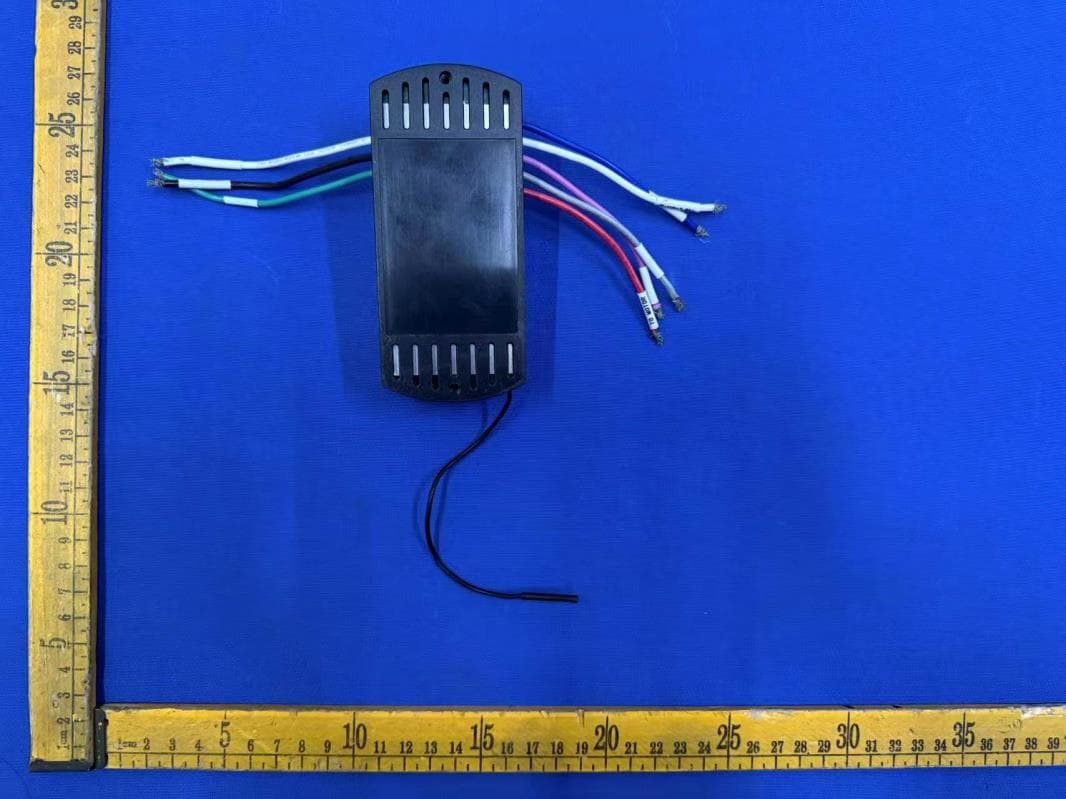

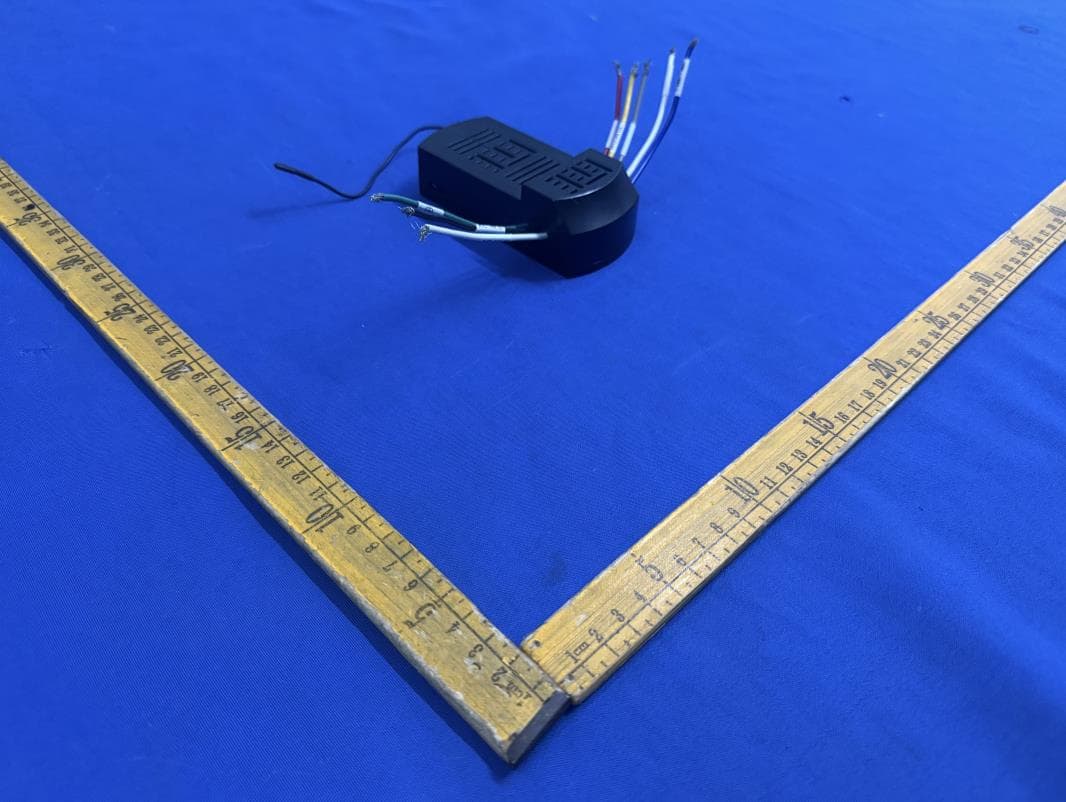

Internal Photos Antenna

Page 1 of 2 FCC-ID: 2BB78-ITL-DCL-HL-VI RF Exposure evaluation FCC ID: 2BB78-ITL-DCL-HL-VI 1. Reference According to §1.1307(b)(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the Commission’s guidelines. According to §1.1310 and §2.1091 RF exposure is calculated. KDB447498 D01: Mobile and Portable Devices RF Exposure Procedures and Equipment Authorization Policies 2. Limit Limits for Maximum Permissible Exposure (MPE)/Controlled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 1842/f 61.4 / / 1.63 4.89/f 0.163 / / (100) * (900/f 2 )* 1.0 f/300 5 6 6 6 6 6 Limits for Maximum Permissible Exposure (MPE)/Uncontrolled Exposure Frequency Range(MHz) Electric Field Strength(V/m) Magnetic Field Strength(A/m) Power Density (mW/cm²) Averaging Time (minute) Limits for Occupational/Controlled Exposure 0.3 – 3.0 3.0 – 30 30 – 300 300 – 1500 1500 – 100,000 614 824/f 27.5 / / 1.63 2.19/f 0.073 / / (100) * (180/f 2 )* 0.2 f/1500 1.0 30 30 30 30 30 F=frequency in MHz *=Plane-wave equivalent power density Page 2 of 2 FCC-ID: 2BB78-ITL-DCL-HL-VI 3. MPE Calculation Method Predication of MPE limit at a given distance Equation from page 18 of OET Bulletin 65, Edition 97-01 S=PG/4πR² Where: S=power density P=power input to antenna G=power gain of the antenna in the direction of interest relative to an isotropic radiator R=distance to the center of radiation of the antenna 4. Result As declared by the Applicant, the EUT is a wireless device used in a fix application, at least 20 cm from any body part of the user or nearby persons; from the maximum EUT RF output power, the minimum separation distance, r =20cm, as well as the gain of the used antenna is - 0.23 dBi for 2.4 GHz , the RF power density can be obtained. Mode Max. Output Power (dBm) Max. Output Power (mW) Antenna Gain (Numeric) Power Density At 20 cm (mW/cm 2 ) Power Density Limit FCC (mW/cm 2 ) Test Results 802.11b 20.475 111.5578 0.9484 0.0222 1.0000 PASS 802.11g 20.565 113.8938 0.9484 0.0227 1.0000 PASS 802.11n20 20.645 116.0112 0.9484 0.0231 1.0000 PASS Mode Max. Output Power (dBm) Max. Output Power (mW) Antenna Gain (Numeric) Power Density At 20 cm (mW/cm 2 ) Power Density Limit FCC (mW/cm 2 ) Test Results GFSK 6.046 4.0235 0.9484 0.0008 1.0000 PASS Maximum Simultaneous transmission MPE Ratio for Bluetooth &2.4G WIFI Maximum MPE ratio (Bluetooth) Maximum MPE ratio (2.4G WIFI) ΣMPE ratios Limit Results 0.0008 0.0231 0.0239 1.000 PASS 5. Conclusion The SAR evaluation is not required.

AntennaSpecification Manufacture：TUYA ProductName：T1-U-HLAntenna AntennaType：PCB TestDate：2023.11.28 Testedby：ZhangYinhua Approvedby：Licco Content 1.GeneralDescription.................................................................................1 2.TestConfigurations...................................................................................2 2.1TestEnvironment............................................................................2 2.2TestEquipment...............................................................................2 2.3TestPrinciple...................................................................................2 3.TestResults..............................................................................................3 3.1GainandEfficiency..........................................................................3 3.2RadiationPattern............................................................................4 4.AntennaDimensions................................................................................6 5.EUTPhoto................................................................................................6 6.TestSetupPhoto......................................................................................7 1 1.GeneralDescription ManufacturerHangzhouTuyaInformationTechnologyCo.,Ltd Address Room701,Building3,MoreCenter,No.87GuDunRoad, Hangzhou,Zhejiang,China TestLocation Room106,Building3,LetongSciencePark,No.500, QiuyiRoad,BinjiangDistrict,Hangzhou ProductNameT1-U-HLAntenna Productmodel T1-U-HL AntennaType PCBAntenna TestItems Gain;Efficiency;RadiationPattern TestFrequency 2400-2500MHz TestStandard ANSI/IEEEStd149-1979 2 2.TestConfigurations 2.1TestEnvironment Temperature(°C)25 Humidity(%RH)60 AtmosphericPressure(kPa)100.5 2.2TestEquipment TestSystemTEM24Multi-probeMicrowaveChamber TestInstrumentAgilentE5071B 2.3TestPrinciple 3 3.TestResults 3.1GainandEfficiency Frequency(MHz)PeakGain(dBi)Efficiency(%) 2400 -1.21 22.39 2410 -1.01 23.07 2420 -0.55 23.71 2430 -0.39 24.43 2440 -0.28 25.12 2450 -0.26 25.64 2460 -0.32 25.41 2470 -0.23 25.59 2480 -0.53 25.06 2490 -0.48 24.95 2500 -0.96 23.50 4 3.2RadiationPattern Phi02D Phi902D Theta902D 5 2400MHz3D 2450MHz3D 2500MHz3D 6 4.AntennaDimensions Unit:mm 5.EUTPhoto 7 6.TestSetupPhoto
