Wind sensor user manual R1.0 Deer Management Systems LLC Wind sensor R1.0 Page 2 of 6 1 Introduction Smart and cost-effective Wind-Sensor, which can be used in many areas for measuring the wind speed and wind direction. It has Bluetooth wireless connectivity for reporting the measurement results. It is battery powered with off-the-shelf AA Alkaline batteries. Specifications: BLUETOOTH ▪ BLE5.0 ▪ Broadcast Distance 100m SENSOR ▪ Wind Measurement Sensor Speed Range : 0 ~ 25m/s Speed Accuracy : +/- 1.5m/s Direction Accuracy : +/- 10 Deg ▪ E-Compass for auto-direction alignment BATTERY ▪ Non-chargeable Alkaline battery ▪ 3 pieces AA size ▪ Operating Time: more than 1 year (Using LR6 AA batteries) LEDs ▪ Three color LED lights INTERFACE IOs ▪ Dip Switch (Power on) ENVIRONMENTAL ▪ Operation Temperature: -20°C to +60°C ▪ Storage Temperature: -40°C to +85°C ▪ IP65 Rating PHYSICAL ▪ Dimensions: 75 (W) x 75 (L) x 121 (H) mm ▪ Weight: 170 (g) APPROVALS ▪ FCC ▪ IC 1.1 Sign up on Atel AAGS System Website: https://aags-qa.a-tracs.com/ 1. Select button ”Sign up” to register an account. 2. Please enter your email, password, IMEI and SN. Deer Management Systems LLC Wind sensor R1.0 Page 3 of 6 3. Please get One Time Password from your email, then enter the code. 4. When the success prompt appears, you can access to the Atel AAGS System and ATRACS APK. There are the same account. Deer Management Systems LLC Wind sensor R1.0 Page 4 of 6 1.2 Install ATRACS Install APK(ATRACS_1.7.1) on smartphone. This APK can support pairing or unpairing between Wind sensor and Camara, Wind sensor data can also be displayed on UI. Note: please install app-wind-sensor-4.apk 2 Feature 2.1 Bluetooth Pairing Before you begin to pair Camera and wind sensor, please make sure camera software update to APP here is the detail steps as below Switch camera to setup mode Install AA batteries and Wind sensor power on when the power switch is pushed to ”ON” Wind sensor starts to pairing on first time power up or if the Wind Sensor not paired to camera (If the wind sensor has been paired before, you can long press the button for 5s to enter pairing mode.). LED is Blue LED fast blinking. Place the wind sensor close to the camera. 1. Select one Camera IMEI for pairing 2. Select button ”+” to add new wind sensor. click on "Scan MAC Address" to Scan Wind Sensor QR code, please waiting until successful information displayed, the whole pairing process take about 30s,displays "operation successful" after paired successful. Deer Management Systems LLC Wind sensor R1.0 Page 5 of 6 3. Paired wind sensor will be listed. Note: one camera can support 5 wind sensor. Safety information: FCC Regulations This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. Changes or modifications not expressly approved by the manufacturer could void the user’s authority to operate the equipment. Deer Management Systems LLC Wind sensor R1.0 Page 6 of 6 FCC RF Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. To comply with FCC RF Exposure compliance requirements, this grant is applicable to only Mobile Configurations. The antennas used for the transmitter must be installed to provide a separation distance of at least 20cm from all persons and must not be co-located or operating in conjunction with any other antenna or transmitter. IC STATEMENT This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device. Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisée aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. In order to avoid the possibility of exceeding the IC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. Afin d'éviter la possibilité de dépasser les limites d'exposition aux fréquences radio de la IC CNR102, la proximité humaine à l'antenne ne doit pas être inférieure à 20 cm (8 pouces) pendant le fonctionnement normal.

[Deer Management Systems LLC] [1668 Jordan West Road Decorah Minnesota United States] Date: [2026/2/2] Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 FCC ID: [2BBNQ-RVWS1] FRN: 0033881582 US Agent – Attestation Statement / Part 2.911(d)(7) [Deer Management Systems LLC] certifies, that as of [2026/1/20], we have designated Deer Management Systems LLC to accept service of process on our behalf for FCC ID: [2BBNQ- RVWS1]. [Deer Management Systems LLC], accepts to maintain an agent of service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Deer Management Systems LLC, accepts as of the date of the filing of this application, the obligation of being the designated agent for the purpose of accepting service of process on behalf of [Deer Management Systems LLC] for FCC ID: [2BBNQ-RVWS1]. Designated Agent Information: Company Name: Deer Management Systems LLC FRN: 0033881582 Address: 1668 Jordan West Road Decorah Iowa 52101 United States Contact Person: Eric Boerendonk Telephone: 7193526418 Email: [email protected] Sincerely, Company: [Deer Management Systems LLC] Designated Agent: Deer Management Systems LLC Company Representative: [Eric Boerendonk] Designated Agent Representative: Eric Boerendonk Signature: Signature:

(Deer Management Systems LLC) (2026.2.2) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID： 2BBNQ-RVWS1) [Deer Management Systems LLC] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. We also certify that, as of the date of the filing of the application, the equipment does not utilize cyber-security or anti-virus software from Kaspersky Lab, Inc, or any of its successors and assignees, which is also on the “covered list”. Sincerely, (Applicant signature) (Applicant printed name) Eric Boerendonk (Deer Management Systems LLC) (2026.1.20) Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID： 2BBNQ-RVWS1) [Deer Management Systems LLC] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Eric Boerendonk

Deer Management Systems LLC Request for Confidentiality Date: March 12, 2026 Subject: Confidentiality Request for: FCC ID: 2BBNQ-RVWS1 Pursuant to FCC 47 CRF 0.457(d), the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit Short Term Permanent Block Diagrams Short Term External Photos Short Term Permanent* 1 Internal Photos Short Term Permanent Operation Description/Theory of Operation Short Term Permanent Parts List & Placement/BOM Short Term Permanent Schematics Short Term Permanent FCC SW SECURITY DESCRIPTION Short Term Permanent Tune Up Information Short Term Permanent Test Setup Photos Short Term Permanent* User’s Manual *Note: ______(Insert Explanation as Necessary)______ Deer Management Systems LLC has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of _______days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify TCB in the event information regarding the product or the product is made available to the public. TCB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: The applicant understands that until such time that IC distinguishes between Short Term and Permanent Confidentiality, either type of marked exhibit above will simply be marked Confidential when submitted to IC. Sincerely, Signature: Printed Name of Signee: Eric Boerendonk Company: Deer Management Systems LLC Phone: +1 (719) 352-6418 Email: [email protected] Job title: Director Telco Application Engineering

Deer Management Systems LLC POWER OF ATTORNEY DATE: 2026-2-2 To: Federal Communications Commission, Authorization & Evaluation Division, 7435 Oakland Mills Road, Columbia, MD 21046 We, the undersigned, hereby authorize Eurofins TA Technology (Shanghai) Co., Ltd / Freda Shou on our behalf, to apply to FCC on our equipment for FCC ID: 2BBNQ-RVWS1. Any and all acts carried out by Eurofins TA Technology (Shanghai) Co., Ltd / Freda Shou on our behalf shall have the same effect as acts of our own. Sincerely, Printed name: Eric Boerendonk Title: Director Telco Application Engineering Telephone: +1 (719) 352-6418 Company Name: Deer Management Systems LLC Signed:

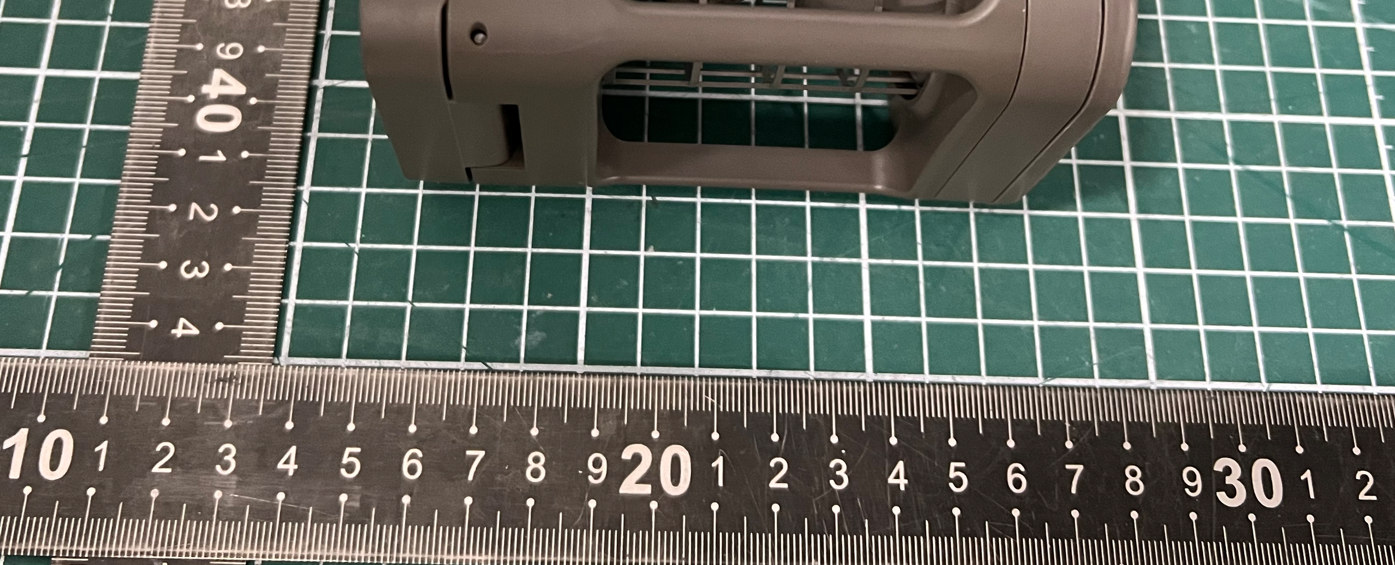

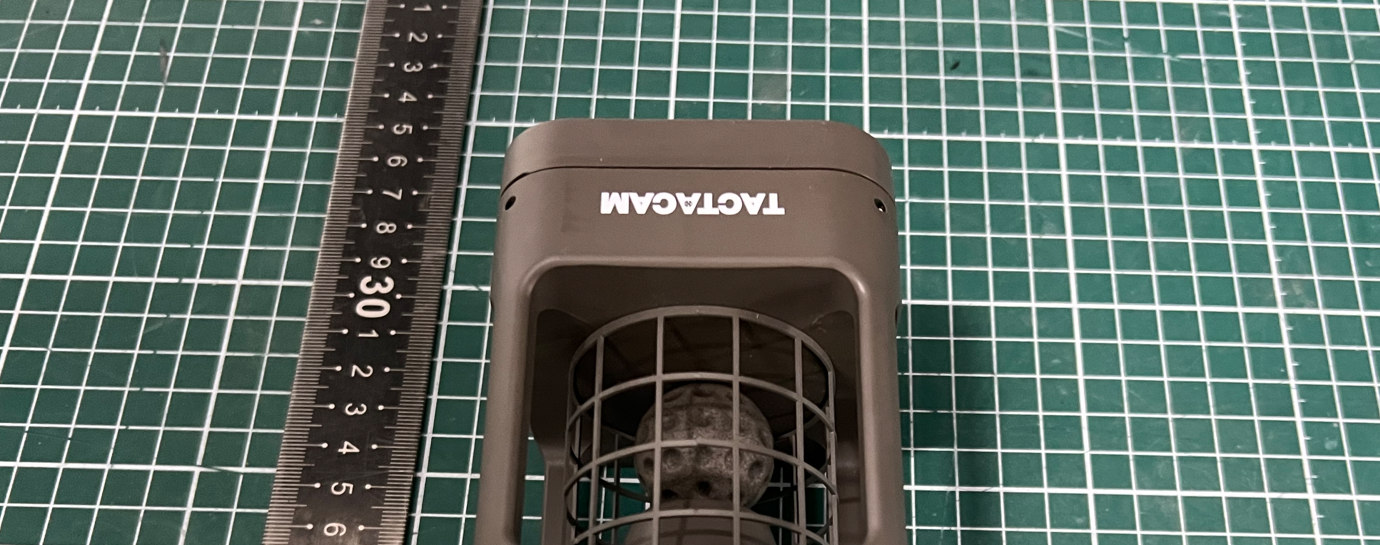

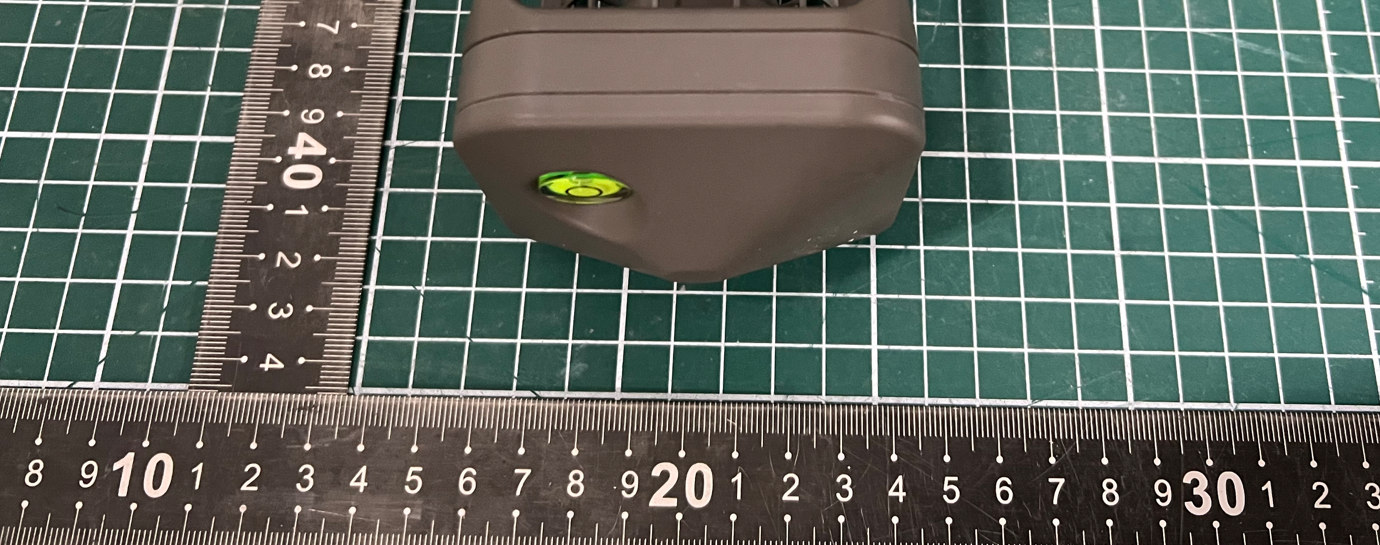

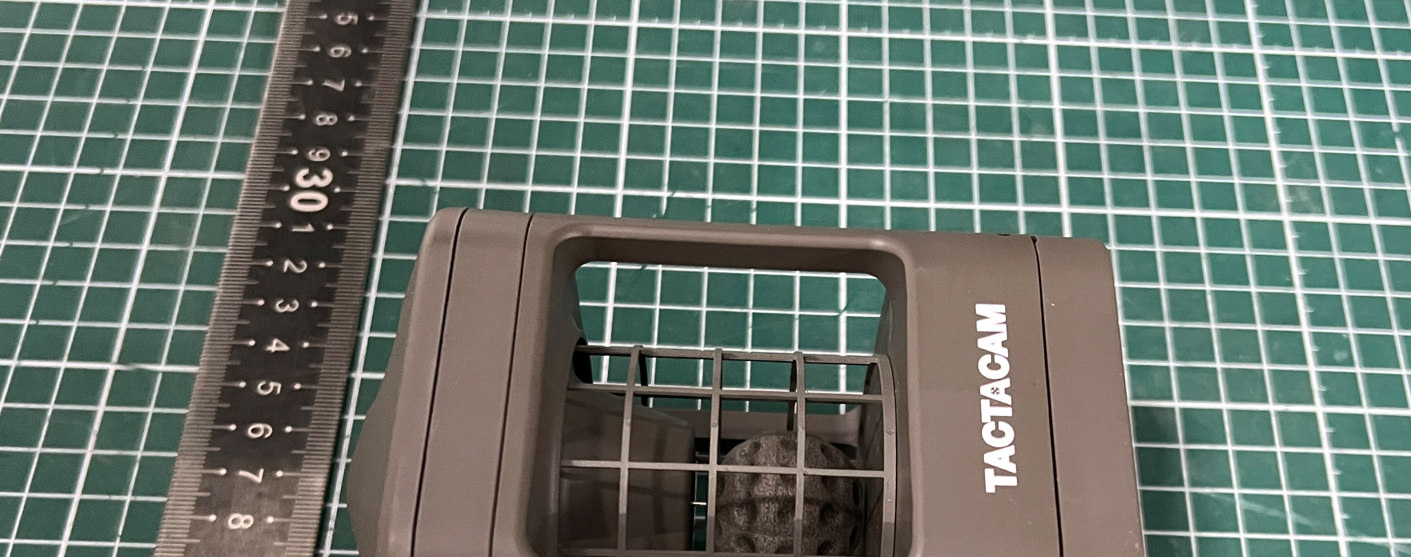

EUT Appearance Report No.: EFTA26010078-IE-01 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-032E Page 1 of 3 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. EUT Appearance EUT Appearance Report No.: EFTA26010078-IE-01 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-032E Page 2 of 3 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. EUT Appearance Report No.: EFTA26010078-IE-01 Eurofins TA Technology (Shanghai) Co., Ltd. TA-MB-01-032E Page 3 of 3 This report shall not be reproduced except in full, without the written approval of Eurofins TA Technology (Shanghai) Co., Ltd. Picture 1: Constituents of EUT
