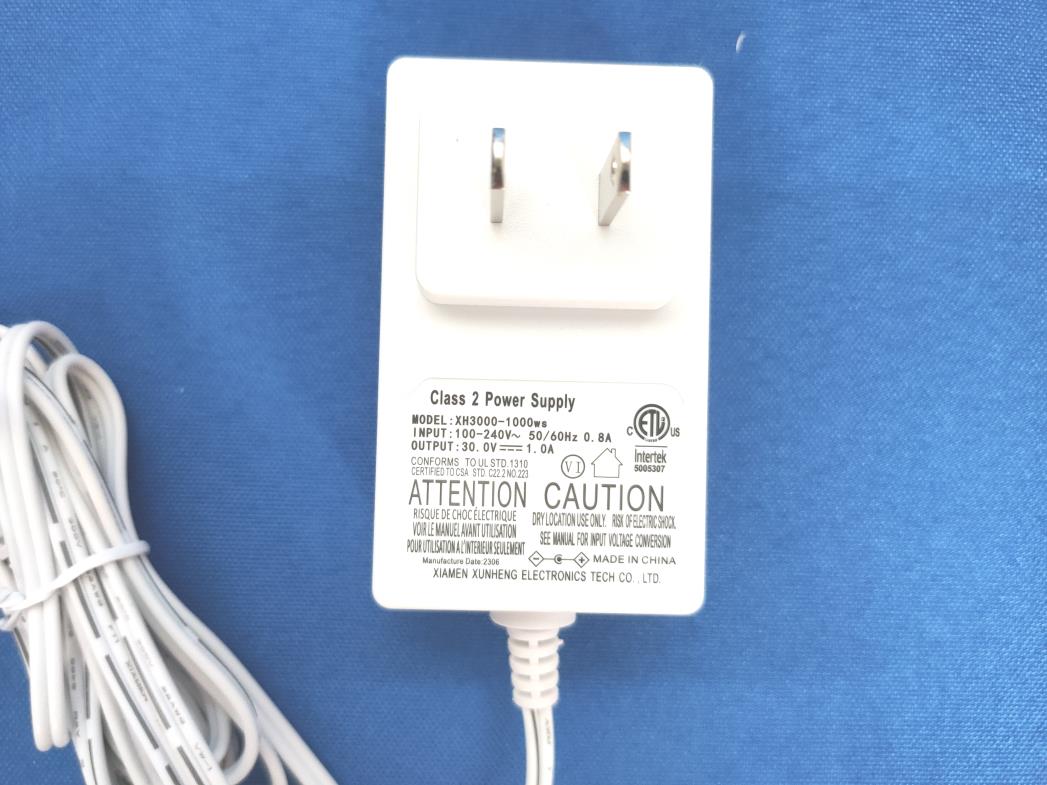

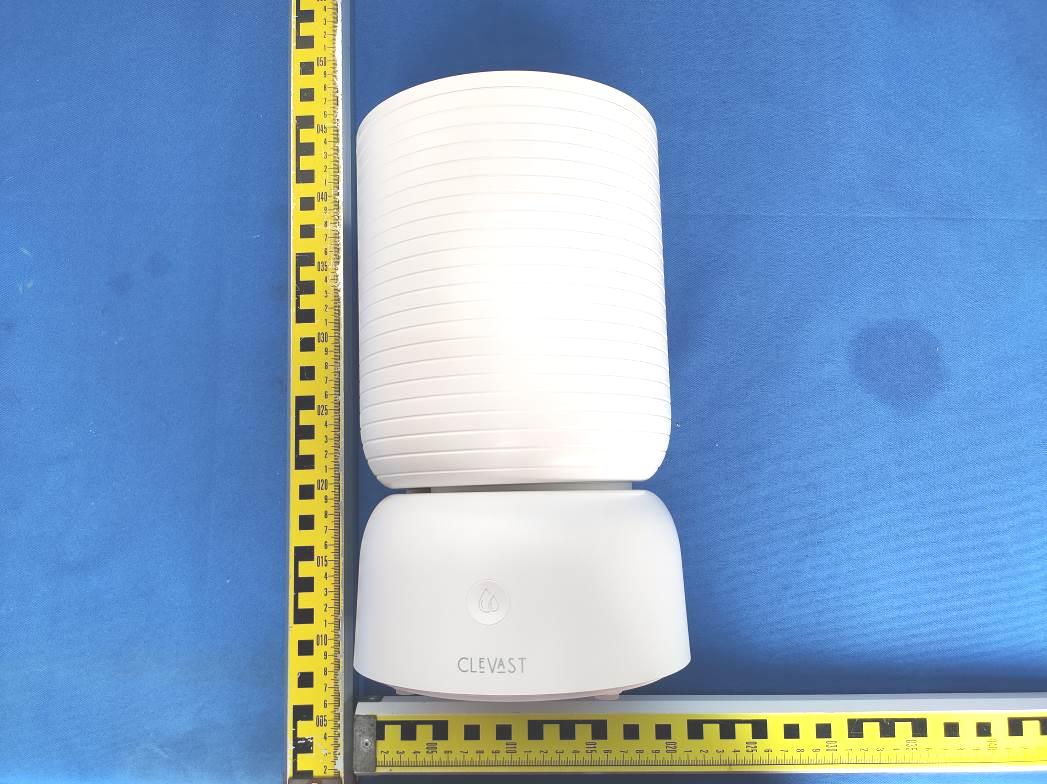

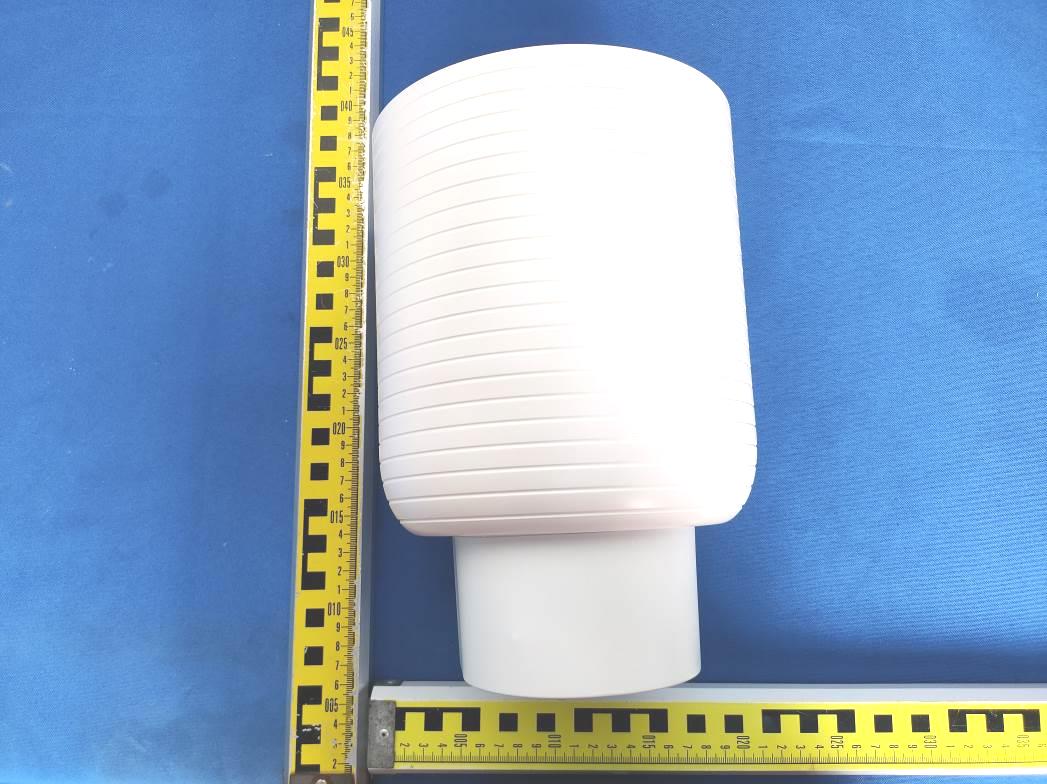

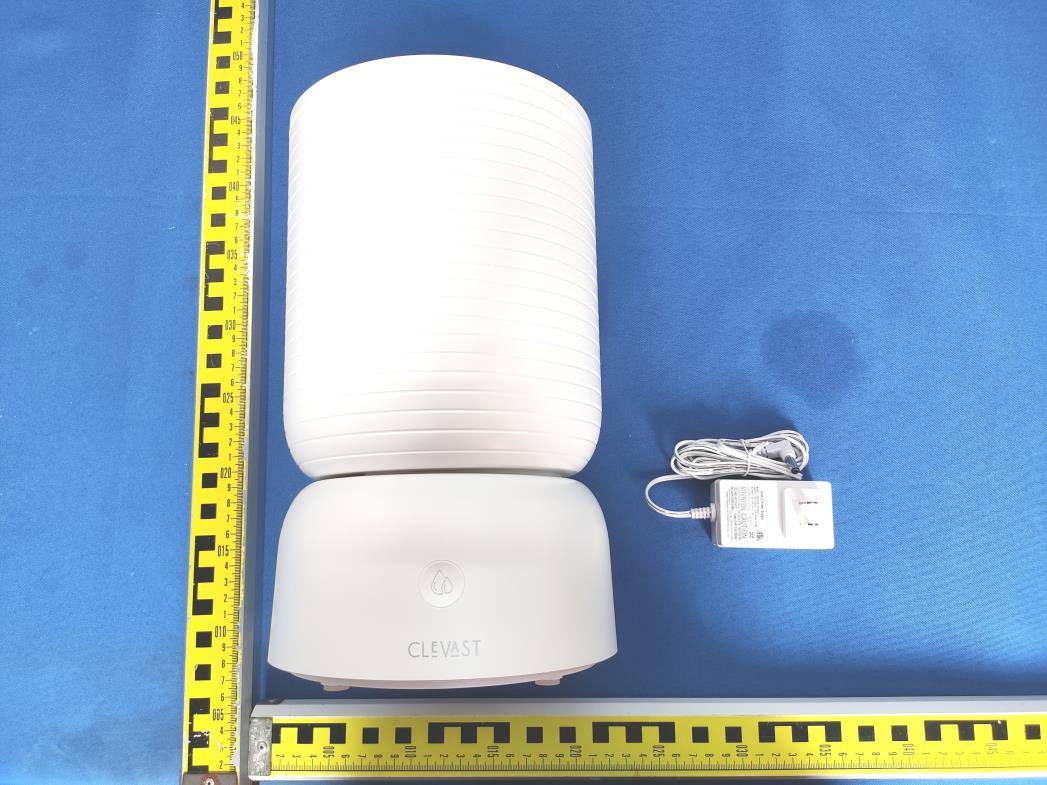

2BCBU-CL-HD01Smart Humidifier

Instruction Manual Smart Humidifier Model No.: CL-HD01 Read this manual thoroughly before using and save it for future reference Touch smart life CONTENTS English Deutsch Français Italiano Español 01~20 01 TABLE OF CONTENTS 01 04 06 15 16 IMPORTANT SAFEGUARDS GETTING TO KNOW YOUR SMART HUMIDIFIER BEFORE FIRST USE OPERATING INSTRUCTIONS CARE & MAINTENANCE TROUBLESHOOTING FCC STATEMENT WARRANTY INFORMATION CUSTOMER SUPPORT 19 20 21 ....................................................................................................... ...................................................................... ................................................................................................................... ............................................................................................................ 07 .................................................................................................... ................................................................................................................ ....................................................................................................................... ....................................................................................................... ............................................................................................................... IMPORTANT SAFEGUARDS GENERAL SAFETY Only use the humidifier as described in this manual. When not in use for an extended period, turn the humidifier off and disconnect the plug from the outlet. Do not use the humidifier in wet environments. Keep the humidifier out of reach from children. Do not attempt to disassemble the humidifier or its components. Always unplug the humidifier from power before cleaning it or detaching the water tank from the humidifier base. Always place the humidifier on a flat, horizontal surface before using. Only fill the water tank with clean water. Never, never water tank with any other liquids. Do not place the humidifier near heat sources such as stovetops, ovens, or radiators. Do not place the humidifier directly on carpets or rugs. Do not use non-Clevast humidifier parts as replacement parts for this product. Do not cover the nozzle while the humidifier is on, as this may damage the humidifier. Do not immerse the humidifier base, power cord, or power plug in water. If the humidifier is damaged or is not functioning properly, stop using it and contact Customer Support immediately. The excess of moisture may wet the surface where the humidifier is placed. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. Be aware that high humidity levels may encourage the growth of biological organisms in the environment. Do not permit the area around the humidifier to become damp or wet. If dampness occurs, turn the output of the humidifier down. If the humidifier output volume cannot be turned down, use the humidifier intermittently. Do not allow absorbent materials, such as carpeting, curtains, drapes, or tablecloths, to become damp. Never leave water in the reservoir when the appliance is not in use. Empty and clean the humidifier before storage. Clean the humidifier before next use. Not for commercial use. Household use only. 02 POWER CORD & PLUG Ensure that the plug fits properly into a polarized outlet. Do not handle the power cord or plug with wet hands. Keep the power cord and plug away from liquids. The humidifier has a polarized plug (one prong is wider than the other), which fits into a polarized outlet in only one orientation. This is a safety feature to reduce the risk of electric shock. If the plug does not fit, reverse the plug to the correct orientation. If it still does not fit, do not bypass this safety feature and try forcing the plug into the outlet; instead, do not use it with the outlet. Unplug the appliance during filling and cleaning. Empty the tank and refill every third day. Before refilling, clean it with fresh tap water or cleaning agents. Remove any scale, deposits, or film that has formed on the sides of the tank or on interior surfaces, and wipe all surfaces dry. To reduce the risk of fire, electric shock, or other injury, always follow all instructions and safety guidelines. APP currently does not support 5G network, please use 2.4G network for operation. LEAKS Do not add essential oils, supplemental water treatment liquids, or water filters into the water tank or base chamber, as this may damage the humidifier and cause leaks. Only add essential oils to the aroma pad. WARNING: Micro-organisms that may be present in the water or in the environment where the appliance is used or stored, can grow in the water reservoir and be blown in the air causing very serious health risks when the water is not renewed and the tank is not cleaned properly every 3 days. Clean the water tank every three days. 03 Clean the water tank every 3 days GETTING TO KNOW YOUR SMART HUMIDIFIER 1） PRODUCT FEATURES 2） PRODUCT DIAGRAM From the user's standpoint, this humidifier utilizes a method that enables water to be added to the upper cover, providing convenience during the process of replenishing water. The upper cover can be effortlessly detached, facilitating hassle-free refilling. Furthermore, it incorporates smart control features with a built-in Wi-Fi, allowing for seamless integration with the Clevast app. Through the app, users can remotely control the device, set automatic on/off functions based on desired humidity levels, and monitor changes in air humidity data. Importantly, it is equipped with an independent aromatherapy essential oil box, effectively preventing water tank contamination issues. Fog Outlet Water Tank Cover Water Tank Base Gear Button 1. 1 2 3 4 5 2. 3. 4. 5. Wi-Fi Indicator Light Power Switch Wi-Fi Switch Aroma Box Power Cord and Plug 6. 7. 8. 9. 10. 87 9 10 6 04 3） TOUCH CONTROL PANEL …

Text truncated - open the document above for the full version.

Shenzhen YuanRui Information Technology Co., Ltd. 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Shenzhen YuanRui Information Technology Co., Ltd. Address: Room 201, A Bldg, NO. 1 QianWan 1st Road, ShenZhen-Hongkong Cooperation Zone, QianHai, ShenZhen, China (Located to ShenZhen QianHai Commercial Secretary CO., Limited) Product Name: Smart Humidifier FCC ID: 2BCBU-CL-HD01 Model(s): CL-HD01 2.911(d)(5)(i) Equipment Type We, Shenzhen YuanRui Information Technology Co., Ltd. certify that the equipment for which authorization is sought through certification is not:  Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules.  Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Name: Lucy Liu Date: 8/23/2023 Title: Product Department Assistant Company name: Shenzhen YuanRui Information Technology Co., Ltd. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen YuanRui Information Technology Co., Ltd. 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Shenzhen YuanRui Information Technology Co., Ltd. Address: Room 201, A Bldg, NO. 1 QianWan 1st Road, ShenZhen-Hongkong Cooperation Zone, QianHai, ShenZhen, China (Located to ShenZhen QianHai Commercial Secretary CO., Limited) Product Name: Smart Humidifier FCC ID: 2BCBU-CL-HD01 Model(s): CL-HD01 2.911(d)(5)(ii) Applicant filing We, [Shenzhen YuanRui Information Technology Co., Ltd.] certify that, as of the date of the filing of the application, the applicant is not identified NOTE 1 on the “Covered List” NOTE 2 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Name: Lucy Liu Date: 8/23/2023 Title: Product Department Assistant Company name: Shenzhen YuanRui Information Technology Co., Ltd. NOTE 1 Delete option not applicable to this application. NOTE 2 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Shenzhen YuanRui Information Technology Co., Ltd. * the applicant must designate a contact located in the United States for purposes of acting as the applicant’s agent for service of process, regardless of whether the applicant is a domestic or foreign entity. An applicant located in the United States may designate itself as the agent for service of process. U.S. Agent Designation for Service of Process - Certification Attestation Letter 8/23/2023 ATTN.: Reviewing Engineer FCC ID: 2BCBU-CL-HD01 FRN No.: 0034073437 Per section 2.911(d)(7) of the FCC rules, Shenzhen YuanRui Information Technology Co., Ltd. (“the applicant”) certifies that the equipment for which authorization is sought is designated to the following U.S. agent* for service of process: Company Name: JOC Australia Inc Physical U.S. Company Address: 18351 Colima Road Ste 585 Rowland Heights, California, 91748 United States of America Agent contact name/Title : Benjamin. Smith/Vice President Agent Email Address: [email protected]/[email protected] Tel No.: +1(626) 341 3408 FRN No.: 0033379421 The above contact person accepts the obligation for service of process. The applicant accepts to maintain an agent for no less than one year after the grantee has terminated all marketing and importation or the conclusion of any Commission-related proceeding involving the equipment. Applicant Signed: Agent Signed (if different to Applicant): Signed: Signed: Printed name: Lucy Liu Printed name: Benjamin. Smith Title: Product Department Assistant Title: Vice President Company Name: Shenzhen YuanRui Information Technology Co., Ltd. Company Name: JOC Australia Inc Date: 8/23/2023 Date: 8/23/2023

Shenzhen YuanRui Information Technology Co., Ltd. Agent Authorization Company: Shenzhen YuanRui Information Technology Co., Ltd. Address: Room 201, A Bldg, NO. 1 QianWan 1st Road, ShenZhen-Hongkong Cooperation Zone, QianHai, ShenZhen, China (Located to ShenZhen QianHai Commercial Secretary CO., Limited) Product Name: Smart Humidifier Model Number(s): CL-HD01 Product Description: Humidifier We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: August 23, 2023 Name Lucy Liu Position Product Department Assistant Company Name Shenzhen YuanRui Information Technology Co., Ltd. Address Room 201, A Bldg, NO. 1 QianWan 1st Road, ShenZhen-Hongkong Cooperation Zone, QianHai, ShenZhen, China (Located to ShenZhen QianHai Commercial Secretary CO., Limited) Tel +86-18922853321 Fax / Email [email protected]

Shenzhen YuanRui Information Technology Co., Ltd. Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 Date: 2023-08-23 Subject; Request for Long Term Confidentiality FCC ID: 2BCBU-CL-HD01 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram BOM Operational Description Tune-up Procedure SOFTWARE SECURITY REQUIREMENTS FOR U-NII DEVICES It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Signature: August 23, 2023 Name Lucy Liu Position Product Department Assistant Company Name Shenzhen YuanRui Information Technology Co., Ltd. Address Room 201, A Bldg, NO. 1 QianWan 1st Road, ShenZhen- Hongkong Cooperation Zone, QianHai, ShenZhen, China (Located to ShenZhen QianHai Commercial Secretary CO., Limited) Tel +86-18922853321 Fax / Email [email protected]

FCC ID: 2BCBU-CL-HD01

Label Location FCC ID: 2BCBU-CL-HD01 Model No.: CL-HD01

FCC ID: 2BCBU-CL-HD01 WiFi ANT

FCC ID: 2BCBU-CL-HD01 Prediction of MPE at a given distance 1. Limits The criteria listed in the following table shall be used to evaluate the environment impact of human exposure to radio frequency (RF) radiation as specified in 1.1307(b) 2. Test Procedure Equation from page 18 of OET Bulletin 65, Edition 97-01 Where: S = power density P = power input to the antenna G = numeric gain of the antenna in the direction of interest relative to an isotropic radiator R = distance to the center of radiation of the antenna 3. Result Mode Frequency (MHz) Maximum output power Prediction distance (cm) Rated Peak RF power output(Max) MPE (mW/cm 2 ) Limit (mW/cm 2 ) SAR Test Exclusion dBm mW 2.4G WiFi 2412-2462 15.049 20 16 39.81 0.0188 1 Yes 2.4G WiFi Antenna Gain: 3.75dBi, 2.37(numeric) Then SAR evaluation is not required.

OTA TEST REPORT TA Technology (Shanghai) Co., Ltd. tested the above equipment in accordance with the requirements in ANSI/IEEE Std 149-2008. The test results show that the equipment tested is capable of demonstrating compliance with the requirements as documented in this report. Prepared by: Peng Tao Approved by: Kai Xu TA Technology (Shanghai) Co., Ltd. No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China TEL: +86‐021‐50791141/2/3 FAX: +86‐021‐50791141/2/3‐8000 Applicant Espressif System (Shanghai) Co.,Ltd Product ESP32-C3-MINI-1 Model ESP-ANT D-H Report No. Y2102A0260-T2 Issue Date March 9, 2021 OTA Test Report Report No: Y2102A0260-T2 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 2 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. TABLE OF CONTENTS 1. Test Laboratory .............................................................................................................................. 3 1.1. Notes of the Test Report ................................................................................................... 3 1.2. Test facility ........................................................................................................................ 3 1.3. Testing Location ................................................................................................................ 3 1.4. Laboratory Environment .................................................................................................... 4 2. General Description of Equipment under Test ............................................................................... 5 2.1. Applicant and Manufacturer Information ............................................................................ 5 2.2. General information ........................................................................................................... 5 2.3. Test Date ........................................................................................................................... 5 2.4. Receiving Date .................................................................................................................. 5 2.5. Applied Standards ............................................................................................................. 6 3. Test Conditions .............................................................................................................................. 7 3.1. Test Configuration ............................................................................................................. 7 3.2. Test Measurement ............................................................................................................. 7 4. Test Results ................................................................................................................................... 8 4.1. Gain and Efficiency ............................................................................................................ 8 5. Equipment List ............................................................................................................................... 9 ANNEX A 3-D Pattern Plots ................................................................................................................... 10 ANNEX B：The EUT Appearance and Test Configuration ...................................................................... 12 B.1 EUT Appearance ................................................................................................................... 12 B.2 Test Configuration ................................................................................................................. 13 OTA Test Report Report No: Y2102A0260-T2 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 3 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1. Test Laboratory 1.1. Notes of the Test Report This report shall not be reproduced in full or partial, without the written approval of TA technology (shanghai) co., Ltd. The results documented in this report apply only to the tested sample, under the conditions and modes of operation as described herein .Measurement Uncertainties were not taken into account and are published for informational purposes only. This report is written to support regulatory compliance of the applicable standards stated above. 1.2. Test facility A2LA (Certificate Number: 3857.01) TA Technology (Shanghai) Co., Ltd. has been listed by American Association for Laboratory Accreditation to perform measurement. 1.3. Testing Location Company: TA Technology (Shanghai) Co., Ltd. Address: No.145, Jintang Rd, Tangzhen Industry Park, Pudong Shanghai, China City: Shanghai Post code: 201201 Country: P. R. China Contact: Xu Kai Telephone: +86-021-50791141/2/3 Fax: +86-021-50791141/2/3-8000 Website: http://www.ta-shanghai.com E-mail: [email protected] OTA Test Report Report No: Y2102A0260-T2 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 4 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 1.4. Laboratory Environment Temperature Min. =19°C，Max. = 25°C Relative humidity Min. =40%，Max. =72% Shield effect 0.7-6GHz > 100dB Ground resistance <0.5 OTA Test Report Report No: Y2102A0260-T2 TA Technology (Shanghai) Co., Ltd. TA-MB-04-008O P age 5 of 13 This report shall not be reproduced except in full, without the written approval of TA Technology (Shanghai) Co., Ltd. 2. General Description of Equipment under Test 2.1. Applicant and Manufacturer Information Applicant Name Espressif System (Shanghai) Co.,Ltd Applicant address Suite 204 Block 2, 690 Bibo Road, Zhang Jiang Hi-Tech Park, Shanghai, China Manufacturer Name Espressif System (Shanghai) Co.,Ltd Manufacturer address Suite 204 Block 2, 690 Bibo Road, Zhang Jiang Hi-Tech Park, Shanghai, China 2.2. …

Text truncated - open the document above for the full version.

ALPHA's reports is using a digital certificate that is trusted on Adobe's official server. If there is no digital certificate or the digital certificate shows damaged in your report. Please do not accept the report. E-mail: [email protected] Tel: 4008300895 Website: http://www.a-lab.cn FCC TEST REPORT FCC ID: 2BCBU-CL-HD01 On Behalf of Shenzhen YuanRui Information Technology Co., Ltd. Smart Humidifier Model No.: CL-HD01 Prepared for : Shenzhen YuanRui Information Technology Co., Ltd. Address : Room 201, A Bldg, NO. 1 QianWan 1st Road, ShenZhen-Hongkong Cooperation Zone, QianHai, ShenZhen, China (Located to ShenZhen QianHai Commercial Secretary CO., Limited) Prepared By : Shenzhen Alpha Product Testing Co., Ltd. Address : Building i, No.2, Lixin Road, Fuyong Street, Bao’an District, 518103, Shenzhen, Guangdong, China Report Number : A2307122-C01-R09 Date of Receipt : August 7, 2023 Date of Test : August 7, 2023-August 21, 2023 Date of Report : August 21, 2023 Version Number : V0 Page 2 of 94 Report No.: A2307122-C01-R09 TABLE OF CONTENTS Description Page 1. Summary of Standards And Results ----------------------------------------------------------------------------------- 5 1.1. Description of Standards and Results --------------------------------------------------------------------------- 5 2. General Information --------------------------------------------------------------------------------------------------------- 6 2.1. Description of Device (EUT) --------------------------------------------------------------------------------------- 6 2.2. Accessories of Device (EUT) -------------------------------------------------------------------------------------- 7 2.3. Tested Supporting System Details ------------------------------------------------------------------------------- 7 2.4. Block Diagram of connection between EUT and simulators ----------------------------------------------- 7 2.5. Test Mode Description ----------------------------------------------------------------------------------------------- 8 2.6. Test Conditions -------------------------------------------------------------------------------------------------------- 9 2.7. Test Facility ------------------------------------------------------------------------------------------------------------- 9 2.8. Measurement Uncertainty ------------------------------------------------------------------------------------------ 9 2.9. Test Equipment List ------------------------------------------------------------------------------------------------ 10 3. Spurious Emission --------------------------------------------------------------------------------------------------------- 11 3.1. Test Limits ------------------------------------------------------------------------------------------------------------ 11 3.2. Test Procedure ------------------------------------------------------------------------------------------------------ 12 3.3. Test Setup ------------------------------------------------------------------------------------------------------------ 12 3.4. Test Results ---------------------------------------------------------------------------------------------------------- 13 4. Power line Conducted Emission -------------------------------------------------------------------------------------- 32 4.1. Test Limits ------------------------------------------------------------------------------------------------------------ 32 4.2. Test Procedure ------------------------------------------------------------------------------------------------------ 32 4.3. Test Setup ------------------------------------------------------------------------------------------------------------ 32 4.4. Test Results ---------------------------------------------------------------------------------------------------------- 32 5. Conducted Maximum Output Power --------------------------------------------------------------------------------- 35 5.1. Test limits ------------------------------------------------------------------------------------------------------------- 35 5.2. Test Procedure ------------------------------------------------------------------------------------------------------ 35 5.3. Test Setup ------------------------------------------------------------------------------------------------------------ 35 5.4. Test Results ---------------------------------------------------------------------------------------------------------- 35 6. Peak Power Spectral Density ------------------------------------------------------------------------------------------- 43 6.1. Test limits ------------------------------------------------------------------------------------------------------------- 43 6.2. Test Procedure ------------------------------------------------------------------------------------------------------ 43 6.3. Test Setup ------------------------------------------------------------------------------------------------------------ 43 6.4. Test Results ---------------------------------------------------------------------------------------------------------- 44 7. Bandwidth -------------------------------------------------------------------------------------------------------------------- 51 7.1. Test limits ------------------------------------------------------------------------------------------------------------- 51 7.2. Test Procedure ------------------------------------------------------------------------------------------------------ 51 7.3. Test Setup ------------------------------------------------------------------------------------------------------------ 51 7.4. Test Results ---------------------------------------------------------------------------------------------------------- 51 8. Band Edge Check ---------------------------------------------------------------------------------------------------------- 65 8.1. Test limits ------------------------------------------------------------------------------------------------------------- 65 8.2.…

Text truncated - open the document above for the full version.

Page 63 of 94 Report No.: A2307122-C01-R09 OBW NVNT n40 2422MHz Ant1 OBW NVNT n40 2437MHz Ant1 Page 64 of 94 Report No.: A2307122-C01-R09 OBW NVNT n40 2452MHz Ant1 Page 65 of 94 Report No.: A2307122-C01-R09 8. BAND EDGE CHECK 8.1. Test limits Please refer RSS-GEN & FCC PART 15: 15.247 All the lower and upper band -edges emissions appearing within 2310MHz to 2390MHz and 2483.5MHz to 2500MHz restricted frequency bands shall not exceed the limits shown in 15.209, all the other emissions outside operation frequency band 2400MHz to 2483.5MHz shall be at least 20dB below the fundamental emissions, or comply with 15.209 limits and RSS -GEN limits . 8.2. Test Procedure Details see the KDB558074 D01 Meas Guidance v05r02 8.2.1 Put the EUT on a 1.5m high table, power on the EUT. Emissions were scanned and measured rotating the EUT to 360 degrees, Find the maximum Emission 8.2.2 Check the spurious emissions out of band. 8.2.3 RBW 1MHz, VBW 3MHz, peak detector for peak value, RBW 1MHz, VBW 10Hz, RMS detector for AV value. 8.3. Test Setup Same as 5.2.2. 8.4. Test Results PASS. Detailed information please see the following page. Page 66 of 94 Report No.: A2307122-C01-R09 Test Mode: IEEE 802.11b-Low Test Mode: IEEE 802.11b-High Test Mode: IEEE 802.11g-Low Test Mode: IEEE 802.11g-High Page 67 of 94 Report No.: A2307122-C01-R09 Test Mode: IEEE 802.11n20-Low Test Mode: IEEE 802.11n20-High Test Mode: IEEE 802.11n40-Low Test Mode: IEEE 802.11n40-High Page 68 of 94 Report No.: A2307122-C01-R09 Band Edge Band Edge NVNT b 2412MHz Ant1 Ref Band Edge NVNT b 2412MHz Ant1 Emission Page 69 of 94 Report No.: A2307122-C01-R09 Band Edge NVNT b 2462MHz Ant1 Ref Band Edge NVNT b 2462MHz Ant1 Emission Page 70 of 94 Report No.: A2307122-C01-R09 Band Edge NVNT g 2412MHz Ant1 Ref Band Edge NVNT g 2412MHz Ant1 Emission Page 71 of 94 Report No.: A2307122-C01-R09 Band Edge NVNT g 2462MHz Ant1 Ref Band Edge NVNT g 2462MHz Ant1 Emission Page 72 of 94 Report No.: A2307122-C01-R09 Band Edge NVNT n20 2412MHz Ant1 Ref Band Edge NVNT n20 2412MHz Ant1 Emission Page 73 of 94 Report No.: A2307122-C01-R09 Band Edge NVNT n20 2462MHz Ant1 Ref Band Edge NVNT n20 2462MHz Ant1 Emission Page 74 of 94 Report No.: A2307122-C01-R09 Band Edge NVNT n40 2422MHz Ant1 Ref Band Edge NVNT n40 2422MHz Ant1 Emission Page 75 of 94 Report No.: A2307122-C01-R09 Band Edge NVNT n40 2452MHz Ant1 Ref Band Edge NVNT n40 2452MHz Ant1 Emission Page 76 of 94 Report No.: A2307122-C01-R09 9. ANTENNA REQUIREMENT 9.1. Standard Requirement An intentional radiator shall be designed to ensure that no antenna other than that furnished by the responsible party shall be used with the device. The use of a permanently attached antenna or of an antenna that uses a unique coupling to the intentional radiator shall be considered sufficient to comply with the provisions of this Section. The manufacturer may design the unit so that a broken antenna can be replaced by the user, but the use of a standard antenna jack or electrical connector is prohibited. 9.2. Antenna Connected Construction The antenna connector is unique antenna and no consideration of replacement. Please see EUT photo for details. 9.3. Results The use of an antenna that is uniquely coupled to the intended radiator shall be considered sufficient to comply with the provisions of this section. Page 77 of 94 Report No.: A2307122-C01-R09 10. TEST SETUP PHOTO 10.1.Photos of Radiated emission Page 78 of 94 Report No.: A2307122-C01-R09 10.2.Photos of Conducted Emission test Page 79 of 94 Report No.: A2307122-C01-R09 11. PHOTOS OF EUT Page 80 of 94 Report No.: A…
