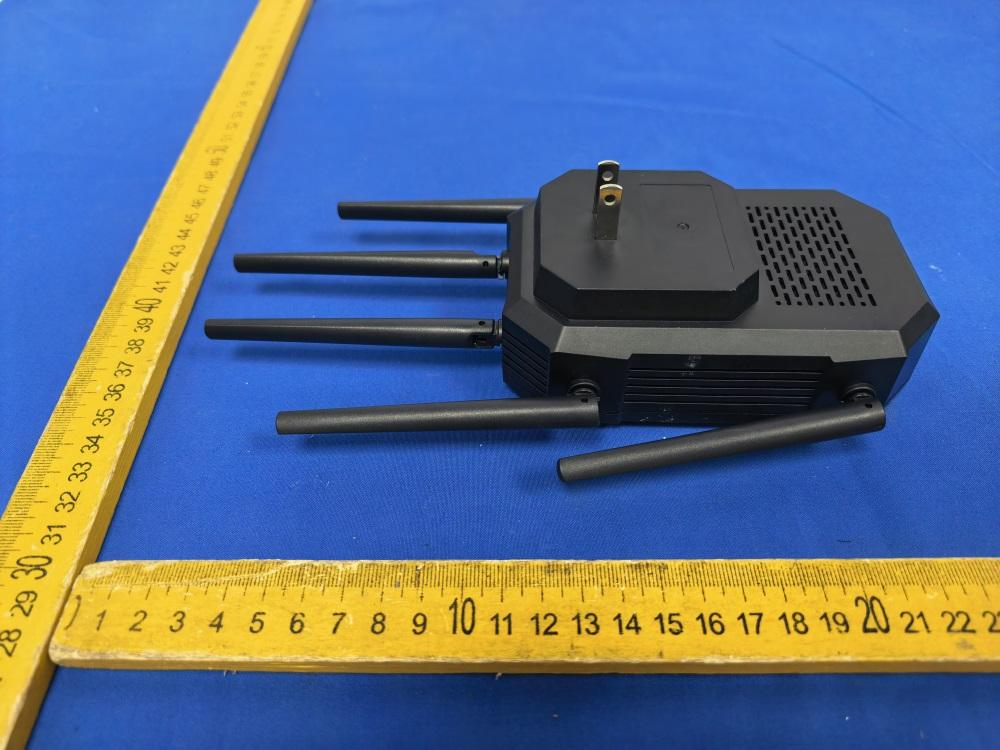

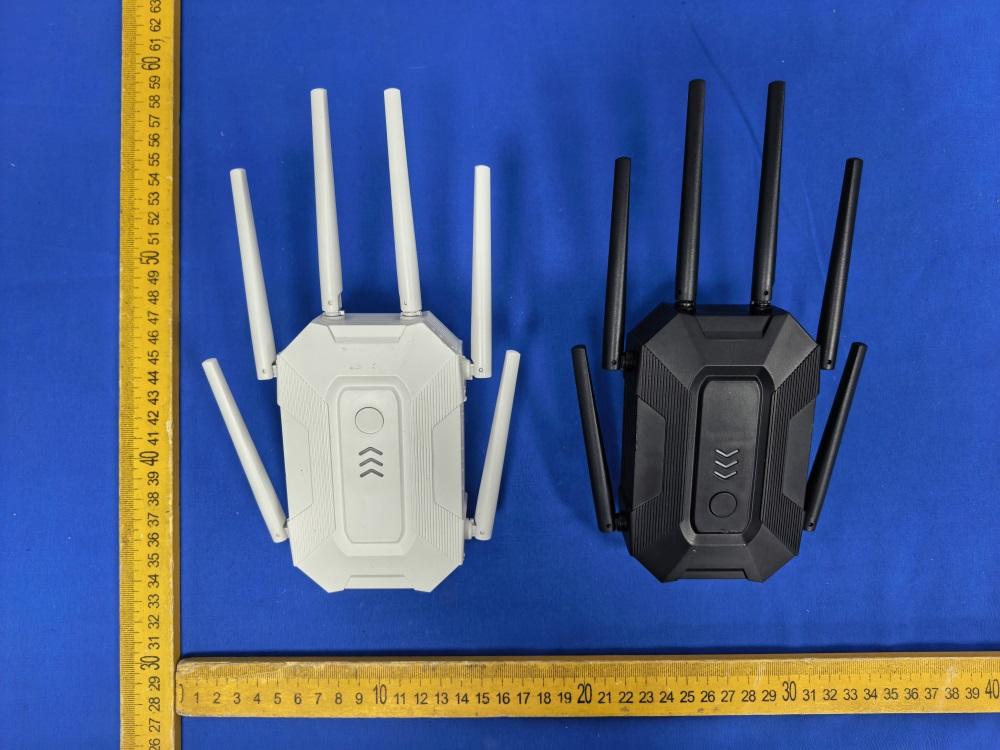

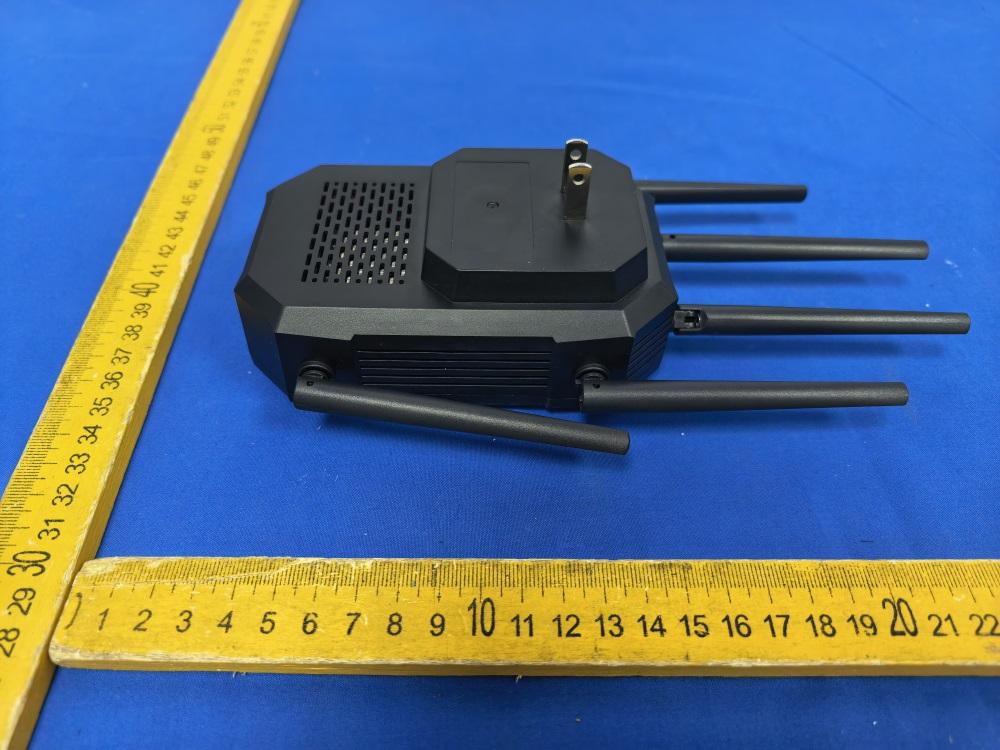

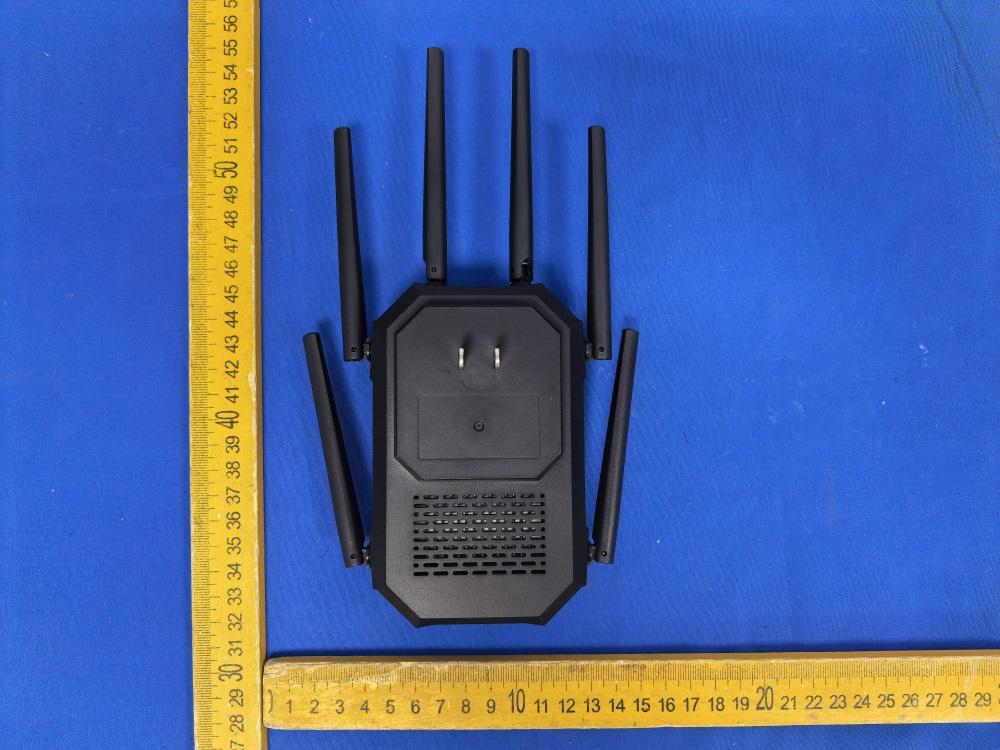

2BCMP-AX10WIFI REPEATER

The product only supports extender and AP modes, and does not support routing mode.

FCCID:2BCMP-AX10 38 Appendix B.6:Band edge measurements Test Result B1 TestMode Antenna ChName Freq(MHz) Result[dBm] Limit[dBm] Verdict 11A Ant4 Low 5180 -36.78 ≤-27 PASS High 5240 -36.71 ≤-27 PASS 11N20SISO Ant4 Low 5180 -37 ≤-27 PASS High 5240 -37.32 ≤-27 PASS 11N40SISO Ant4 Low 5190 -36.42 ≤-27 PASS High 5230 -37.26 ≤-27 PASS 11AC20SISO Ant4 Low 5180 -36.85 ≤-27 PASS High 5240 -37.13 ≤-27 PASS 11AC40SISO Ant4 Low 5190 -35.63 ≤-27 PASS High 5230 -36.08 ≤-27 PASS 11AC80SISO Ant4 Low 5210 -32.53 ≤-27 PASS High 5210 -37.03 ≤-27 PASS 11AX20SISO Ant4 Low 5180 -37.04 ≤-27 PASS High 5240 -36.91 ≤-27 PASS 11AX40SISO Ant4 Low 5190 -34.19 ≤-27 PASS High 5230 -37.24 ≤-27 PASS 11AX80SISO Ant4 Low 5210 -31.39 ≤-27 PASS High 5210 -36.01 ≤-27 PASS FCCID:2BCMP-AX10 39 Test GraphsB1 11A_Ant4_Low_5180 11A_Ant4_High_5240 11N20SISO_Ant4_Low_5180 FCCID:2BCMP-AX10 40 11N20SISO_Ant4_High_5240 11N40SISO_Ant4_Low_5190 FCCID:2BCMP-AX10 41 11N40SISO_Ant4_High_5230 11AC20SISO_Ant4_Low_5180 11AC20SISO_Ant4_High_5240 FCCID:2BCMP-AX10 42 11AC40SISO_Ant4_Low_5190 11AC40SISO_Ant4_High_5230 FCCID:2BCMP-AX10 43 11AC80SISO_Ant4_Low_5210 11AC80SISO_Ant4_High_5210 11AX20SISO_Ant4_Low_5180 FCCID:2BCMP-AX10 44 11AX20SISO_Ant4_High_5240 11AX40SISO_Ant4_Low_5190 FCCID:2BCMP-AX10 45 11AX40SISO_Ant4_High_5230 11AX80SISO_Ant4_Low_5210 11AX80SISO_Ant4_High_5210 FCCID:2BCMP-AX10 46 FCCID:2BCMP-AX10 47 Appendix B.7:Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant4 5180 30~5140 2418.41 -43.35 ≤-27 PASS 5360~27000 26497.95 -37.42 ≤-27 PASS 5200 30~5140 81.78 -44.24 ≤-27 PASS 5360~27000 24754.49 -36.07 ≤-27 PASS 5240 30~5140 2415.52 -42.33 ≤-27 PASS 5360~27000 24846.82 -36.82 ≤-27 PASS 11N20SISO Ant4 5180 30~5140 79.57 -43.01 ≤-27 PASS 5360~27000 25172.86 -37.04 ≤-27 PASS 5200 30~5140 81.44 -42.03 ≤-27 PASS 5360~27000 24295 -36.88 ≤-27 PASS 5240 30~5140 2533.05 -40.82 ≤-27 PASS 5360~27000 25030.04 -36.74 ≤-27 PASS 11N40SISO Ant4 5190 30~5140 2448.73 -42 ≤-27 PASS 5360~27000 24364.25 -37.15 ≤-27 PASS 5230 30~5140 2448.73 -41.9 ≤-27 PASS 5360~27000 24297.16 -36.95 ≤-27 PASS 11AC20SISO Ant4 5180 30~5140 2449.24 -41.47 ≤-27 PASS 5360~27000 24179.59 -36.87 ≤-27 PASS 5200 30~5140 2448.73 -42.06 ≤-27 PASS 5360~27000 26918.49 -37.46 ≤-27 PASS 5240 30~5140 2444.48 -44.44 ≤-27 PASS 5360~27000 25227.68 -36.84 ≤-27 PASS 11AC40SISO Ant4 5190 30~5140 5135.57 -41.8 ≤-27 PASS 5360~27000 24191.85 -37.06 ≤-27 PASS 5230 30~5140 5131.14 -44 ≤-27 PASS 5360~27000 25634.52 -37.01 ≤-27 PASS 11AC80SISO Ant4 5210 30~5140 5118.37 -35.73 ≤-27 PASS 5360~27000 26817.5 -37.2 ≤-27 PASS 11AX20SISO Ant4 5180 30~5140 2532.88 -36.7 ≤-27 PASS 5360~27000 26056.5 -36.67 ≤-27 PASS 5200 30~5140 2613.79 -43.09 ≤-27 PASS 5360~27000 24222.15 -36.69 ≤-27 PASS 5240 30~5140 2439.71 -44.64 ≤-27 PASS 5360~27000 24256.77 -37.24 ≤-27 PASS 11AX40SISO Ant4 5190 30~5140 5133.36 -40.71 ≤-27 PASS 5360~27000 26860.78 -37.34 ≤-27 PASS FCCID:2BCMP-AX10 48 5230 30~5140 2456.4 -42.72 ≤-27 PASS 5360~27000 26014.66 -36.7 ≤-27 PASS 11AX80SISO Ant4 5210 30~5140 5136.93 -34.81 ≤-27 PASS 5360~27000 24262.54 -37.05 ≤-27 PASS FCCID:2BCMP-AX10 49 Test Graphs 11A_Ant4_5180_30~5140 11A_Ant4_5180_5360~27000 11A_Ant4_5200_30~5140 FCCID:2BCMP-AX10 50 11A_Ant4_5200_5360~27000 11A_Ant4_5240_30~5140 FCCID:2BCMP-AX10 51 11A_Ant4_5240_5360~27000 11N20SISO_Ant4_5180_30~5140 11N20SISO_Ant4_5180_5360~27000 FCCID:2BCMP-AX10 52 11N20SISO_Ant4_5200_30~5140 11N20SISO_Ant4_5200_5360~27000 FCCID:2BCMP-AX10 53 11N20SISO_Ant4_5240_30~5140 11N20SISO_Ant4_5240_5360~27000 11N40SISO_Ant4_5190_30~5140 FCCID:2BCMP-AX10 54 11N40SISO_Ant4_5190_5360~27000 11N40SISO_Ant4_5230_30~5140 FCCID:2BCMP-AX10 55 11N40SISO_Ant4_5230_5360~27000 11AC20SISO_Ant4_5180_30~5140 11AC20SISO_Ant4_5180_5360~27000 FCCID:2BCMP-AX10 56 11AC20SISO_Ant4_5200_30~5140 11AC20SISO_Ant4_5200_5360~27000 FCCID:2BCMP-AX10 57 11AC20SISO_Ant4_5240_30~5140 11AC20SISO_Ant4_5240_5360~27000 11AC40SISO_Ant4_5190_30~5140 FCCID:2BCMP-AX10 58 11AC40SISO_Ant4_5190_5360~27000 11AC40SISO_Ant4_5230_30~5140 FCCID:2BCMP-AX10 59 11AC40SISO_Ant4_5230_5360~27000 11AC80SISO_Ant4_5210_30~5140 11AC80SISO_Ant4_5210_5360~27000 FCCID:2BCMP-AX10 60 11AX20SISO_Ant4_5180_30~5140 11AX20SISO_Ant4_5180_5360~27000 FCCID:2BCMP-AX10 61 11AX20SISO_Ant4_5200_30~5140 11AX20SISO_Ant4_5200_5360~27000 11AX20SISO_Ant4_5240_30~5140 FCCID:2BCMP-AX10 62 11AX20SISO_Ant4_5240_5360~27000 11AX40SISO_Ant4_5190_30~5140 FCCID:2BCMP-AX10 63 11AX40SISO_Ant4_5190_5360~27000 11AX40SISO_Ant4_5230_30~5140 11AX40SISO_Ant4_5230_5360~27000 FCCID:2BCMP-AX10 64 11AX80SISO_Ant4_5210_30~5140 11AX80SISO_Ant4_5210_5360~27000

FCC ID: 2BCMP-AX10 _______________________________________________________________________________________________ Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID: 2BCMP-AX10 _______________________________________________________________________________________________ Page 2 of 2 Photo of Conducted Emission Measurement Fig. 3 Fig. 4

FCCID:2BCMP-AX10 38 Appendix C.6:Band edge measurements Test Result B4 TestMode Antenna ChName Freq(MHz) FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant5 Low 5745 5650~5700 -39.58 ≤-26.87 PASS 5700~5720 -39.5 ≤10.18 PASS 5720~5725 -38.62 ≤16.08 PASS 5760~5650 -39.26 ≤-27 PASS High 5825 5850~5855 -38.07 ≤16.65 PASS 5855~5875 -38.93 ≤10.02 PASS 5875~5925 -39.12 ≤-26.71 PASS 5925~5935 -37.8 ≤-27 PASS 11N20SI SO Ant5 Low 5745 5650~5700 -40.01 ≤-26.79 PASS 5700~5720 -39.76 ≤10.15 PASS 5720~5725 -37.44 ≤17.39 PASS 5760~5650 -39.5 ≤-27 PASS High 5825 5850~5855 -38.71 ≤15.73 PASS 5855~5875 -38.51 ≤10.55 PASS 5875~5925 -39.47 ≤-26.91 PASS 5925~5935 -37.52 ≤-27 PASS 11N40SI SO Ant5 Low 5755 5650~5700 -40.19 ≤-26.80 PASS 5700~5720 -38.3 ≤10.67 PASS 5720~5725 -38.24 ≤15.74 PASS 5780~5650 -39.51 ≤-27 PASS High 5795 5850~5855 -38.66 ≤16.41 PASS 5855~5875 -38.1 ≤10.57 PASS 5875~5925 -39.3 ≤-26.95 PASS 5925~5935 -37.54 ≤-27 PASS 11AC20S ISO Ant5 Low 5745 5650~5700 -39.64 ≤-26.70 PASS 5700~5720 -39.44 ≤10.47 PASS 5720~5725 -36.88 ≤16.60 PASS 5760~5650 -39.04 ≤-27 PASS High 5825 5850~5855 -38.2 ≤16.03 PASS 5855~5875 -38.43 ≤10.32 PASS 5875~5925 -37.61 ≤-26.21 PASS 5925~5935 -38.22 ≤-27 PASS 11AC40S ISO Ant5 Low 5755 5650~5700 -40.43 ≤-26.80 PASS 5700~5720 -38.12 ≤10.29 PASS 5720~5725 -36.92 ≤15.74 PASS 5780~5650 -39.51 ≤-27 PASS FCCID:2BCMP-AX10 39 High 5795 5850~5855 -38.65 ≤16.03 PASS 5855~5875 -36.71 ≤11.50 PASS 5875~5925 -39.75 ≤-26.95 PASS 5925~5935 -38.67 ≤-27 PASS 11AC80S ISO Ant5 Low 5775 5650~5700 -37.85 ≤-26.91 PASS 5700~5720 -32.6 ≤11.35 PASS 5720~5725 -31.5 ≤16.35 PASS 5800~5650 -39.55 ≤-27 PASS High 5775 5850~5855 -33.28 ≤15.84 PASS 5855~5875 -32.04 ≤12.88 PASS 5875~5925 -38.28 ≤-25.23 PASS 5925~5935 -38.69 ≤-27 PASS 11AX20SI SO Ant5 Low 5745 5650~5700 -40.51 ≤-26.96 PASS 5700~5720 -39.17 ≤10.12 PASS 5720~5725 -36.38 ≤16.08 PASS 5760~5650 -38.53 ≤-27 PASS High 5825 5850~5855 -38.22 ≤16.03 PASS 5855~5875 -38.98 ≤10.32 PASS 5875~5925 -38.28 ≤-26.11 PASS 5925~5935 -38.92 ≤-27 PASS 11AX40SI SO Ant5 Low 5755 5650~5700 -39.11 ≤-26.10 PASS 5700~5720 -33.69 ≤15.13 PASS 5720~5725 -33.87 ≤16.35 PASS 5780~5650 -39.25 ≤-27 PASS High 5795 5850~5855 -36.04 ≤15.66 PASS 5855~5875 -36.93 ≤10.34 PASS 5875~5925 -38.96 ≤-26.95 PASS 5925~5935 -38.97 ≤-27 PASS 11AX80SI SO Ant5 Low 5775 5650~5700 -39.94 ≤-26.80 PASS 5700~5720 -27.29 ≤14.09 PASS 5720~5725 -30.56 ≤17.77 PASS 5800~5650 -38.58 ≤-27 PASS High 5775 5850~5855 -32.21 ≤16.68 PASS 5855~5875 -30.16 ≤13.35 PASS 5875~5925 -39.15 ≤-26.60 PASS 5925~5935 -38.57 ≤-27 PASS FCCID:2BCMP-AX10 40 Test GraphsB4 11A_Ant5_Low_5745 11A_Ant5_High_5825 11N20SISO_Ant5_Low_5745 FCCID:2BCMP-AX10 41 11N20SISO_Ant5_High_5825 11N40SISO_Ant5_Low_5755 FCCID:2BCMP-AX10 42 11N40SISO_Ant5_High_5795 11AC20SISO_Ant5_Low_5745 11AC20SISO_Ant5_High_5825 FCCID:2BCMP-AX10 43 11AC40SISO_Ant5_Low_5755 11AC40SISO_Ant5_High_5795 FCCID:2BCMP-AX10 44 11AC80SISO_Ant5_Low_5775 11AC80SISO_Ant5_High_5775 11AX20SISO_Ant5_Low_5745 FCCID:2BCMP-AX10 45 11AX20SISO_Ant5_High_5825 11AX40SISO_Ant5_Low_5755 FCCID:2BCMP-AX10 46 11AX40SISO_Ant5_High_5795 11AX80SISO_Ant5_Low_5775 11AX80SISO_Ant5_High_5775 FCCID:2BCMP-AX10 47 FCCID:2BCMP-AX10 48 Appendix C.7:Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant5 5745 30~5650 3056.18 -40.27 ≤-27 PASS 5925~27000 25594.3 -31.65 ≤-27 PASS 5785 30~5650 5427.82 -39.72 ≤-27 PASS 5925~27000 26665.61 -31.22 ≤-27 PASS 5825 30~5650 5509.5 -39.57 ≤-27 PASS 5925~27000 26745.7 -31.08 ≤-27 PASS 11N20SISO Ant5 5745 30~5650 2652.67 -40.3 ≤-27 PASS 5925~27000 26478.04 -31.61 ≤-27 PASS 5785 30~5650 5404.78 -40.15 ≤-27 PASS 5925~27000 24975.4 -31.52 ≤-27 PASS 5825 30~5650 5604.29 -40.6 ≤-27 PASS 5925~27000 25665.25 -31.47 ≤-27 PASS 11N40SISO Ant5 5755 30~5650 3017.4 -40.08 ≤-27 PASS 5925~27000 24251.82 -31.75 ≤-27 PASS 5795 30~5650 5472.78 -39.71 ≤-27 PASS 5925~27000 26762.56 -31.6 ≤-27 PASS 11AC20SISO Ant5 5745 30~5650 5461.92 -41.05 ≤-27 PASS 5925~27000 24772.37 -30.8 ≤-27 PASS 5785 30~5650 5384.17 -40.03 ≤-27 PASS 5925~27000 26835.62 -31.49 ≤-27 PASS 5825 30~5650 5429.51 -40.31 ≤-27 PASS 5925~27000 24258.85 -31.26 ≤-27 PASS 11AC40SISO Ant5 5755 30~5650 2668.96 -40.78 ≤-27 PASS 5925~27000 24830.68 -30.68 ≤-27 PASS 5795 30~5650 5528.8 -40.34 ≤-27 PASS 5925~27000 26735.86 -29.95 ≤-27 PASS 11AC80SISO Ant5 5775 30~5650 5635.95 -40.38 ≤-27 PASS 5925~27000 26835.62 -31.91 ≤-27 PASS 11AX20SISO Ant5 5745 30~5650 5449.37 -39.26 ≤-27 PASS 5925~27000 24245.5 -32.25 ≤-27 PASS 5785 30~5650 5416.77 -40.3 ≤-27 PASS 5925~27000 26796.28 -32.03 ≤-27 PASS 5825 30~5650 2639.93 -40.32 ≤-27 PASS 5925~27000 26530.03 -32.06 ≤-27 PASS 11AX40SISO Ant5 5755 30~5650 5387.36 -40.82 ≤-27 PASS 5925~27000 25575.33 -31.76 ≤-27 PASS FCCID:2BCMP-AX10 49 5795 30~5650 5498.07 -40.08 ≤-27 PASS 5925~27000 23479.77 -31.09 ≤-27 PASS 11AX80SISO Ant5 5775 30~5650 2646.11 -40.2 ≤-27 PASS 5925~27000 25116.6 -31.83 ≤-27 PASS FCCID:2BCMP-AX10 50 Test Graphs 11A_Ant5_5745_30~5650 11A_Ant5_5745_5925~27000 11A_Ant5_5785_30~5650 FCCID:2BCMP-AX10 51 11A_Ant5_5785_5925~27000 11A_Ant5_5825_30~5650 FCCID:2BCMP-AX10 52 11A_Ant5_5825_5925~27000 11N20SISO_Ant5_5745_30~5650 11N20SISO_Ant5_5745_5925~27000 FCCID:2BCMP-AX10 53 11N20SISO_Ant5_5785_30~5650 11N20SISO_Ant5_5785_5925~27000 FCCID:2BCMP-AX10 54 11N20SISO_Ant5_5825_30~5650 11N20SISO_Ant5_5825_5925~27000 11N40SISO_Ant5_5755_30~5650 FCCID:2BCMP-AX10 55 11N40SISO_Ant5_5755_5925~27000 11N40SISO_Ant5_5795_30~5650 FCCID:2BCMP-AX10 56 11N40SISO_Ant5_5795_5925~27000 11AC20SISO_Ant5_5745_30~5650 11AC20SISO_Ant5_5745_5925~27000 FCCID:2BCMP-AX10 57 11AC20SISO_Ant5_5785_30~5650 11AC20SISO_Ant5_5785_5925~27000 FCCID:2BCMP-AX10 58 11AC20SISO_Ant5_5825_30~5650 11AC20SISO_Ant5_5825_5925~27000 11AC40SISO_Ant5_5755_30~5650 FCCID:2BCMP-AX10 59 11AC40SISO_Ant5_5755_5925~27000 11AC40SISO_Ant5_5795_30~5650 FCCID:2BCMP-AX10 60 11AC40SISO_Ant5_5795_5925~27000 11AC80SISO_Ant5_5775_30~5650 11AC80SISO_Ant5_5775_5925…

Text truncated - open the document above for the full version.

Shenzhen Global Test Service Co.,Ltd. Room No. 101, Building 1, and Room No. 101, Building 3, No. 88 Jinkang Road, Jinsha Community, Kengzi Sub-district, Pingshan District, Shenzhen City, Guangdong, China FCC PART 15 SUBPART C TEST REPORT FCC PART 15.407 Report Reference No. ..................... : FCC ID............................................. : GTS20260616001-4-02 2BCMP-AX10 Compiled by ( position+printed name+signature) . : File administrators Peter Xiao Supervised by ( position+printed name+signature) . : Test Engineer Evan Ouyang Approved by ( position+printed name+signature) . : Manager Jason Hu Date of issue .................................... : Jul.02, 2026 Representative Laboratory Name . : Shenzhen Global Test Service Co.,Ltd. Address ............................................ : Room No. 101, Building 1, and Room No. 101, Building 3, No. 88 Jinkang Road, Jinsha Community,Kengzi Sub-district, Pingshan District, Shenzhen City, Guangdong, China Applicant’s name ............................ : Ausek Limited Address ............................................ : No.4 Building, Jianjin Business Park, Donghuan second Road, Longhua District, Shenzhen, China Test specification ........................... : Standard ........................................... : FCC Part 15.407: General technical requirements TRF Originator .................................. : Shenzhen Global Test Service Co.,Ltd. Master TRF ...................................... : Dated 2014-12 Shenzhen Global Test Service Co.,Ltd. All rights reserved. This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Global Test Service Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Global Test Service Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. Test item description ..................... : WIFI REPEATER Trade Mark ....................................... : N/A Manufacturer .................................... : Ausek Limited Model/Type reference ...................... : AX10 Listed Models .................................. : N/A Operation Frequency ........................ : From 5180MHz to 5240MHz/ 5745MHz to 5825MHz Hardware Version ............................ : N/A Software Version .............................. : N/A Rating ............................................... : AC 100-240V, 50/60Hz, 1A Result ............................................... : PASS Report No.: GTS20260616001-4-02 Page 2 of 34 T E S T R E P O R T Test Report No. : GTS20260616001-4-02 Jul.02, 2026 ____________________________________________________________________________________ Date of issue Equipment under Test : WIFI REPEATER Model /Type : AX10 Listed model : N/A Applicant : Ausek Limited Address : No.4 Building, Jianjin Business Park, Donghuan second Road, Longhua District, Shenzhen, China Manufacturer : Ausek Limited Address : No.4 Building, Jianjin Business Park, Donghuan second Road, Longhua District, Shenzhen, China Test Result: PASS The test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. Report No.: GTS20260616001-4-02 Page 3 of 34 Contents 1. TEST STANDARDS ......................................................................................................................................... 4 2. SUMMARY ....................................................................................................................................................... 5 2.1. General Remarks ................................................................................................................................... 5 2.2. Product Description ................................................................................................................................ 5 2.3. Equipment Under Test ........................................................................................................................... 7 2.4. Short description of the Equipment under Test (EUT) ........................................................................... 7 2.5. EUT operation mode .............................................................................................................................. 7 2.6. Block Diagram of Test Setup ................................................................................................................. 8 2.7. Related Submittal(s) / Grant (s) ............................................................................................................. 8 2.8. EUT Exercise Software .......................................................................................................................... 8 2.9. Special Accessories ............................................................................................................................... 8 2.10. External I/O Cable ................................................................................................................................ 8 2.11. Modifications ........................................................................................................................................ 8 3. TEST ENVIRONMENT ..................................................................................................................................... 9 3.1. Address of the test laboratory ................................................................................................................ 9 3.2. Test Facility ............................................................................................................................................ 9 3.3. Environmental conditions ....................................................................................................................... …

Text truncated - open the document above for the full version.

FCCID:2BCMP-AX10 1 Case No. : GTS20260616001-4-02 Ambient Condition: 23 °C, 59 %RH According Standard: ■Part15E Test Date:2026.6.17-2026.7.1Test Engineer: Evan ouyang Appendix C.1: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant5 5745 17.165 5736.5019 5753.6669 --- --- 5785 16.973 5776.5664 5793.5394 --- --- 5825 17.177 5816.3996 5833.5766 --- --- 11N20SISO Ant5 5745 18.310 5735.9269 5754.2369 --- --- 5785 18.081 5775.9745 5794.0555 --- --- 5825 18.276 5815.8595 5834.1355 --- --- 11N40SISO Ant5 5755 36.609 5736.8320 5773.4410 --- --- 5795 36.445 5776.8330 5813.2780 --- --- 11AC20SISO Ant5 5745 18.067 5736.0356 5754.1026 --- --- 5785 17.920 5776.0467 5793.9667 --- --- 5825 18.117 5815.9173 5834.0343 --- --- 11AC40SISO Ant5 5755 36.731 5736.8424 5773.5734 --- --- 5795 36.440 5776.8735 5813.3135 --- --- 11AC80SISO Ant5 5775 75.276 5737.4095 5812.6855 --- --- 11AX20SISO Ant5 5745 19.263 5735.3984 5754.6614 --- --- 5785 19.108 5775.4730 5794.5810 --- --- 5825 19.211 5815.3991 5834.6101 --- --- 11AX40SISO Ant5 5755 37.838 5736.1865 5774.0245 --- --- 5795 37.679 5776.2461 5813.9251 --- --- 11AX80SISO Ant5 5775 77.097 5736.6176 5813.7146 --- --- FCCID:2BCMP-AX10 2 Test Graphs 11A_Ant5_5745 11A_Ant5_5785 11A_Ant5_5825 FCCID:2BCMP-AX10 3 11N20SISO_Ant5_5745 11N20SISO_Ant5_5785 FCCID:2BCMP-AX10 4 11N20SISO_Ant5_5825 11N40SISO_Ant5_5755 11N40SISO_Ant5_5795 FCCID:2BCMP-AX10 5 11AC20SISO_Ant5_5745 11AC20SISO_Ant5_5785 FCCID:2BCMP-AX10 6 11AC20SISO_Ant5_5825 11AC40SISO_Ant5_5755 11AC40SISO_Ant5_5795 FCCID:2BCMP-AX10 7 11AC80SISO_Ant5_5775 11AX20SISO_Ant5_5745 FCCID:2BCMP-AX10 8 11AX20SISO_Ant5_5785 11AX20SISO_Ant5_5825 11AX40SISO_Ant5_5755 FCCID:2BCMP-AX10 9 11AX40SISO_Ant5_5795 11AX80SISO_Ant5_5775 FCCID:2BCMP-AX10 10 Appendix C.2: Min emission bandwidth Test Result B4 TestMode Antenna Freq(MHz) 6db EBW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant5 5745 16.280 5736.880 5753.160 0.5 PASS 5785 16.040 5776.880 5792.920 0.5 PASS 5825 15.880 5817.280 5833.160 0.5 PASS 11N20SISO Ant5 5745 17.080 5736.480 5753.560 0.5 PASS 5785 16.920 5776.480 5793.400 0.5 PASS 5825 16.880 5816.520 5833.400 0.5 PASS 11N40SISO Ant5 5755 35.120 5737.480 5772.600 0.5 PASS 5795 35.120 5777.480 5812.600 0.5 PASS 11AC20SISO Ant5 5745 17.520 5736.240 5753.760 0.5 PASS 5785 17.560 5776.240 5793.800 0.5 PASS 5825 17.520 5816.240 5833.760 0.5 PASS 11AC40SISO Ant5 5755 35.040 5737.480 5772.520 0.5 PASS 5795 35.040 5777.480 5812.520 0.5 PASS 11AC80SISO Ant5 5775 75.200 5737.400 5812.600 0.5 PASS 11AX20SISO Ant5 5745 18.760 5735.720 5754.480 0.5 PASS 5785 18.760 5775.720 5794.480 0.5 PASS 5825 18.640 5815.760 5834.400 0.5 PASS 11AX40SISO Ant5 5755 36.480 5736.760 5773.240 0.5 PASS 5795 35.760 5776.840 5812.600 0.5 PASS 11AX80SISO Ant5 5775 75.200 5737.400 5812.600 0.5 PASS FCCID:2BCMP-AX10 11 Test Graphs B4 11A_Ant5_5745 11A_Ant5_5785 11A_Ant5_5825 FCCID:2BCMP-AX10 12 11N20SISO_Ant5_5745 11N20SISO_Ant5_5785 FCCID:2BCMP-AX10 13 11N20SISO_Ant5_5825 11N40SISO_Ant5_5755 11N40SISO_Ant5_5795 FCCID:2BCMP-AX10 14 11AC20SISO_Ant5_5745 11AC20SISO_Ant5_5785 FCCID:2BCMP-AX10 15 11AC20SISO_Ant5_5825 11AC40SISO_Ant5_5755 11AC40SISO_Ant5_5795 FCCID:2BCMP-AX10 16 11AC80SISO_Ant5_5775 11AX20SISO_Ant5_5745 FCCID:2BCMP-AX10 17 11AX20SISO_Ant5_5785 11AX20SISO_Ant5_5825 11AX40SISO_Ant5_5755 FCCID:2BCMP-AX10 18 11AX40SISO_Ant5_5795 11AX80SISO_Ant5_5775 FCCID:2BCMP-AX10 19 AppendixC.3: Duty Cycle Test Result TestMode Antenna Freq(MHz) Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] Duty Cycle Factor[dB] 1/T Factor[KHz] 11A Ant5 5745 1.39 1.45 95.86 0.18 0.72 5785 1.39 1.45 95.86 0.18 0.72 5825 1.40 1.45 96.55 0.15 0.71 11N20SISO Ant5 5745 1.31 1.36 96.32 0.16 0.76 5785 1.30 1.36 95.59 0.20 0.77 5825 1.30 1.36 95.59 0.20 0.77 11N40SISO Ant5 5755 0.64 0.70 91.43 0.39 1.56 5795 0.65 0.71 91.55 0.38 1.54 11AC20SISO Ant5 5745 0.48 0.53 90.57 0.43 2.08 5785 0.48 0.53 90.57 0.43 2.08 5825 0.48 0.54 88.89 0.51 2.08 11AC40SISO Ant5 5755 0.26 0.31 83.87 0.76 3.85 5795 0.26 0.32 81.25 0.90 3.85 11AC80SISO Ant5 5775 0.14 0.20 70.00 1.55 7.14 11AX20SISO Ant5 5745 0.43 0.48 89.58 0.48 2.33 5785 0.43 0.49 87.76 0.57 2.33 5825 0.43 0.49 87.76 0.57 2.33 11AX40SISO Ant5 5755 0.27 0.33 81.82 0.87 3.70 5795 0.26 0.32 81.25 0.90 3.85 11AX80SISO Ant5 5775 0.41 0.47 87.23 0.59 2.44 FCCID:2BCMP-AX10 20 Test Graphs 11A_Ant5_5745 11A_Ant5_5785 11A_Ant5_5825 FCCID:2BCMP-AX10 21 11N20SISO_Ant5_5745 11N20SISO_Ant5_5785 FCCID:2BCMP-AX10 22 11N20SISO_Ant5_5825 11N40SISO_Ant5_5755 11N40SISO_Ant5_5795 FCCID:2BCMP-AX10 23 11AC20SISO_Ant5_5745 11AC20SISO_Ant5_5785 FCCID:2BCMP-AX10 24 11AC20SISO_Ant5_5825 11AC40SISO_Ant5_5755 11AC40SISO_Ant5_5795 FCCID:2BCMP-AX10 25 11AC80SISO_Ant5_5775 11AX20SISO_Ant5_5745 FCCID:2BCMP-AX10 26 11AX20SISO_Ant5_5785 11AX20SISO_Ant5_5825 11AX40SISO_Ant5_5755 FCCID:2BCMP-AX10 27 11AX40SISO_Ant5_5795 11AX80SISO_Ant5_5775 FCCID:2BCMP-AX10 28 Appendix C.4: Maximum conducted output power Test Result Test Mode Antenna Freq (MHz) Channel Powert [dBm] Duty Cycle [%] DC Factor [dBm] Result [dBm] Limit [dBm] Verdict 11A Ant5 5745 12.94 95.86 0.18 13.12 ≤30.00 PASS 5785 13.55 95.86 0.18 13.73 ≤30.00 PASS 5825 13.83 96.55 0.15 13.98 ≤30.00 PASS 11N20SISO Ant5 5745 11.24 96.32 0.16 11.40 ≤30.00 PASS 5785 11.89 95.59 0.20 12.09 ≤30.00 PASS 5825 12.31 95.59 0.20 12.51 ≤30.00 PASS 11N40SISO Ant5 5755 11.20 91.43 0.39 11.59 ≤30.00 PASS 5795 11.75 91.55 0.38 12.13 ≤30.00 PASS 11AC20SISO Ant5 5745 11.15 90.57 0.43 11.58 ≤30.00 PASS 5785 11.84 90.57 0.43 12.27 ≤30.00 PASS 5825 12.28 88.89 0.51 12.79 ≤30.00 PASS 11AC40SISO Ant5 5755 10.85 83.87 0.76 11.61 ≤30.00 PASS 5795 11.41 81.25 0.90 12.31 ≤30.00 PASS 11AC80SISO Ant5 5775 10.45 70.00 1.55 12.00 ≤30.00 PASS 11AX20SISO Ant5 5745 11.65 89.58 0.48 12.13 ≤30.00 PASS 5785 12.88 87.76 0.57 13.45 ≤30.00 PASS 5825 12.99 87.76 0.57 13.56 ≤30.00 PASS 11AX40SISO Ant5 5755 11.34 81.82 0.87 12.21 ≤30.00 PASS 5795 12.08 81.25 0.90 12.98 ≤30.00 PASS 11AX…

Text truncated - open the document above for the full version.

FCCID:2BCMP-AX10 38 Appendix C.6:Band edge measurements Test Result B4 TestMode Antenna ChName Freq(MHz) FreqRange [MHz] Result [dBm] Limit [dBm] Verdict 11A Ant4 Low 5745 5650~5700 -40.05 ≤-26.96 PASS 5700~5720 -38.92 ≤10.09 PASS 5720~5725 -36.27 ≤15.82 PASS 5760~5650 -39.05 ≤-27 PASS High 5825 5850~5855 -36.78 ≤16.03 PASS 5855~5875 -37.78 ≤10.02 PASS 5875~5925 -37.67 ≤-26.91 PASS 5925~5935 -37.02 ≤-27 PASS 11N20SI SO Ant4 Low 5745 5650~5700 -39.65 ≤-26.87 PASS 5700~5720 -38.98 ≤10.47 PASS 5720~5725 -36.91 ≤16.60 PASS 5760~5650 -39.45 ≤-27 PASS High 5825 5850~5855 -38.66 ≤16.34 PASS 5855~5875 -37.58 ≤10.13 PASS 5875~5925 -38.15 ≤-26.31 PASS 5925~5935 -37.53 ≤-27 PASS 11N40SI SO Ant4 Low 5755 5650~5700 -40.09 ≤-26.50 PASS 5700~5720 -38.07 ≤10.55 PASS 5720~5725 -34.72 ≤17.28 PASS 5780~5650 -38.9 ≤-27 PASS High 5795 5850~5855 -33.52 ≤17.91 PASS 5855~5875 -35.61 ≤12.19 PASS 5875~5925 -39.26 ≤-26.83 PASS 5925~5935 -38.46 ≤-27 PASS 11AC20S ISO Ant4 Low 5745 5650~5700 -39.46 ≤-26.79 PASS 5700~5720 -39.05 ≤10.25 PASS 5720~5725 -37.45 ≤16.08 PASS 5760~5650 -39.58 ≤-27 PASS High 5825 5850~5855 -37.01 ≤16.34 PASS 5855~5875 -36.95 ≤10.55 PASS 5875~5925 -38.42 ≤-26.71 PASS 5925~5935 -38.2 ≤-27 PASS 11AC40S ISO Ant4 Low 5755 5650~5700 -40.1 ≤-26.80 PASS 5700~5720 -38.65 ≤10.06 PASS 5720~5725 -35.13 ≤15.74 PASS 5780~5650 -39.42 ≤-27 PASS FCCID:2BCMP-AX10 39 High 5795 5850~5855 -32.94 ≤16.03 PASS 5855~5875 -33.41 ≤11.63 PASS 5875~5925 -39.46 ≤-26.83 PASS 5925~5935 -37.71 ≤-27 PASS 11AC80S ISO Ant4 Low 5775 5650~5700 -39.95 ≤-26.57 PASS 5700~5720 -30.34 ≤11.57 PASS 5720~5725 -32.95 ≤15.65 PASS 5800~5650 -37.13 ≤-27 PASS High 5775 5850~5855 -30.97 ≤16.26 PASS 5855~5875 -32.32 ≤10.71 PASS 5875~5925 -38.42 ≤-25.78 PASS 5925~5935 -37.84 ≤-27 PASS 11AX20SI SO Ant4 Low 5745 5650~5700 -39.37 ≤-25.93 PASS 5700~5720 -39.29 ≤10.31 PASS 5720~5725 -37.06 ≤15.82 PASS 5760~5650 -38.73 ≤-27 PASS High 5825 5850~5855 -35.57 ≤18.50 PASS 5855~5875 -38.78 ≤10.02 PASS 5875~5925 -39.58 ≤-26.91 PASS 5925~5935 -37.26 ≤-27 PASS 11AX40SI SO Ant4 Low 5755 5650~5700 -39.8 ≤-26.10 PASS 5700~5720 -39.34 ≤10.36 PASS 5720~5725 -36.19 ≤16.04 PASS 5780~5650 -38.43 ≤-27 PASS High 5795 5850~5855 -32.45 ≤17.91 PASS 5855~5875 -38.27 ≤10.11 PASS 5875~5925 -37.98 ≤-25.85 PASS 5925~5935 -36.63 ≤-27 PASS 11AX80SI SO Ant4 Low 5775 5650~5700 -39.43 ≤-26.23 PASS 5700~5720 -32.47 ≤11.48 PASS 5720~5725 -32.06 ≤17.06 PASS 5800~5650 -38.58 ≤-27 PASS High 5775 5850~5855 -34.09 ≤16.26 PASS 5855~5875 -34.99 ≤10.24 PASS 5875~5925 -39.49 ≤-26.73 PASS 5925~5935 -38.55 ≤-27 PASS FCCID:2BCMP-AX10 40 Test GraphsB4 11A_Ant4_Low_5745 11A_Ant4_High_5825 11N20SISO_Ant4_Low_5745 FCCID:2BCMP-AX10 41 11N20SISO_Ant4_High_5825 11N40SISO_Ant4_Low_5755 FCCID:2BCMP-AX10 42 11N40SISO_Ant4_High_5795 11AC20SISO_Ant4_Low_5745 11AC20SISO_Ant4_High_5825 FCCID:2BCMP-AX10 43 11AC40SISO_Ant4_Low_5755 11AC40SISO_Ant4_High_5795 FCCID:2BCMP-AX10 44 11AC80SISO_Ant4_Low_5775 11AC80SISO_Ant4_High_5775 11AX20SISO_Ant4_Low_5745 FCCID:2BCMP-AX10 45 11AX20SISO_Ant4_High_5825 11AX40SISO_Ant4_Low_5755 FCCID:2BCMP-AX10 46 11AX40SISO_Ant4_High_5795 11AX80SISO_Ant4_Low_5775 11AX80SISO_Ant4_High_5775 FCCID:2BCMP-AX10 47 FCCID:2BCMP-AX10 48 Appendix C.7:Conducted Spurious Emission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] Max. Fre [MHz] Max. Level [dBm] Limit [dBm] Verdict 11A Ant4 5745 30~5650 5628.27 -40.58 ≤-27 PASS 5925~27000 26619.95 -32.01 ≤-27 PASS 5785 30~5650 2613.33 -39.56 ≤-27 PASS 5925~27000 24156.98 -31.33 ≤-27 PASS 5825 30~5650 2444.91 -39.57 ≤-27 PASS 5925~27000 26778.01 -31.4 ≤-27 PASS 11N20SISO Ant4 5745 30~5650 2449.22 -39.91 ≤-27 PASS 5925~27000 25587.27 -32.01 ≤-27 PASS 5785 30~5650 5415.65 -40.08 ≤-27 PASS 5925~27000 25173.5 -30.89 ≤-27 PASS 5825 30~5650 4789.39 -40.27 ≤-27 PASS 5925~27000 23567.59 -31.43 ≤-27 PASS 11N40SISO Ant4 5755 30~5650 4980.47 -39.83 ≤-27 PASS 5925~27000 24267.28 -31.13 ≤-27 PASS 5795 30~5650 4977.66 -40.02 ≤-27 PASS 5925~27000 26980.33 -31.43 ≤-27 PASS 11AC20SISO Ant4 5745 30~5650 2637.49 -40.06 ≤-27 PASS 5925~27000 26103.61 -32.2 ≤-27 PASS 5785 30~5650 2647.42 -39.71 ≤-27 PASS 5925~27000 24329.1 -31.37 ≤-27 PASS 5825 30~5650 3142.36 -40.38 ≤-27 PASS 5925~27000 26540.57 -31.42 ≤-27 PASS 11AC40SISO Ant4 5755 30~5650 5439.06 -38.2 ≤-27 PASS 5925~27000 24419.72 -31.39 ≤-27 PASS 5795 30~5650 5427.64 -39.12 ≤-27 PASS 5925~27000 26874.25 -31.35 ≤-27 PASS 11AC80SISO Ant4 5775 30~5650 4886.8 -39.76 ≤-27 PASS 5925~27000 23598.5 -32.61 ≤-27 PASS 11AX20SISO Ant4 5745 30~5650 3191.62 -40.37 ≤-27 PASS 5925~27000 26050.92 -31.97 ≤-27 PASS 5785 30~5650 5441.69 -39.73 ≤-27 PASS 5925~27000 26083.94 -30.94 ≤-27 PASS 5825 30~5650 2440.79 -39.79 ≤-27 PASS 5925~27000 26455.56 -30.73 ≤-27 PASS 11AX40SISO Ant4 5755 30~5650 2606.02 -40.36 ≤-27 PASS 5925~27000 24196.32 -30.85 ≤-27 PASS FCCID:2BCMP-AX10 49 5795 30~5650 4985.15 -39.31 ≤-27 PASS 5925~27000 26827.89 -31.21 ≤-27 PASS 11AX80SISO Ant4 5775 30~5650 4854.58 -40.27 ≤-27 PASS 5925~27000 24196.32 -31.62 ≤-27 PASS FCCID:2BCMP-AX10 50 Test Graphs 11A_Ant4_5745_30~5650 11A_Ant4_5745_5925~27000 11A_Ant4_5785_30~5650 FCCID:2BCMP-AX10 51 11A_Ant4_5785_5925~27000 11A_Ant4_5825_30~5650 FCCID:2BCMP-AX10 52 11A_Ant4_5825_5925~27000 11N20SISO_Ant4_5745_30~5650 11N20SISO_Ant4_5745_5925~27000 FCCID:2BCMP-AX10 53 11N20SISO_Ant4_5785_30~5650 11N20SISO_Ant4_5785_5925~27000 FCCID:2BCMP-AX10 54 11N20SISO_Ant4_5825_30~5650 11N20SISO_Ant4_5825_5925~27000 11N40SISO_Ant4_5755_30~5650 FCCID:2BCMP-AX10 55 11N40SISO_Ant4_5755_5925~27000 11N40SISO_Ant4_5795_30~5650 FCCID:2BCMP-AX10 56 11N40SISO_Ant4_5795_5925~27000 11AC20SISO_Ant4_5745_30~5650 11AC20SISO_Ant4_5745_5925~27000 FCCID:2BCMP-AX10 57 11AC20SISO_Ant4_5785_30~5650 11AC20SISO_Ant4_5785_5925~27000 FCCID:2BCMP-AX10 58 11AC20SISO_Ant4_5825_30~5650 11AC20SISO_Ant4_5825_5925~27000 11AC40SISO_Ant4_5755_30~5650 FCCID:2BCMP-AX10 59 11AC40SISO_Ant4_5755_5925~27000 11AC40SISO_Ant4_5795_30~5650 FCCID:2BCMP-AX10 60 11AC40SISO_Ant4_5795_5925~27000 11AC80SISO_Ant4_5775_30~5650 11AC80SISO_An…

Text truncated - open the document above for the full version.

FCCID:2BCMP-AX10 1 Case No. : GTS20260616001-4-02 Ambient Condition: 24 °C, 58 %RH According Standard: ■Part15E Test Date:2026.6.17-2026.7.1Test Engineer: Evan ouyang Appendix C.1: Occupied channel bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11A Ant4 5745 17.276 5736.4437 5753.7197 --- --- 5785 17.028 5776.5154 5793.5434 --- --- 5825 17.154 5816.3746 5833.5286 --- --- 11N20SISO Ant4 5745 18.296 5735.9561 5754.2521 --- --- 5785 18.104 5775.9801 5794.0841 --- --- 5825 18.343 5815.7995 5834.1425 --- --- 11N40SISO Ant4 5755 36.687 5736.8036 5773.4906 --- --- 5795 36.521 5776.8268 5813.3478 --- --- 11AC20SISO Ant4 5745 18.130 5736.0537 5754.1837 --- --- 5785 17.957 5776.0673 5794.0243 --- --- 5825 18.101 5815.9740 5834.0750 --- --- 11AC40SISO Ant4 5755 36.690 5736.8562 5773.5462 --- --- 5795 36.609 5776.8279 5…
