2BCVO-TP-C74PISEN-Qi2 Magnetic Desktop Charging Base(Lite)

- Guangdong Pisen Electronics Co., Ltd. - Federal Communications Commission Authorization and Evaluation Division Equipment Authorization Branch 7435 Oakland Mills Road Columbia, MD 21046 8/26/2024 U.S. Agent Designation Guangdong Pisen Electronics Co., Ltd. acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID: 2BCVO-TP-C74): Name and company of U.S. agent: UUX GROUP INC Physical U.S. address of agent: 36 South 18th Avenue, Suite A Brighton, CO USA 80601 FRN of U.S. agent: 0033701590 Email address of U.S. agent: [email protected] UUX GROUP INC acknowledges their obligation to accept service of process on behalf of Guangdong Pisen Electronics Co., Ltd.. Guangdong Pisen Electronics Co., Ltd. with the FRN 0034240226 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. By signing this form, we confirm the above and that we are aware of the application requirements listed under § 2.911(d)(7). The information provided in this letter is based on the referenced rule parts of Title 47 of the CFR as well as KDB 986446 D01. An expiration date for this letter does not exist. In case the U.S. agent changes, the grantee is obligated to notify the FCC within 30 days via the granting TCB. Sincerely, Signature Zhang Zhang Supervisor Guangdong Pisen Electronics Co., Ltd. Signature Jack Fu Manager UUX GROUP INC 48_[model] US_Agent_2.911(d)(7) - U, V05

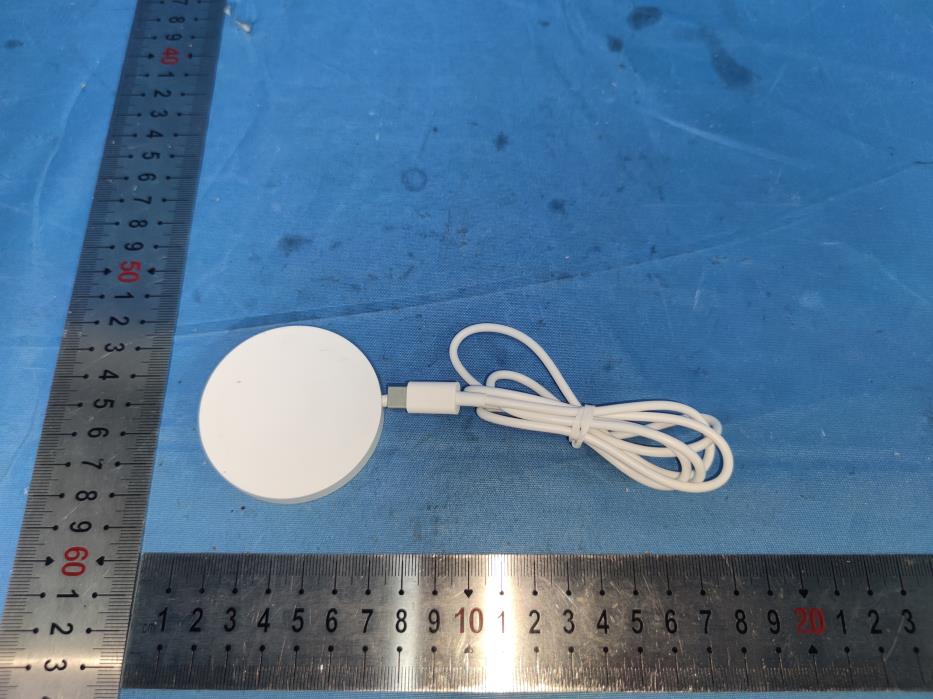

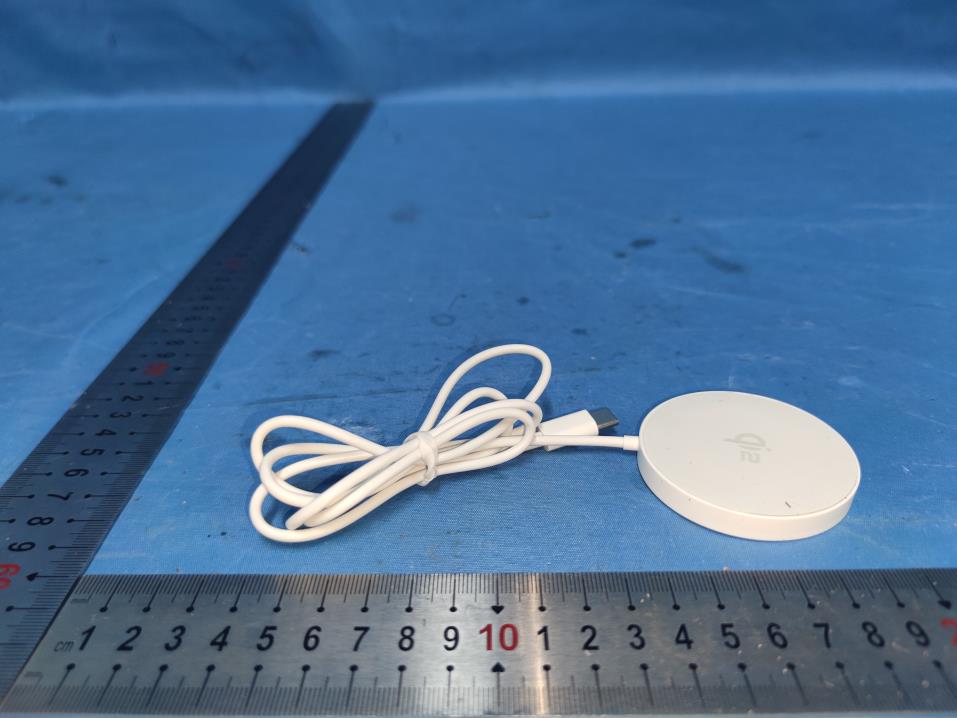

Page 1 of 3 FCC ID: 2BCVO-TP-C74 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details External EUT Photo Photo 1 Photo 2 Page 2 of 3 FCC ID: 2BCVO-TP-C74 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 3 FCC ID: 2BCVO-TP-C74 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 Photo 6 ---The End---

Label Size: L35mm * W20mm 1. The label is silk-screen on the sample PISEN-Qi2 Magnetic Desktop Charging Base(Lite) Model Name: TP-C74 FCC ID: 2BCVO-TP-C74 L W

Page 1 of 3 FCC ID: 2BCVO-TP-C74 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. EUT Constructional Details Internal EUT Photo Photo 1 Photo 2 Coil Antenna Page 2 of 3 FCC ID: 2BCVO-TP-C74 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 3 Photo 4 Page 3 of 3 FCC ID: 2BCVO-TP-C74 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Photo 5 ------End------

Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : PISEN-Qi2 Magnetic Desktop Charging Base(Lite) Brand Name : PISEN Model : TP-C74 Series Model : N/A FCC ID : 2BCVO-TP-C74 Applicant : Guangdong Pisen Electronics Co., Ltd. Address : Building 5, 1st Floor, No. 9, Qinfu 1st Street, Liuyue Nan Community, Henggang Town, Longgang District, Shenzhen City, Guangdong Province, China Manufacturer : Huizhou OJD Technology Co.，Ltd Address : 7F, Building 20, Zoina Hi-tech Industrial Park, No.6 Xinhua Avenue, Chenjiang Street, Zhongkai High-tech Zone, Huizhou city, Guangdong Province, China Standard(s) : FCC CFR 47 PART 1, § 1.1310 KDB 680106 D01 Wireless Power Transfer v04 Date of Receipt : Aug.08, 2024 Date of Test : Aug.08, 2024 ~ Aug. 20, 2024 Issued Date : Aug. 20, 2024 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Leon.yi Sean She Page 2 of 12 Report No.: AiTSZ-240731002W2 Report Revise Record Report Version Issued Date Notes M1 Aug. 20, 2024 Initial Release Page 3 of 12 Report No.: AiTSZ-240731002W2 Contents 1 GENGENERAL INFORMATION ................................................................................................................................... 4 1.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 4 1.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2.1 DESCRIPTION OF THE TEST MODE ..................................................................................................................................... 6 2.2 SPECIAL ACCESSORIES ................................................................................................................................................... 6 2.3 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 6 3 TEST CONDITIONS AND RESULTS .............................................................................................................................. 7 3.1 APPLICABLE STANDARD .................................................................................................................................................. 7 3.2 LIMIT ......................................................................................................................................................................... 7 3.3 TEST SETUP ................................................................................................................................................................. 7 3.4 MEASUREMENT PROCEDURE .......................................................................................................................................... 8 3.5 TEST RESULT OF E AND H FIELD STRENGTH ........................................................................................................................ 8 3.6 EQUIPMENT APPROVAL CONSIDERATIONS ......................................................................................................................... 9 3.7 CONCLUSION ............................................................................................................................................................... 9 4 TEST SETUP PHOTOGRAPHS OF EUT ....................................................................................................................... 10 Page 4 of 12 Report No.: AiTSZ-240731002W2 1 GENGENERAL INFORMATION 1.1 Environmental conditions During the measurement the environmental conditions were within the listed ranges: Normal Temperature: 25°C Relative Humidity: 55 % Air Pressure: 101 kPa 1.2 General Description of EUT Product Name: PISEN-Qi2 Magnetic Desktop Charging Base(Lite) Model/Type reference: TP-C74 Serial Model: N/A Power Supply: Input: 9V/2.22A Output: 5W/7.5W/15W Hardware version: N/A Software version: N/A Sample(s) Status: AiTSZ-240808003-01(Normal sample) AiTSZ-240808003-02(Engineer sample) Wireless Charger: Operation frequency: 113kHz-205kHz Modulation Technology: ASK Antenna Type: Loop coil Antenna Antenna gain: 0dBi Remark: The above DUT's information was declared by manufacturer. For more detailed features description, please refer to the manufacturer’s specifications or the User's Manual. Page 5 of 12 Report No.: AiTSZ-240731002W2 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Commu…

Text truncated - open the document above for the full version.

Note: This device has been tested and found to comply with the standard(s) listed, this test report merely corresponds to the test sample. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. This report shall not be reproduced except in full, without the written approval of Guangdong Asia Hongke Test Technology Limited. If there is a need to alter or revise this document, the right belongs to Guangdong Asia Hongke Test Technology Limited, and it should give a prior written notice of the revision document. This test report must not be used by the client to claim product endorsement. Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. TEST REPORT Product Name : PISEN-Qi2 Magnetic Desktop Charging Base(Lite) Brand Name : PISEN Model : TP-C74 Series Model : N/A FCC ID : 2BCVO-TP-C74 Applicant : Guangdong Pisen Electronics Co., Ltd. Address : Building 5, 1st Floor, No. 9, Qinfu 1st Street, Liuyue Nan Community, Henggang Town, Longgang District, Shenzhen City, Guangdong Province, China Manufacturer : Huizhou OJD Technology Co.，Ltd Address : 7F, Building 20, Zoina Hi-tech Industrial Park, No.6 Xinhua Avenue, Chenjiang Street, Zhongkai High-tech Zone, Huizhou city, Guangdong Province, China Standard(s) : FCC CFR Title 47 Part 15 Subpart C Date of Receipt : Aug.08, 2024 Date of Test : Aug.08, 2024 ~ Aug. 20, 2024 Issued Date : Aug. 20, 2024 Issued By: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China Tel.: +86 0755-230967639 Fax.: +86 0755-230967639 Reviewed by: Approved by: Leon.yi Sean She Page 2 of 20 Report No.: AiTSZ-240808003W1 Report Revise Record Report Version Issued Date Notes M1 Aug. 20, 2024 Initial Release Page 3 of 20 Report No.: AiTSZ-240808003W1 Contents 1 TEST SUMMARY ....................................................................................................................................................... 4 1.1 TEST STANDARDS.......................................................................................................................................................... 4 1.2 TEST SUMMARY ........................................................................................................................................................... 4 1.3 TEST FACILITY .............................................................................................................................................................. 5 1.4 MEASUREMENT UNCERTAINTY ........................................................................................................................................ 5 2 GENGENERAL INFORMATION ................................................................................................................................... 6 2.1 ENVIRONMENTAL CONDITIONS ........................................................................................................................................ 6 2.2 GENERAL DESCRIPTION OF EUT ...................................................................................................................................... 6 2.3 DESCRIPTION OF THE TEST MODE ..................................................................................................................................... 7 2.4 SPECIAL ACCESSORIES ................................................................................................................................................... 7 2.5 EQUIPMENT LIST FOR THE TEST ....................................................................................................................................... 7 3 TEST CONDITIONS AND RESULTS .............................................................................................................................. 9 3.1 CONDUCTED EMISSIONS TEST ......................................................................................................................................... 9 3.2 RADIATED EMISSIONS .................................................................................................................................................. 12 3.3 20DB BANDWIDTH ..................................................................................................................................................... 18 3.4 ANTENNA REQUIREMENT ............................................................................................................................................. 19 4 TEST SETUP PHOTOGRAPHS OF EUT ....................................................................................................................... 20 5 EXTERNAL PHOTOGRAPHS OF EUT ......................................................................................................................... 20 6 INTERNAL PHOTOGRAPHS OF EUT .......................................................................................................................... 20 Page 4 of 20 Report No.: AiTSZ-240808003W1 1 TEST SUMMARY 1.1 Test Standards The tests were performed according to following standards: FCC Rules Part 15.207,15.209, 15.215(c) ANSI C63.10: 2013: American National Standard for Testing Unlicensed Wireless Devices 1.2 Test Summary Test Item Section in CFR 47 Test Result Electric Field Radiated Emissions FCC Part 15 C (Section15.209) PASS 20dB Bandwidth/99% Bandwidth FCC Part 15 C (Section15.215(c)) PASS AC Power Line Conducted Emission FCC Part 15 C (Section15.207) PASS Antenna Requirement FCC Part 15 C (Section15.203 PASS Page 5 of 20 Report No.: AiTSZ-240808003W1 1.3 Test Facility Test Laboratory: Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an Distr…

Text truncated - open the document above for the full version.

深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co.,LTD 客户/Client 惠州市奥嘉达科技有限公司 名称/TYPE Diskette 43.5*5.3*0.8, double slot; Hot air wire 0.08*80p*11TS+20*0.8 small magnetic sheet 7.9uH adhesive, L=10MM 产品型/Model NO SG-A1143.5-7.9UH 产品编号/Part nunbering systey SG-A1143.5-010-001 客户料号/Client p/NO 工程编号/Enginrer NO TQE 1800510003 日期/Date 2024-2-28 编制/Prepared 审核/Checked 认可/Approved XieYanQi DuanJiaWang XieXiaoZai 客户认可回签/Authorixed Signaturure Company Chop 工程/ Enginrer 认可/QC APProved 认可日期/APProved 本公司工程部/For Enginer Departner Only 修改内容/Rrvised Content 认可日期/APProved Date 深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co.,LTD 一、 线圈工艺/Winding Procese: NO winding guage number of turns direction of winding remark 1 N1 2UEW-B-0.08*80P 11TS CCW 2 二．电气性能/FEATURES: 1.测试条件（Test conditions）：25°C,65%RH@100KHz/1V 1.1 电感量（Inductance） 1.11 L0A（Individual coil）=4.6uH±20% 1.12 L0A(Coil + diskette)=7.9uH±10% 1.2 Q值Q value =35MIN 1.3 直流电阻（DCR）：70mΩ MAX 1.4 工作温度(Operating Temperature)：-25°C~85°C 2.测试仪器(Test instrument)：L:创达1068+1310;DCR:502BC;SIZE:Callipers 3.材料清单/ bill of materials NO Project Materials 1 WIRE ￠0.08*80P 2UEW 2 FERRITE 43.5*5.3*0.8 Double slot 20*0.8 ferrite hard magnetic 3 GLUE White/yellow glue 4 SOLDER XCD-907B 5 Adhesive double-sided adhesive 6 High temperature adhesive 8MM(ref) high-temperature tape 7 深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co.,LTD 三．电路图/CIRCUIT DIAGRAM 单位： MM 四．外形图/OUTSIDE DIAGRA Note: Coil outlet position wrapped 8MM (ref) high temperature adhesive paper 标准 A B C D H E I T STD 43.5±0.5 39.0±0.5 20.5±0.5 20±0.3 10±2 2-4 0.8±0.1 2.3Max 单位： MM 深圳市深广电子科技有限公司 Shenzhen Shenguang Electronic Technology Co.,LTD 五．天线增益 / Antenna gain: Operation frequency: 113kHz-205kHz Antenna Type: Loop coil Antenna Antenna gain: 0dBi

Page 1 of 2 FCC ID:2BCVO-TP-C74 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Test Setup Photo DCD Conduction Radiation (9KHz-30MHz) Page 2 of 2 FCC ID:2BCVO-TP-C74 Guangdong Asia Hongke Test Technology Limited B1/F, Building 11, Junfeng Industrial Park, Chongqing Road, Heping Community, Fuhai Street, Bao'an District, Shenzhen, Guangdong, China. Radiation (30MHz-1000MHz) ------End------
