2BDR5-40T2.4GHz Digital Wireless Video Baby Camera

Ver: 1.0(J) The pictures are for reference only, please subject to practicality. 2.4GHz Digital Wireless Video Baby Monitor User Manual www.hellobaby.net.cn [email protected] 34 6.2 PARENT UNIT OVERVIEW: 6.3 ICONS OVERVIEW 7. KEY OPERATION 7.1 TURN ON/OFF Press and hold the power key for 3 seconds to turn on / off the parents unit. 7.2 UP ▲ KEY Press once to tilt the camera up by one step. Press and hold to tilt continuously. 7.3 DOWN ▼ KEY Press once to tilt the camera down by one step. Press and hold to tilt continuously. 7.4 LEFT ◀ KEY Press once to pan the camera left by one step. Press and hold to pan continuously. 7.5 RIGHT ▶ KEY Press once to pan the camera right by one step. Press and hold to pan continuously. 7.6 CAMERA VIEW/SCAN Press scan key to view/scan camera; during scan mode, the scan icon will be displayed on the top of screen. Each camera’s video will be displayed on the LCD around 10 seconds then change to next camera. 7.7 DIGITAL ZOOM Press and hold the key around 2 seconds to operate zoom in/ out. 7.8 Two Way Talk Press and hold key to enter two way talk mode. A microphone icon will be displayed in the corner of the LCD screen. Release the key to stop. Note: When you are in the two-way talk mode, the parent unit speaker is muted. 8. MENU OPERATION 8.1 PAIRING THE CAMERA AND PARENT UNITS The baby unit is pre-registered to your parent unit. You do not need to register it again unless the baby unit loses its link with the parent unit. To re-register your baby unit, or register a new baby unit, follow the procedure below: : Camera icon with " "means it is well registered. You should select and pair with Note the camera icon without " " sign. 8.1 .1 ADD CAMERA 1. Press the MENU key then the menu will pop up. 6. PRODUCT OVERVIEW 6.1 BABY UNIT OVERVIEW 6 1. Press
◀
/

▶ to select or for Hi/Lo limits settings. 2. Press ▲
/
▼ keys to adjust the Hi limit when










is selected. 3. Press ▲
/
▼ keys to adjust the Lo limit when










is selected. The high temperature alarm default setting is 36 °C,
and the low temperatureNote: alarm default setting is 8
°C.
When
the
temperature
goes
above
or
below
the

settings,
the
temperature
icon
turns
red. It will alert user by beeps. Press any key on the parent unit to stop beeping and flashing. 8.5 LULLABY SETTING You can soothe the baby to sleep by playing a gentle lullaby from the Camera unit. 1. Press the MENU key and the menu will pop up. 2. Press the
◀
/

▶
/
▲
/
▼ keys until the lullaby icon








is selected. 3. Press the






key enter into sub-menu. 4. Press the◀
/

▶
/
▲
/
▼key to select one of the 8 available lullabies, and you can pick single playback, loop (all 8 lullabies) playback or stop . 5. Press








key to confirm. The lullaby default setting is OFF.Note : 8.6 FEEDING TIMER 1. Press the MENU key and the menu will pop up. 2. Press the ◀
/

▶
/
▲
/
▼ key until the alarm icon







is selected. 3. Press the








key enter into sub-menu, Press the
◀
/

▶
/
▲
/
▼
key to selected the







alarm time you need.


4. Press









key to confirm. 5. Press








key to exit. The minimum unit is 0.5 hour. The maximum setting is 7 hours (9 levels).Note 1: Once the alarm is turned on, alarm icon




will display on the screen.Note 2: The alarm default setting is OFF.Note 3: When the alarm is ringing, press any key on the parent unit to turn the alarm off.Note 4: If you don't turn off the alarm, the alarm will ring for 1 minute. After three minutes Note 5: the alarm will ring again for 1 minute. The alarm will ring for three times in total, after this the alarm goes off. 8.7 ENERGY SAVING This mode allows you to control the sound activation of your baby unit. If there is no sound around the baby unit within 30 seconds, it will stop audio transmission and turn off the screen of the parent unit. When the baby unit detects any sounds louder than the sensitivity evel, it will start transmitting the signal to the parent unit again and turn on the screen of the parent unit. To change the level, please follow the below instructions.ECO 1. Press the MENU key and the menu will pop up. 2.
Press the
◀
/

▶
/
▲
/
▼
key
until
the
icon

is
selected.ECO 3.
Press key enter into sub-menu, then press
◀
/
▶
/
▲
/
▼
key to select desired level. 5 2. Press the
◀
/

▶
/
▲
/
▼
key until the camera icon is selected. 3. Press OK key to enter into sub-menu, then press ◀
/

▶
/
▲
/
▼ key to select your desired camera. 4. Press key enter into sub-menu; then press key. 5. When the icondisplayed on the LCD screen, press the PAIR button on the back of camera. 6. Once paired, Successful pairing iconshows on the LCD screen. 7. If fails, repeat the above steps. 8.1.2 DELETE CAMERA 1. Press the MENU key and the menu will pop up. 2. Press the
◀
/

▶
/
▲
/
▼
key
until
the
camera
icon is
selected. 3. Press OK key
to
enter
into
sub-menu,
then
press

◀
/

▶
/
▲
/
▼ key to select the camera you want to delete. 4. Press key enter into sub-menu; Press ◀
/

▶ key to select then press key. 5. Press ▶ key to select icon to delete the camera. 6. Press OK key to confirm the option. 8.2 VOLUME 1. Press the key then the menu will pop up. 2. Press the
◀
/

▶
/
▲
/
▼
key until the Volume icon is selected. 3. Press the key enter into sub-menu; 4. Press the
▲
/
▼
key to select the desired volume level from level 1 ~ 5. 8.3 DISPLAY BRIGHTNESS 1. Press the MENU key then the menu will pop up; 2. Press the ◀
/

▶
/
▲
/
▼
key until the brightness icon is selected. 3. Press key enter into sub-menu; 4. Press ◀
/

▶ keys to select the desired brightness level from level 1 ~ 5. (The default brightness level setting is level 3.) 8.4 TEMPERATURE UNIT SETTING 1. Press the MENU key then the menu will pop up; 2. Press the
◀
/

▶
/
▲
/
▼ until the temperature icon is selected. 3. Press the key enter into sub-menu; 4. Press the
▲
/
▼

key to select the °F or °C for setting temperature unit. 5. Press key to confirm. 6. Press key to exit. The detected temperature ran…

Text truncated - open the document above for the full version.

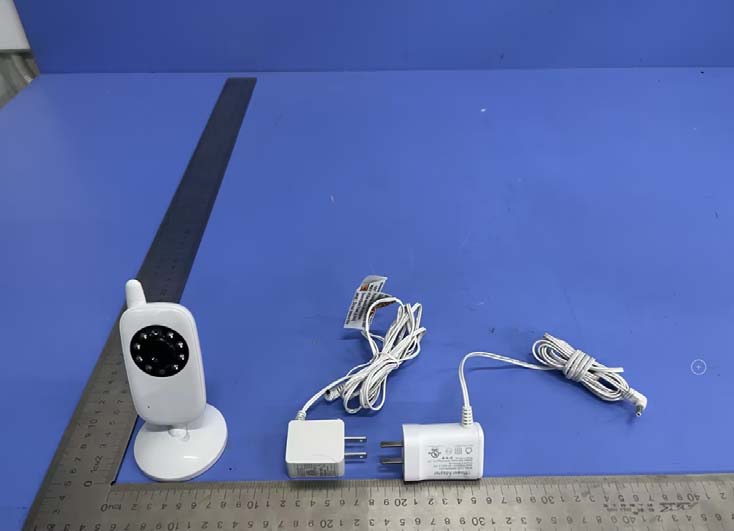

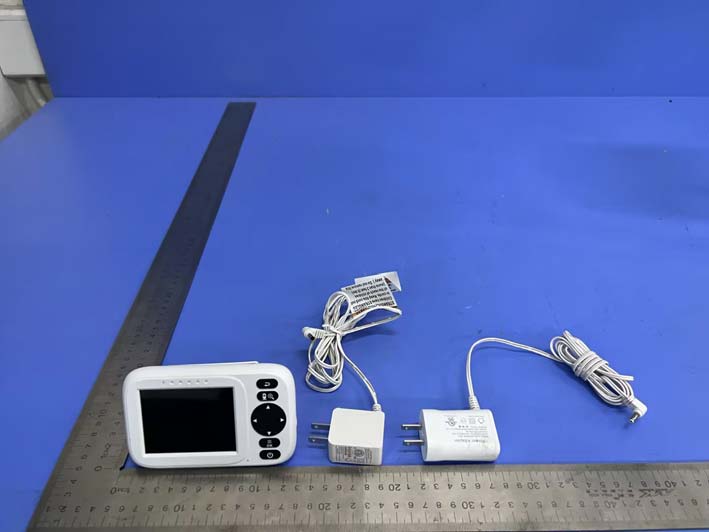

FCC ID: 2BDR5-40T TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID: 2BDR5-40T TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of Adapter FCC ID: 2BDR5-40T TB-RF-074-1.0 Photo 5 Appearance of Adapter Photo 6 Appearance of Adapter FCC ID: 2BDR5-40T TB-RF-074-1.0 Photo 7 Appearance of EUT Photo 8 Appearance of EUT FCC ID: 2BDR5-40T TB-RF-074-1.0 Photo 9 Appearance of EUT Photo 10 Appearance of EUT FCC ID: 2BDR5-40T TB-RF-074-1.0 Photo 11 Appearance of EUT

FCC ID: 2BDR5-40T TB-RF-074-1.0 Appendix IID Label Appendix II ID Label Location

FCC ID: 2BDR5-40T TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 12 Internal of EUT Photo 13 Internal of EUT FCC ID: 2BDR5-40T TB-RF-074-1.0 Photo 14 Internal of EUT Photo 15 Internal of EUT FCC ID: 2BDR5-40T TB-RF-074-1.0 Photo 16 Appearance of PCB Photo 17 Appearance of PCB FCC ID: 2BDR5-40T TB-RF-074-1.0 Photo 18 Appearance of PCB Photo 19 Appearance of PCB FCC ID: 2BDR5-40T TB-RF-074-1.0 Photo 20 Appearance of PCB Photo 21 Appearance of PCB FCC ID: 2BDR5-40T TB-RF-074-1.0 Photo 22 Appearance of PCB Photo 23 Appearance of PCB FCC ID: 2BDR5-40T TB-RF-074-1.0 Photo 24 Appearance of PCB Photo 25 Appearance of PCB FCC ID: 2BDR5-40T TB-RF-074-1.0 Photo 26 Internal of EUT Antenna
