2BDR5-P24TX2.4GHz Digital Wireless Video Baby Camera

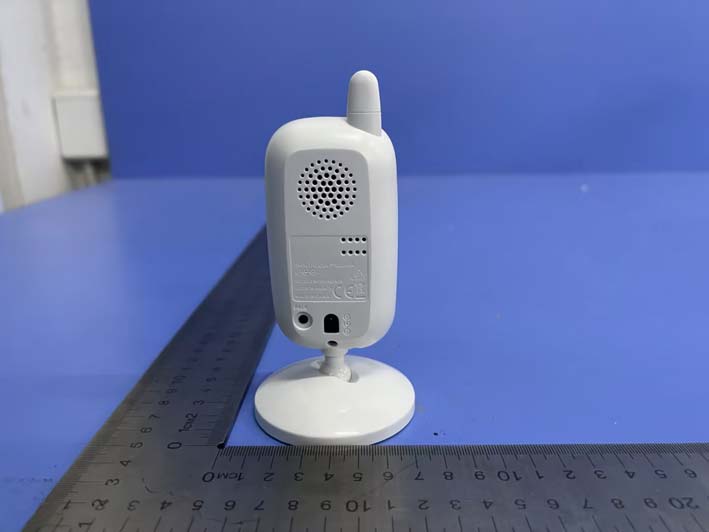

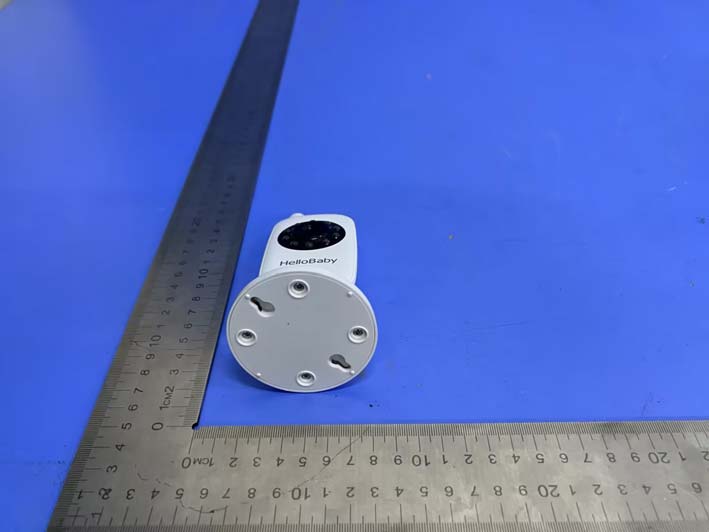

FCC ID: 2BDR5-P24TX TB-RF-074-1.0 Appendix III EUT External Photographs Photo 1 Appearance of EUT Photo 2 Appearance of EUT FCC ID: 2BDR5-P24TX TB-RF-074-1.0 Photo 3 Appearance of EUT Photo 4 Appearance of EUT Antenna FCC ID: 2BDR5-P24TX TB-RF-074-1.0 Photo 5 Appearance of EUT Photo 6 Appearance of EUT

FCC ID: 2BDR5-P24TX TB-RF-074-1.0 AppendixIFCC ID Label FCC ID: 2BDR5-P24TX TB-RF-074-1.0 Appendix II ID Label Location ID LOCATION

FCC ID: 2BDR5-P24TX TB-RF-074-1.0 Appendix IV EUT Internal Photographs Photo 7 Internal of EUT Photo 8 Internal of EUT FCC ID: 2BDR5-P24TX TB-RF-074-1.0 Photo 9 Appearance of PCB Photo 10 Appearance of PCB

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202311-0173-1 Page: 1 of 3 TB-RF-075-1.0 Maximum Permissible Exposure Evaluation FCC ID: 2BDR5-P24TX 1. Client Information Applicant : Videotimes Technology (Hubei) Co.,Ltd Address : B5-1, B5-2, Electronic Information Industry Park, Wuxue, Huanggang, Hubei, China. Manufacturer : Videotimes Technology (Hubei) Co.,Ltd Address : B5-1, B5-2, Electronic Information Industry Park, Wuxue, Huanggang, Hubei, China. 2. General Description of EUT EUT Name : 2.4GHz Digital Wireless Video Baby Camera Models No. : HB2438, BBM830, BBM830-2, BBM830TX, HB2438-2, HB2438TX, VT301, VT301-2 , VT301TX Model Different : All of these models are identical in the same PCB, layout and circuit, the only difference is different customer, different model name and appearance. Product Description : Operation Frequency: 2.4GHz:2409.5MHz~2468MHz Number of Channel: 40Channels Antenna Gain: 2.65 dBi Built in antenna Power Rating : Adapter#1: K05V050100U Input:100-240V~50/60Hz,0.2A Output:5V1A Adapter#2: A318-050100W-US2 Input:100-240V~50/60Hz,0.2A Output:5V1A Software Version : 1.0 Hardware Version : 1.0 Connecting I/O Port(S) : : Please refer to the User's Manual Remark : the evaluation report used the EUT(HC-C-202311-0173-01-01-2#). Report No.: TBR-C-202311-0173-1 Page: 2 of 3 TB-RF-075-1.0 MPE Calculations for 2.4G 1. EUT Operation Condition: Software provided by client enabled the EUT to transmit and receive data at lowest, middle and highest channel individually. 2. Exposure Evaluation: Equation from page 18 of OET Bulletin 65, Edition 97-01 S=(PG)/4πR 2 Where S: power density P: power input to the antenna G: power gain of the antenna in the direction of interest relative to an isotropic radiator. R: distance to the center of radiation of the antenna 3. Test Result: 2.4GHz worst reported. Frequency Conducted Power(max) (dBm) Turn-up Power (dB) Max tune up power (dBm) [P] ANT Gain (dBi) [G] Distance (cm) [R] Power Density (mW/ cm 2 ) [S] Limit of Power Density (mW/ cm 2 ) (S) 2409.5 17.354 17±1 18 2.65 20 0.02311 1 2439.5 17.763 17±1 18 2.65 20 0.02311 1 2468 17.878 17±1 18 2.65 20 0.02311 1 4. Conclusion: As specified in Table 1B of 47 CFR 1.1310- Limits for Maximum Permissible Exposure (MPE), Limits for General Population/ Uncontrolled Exposure Frequency Range (MHz) Power density (mW/ cm 2 ) 300-1,500 F/1500 1,500-100,000 1.0 For 2.4GHz:2412~2469 MHz MPE limit S: 1mW/ cm 2 The MPE is calculated as 0.02311 mW / cm 2 < limit 1mW / cm 2 . So, RF exposure limit warning or SAR test are not required. The EUT will only be used with a separation of 20cm or greater between the antenna and nearby persons and can therefore be considered a mobile transmitter per 47 CFR2.1091 (b). The RF Exposure Information page from the manual is included here for reference. Note For a more detailed features description, please refer to the RF Test Report. 5. Conclusion: Report No.: TBR-C-202311-0173-1 Page: 3 of 3 TB-RF-075-1.0 The measurement results comply with the FCC Limit per 47 CFR 2.1091 for the uncontrolled RF Exposure of mobile device. -----END OF REPORT-----

ShenZhenXinErShengTechnologyCo.,Ltd SPECIFICATIONFORAPPROVAL Customernane：BeiNaiTe Productname ：Metalantenna,totallength26.2MM,wirediameter0.8MM,carbonsteelnickel-plated CustomerPartW1-1301-2113-001-04 Number: ManufacturersofSFANT12E12113 Material : Deliverquantity ： 5PCS MarkCheckExamineand approve Datelanded Biao LisenAmy 2023.11.20 ThatCustomers： AcknowledgeCheckExamineand approve Datelanded Admitthatsituation ：☑ newproductproductshanges Admitthatproject：□acknowledgement□soecimen10PCS Admitthatconclusion：□reception□refuse Companyaddress ： Floor3,BuildingD,No.96LingxiaRoad,FuyongFenghuang FourthIndustrialZone,BaoanDistrict,Shenzhen Phonenumber：0755-33881455FaxNO.：0755-33233276 Email:[email protected] ShenZhenXinErShengTechnologyCo.,Ltd Maintechnicalparametersoftheproduct Maintechnicalspecifications FrequencyRange(MHZ)2400-2500 Gain（dBi）2.5±0.5dBi Impedance(Ω) 50±10 ReTurnLoss(dB) ≤-10 VSWR ≤2 PolarizationLinearVertical ConnectorTypeWeld PhysicalProperties AntennaBaseCarbonsteel OperatingTemp -20°C-+60°C StorageTemp -20°C-+70°C Listofrawmaterials： Serial mumber NameTextureQuantityUnitRemark 1Antenna Carbonsteel 1PCS ShenZhenXinErShengTechnologyCo.,Ltd Productdrawing ShenZhenXinErShengTechnologyCo.,Ltd Networkanalyzertestreport： 1.SWR： 2.returnloss ShenZhenXinErShengTechnologyCo.,Ltd 2D、3DRaditationPattern 2.4GGain(Peak):2.61dBiEfficiency:61.9% 2.45GGain(Peak):2.64dBiEfficiency:57.4% 2.5GGain(Peak):2.65dBiEfficiency:56.8%

Shenzhen Toby Technology Co., Ltd. Report No.: TBR-C-202311-0173-2 Page: 1 of 53 TB-RF-074-1.0 1 A/F., Building.6, Rundongsheng Industrial Zone, Longzhu, Xixiang, Bao’an, Shenzhen, Guangdong, China Tel: +86 75526509301 Fax: +86 75526509195 Radio Test Report FCC ID: 2BDR5-P24TX Original Grant Report No. : TBR-C-202311-0173-2 Applicant : Videotimes Technology (Hubei) Co.,Ltd Equipment Under Test (EUT) EUT Name : 2.4GHz Digital Wireless Video Baby Camera Model No. : HB2438 Series Model No. : BBM830, BBM830-2, BBM830TX, HB2438-2, HB2438TX, VT301, VT301-2, VT301TX Brand Name : ---- Sample ID : HC-C-202311-0173-01-01-1# & HC-C-202311-0173-01-01-2# Receipt Date : 2023-11-20 Test Date : 2023-11-20 to 2023-12-11 Issue Date : 2023-12-11 Standards : FCC Part 15, Subpart C 15.247 Test Method : ANSI C63.10: 2013 Conclusions : PASS In the configuration tested, the EUT complied with the standards specified above, The EUT technically complies with the FCC requirements Test/Witness Engineer : Seven Wu Engineer Supervisor : Ivan Su Engineer Manager : Ray Lai This report details the results of the testing carried out on one sample. The results contained in this test report do not relate to other samples of the same product. The manufacturer should ensure that all products in series production are in conformity with the product sample detailed in the report. Report No.: TBR-C-202311-0173-2 Page: 2 of 53 TB-RF-074-1.0 Contents CONTENTS ............................................................................................................................................. 2 1. GENERAL INFORMATION ABOUT EUT ............................................................................. 5 1.1 Client Information ................................................................................................................. 5 1.2 General Description of EUT (Equipment Under Test) ................................................... 5 1.3 Block Diagram Showing the Configuration of System Tested ...................................... 6 1.4 Description of Support Units .............................................................................................. 7 1.5 Description of Test Mode .................................................................................................... 7 1.6 Description of Test Software Setting ................................................................................ 8 1.7 Measurement Uncertainty .................................................................................................. 8 1.8 Test Facility ........................................................................................................................... 9 2. TEST SUMMARY ..................................................................................................................... 10 3. TEST SOFTWARE ................................................................................................................... 10 4. TEST EQUIPMENT .................................................................................................................. 11 5.CONDUCTED EMISSION TEST .................................................................................................... 12 5.1 Test Standard and Limit .................................................................................................... 12 5.2 Test Setup ........................................................................................................................... 12 5.3 Test Procedure ................................................................................................................... 13 5.4 Deviation From Test Standard ......................................................................................... 13 5.5 EUT Operating Mode ........................................................................................................ 13 5.6 Test Data ............................................................................................................................. 13 5. RADIATED EMISSION TEST ................................................................................................ 14 6.1 Test Standard and Limit .................................................................................................... 14 6.2 Test Setup ........................................................................................................................... 15 6.3 Test Procedure ................................................................................................................... 16 6.4 Deviation From Test Standard ......................................................................................... 17 6.5 EUT Operating Condition ................................................................................................. 17 6.6 Test Data ............................................................................................................................. 17 6. RESTRICTED BANDS AND BAND-EDGE TEST ............................................................. 18 7.1 Test Standard and Limit .................................................................................................... 18 7.2 Test Setup ........................................................................................................................... 18 7.3 Test Procedure ................................................................................................................... 19 7.4 Deviation From Test Standard ......................................................................................... 20 7.5 EUT Operating Condition ................................................................................................. 20 7.6 Test Data ............................................................................................................................. 20 7. NUMBER OF HOPPING CHANNEL ..................................................................…

Text truncated - open the document above for the full version.

FCC ID: 2BDR5-P24TX TB-RF-074-1.0 AppendixVEUT Test Photographs Photo of Setup for Radiated Emission (Below 1 GHz) Photo of Setup for Radiated Emission (Above 1 GHz) FCC ID: 2BDR5-P24TX TB-RF-074-1.0 Photo of Setup for Conducted Emission -----END OF REPORT-----
