2BFCM-X1PROSmart watch

LEADOYS Technology (ShenZhen) Co., Ltd. 2024/11/25 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BFCM-X1PRO) [LEADOYS Technology (ShenZhen) Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Fan zhijun LEADOYS Technology (ShenZhen) Co., Ltd. 2024/11/25 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BFCM-X1PRO) [LEADOYS Technology (ShenZhen) Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Fan zhijun

LEADOYS Technology (ShenZhen) Co., Ltd. 2024/11/25 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Smart watch Trademark: N/A MODEL: X1 Pro FCC ID: 2BFCM-X1PRO To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title: Fan zhijun / Manager Contact information / address: Room 505, Building B, Bantian International Center, Longgang, Shenzhen, China

LEADOYS Technology (ShenZhen) Co., Ltd. 2024/11/25 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: Smart watch Trademark: N/A MODEL: X1 Pro FCC ID: 2BFCM-X1PRO To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title: Fan zhijun / Manager Contact information / address: Room 505, Building B, Bantian International Center, Longgang, Shenzhen, China

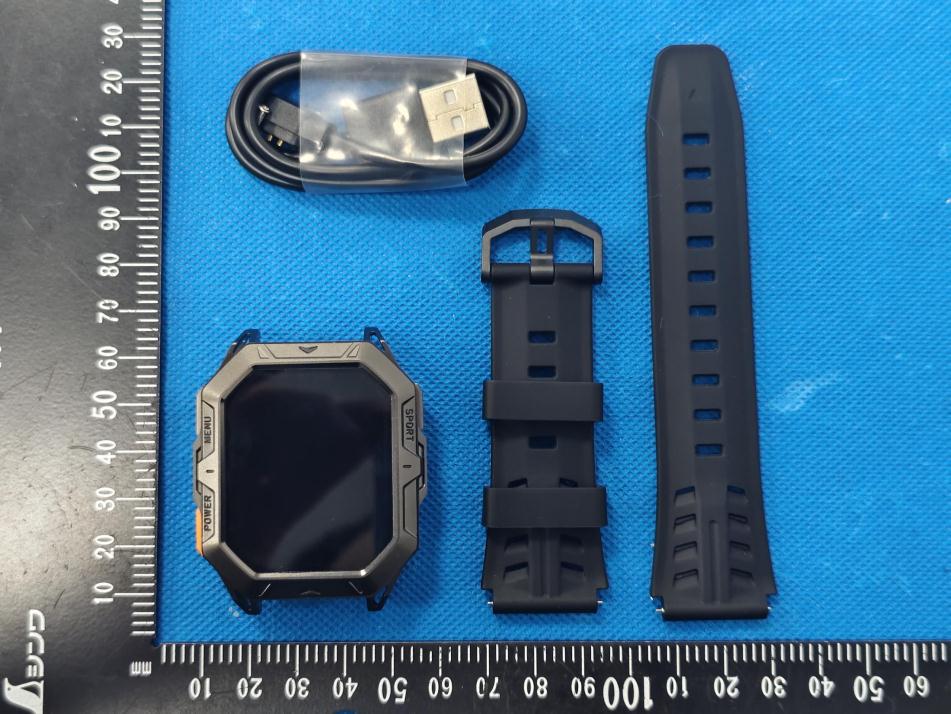

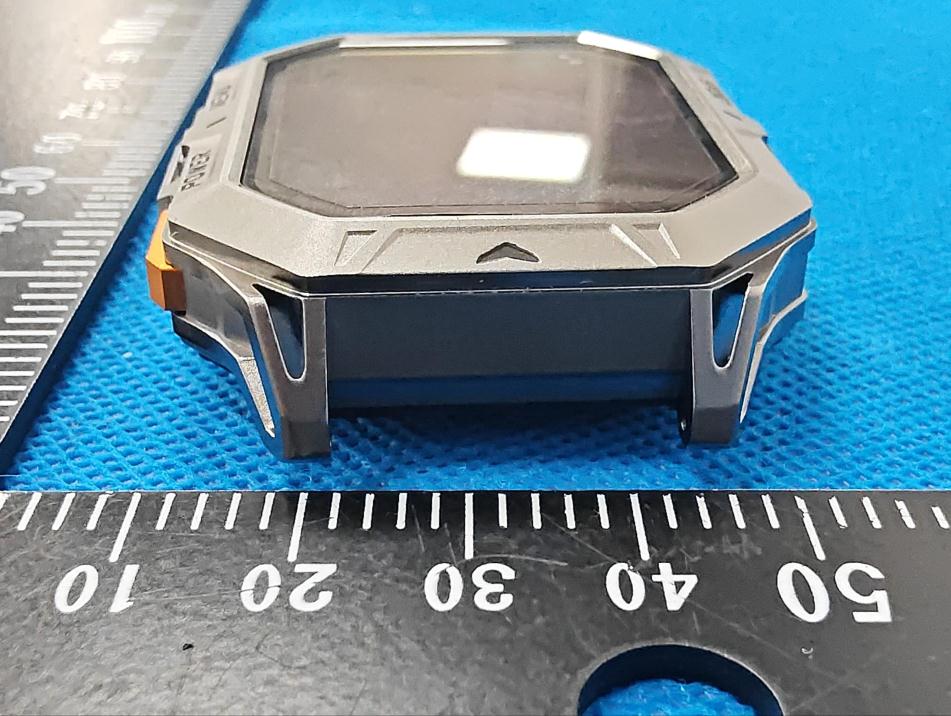

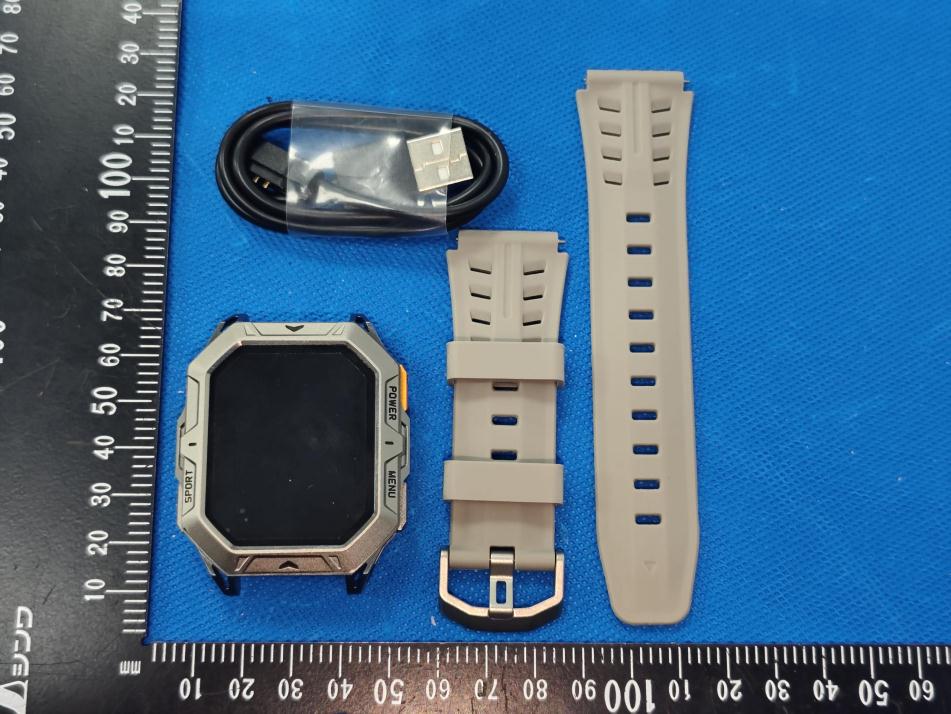

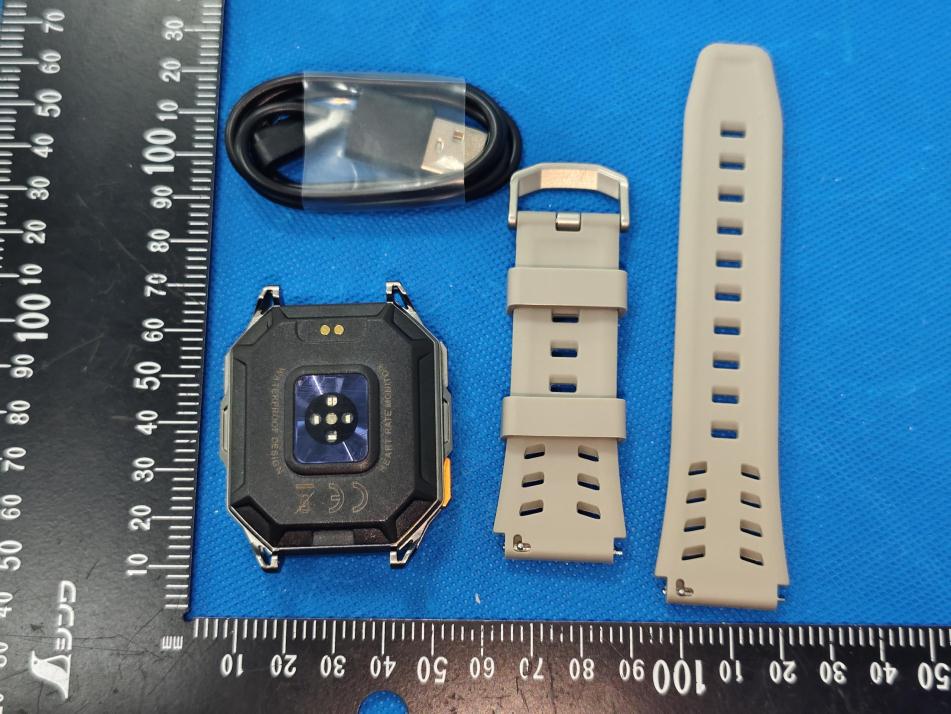

External Photos

Size:15*1mm FCC ID: 2BFCM-X1PRO Label location

Internal Photos Antenna

FCC ID: 2BFCM-X1PRO RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where f(GHz) is the RF channel transmit frequency in GHz Power and distance are rounded to the nearest mW and mm before calculation When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion. The result is rounded to one decimal place for comparison GFSK Modulation Frequency (MHz) Max. Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR 8DPSK 2441 2.21 2.5 1.78 5 0.56 3.0 GFSK (2Mbps) 2440 1.46 1.5 1.41 5 0.44 3.0 Conclusion: For the max result: 0.56W/Kg ≤ FCC Limit 3.0 for 1g SAR. The Product unsupported at the same time to Transmitting.

天 线 调 试 测 试 报 告 test report 客 户：乐戴 项 目 : X1 Pro 射 频： 谷工 日 期： 2024.05.27 版 本： V01 BT 天 线 驻 波 图 BT 天 线 无 源 手 模 效 率 BT 暗 室 无 源 效 率 苹 果 图 2400.000MHz2480.000MHz2440.000MHz 天 线 外 形 图

No.：BCTC/RF-EMC-005 Page: 1 of 85 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2411541002-2E Applicant: LEADOYS Technology (ShenZhen) Co., Ltd. Product Name: Smart watch Test Model: X1 Pro Tested Date: 2024-11-04 to 2024-11-14 Issued Date: 2024-11-14 Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 2 of 85 Edition：B.2 FCC ID: 2BFCM-X1PRO The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Smart watch Trademark: N/A Model/Type Reference: X1 Pro Prepared For: LEADOYS Technology (ShenZhen) Co., Ltd. Address: Room 501, Building B, Bantian International Center, Longgang, Shenzhen, China Manufacturer: LEADOYS Technology (ShenZhen) Co., Ltd. Address: Room 501, Building B, Bantian International Center, Longgang, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-11-04 Sample Tested Date: 2024-11-04 to 2024-11-14 Issue Date: 2024-11-14 Report No.: BCTC2411541002-2E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Min Zhi Cheng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 3 of 85 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 25 8.1 Block Diagram Of Test Setup .............................................................................. 25 8.2 Limit .................................................................................................................... 25 8.3 Test procedure .................................................................................................... 26 8.4 EUT operating Conditions ................................................................................... 26 8.5 Test Result .......................................................................................................... 27 9. Spurious RF Conducted Emissions ..................................................................... 28 9.1 Block Diagram Of Test Setup .............................................................................. 28 9.2 Limit .................................................................................................................... 28 9.3 Test procedure .................................................................................................... 28 9.4 Test Result .......................................................................................................... 28 10. 20 d…

Text truncated - open the document above for the full version.

Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 51 of 85 Edition：B.2 Test Graphs -20dB Bandwidth NVNT 1-DH1 2402MHz -20dB Bandwidth NVNT 1-DH1 2441MHz Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 52 of 85 Edition：B.2 -20dB Bandwidth NVNT 1-DH1 2480MHz -20dB Bandwidth NVNT 2-DH1 2402MHz Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 53 of 85 Edition：B.2 -20dB Bandwidth NVNT 2-DH1 2441MHz -20dB Bandwidth NVNT 2-DH1 2480MHz Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 54 of 85 Edition：B.2 -20dB Bandwidth NVNT 3-DH1 2402MHz -20dB Bandwidth NVNT 3-DH1 2441MHz Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 55 of 85 Edition：B.2 -20dB Bandwidth NVNT 3-DH1 2480MHz Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 56 of 85 Edition：B.2 11. Maximum Peak Output Power 11.1 Block Diagram Of Test Setup 11.2 Limit FCC Part15 (15.247) , Subpart C Section Test Item Limit Frequency Range (MHz) Result 15.247(b)(1) Peak Output Power 0.125 watt or 21dBm 2400-2483.5 PASS 11.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 2MHz. VBW = 6MHz. Sweep = auto; Detector Function = Peak. 3. Keep the EUT in transmitting at lowest, medium and highest channel individually. Record the max value. 11.4 Test Result Temperature: 26 °C Relative Humidity: 54%RH Pressure: 101KPa Test Voltage : DC 3.8V Condition Mode Frequency (MHz) Conducted Power (dBm) Limit (dBm) Verdict NVNT 1-DH1 2402 1.10 21 Pass NVNT 1-DH1 2441 1.28 21 Pass NVNT 1-DH1 2480 0.85 21 Pass NVNT 2-DH1 2402 1.52 21 Pass NVNT 2-DH1 2441 1.64 21 Pass NVNT 2-DH1 2480 1.17 21 Pass NVNT 3-DH1 2402 1.89 21 Pass NVNT 3-DH1 2441 2.21 21 Pass NVNT 3-DH1 2480 1.68 21 Pass Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 57 of 85 Edition：B.2 Test Graphs Power NVNT 1-DH1 2402MHz Power NVNT 1-DH1 2441MHz Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 58 of 85 Edition：B.2 Power NVNT 1-DH1 2480MHz Power NVNT 2-DH1 2402MHz Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 59 of 85 Edition：B.2 Power NVNT 2-DH1 2441MHz Power NVNT 2-DH1 2480MHz Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 60 of 85 Edition：B.2 Power NVNT 3-DH1 2402MHz Power NVNT 3-DH1 2441MHz Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 61 of 85 Edition：B.2 Power NVNT 3-DH1 2480MHz Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 62 of 85 Edition：B.2 12. Hopping Channel Separation 12.1 Block Diagram Of Test Setup 12.2 Limit Frequency hopping systems shall have hopping channel carrier frequencies separated by a minimum of 25 kHz or the 20 dB bandwidth of the hopping channel, whichever is greater. Alternatively, frequency hopping systems operating in the 2400-2483.5 MHz band may have hopping channel carrier frequencies that are separated by 25 kHz or two-thirds of the 20 dB bandwidth of the hopping channel, whichever is greater, provided the systems operate with an output power no greater than 0.125W. 12.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 30kHz. VBW = 100kHz , Span = 2.0MHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. Use the marker-delta function to determine the separation between the peaks of the adjacent channels. The limit is specified in one of the subparagraphs of this Section Submit this plot. 12.4 Test Result Mode Test Channel Separation (MHz) Limit(MHz) Result 1-DH1 Low 1.030 0.673 PASS 1-DH1 Middle 0.990 0.659 PASS 1-DH1 High 0.988 0.658 PASS 2-DH1 Low 0.994 0.890 PASS 2-DH1 Middle 1.010 0.880 PASS 2-DH1 High 1.000 0.888 PASS 3-DH1 Low 0.998 0.906 PASS 3-DH1 Middle 0.998 0.891 PASS 3-DH1 High 0.998 0.895 PASS Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 63 of 85 Edition：B.2 Test Graphs CFS NVNT 1-DH1 2402MHz CFS NVNT 1-DH1 2441MHz Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 64 of 85 Edition：B.2 CFS NVNT 1-DH1 2480MHz CFS NVNT 2-DH1 2402MHz Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 65 of 85 Edition：B.2 CFS NVNT 2-DH1 2441MHz CFS NVNT 2-DH1 2480MHz Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 66 of 85 Edition：B.2 CFS NVNT 3-DH1 2402MHz CFS NVNT 3-DH1 2441MHz Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 67 of 85 Edition：B.2 CFS NVNT 3-DH1 2480MHz Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 68 of 85 Edition：B.2 13. Number Of Hopping Frequency 13.1 Block Diagram Of Test Setup 13.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. 13.3 Test procedure 1. Remove the antenna from the EUT and then connect a low RF cable from the antenna port to the spectrum. 2. Set the spectrum analyzer: RBW = 100kHz. VBW = 300kHz. Sweep = auto; Detector Function = Peak. Trace = Max hold. 3. Allow the trace to stabilize. It may prove necessary to break the span up to sections. in order to clearly show all of the hopping frequencies. The limit is specified in one of the subparagraphs of this Section. 4. Set the spectrum analyzer: Start Frequency = 2.4GHz, Stop Frequency = 2.4835GHz. Sweep=auto; 13.4 Test Result Condition Mode Hopping Number Limit Verdict NVNT 1-DH1 79 15 Pass NVNT 2-DH1 79 15 Pass NVNT 3-DH1 79 15 Pass Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 69 of 85 Edition：B.2 Test Graphs Hopping No. NVNT 1-DH1 2441MHz Hopping No. NVNT 2-DH1 2441MHz Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 70 of 85 Edition：B.2 Hopping No. NVNT 3-DH1 2441MHz Report No.: BCTC2411541002-2E No.：BCTC/RF-EMC-005 Page: 71 of 85 Edition：B.2 14. Dwell Time 14.1 Block Diagram Of Test Setup 14.2 Limit Frequency hopping systems in the 2400-2483.5 MHz band shall use at least 15 channels. The average time of occupancy on any channel shall not be greater than 0.4 seconds within a period of 0.4 seconds multiplied by the number of hopping channels…

Text truncated - open the document above for the full version.

Report No.: BCTC2411541002-1E No.：BCTC/RF-EMC-005 Page: 51 of 53 Edition：B.2 15. EUT Test Setup Photographs Conducted emissions Report No.: BCTC2411541002-1E No.：BCTC/RF-EMC-005 Page: 52 of 53 Edition：B.2 Radiated Measurement Photos
