2BFCM-X2Smart watch

Download APP Scan QR code with mobile phone to download App. User Manual EN - 01 - About the Smart Watch The watch features press-buttons and color screen design, integrating multiple functions into one. The large color display provides a broader field of view. Wake up: Screen Off: （1）Single press any button to wake up the screen. （2）Raise or inwardly flip your wrist to light up the screen. After turning on the screen with a button press or wrist raise, the screen will automatically turn off after a period of inactivity. Select “setting” > “Display & Brightness ” > “Sleep”, set screen off time. Charging: Align the charging cable with the charging area on the back of the device, connect the other end to a charger and power it on until the screen shows the charging indicator. Power on: The device will power on automatically when charging, or you can long-press the top button to turn it on. Charging and Powering On Please keep the charging cable, device, etc. dry when charging. It is recommended to use a power adapter with a rated output voltage of 5V and a rated output current of 1A to power the charging cable. Consumers should use a power adapter that is CCC certified and meets the standard requirements for charging. Power button Microphone Custom keys Sport Key Heart rate and blood oxygen sensor Charging port - 02 - Harmony OS and Android User Turn to the GloryFit Pro App, click on “add device” button, the App will automatically scan for connectable devices, then click on the target device to connect and pair according to the prompts on the interface. Pairing and connection After the first power on, the device Bluetooth is in pairable status by default. Please download and install the latest version of GloryFit Pro App before pairing. Please make sure your phone has Bluetooth and location services turned on. Click the Bluetooth name X2 to bind or scan the QR code to connect. You need to agree to the following permissions before using the Bluetooth call function. If replacing a paired connected phone, you will need to go to App > Remove Device >. pair with X2 Bluetooth pairing request Cancel Pair - 03 - IOS User Turn to the GloryFit Pro App, click “Add Device”, find the “X2” in the list to pair. Or you can scan the code to connect the device You need to agree to the following permission before using the Bluetooth calling function. If need to change the smartphone to connect the smartwatch, go to the App, turn to smartwatch connected page, then scroll to the bottom and click unbind. When connecting the device with a different account or phone, the device will be restored to factory settings. Bluetooth Pairing Request CancelPair "X2" would like to pair with your iPhone. Allow X2 to Receive Your iPhone Notifications? Don't AllowAllow When connected, all notifications you receive on your iPhone will also be sent to X2 and may be shown on its display. Please wear the watch correctly to maintain a comfortable and snug fit. Please tear off the film on the back of the watch before wearing it, because there is a sensor on the bottom of the watch to identify the human body. Once it is blocked, the Watch Wearing - 04 - recognition will be inaccurate, which will lead to the accuracy of heart rate, blood oxygen, and other records. Please avoid wearing the watch at least one finger distance from the bone joints, and keep the strap loosened and tightened moderately, and try to wear it as tight as possible when you are exercising. Touch Button and Screen Operations Heart Rate Measurement The smart watch support full screen touch, slide up, slide down, slide left, slide right, long press operation. To ensure the accuracy of heart rate measurement, please wear the watch normally, avoiding the bone joints, not too loose, and please wear it as tightly as possible when exercising. Select Heart Rate in the watch app list for a single heart rate measurement. Due to external factors (e.g., hairy arms, tattoos, darker skin color, sagging arms, shaky arms), etc., measurements may not be accurate, or the value may not come out. SPORT (down button): 1. Short press to enter the sports mode list 2. Long press to open the stopwatch POWER (up button): 1.Short press to wake up the screen / Return to watch face/Turn to the Menu. 2. Long press to turn on / off, restart, SOS. CUSTOM (down button): 1. Short press to set custom function/Return to previous Custom. 2. Long press to open the timer. The short press function needs to be set by the user. If the short press function is not set, pressing the CUSTOM button will prompt you to set it. Single Heart Rate Measurement - 05 - Supports 150+ sports modes and can automatically recognize daily activities. A new professional swimming algorithm records your pace and lap count. The built-in high-precision GPS calibrates distances in real-time and accurately tracks your workout routes. 1. When the device with independent GPS is away from the phone during outdoor exercise, it can record the workout route. You can view the workout records on the watch. 2. In Swimming Mode, the touch function will be disabled. Use the buttons to exit the workout. 3. If the watch is submerged in water during a workout, use the Smart Drain feature and shake your arm to expel water from the speaker and microphone openings. Continue sports Press and hold to end Enter the GloryFit Pro app, click Other Settings > All-day heart rate, and turn on the continuous heart rate measurement switch. Once turned on, the watch will continuously measure heart rate according to the set time. Continuous Heart Rate Measurement Sports Mode - 06 - The altitude value is estimated based on the watch's barometric sensor readings. Weather changes can affect barometric pressure, which may impact the accuracy of the altitude measurement. The electronic compass is a modern navigation tool that can be used in various situations. Before use, wear the watch on your wrist and follow the on-screen instructions to calibrate, keeping it aw…

Text truncated - open the document above for the full version.

LEADOYS Technology (ShenZhen) Co., Ltd. U.S. Agent Designation for Service of Process (Applicant and U.S. Agent are Separate Parties) TO: Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046, USA ATTENTION: FCC Certification – Section 2.911(d)(7) Information Designated U.S. Agent Company Name: AOCE Corporation Inc. FRN: 0033401381 Contact Name: Johnson.wang Address: 6547 N Academy Bivd #2266, Colorado Springs, CO,80918 United States Telephone No: +1-346-582-5234 Email: [email protected] This letter is to confirm that we (“the Designated U.S. Agent) have accepted the responsibility to act as the Designated U.S. Agent for Service of Process as required by section 47 CFR 2.911(d)(7) on behalf of the Applicant noted below. U.S. Agent Signature: Date: 2024/9/20 Signed by (Printed Name/Title): The Applicant acknowledges that they must maintain an agent for no less than one year after terminating all marketing and importation OR the conclusion of any Commission-related proceeding involving the equipment. The applicant further acknowledges their responsibility to inform the FCC whenever the Designated U.S. Agent information above changes. Applicant Company name: LEADOYS Technology (ShenZhen) Co., Ltd. Grantee Code: 2BFCM FCC ID: 2BFCM-X2 FRN: 0035098169 Contact Name: Fan zhijun Address: Room 505, Building B, Bantian International Center, Longgang, Shenzhen, China Telephone No: +86-13603034599 Email: [email protected] Applicant Signature: Date: 2024/9/20 Signed by (Printed Name/Title): Fan zhijun / Manager

LEADOYS Technology (ShenZhen) Co., Ltd. 2024/9/20 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(i) request for (FCC ID: 2BFCM-X2) [LEADOYS Technology (ShenZhen) Co., Ltd.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. Sincerely, (Applicant signature) (Applicant printed name) Fan zhijun LEADOYS Technology (ShenZhen) Co., Ltd. 2024/9/20 Eurofins Electrical and Electronic Testing NA, Inc. 914 West Patapsco Avenue Baltimore, MD 21230 RE: Attestation Statements Part 2.911(d)(5)(ii) request for (FCC ID: 2BFCM-X2) [LEADOYS Technology (ShenZhen) Co., Ltd.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant is not identified on the Covered List as an entity producing “covered” equipment. Sincerely, (Applicant signature) (Applicant printed name) Fan zhijun

LEADOYS Technology (ShenZhen) Co., Ltd. 2024/9/20 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: CONFIDENTIALITY REQUEST FOR EUT NAME: Smart watch Trademark: N/A MODEL: X2, X2 PLUS, X2 PRO, BT105, BT108, GT 1 FCC ID: 2BFCM-X2 To Whom It May Concern: This letter serves as an official request for confidentiality under sections 0.457 and 0.459 of CFR 47. We have requested that the - Block Diagram - Schematics - Operational Description required to be submitted with this application be permanently withheld from public review. The above materials contain trade secrets and proprietary information not customarily released to the public. The public disclosure of these materials may be harmful to the applicant and provide unjustified benefits to its competitors. Please contact me if there is any information you may need. Sincerely, Client’s signature: Client’s name / title: Fan zhijun / Manager Contact information / address: Room 505, Building B, Bantian International Center, Longgang, Shenzhen, China

LEADOYS Technology (ShenZhen) Co., Ltd. 2024/9/20 Eurofins Electrical and Electronic Testing NA, Inc. 914 W. Patapsco Avenue Baltimore, MD 21230 USA RE: LETTER OF AGENT AUTHORIZATION EUT NAME: Smart watch Trademark: N/A MODEL: X2, X2 PLUS, X2 PRO, BT105, BT108, GT 1 FCC ID: 2BFCM-X2 To Whom It May Concern: We, the undersigned, hereby authorize Shenzhen BCTC Testing Co., Ltd to act on our behalf in all matters relating to application for equipment authorization, including the signing of all documents relating to these matters. We also hereby certify that no party to the application authorized hereunder is subject to the denial of benefits, including FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C.853(a). This agreement expires one year from the current date. Sincerely, Client’s signature: Client’s name / title: Fan zhijun / Manager Contact information / address: Room 505, Building B, Bantian International Center, Longgang, Shenzhen, China

LEADOYS Technology (ShenZhen) Co., Ltd. 2024/9/20 EUT NAME: Smart watch Trademark: N/A MODEL: X2, X2 PLUS, X2 PRO, BT105, BT108, GT 1 FCC ID: 2BFCM-X2 All the model are the same circuit and RF module, except model names. Sincerely Client’s signature: Client’s name / title: Fan zhijun / Manager Contact information / address: Room 505, Building B, Bantian International Center, Longgang, Shenzhen, China

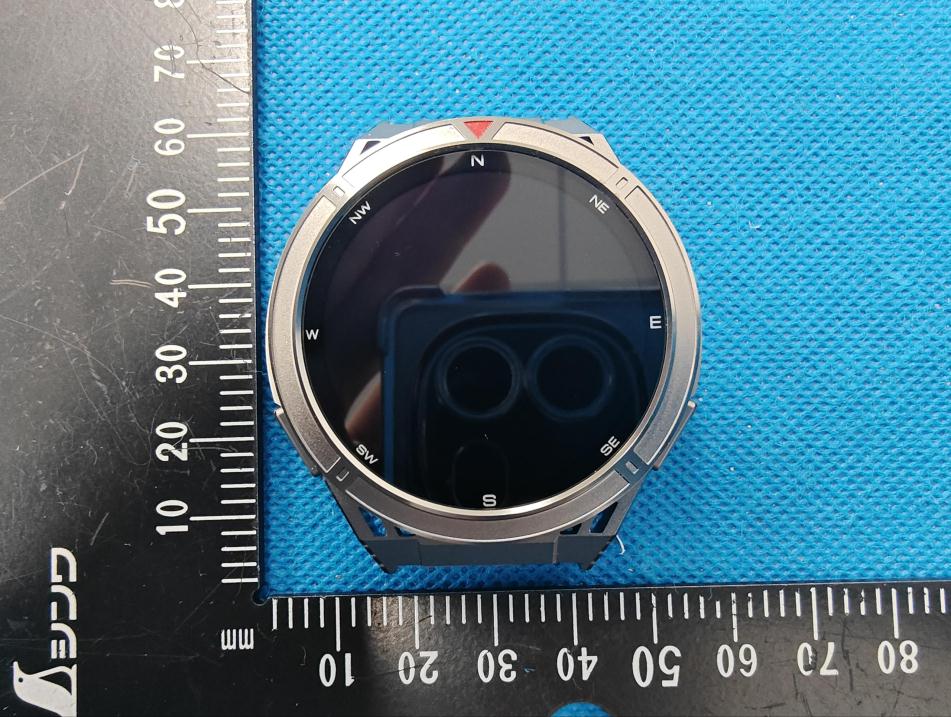

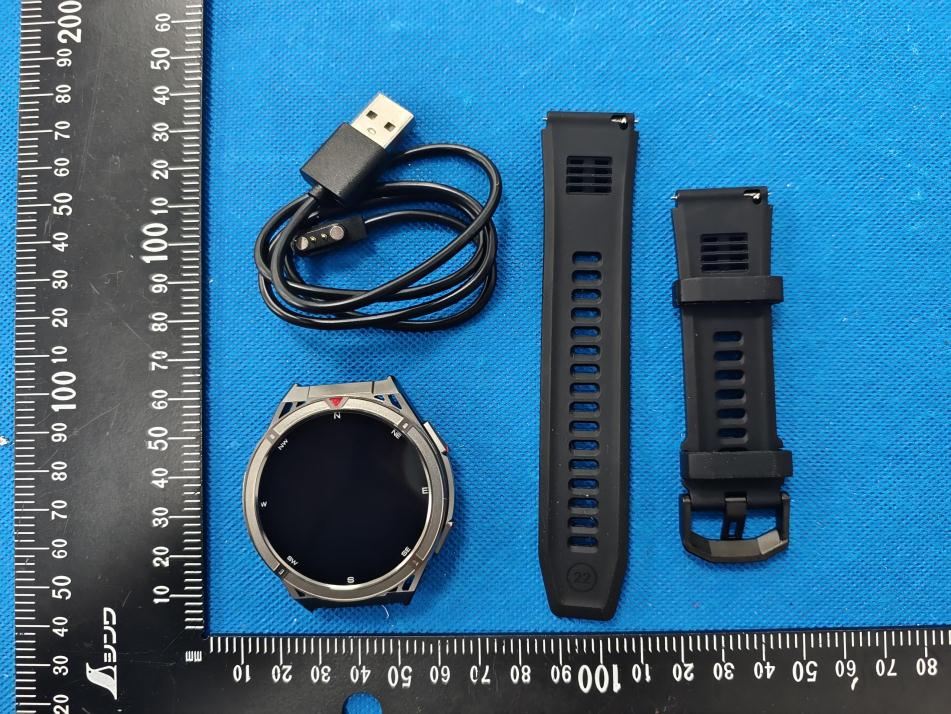

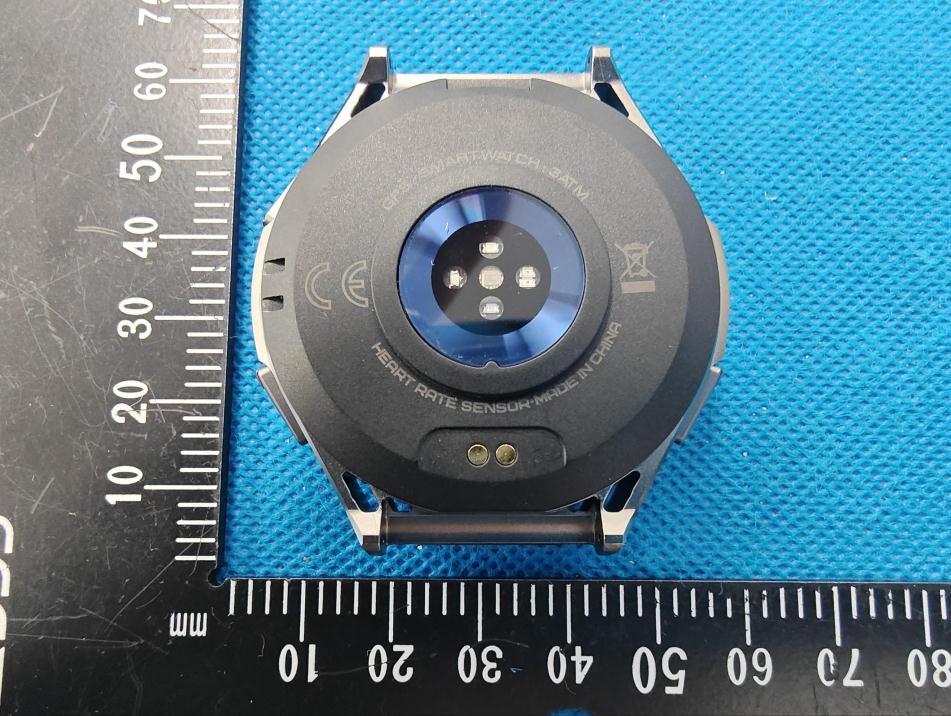

External Photos

Size:15*1mm FCC ID: 2BFCM-X2 Label location

Internal Photos Antenna

FCC ID: 2BFCM-X2 RF exposure evaluation §2.1093 Radiofrequency radiation exposure evaluation: Portable Devices. According to§15.247(i) and§1.1307b(1), systems operating under the provisions of this section shall be operated in a manner that ensures that the public is not exposed to radio frequency energy level in excess of the commission’s guidance. The 1-g SAR test exclusion thresholds for 100 MHz to 6 GHz at test separation distances ≤ 50 mm are determined by: [(max. power of channel, including tune-up tolerance, mW) / (min. test separation distance, mm)] · [√f(GHz)] ≤ 3.0 for 1-g SAR, where  f(GHz) is the RF channel transmit frequency in GHz  Power and distance are rounded to the nearest mW and mm before calculation  When the minimum test separation distance is < 5 mm, a distance of 5 mm according is applied to determine SAR test exclusion.  The result is rounded to one decimal place for comparison  GFSK Modulation Frequency (MHz) Max. Power (dBm) Max. Tune up Power (dBm) Max. Tune up Power (mW) Test distance (mm) Result exclusion thresholds for 1-g SAR π/ 4 DQPSK 2402 0.54 1.0 1.26 5 0.40 3.0 GFSK(1Mbps) 2402 3.27 3.5 2.24 5 0.71 3.0 Conclusion: For the max result: 0.71W/Kg ≤ FCC Limit 3.0 for 1g SAR. The Product unsupported at the same time to Transmitting.

ANWEIcommnuicationEquipmentCo.,Ltd APPROVALSHEET Customer LEDAI Specs X2 PartNumberFrequencyBand GPS:L1:1575.42MHZ,L5:1176.45MHZ BT:2400~2500MHZ Color Black Edition REV:A0 Salesperson Mr.LIN Design LEIYAOBO Structure QINYUNLIN Confirm Date 2024/08/27 SigningDate Customerconfirmation: ANTManufacturers： ANWEIcommnuicationEquipmentCo.,Ltd Address:2ndFloor,EastBlock,Building5,YifenghuaInnovationIndustrialPark,HuaningRoad,DalangStreet,Longhua District,ShenzhenCity,GuangdongProvince Projectdevelopmentenvironment  (GPS/BTantenna) (Workingfrequencyband)：L1:1575.42MHZ,L5:1176.45MHZ2400~2500MHZ (Matcheingnetwork)： (GPSTest) (BTTest) (EfficiencygainofGPS,antenna)： FrequencyID12 Frequency （ MHz ） 1176.4499511575.420044 Gain （ dBi ） -7.570.44 Efficiency （ % ） 5.7325.9 (EfficiencygainofBT,antenna)： FrequencyID1 Frequency （ MHz ） 2420 Gain （ dBi ） -5.59 Efficiency （ % ） 14.22 GPSantennaapplemap （GPSantenna）PolarGraphs/EtotalGraphs （2.4GBTantenna）appleMap （2.4GBTAntenna）PolarGraphs/EtotalGraphs environmentaltreatment Antenna size (mm)

No.：BCTC/RF-EMC-005 Page: 1 of 85 Edition：B.2 Page:1of85 Edition：B.2 TEST REPORT Shenzhen BCTC Testing Co., Ltd. Report No.: BCTC2409673449-1E Applicant: LEADOYS Technology (ShenZhen) Co., Ltd. Product Name: Smart watch Test Model: X2 Tested Date: 2024-09-04 to 2024-09-13 Issued Date: 2024-09-14 Report No.: BCTC2409673449-1E No.：BCTC/RF-EMC-005 Page: 2 of 85 Edition：B.2 Page:2of85 Edition：B.2 FCC ID: 2BFCM-X2 The test report is effective only with both signature and specialized stamp.This result(s) shown in this report refer only to the sample(s) tested. Without written approval of Shenzhen BCTC Testing Co., Ltd, this report can’t be reproduced except in full.The tested sample(s) and the sample information are provided by the client. Product Name: Smart watch Trademark: N/A Model/Type Reference: X2 X2 PLUS, X2 PRO, BT105, BT108, GT 1 Prepared For: LEADOYS Technology (ShenZhen) Co., Ltd. Address: Room 505, Building B, Bantian International Center, Longgang, Shenzhen, China Manufacturer: LEADOYS Technology (ShenZhen) Co., Ltd. Address: Room 505, Building B, Bantian International Center, Longgang, Shenzhen, China Prepared By: Shenzhen BCTC Testing Co., Ltd. Address: 1-2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China Sample Received Date: 2024-09-04 Sample Tested Date: 2024-09-04 to 2024-09-13 Issue Date: 2024-09-14 Report No.: BCTC2409673449-1E Test Standards: FCC Part15.247 ANSI C63.10-2013 Test Results: PASS Remark: This is Bluetooth Classic radio test report. Tested by: Approved by: Approved by: Min Zhi Cheng/ Project Handler Zero Zhou/Reviewer Report No.: BCTC2409673449-1E No.：BCTC/RF-EMC-005 Page: 3 of 85 Edition：B.2 Page:3of85 Edition：B.2 Table Of Content Test Report Declaration Page 1. Version .................................................................................................................. 5 2. Test Summary ....................................................................................................... 6 3. Measurement Uncertainty ..................................................................................... 7 4. Product Information And Test Setup ..................................................................... 8 4.1 Product Information ............................................................................................... 8 4.2 Test Setup Configuration ...................................................................................... 9 4.3 Support Equipment ............................................................................................... 9 4.4 Channel List ........................................................................................................ 10 4.5 Test Mode ........................................................................................................... 10 4.6 Table Of Parameters Of Text Software Setting ................................................... 10 5. Test Facility And Test Instrument Used ............................................................... 11 5.1 Test Facility ......................................................................................................... 11 5.2 Test Instrument Used .......................................................................................... 11 6. Conducted Emissions .......................................................................................... 13 6.1 Block Diagram Of Test Setup .............................................................................. 13 6.2 Limit .................................................................................................................... 13 6.3 Test procedure .................................................................................................... 13 6.4 EUT operating Conditions ................................................................................... 13 6.5 Test Result .......................................................................................................... 14 7. Radiated emissions ............................................................................................. 16 7.1 Block Diagram Of Test Setup .............................................................................. 16 7.2 Limit .................................................................................................................... 17 7.3 Test procedure .................................................................................................... 18 7.4 EUT operating Conditions ................................................................................... 19 7.5 Test Result .......................................................................................................... 19 8. Radiated Band Emission Measurement And Restricted Bands Of Operation ..... 25 8.1 Block Diagram Of Test Setup .............................................................................. 25 8.2 Limit .................................................................................................................... 25 8.3 Test procedure .................................................................................................... 26 8.4 EUT operating Conditions ................................................................................... 26 8.5 Test Result .......................................................................................................... 27 9. Spurious RF Conducted Emissions ..................................................................... 28 9.1 Block Diagram Of Test Setup .............................................................................. 28 9.2 Limit .................................................................................................................... 28 9.3 Test procedure .................................................................................................... 28 9.4 Test Result ...........…

Text truncated - open the document above for the full version.

Report No.: BCTC2409673449-1E No.：BCTC/RF-EMC-005 Page: 74 of 85 Edition：B.2 Page:74of85 Edition：B.2 Dwell NVNT 1-DH5 2441MHz One Burst Dwell NVNT 1-DH5 2441MHz Accumulated Report No.: BCTC2409673449-1E No.：BCTC/RF-EMC-005 Page: 75 of 85 Edition：B.2 Page:75of85 Edition：B.2 Dwell NVNT 2-DH1 2441MHz One Burst Dwell NVNT 2-DH1 2441MHz Accumulated Report No.: BCTC2409673449-1E No.：BCTC/RF-EMC-005 Page: 76 of 85 Edition：B.2 Page:76of85 Edition：B.2 Dwell NVNT 2-DH3 2441MHz One Burst Dwell NVNT 2-DH3 2441MHz Accumulated Report No.: BCTC2409673449-1E No.：BCTC/RF-EMC-005 Page: 77 of 85 Edition：B.2 Page:77of85 Edition：B.2 Dwell NVNT 2-DH5 2441MHz One Burst Dwell NVNT 2-DH5 2441MHz Accumulated Report No.: BCTC2409673449-1E No.：BCTC/RF-EMC-005 Page: 78 of 85 Edition：B.2 Page:78of85 Edition：B.2 Dwell NVNT 3-DH1 2441MHz One Burst Dwell NVNT 3-DH1 2441MHz Accumulated Report No.: BCTC2409673449-1E No.：BCTC/RF-EMC-005 Page: 79 of 85 Edition：B.2 Page:79of85 Edition：B.2 Dwell NVNT 3-DH3 2441MHz One Burst Dwell NVNT 3-DH3 2441MHz Accumulated Report No.: BCTC2409673449-1E No.：BCTC/RF-EMC-005 Page: 80 of 85 Edition：B.2 Page:80of85 Edition：B.2 Dwell NVNT 3-DH5 2441MHz One Burst Dwell NVNT 3-DH5 2441MHz Accumulated Report No.: BCTC2409673449-1E No.：BCTC/RF-EMC-005 Page: 81 of 85 Edition：B.2 Page:81of85 Edition：B.2 15. Antenna Requirement 15.1 Limit 15.203 requirement: For intentional device, according to 15.203: an intentional radiator shall be designed to ensure that no antenna other than that fu rnished by the responsible party shall be used with the device. 15.2 Test Result The EUT antenna is an external antenna. The external interface is integrated with the shell, and the connection position is inside the prototype, which meets the requirements in this section. Report No.: BCTC2409673449-1E No.：BCTC/RF-EMC-005 Page: 82 of 85 Edition：B.2 Page:82of85 Edition：B.2 16. EUT Photographs EUT Photo NOTE: Appendix-Photographs Of EUT Constructional Details Report No.: BCTC2409673449-1E No.：BCTC/RF-EMC-005 Page: 83 of 85 Edition：B.2 Page:83of85 Edition：B.2 17. EUT Test Setup Photographs Conducted emissions Report No.: BCTC2409673449-1E No.：BCTC/RF-EMC-005 Page: 84 of 85 Edition：B.2 Page:84of85 Edition：B.2 Radiated Measurement Photos Report No.: BCTC2409673449-1E No.：BCTC/RF-EMC-005 Page: 85 of 85 Edition：B.2 Page:85of85 Edition：B.2 STATEMENT 1. The equipment lists are traceable to the national reference standards. 2. The test report can not be partially copied unless prior written app ro val is issued from our lab. 3. The test report is invalid without the "special seal for inspection and testing". 4. The test report is invalid without the signature of the approver. 5. The test process and test result is only related to the Unit Under Te st. 6. Sample information is provided by the client and the laboratory is not responsible for its authenticity. 7. The quality system of our laboratory is in accordance with ISO/IEC17025. 8. If there is any objection to this test report, the clien t should inform issuing laboratory within 15 days from the date of receiving test report. Address: 1- 2/F., Building B, Pengzhou Industrial Park, No.158, Fuyuan 1st Road, Zhancheng, Fuhai Subdistrict, Bao'an District, Shenzhen, Guangdong, China TEL: 400-788-9558 P. C.: 518103 FAX: 0755-33229357 Website: http://www.chnbctc.com Consultation E-mail: [email protected] Complaint/Advice E-mail: [email protected] ※※※※※ END ※※※※※

Report No.: BCTC2409673449-1E No.：BCTC/RF-EMC-005 Page: 83 of 85 Edition：B.2 17. EUT Test Setup Photographs Conducted emissions Report No.: BCTC2409673449-1E No.：BCTC/RF-EMC-005 Page: 84 of 85 Edition：B.2 Radiated Measurement Photos
