ShenzhenMuduTechnologyCo.,Ltd Add:4thFloor,FactoryBuilding,No.82ZhulongtianRoadShuitianCommunity,Shiyan StreetShenzhen,China Date:2026/5/7 FCCID:2BFH6-E90 DearSir/Madam, We,ShenzhenMuduTechnologyCo.,LtdHerebydeclaresthefollowingstatementforFederal CommunicationsCommission,PCBboard,circuit,structureandinternalofthesemodel(s)are thesame,Onlymodelnumberisdifferentforthesemodel: Productname:SmartGlasses Modelno.:E90,AIQU81 Sincerely, PrintedNameofSignee:AmbertGao/Maneger Company:ShenzhenMuduTechnologyCo.,Ltd Address:4thFloor,FactoryBuilding,No.82ZhulongtianRoadShuitianCommunity,Shiyan StreetShenzhen,China Phone:18589044591 Fax:/ Email:[email protected]

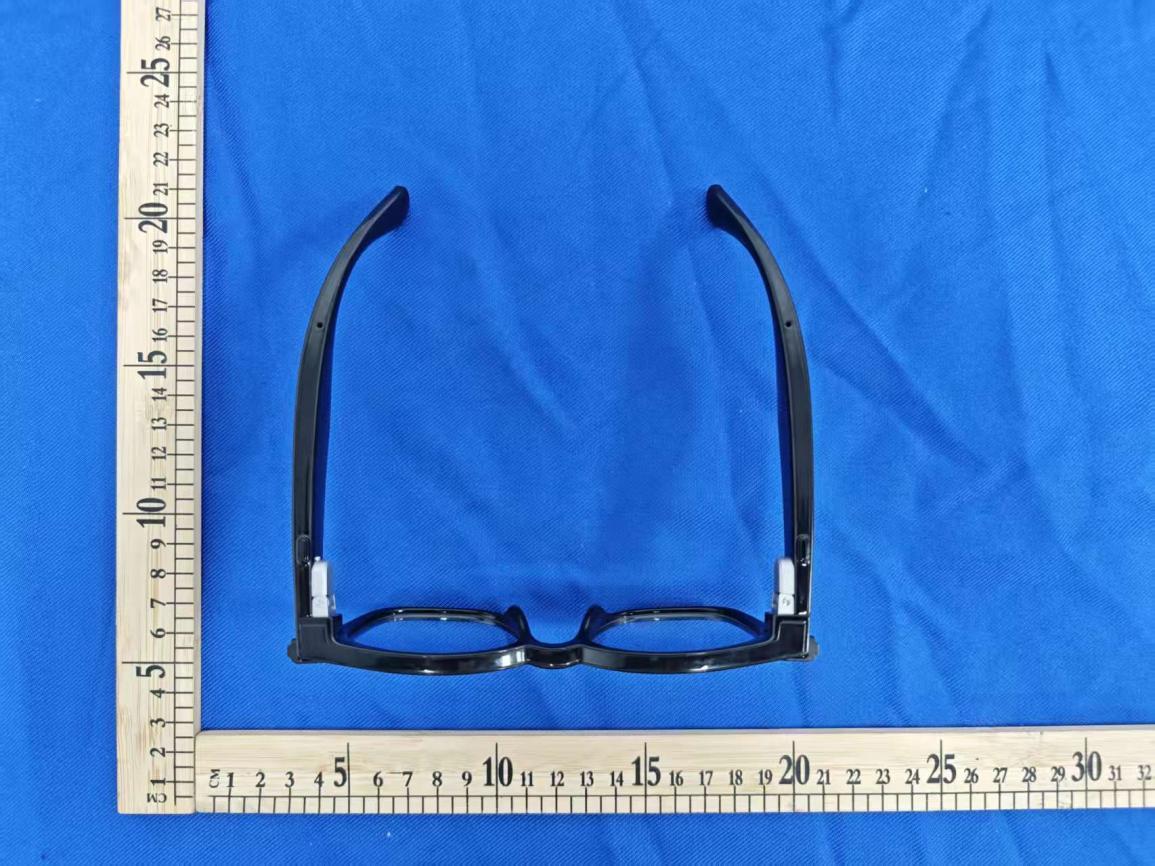

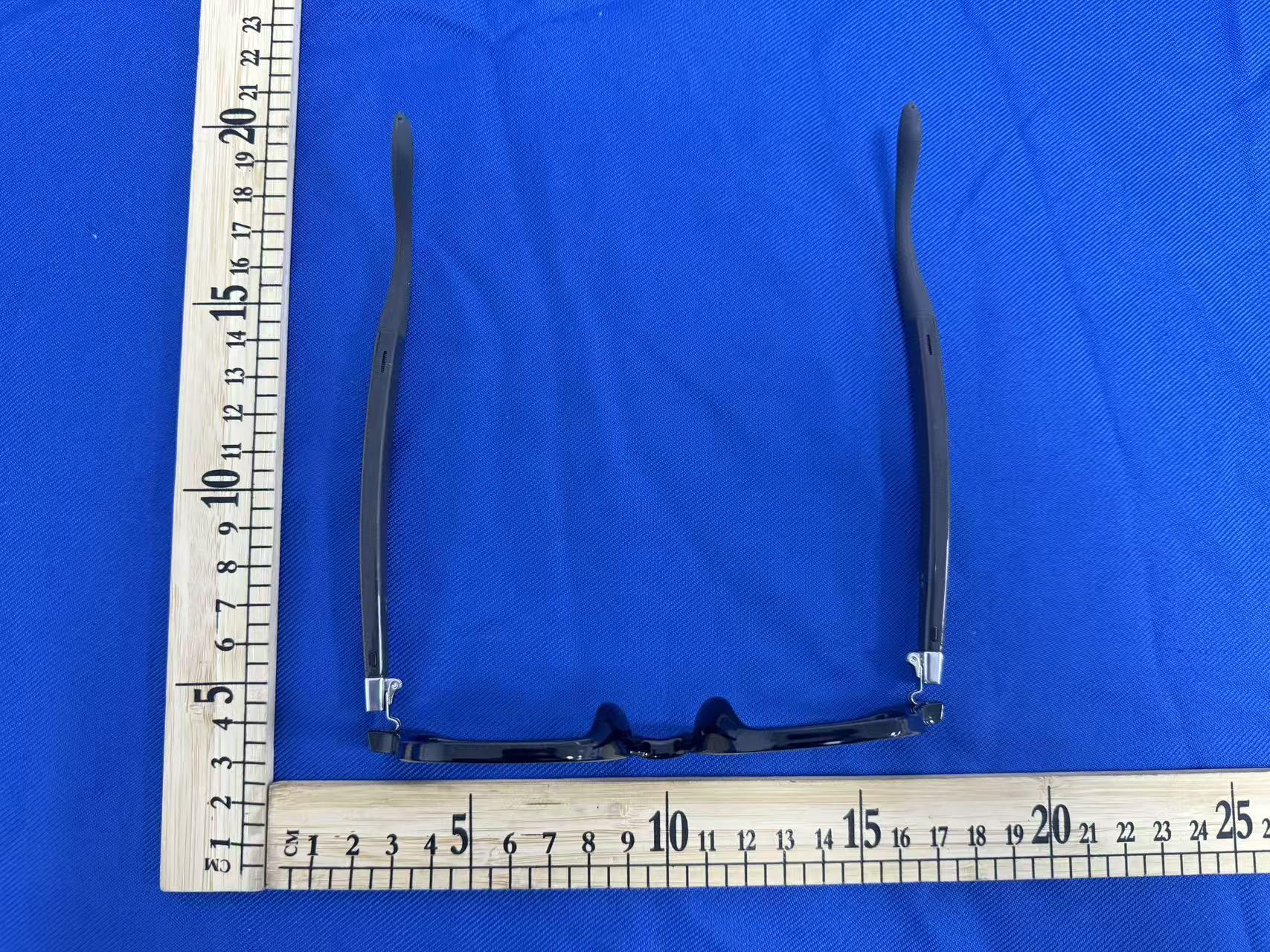

DNT2603020217R00413-P01Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2BFH6-E90 ExternalPhotos ExternalPhotos DNT2603020217R00413-P01Page: 2 of 3 ExternalPhotos ExternalPhotos DNT2603020217R00413-P01Page: 3 of 3 ExternalPhotos ExternalPhotos --END--

FCCID:2BFH6-E90

DNT2603020217R00413-P01Page: 1 of 5 PHOTOGRAPHSOFEUT FCCID:2BFH6-E90 InternalPhotos(Left) InternalPhotos(Left) DNT2603020217R00413-P01Page: 2 of 5 InternalPhotos(Left) InternalPhotos(Left) DNT2603020217R00413-P01Page: 3 of 5 InternalPhotos(Right) InternalPhotos(Right) DNT2603020217R00413-P01Page: 4 of 5 InternalPhotos(Right) InternalPhotos(Right) DNT2603020217R00413-P01Page: 5 of 5 InternalPhotos InternalPhotos --END--

DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] RFExposureEvaluationReport ApplicationNo.: DNT2603020217R00413-00414 Applicant: ShenzhenMuduTechnologyCo.,Ltd AddressofApplicant: 4thFloor,FactoryBuilding,No.82ZhulongtianRoadShuitianCommunity, ShiyanStreetShenzhen,China EUTDescription: SmartGlasses ModelNo.: E90 AdditionalModel(s): AIQU81 FCCID: 2BFH6-E90 PowerSupply: Input:DC5V;DC3.8Vfromrechargeablelithium-ionbattery TradeMark: MUEDO Standards: 47CFRPart2.1093 FCCKDB447498D04v01 DateofReceipt: 2026/03/02 DateofTest: 2026/03/03to2026/03/09 DateofIssue: 2026/03/17 TestResult:PASS PreparedBy:(TestingEngineer) ReviewedBy:(ProjectEngineer) ApprovedBy:(Manager) Note:Ifthereisanyobjectiontotheresultsinthisreport,pleasesubmitawritteninquirytothecompanywithin15daysfromthedateof receivingthereport.Thetestreportiseffectiveonlywithbothsignatureandspecializedstamp,andisissuedbythecompanyinaccordance withtherequirementsofthe"ConditionsofIssuanceofTestReports"printedintheattachedpage.Unlessotherwisestated,theresults presentedinthisreportonlyapplytothesamplestestedthistime.Partialreproductionofthisreportisnotallowedunlessapprovedbythe companyinwriting. ReportNo.:DNT2603020217R00413-00414Date：March17,2026Page： 2 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] ReportReviseRecord ReportVersionReviseTimeIssuedDateValidVersionNotes V1.0/ Mar17,2026 ValidOriginalReport ReportNo.:DNT2603020217R00413-00414Date：March17,2026Page： 3 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] Contents RFEXPOSUREEVALUATIONREPORT.............................................................................................................................................1 1GENERALINFORMATION..................................................................................................................................................................4 1.1TESTLOCATION.................................................................................................................................................................................4 1.2GENERALDESCRIPTIONOFEUT.....................................................................................................................................................4 1.3TESTFACILITY...................................................................................................................................................................................5 1.4MEASUREMENTUNCERTAINTY(95%CONFIDENCELEVELS,K=2)....................................................................................................5 2RFEXPOSUREEVALUATION............................................................................................................................................................6 2.1RFEXPOSURECOMPLIANCEREQUIREMENT..................................................................................................................................6 ReportNo.:DNT2603020217R00413-00414Date：March17,2026Page： 4 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1GeneralInformation 1.1TestLocation Company:DongguanDNTestingCo.,Ltd Address: No.1,WestFourthStreet,SouthXinfaRoad,WushaLiwu,Chang ＇ anTown, DongguanCity,GuangdongP.R.China Testengineer:GaliLin 1.2GeneralDescriptionofEUT Manufacturer:ShenzhenMuduTechnologyCo.,Ltd AddressofManufacturer: 4thFloor,FactoryBuilding,No.82ZhulongtianRoadShuitianCommunity, ShiyanStreetShenzhen,China EUTDescription: SmartGlasses ModelNo.: E90 AdditionalModel(s): AIQU81 PowerSupply:Input:DC5V;DC3.8Vfromrechargeablelithium-ionbattery TradeMark:MUEDO HardwareVersion:V1.0 SoftwareVersion:V1.0 Serialnumber:PR2603020217R00413 ChipType:BP2R194-73D8 SampleType:PortableDevice,Module,MobileDevice AntennaType: External,Integrated AntennaPorts: Ant1,Ant2,Ant3 AntennaGain: Providedbyapplicant 1.7dBi Note: *Allmodelsarejustcolorandappearancedifferences,motherboard,PCBcircuitboard,chip,electronic componentsisallthesame. *Sincetheabovedataand/orinformationisprovidedbytheclientrelevantresultsorconclusionsofthis reportareonlymadeforthesedataand/orinformation,DNTisnotresponsiblefortheauthenticity,integrity andresultsofthedataandinformationand/orthevalidityoftheconclusion. ReportNo.:DNT2603020217R00413-00414Date：March17,2026Page： 5 / 8 DongguanDNTestingCo.,Ltd. Add:No.1,WestFourthStreet,XingfaSouthRoad,WushaCommunity,Chang'anTown,DongguanCity,GuangdongP.R.China Web:www.dn-testing.comTel:+86-769-88087383E-mail:[email protected] 1.3TestFacility Thetestfacilityisrecognized,certified,oraccreditedbythefollowingorganizations: LabA: •FCC,USA DesignationNumber:CN1348 •A2LA(CertificateNo.7050.01) DONGGUANDNTESTINGCO.,LTD.isaccreditedbytheAmericanAssociationforLaboratory Accreditation(A2LA).CertificateNo.7050.01. •Innovation,ScienceandEconomicDevelopmentCanada DONGGUANDNTESTINGCO.,LTD.EMCLaboratoryhasbeenrecognizedbyISEDasanaccreditedtesting laboratory.CABidentifierisCN0149. IC#:30755. . 1.4MeasurementUncertainty(95%confidencelevels,k=2) No.ItemMeasurementUncertainty 1 20dBEmissionBandwidth±0.0196% 2 CarrierFrequencySeparation±1.9% 3 NumberofHoppingChannel±1.9% 4 TimeofOccupancy±0.028% 5 MaxPeakConductedOutputPower±0.743dB 6 Band-edgeSpuriousEmission±1.328dB 7 ConductedRFSpuriousEmission 9KHz-1GHz:±0.746dB 1GHz-26GHz:±1.328dB No.ItemMeasurementUncertainty 1ConductionEmission±3.0dB(150kHzto30MHz) 2RadiatedEmission ±4.8dB(Below1GHz) ±4.8dB(1GHzto6GHz) ±4.5dB(6GHzto18GHz) ±5.02dB(…

Text truncated - open the document above for the full version.

Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] FCC Test Report Application No.: DNT2603020217R00413-00416 Applicant: Shenzhen Mudu Technology Co., Ltd Address of Applicant: No 82 zhulong Tian Road, shuitian community, shiyan street, shenzhen, guangdong province, China EUT Description: Smart Glasses Model No.: E90 Additional Model(s): AIQU81 FCC ID: 2BFH6-E90 Power Supply: Input:DC 5V;DC 3.8V from rechargeable lithium-ion battery Trade Mark: MUEDO Standards: 47 CFR Part 2, Subpart J 47 CFR Part 15, Subpart C ANSI C63.10: 2020 Date of Receipt: 2026/03/02 Date of Test: 2026/03/03 to 2026/03/09 Date of Issue: 2026/03/17 Test Result:PASS Prepared By:(Testing Engineer) Reviewed By:(Project Engineer) Approved By:(Manager) Note: If there is any objection to the results in this report, please submit a written inquiry to the company within 15 days from the date of receiving the report. The test report is effective only with both signature and specialized stamp, and is issued by the company in accordance with the requirements of the "Conditions of Issuance of Test Reports" printed in the attached page. Unless otherwise stated, the results presented in this report only apply to the samples tested this time. Partial reproduction of this report is not allowed unless approved by the company in writing. Report No.: DNT2603020217R00413-00416Date：March 17, 2026Page： 2 / 62 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Report Revise Record Report VersionRevise TimeIssued DateValid VersionNotes V1.0/ Mar 17, 2026 ValidOriginal Report Report No.: DNT2603020217R00413-00416Date：March 17, 2026Page： 3 / 62 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 1 Test Summary Test ItemTest RequirementTest MethodTest ResultResult Antenna Requirement15.203/247(b/c)--Clause 3.1PASS 20dB Emission Bandwidth15.247 (a)(1)ANSI C63.10: 2020Clause 3.2PASS Conducted Peak Output Power 15.247 (b)(1)ANSI C63.10: 2020Clause 3.3PASS Carrier Frequencies Separation 15.247 (a)(1)ANSI C63.10: 2020Clause 3.4PASS Dwell Time15.247 (a)(1)ANSI C63.10: 2020Clause 3.5PASS Hopping Channel Number15.247 (a)(1)ANSI C63.10: 2020Clause 3.6PASS Band-edge for RF Conducted Emissions 15.247(d)ANSI C63.10: 2020Clause 3.7PASS RF Conducted Spurious Emissions 15.247(d)ANSI C63.10: 2020Clause 3.8PASS Radiated Spurious emissions 15.247(d); 15.205/15.209 ANSI C63.10: 2020Clause 3.9PASS Restricted bands around fundamental frequency (Radiated Emission) 15.247(d); 15.205/15.209 ANSI C63.10: 2020Clause 3.10PASS AC Power Line Conducted Emission 15.207ANSI C63.10: 2020Clause 3.11PASS Note: 1. “N/A” denotes test is not applicable in this test report. Report No.: DNT2603020217R00413-00416Date：March 17, 2026Page： 4 / 62 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Contents 1 Test Summary..................................................................................................................................................................3 2 General Information..........................................................................................................................................................5 2.1 Test Location..........................................................................................................................................................5 2.2 General Description of EUT...................................................................................................................................5 2.3 Test Environment...................................................................................................................................................6 2.4 Channel List........................................................................................................................................................... 6 2.5 Power Setting of Test Software............................................................................................................................. 7 2.6 Assistant equipment used for test..........................................................................................................................7 2.7 Description of Support Units.................................................................................................................................. 7 2.8 Test Facility............................................................................................................................................................7 2.9 Equipment List....................................................................................................................................................... 8 2.10 Measurement Uncertainty (95% confidence levels, k=2).................................................................................. 10 3 Test results and Measurement Data..............................................................................................................................11 3.1 Antenna Requirement..........................................................................................................................................11 3.2 20dB Emission Bandwidth................................................................................................................................... 12 3.3 Conducted Output Power............................…

Text truncated - open the document above for the full version.

Report No.: DNT2603020217R00413-00416Date：March 17, 2026Page： 49 / 62 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 2DH1_Ant1_Hop 2DH3_Ant1_Hop 2DH5_Ant1_Hop Report No.: DNT2603020217R00413-00416Date：March 17, 2026Page： 50 / 62 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Appendix E: Number of hopping channels Test Result TestModeAntennaFreq(MHz)Result[Num]Limit[Num]Verdict DH5Ant1Hop79≥15PASS 2DH5Ant1Hop79≥15PASS Note ： Both left and right glasses have tested, The Left glasses is the worst, only the worse case was reported. Report No.: DNT2603020217R00413-00416Date：March 17, 2026Page： 51 / 62 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs DH5_Ant1_Hop 2DH5_Ant1_Hop Report No.: DNT2603020217R00413-00416Date：March 17, 2026Page： 52 / 62 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Appendix F: Band edge measurements Test Result TestModeAntennaChNameFreq(MHz) RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 Low2402-2.30-46.85≤-22.3PASS High2480-0.32-46.25≤-20.32PASS LowHop_2402-2.87-47≤-22.87PASS HighHop_2480-0.64-45.77≤-20.64PASS 2DH5Ant1 Low2402-2.32-46.73≤-22.32PASS High2480-0.70-46.26≤-20.7PASS LowHop_2402-5.86-46.98≤-25.86PASS HighHop_2480-1.94-46.37≤-21.94PASS Note ： Both left and right glasses have tested, The Left glasses is the worst, only the worse case was reported. Report No.: DNT2603020217R00413-00416Date：March 17, 2026Page： 53 / 62 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs DH5_Ant1_Low_2402 DH5_Ant1_High_2480 DH5_Ant1_Low_Hop_2402 Report No.: DNT2603020217R00413-00416Date：March 17, 2026Page： 54 / 62 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] DH5_Ant1_High_Hop_2480 2DH5_Ant1_Low_2402 2DH5_Ant1_High_2480 Report No.: DNT2603020217R00413-00416Date：March 17, 2026Page： 55 / 62 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 2DH5_Ant1_Low_Hop_2402 2DH5_Ant1_High_Hop_2480 Report No.: DNT2603020217R00413-00416Date：March 17, 2026Page： 56 / 62 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Appendix G: Conducted Spurious Emission Test Result TestModeAntennaFreq(MHz) FreqRange [MHz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict DH5Ant1 2402 Reference-2.26-2.26---PASS 30~1000-2.26-59.46≤-22.26PASS 1000~26500-2.26-35.13≤-22.26PASS 2441 Reference-1.45-1.45---PASS 30~1000-1.45-59.74≤-21.45PASS 1000~26500-1.45-48.4≤-21.45PASS 2480 Reference-0.59-0.59---PASS 30~1000-0.59-58.37≤-20.59PASS 1000~26500-0.59-49.2≤-20.59PASS 2DH5Ant1 2402 Reference-2.24-2.24---PASS 30~1000-2.24-57.23≤-22.24PASS 1000~26500-2.24-48.95≤-22.24PASS 2441 Reference-1.46-1.46---PASS 30~1000-1.46-59.22≤-21.46PASS 1000~26500-1.46-39.31≤-21.46PASS 2480 Reference-0.91-0.91---PASS 30~1000-0.91-58.67≤-20.91PASS 1000~26500-0.91-39.43≤-20.91PASS Note ： Both left and right glasses have tested, The Left glasses is the worst, only the worse case was reported. Report No.: DNT2603020217R00413-00416Date：March 17, 2026Page： 57 / 62 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] Test Graphs DH5_Ant1_2402_0~Reference DH5_Ant1_2402_30~1000 DH5_Ant1_2402_1000~26500 Report No.: DNT2603020217R00413-00416Date：March 17, 2026Page： 58 / 62 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] DH5_Ant1_2441_0~Reference DH5_Ant1_2441_30~1000 DH5_Ant1_2441_1000~26500 Report No.: DNT2603020217R00413-00416Date：March 17, 2026Page： 59 / 62 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] DH5_Ant1_2480_0~Reference DH5_Ant1_2480_30~1000 DH5_Ant1_2480_1000~26500 Report No.: DNT2603020217R00413-00416Date：March 17, 2026Page： 60 / 62 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 2DH5_Ant1_2402_0~Reference 2DH5_Ant1_2402_30~1000 2DH5_Ant1_2402_1000~26500 Report No.: DNT2603020217R00413-00416Date：March 17, 2026Page： 61 / 62 Dongguan DN Testing Co., Ltd. Add: No. 1, West Fourth Street, Xingfa South Road, Wusha Community, Chang 'an Town, Dongguan City, Guangdong P.R.China Web: www.dn-testing.comTel:+86-769-88087383E-mail: [email protected] 2DH5_Ant1_2441_…

Text truncated - open the document above for the full version.

2.4GHz 2012 Chip Antenna: RANT2012F245X07 Dimension(mm) L2.05+-0.10 W1.20+-0.10 T0.65+-0.10 No.TerminalName 1Feeding/GNG 2GND Application: WLAN,802.11b/g,Bluetooth,WLAN,etc... Features SMD,highreliability,ultraImpact,Omni-directional... PartnumberInformation RANT2012F245X07 (A)(B)(C)(D)(E)(F) (A)ProductTypeChipAntenna (B)SizeCode2.0x1.2mm(+-0.2mm) (C)MaterialHighKmaterial (D)Frequency2.4~2.5GHz (E)FeedingmodePIFA&SingleFeeding (F)AntennatypeType=07 ElectricalSpecification WorkingFrequencyRange2400~2484MHz Bandwidth84(Min.) PeakGain1.7dBi(Typ.) Impedance50Ohm Returnloss10dB(Min) PolarizationLinear AzimuthBeamwidthOmni-directional OperationTemperature( °C )-40~85 °C ResistancetoSolderingHeats 10sec.(@280°C) TerminationNi/Au(Leadless) ThespecificationisdefinedonEVB. DimensionandTerminalConfiguration 咏成國際科技有限公司電話 :13530576606 RAINInternationalTechnologyCo.,Ltd. 7/F,BuildingF,ZhichuangPark,Tong'an,Gushu,Shenzhen 2.4GHz 2012 Chip Antenna: RANT2012F245X07 EvaluationBoardReference PCBDimensionAntennaLayoutReferenceUnit:mm ElectricalCharacteristics ReturnLoss ReturnLoss&Radiation 1 Frequency(MHz) S11(dB) 2400-10.77 2450-24.81 2484-10.243 Radiation Z Y X 2400MHz2450MHz2500MHz Efficiency70.56%75.25%71.01% 2.4GHz 2012 Chip Antenna: RANT2012F245X07 TapingSpecifications ReelandTapingSpecification ReelSpecification TYPESIZEABCD 20127”5K/Reel 9.0±0.5 60±213.5±0.5178±2 TappingSpecification PackagingTypeABWEFGHTDP PaperType2012 1.50±0.202.30±0.208.0±0.201.75±0.103.5±0.054.0±0.102.0±0.050.75±0.101.57±0.104.0±0.1 ReliabilityTabl 2.4GHz 2012 Chip Antenna: RANT2012F245X07 e TestItemProcedure Requirements CeramicType Remark (Reference) Electrical Characterization Fulfilltheelectrical specification UserSpec. Thermal Shock 1.Preconditioning: 50±10°C/1hr,thenkeepfor24±1hrsatroomtemp. 2.Initialmeasure:Spec:referInitialspec. 3.Rapidchangeoftemperaturetest: -30°Cto+85°C;100cycles; 15minutesatLowercategorytemperature; 15minutesatUppercategorytemperature. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 107 Temperature Cycling 1.Initialmeasure:Spec:referInitialspec. 2.100Cycles(-30°Cto+85°C),SoakMode=1(2Cycle/hours). 3.Measurementat24±2Hoursaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. JESD22 JA104 HighTemperature Exposure 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered;500hours@T=+85°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 LowTemperature Storage 1.Initialmeasure:Spec:referInitialspec. 2.Unpowered:500hours@T=-30°C. 3.Measurementat24±2hoursaftertest. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 108 Solderability (SMDBottomSide) Dippingmethod: a.Temperature:235±5°C b.Dippingtime:3±0.5s Thesoldershouldcover over95%ofthecritical areaofbottomside. IEC60384-21/22 4.10 SolderingHeat Resistance (RSH) Preheatingtemperature:150±10°C. Preheatingtime:1~2min. Soldertemperature:260±5°C. Dippingtime:5±0.5s NoVisibleDamage.IEC60384-21/22 4.10 Vibration5g'sfor20min.,12cycleseachof3orientations Note:Use8"X5"PCB.031"thick7securepointson,onelong sideand2securepointsatcornersofoppositesides.Parts mountedwithin2"fromanysecurepoint.Testfrom10-2000 Hz. NoVisibleDamage.MIL-STD-202 Method204 Mechanical Shock Threeshocksineachdirectionshallbeappliedalongthethree mutuallyperpendicularaxesofthetestspecimen(18shocks) Peakvalue:1,500g’s Duration:0.5ms Velocitychange:15.4ft/s Waveform:Half-sine NoVisibleDamage.MIL-STD-202 Method213 Humidity Bias 1.Humidity:85%R.H.,Temperature:85±2°C. 2.Time:500±24hours. 3.Measurementat24±2hrsaftertestcondition. NoVisibleDamage. Fulfilltheelectrical specification. MIL-STD-202 Method106 2.4GHz 2012 Chip Antenna: RANT2012F245X 2.4GHz 2012 Chip Antenna: RANT2012F245X07 07 _ Board Flex (SMD) 1.Mountingmethod: IR-Reflow.PCBSize(L:100×W:40×T:1.6mm) 2.Applytheloadindirectionofthearrowuntilbendingreaches 2mm. NoVisibleDamage.AEC-Q200 005 AdhesionForceof1.8Kgfor60seconds.NoVisibleDamage Magnificationof20Xor greatermaybeemployed forinspectionofthe mechanicalintegrityofthe devicebodyterminalsand body/terminaljunction. AEC-Q200 006 Physical Dimension Anyapplicablemethodusingx10magnification,micrometers, calipers,gauges,contourprojectors,orothermeasuring equipment,capableofdeterminingtheactualspecimen dimensions. Inaccordancewith specification. JESD22 JB100 RevisionHistory RevisionDateContent 1NewDatashee2022/10/15t

DNT2603020217R00413-P01Page: 1 of 3 PHOTOGRAPHSOFEUT FCCID:2BFH6-E90 AntennaTerminalTestView DNT2603020217R00413-P01Page: 2 of 3 ConductedEmissionTestView RadiatedEmissionTestView|(Below1G) DNT2603020217R00413-P01Page: 3 of 3 RadiatedEmissionTestView|(Above1G) RadiatedEmissionTestView|(Above1G) --END--
