2BFH6-U10-1Smart Presbyopia Glasses

Dual Mode Smart Glasses 1.Long press the power button for 2S to boot. 2.Press the power button 3 times to the next song. 3.Press the power button twice to the previous song. 4.Press the power button for 2S to switch modes (Normal mode / Voice mode). (U10-1 Instruction Manual) • Disclaimer • Product Introduction Audio glasses,Glasses charging cable, Instruction manual,Glasses cleaning cloth. • Packing List First of all,thank you for using out products! PIease read this manual before using and use this product correctly.For the better servicechanges due to the performance and functionality of the product will be revised without notice.Open-ear smart audio glasses.This product is a Bluetooth speaker withstereo function,easy to operate, stylish and practical,easy too carry. Thank you for your trust in our products, enabling dual-mode will significantly increase power consumption, but you can enjoy the convenience of voice control, free your hands AI intelligent wake-up (noise greater than 68 decibels will be misused). Please use it when the power is sufficient to optimize your experience. If there is a low battery alarm, please charge the product in time to use it. Multifunctional smart glasses use Bluetooth chips, compatible with mainstream brand mobile phones and tablets and other Bluetooth devices, support aptX audio decoding technology, achieve CD-level high-quality sound quality, long-lasting battery life, left and right double speakers, open directional pronunciation, and barrier-free reception of external sounds. The surrounding environment information can be obtained at all times, which is safe, intelligent, healthy and convenient. using this product and keep this manual. 2.For the first time,please fully charge this glasses. 3.If the glasses does not charge for a long it before use. 1.Do not dismantle or repair this product for any reason,as this may result in fire. Electronic breakdown or even complete damage to the product. where the temperature is too low or too high (below 0°C or above 45°C). 3.Do not contact the product with corrosive liquids or immerse them in liquids. broken and broken. 5. Do not place the magnetic end of the charging cable close to metal objects to prevent the risk of short circuit caused by magnetically attracting metal objects. Product Parameters Switch machine / Pairings Battery level indication Key Function Overview • Warm Prompt • Warm Prompt Frame Material: TR90/Metals Lens Material: PC Lens Color: Transparent gradient, Sunglasses, Presbyopic lenses, etc. (a variety of options) Bluetooth Protocol: V5.3 Charging Time: 1.5H Use Time: 3H Standby Time: 180H(Bluetooth connection) Battery Capacity: 120mAh Sound Channel: Double speakers, Stereo sound Charging Voltage And Current: DC5V/1A The maximum charging current is 150mAh When not in use for a long time,charge the battery at least once every 2 months. Open the cell phone and other bluetooth devices, long press the power button for 2 seconds, the glasses voice prompts [Power on], the blue light flashes 3 to red and blue lights alternately; and bluetooth devices connected to the success of the lights go out. (Please refer to the diagram on the last page for the Bluetooth connection of the cell phone.) Keystroke mode Voice mode Tips for use Warning Warm tips:Voice wake-up will have a false touch after the opening of the normal phenomenon, the current volume is too high when the voice recognition will have the probability of wake-up failure can be said a few times to wake up the command word. (Mode switching order description: power on can be repeated in order to switch.) Mode switching:Long press the power button for 2 seconds to switch modes (Normal mode/Voice mode) when powering on/connecting the device. Wake up the voice assistant:No call state press the power button 4 times to (Voice assistant nickname: "Xiaojie Xiaojie / Xiaojie students"). Pause playback:"Stop playback", voice recognition. Play the previous song:"Previous", voice recognition. Play the next song:"The next song", voice recognition. Volume up:"Increase the volume", voice recognition. Volume down:"Reduce the volume", voice recognition. Answer the phone:"Answer the phone", voice recognition. Reject the call:"Hang up the phone", voice recognition. Receiving calls - Answer a call:Single press the power button to answer a call. - Hanging up a call:Single press the power button to hang up a call. - Rejecting a call: Long press the power button for 2 seconds to reject the call. - Canceling a call: Single press the power default normal mode - voice mode, the 2 modes button to cancel the phone call. Enjoy music. - Precise song selection : Press the power button 4 times to wake up the voice assistant and then say, play music (e.g. Shanghai Tang), you can call and play the songs inside the phone. - Randomly play a song:Press the power wake up the voice assistant button 4 times in a row to wake up the voice assistant and say, play music, you can call and randomly play the songs inside the phone. - Play the next song: Press the power button 3 times in a row. - Play the previous song:Press the power button 2 times in a row. - Pause playback:Single press the power button. Navigation. - Turn on the navigation: First pause the music, press the power button 4 times to wake up the voice function, and then do the voice operation, help me navigate to ** place. - Close navigation:Press the power button 4 times to wake up the voice assistant and then say, exit navigation. Incoming call number broadcasting. - Incoming call state automatically broadcast the current caller number. Switch between playing music and making a call. - When you need to make a call while listening to music, first press the power button to pause the music, and then press the power button 4 times to wake up the voice assistant to make a call. Photo Function - When the camera is turned on, press the power button to take a picture. Super distance connect back - The headset is out of Bluetoot…

Text truncated - open the document above for the full version.

ShenzhenMuduTechnologyCo.,Ltd 3rdFloor,OfficeBuilding,No.9ZhulongtianRoad,Shiyan,Bao'an,Shenzhen FederalCommunicationsCommission AuthorizationandEvaluationDivision EquipmentAuthorizationBranch 7435OaklandMillsRoad Columbia,MD21046 2024-03-27 U.S.AgentDesignation Shenzhen Mudu Technology Co., Ltd acknowledges their consent for the following contact located in the United States to act as their agent for service of process for the equipment for which authorization is sought (FCC ID：2BFH6-U10-1 NameandcompanyofU.S.agent: PhysicalU.S.addressofagent: FRNofU.S.agent: EmailaddressofU.S.agent: MoloImportExportLLC 2334CrystalMileCT,TomsRiver,NJ,08755,USA 0033490996 8259781@gmailcom. Molo Import Export LLC acknowledges their obligation to accept service of process on behalf of Shenzhen Mudu Technology Co., Ltd Shenzhen Mudu Technology Co., Ltd with the FRN 0035145085 accepts its obligation to maintain an agent for service of process in the United States for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S.,or the conclusion of any Commission-related administrative or judicial proceeding involving the equipment,whichever is later. Bysigningthisform,weconfirmtheaboveandthatweareawareoftheapplicationrequirementslistedunder§ 2.911(d)(7). TheinformationprovidedinthisletterisbasedonthereferencedrulepartsofTitle47oftheCFRaswellasKDB 986446D01. Anexpirationdateforthisletterdoesnotexist.IncasetheU.S.agentchanges,thegranteeisobligatedtonotify theFCCwithin30daysviathegrantingTCB. Sincerely Manager ShenzhenMuduTechnologyCo.,Ltd ShenzhenMuduTechnologyCo.,Ltd Signature Manager MoloImportExportLLC

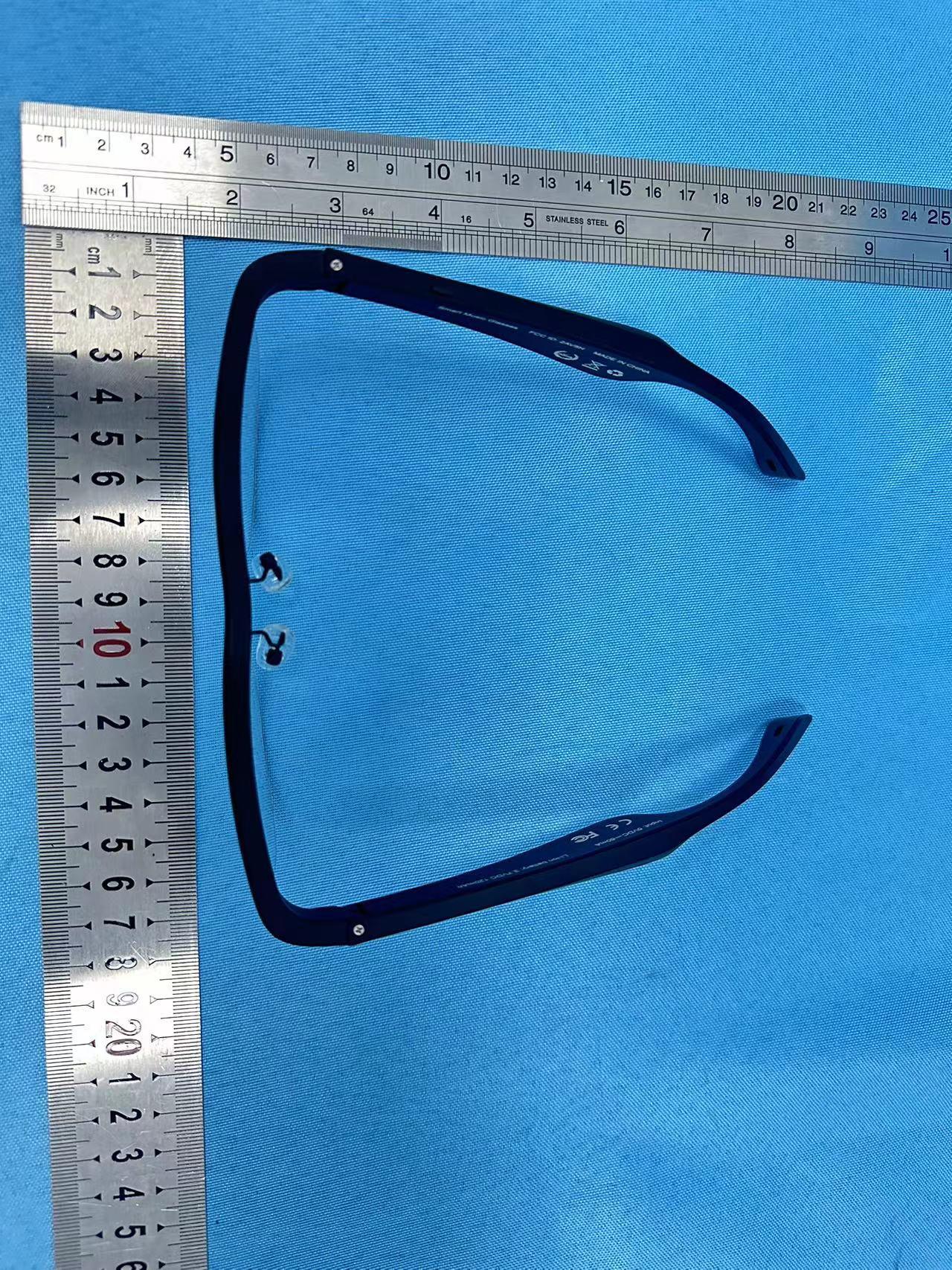

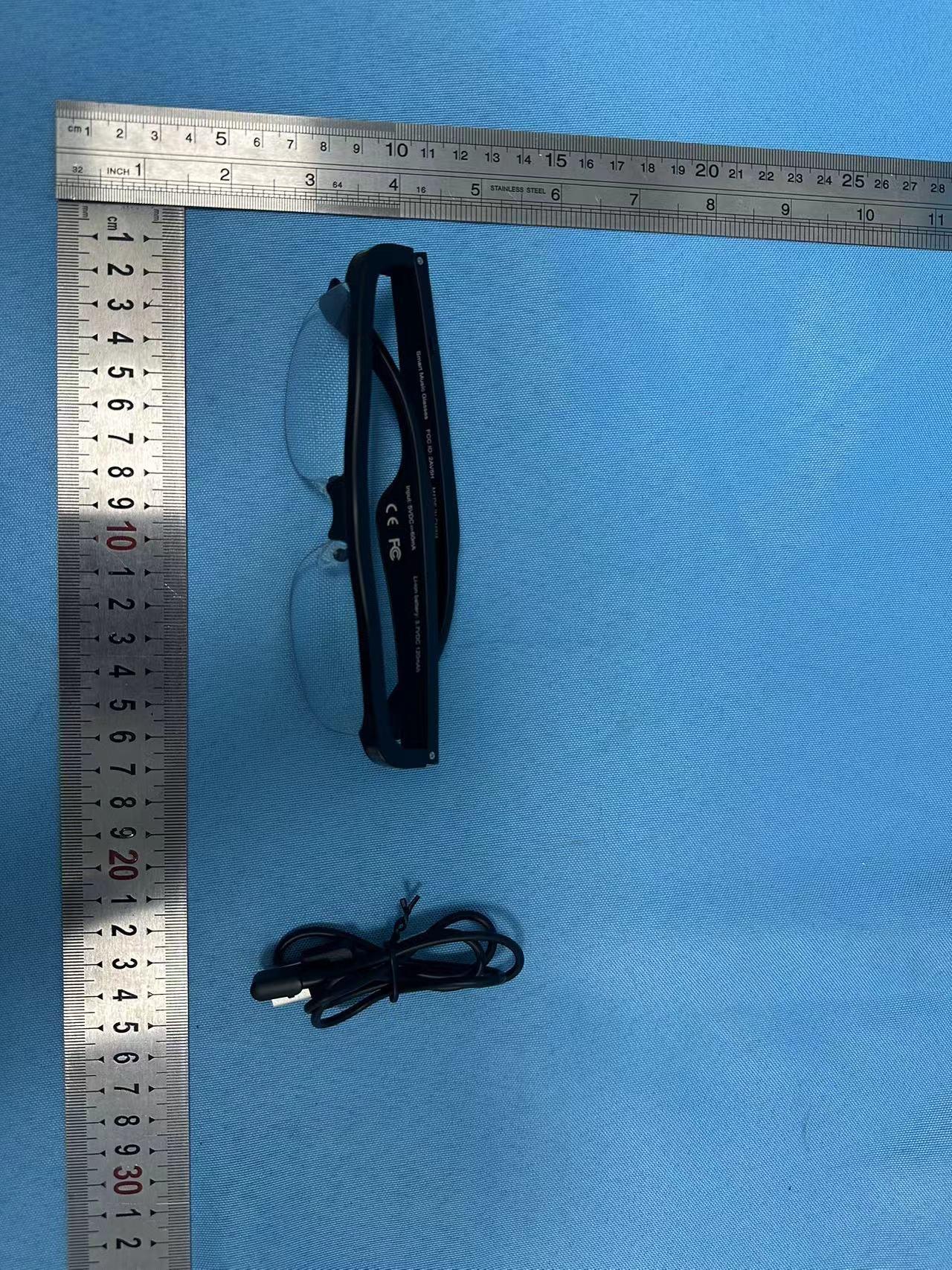

Page: 1 of 4 PHOTOGRAPHSOFEUT FCCID:2BFH6-U10-1 Page: 2 of 4 Page: 3 of 4 Page: 4 of 4
