2BGKB-G3Wireless Mouse

Keychron Technology (Shenzhen) Co., Ltd. 201, Building 2, Wenkeng Industrial Zone, No. 24, Dafa Road, DafaPu Community, Bantian Jie Dao, Longgang District, Shenzhen, China 2.911 (d)(5)(i) Equipment Type Attestation v1.2 Section 2.911(d)(5)(i) Certification – Equipment Type Company name: Keychron Technology (Shenzhen) Co., Ltd. Address: 201, Building 2, Wenkeng Industrial Zone, No. 24, Dafa Road, DafaPu Community, Bantian Jie Dao, Longgang District, Shenzhen, China Product Name: Wireless Mouse FCC ID: 2BGKB-G3 Model(s): G3 2.911(d)(5)(i) Equipment Type We, Keychron Technology (Shenzhen) Co., Ltd. (“the applicant”) certify that the equipment for which authorization is sought through certification is not: • Prohibited from receiving an equipment authorization pursuant to § 2.903; of the FCC rules. • Identified as an equipment type in the “Covered List” NOTE 1 Yours sincerely, Date: May 19, 2026 Name: Nick Xu Title: CEO Company: Keychron Technology (Shenzhen) Co., Ltd. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the-com munications-supply-chain-through-the

Keychron Technology (Shenzhen) Co., Ltd. 201, Building 2, Wenkeng Industrial Zone, No. 24, Dafa Road, DafaPu Community, Bantian Jie Dao, Longgang District, Shenzhen, China 2.911 (d)(5)(ii) Applicant Attestation v1.3 Section 2.911(d)(5)(ii) Certification – Applicant (Covered List ) Company name: Keychron Technology (Shenzhen) Co., Ltd. Address: 201, Building 2, Wenkeng Industrial Zone, No. 24, Dafa Road, DafaPu Community, Bantian Jie Dao, Longgang District, Shenzhen, China Product Name: Wireless Mouse FCC ID: 2BGKB-G3 Model(s): G3 2.911(d)(5)(ii) Applicant filing We, Keychron Technology (Shenzhen) Co., Ltd. (“the applicant”) certify that, as of the date of the filing of the application, the applicant is is not identified on the “Covered List” NOTE 1 , established pursuant to § 1.50002 of this chapter, as an entity producing covered communications equipment. Yours sincerely, Signature: Date: 2026/5/19 Name: Nick Xu Title: CEO Company: Keychron Technology (Shenzhen) Co., Ltd. NOTE 1 “Covered List”; is the List of Equipment and Services Covered By Section 2 of The Secure Networks Act, available at https://www.fcc.gov/supplychain/coveredlist References; 1) 986446 D01 Covered Equipment v01 https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=325672 2) Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-national-security-threats-to-the- communications-supply-chain-through-the

Keychron Technology (Shenzhen) Co., Ltd. 201, Building 2, Wenkeng Industrial Zone, No. 24, Dafa Road, DafaPu Community, Bantian Jie Dao, Longgang District, Shenzhen, China 2.911 (d)(7)USA Agent v1.5 Section 2.911(d)(7) USA Agent for Service of Process Company name: Keychron Technology (Shenzhen) Co., Ltd. Address: 201, Building 2, Wenkeng Industrial Zone, No. 24, Dafa Road, DafaPu Community, Bantian Jie Dao, Longgang District, Shenzhen, China FCC ID: 2BGKB-G3 2.911(d)(7) USA Designated Agent for Service of Process We, [Keychron Technology (Shenzhen) Co., Ltd.] (“the applicant”) designate [KEYCHRON TECHNOLOGY, INC.] NOTE1 for the purpose of accepting service of process on behalf of the applicant. Applicant consent: We acknowledge our consent to accept service of process in the United States for matters related to the applicable equipment, and at the physical U.S. address and email address of the designated agent and acknowledge our acceptance of our obligation to maintain an agent for service of process in the United States for no less than one year after either we the grantee have permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. Agent obligation: We acknowledge our obligation to accept service of process in the United States for matters related to the applicable equipment at our physical U.S. address and email address for no less than one year after either the grantee has permanently terminated all marketing and importation of the applicable equipment within the U.S., or at the conclusion of any Commission-related administrative or judicial proceeding involving the equipment, whichever is later. USA Agent Company name: KEYCHRON TECHNOLOGY, INC. USA Address: 1111B S GOVERNORS AVE STE 7910, DOVER, DE, United States FRN Number: 0036875342 Contact Name: Fab Chan Telephone No: 15889312153 Email: [email protected] Applicant Company name: Keychron Technology (Shenzhen) Co., Ltd. Address: 201, Building 2, Wenkeng Industrial Zone, No. 24, Dafa Road, DafaPu Community, Bantian Jie Dao, Longgang District, Shenzhen, China Grantee FRN Number: 0035456235 FCC Grantee Code: 2BGKB Contact Name: Nick Xu Telephone No: 8615889312153 Keychron Technology (Shenzhen) Co., Ltd. 201, Building 2, Wenkeng Industrial Zone, No. 24, Dafa Road, DafaPu Community, Bantian Jie Dao, Longgang District, Shenzhen, China 2.911 (d)(7)USA Agent v1.5 Email: [email protected] Signature: Title: CEO Signature: Title: CEO Date: 2026-5-11 Date: 2026-5-11 NOTE 1: An applicant located in the United States may designate itself as the agent for service of process. Reference; Federal Register document 2022-28263 published on 02/06/23 https://www.federalregister.gov/documents/2023/02/06/2022-28263/protecting-against-nation al-security-threats-to-the-communications-supply-chain-through-the

Keychron Technology (Shenzhen) Co., Ltd. 201, Building 2, Wenkeng Industrial Zone, No. 24, Dafa Road, DafaPu Community, Bantian Jie Dao, Longgang District, Shenzhen, China Office of Engineering Technology Federal Communications Commission 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2026/5/19 Subject; Request for Confidentiality FCC ID: 2BGKB-G3 To Whom It May Concern, Pursuant to the provisions of the Commission’s rules Title 47 Sections §0.457 and §0.459, we are requesting the Commission to withhold the following attachment(s) as confidential documents from public disclosure indefinitely. These documents contain detailed system and equipment descriptions and are considered as proprietary information in operation of the equipment. The public disclosure of these documents might be harmful to our company and would give competitors an unfair advantage in the market. Schematic Diagram Block Diagram Parts List Operational Description Tune-up Procedure In additional to above mentioned documents, in order to comply with the marketing regulations in Title 47 CFR §2.803 and the importation rules in Title 47 CFR §2.1204, while ensuring that business sensitive information remains confidential until the actual marketing of newly authorized devices, we request Short Term Confidentiality of the following attachment(s); External Photos Test Setup Photos Internal Photos User Manual For 45 days, pursuant to Public Notice DA 04-1705. OR For 180 days pursuant to KDB 726920 D01. It is our understanding that all measurement test reports, FCC ID label format and correspondence during the certification review process cannot be granted as confidential documents and this information will be available for public review once the grant of equipment authorization is issued. Keychron Technology (Shenzhen) Co., Ltd. 201, Building 2, Wenkeng Industrial Zone, No. 24, Dafa Road, DafaPu Community, Bantian Jie Dao, Longgang District, Shenzhen, China Sincerely, Signature: Name: Nick Xu Title: CEO

Keychron Technology (Shenzhen) Co., Ltd. 201, Building 2, Wenkeng Industrial Zone, No. 24, Dafa Road, DafaPu Community, Bantian Jie Dao, Longgang District, Shenzhen, China Letter of Authorization Company name: Keychron Technology (Shenzhen) Co., Ltd. Address: 201, Building 2, Wenkeng Industrial Zone, No. 24, Dafa Road, DafaPu Community, Bantian Jie Dao, Longgang District, Shenzhen, China Product Name: Wireless Mouse FCC ID: 2BGKB-G3 Model(s): G3 Product Description: Wireless Mouse We authorize MiCOM Labs Inc., 575 Boulder Court, Pleasanton, California 94566, USA, to act on our behalf on all matters concerning the certification of above named equipment. We declare that MiCOM Labs Inc. is allowed to forward all information related to the approval and certification of equipment to the regulatory agencies as required and to discuss any issues concerning the approval application. Any and all acts carried out by MiCOM Labs on our behalf shall have the same effect as acts of our own. Signature: Date: 2026/5/19 Name: Nick Xu Title: CEO Company: Keychron Technology (Shenzhen) Co., Ltd.

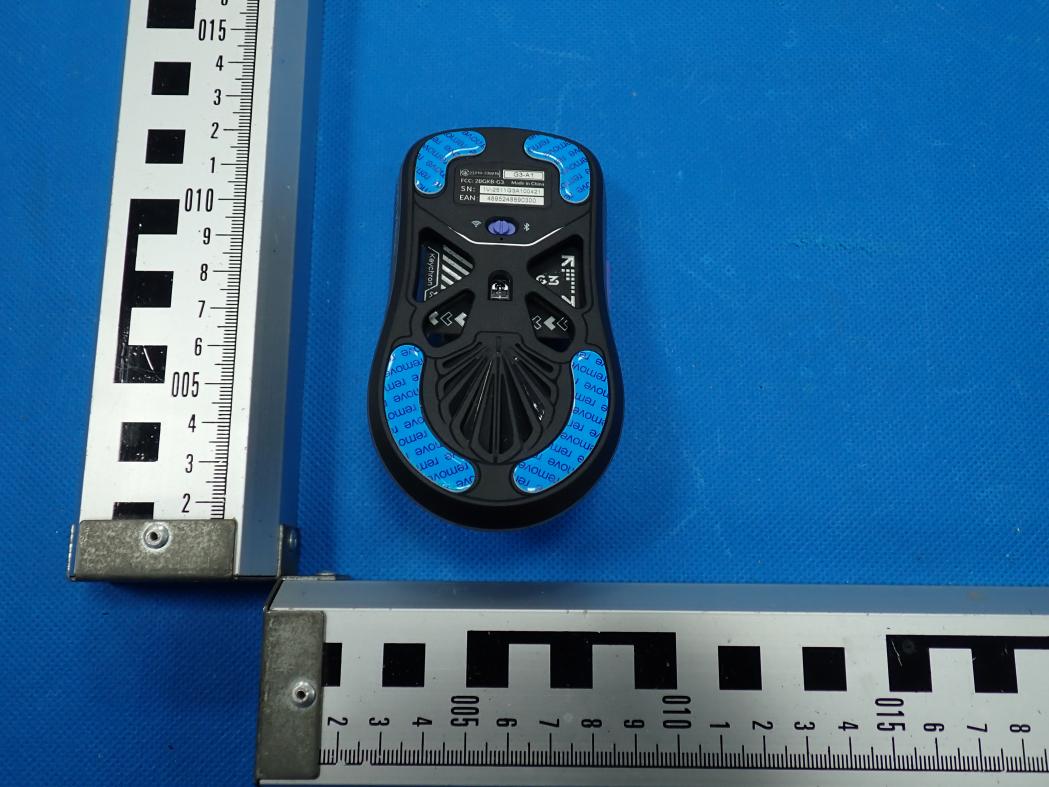

Report No.: TZ0015260302PH02 Page 1 of 4 External Photographs of EUT External Photo 1 External Photo 2 Report No.: TZ0015260302PH02 Page 2 of 4 External Photo 3 External Photo 4 Report No.: TZ0015260302PH02 Page 3 of 4 External Photo 5 External Photo 6 Report No.: TZ0015260302PH02 Page 4 of 4 External Photo 7

Label Location The size of the logo is 5mm*5mm FCC ID: 2BGKB-G3

FCC ID: 2BGKB-G3 Page 1 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd RADIO FREQUENCY EXPOSURE Limit According to section B.4 of 447498 D04 Interim General RF Exposure Guidance v01 SAR-based thresholds are derived based on frequency, power, and separation distance of the RF source. The formula defines the thresholds in general for either available maximum time-averaged power or maximum time-averaged ERP, whichever is greater. If the ERP of a device is not easily determined, such as for a portable device with a small form factor, the applicant may use the available maximum time-averaged power exclusively if the device antenna or radiating structure does not exceed an electrical length of λ/4. As for devices with antennas of length greater than λ/4 where the gain is not well defined, but always less than that of a half-wave dipole (length λ/2), the available maximum time-averaged power generated by the device may be used in place of the maximum time-averaged ERP, where that value is not known. The separation distance is the smallest distance from any part of the antenna or radiating structure for all persons, during operation at the applicable ERP. In the case of mobile or portable devices, the separation distance is from the outer housing of the device where it is closest to the antenna. The SAR-based exemption formula of § 1.1307(b)(3)(i)(B), repeated here as Formula (B.2), applies for single fixed, mobile, and portable RF sources with available maximum time-averaged power or effective radiated power (ERP), whichever is greater, of less than or equal to the threshold Pth (mW). This method shall only be used at separation distances from 0.5 cm to 40 cm and at frequencies from 0.3 GHz to 6 GHz (inclusive). Pth is given by Formula (B.2). Where and f is in GHz, d is the separation distance (cm), and ERP 20cm is per Formula (B.1). FCC ID: 2BGKB-G3 Page 2 of 2 This report shall not be reproduced except in full, without the written approval of Shenzhen Tongzhou Testing Co.,Ltd Results RF Exposure at Separation distance (cm): 0.5 Mode Antenna Frequency [MHz] Conducted Power [dBm] Manufacturing tolerance Antenna Gain [dBi] Max of ERP and Conducted Power including Tune Up SAR- based exemption threshold Pth [mW] Target Power [dBm] Tolerance ±[dB] [dBm] [mW] BLE_1M Ant1 2402 1.07 0.5 1 0 1.5 1.41 2.79 BLE_1M Ant1 2440 1.49 1 1 0 2 1.58 2.75 BLE_1M Ant1 2480 1.39 1 1 0 2 1.58 2.72 SRD Ant1 2402 1.02 0.5 1 0 1.5 1.41 2.79 SRD Ant1 2440 1.56 1 1 0 2 1.58 2.75 SRD Ant1 2480 1.32 1 1 0 2 1.58 2.72 Max of ERP and Conducted Power including Tune Up (dBm) = Max Conducted Tune Up Power(dBm) and Max Conducted Tune Up Power(dBm) + Antenna Gain(dBi)-2.15), whichever is greater. The Maximum Erp is used for Routine Evaluation Exemption according to B.4 of 447498 D04 Interim General RF Exposure Guidance v01. So, the SAR evaluation is not required.

Test Report For Antenna1 Tested Products. • Antenna1: integrated antenna. • Frequency = 2.402GHz. • Frequency = 2.441GHz. • Frequency = 2.480GHz. Antenna1 Photo & Length (mm) Radiation pattern: Antenna 1. XZ Plane at f = 2.402GHz 90 90 135 0 -5 45 -10 -15 -20 -25 -30 135 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Radiation pattern: Antenna 1. YZ Plane at f = 2.402GHz 135 90 0 -5 45 -10 -15 -20 -25 -30 135 90 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Radiation pattern: Antenna 1. XY Plane at f = 2.402GHz 90 90 135 0 -5 45 -10 -15 -20 -25 -30 135 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Radiation pattern: Antenna 1. XZ Plane at f = 2.441GHz 90 90 135 0 -5 45 -10 -15 -20 -25 -30 135 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Radiation pattern: Antenna 1. YZ Plane at f = 2.441GHz 90 90 135 0 -5 45 -10 -15 -20 -25 -30 135 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Radiation pattern: Antenna 1. XY Plane at f = 2.441GHz 90 90 135 0 -5 45 -10 -15 -20 -25 -30 135 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Radiation pattern: Antenna 1. XZ Plane at f = 2.480GHz 90 90 135 0 -5 45 -10 -15 -20 -25 -30 135 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Radiation pattern: Antenna 1. YZ Plane at f = 2.480GHz 90 90 135 0 -5 45 -10 -15 -20 -25 -30 135 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Radiation pattern: Antenna 1. XY Plane at f = 2.480GHz 90 90 135 0 -5 45 -10 -15 -20 -25 -30 135 0 45 -5 -10 180 -35-30 -25 -20 -15 -10 -5 0 0 180 -15 -10 -5 0 0 225 315 225 315 270 Co-cross polarization field (dBi) Solid line: vertical polarization Dash line: horizontal polarization 270 Total field (dBi) Return Lo s s (dB ) Return Loss: Antenna 1 -2 -4 -6 -8 -10 -12 -14 -16 2 2.2 2.4 2.6 2.8 3 Frequency (GHz) BW(-10dB) 13.48% Measurementssummary Frequency(GHz)PlaneReturnLoss(dB)PolarizationGainmax.(dBi)θ forGainmax.φforGainmax. Antenna 1 2.402XZ-10.90Vertical-7.8290 2.402XZ-10.90Horizontal -0.786 182 2.402YZ-10.90Vertical -1.21 226 2.402YZ-10.90Horizontal-7.7510 2.402XY-10.90Vertical-15.420 2.402XY-10.90Horizontal -0.93 180 2.441XZ-12.20Vertical-7.36318 2.441XZ-12.20Horizontal-1.32180 2.441YZ-12.20Vertical -0.981 204 2.441YZ-12.20Horizontal-8.2324 2.441XY-12.20Vertical-14.1-14 2.441XY-12.20Horizontal -1.74 180 2.48XZ-13.80Vertical-7.95312 2.48XZ-13.80Horizontal -1.81 186 2.48YZ-13.80Vertical-0.204214 2.48YZ-13.80Horizontal-8.388 2.48XY-13.80Vertical-15.812 2.48XY-13.80Horizontal0.0180

Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 1 of 23 Appendix Test Data for BLE (Conducted Measurement) Product Name: Wireless Mouse Trade Mark: Keychron Test Model: G3 FCC ID: 2BGKB-G3 Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: DTS Bandwidth Test Result Test Mode Antenna Frequency [MHz] DTS BW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict BLE_1M Ant1 2402 0.696 2401.644 2402.340 0.5 PASS BLE_1M Ant1 2440 0.664 2439.664 2440.328 0.5 PASS BLE_1M Ant1 2480 0.664 2479.664 2480.328 0.5 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 2 of 23 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 3 of 23 BLE_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 4 of 23 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict BLE_1M Ant1 2402 1.0226 2401.4828 2402.5054 --- --- BLE_1M Ant1 2440 1.0366 2439.4794 2440.5160 --- --- BLE_1M Ant1 2480 1.0145 2479.4913 2480.5058 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 5 of 23 Test Graphs BLE_1M-Ant1-2402 BLE_1M-Ant1-2440 Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 6 of 23 BLE_1M-Ant1-2480 Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 7 of 23 Appendix C: Maximum peak conducted output power Test Result Peak Test Mode Antenna Frequency [MHz] Conducted Peak Power [dBm] Conducted Limit [dBm] Verdict BLE_1M Ant1 2402 1.07 ≤30 PASS BLE_1M Ant1 2440 1.49 ≤30 PASS BLE_1M Ant1 2480 1.39 ≤30 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 8 of 23 Test Graphs Peak BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 9 of 23 BLE_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 10 of 23 Appendix D: Maximum peak power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/3kHz] Limit [dBm/3kHz] Verdict BLE_1M Ant1 2402 -8.56 ≤8.00 PASS BLE_1M Ant1 2440 -7.92 ≤8.00 PASS BLE_1M Ant1 2480 -8.20 ≤8.00 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 11 of 23 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 12 of 23 BLE_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 13 of 23 Appendix E: Band edge measurements Test Result Test Mode Antenna Ch. Name Frequency [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 Low 2402 -0.20 -49.21 ≤-20.2 PASS BLE_1M Ant1 High 2480 0.33 -48.88 ≤-19.67 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 14 of 23 Test Graphs BLE_1M-Ant1-2402-PASS BLE_1M-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 15 of 23 Appendix F: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] Freq. Range [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict BLE_1M Ant1 2402 0~Reference 0.64 0.64 --- PASS BLE_1M Ant1 2402 30~1000 0.64 -52.89 ≤-19.36 PASS BLE_1M Ant1 2402 1000~26500 0.64 -28.03 ≤-19.36 PASS BLE_1M Ant1 2440 0~Reference 0.42 0.42 --- PASS BLE_1M Ant1 2440 30~1000 0.42 -52.92 ≤-19.58 PASS BLE_1M Ant1 2440 1000~26500 0.42 -27.84 ≤-19.58 PASS BLE_1M Ant1 2480 0~Reference 0.89 0.89 --- PASS BLE_1M Ant1 2480 30~1000 0.89 -52.74 ≤-19.11 PASS BLE_1M Ant1 2480 1000~26500 0.89 -27.41 ≤-19.11 PASS Note: offset(dB) in Reference test plots = cable loss(dB) + attenuator factor(dB); For spurious emissions plots from 30MHz to 26.5GHz, the cable loss and attenuator factors have been set in the 'Input Correction' of the Spectrum Analyzer during the test. Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 16 of 23 Test Graphs BLE_1M-Ant1-2402-0~Reference-PASS BLE_1M-Ant1-2402-30~1000-PASS Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 17 of 23 BLE_1M-Ant1-2402-1000~26500-PASS BLE_1M-Ant1-2440-0~Reference-PASS Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 18 of 23 BLE_1M-Ant1-2440-30~1000-PASS BLE_1M-Ant1-2440-1000~26500-PASS Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 19 of 23 BLE_1M-Ant1-2480-0~Reference-PASS BLE_1M-Ant1-2480-30~1000-PASS Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 20 of 23 BLE_1M-Ant1-2480-1000~26500-PASS Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 21 of 23 Appendix G: Duty Cycle Test Result Test Mode Antenna Frequency [MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor [dB] BLE_1M Ant1 2402 19.00 19.00 100.00 0.00 BLE_1M Ant1 2440 19.00 19.00 100.00 0.00 BLE_1M Ant1 2480 19.00 19.00 100.00 0.00 Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 22 of 23 Test Graphs NTNV-BLE_1M-Ant1-2402 NTNV-BLE_1M-Ant1-2440 Appendix Test Data of the Report No.: TZ0015260302FRF02 Page 23 of 23 NTNV-BLE_1M-Ant1-2480

Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 1 of 23 Appendix Test Data for SRD (Conducted Measurement) Product Name: Wireless Mouse Trade Mark: Keychron Test Model: G3 FCC ID: 2BGKB-G3 Environmental Conditions Temperature: 23.5°C Relative Humidity: 58% ATM Pressure: 100.0 kPa Test Engineer: Allen Lai Supervised by: Max Zhang NOTE N/A Appendix A: DTS Bandwidth Test Result Test Mode Antenna Frequency [MHz] DTS BW [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict SRD Ant1 2402 1.428 2401.256 2402.684 0.5 PASS SRD Ant1 2440 1.260 2439.368 2440.628 0.5 PASS SRD Ant1 2480 1.428 2479.280 2480.708 0.5 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 2 of 23 Test Graphs SRD-Ant1-2402-PASS SRD-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 3 of 23 SRD-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 4 of 23 Appendix B: Occupied Channel Bandwidth Test Result Test Mode Antenna Frequency [MHz] OCB [MHz] FL [MHz] FH [MHz] Limit [MHz] Verdict SRD Ant1 2402 2.0386 2400.9772 2403.0158 --- --- SRD Ant1 2440 2.0348 2438.9883 2441.0231 --- --- SRD Ant1 2480 2.0621 2478.9641 2481.0262 --- --- Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 5 of 23 Test Graphs SRD-Ant1-2402 SRD-Ant1-2440 Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 6 of 23 SRD-Ant1-2480 Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 7 of 23 Appendix C: Maximum peak conducted output power Test Result Peak Test Mode Antenna Frequency [MHz] Conducted Peak Power [dBm] Conducted Limit [dBm] Verdict SRD Ant1 2402 1.02 ≤30 PASS SRD Ant1 2440 1.56 ≤30 PASS SRD Ant1 2480 1.32 ≤30 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 8 of 23 Test Graphs Peak SRD-Ant1-2402-PASS SRD-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 9 of 23 SRD-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 10 of 23 Appendix D: Maximum peak power spectral density Test Result Test Mode Antenna Frequency [MHz] Result [dBm/3kHz] Limit [dBm/3kHz] Verdict SRD Ant1 2402 -11.48 ≤8.00 PASS SRD Ant1 2440 -10.67 ≤8.00 PASS SRD Ant1 2480 -10.15 ≤8.00 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 11 of 23 Test Graphs SRD-Ant1-2402-PASS SRD-Ant1-2440-PASS Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 12 of 23 SRD-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 13 of 23 Appendix E: Band edge measurements Test Result Test Mode Antenna Ch. Name Frequency [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict SRD Ant1 Low 2402 -1.56 -33.66 ≤-21.56 PASS SRD Ant1 High 2480 -1.21 -47.66 ≤-21.21 PASS Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 14 of 23 Test Graphs SRD-Ant1-2402-PASS SRD-Ant1-2480-PASS Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 15 of 23 Appendix F: Conducted Spurious Emission Test Result Test Mode Antenna Frequency [MHz] Freq. Range [MHz] Ref. Level [dBm] Result [dBm] Limit [dBm] Verdict SRD Ant1 2402 0~Reference -1.65 -1.65 --- PASS SRD Ant1 2402 30~1000 -1.65 -52.39 ≤-21.65 PASS SRD Ant1 2402 1000~26500 -1.65 -27.89 ≤-21.65 PASS SRD Ant1 2440 0~Reference -0.18 -0.18 --- PASS SRD Ant1 2440 30~1000 -0.18 -52.91 ≤-20.18 PASS SRD Ant1 2440 1000~26500 -0.18 -27.66 ≤-20.18 PASS SRD Ant1 2480 0~Reference -0.92 -0.92 --- PASS SRD Ant1 2480 30~1000 -0.92 -52.04 ≤-20.92 PASS SRD Ant1 2480 1000~26500 -0.92 -27.91 ≤-20.92 PASS Note: offset(dB) in Reference test plots = cable loss(dB) + attenuator factor(dB); For spurious emissions plots from 30MHz to 26.5GHz, the cable loss and attenuator factors have been set in the 'Input Correction' of the Spectrum Analyzer during the test. Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 16 of 23 Test Graphs SRD-Ant1-2402-0~Reference-PASS SRD-Ant1-2402-30~1000-PASS Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 17 of 23 SRD-Ant1-2402-1000~26500-PASS SRD-Ant1-2440-0~Reference-PASS Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 18 of 23 SRD-Ant1-2440-30~1000-PASS SRD-Ant1-2440-1000~26500-PASS Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 19 of 23 SRD-Ant1-2480-0~Reference-PASS SRD-Ant1-2480-30~1000-PASS Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 20 of 23 SRD-Ant1-2480-1000~26500-PASS Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 21 of 23 Appendix G: Duty Cycle Test Result Test Mode Antenna Frequency [MHz] ON Time [ms] Period [ms] Duty Cycle [%] Duty Cycle Factor [dB] SRD Ant1 2402 19.00 19.00 100.00 0.00 SRD Ant1 2440 19.00 19.00 100.00 0.00 SRD Ant1 2480 19.00 19.00 100.00 0.00 Note: offset(dB) = cable loss(dB) + attenuator factor(dB) Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 22 of 23 Test Graphs NTNV-SRD-Ant1-2402 NTNV-SRD-Ant1-2440 Appendix Test Data of the Report No.: TZ0015260302FRF12 Page 23 of 23 NTNV-SRD-Ant1-2480

Report No.: TZ0015260302FRF02 Page 1 of 33 This publication may be reproduced in whole or in part for non-commercial purposes as long as the Shenzhen Tongzhou Testing Co.,Ltd. is acknowledged as copyright owner and source of the material. Shenzhen Tongzhou Testing Co.,Ltd. takes no responsibility for and will not assume liability for damages resulting from the reader's interpretation of the reproduced material due to its placement and context. The test report apply only to the specific sample(s) tested under stated test conditions. It is not permitted to copy extracts of these test result without the written permission of the test laboratory. TEST REPORT Report Number : TZ0015260302FRF02 Product Name : Wireless Mouse Model/Type reference : G3 FCC ID : 2BGKB-G3 Prepared for : Keychron Technology (Shenzhen) Co., Ltd. 201, Building 2, Wenkeng Industrial Zone, No. 24, Dafa Road, DafaPu Community, Bantian Jie Dao, Longgang District, Shenzhen, China Prepared By : Shenzhen Tongzhou Testing Co.,Ltd. 1st Floor, Building 1, Haomai High-tech Park, Huating Road 387, Dalang Street, Longhua, Shenzhen, China Standards : FCC CFR Title 47 Part 15C, ANSI C63.10-2020+Cor.1-2023 Date of Test : 2026-04-23 ~ 2026-04-30 Date of Issue : 2026-04-30 Prepared by : Lena Wen Reviewed by : Allen Lai Approved by : Max Zhang (Authorized Officer) Report No.: TZ0015260302FRF02 Page 2 of 33 ** Report Revise Record ** Report Version Revise Time Issued Date Valid Version Notes V1.0 / 2026-04-30 Valid Initial release Report No.: TZ0015260302FRF02 Page 3 of 33 TABLE OF CONTENTS 1. G E N E R A L I N F O R M A T I O N ........................................................ 4 1.1. Client Information ................................................................................................................... 4 1.2. Description of Device (EUT) ................................................................................................... 4 1.3. Wireless Function Tested in this Report .............................................................................. 4 1.4. EUT configuration ................................................................................................................... 5 1.5. Description of Test Facility .................................................................................................... 5 1.6. Statement of the Measurement Uncertainty ......................................................................... 6 1.7. Measurement Uncertainty ...................................................................................................... 6 1.8. Description of Test Modes ..................................................................................................... 6 1.9. Frequency of Channels .......................................................................................................... 7 2. T E S T M E T H O D O L O G Y ............................................................ 8 2.1. EUT Configuration .................................................................................................................. 8 2.2. EUT Exercise ........................................................................................................................... 8 2.3. Test Sample .......................…
