Appendix No.: TP-2408G145-1 APPENDIX-TEST PHOTOS Project No.: 2408G145 Page 1 of 4 AC Power Line Conducted Emissions test photos Appendix No.: TP-2408G145-1 APPENDIX-TEST PHOTOS Project No.: 2408G145 Page 2 of 4 Radiated emissions test photos 30 MHz to 1 GHz Appendix No.: TP-2408G145-1 APPENDIX-TEST PHOTOS Project No.: 2408G145 Page 3 of 4 Radiated emissions test photos 1 - 18GHz Appendix No.: TP-2408G145-1 APPENDIX-TEST PHOTOS Project No.: 2408G145 Page 4 of 4 Radiated emissions test photos Above 18 GHz

TP-Link Systems Inc. CERTIFICATIONS CONCERNING “COVERED” EQUIPMENT Date:2024-11-13 Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, Maryland 21046 FCC ID: 2BH7FC410V2 To Whom It May Concern: As required by section 2.911(d)(5)(i), [TP-Link Systems Inc.] (“the applicant”) certifies that the equipment for which authorization is sought is not “covered” equipment prohibited from receiving an equipment authorization pursuant to section 2.903 of the FCC rules. TP-Link Systems Inc. certifies that the equipment for which authorization is sought does not include cybersecurity or anti-virus software produced or provided by Kaspersky Lab, Inc. or any of its successors and assignees, including equipment with integrated Kaspersky Lab, Inc. (or any of its successors and assignees) cybersecurity or anti-virus software pursuant to DA-24-886 and KDB 986446 D01 Covered Equipment Guidance section B(2a). As required by section 2.911(d)(5)(ii), [TP-Link Systems Inc.] (“the applicant”) certifies that, as of the date of the filing of the application, the applicant [is not] identified on the Covered List (as a specifically named entity or any of its subsidiaries or affiliates) as an entity producing “covered” equipment. Thank you for your attention to this matter. Sincerely yours, Signature Printed Name: Sarah Wang Company: TP-Link Systems Inc. Job Title: Regulatory Compliance Manager Email: [email protected] Telephone: 6263330234

Federal Communications Commission Authorization and Evaluation Division 7435 Oakland Mills Road Columbia, MD 21046 USA Date: 2024-09-09 Ref: Attestation Statements Part 2.911(d)(7) Filing Grantee Code: 2BH7F TP-Link Systems Inc. certifies that, as of the date of the filing of the application, we designate ourselves as the U.S. agent for service of process. Designated U.S. Agent Information: FRN: 0034878967 Name: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Contact Person: Sarah Wang Tel.: (626) 333-0234 Sincerely, Printed Name: Sarah Wang Job Position: Product Compliance Manager Email: [email protected]

TP-Link Systems Inc. 030122-15 Authority to Act as Agent Date: November 14, 2024 American Certification Body, Inc. 313 Park Avenue Suite 300 Falls Church, VA 22046 To Whom It May Concern: BTL Inc./Rose Liu is authorized to act on our behalf, until otherwise notified, for applications to American Certification Body, Inc. (ACB). We certify that we are not subject to denial of federal benefits, that includes FCC benefits, pursuant to Section 5301 of the Anti-Drug Abuse Act of 1988, 21 U.S.C. 862. Further, no party, as defined in 47 CFR 1.2002 (b), to the application is subject to denial of federal benefits, that includes FCC benefits. We also declare that the information provided to the FCC is true and correct to the best of our knowledge (47 CFR 2.911(d)) and we have been informed of the grantee responsibilities (47 CFR 2.909) with regard to certified equipment. Thank you, Agency Agreement Expiration Date: 2025-11-13 By: _______ ___________________ Sarah Wang (Signature 1 ) (Print name) Title: Regulatory Compliance Manager On behalf of: TP-Link Systems Inc. (Company Name) Telephone: 6263330234 1 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

TP-Link Systems Inc. 030122-15 Request for Confidentiality Date: November 14, 2024 Subject: Confidentiality Request for: 2BH7FC410V2 Pursuant to FCC 47 CFR 0.457(d) and 0.459 and IC RSP-100, Section 12.4, the applicant requests that a part of the subject FCC application be held confidential. Type of Confidentiality Requested Exhibit ☐ Short Term ☒ Permanent Block Diagrams ☐ Short Term External Photos ☐ Short Term ☐ Permanent * 1 Internal Photos ☐ Short Term ☒ Permanent Operation Description/Theory of Operation ☐ Short Term ☐ Permanent Parts List & Placement/BOM ☐ Short Term ☐ Permanent Tune-Up Procedure ☐ Short Term ☒ Permanent Schematics ☐ Short Term Test Setup Photos ☐ Short Term ☐ Permanent * 3 User’s Manual TP-Link Systems Inc. has spent substantial effort in developing this product and it is one of the first of its kind in industry. Having the subject information easily available to "competition" would negate the advantage they have achieved by developing this product. Not protecting the details of the design will result in financial hardship. Permanent Confidentiality: The applicant requests the exhibits listed above as permanently confidential be permanently withheld from public review due to materials that contain trade secrets and proprietary information not customarily released to the public. Short-Term Confidentiality: The applicant requests the exhibits selected above as short term confidential be withheld from public view for a period of ___(specify number of days not to exceed 180) 2 ___ days from the date of the Grant of Equipment Authorization and prior to marketing. This is to avoid premature release of sensitive information prior to marketing or release of the product to the public. Applicant is also aware that they are responsible to notify ACB in the event information regarding the product or the product is made available to the public before the requested period has expired. ACB will then release the documents listed above for public disclosure pursuant to FCC Public Notice DA 04-1705. NOTE for Industry Canada Applications: IC currently only distinguishes Permanent Confidentiality exhibits as shown above. Short Term confidentiality is not considered applicable to IC applications. Sincerely, By: Regulatory Compliance Manager Sarah Wang (Signature/Title 3 ) (Print name) 1 - The asterisked items (*) require further information to be provided to ACB before permanent confidentiality will be extended to these exhibits. Please refer to FCC KDB 726920 and the specific Document link for D01 found at: https://apps.fcc.gov/oetcf/kdb/forms/FTSSearchResultPage.cfm?switch=P&id=41731 and review section II, 3) regarding specific information that must accompany these requests. 2 - Please refer to https://acbcert.com/documents/misc-docs/Memo-Short-Term-Vs-Standard-Confidentiality.pdf for complete details. 3 - Must be signed by applicant contact given for applicant on the FCC site, or by the authorized agent if an appropriate authorized agent letter has been provided. Letters should be placed on appropriate letterhead.

Declaration of Conformity We Name: TP-Link Systems Inc. Address: 10 Mauchly, Irvine, CA 92618 Irvine California United States 92618 Declare that: Product: 1) Battery-Powered Outdoor Security Camera 2) Wire-Free Indoor/Outdoor Security Camera FCC ID: 2BH7FC410V2 Model: 1) Tapo C410,TC82 2) Tapo C402,Tapo C403，TCB82 Brand: tp-link Product which bears the above FCC ID is also compliant with the FCC requirements for sDOC. And the sDOC procedure shall be carried out prior to marketing the device in the US. Sincerely, Name: Sarah Wang Position: Regulatory Compliance Manager Date: 2024-11-13

TP-LinkSystemsInc. ModelDeclarationLetter We, the undersigningcompany CompanyName:TP-LinkSystemsInc. Add ress: 10 Mauchly,Irvine,CA 92618Irvine CaliforniaUnitedStates92618 Herebyconfirmthat the followingproducts: Productdescription: 1) Battery-PoweredOutdoorSecurityCamera 2)Wire-FreeIndoor/OutdoorSecurityCamera Type designation: 1) Tapo C410,TC82 2)Tapo C402 ,Tapo C403, TCB82 Trademark:tp-link That All versionsof the ModelTapo C410,TC82,Tapo C402,TapoC403andTCB82are electricallyequal exceptthe followingdifference: 1. TC82 and Tapo C410 are only differ in modelname,Tapo C402 and Tapo C410 are only differ in productname and modelname,TCB82and Tapo C410 are only differ in productname and model name,Tapo C403 and Tapo C410 differ in productname,modelname and shell color while Tapo C403 is black. ContactPerson:Sarah Wang Positionin the Company:RegulatoryComplianceManager Date: 2024- 11 -13 Signature:

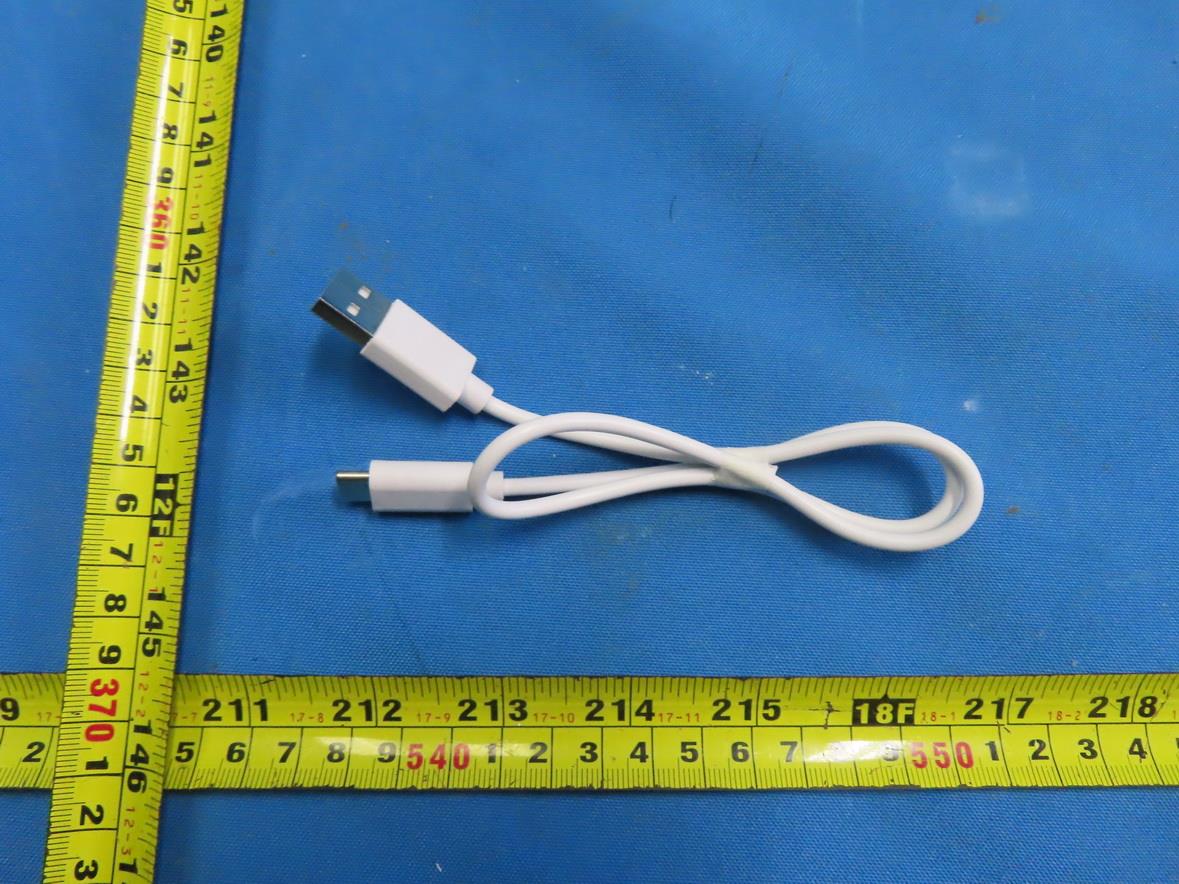

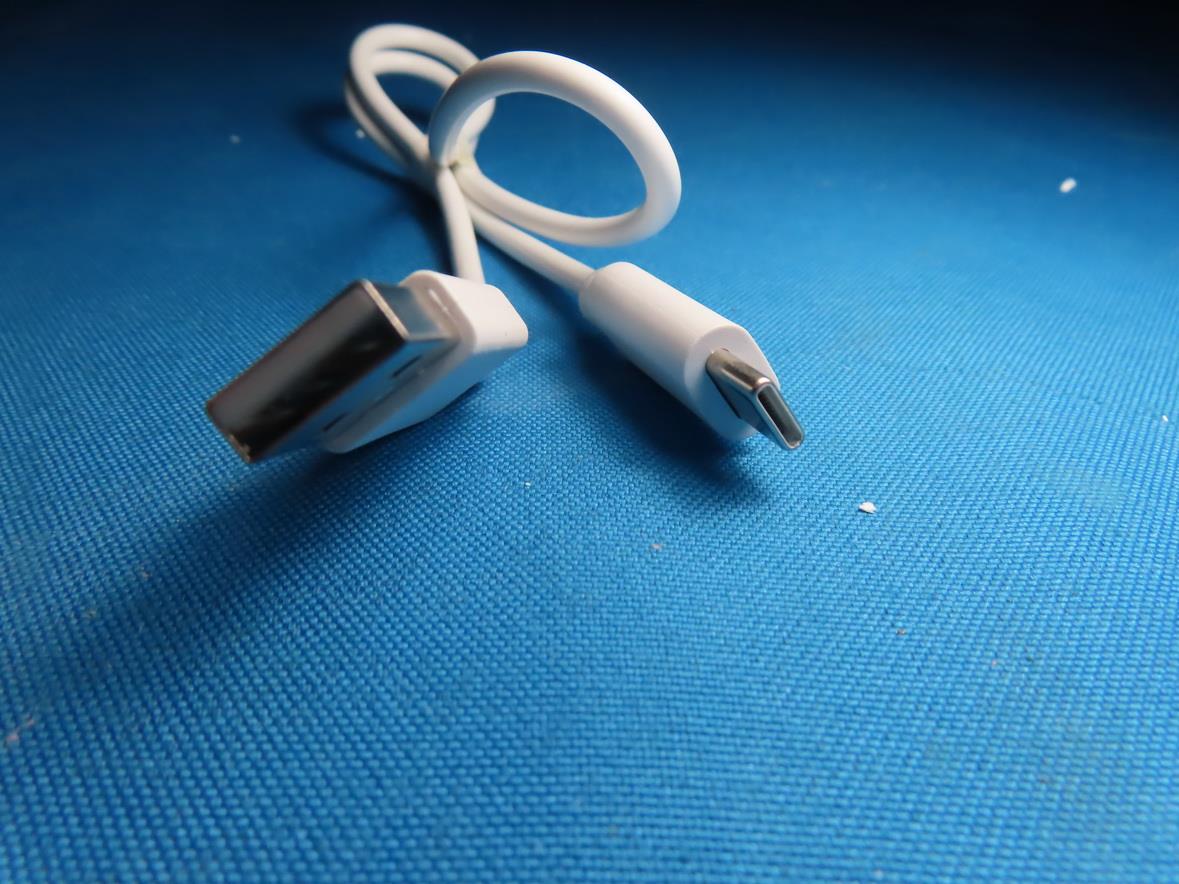

Appendix No.: EP-2408G145-1 APPENDIX-EUT PHOTOS Project No.: 2408G145 Page 1 of 17 Without stand Appendix No.: EP-2408G145-1 APPENDIX-EUT PHOTOS Project No.: 2408G145 Page 2 of 17 With stand Appendix No.: EP-2408G145-1 APPENDIX-EUT PHOTOS Project No.: 2408G145 Page 3 of 17 Appendix No.: EP-2408G145-1 APPENDIX-EUT PHOTOS Project No.: 2408G145 Page 4 of 17 Appendix No.: EP-2408G145-1 APPENDIX-EUT PHOTOS Project No.: 2408G145 Page 5 of 17

Tapo C402 Wire-Free Indoor/Outdoor Security Camera

Wire-Free Indoor/Outdoor Security Camera Tapo C403

见文件备注 菲林图 尺寸：39.17*21.57mm 颜色：Pantone Cool Gray 6C (实际效果以签样为准） Tapo C410 2.0_套筒镭雕 A1 Tapo C410 2.0 望远镜-89 胡燕燕 2024-08-30 更新机型名、公司名、ID、日本认证 尺寸图转曲 10.54±0.5mm 注： 2. 图示条形码仅为示意，具体以生产实际为准。 89mm 60mm 1. S/N码、MAC码打印至20*5mm空白标贴（7210500368）后粘贴于壳体指定位置。 MAC条码由“XXXXXXXXXXXX”生成，文本打印成：XX-XX-XX-XX-XX-XX。 深圳市联洲国际技术有限公司 1.5±0.3mm Rainproof IP65 Battery-Powered Outdoor Security Camera Input Rating: 5V 1A TP-Link Systems Inc. 10 Mauchly, Irvine, CA 92618 FCC ID: 2BH7FC410V2 MADE IN CHINA Model: Tapo C410 217-241666 IEEE802.11b/g/n MAC:XX-XX-XX-XX-XX-XX EU/2.0 S/N: XXXXXXXXXXXXX IC: 32876-C410V2 HVIN: Tapo C410V2

TC82

Wire-Free Indoor/Outdoor Security Camera TCB82

Appendix No.: EP-2408G145-1 APPENDIX-EUT PHOTOS Project No.: 2408G145 Page 6 of 17 Appendix No.: EP-2408G145-1 APPENDIX-EUT PHOTOS Project No.: 2408G145 Page 7 of 17 Appendix No.: EP-2408G145-1 APPENDIX-EUT PHOTOS Project No.: 2408G145 Page 8 of 17 Appendix No.: EP-2408G145-1 APPENDIX-EUT PHOTOS Project No.: 2408G145 Page 9 of 17 Appendix No.: EP-2408G145-1 APPENDIX-EUT PHOTOS Project No.: 2408G145 Page 10 of 17 Appendix No.: EP-2408G145-1 APPENDIX-EUT PHOTOS Project No.: 2408G145 Page 11 of 17 Appendix No.: EP-2408G145-1 APPENDIX-EUT PHOTOS Project No.: 2408G145 Page 12 of 17 Appendix No.: EP-2408G145-1 APPENDIX-EUT PHOTOS Project No.: 2408G145 Page 13 of 17 Appendix No.: EP-2408G145-1 APPENDIX-EUT PHOTOS Project No.: 2408G145 Page 14 of 17 Appendix No.: EP-2408G145-1 APPENDIX-EUT PHOTOS Project No.: 2408G145 Page 15 of 17 Appendix No.: EP-2408G145-1 APPENDIX-EUT PHOTOS Project No.: 2408G145 Page 16 of 17 Appendix No.: EP-2408G145-1 APPENDIX-EUT PHOTOS Project No.: 2408G145 Page 17 of 17

Report No.: BTL-FCCP-2-2408G145 Project No.: 2408G145 Page 1 of 7 Report Version: R00 FCC RF Exposure Report FCC ID: 2BH7FC410V2 Report No. : BTL-FCCP-2-2408G145 Equipment : 1) Battery-Powered Outdoor Security Camera 2) Wire-Free Indoor/Outdoor Security Camera Model Name : 1) Tapo C410 Series Model : 1) TC82 2) Tapo C402, Tapo C403, TCB82 Brand Name : tp-link Applicant : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Standard(s) : 47 CFR § 2.1091 FCC Guidelines for Human Exposure IEEE C95.1 Date of Receipt : 2024/9/27 Date of Test : 2024/9/27 ~ 2024/10/17 Issued Date : 2024/11/1 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Poken Huang, Engineer Approved by : Peter Chen, Manager BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-2-2408G145 Project No.: 2408G145 Page 2 of 7 Report Version: R00 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-2-2408G145 R00 Original Report. 2024/11/1 Valid Report No.: BTL-FCCP-2-2408G145 Project No.: 2408G145 Page 3 of 7 Report Version: R00 1. LIMITS According to § 1.1310 Radiofrequency radiation exposure limits. (a) Specific absorption rate (SAR) shall be used to evaluate the environmental impact of human exposure to radiofrequency (RF) radiation as specified in § 1.1307(b) of this part within the frequency range of 100 kHz to 6 GHz (inclusive). (b) The SAR limits for occupational/controlled exposure are 0.4 W/kg, as averaged over the whole body, and a peak spatial-average SAR of 8 W/kg, averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the parts of the human body treated as extremities, such as hands, wrists, feet, ankles, and pinnae, where the peak spatial-average SAR limit for occupational/controlled exposure is 20 W/kg, averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube). Exposure may be averaged over a time period not to exceed 6 minutes to determine compliance with occupational/controlled SAR limits. (c) The SAR limits for general population/uncontrolled exposure are 0.08 W/kg, as averaged over the whole body, and a peak spatial-average SAR of 1.6 W/kg, averaged over any 1 gram of tissue (defined as a tissue volume in the shape of a cube). Exceptions are the parts of the human body treated as extremities, such as hands, wrists, feet, ankles, and pinnae, where the peak spatial-average SAR limit is 4 W/kg, averaged over any 10 grams of tissue (defined as a tissue volume in the shape of a cube). Exposure may be averaged over a time period not to exceed 30 minutes to determine compliance with general population/uncontrolled SAR limits. (e) Limits for Maximum Permissible Exposure (MPE) to radiofrequency electromagnetic fields (Table 1). Frequency range (MHz) Electric field strength (V/m) Magnetic field strength (A/m) Power density (mW/cm 2 ) Averaging time (minutes) (i) Limits for Occupational/Controlled Exposure 0.3-3.0 614 1.63 *(100) ≤6 3.0-30 1842/f 4.89/f *(900/f 2 ) <6 30-300 61.4 0.163 1.0 <6 300-1.500 f/300 <6 1.500-100.000 5 <6 (ii) Limits for General Population/Uncontrolled Exposure 0.3-1.34 614 1.63 *(100) <30 1.34-30 824/f 2.19/f *(180/f 2 ) <30 30-300 27.5 0.073 0.2 <30 300-1.500 f/1500 <30 1.500-100.000 1.0 <30 f = frequency in MHz. * = Plane-wave equivalent power density. Report No.: BTL-FCCP-2-2408G145 Project No.: 2408G145 Page 4 of 7 Report Version: R00 2. APPLIED EXEMPTION CRITERIA Refer to KDB 447498 D04, ticked item is applied: For RF Exposure Test Exemptions for Single Source: ☐ 1-mW Test Exemption Per § 1.1307(b)(3)(i)(A), a single RF source is exempt RF device (from the requirement to show data demonstrating compliance to RF exposure limits, as previously mentioned) if the available maximum time-averaged power is no more than 1 mW, regardless of separation distance. This exemption applies to all operating configurations and exposure conditions, for the frequency range 100 kHz to 100 GHz, regardless of fixed, mobile, or portable device exposure conditions. This is a standalone exemption, and it cannot be applied in conjunction with any other test exemption. ☐ SAR-Based Exemption A more comprehensive exemption, considering a variable power threshold that depends on both the separation distance and power, is provided in § 1.1307(b)(3)(i)(B). This exemption is applicable to the frequency range between 300 MHz and 6 GHz, with test separation distances between 0.5 cm and 40 cm, and for all RF sources in fixed, mobile, and portable device exposure conditions. Accordingly, a RF source is considered an RF exempt device if its available maximum time-averaged (matched conducted) power or its effective radiated power (ERP), whichever is greater, are below a specified threshold. This exemption threshold was derived based on general population 1-g SAR requirements and is detailed in Appendix C. § 1.1307(b)(3)(i)(B): Or the available maximum time-averaged power or effective radiated power (ERP), whichever is greater, is less than or equal to the threshold P th (mW) described in the following formula. This method shall only be used at separation distances (cm) from 0.5 centimeters to 40 centimeters and at frequencies from 0.3 GHz to 6 GHz (inclusive). P th is given by: Report No.: BTL-FCCP-2-2408G145 Project No.: 2408G145 Page 5 of 7 Report Version: R00 ☒ MPE-Based Exemption An alternative to the SAR-based exemption is provided in § 1.1307(b)(3)(i)(C), for a much wider frequency range, from 300 kHz to 100 GHz, applicable for separation distances greater or equal to λ/2π, where λ is the free-space operating wavelength in meters. The MPE-based test exemption condition is in terms of ERP, defined as the product of the maximum antenna gain and the delivered maximum time-averaged power.10 For this…

Text truncated - open the document above for the full version.

ProductModel： TapoC402KIT(US)2.6 Manufacturer： TP-LinkSystemsInc. TestDate： 2024.8.19 TestedBy： Yinshufen TP-LinkSystemsInc. 10Mauchly,Irvine,CA92618 Index 1.AntennaDistribution........................................................................................3 2.ElectricalCharacteristics.................................................................................3 3.GainandRadiationPattern..............................................................................3 3.1MeasurementProcedure.............................................................................................3 3.2TestSetup....................................................................................................................5 3.3SParameterTestData................................................................................................5 3.4AntennaPeakGain.....................................................................................................6 3.5AntennaRadiationPattern..........................................................................................6 Page3 1.AntennaDistribution TapoC402KIT(US)2.6 2.ElectricalCharacteristics Ant1 Frequency2400~2500MHz Impedance50Ohm AntennaTypeDipole AntennaGain0dBi@2400~2500MHz RadiationpatternOmni-Directional P/N3101507115 3.GainandRadiationPattern 3.1MeasurementProcedure Thismeasurementexperimentadoptedanantennanear-fieldmeasurementsystem,andthediagram ofthemeasurementsystemwasshowninFigure3-1.Theexcitationsignalwasgeneratedbythe KeysightE5071C(300kHz-20GHz).Underthecontrolofthecentralcomputer,theproberotatedintheθ direction,andtheEUTrotatedintheφdirectionwiththeturntable.Theprobesamplingframereceived andcollectedsignalsinthenear-fieldrangeoftheEUT.Thesoftwaresystemwhichwascontrolledbythe centralcomputercompletedtheprocessing,outputanddisplayofthetestdata. Page4 Figure3-1 Thetestsitewasafullanechoicchamberwithasizeof3.0m×3.1m×2.97m,whichwasbuiltbyGTS Rayzone2800.Allsixsurfacesoftheanechoicchamberwerepastedwithabsorbingmaterials.Andthe chamberwascalibratedbytheauthoritativethird-partylabeveryyear.Theantennaanechoicchamber measurementsystemadopteda13-probemulti-probesystem.Theprobeantennaswereevenly distributedonthesphericalsurfacesurroundingtheEUT,andtheirsoperatingfrequencywas 600MHz~8.5GHz. Duringthemeasurement,theprobeantennaswererotatedintheθdirectionunderthecontrolofthe probeholdertosamplethenear-fielddataattheθangle.Atthesametime,theEUTrotatedwiththe turntableintheφdirectiontosamplethenearfielddataattheφangle.Thesamplingaccuracywas15°. ThesystemdiagramwasshowninFigure3-2.Fromthesamplingresults,theEUT'snear-fieldtestdataof θcomponent,φcomponentandtotalcomponentcouldbeobtained. Figure3-2 Beforethemeasurement,calibratedthevectornetworkanalyzer,andthenconnectedtheinputendof eachantennatotheoutputendofthevectornetworkanalyzer,andevenlytheantennastobemeasured. TestEquipmentlistedbelow: EquipmentsModelManufacturerS/NCali.IntervalCali.DueDate ChamberRayzone2800 GTS(General TestSystem) MY5347043 5 12months2025/01/15 Vector NetworkAnalyzer E5071CKeysightMY4631523824months2025/03/13 Page5 GTSMaxSign100 Software V2.1 GTS(General TestSystem) /// 3.2TestSetup ThetestsetupwasshowninFigure3-3,3-4: Figure3-3 Figure3-4 3.3SParameterTestData Ant1 Page6 3.4AntennaPeakGain Frequency 2.45GHz 2400~2500MHz Ant1MaxGain(dBi)0 Ant1Polarization/Φ ( ° )/θ( ° ) Phi/105/135 MaxGain(dBi)0 3.5AntennaRadiationPattern Ant1

Report No.: BTL-FCCP-1-2408G145 Project No.: 2408G145 Page 1 of 81 Report Version: R00 FCC Radio Test Report FCC ID: 2BH7FC410V2 Report No. : BTL-FCCP-1-2408G145 Equipment : 1) Battery-Powered Outdoor Security Camera 2) Wire-Free Indoor/Outdoor Security Camera Model Name : 1) Tapo C410 Series Model : 1) TC82 2) Tapo C402, Tapo C403, TCB82 Brand Name : tp-link Applicant : TP-Link Systems Inc. Address : 10 Mauchly, Irvine, CA 92618 Radio Function : WLAN 2.4 GHz FCC Rule Part(s) : FCC CFR Title 47, Part 15, Subpart C (15.247) Measurement Procedure(s) : ANSI C63.10-2013 Date of Receipt : 2024/9/27 Date of Test : 2024/9/27 ~ 2024/10/17 Issued Date : 2024/11/1 The above equipment has been tested and found in compliance with the requirement of the above standards by BTL Inc. Prepared by : Poken Huang, Engineer Approved by : Peter Chen, Manager BTL Inc. No.18, Ln. 171, Sec. 2, Jiuzong Rd., Neihu Dist., Taipei City 114, Taiwan Tel: +886-2-2657-3299 Fax: +886-2-2657-3331 Web: www.newbtl.com Service mail: [email protected] Report No.: BTL-FCCP-1-2408G145 Project No.: 2408G145 Page 2 of 81 Report Version: R00 Declaration BTL represents to the client that testing is done in accordance with standard procedures as applicable and that test instruments used has been calibrated with standards traceable to international standard(s) and/or national standard(s). BTL's reports apply only to the specific samples tested under conditions. It is manufacture‟s responsibility to ensure that additional production units of this model are manufactured with the identical electrical and mechanical components. BTL assumes no responsibility for the data provided by the Customer, any statements, inferences or generalizations drawn by the customer or others from the reports issued by BTL. This report is the confidential property of the client. As a mutual protection to the clients, the public and ourselves, the test report shall not be reproduced, except in full, without our written approval. BTL‟s laboratory quality assurance procedures are in compliance with the ISO/IEC 17025 requirements, and accredited by the conformity assessment authorities listed in this test report. BTL is not responsible for the sampling stage, so the results only apply to the sample as received. The information, data and test plan are provided by manufacturer which may affect the validity of results, so it is manufacturer‟s responsibility to ensure that the apparatus meets the essential requirements of applied standards and in all the possible configurations as representative of its intended use. Limitation For the use of the authority's logo is limited unless the Test Standard(s)/Scope(s)/Item(s) mentioned in this test report is (are) included in the conformity assessment authorities acceptance respective. Please note that the measurement uncertainty is provided for informational purpose only and are not use in determining the Pass/Fail results. Report No.: BTL-FCCP-1-2408G145 Project No.: 2408G145 Page 3 of 81 Report Version: R00 CONTENTS REVISION HISTORY 5 1 SUMMARY OF TEST RESULTS 6 1.1 TEST FACILITY 7 1.2 MEASUREMENT UNCERTAINTY 7 1.3 TEST ENVIRONMENT CONDITIONS 7 1.4 DUTY CYCLE 8 2 GENERAL INFORMATION 9 2.1 DESCRIPTION OF EUT 9 2.2 TEST MODES 10 2.3 BLOCK DIAGRAM SHOWING THE CONFIGURATION OF SYSTEM TESTED 11 2.4 SUPPORT UNITS 12 3 AC POWER LINE CONDUCTED EMISSIONS TEST 13 3.1 LIMIT 13 3.2 TEST PROCEDURE 13 3.3 DEVIATION FROM TEST STANDARD 13 3.4 TEST SETUP 14 3.5 TEST RESULT 14 4 RADIATED EMISSIONS TEST 15 4.1 LIMIT 15 4.2 TEST PROCEDURE 16 4.3 DEVIATION FROM TEST STANDARD 16 4.4 TEST SETUP 16 4.5 EUT OPERATING CONDITIONS 17 4.6 TEST RESULT – 9KHZ TO 30 MHZ 18 4.7 TEST RESULT – 30 MHZ TO 1 GHZ 18 4.8 TEST RESULT – ABOVE 1 GHZ 18 5 BANDWIDTH TEST 19 5.1 LIMIT 19 5.2 TEST PROCEDURE 19 5.3 DEVIATION FROM TEST STANDARD 19 5.4 TEST SETUP 19 5.5 EUT OPERATING CONDITIONS 19 5.6 TEST RESULT 19 6 MAXIMUM OUTPUT POWER TEST 20 6.1 LIMIT 20 6.2 TEST PROCEDURE 20 6.3 DEVIATION FROM TEST STANDARD 20 6.4 TEST SETUP 20 6.5 EUT OPERATING CONDITIONS 20 6.6 TEST RESULT 20 7 POWER SPECTRAL DENSITY 21 7.1 LIMIT 21 7.2 TEST PROCEDURE 21 7.3 DEVIATION FROM TEST STANDARD 21 7.4 TEST SETUP 21 7.5 EUT OPERATING CONDITIONS 21 7.6 TEST RESULT 21 Report No.: BTL-FCCP-1-2408G145 Project No.: 2408G145 Page 4 of 81 Report Version: R00 8 ANTENNA CONDUCTED SPURIOUS EMISSIONS TEST 22 8.1 LIMIT 22 8.2 TEST PROCEDURE 22 8.3 DEVIATION FROM TEST STANDARD 22 8.4 TEST SETUP 22 8.5 EUT OPERATING CONDITIONS 22 8.6 TEST RESULT 22 9 LIST OF MEASURING EQUIPMENTS 23 10 EUT TEST PHOTO 25 11 EUT PHOTOS 25 APPENDIX A AC POWER LINE CONDUCTED EMISSIONS 26 APPENDIX B RADIATED EMISSIONS - 30 MHZ TO 1 GHZ 29 APPENDIX C RADIATED EMISSIONS - ABOVE 1 GHZ 32 APPENDIX D BANDWIDTH 67 APPENDIX E MAXIMUM OUTPUT POWER 72 APPENDIX F POWER SPECTRAL DENSITY 74 APPENDIX G ANTENNA CONDUCTED SPURIOUS EMISSIONS 77 Report No.: BTL-FCCP-1-2408G145 Project No.: 2408G145 Page 5 of 81 Report Version: R00 REVISION HISTORY Report No. Version Description Issued Date Note BTL-FCCP-1-2408G145 R00 Original Report. 2024/11/1 Valid Report No.: BTL-FCCP-1-2408G145 Project No.: 2408G145 Page 6 of 81 Report Version: R00 1 SUMMARY OF TEST RESULTS Test procedures according to the technical standards. Standard(s) Section Description Test Result Judgement Remark 15.207 AC Power Line Conducted Emissions APPENDIX A Pass ------ 15.205 15.209 15.247(d) Radiated Emissions APPENDIX B APPENDIX C APPENDIX D Pass ------ 15.247(a) Bandwidth APPENDIX D Pass ------ 15.247(b) Maximum Output Power APPENDIX E Pass ------ 15.247(e) Power Spectral Density APPENDIX F Pass ------ 15.247(d) Antenna conducted Spurious Emission APPENDIX G Pass ------ 15.203 Antenna Requirement ------ Pass NOTE (3) NOTE: (1) ”N/A” denotes test is not applicable in this Test Report. (2) The report format version is TP.1.1.1. (3) The device what use replaceable antennas with non-standard interfaces are considered sufficient to com ply with the provisions of 15.203. Report…

Text truncated - open the document above for the full version.

Appendix No.: TP-2408G145-1 APPENDIX-TEST PHOTOS Project No.: 2408G145 Page 1 of 4 AC Power Line Conducted Emissions test photos Appendix No.: TP-2408G145-1 APPENDIX-TEST PHOTOS Project No.: 2408G145 Page 2 of 4 Radiated emissions test photos 30 MHz to 1 GHz Appendix No.: TP-2408G145-1 APPENDIX-TEST PHOTOS Project No.: 2408G145 Page 3 of 4 Radiated emissions test photos 1 - 18GHz Appendix No.: TP-2408G145-1 APPENDIX-TEST PHOTOS Project No.: 2408G145 Page 4 of 4 Radiated emissions test photos Above 18 GHz
