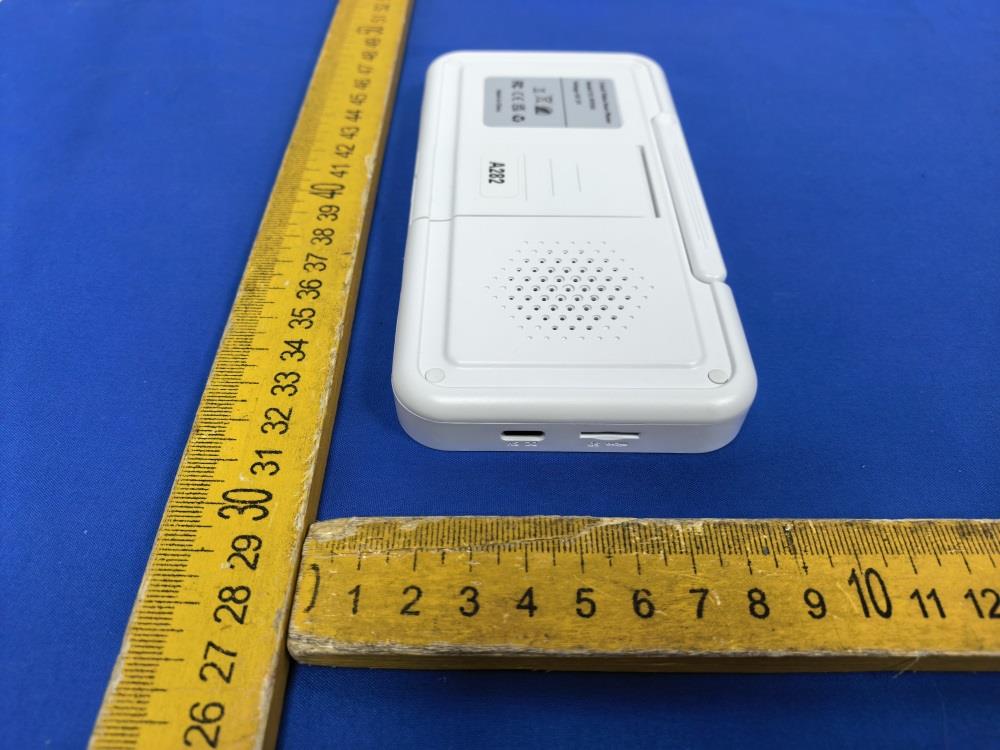

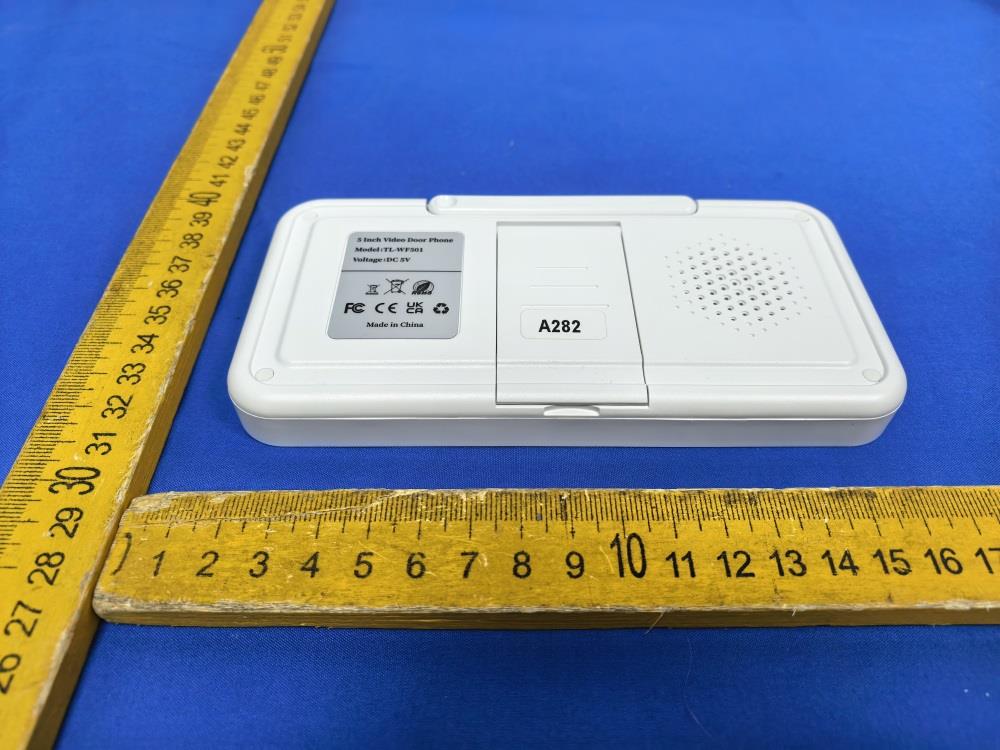

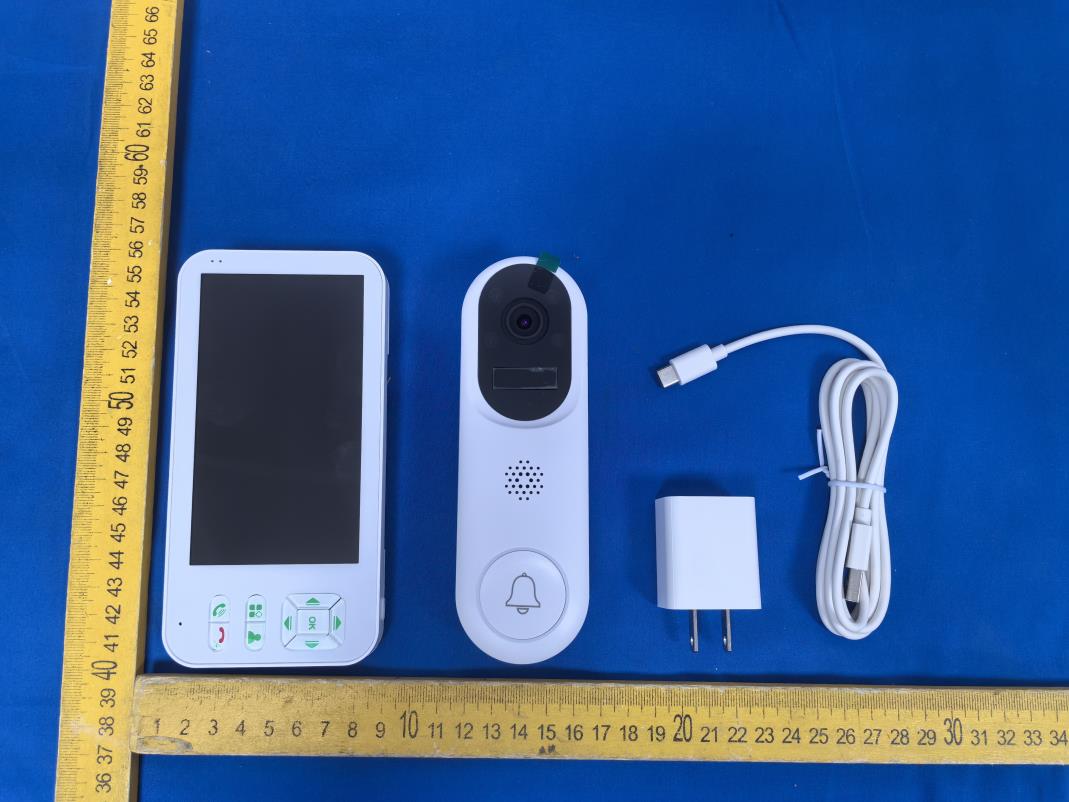

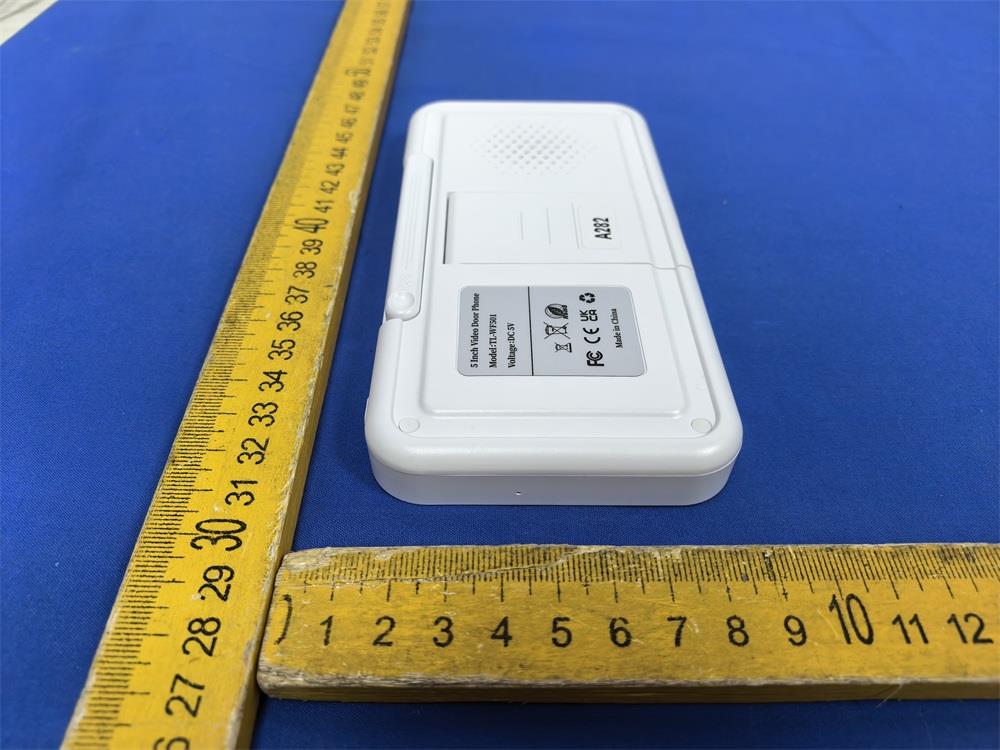

1 Warning Please use common USB Cable or original charger, Otherwise, It may result to danger. When you use a charger for charging, adapter shall be installed near the equipment and shall be easily accessible. Extreme Operating Temperature : -20~+45°C 1) This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 20cm must be maintained between the user’s body and the handset, including the antenna. 2) This product can be used across EU member states. 3) BLE frequency range: 2402-2480MHz, Maximum E.I.R.P:0.98dBm 2.4GWi-Fi frequency range: 2412-2472MHz, Maximum E.I.R.P: 14.99dBm CAUTION: RISK OF EXPLOSION IF BATTERY IS REPLACED BY AN INCORRECT TYPE. DISPOSE OF USED BATTERIES ACCORDING TO THE INSTRUCTIONS. RED 2014/53/EU Declaration Of Conformity This product can be used across EU member states . Hereby, Dongguan Tianluo Electronic Technology Co.,Ltd declares that this wireless video door phone is in compliance with the essential requirements and other relevant provisions of directive 2014/53/EU. FCC Warning This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any inte rference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interferenceto radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: -Reorient or relocate the receiving antenna. •Increase the separation between the equipment and receiver. •Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. •Consult the dealer or an experienced radio/TV technician for help. Radiation Exposure Statement This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator and your body.

Manufacturer Shenzhen ZTX Communication Technology Co., Ltd Antenna type Internal&External antenna Model TL-WF501 Antenna Gain 2.00dBi for 2.4G-ANT 1 2.00dBi for 2.4G-ANT 2 1.Test equipment and conditions: 1.1.Network Analyzer 1.2.Communication test equipment 1.3.Test system 1.4.Matching circuit Address No.34 Shilong Road, Bao'an District, Shenzhen, Guangdong Province 2.Test Data: 2.1. Standing wave ratio ANT 1 ANT 2 2.2.Efficiency ANT 1 Fred (MHz) Effi (%) Effi (%) Gain (dBi) 2400 44.38 -2.79 1.82 2410 44.63 -2.46 1.01 2420 44.94 -2.12 1.78 2430 44.27 -2.70 1.63 2440 44.75 -2.39 1.08 2450 44.82 -1.83 1.84 2460 44.28 -2.63 1.14 2470 44.49 -2.34 2.00 2480 45.08 -2.23 1.87 2490 44.21 -2.68 1.55 2500 44.46 -2.32 1.99 ANT 2 Fred (MHz) Effi (%) Effi (%) Gain (dBi) 2400 43.22 -3.25 1.56 2410 45.06 -3.74 1.63 2420 45.12 -3.65 1.29 2430 43.06 -3.87 1.85 2440 43.69 -3.69 1.77 2450 44.22 -3.05 1.69 2460 43.99 -3.43 2.00 2470 43.25 -3.58 1.57 2480 44.22 -3.62 1.63 2490 45.02 -3.74 1.78 2500 45.23 -3.56 1.93 2.3.Directivity diagram ANT 1 ANT 2 3.Antenna drawing(MM): ANT 1 ANT 2

FCC ID: 2BHDZ-TL-WF501 _______________________________________________________________________________________________ Page 1 of 2 1. TEST SETUP PHOTOGRAPHS 1.1. Photo of Radiated Emissions Measurement Fig. 1 Fig. 2 FCC ID: 2BHDZ-TL-WF501 _______________________________________________________________________________________________ Page 2 of 2 Photo of Conducted Emission Measurement Fig. 3 Fig. 4

1 FCC Appendix RF Test Data for BLE FCC ID : 2BHDZ-TL-WF501 Company : Dongguan Tianluo Electronic Technology Co.,Ltd EUT : wireless video door phone Model Number : TL-WF501 Report No. : CTA26050900601 Reviewed By : Eric Wang 2 AppendixA: DTS Bandwidth Test Result TestMode Antenna Freq(MHz) DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 0.648 2401.688 2402.336 0.5 PASS 2440 0.660 2439.684 2440.344 0.5 PASS 2480 0.660 2479.680 2480.340 0.5 PASS 3 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 4 5 AppendixB: Occupied Channel Bandwidth Test Result TestMode Antenna Freq(MHz) OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict BLE_1M Ant1 2402 1.0058 2401.5190 2402.5248 --- --- 2440 1.0108 2439.5145 2440.5253 --- --- 2480 1.0078 2479.5211 2480.5289 --- --- 6 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 7 8 AppendixC: Maximum conducted output power Test Result Peak TestMode Antenna Freq(MHz) Conducted Peak Powert[dBm] Conducted Limit[dBm] Verdict BLE_1M Ant1 2402 1.84 ≤30 PASS 2440 1.67 ≤30 PASS 2480 1.66 ≤30 PASS 9 AppendixD: Maximum power spectral density Test Result TestMode Antenna Freq(MHz) Result[dBm/3kHz] Limit[dBm/3kHz] Verdict BLE_1M Ant1 2402 -14.65 ≤8.00 PASS 2440 -15.68 ≤8.00 PASS 2480 -14.81 ≤8.00 PASS 10 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 11 12 AppendixE:Band edge measurements Test Result TestMode Antenna ChName Freq(MHz) RefLevel[dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 Low 2402 0.83 -52.98 ≤-19.17 PASS High 2480 0.53 -50.24 ≤-19.47 PASS 13 Test Graphs BLE_1M_Ant1_Low_2402 BLE_1M_Ant1_High_2480 14 AppendixF:Conducted SpuriousEmission Test Result TestMode Antenna Freq(MHz) FreqRange [MHz] RefLevel [dBm] Result[dBm] Limit[dBm] Verdict BLE_1M Ant1 2402 Reference -0.42 -0.42 --- PASS 30~1000 -0.42 -68.06 ≤-20.42 PASS 1000~26500 -0.42 -41.01 ≤-20.42 PASS 2440 Reference -1.11 -1.11 --- PASS 30~1000 -1.11 -68.3 ≤-21.11 PASS 1000~26500 -1.11 -42.62 ≤-21.11 PASS 2480 Reference -0.69 -0.69 --- PASS 30~1000 -0.69 -67.32 ≤-20.69 PASS 1000~26500 -0.69 -41.02 ≤-20.69 PASS 15 Test Graphs BLE_1M_Ant1_2402_0~Reference BLE_1M_Ant1_2402_30~1000 BLE_1M_Ant1_2402_1000~26500 16 BLE_1M_Ant1_2440_0~Reference BLE_1M_Ant1_2440_30~1000 17 BLE_1M_Ant1_2440_1000~26500 BLE_1M_Ant1_2480_0~Reference BLE_1M_Ant1_2480_30~1000 18 BLE_1M_Ant1_2480_1000~26500 19 AppendixG: DutyCycle Test Result TestMode Antenna Freq(MHz) ON Time [ms] Period [ms] X DC [%] xFactor Limit Verdict BLE_1M Ant1 2402 0.41 0.62 0.6613 66.13 1.80 --- --- 2440 0.41 0.62 0.6613 66.13 1.80 --- --- 2480 0.41 0.62 0.6613 66.13 1.80 --- --- 20 Test Graphs BLE_1M_Ant1_2402 BLE_1M_Ant1_2440 BLE_1M_Ant1_2480 21 22 AppendixH:EmissionsinRestrictedBands Test Result TestMo de Anten na ChNa me Freq(M Hz) Detecto r Freq [MHz] Resul t [dBm ] Gain [dB] DC Facto r [dB] EIRP [dBm] Limit [dBm] Result [dBuV/ m] Limit [dBuV/m ] Verdic t BLE_1 M Ant1 Low 2402 AV 2310.00 0 -59.8 3 2.00 1.80 -56.0 3 ≤-41. 20 39.17 ≤54 PASS AV 2386.73 0 -58.4 2.00 1.80 -54.6 ≤-41. 20 40.60 ≤54 PASS AV 2390.00 0 -59.6 2 2.00 1.80 -55.8 2 ≤-41. 20 39.38 ≤54 PASS Peak 2310.00 0 -52.8 6 2.00 0.00 -50.8 6 ≤-21. 20 44.34 ≤74 PASS Peak 2349.56 0 -47.6 5 2.00 0.00 -45.6 5 ≤-21. 20 49.55 ≤74 PASS Peak 2390.00 0 -49.9 4 2.00 0.00 -47.9 4 ≤-21. 20 47.26 ≤74 PASS High 2480 AV 2483.50 0 -56.9 9 2.00 1.80 -53.1 9 ≤-41. 20 42.01 ≤54 PASS AV 2483.52 0 -56.9 9 2.00 1.80 -53.1 9 ≤-41. 20 42.01 ≤54 PASS AV 2500.00 0 -59.0 7 2.00 1.80 -55.2 7 ≤-41. 20 39.93 ≤54 PASS Peak 2483.50 0 -48.5 5 2.00 0.00 -46.5 5 ≤-21. 20 48.65 ≤74 PASS Peak 2485.20 0 -45.2 4 2.00 0.00 -43.2 4 ≤-21. 20 51.96 ≤74 PASS Peak 2500.00 0 -50.3 4 2.00 0.00 -48.3 4 ≤-21. 20 46.86 ≤74 PASS Note： 1. The Antenna Gain is compensated in the graph. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 23 Test Graphs BLE_1M_Ant1_Low_2402_AV BLE_1M_Ant1_Low_2402_Peak BLE_1M_Ant1_High_2480_AV 24 BLE_1M_Ant1_High_2480_Peak

101 11G_Ant1_2412 11G_Ant1_2437 102 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 103 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 104 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 105 Appendix H:Emissions in Restricted Bands Test Result TestM ode Antenn a ChName Frequenc y[MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -58.93 2.00 0.03 38.30 ≤54 PASS AV 2386.190 -54.33 2.00 0.03 42.90 ≤54 PASS AV 2390.000 -57.39 2.00 0.03 39.84 ≤54 PASS Peak 2310.000 -52.95 2.00 0.00 44.25 ≤74 PASS Peak 2387.100 -46.57 2.00 0.00 50.63 ≤74 PASS Peak 2390.000 -47.3 2.00 0.00 49.90 ≤74 PASS High 2462 AV 2483.500 -54.7 2.00 0.03 42.53 ≤54 PASS AV 2488.510 -53.69 2.00 0.03 43.54 ≤54 PASS AV 2500.000 -58.8 2.00 0.03 38.43 ≤54 PASS Peak 2483.500 -46.73 2.00 0.00 50.47 ≤74 PASS Peak 2487.520 -46.27 2.00 0.00 50.93 ≤74 PASS Peak 2500.000 -50.87 2.00 0.00 46.33 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -60.42 2.00 1.25 38.03 ≤54 PASS AV 2387.360 -58.7 2.00 1.25 39.75 ≤54 PASS AV 2390.000 -58.84 2.00 1.25 39.61 ≤54 PASS Peak 2310.000 -50.88 2.00 0.00 46.32 ≤74 PASS Peak 2389.180 -47.69 2.00 0.00 49.51 ≤74 PASS Peak 2390.000 -50.75 2.00 0.00 46.45 ≤74 PASS High 2462 AV 2483.500 -59.2 2.00 1.25 39.25 ≤54 PASS AV 2484.000 -58.2 2.00 1.25 40.25 ≤54 PASS 106 AV 2500.000 -59.6 2.00 1.25 38.85 ≤54 PASS Peak 2483.500 -51.28 2.00 0.00 45.92 ≤74 PASS Peak 2483.890 -48.66 2.00 0.00 48.54 ≤74 PASS Peak 2500.000 -50.61 2.00 0.00 46.59 ≤74 PASS 11N2 0SIS O Ant1 Low 2412 AV 2310.000 -59.9 2.00 1.06 38.36 ≤54 PASS AV 2389.960 -58.31 2.00 1.06 39.95 ≤54 PASS AV 2390.000 -58.32 2.00 1.06 39.94 ≤54 PASS Peak 2310.000 -52.64 2.00 0.00 44.56 ≤74 PASS Peak 2311.570 -47.93 2.00 0.00 49.27 ≤74 PASS Peak 2390.000 -51.28 2.00 0.00 45.92 ≤74 PASS High 2462 AV 2483.500 -58.75 2.00 1.06 39.51 ≤54 PASS AV 2488.620 -58.41 2.00 1.06 39.85 ≤54 PASS AV 2500.000 -58.88 2.00 1.06 39.38 ≤54 PASS Peak 2483.500 -49.96 2.00 0.00 47.24 ≤74 PASS Peak 2487.630 -48.7 2.00 0.00 48.50 ≤74 PASS Peak 2500.000 -51.12 2.00 0.00 46.08 ≤74 PASS 11N4 0SIS O Ant1 Low 2422 AV 2310.000 -59.95 2.00 1.06 38.31 ≤54 PASS AV 2388.950 -57.43 2.00 1.06 40.83 ≤54 PASS AV 2390.000 -57.93 2.00 1.06 40.33 ≤54 PASS Peak 2310.000 -51.73 2.00 0.00 45.47 ≤74 PASS Peak 2367.350 -47.69 2.00 0.00 49.51 ≤74 PASS Peak 2390.000 -50.98 2.00 0.00 46.22 ≤74 PASS High 2452 AV 2483.500 -58.23 2.00 1.06 40.03 ≤54 PASS AV 2483.875 -57.65 2.00 1.06 40.61 ≤54 PASS AV 2500.000 -58.72 2.00 1.06 39.54 ≤54 PASS 107 Peak 2483.500 -50.45 2.00 0.00 46.75 ≤74 PASS Peak 2488.875 -48.13 2.00 0.00 49.07 ≤74 PASS Peak 2500.000 -50.4 2.00 0.00 46.80 ≤74 PASS Note： 3. The Antenna Gain is compensated in the graph. 4. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 108 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 109 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 110 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 111 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 112 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak 11N40SISO_Ant1_Low_2422_AV 113 11N40SISO_Ant1_Low_2422_Peak 11N40SISO_Ant1_High_2452_AV 114 11N40SISO_Ant1_High_2452_Peak

68 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 69 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 70 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 71 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 13.92 ≤30.00 PASS 2437 14.07 ≤30.00 PASS 2462 14.27 ≤30.00 PASS 11G Ant1 2412 14.22 ≤30.00 PASS 2437 14.41 ≤30.00 PASS 2462 14.56 ≤30.00 PASS 11N20SISO Ant1 2412 14.10 ≤30.00 PASS 2437 14.34 ≤30.00 PASS 2462 14.29 ≤30.00 PASS 11N40SISO Ant1 2422 14.45 ≤30.00 PASS 2437 14.81 ≤30.00 PASS 2452 14.60 ≤30.00 PASS 72 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -12.41 ≤8.00 PASS 2437 -12.31 ≤8.00 PASS 2462 -11.98 ≤8.00 PASS 11G Ant1 2412 -17.58 ≤8.00 PASS 2437 -17.76 ≤8.00 PASS 2462 -17.55 ≤8.00 PASS 11N20SISO Ant1 2412 -16.87 ≤8.00 PASS 2437 -16.39 ≤8.00 PASS 2462 -17.14 ≤8.00 PASS 11N40SISO Ant1 2422 -19.36 ≤8.00 PASS 2437 -18.93 ≤8.00 PASS 2452 -19.93 ≤8.00 PASS 73 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 74 11G_Ant1_2412 11G_Ant1_2437 75 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 76 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 77 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 78 Appendix E:Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 1.34 -48.81 ≤-18.66 PASS High 2462 1.79 -54.09 ≤-18.21 PASS 11G Ant1 Low 2412 -2.33 -33.32 ≤-22.33 PASS High 2462 -2.03 -57.2 ≤-22.03 PASS 11N20SISO Ant1 Low 2412 -2.31 -34.03 ≤-22.31 PASS High 2462 -2.07 -57.5 ≤-22.07 PASS 11N40SISO Ant1 Low 2422 -5.65 -33.43 ≤-25.65 PASS High 2452 -5.34 -56.44 ≤-25.34 PASS 79 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 80 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 81 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 82 83 Appendix F:Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 1.07 1.07 --- PASS 30~1000 1.07 -67.62 ≤-18.93 PASS 1000~26500 1.07 -55.99 ≤-18.93 PASS 2437 Reference 0.26 0.26 --- PASS 30~1000 0.26 -67.8 ≤-19.74 PASS 1000~26500 0.26 -55.35 ≤-19.74 PASS 2462 Reference 1.73 1.73 --- PASS 30~1000 1.73 -67.85 ≤-18.27 PASS 1000~26500 1.73 -54.88 ≤-18.27 PASS 11G Ant1 2412 Reference -2.92 -2.92 --- PASS 30~1000 -2.92 -68.06 ≤-22.92 PASS 1000~26500 -2.92 -55.74 ≤-22.92 PASS 2437 Reference -3.10 -3.10 --- PASS 30~1000 -3.10 -68.01 ≤-23.1 PASS 1000~26500 -3.10 -55.7 ≤-23.1 PASS 2462 Reference -2.37 -2.37 --- PASS 30~1000 -2.37 -67.96 ≤-22.37 PASS 1000~26500 -2.37 -55.58 ≤-22.37 PASS 11N20SISO Ant1 2412 Reference -2.99 -2.99 --- PASS 30~1000 -2.99 -68.11 ≤-22.99 PASS 1000~26500 -2.99 -55.35 ≤-22.99 PASS 2437 Reference -3.36 -3.36 --- PASS 30~1000 -3.36 -67.54 ≤-23.36 PASS 1000~26500 -3.36 -55.34 ≤-23.36 PASS 2462 Reference -2.43 -2.43 --- PASS 30~1000 -2.43 -67.43 ≤-22.43 PASS 1000~26500 -2.43 -55.73 ≤-22.43 PASS 11N40SISO Ant1 2422 Reference -6.16 -6.16 --- PASS 30~1000 -6.16 -67.12 ≤-26.16 PASS 1000~26500 -6.16 -55.32 ≤-26.16 PASS 2437 Reference -5.47 -5.47 --- PASS 30~1000 -5.47 -67.05 ≤-25.47 PASS 1000~26500 -5.47 -55.25 ≤-25.47 PASS 2452 Reference -5.82 -5.82 --- PASS 30~1000 -5.82 -68.26 ≤-25.82 PASS 1000~26500 -5.82 -55.09 ≤-25.82 PASS 84 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 85 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 86 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 87 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 88 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 89 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 90 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 91 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000 92 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 93 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 94 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 95 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 96 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 97 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 98 11N40SISO_Ant1_2452_1000~26500 99 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.35 8.40 99.40 0.03 0.12 2437 8.35 8.40 99.40 0.03 0.12 2462 8.34 8.39 99.40 0.03 0.12 11G Ant1 2412 0.15 0.20 75.00 1.25 6.67 2437 0.15 0.20 75.00 1.25 6.67 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant1 2412 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.23 78.26 1.06 5.56 2462 0.18 0.23 78.26 1.06 5.56 11N40SISO Ant1 2422 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.23 78.26 1.06 5.56 2452 0.18 0.23 78.26 1.06 5.56 100 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462

35 11N20SISO_Ant1_2412_1000~26500 11N20SISO_Ant1_2437_0~Reference 11N20SISO_Ant1_2437_30~1000 36 11N20SISO_Ant1_2437_1000~26500 11N20SISO_Ant1_2462_0~Reference 37 11N20SISO_Ant1_2462_30~1000 11N20SISO_Ant1_2462_1000~26500 11N40SISO_Ant1_2422_0~Reference 38 11N40SISO_Ant1_2422_30~1000 11N40SISO_Ant1_2422_1000~26500 39 11N40SISO_Ant1_2437_0~Reference 11N40SISO_Ant1_2437_30~1000 11N40SISO_Ant1_2437_1000~26500 40 11N40SISO_Ant1_2452_0~Reference 11N40SISO_Ant1_2452_30~1000 41 11N40SISO_Ant1_2452_1000~26500 42 Appendix G: Duty Cycle Test Result TestMode Antenna Frequency[MHz] Transmission Duration [ms] Transmission Period [ms] Duty Cycle [%] DC Factor [dB] T Factor [dB] 11B Ant1 2412 8.35 8.39 99.52 0.02 0.12 2437 8.35 8.40 99.40 0.03 0.12 2462 8.36 8.40 99.52 0.02 0.12 11G Ant1 2412 0.14 0.19 73.68 1.33 7.14 2437 0.15 0.19 78.95 1.03 6.67 2462 0.15 0.20 75.00 1.25 6.67 11N20SISO Ant1 2412 0.18 0.22 81.82 0.87 5.56 2437 0.17 0.22 77.27 1.12 5.88 2462 0.18 0.22 81.82 0.87 5.56 11N40SISO Ant1 2422 0.18 0.23 78.26 1.06 5.56 2437 0.18 0.23 78.26 1.06 5.56 2452 0.18 0.23 78.26 1.06 5.56 43 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 44 11G_Ant1_2412 11G_Ant1_2437 45 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 46 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 47 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 48 Appendix H:Emissions in Restricted Bands Test Result TestM ode Antenn a ChNa me Frequency[ MHz] Detector Freq [MHz] Result [dBm] Gain [dB] DC Factor [dB] Result [dBuV/m] Limit [dBuV/m] Verdict 11B Ant1 Low 2412 AV 2310.000 -59.83 2.00 0.02 37.39 ≤54 PASS AV 2386.450 -54.85 2.00 0.02 42.37 ≤54 PASS AV 2390.000 -57 2.00 0.02 40.22 ≤54 PASS Peak 2310.000 -51.35 2.00 0.00 45.85 ≤74 PASS Peak 2387.880 -46.53 2.00 0.00 50.67 ≤74 PASS Peak 2390.000 -49.06 2.00 0.00 48.14 ≤74 PASS High 2462 AV 2483.500 -56.12 2.00 0.02 41.10 ≤54 PASS AV 2488.180 -54.31 2.00 0.02 42.91 ≤54 PASS AV 2500.000 -58.52 2.00 0.02 38.70 ≤54 PASS Peak 2483.500 -48.43 2.00 0.00 48.77 ≤74 PASS Peak 2485.870 -46.63 2.00 0.00 50.57 ≤74 PASS Peak 2500.000 -51.23 2.00 0.00 45.97 ≤74 PASS 11G Ant1 Low 2412 AV 2310.000 -60.12 2.00 1.33 38.41 ≤54 PASS AV 2389.570 -58.51 2.00 1.33 40.02 ≤54 PASS AV 2390.000 -58.69 2.00 1.33 39.84 ≤54 PASS Peak 2310.000 -52.5 2.00 0.00 44.70 ≤74 PASS Peak 2373.580 -48.41 2.00 0.00 48.79 ≤74 PASS Peak 2390.000 -50.96 2.00 0.00 46.24 ≤74 PASS High 2462 AV 2483.500 -59 2.00 1.25 39.45 ≤54 PASS AV 2484.220 -58.36 2.00 1.25 40.09 ≤54 PASS AV 2500.000 -58.57 2.00 1.25 39.88 ≤54 PASS 49 Peak 2483.500 -51.57 2.00 0.00 45.63 ≤74 PASS Peak 2496.650 -48.15 2.00 0.00 49.05 ≤74 PASS Peak 2500.000 -51.04 2.00 0.00 46.16 ≤74 PASS 11N2 0SIS O Ant1 Low 2412 AV 2310.000 -59.65 2.00 0.87 38.42 ≤54 PASS AV 2389.180 -58.27 2.00 0.87 39.80 ≤54 PASS AV 2390.000 -59.07 2.00 0.87 39.00 ≤54 PASS Peak 2310.000 -51.71 2.00 0.00 45.49 ≤74 PASS Peak 2379.950 -48.28 2.00 0.00 48.92 ≤74 PASS Peak 2390.000 -50.66 2.00 0.00 46.54 ≤74 PASS High 2462 AV 2483.500 -58.73 2.00 0.87 39.34 ≤54 PASS AV 2486.200 -58.14 2.00 0.87 39.93 ≤54 PASS AV 2500.000 -59.25 2.00 0.87 38.82 ≤54 PASS Peak 2483.500 -51.1 2.00 0.00 46.10 ≤74 PASS Peak 2483.560 -48.11 2.00 0.00 49.09 ≤74 PASS Peak 2500.000 -51.92 2.00 0.00 45.28 ≤74 PASS 11N4 0SIS O Ant1 Low 2422 AV 2310.000 -60.12 2.00 1.06 38.14 ≤54 PASS AV 2389.850 -57.94 2.00 1.06 40.32 ≤54 PASS AV 2390.000 -58 2.00 1.06 40.26 ≤54 PASS Peak 2310.000 -50.54 2.00 0.00 46.66 ≤74 PASS Peak 2383.700 -47.3 2.00 0.00 49.90 ≤74 PASS Peak 2390.000 -49.82 2.00 0.00 47.38 ≤74 PASS High 2452 AV 2483.500 -57.96 2.00 1.06 40.30 ≤54 PASS AV 2484.125 -57.56 2.00 1.06 40.70 ≤54 PASS AV 2500.000 -59.12 2.00 1.06 39.14 ≤54 PASS Peak 2483.500 -50.45 2.00 0.00 46.75 ≤74 PASS Peak 2495.000 -47.76 2.00 0.00 49.44 ≤74 PASS 50 Peak 2500.000 -48.79 2.00 0.00 48.41 ≤74 PASS Note： 1. The Antenna Gain is compensated in the graph. 2. The limit in dBm for average detector is conversion from 54dBuV/m, according to 15.209(a). The limit in dBm for peak detector is 20dB above the limit of average detector in dBm. 51 Test Graphs 11B_Ant1_Low_2412_AV 11B_Ant1_Low_2412_Peak 11B_Ant1_High_2462_AV 52 11B_Ant1_High_2462_Peak 11G_Ant1_Low_2412_AV 53 11G_Ant1_Low_2412_Peak 11G_Ant1_High_2462_AV 11G_Ant1_High_2462_Peak 54 11N20SISO_Ant1_Low_2412_AV 11N20SISO_Ant1_Low_2412_Peak 55 11N20SISO_Ant1_High_2462_AV 11N20SISO_Ant1_High_2462_Peak 11N40SISO_Ant1_Low_2422_AV 56 11N40SISO_Ant1_Low_2422_Peak 11N40SISO_Ant1_High_2452_AV 57 11N40SISO_Ant1_High_2452_Peak 58 FCC Appendix RF Test Data for 2.4GWIFI Appendix RF Test Data for 2.4GWIFI Module 2 FCC ID : 2BHDZ-TL-WF501 Company : Dongguan Tianluo Electronic Technology Co.,Ltd EUT : wireless video door phone Model Number : TL-WF501 Report No. : CTA26050900602 Reviewed By : Eric Wang 59 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.240 2406.920 2417.160 0.5 PASS 2437 10.200 2431.920 2442.120 0.5 PASS 2462 10.200 2456.920 2467.120 0.5 PASS 11G Ant1 2412 15.920 2404.040 2419.960 0.5 PASS 2437 15.880 2429.080 2444.960 0.5 PASS 2462 15.720 2454.080 2469.800 0.5 PASS 11N20SISO Ant1 2412 16.600 2403.760 2420.360 0.5 PASS 2437 16.640 2428.480 2445.120 0.5 PASS 2462 16.280 2453.440 2469.720 0.5 PASS 11N40SISO Ant1 2422 35.360 2404.320 2439.680 0.5 PASS 2437 35.920 2419.160 2455.080 0.5 PASS 2452 35.440 2434.640 2470.080 0.5 PASS 60 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 61 11G_Ant1_2412 11G_Ant1_2437 62 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 63 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 64 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 65 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.406 2405.3262 2418.7322 --- --- 2437 13.386 2430.3231 2443.7091 --- --- 2462 13.420 2455.3019 2468.7219 --- --- 11G Ant1 2412 16.826 2403.6238 2420.4498 --- --- 2437 16.846 2428.6262 2445.4722 --- --- 2462 16.829 2453.5797…

Text truncated - open the document above for the full version.

1 FCC Appendix RF Test Data for 2.4GWIFI Appendix RF Test Data for 2.4GWIFI Module 1 FCC ID : 2BHDZ-TL-WF501 Company : Dongguan Tianluo Electronic Technology Co.,Ltd EUT : wireless video door phone Model Number : TL-WF501 Report No. : CTA26050900602 Reviewed By : Eric Wang 2 Appendix A: DTS Bandwidth Test Result TestMode Antenna Frequency[MHz] DTS BW [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 10.200 2406.920 2417.120 0.5 PASS 2437 10.200 2431.920 2442.120 0.5 PASS 2462 10.240 2456.920 2467.160 0.5 PASS 11G Ant1 2412 15.880 2403.960 2419.840 0.5 PASS 2437 15.760 2428.920 2444.680 0.5 PASS 2462 15.360 2454.360 2469.720 0.5 PASS 11N20SISO Ant1 2412 17.040 2403.520 2420.560 0.5 PASS 2437 16.880 2428.440 2445.320 0.5 PASS 2462 17.080 2453.560 2470.640 0.5 PASS 11N40SISO Ant1 2422 34.640 2404.720 2439.360 0.5 PASS 2437 36.240 2418.920 2455.160 0.5 PASS 2452 35.280 2434.560 2469.840 0.5 PASS 3 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 4 11G_Ant1_2412 11G_Ant1_2437 5 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 6 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 7 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 8 Appendix B: Occupied Channel Bandwidth Test Result TestMode Antenna Channel Frequency[MHz] OCB [MHz] FL[MHz] FH[MHz] Limit[MHz] Verdict 11B Ant1 2412 13.394 2405.3291 2418.7231 --- --- 2437 13.385 2430.3231 2443.7081 --- --- 2462 13.412 2455.3072 2468.7192 --- --- 11G Ant1 2412 16.852 2403.5893 2420.4413 --- --- 2437 16.758 2428.6438 2445.4018 --- --- 2462 16.886 2453.5525 2470.4385 --- --- 11N20SISO Ant1 2412 17.912 2403.0476 2420.9596 --- --- 2437 17.886 2428.0670 2445.9530 --- --- 2462 17.918 2453.0601 2470.9781 --- --- 11N40SISO Ant1 2422 36.007 2404.0993 2440.1063 --- --- 2437 36.058 2419.0940 2455.1520 --- --- 2452 36.002 2434.1128 2470.1148 --- --- 9 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 10 11G_Ant1_2412 11G_Ant1_2437 11 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 12 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 13 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 14 Appendix C: Maximum conducted output power Test Result Peak Test Mode Antenna Frequency[MHz] Peak power [dBm] Limit [dBm] Verdict 11B Ant1 2412 13.48 ≤30.00 PASS 2437 13.69 ≤30.00 PASS 2462 13.73 ≤30.00 PASS 11G Ant1 2412 14.44 ≤30.00 PASS 2437 14.59 ≤30.00 PASS 2462 14.61 ≤30.00 PASS 11N20SISO Ant1 2412 14.25 ≤30.00 PASS 2437 14.56 ≤30.00 PASS 2462 14.66 ≤30.00 PASS 11N40SISO Ant1 2422 14.62 ≤30.00 PASS 2437 14.93 ≤30.00 PASS 2452 14.93 ≤30.00 PASS 15 Appendix D: Maximum power spectral density Test Result TestMode Antenna Frequency[MHz] Result[dBm/3-100kHz] Limit[dBm/3kHz] Verdict 11B Ant1 2412 -12.28 ≤8.00 PASS 2437 -11.75 ≤8.00 PASS 2462 -12.35 ≤8.00 PASS 11G Ant1 2412 -17.53 ≤8.00 PASS 2437 -17.07 ≤8.00 PASS 2462 -16.17 ≤8.00 PASS 11N20SISO Ant1 2412 -16.70 ≤8.00 PASS 2437 -17.02 ≤8.00 PASS 2462 -16.73 ≤8.00 PASS 11N40SISO Ant1 2422 -20.68 ≤8.00 PASS 2437 -19.35 ≤8.00 PASS 2452 -19.14 ≤8.00 PASS 16 Test Graphs 11B_Ant1_2412 11B_Ant1_2437 11B_Ant1_2462 17 11G_Ant1_2412 11G_Ant1_2437 18 11G_Ant1_2462 11N20SISO_Ant1_2412 11N20SISO_Ant1_2437 19 11N20SISO_Ant1_2462 11N40SISO_Ant1_2422 20 11N40SISO_Ant1_2437 11N40SISO_Ant1_2452 21 Appendix E:Band edge measurements Test Result TestMode Antenna ChName Frequency[MHz] RefLevel[dBm] Result[dBm] Limit[dBm] Verdict 11B Ant1 Low 2412 1.54 -45.92 ≤-18.46 PASS High 2462 1.79 -55.08 ≤-18.21 PASS 11G Ant1 Low 2412 -2.08 -33.36 ≤-22.08 PASS High 2462 -1.82 -57.39 ≤-21.82 PASS 11N20SISO Ant1 Low 2412 -2.18 -33.93 ≤-22.18 PASS High 2462 -2.10 -57.49 ≤-22.1 PASS 11N40SISO Ant1 Low 2422 -5.42 -34.2 ≤-25.42 PASS High 2452 -5.15 -56.43 ≤-25.15 PASS 22 Test Graphs 11B_Ant1_Low_2412 11B_Ant1_High_2462 11G_Ant1_Low_2412 23 11G_Ant1_High_2462 11N20SISO_Ant1_Low_2412 24 11N20SISO_Ant1_High_2462 11N40SISO_Ant1_Low_2422 11N40SISO_Ant1_High_2452 25 26 Appendix F:Conducted Spurious Emission Test Result TestMode Antenna Frequency[MHz] FreqRange [Mhz] RefLevel [dBm] Result [dBm] Limit [dBm] Verdict 11B Ant1 2412 Reference 0.47 0.47 --- PASS 30~1000 0.47 -67.23 ≤-19.53 PASS 1000~26500 0.47 -55.08 ≤-19.53 PASS 2437 Reference 1.36 1.36 --- PASS 30~1000 1.36 -67.77 ≤-18.64 PASS 1000~26500 1.36 -55.46 ≤-18.64 PASS 2462 Reference 0.70 0.70 --- PASS 30~1000 0.70 -65.63 ≤-19.3 PASS 1000~26500 0.70 -55.55 ≤-19.3 PASS 11G Ant1 2412 Reference -2.75 -2.75 --- PASS 30~1000 -2.75 -67.9 ≤-22.75 PASS 1000~26500 -2.75 -55.43 ≤-22.75 PASS 2437 Reference -2.49 -2.49 --- PASS 30~1000 -2.49 -65.53 ≤-22.49 PASS 1000~26500 -2.49 -55.27 ≤-22.49 PASS 2462 Reference -2.21 -2.21 --- PASS 30~1000 -2.21 -68.09 ≤-22.21 PASS 1000~26500 -2.21 -55.07 ≤-22.21 PASS 11N20SISO Ant1 2412 Reference -2.30 -2.30 --- PASS 30~1000 -2.30 -52 ≤-22.3 PASS 1000~26500 -2.30 -55.62 ≤-22.3 PASS 2437 Reference -2.61 -2.61 --- PASS 30~1000 -2.61 -67.26 ≤-22.61 PASS 1000~26500 -2.61 -55.38 ≤-22.61 PASS 2462 Reference -2.28 -2.28 --- PASS 30~1000 -2.28 -67.63 ≤-22.28 PASS 1000~26500 -2.28 -55.94 ≤-22.28 PASS 11N40SISO Ant1 2422 Reference -6.18 -6.18 --- PASS 30~1000 -6.18 -67.59 ≤-26.18 PASS 1000~26500 -6.18 -56.03 ≤-26.18 PASS 2437 Reference -5.95 -5.95 --- PASS 30~1000 -5.95 -42.05 ≤-25.95 PASS 1000~26500 -5.95 -55.56 ≤-25.95 PASS 2452 Reference -5.28 -5.28 --- PASS 30~1000 -5.28 -67.4 ≤-25.28 PASS 1000~26500 -5.28 -55.67 ≤-25.28 PASS 27 Test Graphs 11B_Ant1_2412_0~Reference 11B_Ant1_2412_30~1000 11B_Ant1_2412_1000~26500 28 11B_Ant1_2437_0~Reference 11B_Ant1_2437_30~1000 29 11B_Ant1_2437_1000~26500 11B_Ant1_2462_0~Reference 11B_Ant1_2462_30~1000 30 11B_Ant1_2462_1000~26500 11G_Ant1_2412_0~Reference 31 11G_Ant1_2412_30~1000 11G_Ant1_2412_1000~26500 11G_Ant1_2437_0~Reference 32 11G_Ant1_2437_30~1000 11G_Ant1_2437_1000~26500 33 11G_Ant1_2462_0~Reference 11G_Ant1_2462_30~1000 11G_Ant1_2462_1000~26500 34 11N20SISO_Ant1_2412_0~Reference 11N20SISO_Ant1_2412_30~1000

Shenzhen CTA Testing Technology Co., Ltd. Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China FCC PART 15 SUBPART CTEST REPORT FCC PART 15.247 Report Reference No. .................... : FCC ID. ............................................ : CTA26050900602 2BHDZ-TL-WF501 Compiled by ( position+printedname+signature) .. : File administrators Zoey Cao Supervised by (position+printedname+signature) ... : Project Engineer Ace Chai Approved by (position+printedname+signature) ... : RF Manager Eric Wang Date of issue .................................... : May 23, 2026 Testing Laboratory Name ............. : Shenzhen CTA Testing Technology Co., Ltd. Address ............................................ : Room 106, Building 1, Yibaolai Industrial Park, Qiaotou Community, Fuhai Street, Bao’an District, Shenzhen, China Applicant’s name ........................... : Dongguan Tianluo Electronic Technology Co.,Ltd Address ............................................ : 201room, Block 4, Longchang Science Park No.26, Hantang Street, Dongcheng District, Dongguan,Guangdong, China Test specification ........................... : Standard .......................................... : FCC Part 15.247 TRF Originator ................................. : Shenzhen CTA Testing Technology Co., Ltd. Shenzhen CTA Testing Tec…
